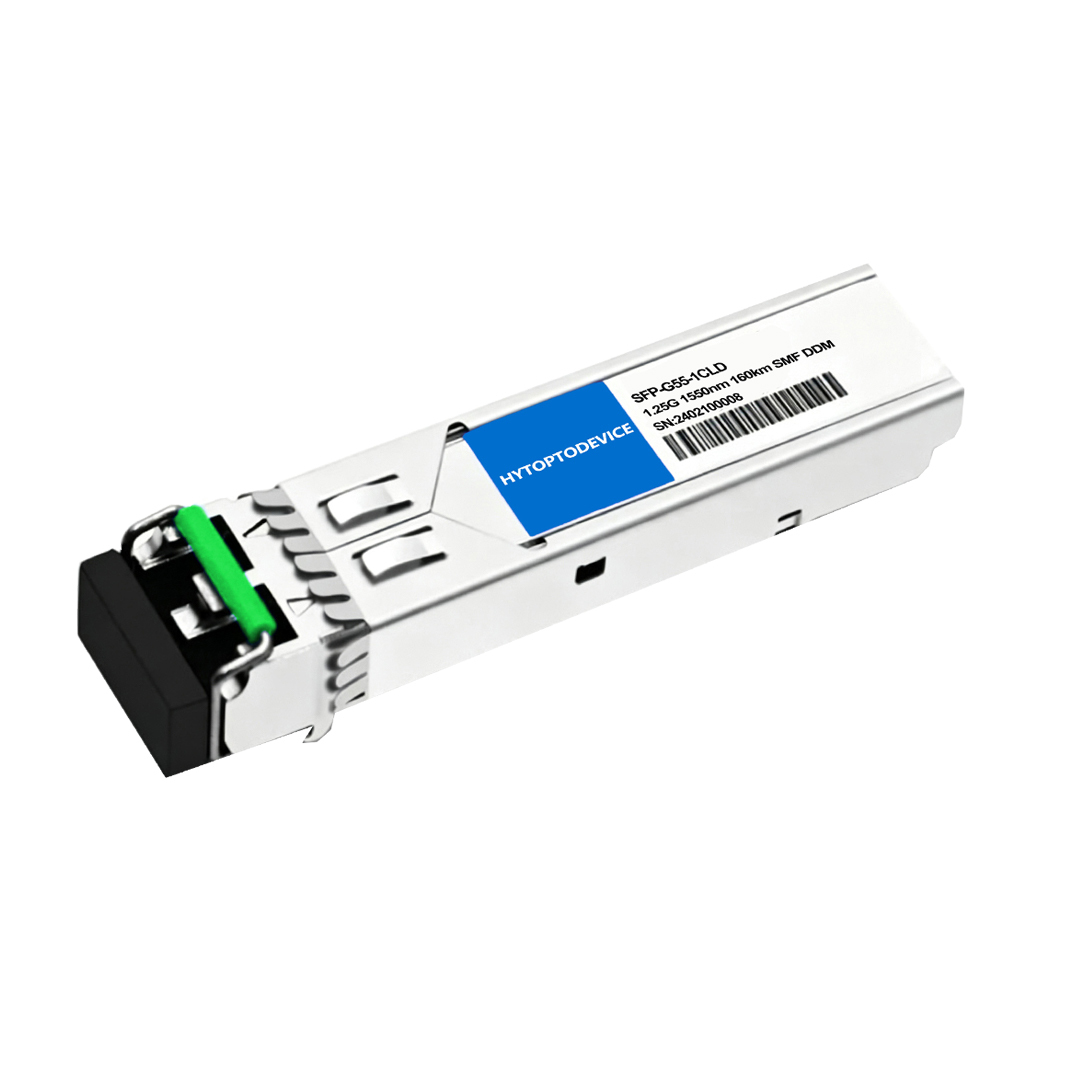

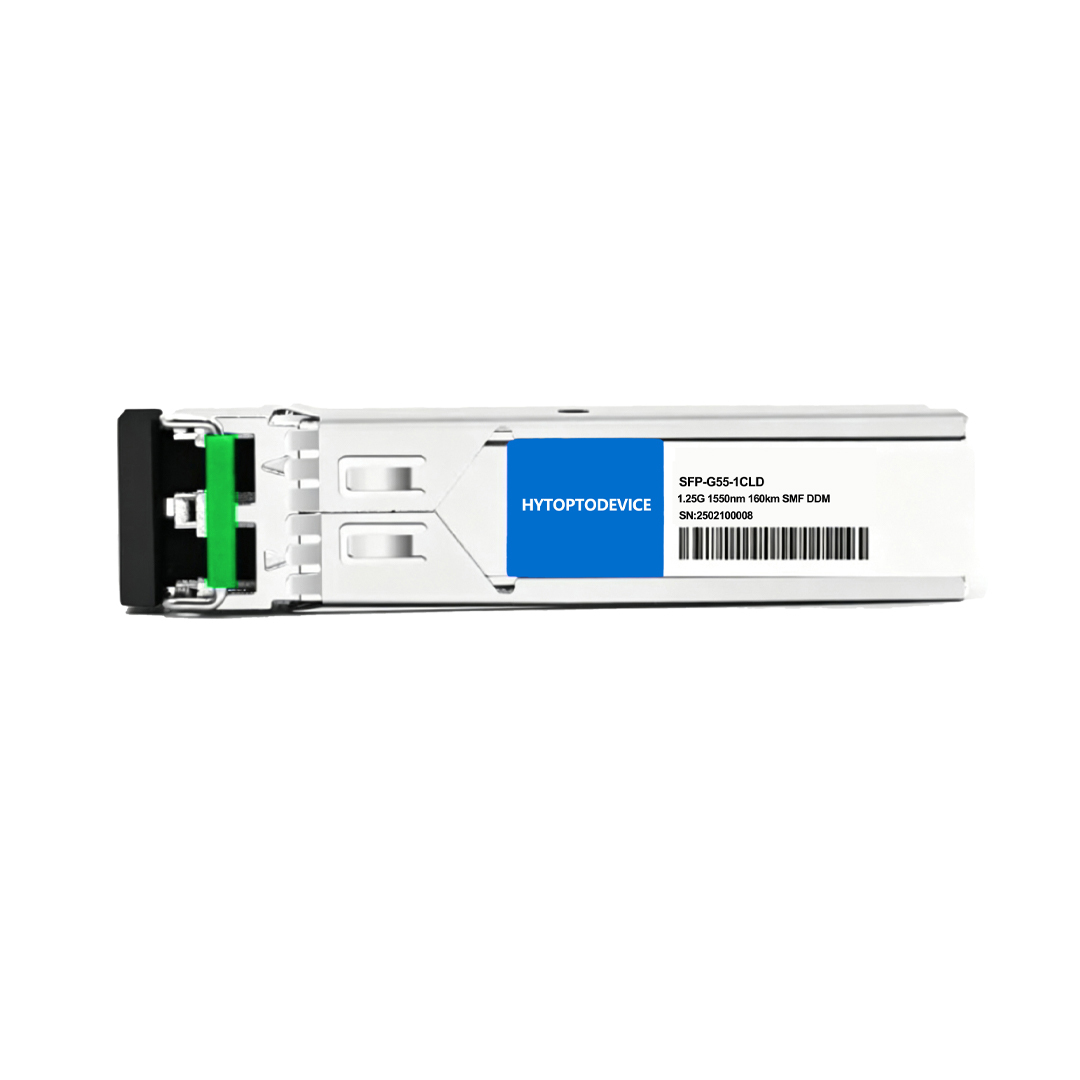

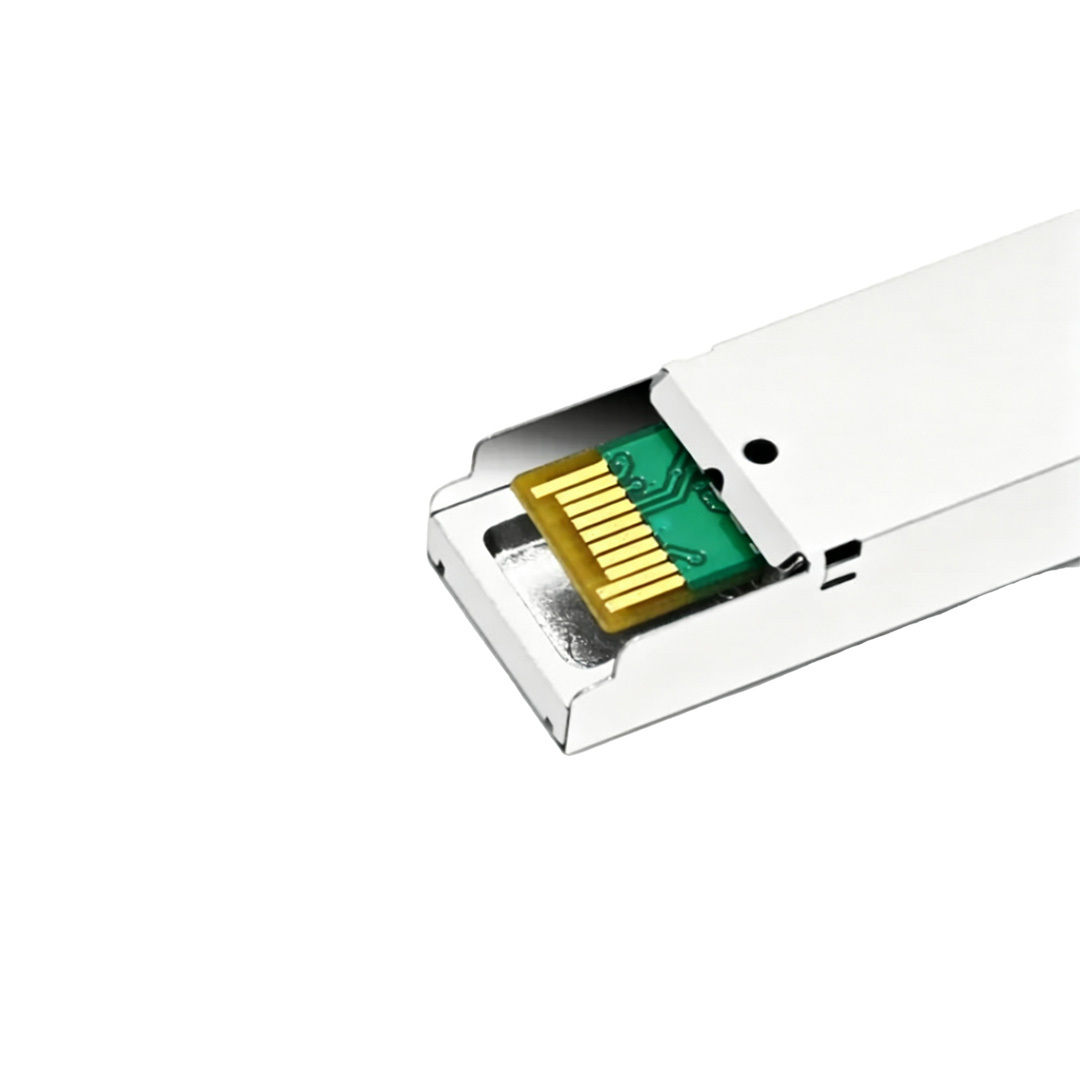

Brocade E1MG-ZXC-160 Compatible SFP Transceiver Module 1000BASE-ZXC | 1.25G 1550nm Single Mode, 160km Extended Ultra-Long Haul, Duplex LC, DOM Digital Diagnostics
Product Overview
HYTOPTODEVICE Brocade E1MG-ZXC-160 compatible SFP Transceiver Module is a fully factory-calibrated direct replacement for original Brocade E1MG-ZXC-160 gigabit optical hardware, complying with SFP MSA SFF-8431 & SFF-8472 international industry standards. This SFP Transceiver Module runs at steady 1.25Gbps data rate with premium 1550nm DFB laser chip and high-gain APD receiving diode, delivering stable 160km error-free transmission over G.652 and G.655 single-mode fiber via duplex LC UPC connector.

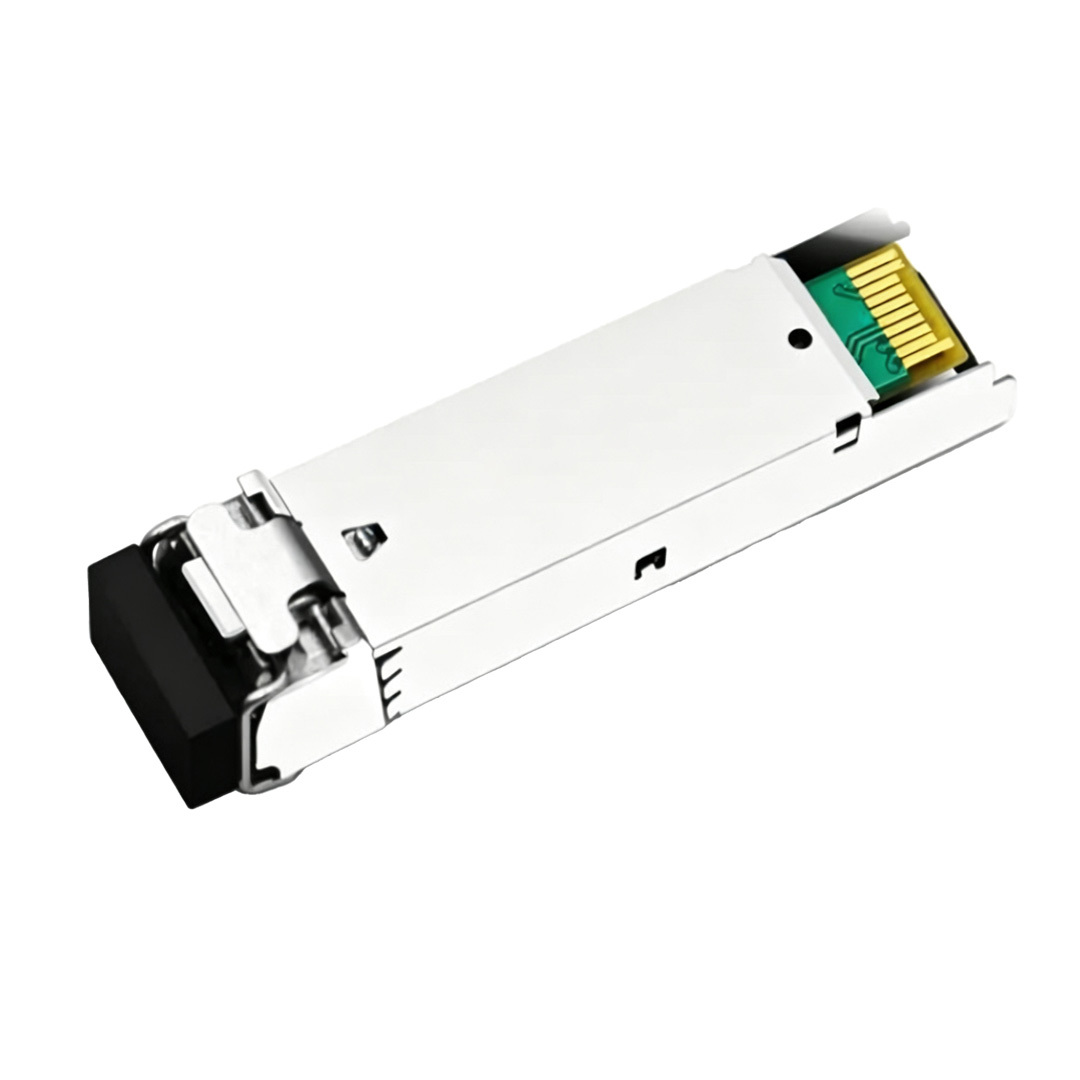

This extended long-distance gigabit SFP Transceiver Module integrates complete DOM digital diagnostic function to retrieve real-time operating parameters. Pre-flashed exclusive Brocade-matched EEPROM firmware eliminates unrecognized transceiver error alerts on Brocade SAN switches and routing equipment. Low power design below 1W with full metal shielding for superior EMI interference resistance, perfectly suited for metro telecom trunk construction, cross-regional enterprise private line layout and remote industrial park long-distance fiber data backhaul projects.
Key Product Parameters
This Brocade E1MG-ZXC-160 compatible SFP Transceiver Module undergoes dedicated 1550nm wavelength precision calibration, full 160km link budget aging test, wide temperature cycle screening and multi-brand compatibility verification. Every finished SFP Transceiver Module passes comprehensive photoelectric performance testing to minimize chromatic dispersion loss during ultra-long-distance signal transmission. Standard hot-pluggable SFP form factor supports online hot swap without shutting down host network devices.
| Brocade Compatible |
E1MG-ZXC-160 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
1550nm |
Max Distance |
160km |
| Connector |
Duplex LC |
Transmitter Type |
1550nm DFB |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
1~+5dBm |
Receiver Sensitivity |
< -36.0dBm |
| Protocols |
SFF-8431, SFF-8472 MSA, IEEE 802.3 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Laser Safety
Always wear an ESD wristband when handling this 160km Brocade E1MG-ZXC-160 compatible SFP Transceiver Module, and never look directly into powered optical ports to avoid permanent eye damage. Before connecting the fiber to the RX port of this extended long haul SFP Transceiver Module, always measure the input power with an optical power meter; for short spans under 20km or loopback testing, you must install a 10dB–20dB fixed optical attenuator to prevent burning out the highly sensitive APD receiver inside the gigabit SFP Transceiver Module. Keep dust caps on when the module is idle, and clean all fiber connectors and ports before insertion to prevent extra signal loss of the ultra long reach SFP Transceiver Module. Lastly, ensure host device ventilation to handle the higher heat output of the 160km SFP Transceiver Module, and regularly monitor DDM metrics (power, temperature) via NMS to ensure stable long-distance transmission operation.
When the long-distance sfp transceiver module is used in short distance transmission, please match it with the appropriate attenuator according to the table.
Full Compatibility List & Supported Network Hardware
1. Native Brocade Networks Compatibility
This Brocade E1MG-ZXC-160 compatible SFP Transceiver Module is factory preloaded with Brocade-matched EEPROM firmware, delivering native plug-and-play recognition, zero error alarms and full DOM data display on all mainstream Brocade SAN switching and aggregation devices. No manual command unlocking or configuration adjustments required for stable carrier-grade long-haul trunk deployment.
Compatible Brocade Device Models:
- Brocade 300 / 5100 / 6500 Series SAN Switches
- Brocade G610 / G620 / G630 / G650 Series Enterprise Switches
- Brocade VDX 6720 / VDX 6740 / VDX 8770 Data Center Switches
- Brocade ICX 6430 / ICX 6650 / ICX 7450 Campus Switches
- Brocade FastIron SX Series Legacy Enterprise Switches
2.Multi-Brand Cross Compatibility
This MSA-standardized SFP Transceiver Module supports universal cross-brand adaptation covering open-brand and locked-brand network hardware. Open-brand equipment runs plug-and-play under factory default settings; locked-brand hardware requires customized EEPROM firmware to bypass vendor authentication and realize alarm-free full-function operation.
- Open-Brand Compatibility: MikroTik, Ubiquiti, TP-Link, D-Link, Zyxel, Fortinet, Ruijie and other universal SFP-port network devices
- Locked-Brand Compatibility: Cisco, Arista, Juniper, H3C, Huawei, HP/Aruba, Dell, Brocade, Intel and other vendor-locked switch/router platforms (custom firmware required)
3. Free Custom EEPROM Re-Flash Service
We provide free EEPROM re-flash and firmware customization for bulk orders of this SFP Transceiver Module. Our technical team modifies vendor ID, private model names and DOM display data to eliminate vendor lock, customized for global importers and distributors. We support bulk wholesale, private label printing and OEM/ODM parameter configuration for system integrators worldwide.
Primary Application Scenarios
This Brocade E1MG-ZXC-160 compatible SFP Transceiver Module targets extended ultra-long-distance single-mode fiber transmission, widely deployed in core trunk networking scenarios:
- Metro Telecom Trunk Transmission: Connect cross-city communication core nodes with 160km long-distance fiber trunk links
- Cross-Regional Enterprise Private Line Deployment: Build stable gigabit dedicated links connecting headquarters and remote branch campuses across wide fiber spans
- Remote Industrial & Mining Site Interconnection: Adapt to outdoor long-distance fiber laying for isolated industrial site data backhaul transmission
- Rural Broadband Extended Access: Expand fiber coverage to remote villages far away from central computer rooms
- Long-Distance Wireless Base Station Backhaul: Transmit gigabit service signals for remote 4G/5G base station CPRI backhaul links
Connectivity Solutions(Applications)
1.1G to 1G Direct Switch-to-Switch Long-Haul Link
Deploy a pair of HYTOPTODEVICE E1MG-ZXC-160 compatible SFP Transceiver Module on two core Brocade switches, connected via duplex single-mode fiber to build stable full-duplex 1G long-distance inter-switch links. Suitable for cross-city core cabinet interconnection and cross-campus long-distance SAN networking, supporting error-free 160km transmission without signal amplification equipment.
2.1G to 1G Switch-to-Media Converter Long-Distance Link
Deploy a pair of HYTOPTODEVICE E1MG-ZXC-160 compatible SFP Transceiver Module on two core Brocade switches, connected via duplex single-mode fiber to build stable full-duplex 1G long-distance inter-switch links. Suitable for cross-city core cabinet interconnection and cross-campus long-distance SAN networking, supporting error-free 160km transmission without signal amplification equipment.
3.1G Full-Spectrum Structured Cabling System
Build a complete 1G structured cabling system with core Brocade switches fitted with this SFP Transceiver Module, fiber distribution frames and patch cords. Single-mode trunk fibers extend to multiple remote branches for flexible expansion and centralized network management, ideal for industrial parks, multi-branch group enterprises and rural long-distance fiber networking construction.
FAQ
Q1: Can HYTOPTODEVICE Brocade E1MG-ZXC-160 SFP Transceiver Module achieve full 160km transmission distance over standard G.652 single mode fiber?
A1: The labeled 160km transmission range of our Brocade-compatible SFP Transceiver Module is a nominal theoretical value calculated based on standard 0.19–0.20 dB/km fiber attenuation rate. Stable full-distance transmission cannot be guaranteed under all on-site fiber conditions. Poor fiber quality or multiple splicing joints with accumulated extra loss will shorten the actual effective transmission range; professional link budget calculation is required before formal deployment.
Q2: Why will my Brocade switch trigger Rx Power Low alarm when only deploying this 160km SFP Transceiver Module for 130km fiber links?
A2: The low received power warning generated by this gigabit extended long haul SFP Transceiver Module is mostly caused by multiple high-loss factors along the fiber route, including defective fiber patch cords, contaminated connector end faces, severe fiber bending or long-term fiber aging that brings extra signal attenuation loss.
Q3: Is HYTOPTODEVICE 160km SFP Transceiver Module compatible with G.655 NZDSF non-zero dispersion shifted fiber?
A3: Our Brocade replacement SFP Transceiver Module delivers fully compatible performance on G.655 fiber. Compared with conventional G.652 fiber, G.655 material generates lower dispersion interference at 1550nm wavelength, which effectively reduces long-distance dispersion penalties and delivers more consistent transmission performance for ultra-long haul trunk links.
Q4: Will deploying third-party programmed SFP Transceiver Module void the warranty of my Brocade SAN switch?
A4: According to regulations such as the US Magnuson-Moss Warranty Act, using our aftermarket 160km SFP Transceiver Module will not legally invalidate your host switch warranty. Some original equipment vendors may require removing third-party optical modules before troubleshooting line card hardware faults.
Q5: Do 160km extended long haul SFP Transceiver Module consume more power than standard 10km short-range gigabit SFP optical hardware?
A5: Yes, power consumption of this 160km SFP Transceiver Module is significantly higher than short-range modules. It is equipped with high-output DFB laser and built-in temperature control circuits, with total power draw ranging from 1.5W to 2.0W, while regular 10km short-haul SFP Transceiver Module only consumes less than 1W of operating power.

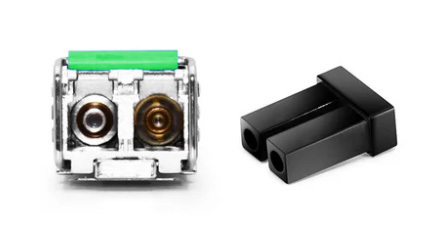

Q6: What fiber connector interface is equipped on this Brocade-compatible 160km SFP Transceiver Module?
A6: This 1.25G extended long haul SFP Transceiver Module adopts universal duplex LC connector, which is the unified standard industry interface for all 1000BASE-ZXC 160km single mode optical modules, matching seamlessly with mainstream fiber patch cords and fiber distribution frames.
Q7: What is the standard MTBF service life of HYTOPTODEVICE 1.25G 160km SFP Transceiver Module?
A7: Our high-grade Brocade E1MG-ZXC-160 replacement SFP Transceiver Module features an MTBF value ranging from 100,000 to 500,000 hours, equivalent to 11 to 57 years of theoretical continuous runtime. The actual usable service life is heavily affected by the sustained operating temperature of the module.
Q8: Is the 1.25G bandwidth of this 160km SFP Transceiver Module suitable for modern long-distance trunk backhaul networks?
A8: This gigabit SFP Transceiver Module serves as an ideal transmission solution for legacy utility communication, railway signal control, oil & gas pipeline monitoring and remote rural IoT backhaul services. However, its fixed 1.25G bandwidth lacks sufficient capacity to support large-scale modern broadband aggregation trunk links.
Q9: What troubleshooting steps should operators prioritize when the switch port shows LOS Loss of Signal alarm with this 160km SFP Transceiver Module?
A9: When LOS failure alert appears on ports equipped with our long haul SFP Transceiver Module, first thoroughly clean all fiber connector end faces, confirm the transmitting laser of the remote-end module is powered on normally, and utilize an OTDR testing tool to inspect the fiber trunk for hidden physical breakpoints or severe damage.
Q10: Does hot swapping this 160km SFP Transceiver Module work while the Brocade SAN switch remains powered on?
A10: This MSA-compliant SFP Transceiver Module supports full hot-plug function, allowing online plug-and-play operation without shutting down the host Brocade switch. Operators must avoid direct eye contact with exposed optical ports during disassembly, as the high-power internal laser will cause irreversible retinal damage.
Q11: Is it safe to visually observe the invisible 1550nm laser light emitted from this ultra-long haul SFP Transceiver Module port?
A11: Direct eye exposure to the 1550nm optical port of this 160km SFP Transceiver Module poses severe safety risks. Although 1550nm infrared light cannot be perceived by human vision, the high transmit power of extended long-reach modules will lead to permanent retinal injury without immediate visible discomfort.
Q12: What factors trigger the high Tx Bias Current warning alert on Brocade E1MG-ZXC-160 SFP Transceiver Module?
A12: The high transmit bias current alarm indicates the internal laser driving chip of this SFP Transceiver Module operates under excessive load to maintain stable output optical power. This warning signal reminds maintenance staff that the built-in DFB laser component is gradually approaching the end of its usable service lifespan.
