| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | SFP-10G-SR | SFP-10G-SR(Alcatel) |
| 2 | Cisco | SFP-10G-SR-S | SFP-10G-LR |
| 3 | Cisco | SFP-10G-SR-X | SFP-10G-LRM |
| 4 | Cisco | SFP-10G-SR-I | SFP-10G-ER |
| 5 | Arista Networks | SFP-10G-SR | SFP-10G-ZR |
| 6 | Brocade | 10G-SFPP-SR | |
| 7 | Huawei | SFP-10G-USR | |
| 8 | HP Procurve | J9150A |
The Difference:SFP-10G-SR vs SFP-10G-SR-S vs SFP-10G-SR-X vs SFP-10G-SR-I
Key Technical Specifications
|

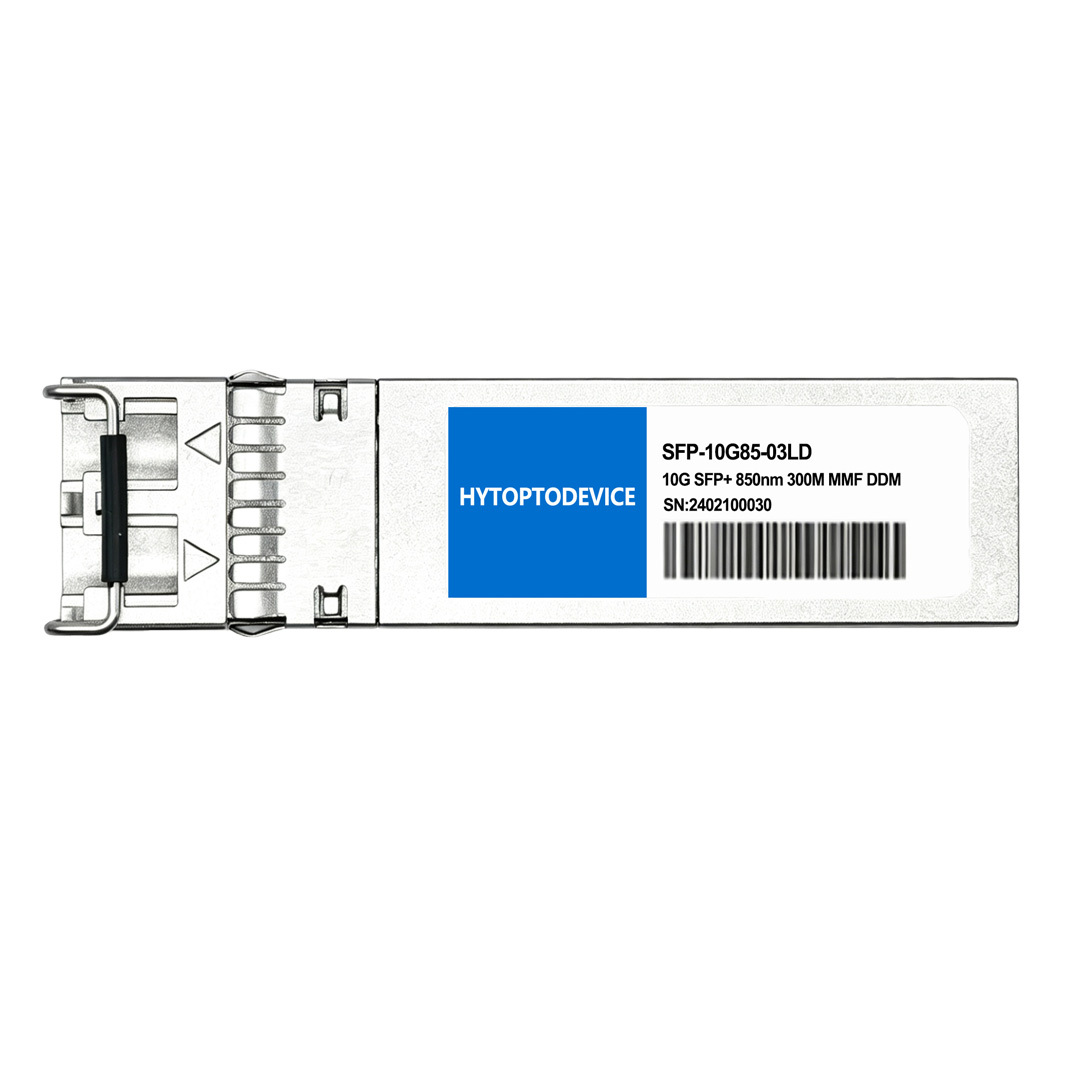

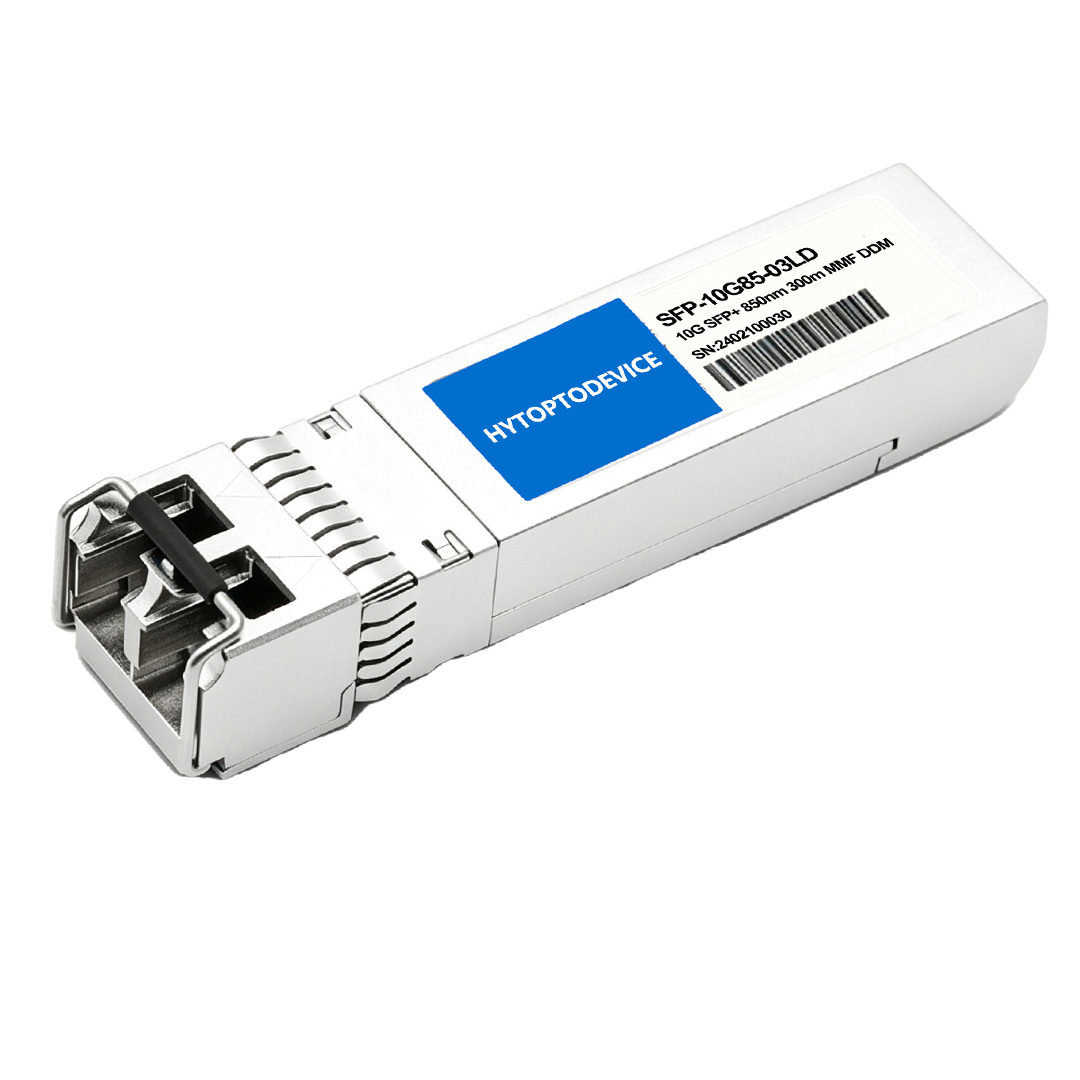

Cisco Compatible |
SFP-10G-SR |
Vendor Name |
HYTOPTODEVICE |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 850nm | Max Distance | 300m on OM3 |
| Connector | Duplex LC | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -10.5dBm |
| Power Consumption | ≤1W | Operation Temperature | 0 to 70°C (32 to 158°F) |
Usage Guidelines & Best Practices
Fiber Choice: Duplex LC Multimode Fiber (MMF) — OM3 / OM4 (50/125 µm). Do NOT use SMF.
Connector Match: UPC/PC polish only. Do NOT use APC.
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
Link Setup:Set speed to 10Gbps Full Duplex. Lock speed manually if auto-negotiation fails.
Handling: Wear ESD protection. Keep fiber bend radius ≥ 30 mm.
Installation & Hot-Swap Rules: MSA hot-swappable. Insert/remove gently without powering down.
Environment:Commercial grade (0°C to 70°C). Avoid extreme heat, moisture, and dust.
Full Compatibility List and Supported Devices
1. Supported Hardware & Firmware
Main Application Scenarios
• Short-range 10G fiber uplink for data center ToR switches

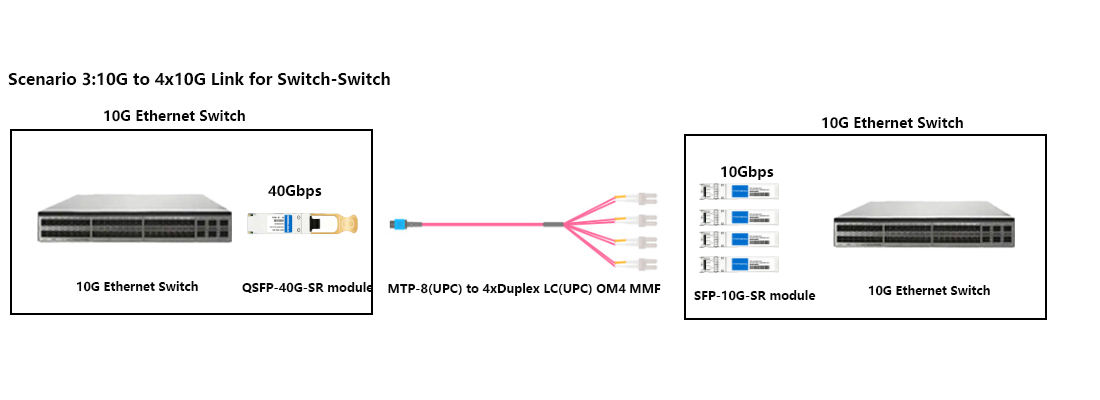

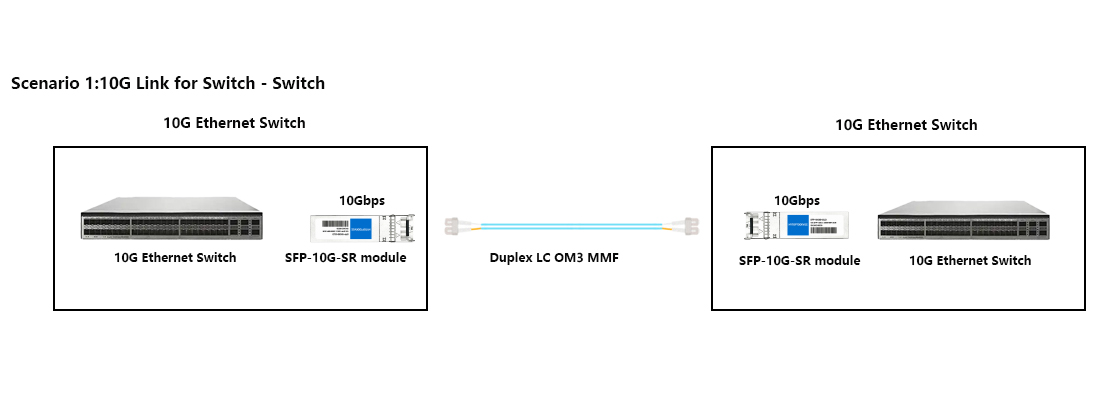

• Rack-to-rack interconnection inside data centers

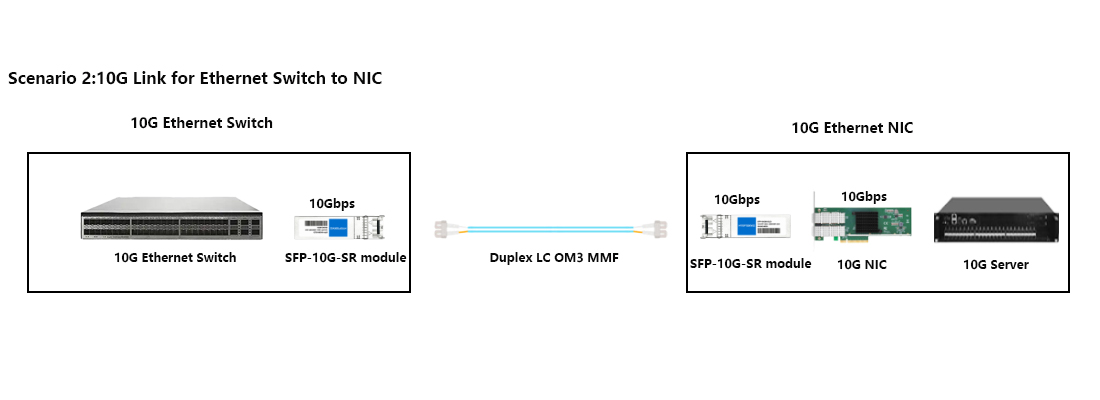

• Server to top-of-rack switch fiber links using cisco sfp-10g-sr transceiver module
• Low latency 10G SAN and virtualization networking
• Colocation and private cloud high-density 10G fabrics
• Bulk supply of cisco sfp-10g-sr transceiver module for global buyers, wholesalers, distributors and system integrators













FAQ
Q1: Will this SFP‑10G‑SR‑S module work with my specific switch brand (e.g., Cisco, Arista, Juniper, Dell) if I purchase from a professional Cisco SFP-10G-SR-S transceiver supplier?
A: YES. This SFP‑10G‑SR‑S follows MSA standards and has passed real‑machine validation for Cisco Nexus / Catalyst, Arista, Juniper and Dell PowerSwitch; Cisco platforms require S‑Class EEPROM profile while other brands use generic MSA firmware, select pre‑flashed Cisco S‑Class EEPROM version of HYTOPTODEVICE SFP‑10G‑SR‑S from our Cisco SFP-10G-SR-S transceiver supplier store, choose generic MSA build for other hardware, and provide exact switch model plus firmware version before ordering for pre‑adaptation.
Q2: Is SFP‑10G‑SR‑S backward compatible with 1G SFP‑SX transceivers when I order from a Cisco SFP-10G-SR-S transceiver supplier?
A: NO. It is only mechanically pluggable; SFP‑10G‑SR‑S runs at 10.3125Gbps versus 1.25Gbps for SFP‑SX with mismatched optical modulation and bit‑rate, deploy same‑speed transceivers on both link ends, use paired 1G SFP‑SX for 1G links, and note port auto‑negotiation cannot fix optical‑layer rate mismatch for SFP‑10G‑SR‑S links supplied by our Cisco SFP-10G-SR-S transceiver supplier.
Q3: Will third‑party SFP‑10G‑SR‑S modules from a Cisco SFP-10G-SR-S transceiver supplier void my equipment warranty?
A: NO. Most vendors do not void full device warranty merely for third‑party optics, though damages caused by the third‑party SFP‑10G‑SR‑S module itself are excluded from OEM coverage; switch hardware defects remain covered but port damage from incompatible optics may be rejected, use HYTOPTODEVICE validated SFP‑10G‑SR‑S modules from our Cisco SFP-10G-SR-S transceiver supplier, retain purchase records and remove third‑party optics before RMA, and request project test reports for strict enterprise compliance reviews.
Q4: How can I resolve the "unsupported transceiver" error on my switch for SFP‑10G‑SR‑S bought from a Cisco SFP-10G-SR-S transceiver supplier?
A: NOT RECOMMENDED to bypass via switch commands. Cisco S‑Class switches enforce strict EEPROM checks and CLI alarm‑masking only hides warnings with potential port instability risk, order pre‑programmed Cisco S‑Class EEPROM SFP‑10G‑SR‑S modules from HYTOPTODEVICE, a trusted Cisco SFP-10G-SR-S transceiver supplier, for native zero‑alarm operation, use alarm‑masking only for temporary lab testing, and upgrade switch firmware to official stable release to reduce SFP‑10G‑SR‑S identification failures.
Q5: Does this Cisco compatible SFP‑10G‑SR‑S transceiver from a Cisco SFP-10G-SR-S transceiver supplier support DOM / DDM (Digital Optical Monitoring)?
A: YES. It fully complies with SFF‑8472 specification and reads real‑time transmit power, receive power, module temperature and supply voltage with standard measurement accuracy, pull DDM metrics from switch CLI for proactive SFP‑10G‑SR‑S link health checks, configure optical‑power threshold alerts, and verify switch firmware supports SFF‑8472 if DDM data cannot be retrieved from this SFP‑10G‑SR‑S optic offered by our Cisco SFP-10G-SR-S transceiver supplier.
Q6: What type of fiber cable does SFP‑10G‑SR‑S require when sourced from a Cisco SFP-10G-SR-S transceiver supplier?
A: Multimode fiber ONLY. It reaches 300 m over OM3 MMF, 400 m over OM4 MMF; OM1 / OM2 delivers heavily reduced distance and is not recommended for 10GBASE‑SR with SFP‑10G‑SR‑S, deploy OM4 for new cabling or OM3 for existing infrastructure, maintain proper fiber bend radius, and never exceed rated distance to avoid high BER and link flapping on SFP‑10G‑SR‑S connections supplied by our Cisco SFP-10G-SR-S transceiver supplier.
Q7: Can I use Single‑Mode Fiber (SMF) with an SFP‑10G‑SR‑S module purchased from a Cisco SFP-10G-SR-S transceiver supplier?
A: NO. Its 850 nm VCSEL is designed for multimode fiber and suffers extreme signal attenuation over SMF with no usable optical signal, select 10GBASE‑LR SFP+ transceivers for single‑mode cabling environments, and avoid mode‑conversion patch cords which introduce random packet‑loss risks for SFP‑10G‑SR‑S links from our Cisco SFP-10G-SR-S transceiver supplier.
Q8: What laser wavelength does the SFP‑10G‑SR‑S from a Cisco SFP-10G-SR-S transceiver supplier operate on?
A: 850 nm. Center wavelength is 850 nm within 840‑860 nm window with Class 1 laser safety rating, deploy matching 850 nm SR‑series transceivers on both link ends paired with HYTOPTODEVICE SFP‑10G‑SR‑S, avoid direct eye exposure to open optical ports, and track transmit power via DDM to detect laser degradation of the SFP‑10G‑SR‑S module from our Cisco SFP-10G-SR-S transceiver supplier.
Q9: What optical connector interface does the SFP‑10G‑SR‑S from a Cisco SFP-10G-SR-S transceiver supplier use?
A: Duplex LC‑UPC. It features separated TX/RX channels with minimum 500 mating cycles, use matching LC‑UPC patch cords and do not mix APC end‑faces, clean fiber end‑faces before inserting the SFP‑10G‑SR‑S, and prevent reversed TX‑RX polarity which causes no‑link status for this transceiver provided by our Cisco SFP-10G-SR-S transceiver supplier.
Q10: Can SFP‑10G‑SR‑S from a Cisco SFP-10G-SR-S transceiver supplier support OM5 lime‑green fiber cabling?
A: YES. OM5 is backward‑compatible with 850 nm signals and the SFP‑10G‑SR‑S module max reach stays at 400 m (OM4 performance level), deploy this HYTOPTODEVICE SFP‑10G‑SR‑S transceiver directly onto OM5 cabling systems, and note OM5 provides benefits mainly for short‑wave WDM without extra distance gain for standard 10GBASE‑SR SFP‑10G‑SR‑S from our Cisco SFP-10G-SR-S transceiver supplier.
Q11: What is the maximum power consumption of an SFP‑10G‑SR‑S transceiver from a Cisco SFP-10G-SR-S transceiver supplier?
A: ≤1.0 W. This low‑power S‑Class optic draws maximum 1.0 W under full‑load traffic, plan thermal budget ≤1 W per port for high‑density full‑port deployment of SFP‑10G‑SR‑S, keep default switch fan profiles to avoid overheating, and watch module temperature via DDM for thermal anomaly alerts on the SFP‑10G‑SR‑S supplied by our Cisco SFP-10G-SR-S transceiver supplier.
Q12: What operating temperature ranges are available for SFP‑10G‑SR‑S when ordering via a Cisco SFP-10G-SR-S transceiver supplier?
A: Commercial grade 0 ℃ ~ +70 ℃ (stock); industrial grade ‑40 ℃ ~ +85 ℃ (custom‑order only). Commercial SFP‑10G‑SR‑S units fit standard indoor data‑center rooms, submit custom requests before bulk orders for outdoor or industrial cabinet usage, and keep commercial‑grade SFP‑10G‑SR‑S modules within rated temperature range to prevent higher BER and shortened laser life when buying from our Cisco SFP-10G-SR-S transceiver supplier.
Q13: Does SFP‑10G‑SR‑S from a Cisco SFP-10G-SR-S transceiver supplier support Bit Error Rate (BER) requirements for data centers?
A: YES. Factory‑tested BER ≤1×10⁻¹² and fully compliant with IEEE 802.3ae 10GBASE‑SR standards for SFP‑10G‑SR‑S, reserve adequate optical power budget during link design, keep receive power far above sensitivity threshold via DDM monitoring of the SFP‑10G‑SR‑S, and run long‑duration traffic burn‑in tests for project acceptance of HYTOPTODEVICE SFP‑10G‑SR‑S from our Cisco SFP-10G-SR-S transceiver supplier.
Q14: Can this SFP‑10G‑SR‑S module from a Cisco SFP-10G-SR-S transceiver supplier sustain full 10Gbps throughput bidirectionally?
A: YES. Both TX and RX channels run full 10.3125Gbps line‑rate; S‑Class profile supports Ethernet‑only and FCoE is NOT supported on this SFP‑10G‑SR‑S, force switch port speed to fixed 10G instead of relying on auto‑negotiation, execute bidirectional full‑rate traffic validation tests on the SFP‑10G‑SR‑S, and select non‑S‑Class SFP‑10G‑SR if you require FCoE storage‑traffic capability from your Cisco SFP-10G-SR-S transceiver supplier.
Q15: What happens if the receiver optical power drops below the threshold for SFP‑10G‑SR‑S sourced from a Cisco SFP-10G-SR-S transceiver supplier?
A: Link instability or link down will occur. Typical receive sensitivity ≤‑12.5 dBm; BER rises sharply once below this threshold and complete link failure may follow for the SFP‑10G‑SR‑S transceiver, continuously monitor Rx power with DDM on the SFP‑10G‑SR‑S, troubleshoot high fiber loss, dirty end‑faces, faulty patch cords or laser aging, clean connectors, replace jumpers, shorten distance or pick longer‑reach optics when total link loss exceeds budget for your SFP‑10G‑SR‑S deployment from our Cisco SFP-10G-SR-S transceiver supplier.
Packaging Options & Custom‑Packaging Solutions
Every 10G transceiver module gets reliable ESD‑safe packaging out of the box. Standard packing is ready for immediate shipment, while custom‑printed packaging with your logo is available for bulk orders.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
