HP J9150A Compatible SFP+ SR Transceiver Module | 850nm 300m MMF Bulk Wholesale | HYTOPTODEVICE
Product Overview
The HP SFP+ SR J9150A is a high-performance, MSA-compliant HP-compatible SFP+ optical transceiver. Featuring a hot-pluggable SFP+ form factor, it operates at a fixed 10Gbps line rate over a 850nm wavelength to transmit data, with a transmission distance up to 300m over OM3 multi-mode fiber (MMF) or 400m over OM4 MMF via a Duplex LC connector. With low-latency and low power consumption, this HPE X132 10G SFP+ LC SR compatible transceiver provides highly stable Internet Service Provider (ISP) 10 Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other high-speed optical links. Compliant with both the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae. DOM (Digital Optical Monitoring) supported.
Key Technical Specifications
|
HPE Compatible
|
J9150A
|
Vendor Name
|
HYTOPTODEVICE
|
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
850nm |
Max Distance |
300m on OM3 |
| Connector |
Duplex LC |
Transmitter Type |
VCSEL 850nm |
| Cable Type |
MMF |
Receiver Type |
PIN |
| TX Power |
-6.5~-0.5dBm |
Receiver Sensitivity |
< -10.5dBm |
| Power Consumption |
≤1W |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Duplex LC Multimode Fiber (MMF) — OM3 / OM4 (50/125 µm). Do NOT use SMF.
-
Connector Match: UPC/PC polish only. Do NOT use APC.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Link Setup:Set speed to 10Gbps Full Duplex. Lock speed manually if auto-negotiation fails.
-
Handling: Wear ESD protection. Keep fiber bend radius ≥ 30 mm.
-
Installation & Hot-Swap Rules: MSA hot-swappable. Insert/remove gently without powering down.
-
Environment: Commercial temperature (0°C to 70°C). Avoid extreme heat, moisture, and dust.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List and Supported Devices
1. Supported Hardware & Firmware
HYTOPTODEVICE SFP+ SR J9150A modules strictly follow HP J9150A official specification. Pre‑programmed HP‑certified EEPROM enables native plug‑and‑play. Every unit completes real‑machine enterprise‑platform testing to eliminate module unrecognition, negotiation failure and intermittent link flapping for stable out‑of‑box performance for in‑stock bulk orders and enterprise‑campus project procurement.
Validated HPE / Aruba ProCurve Platforms:
• Aruba 2930F / 2920 / 3810M Series Enterprise Switches
• HPE 5400R zl2, 6200 / 6300 / 6400 Switch Families
• HPE ProCurve 2530 / 2540 Series Access Switches
• All HPE networking hardware supporting SFP+ J9150A 10GBASE‑SR port profiles
2. Multi-Brand Cross Compatibility
Based on MSA standards, these transceivers work with Arista, Juniper, H3C, Huawei, NVIDIA/Mellanox. Supports multi‑vendor hybrid network and Cisco 40G‑to‑10G migration.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders
-
Complete test reports for project acceptance
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM Compatibility Re-flashing (Tools Included) with 24/7 Tech Support
Main Application Scenarios
• Short‑reach leaf‑spine inter‑switch links for HPE Aruba enterprise campus architectures
• 10G high‑speed access‑aggregation trunk expansion for HPE corporate networks, bulk project deployment
• 10G ToR switch uplinks for virtualization and general‑purpose server clusters
• Intra‑building campus 10G multimode‑fiber transmission for enterprise office buildings
• 40G‑to‑10G network migration via QSFP+ 4×10G breakout cables for wholesale enterprise network refresh projects
• Multi‑vendor hybrid enterprise infrastructure deployment for large‑quantity SFP+ SR J9150A purchase
Connectivity Solutions(Applications)

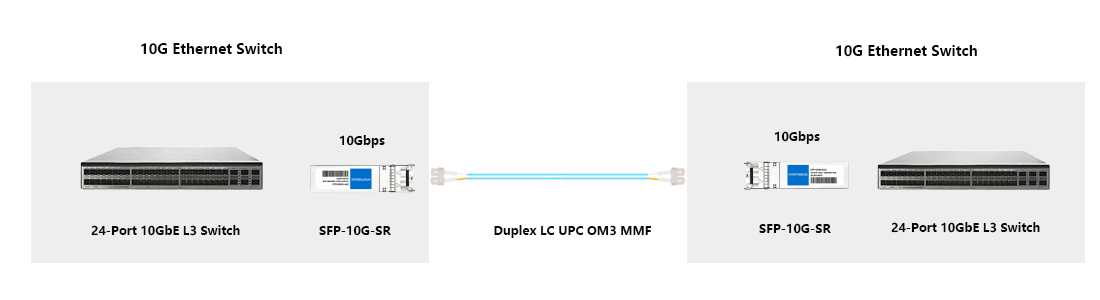

1.10GbE Switch-to-Switch Connectivity

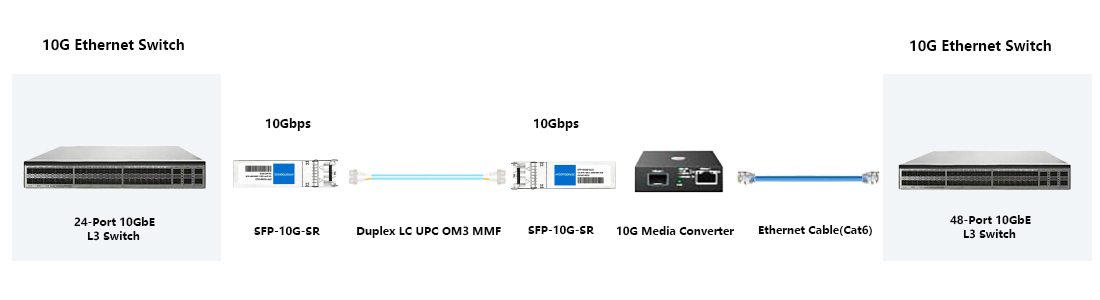

2.10GbE Switch to Media Converter Connectivity

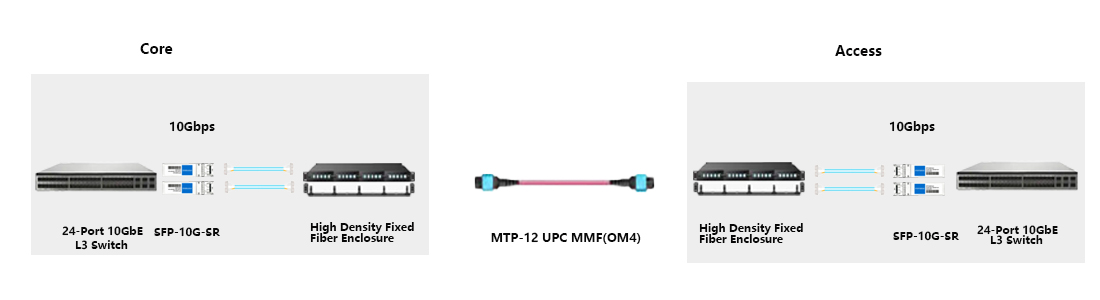

3.10GbE Structured Cabling Interconnect

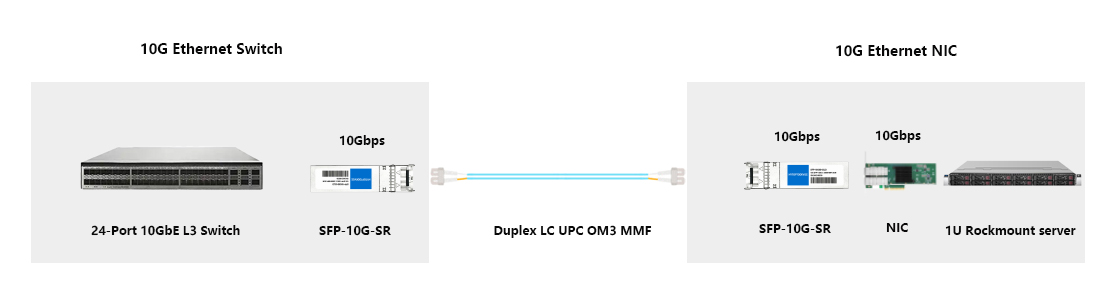

4.10GbE Switch-to-NIC Interconnection

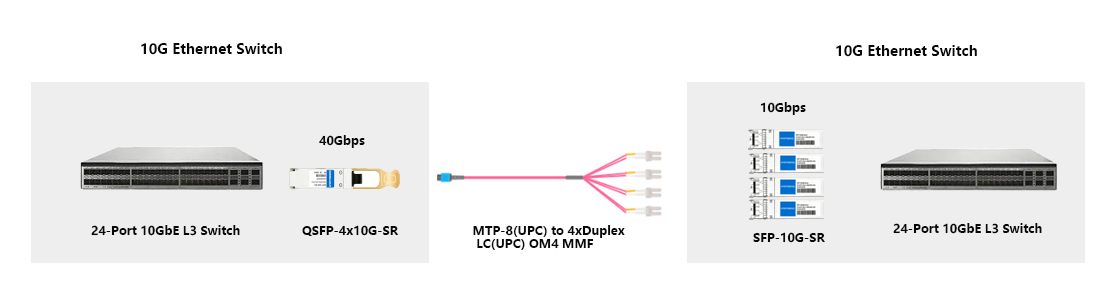

5.10G Switch-to-4x10G Switch Interconnection
The Core Feature
1. High-Density & Low-Power 10G Data Center Interconnect
Ultra-low 1W power and high-density design make upgrading your data center network to 10G quick and seamless..
2.Host-Tested Compatibility
Pre-tested on target switches for guaranteed seamless plug-and-play operation.
Compatibility Video available upon request.
3.100% Tested Performance
Individually tested for optical compliance and signal integrity to ensure stable, continuous operation. Take a virtual tour of our
Test Center to see our QA process in action.
4.Seamless 10G to 40G Upgrade
Upgrade individual sites to 40G while keeping seamless connectivity with existing 10G infrastructure.
FAQ for HP SFP+ SR J9150A
Q1: Will HP SFP+ SR J9150A compatible module for Aruba CX 6300 switch pop unsupported transceiver error?
A: Original J9150A will trigger error alerts on Aruba AOS-CX 6300/8325 switches, only J9150D works natively. Generic third-party modules require manual CLI commands. HYTOPTODEVICE customized HP SFP+ SR J9150A preloads exclusive Aruba EEPROM code to skip extra configuration on all CX switches.
Q2: Will HPE switch firmware update lock generic third party HP SFP+ SR J9150A transceivers?
A: Ordinary cloned J9150A often becomes unrecognizable after firmware upgrades due to outdated coding. Genuine HPE modules keep basic compatibility but carry high prices. HYTOPTODEVICE HP SFP+ SR J9150A passes full real-machine firmware compatibility tests, no lockout risk after any system update.
Q3: Are cross brand HP SFP+ SR J9150A modules usable on Fortinet Ubiquiti MikroTik Cisco Juniper Dell Arista switches?
A: Modules work perfectly on Fortinet, Ubiquiti, Mikrotik, D-Link and Extreme Networks without extra setup. They will be blocked on Cisco, new Aruba CX, Juniper, Dell, Intel, H3C and Arista switches; you need to re-flash the module with matching brand firmware for normal operation. HYTOPTODEVICE provides custom re-flash service for HP SFP+ SR J9150A to match Cisco, Juniper, Intel and other blocked-brand devices.
Q4: Why brand new HP SFP+ SR J9150A inserted into SFP port shows no link light and zero signal?
A: HP SFP+ SR J9150A is dedicated 10G SFP+ hardware, cannot run on 1G-only SFP slots and will not power on. HYTOPTODEVICE clearly marks 10G SFP+ parameters on each module and provides a deployment checklist to prevent slot mismatch failures.
Q5: How to tell counterfeit HP SFP+ SR J9150A optical transceivers purchased from online suppliers?
A: Fake J9150A have fake labels, messy PCB and inconsistent EEPROM data, while genuine HPE modules come with official hologram tags. All HYTOPTODEVICE HP SFP+ SR J9150A are equipped with complete test reports and traceable batch records, free of counterfeit risks for enterprise bulk orders.
Q6: Why received scratched HP SFP+ SR J9150A which vendors claim to be brand new unused stock?
A: J9150A has been officially EOL, genuine factory-sealed new stock is extremely scarce, most market goods are repackaged second-hand pulled modules. Every HYTOPTODEVICE HP SFP+ SR J9150A is newly produced in factory, no refurbished or used goods mixed in shipments.
Q7: Does discontinued HP SFP+ SR J9150A still enjoy valid HPE limited lifetime warranty?
A: HPE’s lifetime warranty only covers J9150A bought from authorized distributors; goods from secondary channels lose warranty qualification. HYTOPTODEVICE provides multi-year warranty and lifelong professional technical support for all HP SFP+ SR J9150A compatible modules.
Q8: Where to get professional technical troubleshooting support for end of life HP SFP+ SR J9150A transceivers?
A: HPE official engineering support for J9150A has stopped, engineers will suggest upgrading to J9150D when complex faults occur. HYTOPTODEVICE owns a dedicated technical team for legacy J9150A and offers free remote fault diagnosis for bulk clients.
Q9: What cost saving third party alternative can replace expensive original HPE HP SFP+ SR J9150A optics?
A: Official HPE transceivers have huge brand markup, bringing heavy budget pressure for large-scale 10G port layout. HYTOPTODEVICE HP SFP+ SR J9150A cuts procurement cost over 70% while keeping the same transmission performance as original modules.
Q10: Why the price of EOL HP SFP+ SR J9150A is higher than upgraded J9150D replacement optical modules?
A: Many legacy data centers must use exact J9150A part number to meet compliance standards, scarce original stock pushes up market prices. HYTOPTODEVICE mass produces stable compatible J9150A with sufficient inventory and fixed low unit price without scarcity premium.
Q11: What budget friendly bulk procurement plan for 50 port 10G multimode HP SFP+ SR J9150A deployment?
A: Buying 50pcs original HPE J9150A will waste massive IT budget, many enterprises take risks on unstable cheap clones. HYTOPTODEVICE launches tiered bulk discounts for HP SFP+ SR J9150A, balancing cost control and stable enterprise network operation.
Q12: Why HP SFP+ SR J9150A cannot reach rated 300m distance when connected with old OM1 OM2 multimode fiber?
A: The 300m transmission distance standard only applies to OM3/OM4 fiber; old OM1/OM2 orange fiber limits stable transmission to 33-82 meters. HYTOPTODEVICE attaches fiber matching specification sheets with every shipment to guide correct cabling design.
Q13: Can 850nm HP SFP+ SR J9150A multimode transceiver be matched with yellow single mode fiber patch cords?
A: It cannot work normally at all. J9150A’s 850nm wavelength only fits multimode fiber, single-mode connection leads to total signal loss and link disconnection. Each HYTOPTODEVICE J9150A package prints obvious fiber type reminders to avoid mode mismatch.
Q14: What causes random packet loss and frequent port link flapping on aged server room HP SFP+ SR J9150A?
A: Long-term continuous operation ages internal laser chips, reduces transmit power and triggers unstable links. HYTOPTODEVICE HP SFP+ SR J9150A adopts high-grade industrial lasers and passes 72-hour continuous burn-in testing before delivery.
Q15: What are the differences in heat generation and power consumption between HP SFP+ SR J9150A and J9150D modules?
A: J9150A uses outdated chip architecture with higher power consumption and heat output, which is unsafe for dense high-temperature cabinets. HYTOPTODEVICE optimized HP SFP+ SR J9150A generates less heat and adapts to high-density data center rack deployment.
Q16: Why there is severe global stock shortage when bulk ordering 20 units original HP SFP+ SR J9150A transceivers?
A: Official J9150A production has been suspended for years, market supply only relies on second-hand brokers and surplus inventory with unstable stock levels. HYTOPTODEVICE keeps permanent finished goods stock of HP SFP+ SR J9150A, supporting instant bulk delivery of 20/50/100+ pieces.
Q17: What is the distinction between HP SFP+ SR J9150A marketing SKU and spare part J9150-61001 during procurement audit?
A: HPE sets separate marketing SKU J9150A and spare part J9150-61001, easily causing confusion during purchasing and warehouse auditing. HYTOPTODEVICE uniformly marks all compatible goods with standard HP SFP+ SR J9150A part number for simple inventory management.
Q18: Why sourcing replacement EOL HP SFP+ SR J9150A optical modules faces extremely long delivery lead time?
A: Suppliers need to source discontinued J9150A from third-party brokers instead of regular distribution warehouses, leading to weeks of waiting. HYTOPTODEVICE local warehouses stock full series HP SFP+ SR J9150A compatible modules with fast global shipping and short lead times.
Q19: Why cheap clone HP SFP+ SR J9150A cannot support DOM DDM real-time optical signal monitoring function?
A: Genuine HPE J9150A supports complete DDM/DOM monitoring, while low-cost counterfeits remove this function to cut costs and block remote light power inspection. All HYTOPTODEVICE HP SFP+ SR J9150A fully support full DDM monitoring for daily network maintenance.
Q20: How to safely take out HP SFP+ SR J9150A locked inside switch SFP+ slot with broken pull tab latch?
A: Long-term high cabinet temperature makes J9150A plastic pull tabs brittle and easy to break during maintenance, trapping modules in slots. HYTOPTODEVICE HP SFP+ SR J9150A uses heat-resistant reinforced pull tab material to effectively prevent latch breakage.
Packaging & Custom OEM Solutions
Every 10G SFP+ module comes individually sealed in standard anti-static (ESD-safe) packaging, pre-stocked and ready for immediate shipment. For bulk orders, we offer custom OEM packaging—including logo printing and private labeling—tailored for network distributors, system integrators, and enterprise deployments.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
