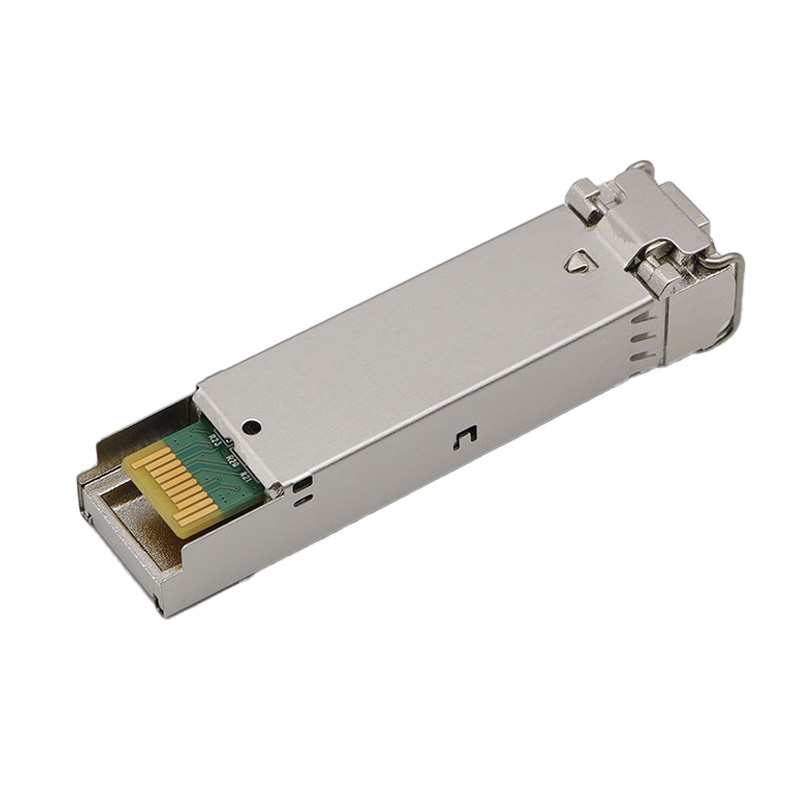

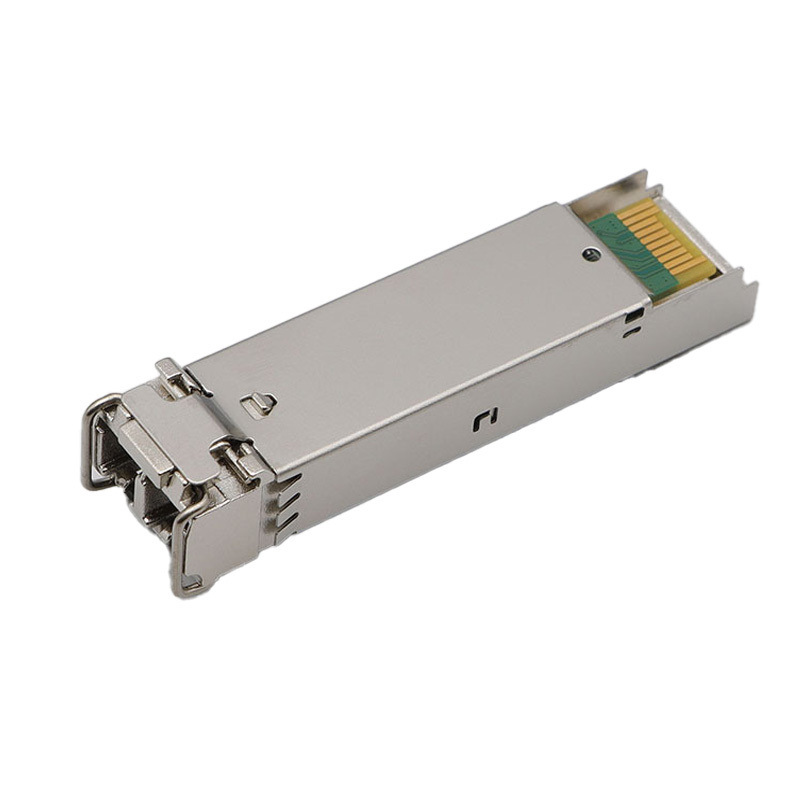

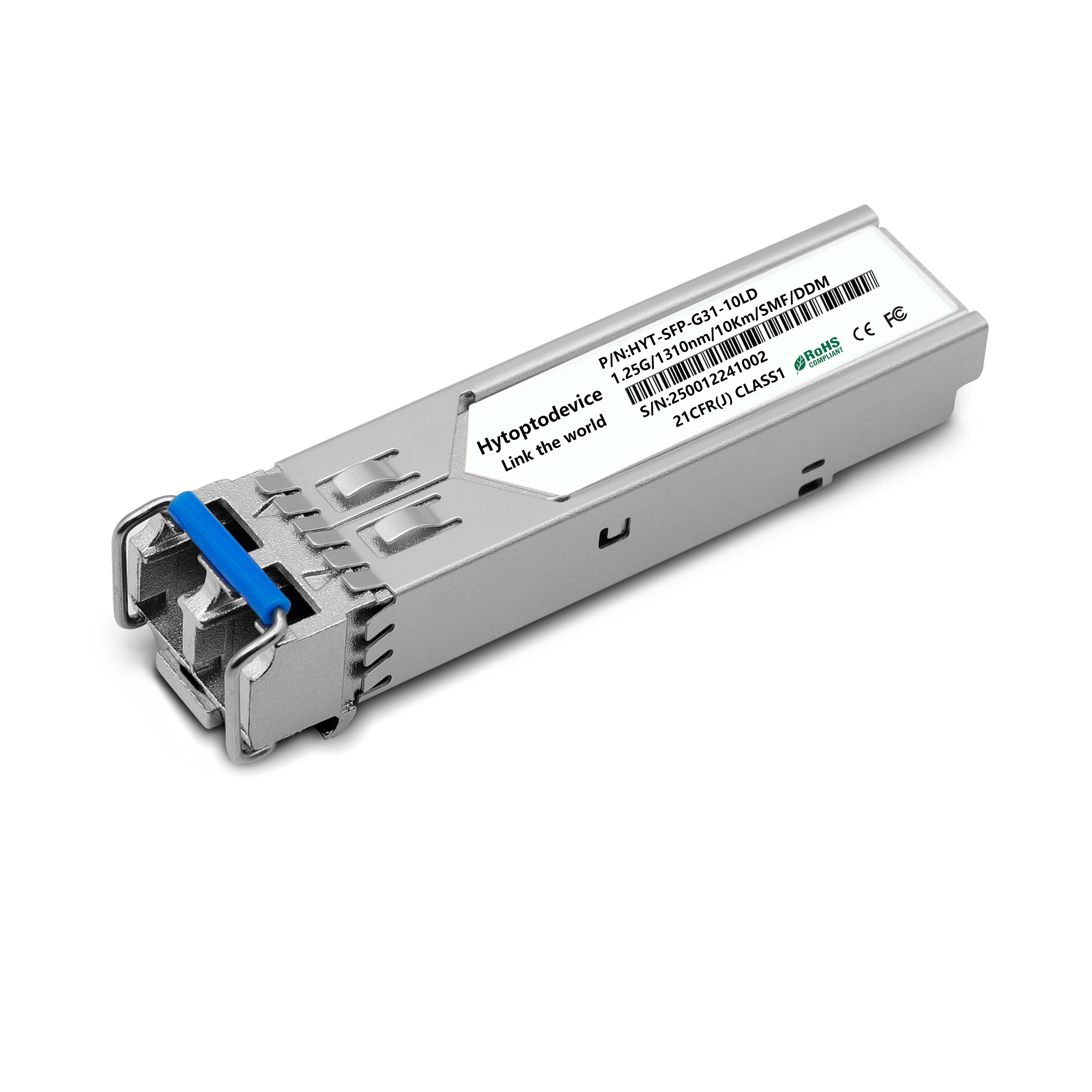

HYTOPTODEVICE Optical Transceiver | Cisco GLC-LH-SMD Compatible 1000BASE-LX Optical Transceiver Module(SMF, 1310nm, 10km, LC, DOM)
Product Overview
The Cisco compatible GLC-LH-SMD is a high-performance,industrial grade 1000BASE-LX optical transceiver. Featuring a hot-pluggable SFP form factor, it supports data rate 1000Mbps transmission up to 10km over single-mode fiber (SMF) vias Duplex LC connector. With high-density networking and low power consumption, this optical module provides a cost-effective and highly reliable plug-and-play solution for Gigabit Ethernet fiber uplinks, ensuring seamless data transmission for enterprise and ISP networks worldwide. Compliant with both the SFP Multi-Source Agreement (MSA) and IEEE 802.3ah-2004.DOM supported.
Key Technical Specifications
| Cisco Compatible |
GLC-LH-SMD |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
1310nm |
Max Distance |
10km |
| Connector |
Duplex LC |
Transmitter Type |
1310nm FP |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-9.0~-3.0dBm |
Receiver Sensitivity |
< -22.0dBm |
| Typical Power Consumption |
≤1W |
Receiver Overload |
-3dBm |
| Bit Error Ratio (BER) |
1E-12 |
DDM/DOM |
Support |
| Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Operation Temperature |
-40 to 85°C (-40 to 185°F) |
Usage Guidelines & Best Practices
-
Fiber Choice: Duplex LC OS1/OS2 SMF (9/125 µm). Do NOT use MMF
-
Connector Match: UPC/PC polish only. Do NOT use APC.
-

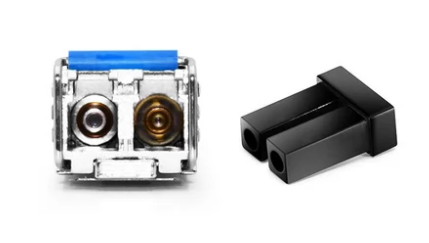

Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Link Setup:Lock speed to 1.25Gbps (Full Duplex) manually if auto-negotiation fails.
-
Handling: Wear ESD protection. Keep fiber bend radius ≥ 30 mm.
-
Installation & Hot-Swap Rules:MSA hot-swappable. Insert/remove gently without powering down.
-
Environment:Industrial grade (-4-°C to 85°C). Avoid extreme heat, moisture, and dust.
Links to the Datasheet, User Guide and Compatibility Guides are available on the product page.
Full Compatibility List and Supported Devices
1. Supported Hardware & Firmware
Firmware tuned for Cisco IOS platforms, this HYTOPTODEVICE optical transceiver supports plug‑and‑play operation with full DDM data readout:
-
Cisco Catalyst Switch Series: 2960, 3560, 3650, 3850, 4500, 6500 gigabit SFP ports
-
Cisco ISR / ASR Router Platforms: ISR4000, ASR‑900 series SFP fiber interfaces
-
Cisco Firepower Security Appliances: Firepower firewall SFP gigabit ports
-
Legacy Cisco Hardware: All network devices accepting GLC‑LH‑SMD optical transceiver
2. Multi-Brand Cross Compatibility
Built on universal SFP MSA specification, this optical transceiver works seamlessly with Huawei, Arista,Juniper, Ruijie, ZTE, H3C, Ubiquiti and other vendors for multi‑vendor mixed‑network environments.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Free sample testing before bulk orders
-
Complete test reports for project acceptance
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
Main Application Scenarios
-
Industrial Outdoor & Factory Networking: Deploy this industrial optical transceiver for 10 km long‑distance single‑mode gigabit connections in factories, industrial parks and outdoor monitoring network systems
-
Enterprise Backbone & Aggregation Networking: Bulk‑buy optical transceiver for aggregation‑layer uplink and long‑distance cabinet‑to‑cabinet interconnections
-
Cisco Hardware Module Replacement: Cost‑effective substitute when original GLC‑LH‑SMD optical transceiver units fail or go end‑of‑life
-
System Integrator Project Sourcing: Factory wholesale optical transceiver for government, education, hospital and commercial network‑engineering projects
Connectivity Solutions(Applications)
1.1GbE Switch-to-Switch Connectivity

2.1GbE Switch to Media Converter Connectivity
3.1GbE Structured Cabling Interconnect

4.1GbE Switch-to-NIC Interconnection

The Core Feature
1. High-Efficiency & Low-Power 1G Data Center Interconnect
Reduces operational power consumption while maintaining reliable, full-duplex 1.25 Gbps throughput across campus and data center networks.
2.Zero-Downtime Reliability & 100% Brand Compatibility
Engineered with high-reliability components and pre-coded firmware to ensure 100% seamless integration and uninterrupted performance across all major OEM networking brands (Cisco, Juniper, Arista, Dell, etc.).Specific
Compatibility Video available before you buy.
3.Rigorous 100% Comprehensive Testing
Every optical transceiver passes multi-stage factory testing—including optical power validation, spectral analysis, distance simulation, and host compatibility checks—to guarantee zero link failure upon deployment.—take a virtual tour of our
Test Center to see our Quality Assurance process in action.

FAQ
Q1:Will HYTOPTODEVICE GLC-LH-SMD trigger the "Cisco unsupported transceiver" error?
A:No. Our modules are pre-programmed with Cisco compatible EEPROM code, allowing them to be recognized as Cisco GLC-LH-SMD genuine replacements without needing hidden CLI commands.
Q2:Does this 1.25G LX 10km SFP support Digital Optical Monitoring (DOM)?
A:Yes. This SFP with DDM (Digital Diagnostic Monitoring) allows you to monitor real-time RX/TX optical power, temperature, and voltage directly through the Cisco IOS interface.
Q3:Why buy from a direct SFP source manufacturer like HYTOPTODEVICE?
A:By using self-sufficient core materials, we offer a wholesale 1.25G SFP price while maintaining 100% quality control. You save on the "brand tax" while getting factory-direct fast shipping.
Q4:Can I use this 10km 1310nm SFP on multi-mode fiber (MMF) legacy links?
A:Yes, this 1.25G 1310nm 10km transceiver can operate over MMF for short distances (approx. 550m) if used with a Mode Conditioning Patch (MCP) cable to prevent signal loss.
Q5:What is the warranty for HYTOPTODEVICE Cisco compatible fiber modules?
A:We offer a 5-year warranty and lifetime technical support for all our 1.25G 1310nm 10km optical transceivers, ensuring long-term peace of mind for network integrators.
Q6: Can I buy industrial grade Cisco GLC‑LH‑SMD compatible optical transceiver for industrial mixed‑brand network deployment?
A: Yes, this HYTOPTODEVICE optical transceiver supports cross‑vendor interoperability. Flash corresponding vendor‑specific EEPROM profile to match switches from other mainstream brands for multi‑brand network roll‑out.
Q7: Why does Cisco IOS report unsupported transceiver error after installing third‑party industrial optical transceiver?
A: Generic third‑party optical transceiver carries non‑Cisco EEPROM data which triggers IOS authentication check alerts. Choose HYTOPTODEVICE pre‑programmed optical transceiver to bypass such alarms without extra configuration commands.
Q8: Is industrial grade 1.25G optical transceiver able to work on 10G SFP+ dual‑speed ports for industrial networking?
A: Yes, this HYTOPTODEVICE optical transceiver can run on 10G SFP+ composite ports. Lock port speed manually to 1Gbps to achieve steady gigabit fiber‑link performance.
Q9: Does industrial grade Cisco‑compatible 1000BASE‑LX optical transceiver support auto‑negotiation on industrial Catalyst switches?
A: This optical transceiver supports standard Ethernet auto‑negotiation. For more stable Cisco‑switch links, manually configure port to 1000Mbps Full‑Duplex to avoid negotiation‑related link flapping.
Q10: Can industrial grade 1310nm 1000BASE‑LX optical transceiver run over multimode fiber without special patch cord in industrial networks?
A: No. When using multimode fiber with this optical transceiver, you must apply mode‑conditioning patch cord, otherwise signal distortion and link‑instability will occur.
Q11: Will higher‑grade single‑mode fiber extend the 10 km rated distance of industrial grade 1000BASE‑LX optical transceiver?
A: No. The 10 km specification is defined under G.652‑D standard single‑mode fiber. Better‑grade SMF cannot break the maximum‑reach limit of this optical transceiver.
Q12: Does HYTOPTODEVICE industrial grade GLC‑LH‑SMD replacement optical transceiver support DDM/DOM monitoring under industrial Cisco IOS?
A: Yes. This optical transceiver features full DDM/DOM function. You can read real‑time temperature, voltage, transmit‑and‑receive optical‑power values directly from Cisco IOS for fast link‑fault diagnosis.
Q13: What is the factory‑standard transmit‑optical‑power range for industrial grade GLC‑LH‑SMD equivalent optical transceiver?
A: This HYTOPTODEVICE optical transceiver follows industrial‑spec transmit‑power from ‑9.0 dBm to ‑3.0 dBm, delivering consistent signal output for 10‑km SMF links.
Q14: Can APC‑polished LC fiber jumpers be used with industrial grade 1000BASE‑LX SFP optical transceiver?
A: No. APC green‑end patch cords produce strong optical reflection, which brings random packet‑loss and unstable link‑up‑down. Please use standard blue UPC‑LC cables for this optical transceiver.
Q15: What is typical power consumption for industrial grade GLC‑LH‑SMD compatible optical transceiver? A: This HYTOPTODEVICE optical transceiver adopts low‑power chip solution, typical power consumption stays between 0.7W‑1.0W, reducing long‑term thermal load for host Cisco network‑hardware.
Packaging Options & Custom‑Packaging Solutions
Every transceiver module gets reliable ESD‑safe packaging out of the box. Standard packing is ready for immediate shipment, while custom‑printed packaging with your logo is available for bulk orders.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
