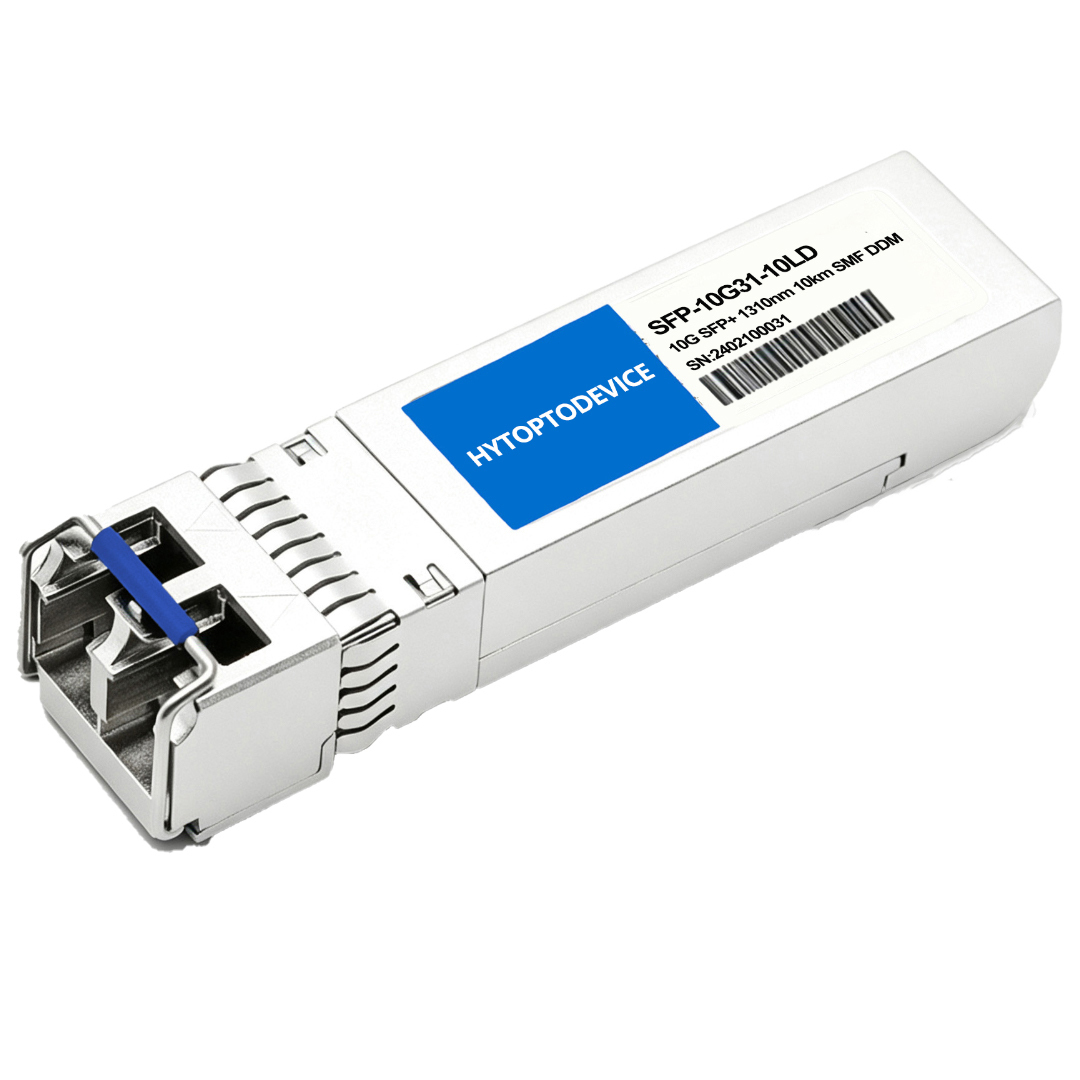

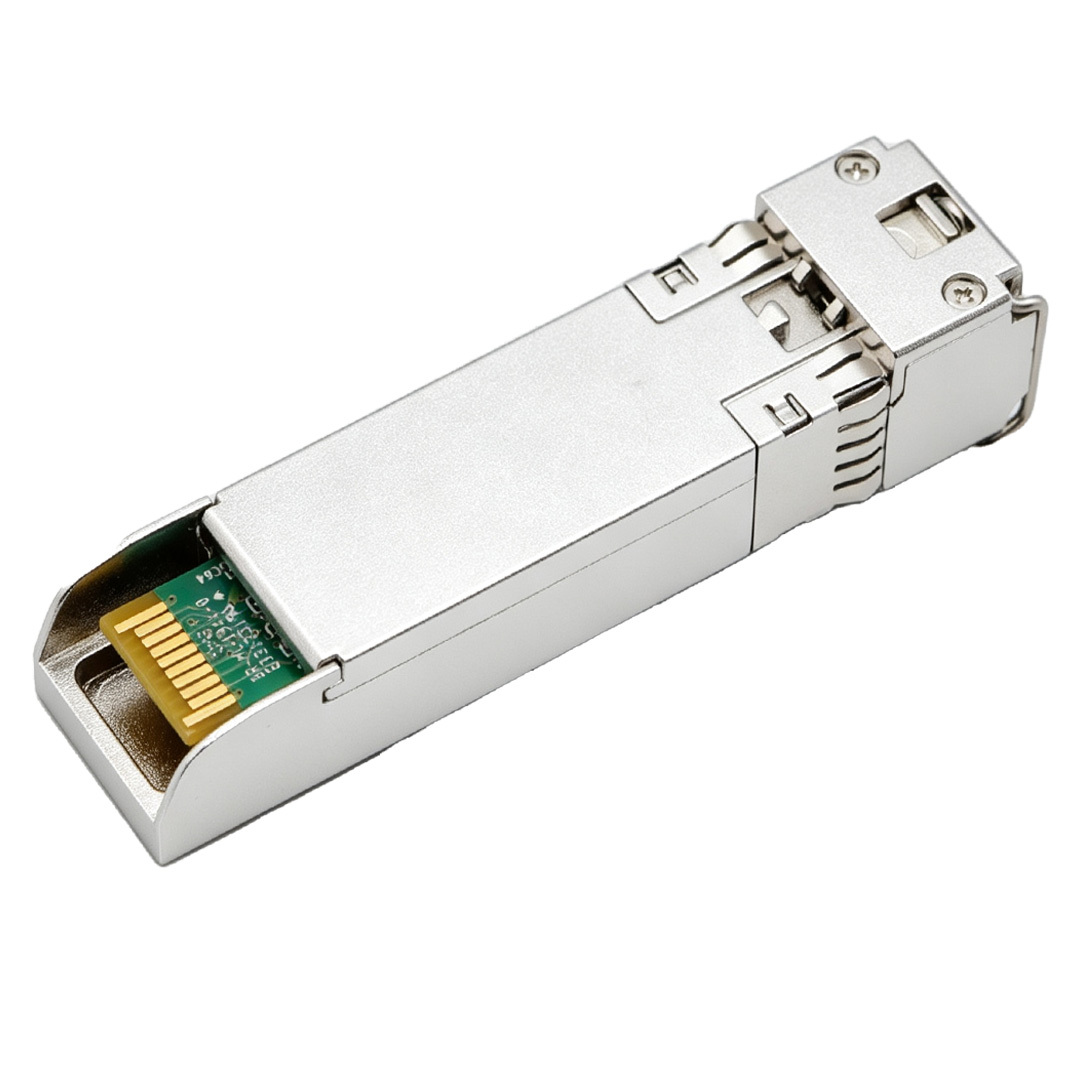

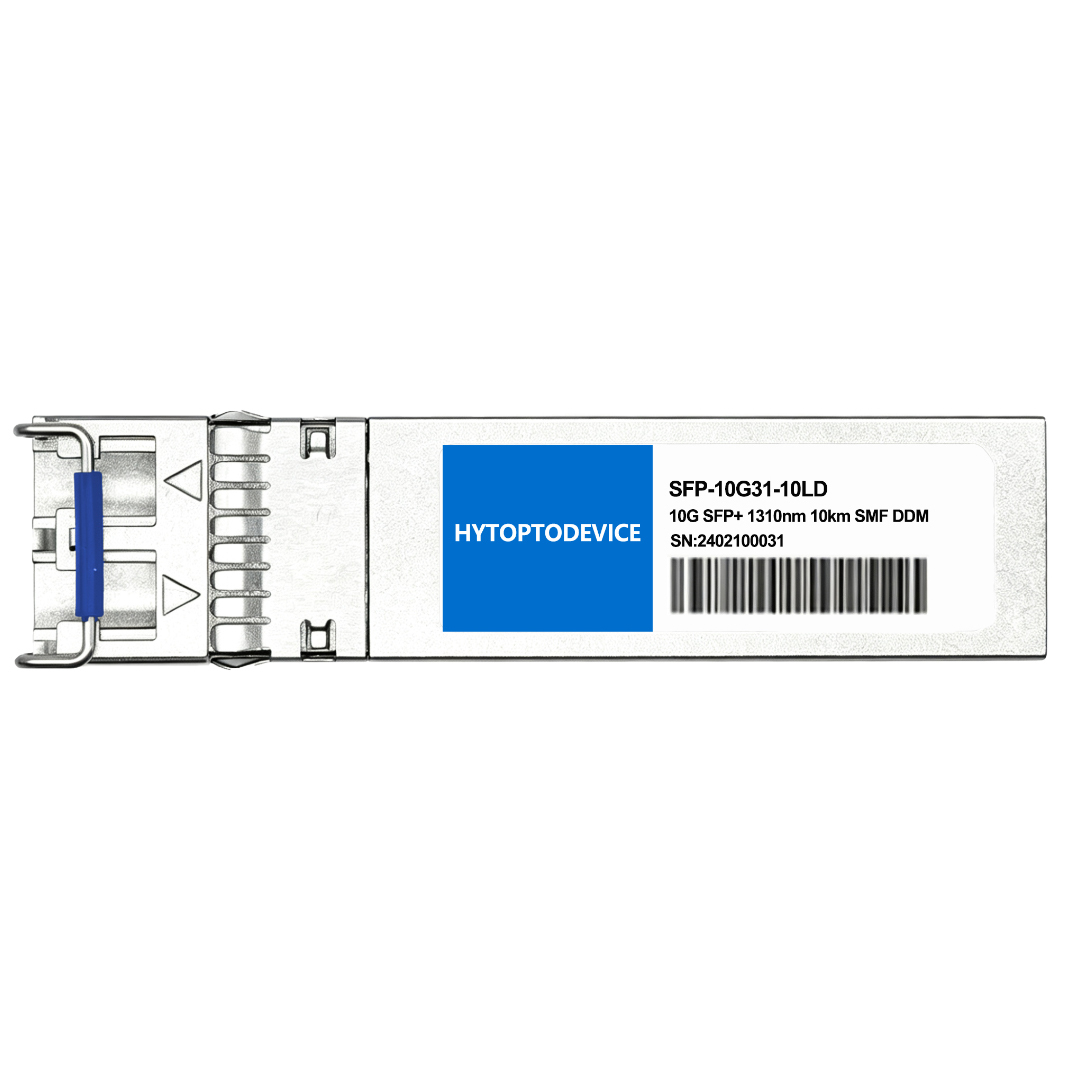

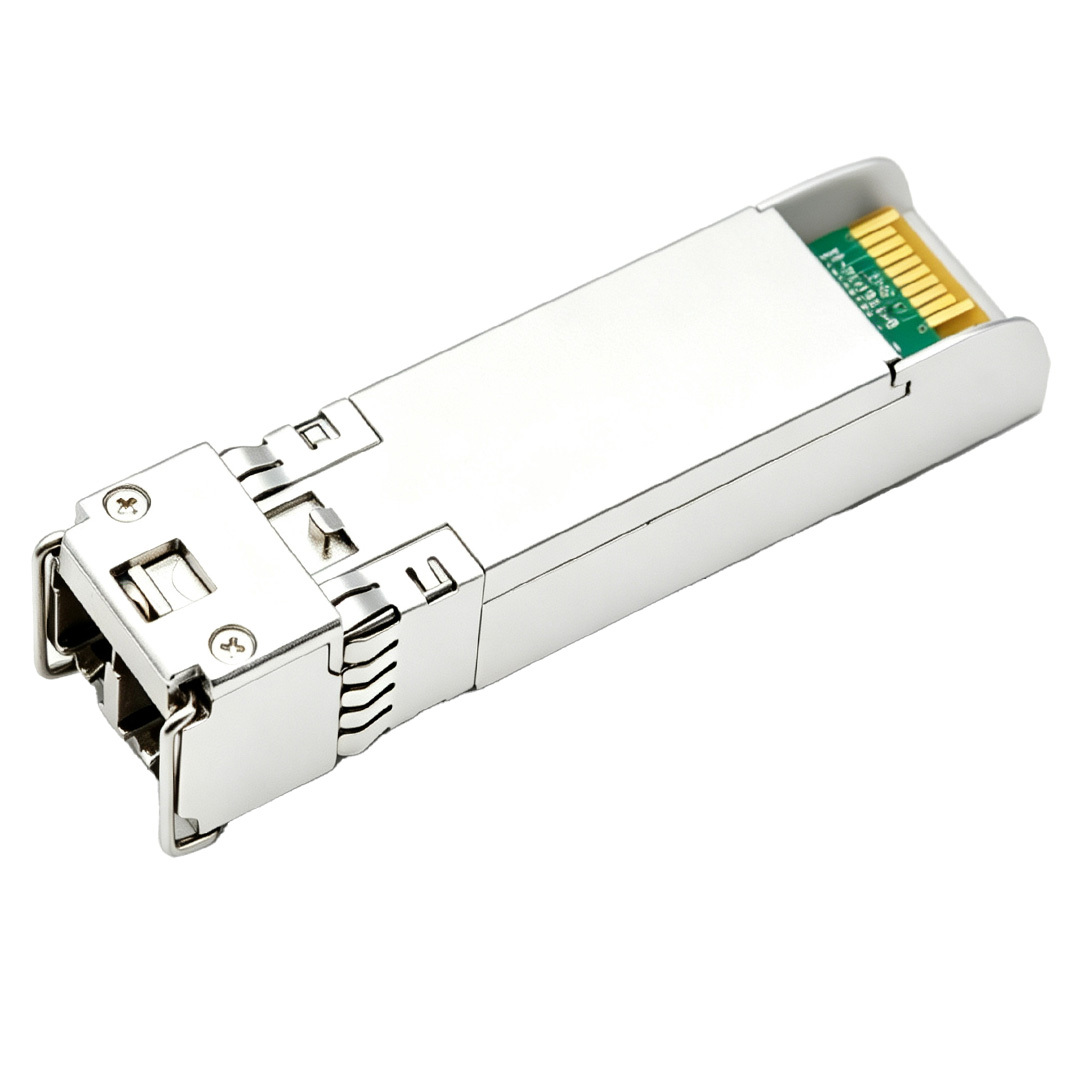

Brocade 10G-SFPP-LR  Compatible 10G SFP+ LR Optical Transceiver Module | HYTOPTODEVICE

Full Compatibility List and Supported Devices of  10G Fiber Optic Transceiver
 One of the biggest advantages of our third-party optical module is their strong brand compatibility,which helps enterprises cut hardware costs without sacrificing performance. Worried about compatibility? Don't be. We deliver verified results on real hardware. Video proof available upon request.Our 10GbE single-mode optics is fully tested and certified to work seamlessly with the following Brocade equipments:

• Brocade ICX Series Switches: Fully compatible with enterprise access and aggregation models, including the ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 series.

• Brocade VDX Series Switches: Optimized for data center fabrics utilizing the VDX 6740 and VDX 6940 platforms.

• Brocade MLX/MLXe Series Routers: Fully compatible with 10GbE SFP+ line cards deployed in modular core routing chassis.

• Brocade FCX Series Switches: Backward compatible with legacy enterprise stacking switch infrastructure.

• Enterprise Campus Backbone Infrastructure: Interconnects core and distribution layer switches across separate campus buildings up to 10km apart using single-mode fiber links.

• Data Center Leaf-Spine Uplinks: Provides high-bandwidth, low-latency 10G Ethernet connections between top-of-rack leaf switches and core spine layers.

• Metropolitan Area Networks (MAN): Deployed at the network edge to aggregate local corporate traffic into regional service provider networks.

Connectivity Solutions(Applications) of 1310nm 10km SFP+




FAQ for SFP-10G-LR

Q1: Is this transceiver fully compatible with Brocade ICX series switches?
A1: Yes. Our compatible transceivers are pre‑programmed with the correct EEPROM signatures, enabling immediate identification and stable error‑free operation on Brocade ICX switch platforms.

Q2: Is an optical attenuator required for ultra‑short fiber links?
A2: For fiber connections shorter than 10 meters, we recommend checking received optical power through DOM monitoring. If the incoming signal power is excessively high, install a suitable optical attenuator to prevent receiver saturation and long‑term component damage.

Q3: What is the typical service life of the compatible 10G‑SFPP‑LR transceiver?
A3: Manufactured with premium electronic components and stable laser chips, our 10G‑SFPP‑LR transceivers have an MTBF rating of over 1,000,000 hours, delivering a reliable service life of more than 10 years under normal operating conditions.

Q4: Do these modules comply with international open industry standards?
A4: Absolutely. The 10G‑SFPP‑LR transceivers fully conform to MSA (Multi‑Source Agreement) standards in terms of physical dimensions, mechanical structure and electrical performance, ensuring perfect physical compatibility with mainstream devices.

Q5: Can this optical module be installed in unregulated outdoor environments?
A5: This commercial‑grade module supports an operating temperature range of 0°C to 70°C and is only suitable for indoor controlled environments. For harsh or unconditioned outdoor deployment, please choose our industrial‑grade version with an extended temperature range.

Q6: Does the 10G‑SFPP‑LR support Fibre Channel storage transmission?
A6: No. This transceiver is designed for 10G Ethernet applications only. For Fibre Channel SAN and Brocade storage director deployments, you need to use dedicated Fibre Channel‑optimized optical modules such as 8G or 16G FC transceivers.

Q7: What troubleshooting steps should I take if the link fails to activate?

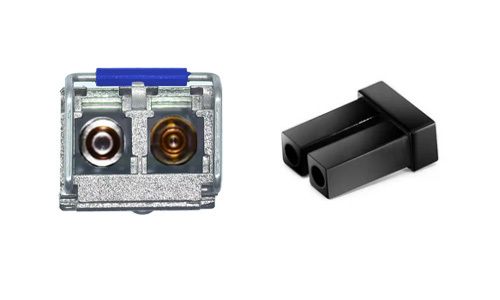

A7: Confirm both ends of the fiber link use 10GBASE‑LR transceivers and single‑mode fiber patch cords. Inspect and clean the LC connectors thoroughly, then check port status and configuration via the switch command‑line interface.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
