What Is Cisco Compatible SFP-10G-LR-X Optical Transceiver?
SFP+ Transceiver | Cisco Compatible 10GBASE-LR Optical Transceiver Module(SMF, 1310nm, 10km, LC, DOM) | HYTOPTODEVICE
Product Overview
The SFP-10G-LR-X is a high-performance, MSA-compliant Cisco-compatible 10G SFP+ optical transceiver. Featuring a hot-pluggable SFP+ form factor, it supports up to 10km link lengths over LC duplex SMF with a 1310nm wavelength.It was designed for deployment in harsh or environmentally unconditioned networking environments(-10 to 85°C). With low-latency and low power consumption, this sfp 10g lr transceiver provides highly stable data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit and other high-speed optical links. Compliant with both the SFP+ Multi-Source Agreement (MSA) and SFF-8431, SFF-8432 and IEEE 802.3ae standards. DOM (Digital Optical Monitoring) supported.
Key Technical Specifications
| Cisco Compatible |
SFP-10G-LR-X |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
1310nm |
Max Distance |
10km |
| Connector |
Duplex LC |
Transmitter Type |
1310nm DFB |
| Cable Type |
OS2 SMF |
Receiver Type |
PIN |
| TX Power |
-6.5~-0.5dBm |
Receiver Sensitivity |
< -14.4dBm |
| Power Consumption |
≤1W |
Operation Temperature |
-10 to 85°C (14 to 185°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: OS1/OS2 single-mode fiber (9/125 µm) is correct. Standard duplex LC-LC connectors are standard. Do NOT use OM1/OM2/OM3/OM4 Multimode Fiber (MMF) cables; severe modal dispersion will prevent link establishment.
-
Connector Match: Clarify that UPC/PC is required for proper optical contact, while APC will result in an unusable link and excessive signal loss.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Link Tuning: If auto-negotiation fails with legacy SAN switches, manually lock the port speed to 10Gbps
-
Handling: Wear an ESD wrist strap during installation. Maintain a minimum fiber bend radius of 30 mm to prevent micro-bends and optical power loss.
-
Installation & Hot-Swap Rules
Supports MSA-compliant hot-swapping. Insert/remove gently without powering down the device. Keep dust caps on unused LC ports and avoid frequent re-plugging.
-
Operating Environment
Commercial grade: 0°C to 70°C in indoor environments. Keep away from extreme heat, moisture, and dust for long-term stability.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List and Supported Devices
One of the biggest advantages of our third-party optical transceiver is their strong brand compatibility,which helps enterprises cut hardware costs without sacrificing performance. Worried about compatibility? Don't be. We deliver verified results on real hardware. Video proof available upon request.Our sfp 10g lr is fully tested and certified to work seamlessly with the following Cisco hardware:
-
Cisco Industrial Ethernet (IE) Switches: Fully compatible with ruggedized platforms including the Cisco IE 4000, IE 4010, IE 5000, and Catalyst IE3400/IE9300 Rugged Series.
-
Cisco Connected Grid Routers & Switches: Fully compatible with Cisco CGR 2010 and CGS 2520 deployed in utility substations.
-
Cisco Catalyst & Nexus Enterprise Switches: Backward compatible with standard enterprise switches like the Catalyst 9300/9500 and Nexus 9000 series when deployed in unconditioned network closets.
-
Cisco Aggregation Services Routers: Compatible with standard 10GbE SFP+ line cards on Cisco ASR 9000 and ASR 1000 Series routers used in edge or cell-site backhaul applications.
Main Application Scenarios
-
Industrial Automation & Manufacturing: Deployed in factory floor environments where ambient temperatures fluctuate drastically and heavy machinery creates harsh conditions.
-
Smart Cities & Intelligent Transportation Systems (ITS): Links roadside traffic control cabinets, surveillance cameras, and tolling systems back to a central network hub over long-distance single-mode fiber.
-
Outdoor Telecom & Cell-Site Backhaul: Ideal for installation in non-climate-controlled outdoor macro cell sites, utility poles, or distributed antenna systems (DAS).
-
Oil, Gas, and Utility Substations: Built to withstand the rigorous physical and thermal demands of energy sector infrastructure and power substations.
Connectivity Solutions(Applications)

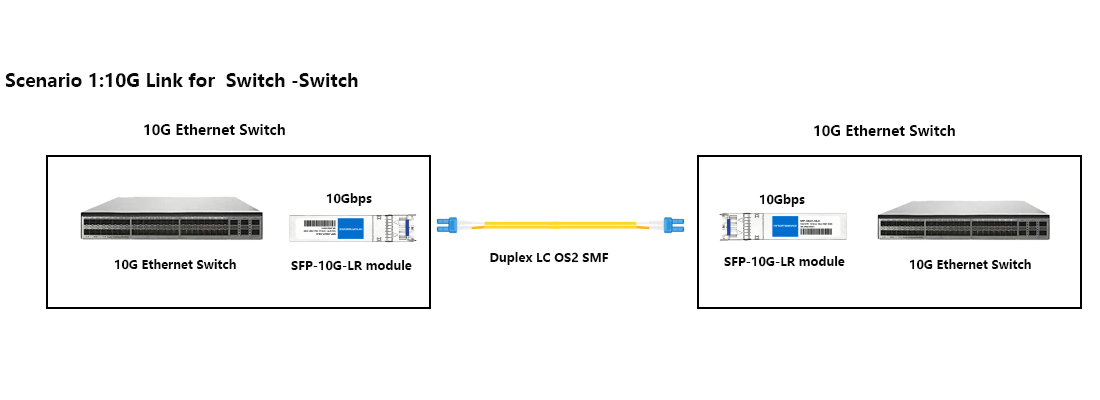

1.10GbE Switch-to-Switch Connectivity

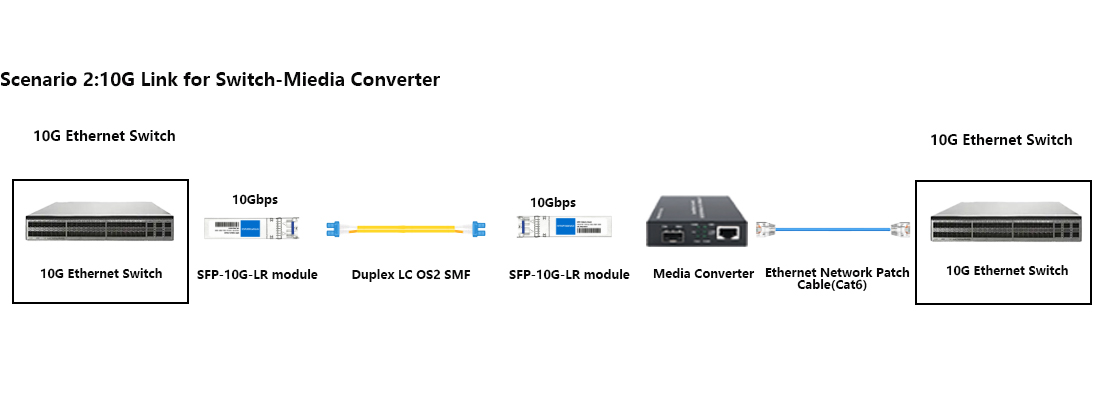

2.10GbE Switch to Media Converter Connectivity

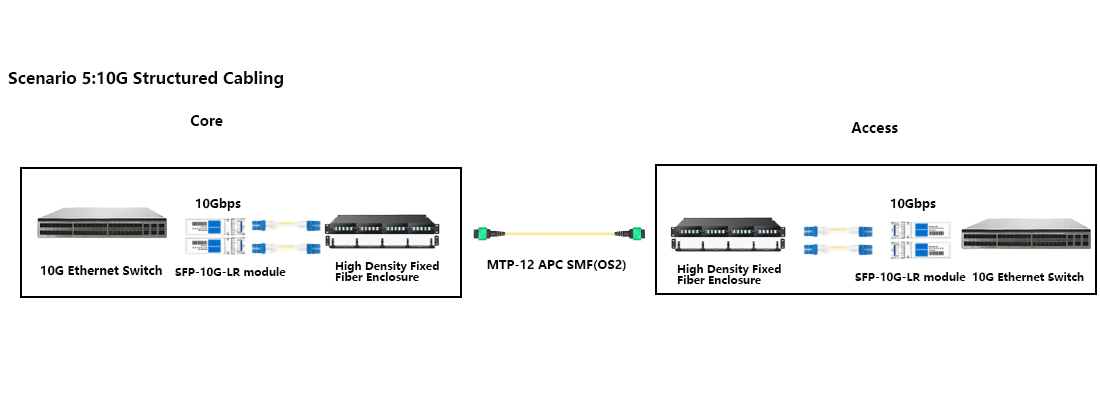

3.10GbE Structured Cabling Interconnect

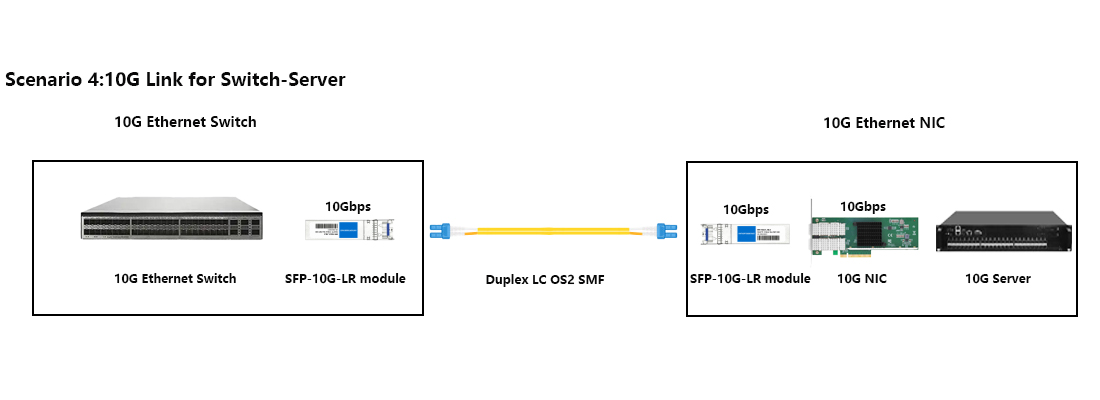

4.10GbE Switch-to-NIC Interconnection

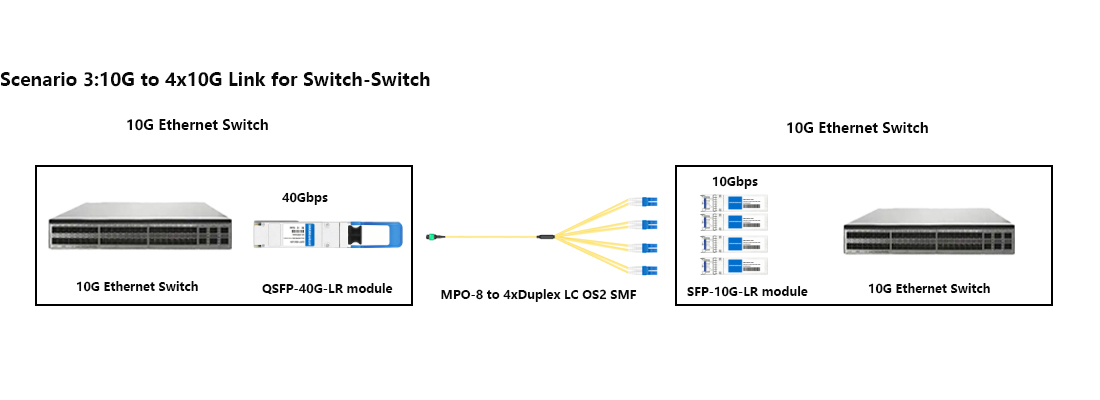

5.10G Switch-to-4x10G Switch Interconnection

The Core Feature
1. 10G High-Speed Connectivity for Data Centers
Featuring 1W low power consumption, high density, and support for up to 10km transmission over single-mode fiber, this 10G SFP+ LR optical transceiver offers an efficient, reliable solution for upgrading your network infrastructure.
2.Seamless Compatibility & Reliability
Every unit undergoes rigorous compatibility testing across our lab's
150+ brand host devices to ensure seamless, flawless operation. Check device compatibility using our online tool, or request a switch-specific
Compatibility Video.
3.Rigorous Quality Control for Unmatched Reliability
Every transceiver is evaluated using advanced testing equipment to guarantee exceptional quality and performance. Explore our complete testing process at the
Test Center.

FAQ
Q1:What does the suffix"-X" indicate in Cisco SFP-10G-LR-X module name?A: The "-X" designation refers to an extended operating temperature rating. Regular commercial transceivers only work reliably within 0°C to 70°C. By contrast, the SFP‑10G‑LR‑X is built for harsh conditions and supports stable operation from -10°C to 85°C.
Q2: How do Cisco SFP‑10G‑LR and SFP‑10G‑LR‑X differ from each other? A2: The main distinction lies in their temperature tolerance. The standard SFP‑10G‑LR is a commercial‑grade module suitable for regular indoor use with a temperature range of 0°C to 70°C. The SFP‑10G‑LR‑X is an industrial‑strength version rated for -10°C to 85°C. Both options maintain the same optical performance: 10G transmission rate, 1310nm wavelength and 10‑km reach over single‑mode fiber.
Bulk and long-term supply available for these two compatible modules from HYTOPTODEVICE.
Q3: Is it possible to pair SFP‑10G‑LR‑X with a regular SFP‑10G‑LR on the opposite side of a fiber link? A3: Definitely. Both transceivers follow the IEEE 802.3ae 10GBASE‑LR physical layer standard, so they work perfectly together on single‑mode fiber links. In most network designs, the SFP‑10G‑LR‑X is deployed in harsh locations such as outdoor equipment cabinets, while the ordinary LR module is used in temperature‑controlled data center rooms.
Q4: Will installing your compatible transceiver nullify the warranty of my Cisco industrial switch? A4: No, it will not. International anti‑tying regulations protect business users from unfair warranty restrictions. Network vendors are not legally allowed to invalidate original hardware warranties just because customers choose well‑tested, compatible third‑party optical transceivers.
Q5: Does your compatible SFP‑10G‑LR‑X come with DOM support? A5: Yes, our replacement SFP‑10G‑LR‑X is equipped with complete Digital Optical Monitoring (DOM) functions. This feature is extremely helpful in industrial environments, enabling network managers to remotely monitor real‑time data including module temperature and optical power levels through the Cisco command‑line interface.
Q6: Which type of fiber cable should be used with the SFP‑10G‑LR‑X transceiver? A6: A standard duplex LC‑to‑LC single‑mode fiber patch cord is the basic requirement. For outdoor or rugged industrial deployments, we recommend OS2 (9/125µm) single‑mode fiber with industrial‑grade outer jackets to match the module’s high durability.
Q7: How much link power margin does the Cisco SFP-10G-LR-X provide for 10km SMF runs?
A: HYTOPTODEVICE Cisco SFP-10G-LR-X 10G SFP+ LR transceiver delivers an optical power budget of approximately 8 to 14 dB. With transmit power of -6.5 to -0.5 dBm and receiver sensitivity of ≤ -14.4 dBm (typical), a full 10km OS2 SMF link incurs only about 4.5dB total loss, leaving ample power margin for stable error-free operation even at extreme -40°C to 85°C temperatures.
Q8: What 1310nm DFB laser output power specification does the 10G SFP+ LR transceiver deliver?
A: HYTOPTODEVICE Cisco SFP-10G-LR-X 10G SFP+ LR transceiver features a 1310nm DFB laser with maximum transmit optical power of -0.5 dBm and operating range of -6.5 to -0.5 dBm, strictly calibrated per IEEE 802.3ae 10GBASE-LR standards for consistent output across the full extended temperature range.
Q9: Why is the extended -40°C to 85°C temperature rating critical for industrial SFP-10G-LR-X deployment?
A: The Cisco SFP-10G-LR-X -40°C to 85°C extended temperature rating is critical because commercial grade modules (0°C to 70°C) suffer laser wavelength drift, output power degradation and increased BER when operated outside their range. Outdoor cabinets, factory floors and transportation systems routinely experience -40°C to +85°C extremes. The X-Series 10G SFP+ LR transceiver uses ruggedized components and enhanced thermal compensation to maintain full 10km reach and stable BER in these harsh environments.
Q10: What bit error rate performance is guaranteed for the 10GBASE-LR SFP+ module over full 10km distance?
A: HYTOPTODEVICE Cisco SFP-10G-LR-X 10G SFP+ LR transceiver guarantees IEEE 802.3ae 10GBASE-LR standard BER of 1×10⁻¹² (one error per trillion bits) over the full 10km OS2 SMF link distance, even at -40°C to 85°C extreme temperatures. Every module undergoes rigorous BER testing and 72-hour burn-in verified on real Cisco Catalyst and Nexus switch platforms before shipment.
Q11: How to troubleshoot and resolve flapping 10G SFP+ LR links on Cisco switches after extended operation?
A: Flapping 10G SFP+ LR links are typically caused by dirty fiber end-faces, poor port contact or excessive cable bend radius. HYTOPTODEVICE Cisco SFP-10G-LR-X modules undergo 72-hour burn-in and extended temperature cycling to eliminate thermal drift failures. Resolve flapping by inspecting and cleaning LC UPC connectors with a proper scope, verifying cable bend radius exceeds minimum specifications, ensuring adequate switch ventilation and confirming both ends use matched 1310nm LR modules.
Q12: What quality differences exist between budget generic and HYTOPTODEVICE Cisco SFP-10G-LR-X compatible modules?
A: Budget generic modules often use ungraded lasers, skip extended temperature testing and lack proper EEPROM calibration, leading to early failures, high BER and compatibility issues after 6-12 months especially in outdoor or industrial environments. HYTOPTODEVICE Cisco SFP-10G-LR-X modules use premium 1310nm DFB lasers, 72-hour burn-in, -40°C to 85°C temperature cycling, real-device testing and a 5-year warranty — over 70% below OEM Cisco pricing with enterprise-grade reliability verified for harsh environment long-term deployment.
Q13: Is the Cisco SFP-10G-LR-X compatible transceiver hot-pluggable for live switch port replacement?
A: Yes. HYTOPTODEVICE Cisco SFP-10G-LR-X 10G SFP+ LR transceiver fully supports hot-plug (hot-swapping) per SFF-8431 MSA standards. Safely insert or remove the module while the Cisco switch remains powered on and fully operational — no restart or port reconfiguration required, minimizing network downtime for high-availability enterprise and industrial environments. The SFP+ cage includes mechanical hot-plug protection and ESD shielding.
Q14: What happens if I install a commercial temperature 10G SFP+ LR transceiver in an unconditioned outdoor cabinet?
A: Installing a commercial grade (0°C to 70°C) 10G SFP+ LR transceiver in an unconditioned outdoor cabinet risks laser wavelength drift, output power degradation, increased bit error rates and premature permanent failure when temperatures exceed 70°C in summer or drop below 0°C in winter (outdoor cabinets commonly reach -40°C to +85°C). The Cisco SFP-10G-LR-X is purpose-built for -40°C to 85°C extended operation with ruggedized components and enhanced thermal compensation, making it the only reliable choice for unconditioned outdoor, industrial and extreme environment deployments.
Q15: Does the HYTOPTODEVICE 10G SFP+ LR transceiver meet RoHS, CE and FCC regulatory certifications for global shipment?
A: Yes. HYTOPTODEVICE Cisco SFP-10G-LR-X 10G SFP+ LR transceiver is fully RoHS compliant (EU Directive 2011/65/EU), free of lead, mercury, cadmium, hexavalent chromium, PBB and PBDE below all permitted thresholds. The module also carries CE and FCC certifications and complies with MSA SFF-8431/SFF-8472 and IEEE 802.3ae 10GBASE-LR standards, ensuring full regulatory compliance and customs clearance for global enterprise and industrial deployment shipments worldwide.
Packaging & Custom OEM Solutions
Our 10G SFP+ LR module comes sealed in standard anti-static (ESD-safe) packaging, pre-stocked and ready for immediate shipment. For bulk orders, we offer custom OEM packaging—including logo printing and private labeling—tailored for network distributors, system integrators, and enterprise deployments.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP+ modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
