Optical Transport Networks (OTN) and Long-haul transmission systems form the critical backbone of global telecommunications. As hyperscale data centers, 5G networks, and AI-driven cloud services proliferate, the demand for cross-continental and trans-oceanic data transport has reached an all-time high. According to Omdia’s 2024 Optical Network Forecast, the global optical network market is expected to surpass $20 billion by 2027, with Coherent Port shipments growing at a CAGR of 12%. Key Trend: Over 60% of long-haul traffic is now driven by machine-to-machine (M2M) communication and AI data synchronization, requiring links that exceed 1,000km without electrical regeneration.
2.The Problem: Spectral Efficiency and Distance Limitations
As transmission distances increase, the optical signal faces several physical impairments that limit performance: Optical Signal-to-Noise Ratio (OSNR) Degradation: Longer distances lead to accumulated noise from optical amplifiers (EDFAs). Chromatic Dispersion (CD) & Polarization Mode Dispersion (PMD): These effects cause pulse spreading, leading to bit errors at high speeds ( > 100Gbps ). Fiber Nonlinearities: At high power levels, the fiber itself distorts the signal, limiting the maximum achievable capacity. The "Shannon Limit": We are approaching the theoretical maximum information transfer rate for standard single-mode fiber (SSMF).

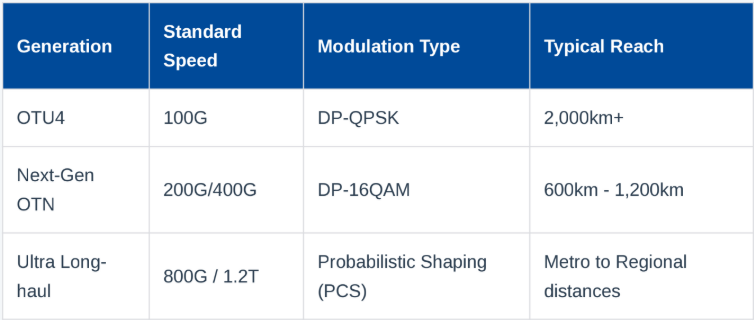

3.Technological Roadmap: From 100G to 800G Coherent
To overcome these challenges, the industry has transitioned from simple "Direct Detection" to Coherent Transmission. This technology uses advanced modulation and Digital Signal Processing (DSP) to recover phase and polarization information.
HYTOPTODEVICE specializes in the development of high-performance coherent optical modules that enable Terabit-scale transport networks.
4.1. 100G/200G CFP2-DCO & QSFP28-DCO Our Digital Coherent Optics (DCO) modules integrate the DSP directly inside the transceiver.This "plug-and-play" approach simplifies OTN card design and reduces power consumption.Our 100G DCO supports reaches up to 2,000 km with standard EDFA amplification.
4.2. 400G ZR / ZR+ for IP-over-DWDM For DCI and regional OTN, HYTOPTODEVICE provides 400G ZR+ modules. These support multi-vendor interoperability and allow routers to connect directly to the DWDM line system, eliminating the need for separate transponders and reducing network CAPEX by 30%.
4.3. Active Monitoring & Compensation Our modules feature real-time OSNR monitoring and software-defined chromatic dispersion compensation (up to 50,000 ps/nm ), ensuring stable performance even on aging fiber plants.
5.Success Case: Cross-Country Backbone Upgrade
Client: A leading National Research & Education Network (NREN) in Europe. Problem: The client needed to upgrade their 100G backbone to 400G across a 1,500km span without replacing their existing chassis or adding new amplifier sites. HYTOPTODEVICE Solution: We deployed our 400G CFP2-DCO modules featuring high-gain SD-FEC (Soft-Decision Forward Error Correction). This allowed the client to achieve 400G throughput over the existing legacy ROADM network. Result: 4x capacity increase, 25% lower power consumption per bit, and zero infrastructure construction costs.
6.Future Outlook: 1.6T and Hollow Core Fiber
The next frontier for Long-haul transmission involves: •L-Band Expansion: Moving beyond the C-Band to double the usable fiber spectrum. •1.6T Coherent Systems: Utilizing higher baud rates ( > 130Gaud ) to achieve Terabit speeds per wavelength. •Hollow Core Fiber (HCF): Reducing latency by 30% by allowing light to travel through air instead of glass.
7.HYTOPTODEVICE Strategic Commitment
Our strategy is focused on High-Efficiency Photonic Integration. We are committed to: Open Networking: Supporting OpenROADM and OpenZR+ standards to prevent vendor lock-in. Power Efficiency: Reducing the carbon footprint of the backbone network by optimizing DSP algorithms.Reliability: Ensuring 99.999% availability for the links that connect the world.
