| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | SFP-10G-ER40 | SFP-10G-SR |
| 2 | Cisco | SFP-10G-ER | SFP-10G-LR |
| 3 | Cisco | SFP-10G-ER-S | SFP-10G-LRM |
| 4 | Cisco Meraki | MA-SFP-10GB-ER | SFP-10G-ZR |
| 5 | Arista Networks | SFP-10G-ER | |
| 6 | HPE Aruba | J9153D | |
| 7 | Brocade | 10G-SFPP-ER40 | |
| 8 | H3C | SFP-XG-ER-SM1550 | |
| 9 | Juniper | EX-SFP-10GE-ER40 | |
| 10 | Dell | GP-10GSFP-1E |
Product Overview

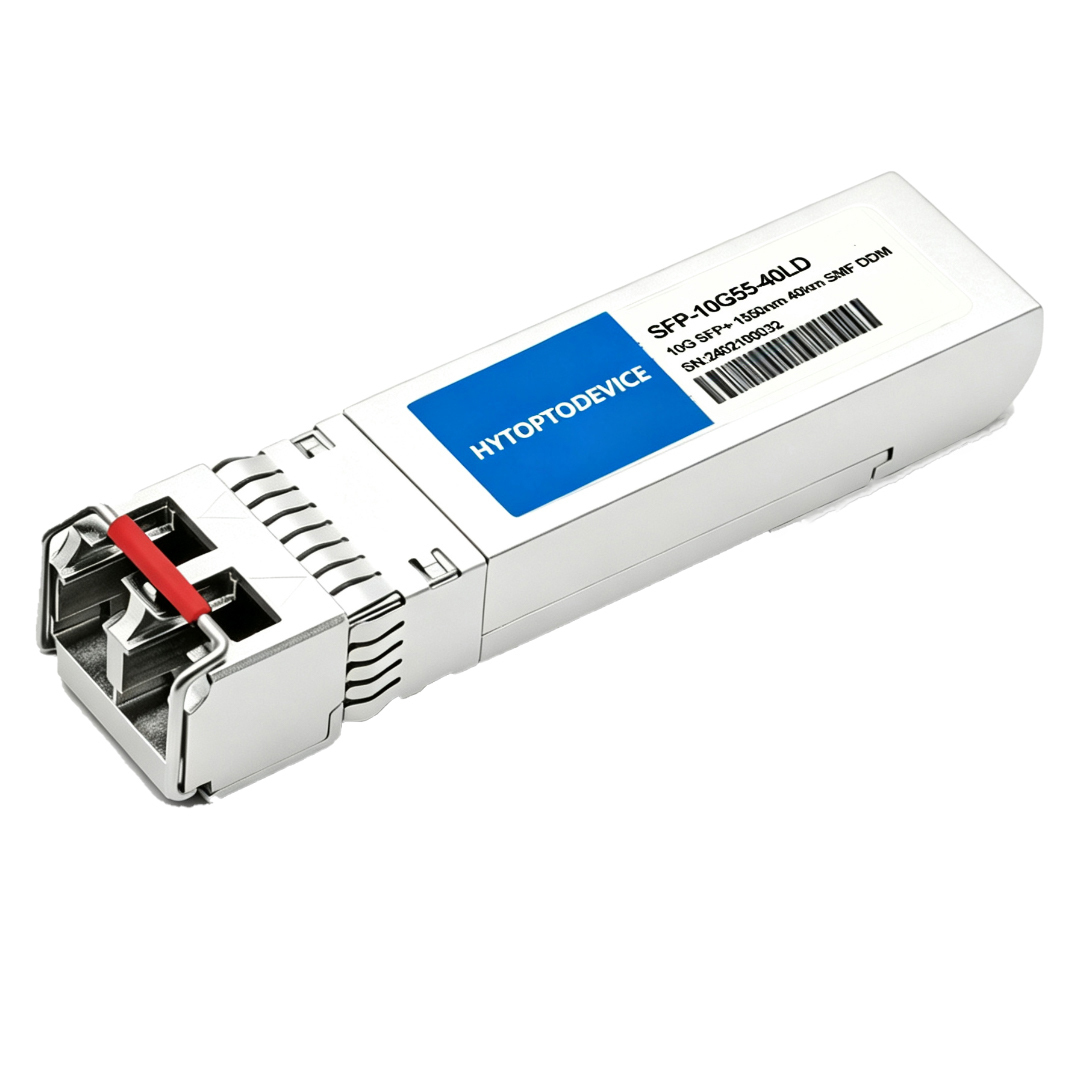

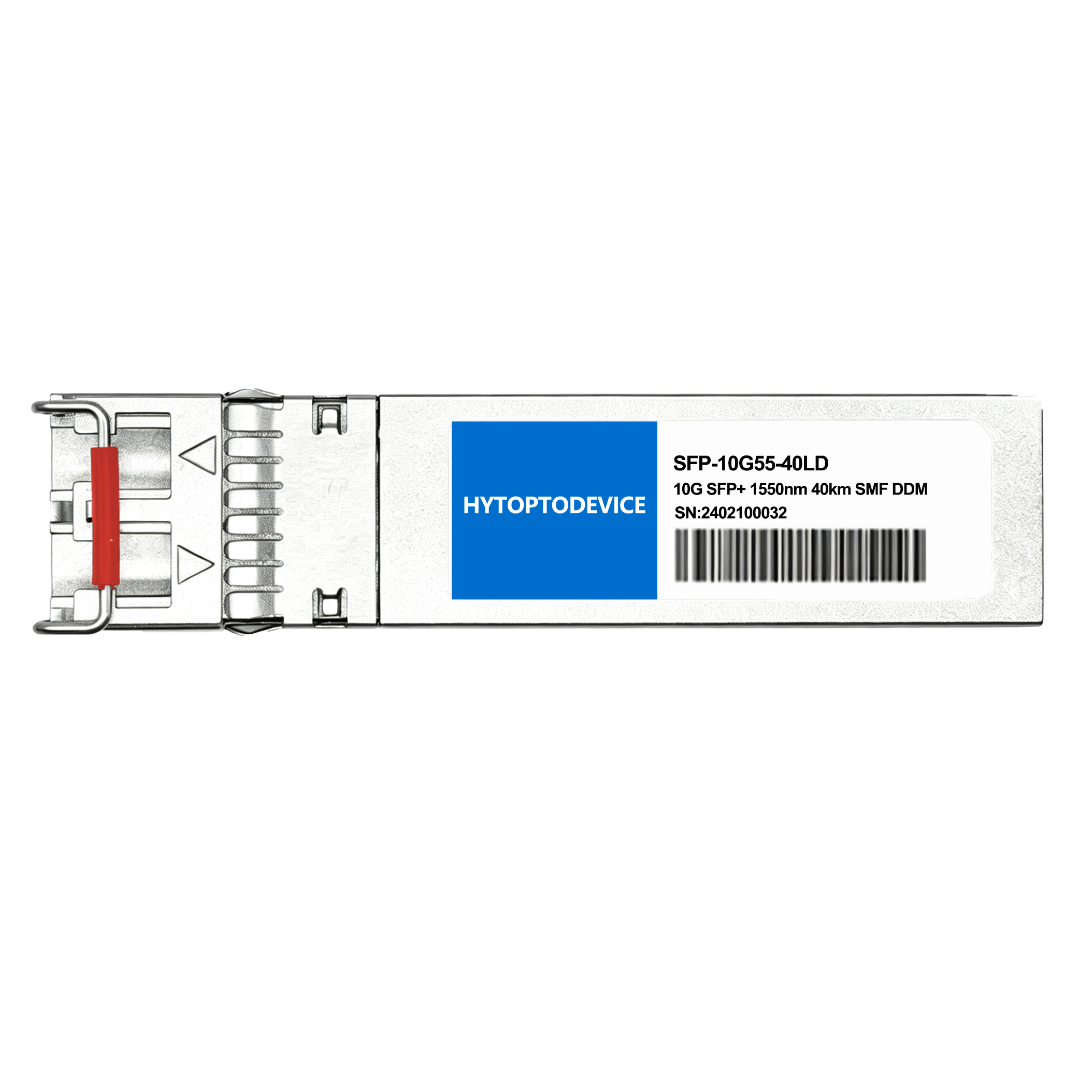

HYTOPTODEVICE MA-SFP-10GB-ER compatible Cisco Meraki is a high-performance, hot-swappable 10GBASE-ER SFP+ 10G ER transceiver, It is is engineered specifically for Cisco Meraki cloud-managed MS aggregation switches and MX security appliances requiring long-range backbone connections. The 10G SFP ER optical transceiver utilizes 1550nm EML laser to transmit distance up to 40km over LC Duplex Connector with Single-Mode Fiber(SMF). ideal for 10G Ethernet, Data Center and Fibre Channel etc. Compliant with both SFP+MSA and IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, DOM supported.
|
Cisco Meraki Compatible |
MA-SFP-10GB-ER |
Vendor Name |
HYTOPTODEVICE |
|
Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
|
Wavelength |
1550nm |
Max Distance |
40km |
|
Connector |
Duplex LC |
Transmitter Type |
1550nm EML |
|
Cable Type |
SMF |
Receiver Type |
PIN |
|
TX Power |
-1.0~+3.0dBm |
Receiver Sensitivity |
< -15.5dBm |
|
Power Consumption |
≤1.5W |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
Fiber Choice: OS1/OS2 single-mode fiber (9/125 µm) is correct. Standard duplex LC-LC connectors are standard. Do NOT use OM1/OM2/OM3/OM4 Multimode Fiber (MMF) cables; severe modal dispersion will prevent link establishment.
Connector Match: Clarify that UPC/PC is required for proper optical contact, while APC will result in an unusable link and excessive signal loss.
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
Link Tuning: If auto-negotiation fails with legacy SAN switches, manually lock the port speed to 10Gbps
Handling: Wear an ESD wrist strap during installation. Maintain a minimum fiber bend radius of 30 mm to prevent micro-bends and optical power loss.
Installation & Hot-Swap Rules
Supports MSA-compliant hot-swapping. Insert/remove gently without powering down the device. Keep dust caps on unused LC ports and avoid frequent re-plugging.
Operating Environment
Commercial grade: 0°C to 70°C in indoor environments. Keep away from extreme heat, moisture, and dust for long-term stability.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List and Supported Devices
Lab‑tested with pre‑programmed Meraki EEPROM, this 10g er sfp+ avoids transceiver unrecognized errors, port shutdown and link instability, matching original MA‑SFP‑10GB‑ER performance. Validated for these Meraki platformsCisco Mera...:
● Meraki MS series switches: MS125, MS225, MS250, MS350, MS355, MS410, MS425, MS130‑X
● Meraki MX security appliances: MX95, MX105, MX250, MX450 SD‑WAN gateways
● Cisco Catalyst 9300 series compatible with Meraki‑profile modules
Note: Upgrade Meraki device firmware to latest official release for optimal compatibility.
Main Application Scenarios
● Meraki multi‑building long‑distance 10G fiber uplink across campus
● Cross‑site SD‑WAN interconnection over 40km single‑mode fiber
● Enterprise campus core‑aggregation long‑haul trunk deployment
● Metro‑area Meraki cloud‑managed network inter‑site transport
● Legacy single‑mode fiber infrastructure bandwidth upgrade
● Large‑volume cost‑saving replacement procurement for MA‑SFP‑10GB‑ER modules
| Distance | ≤ 5km | ≤ 10km | ≤20km | Remarks |
| Attenuator | 12dB | 9dB | 6dB |






Q1: Will this 10G ER SFP+ work plug‑and‑play on Meraki MS switches and MX security appliances?
A: This 10g er sfp+ ships with pre‑programmed MA‑SFP‑10GB‑ER Meraki EEPROM for native plug‑and‑play operation on Meraki MS/MX hardware. For third‑party brand switches we offer free EEPROM re‑configuration. Fully MSA‑compliant mechanically and electrically; pre‑sales model validation is recommended for older firmware‑locked platforms. Submit your device part‑number for free compatibility check before you bulk procure 10G ER transceivers.
Q2: What triggers “unsupported transceiver” logs on Meraki cloud‑managed hardware?
A: Main causes include mismatched EEPROM profiles, outdated Meraki firmware, or contaminated LC‑UPC fiber ports. Our 10g er sfp+ solves most compatibility alarms via dedicated Meraki‑profile programming. Standard troubleshooting workflow: upgrade Meraki firmware, clean fiber end‑faces, reseat the module. Avoid generic unprogrammed optics when you purchase MA‑SFP‑10GB‑ER replacement transceivers.
Q3: Does this Meraki‑compatible SFP+ support DDM real‑time optical monitoring?
A: Yes, full DDM/DOM capability following SFF‑8472 industry standard. Read transmit power, receive power, laser bias current and module temperature via Meraki dashboard or local CLI. DDM data aids early‑stage link‑fault prediction, essential for daily O&M after bulk installation of 10g er sfp+ modules. Valid RX receive‑power range: ‑15.8 dBm ~ 0.5 dBm.
Q4: Can APC green‑booted fiber jumpers pair with this 10G ER transceiver?
A: Not recommended for production deployment. This 10g er sfp+ implements UPC‑type duplex LC interface. APC connectors introduce extra return loss, raising bit‑error rate and triggering intermittent link drops. For Meraki enterprise projects use OS1/OS2 UPC‑terminated single‑mode patch‑cords to guarantee link stability.
Q5: Does full‑port deployment on Meraki MS425/MS410 switches create overheating risks?
A: Thermal design is validated for commercial‑grade cabinet deployment. Each 10g er sfp+ consumes ≤1.8W; full‑port loading adds predictable thermal load. Keep cabinet ambient temperature below 40℃ with unobstructed airflow. Suitable for high‑density port bulk roll‑outs and large‑scale wholesale projects.
Q6: What is the difference between 10G‑LR (10km) and 10G‑ER (40km) SFP+ for Meraki networks?
A: 10GBASE‑LR reaches 10 km at 1310 nm; this 10g er sfp+ runs 1550 nm for up to 40 km over SMF. Choose ER for multi‑building or cross‑site links beyond 10 km. Never exceed the rated distance; excessive fiber attenuation will bring high bit‑error rate or link down.
Q7: Does this MA‑SFP‑10GB‑ER compatible transceiver integrate on‑board hardware FEC?
A: This 10g er sfp+ follows native IEEE 10GBASE‑ER specification without built‑in FEC silicon. Bit error rate stays ≤1×10⁻¹² over qualified OS1/OS2 single‑mode links. You may enable switch‑side ASIC‑level FEC for high‑risk long‑haul links. Clarify link‑quality requirements in advance when you procure 10G ER optics for core‑site‑to‑site deployment.
Q8: Is hot‑swap supported for live‑production module replacement on Meraki MS / MX?
A: Yes, fully MSA hot‑swap compliant for non‑power‑off insertion‑removal on Meraki hardware. Only 1‑3 seconds brief link‑fluctuation occurs during swap. Perform replacement within maintenance‑window to prevent business impact. Convenient for daily O&M after bulk purchasing spare 10g er sfp+ modules.
Q9: Are third‑party 10G ER SFP+ reliable for Meraki multi‑site SD‑WAN core links?
A: Qualified factory‑validated third‑party 10g er sfp+ meets mission‑critical enterprise long‑haul deployment demands. Our modules complete 72‑hour full‑rate burn‑in with MTBF ≥1,000,000 hours. Inferior generic optics suffer unstable EML laser‑power failures. Reserve 10‑15% spare units when buying in bulk for Meraki‑based multi‑site network construction to maintain redundancy.
Q10: Which certifications should you verify before bulk transceiver procurement?
A: Before bulk‑sourcing 10g er sfp+, confirm IEEE 802.3ae compliance, SFP+ MSA specification, RoHS environmental certification and Class‑1 laser‑safety approval. We supply full certification documents for enterprise‑project audit purposes. Avoid uncertified low‑grade optics to mitigate network‑operation risks.
Q11: What is the factory warranty for this MA‑SFP‑10GB‑ER replacement transceiver?
A: HYTOPTODEVICE provides 3‑year factory warranty for this 10g er sfp+. Direct defective‑unit replacement without repair work. Confirm warranty clauses and after‑sales terms while signing bulk‑order contracts for Meraki multi‑site‑network‑upgrade projects.
Q12: Can mis‑aligned insertion damage Meraki switch SFP+ physical ports?
A: Forced mis‑aligned insertion ranks among top causes of SFP+ port hardware damage. When seating this 10g er sfp+, push smoothly until you hear a clear click for full mechanical contact. Provide unified installation training for deployment‑staff before large‑scale roll‑out to reduce hardware‑damage risk during bulk‑project implementation.
Q13: Why is there large price gap between original Meraki MA‑SFP‑10GB‑ER and third‑party 10G ER SFP+?
A: Original MA‑SFP‑10GB‑ER pricing includes OEM patent overhead, channel markup and official‑support premium. Our factory‑direct‑sale 10g er sfp+ eliminates middle‑man markup while respecting MSA & IEEE specs, saving 55%‑70% procurement expense. Cost advantage is prominent for large‑volume wholesale and centralized multi‑site‑project purchasing.
Q14: What fiber‑related issues commonly cause poor performance for 10G‑ER long‑reach links?
A: Common issues: using multimode fiber instead of OS1/OS2 SMF, too many splices, dirty fiber end‑faces, excessive total attenuation beyond link budget. Use DDM readings on Meraki dashboard to check real‑time receive power. Clean patch‑cords and audit fiber loss before commissioning long‑haul 40 km links.
Q15: Can these 10G ER SFP+ modules be used for inter‑switch stacking links within Meraki campus?
A: Yes, this 10g er sfp+ supports Meraki switch stacking links when paired with qualified OS1/OS2 single‑mode fiber. Complete lab‑based stability verification before production go‑live to guarantee stack‑protocol synchronization and data‑transmission stability. Widely‑adopted for batch‑stack‑transformation across distributed enterprise campus sites.
Q16: What testing tools and reference parameters apply to validate 10G ER link health?
A: Required test instruments: Meraki‑dashboard‑built‑in DDM monitoring, optical‑power‑meter and fiber‑endoscope. Valid RX receive‑power range for this 10g er sfp+ link is ‑15.5 dBm ~ -1 dBm. Judge real‑time link‑quality through DDM readings. Perform formal link‑validation testing upon bulk‑order receipt to secure project‑delivery quality.
Packaging & Custom OEM Solutions
Individually sealed in ESD-safe packaging and ready to ship. We offer tailored OEM solutions—including custom logos and private labeling—to support high-volume distributors,wholesaler and system integrators.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
