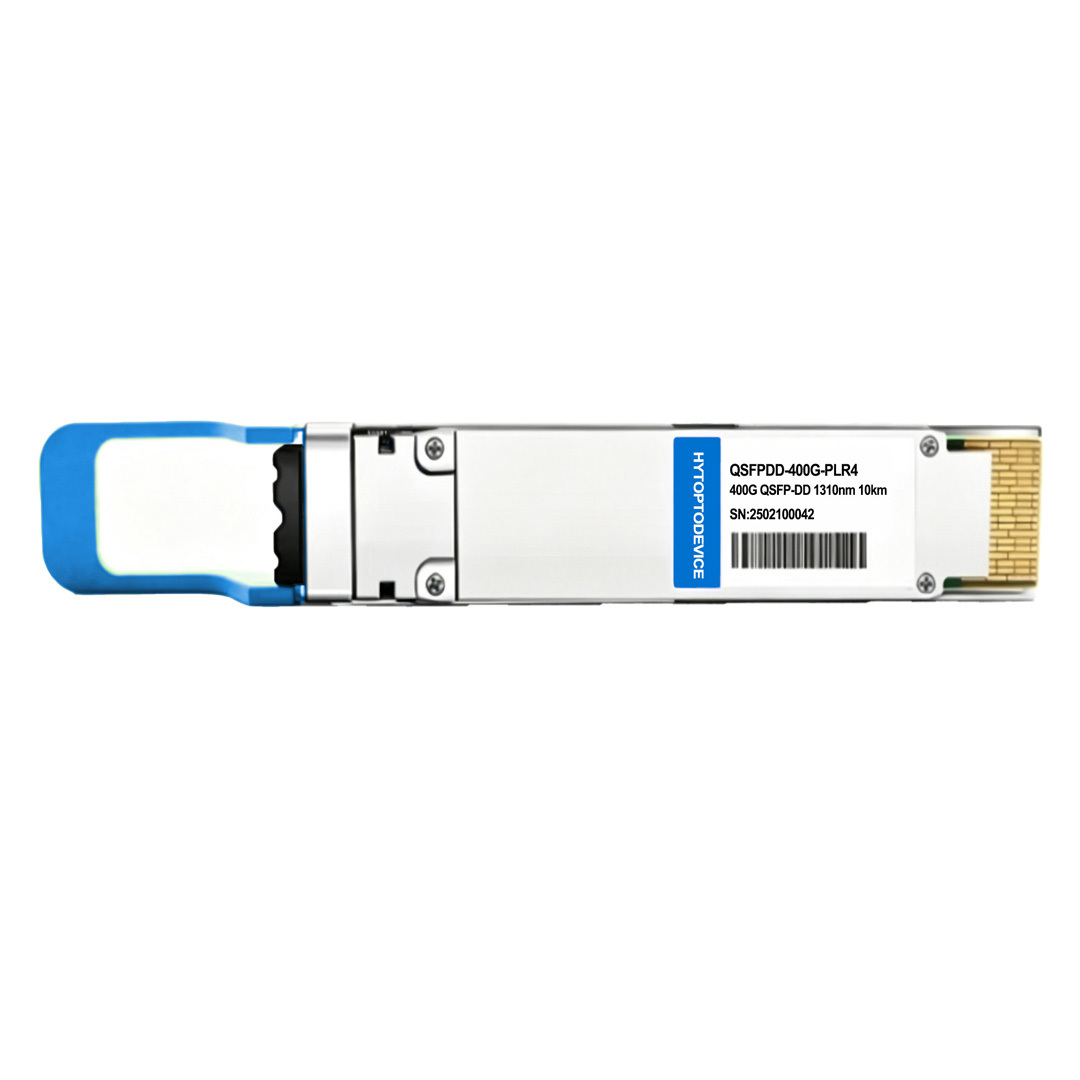

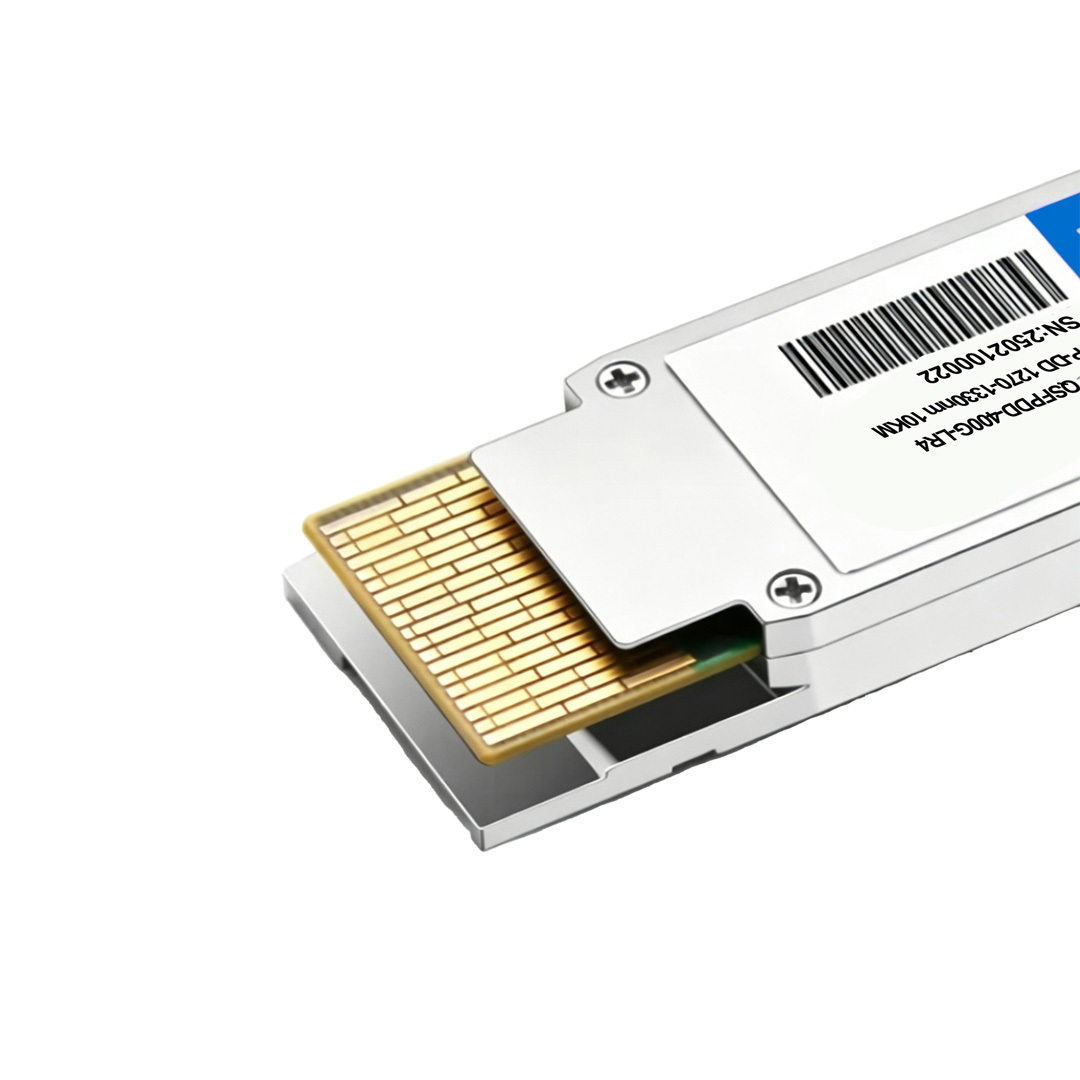

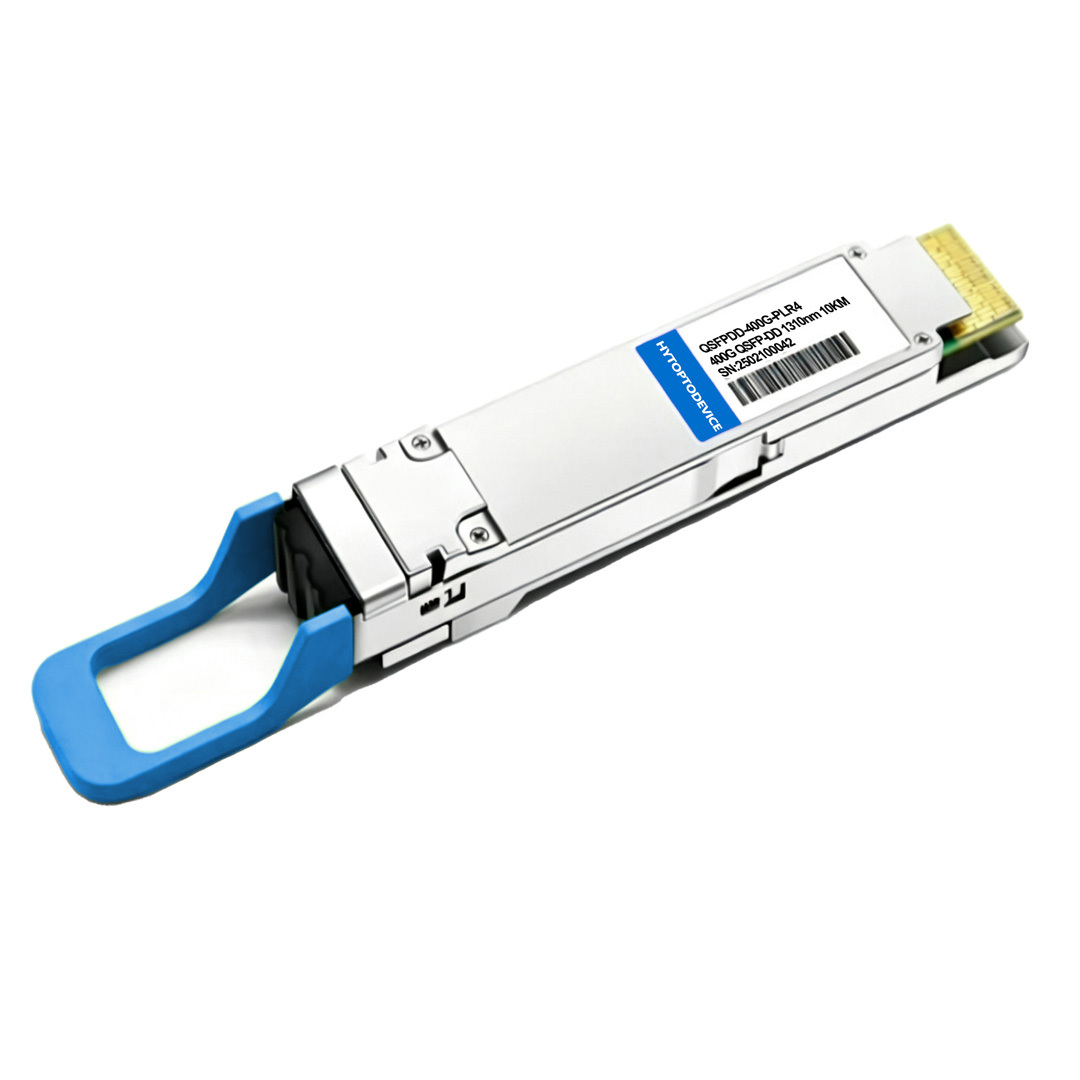

Q1: Are QSFP-DD transceivers compatible with traditional QSFP28 switch ports?
A: No cross-compatibility for QSFP-DD modules on QSFP28 ports. Only reverse compatibility is supported: QSFP-DD switch ports can run QSFP28 modules. QSFP28 hardware lacks complete electrical contact pins required for 400G signaling, so PLR4 QSFP-DD modules cannot establish links on QSFP28 ports.
Q2: Is the 400G PLR4 specification a standardized industry protocol?
A: Yes, 400GBASE-PLR4 is a formal and standardized optical interface. It is officially defined in the IEEE 802.3cu standard, covering 10km 1310nm parallel single-mode transmission. Meanwhile, it complies with QSFP-DD and 100G Lambda MSA specifications, ensuring universal industry interoperability.
Q3: Can 400G PLR4 and 400G XDR4 optical modules interconnect normally?
A: The two modules cannot work with each other stably. PLR4 is designed for 10km long-distance transmission with loose optical loss budget. XDR4 is a 2km short-reach specification with strict receiving sensitivity requirements. Parameter mismatches will lead to excessive bit errors and complete link failure.
Q4: What laser component is equipped on this 10km 400G PLR4 transceiver?
A: This 400G PLR4 module adopts professional 1310nm EML electro-absorption modulated laser. The component features low signal noise and stable PAM4 signal output. It fully meets IEEE long-reach optical standards and guarantees reliable and error-free 10km single-mode transmission.
Q5: Are optical attenuators required for short-range testing under 1km?
A: Attenuators are highly recommended for sub-1km testing scenarios. Ultra-short fiber links produce negligible signal attenuation. Excessive incoming optical power will oversaturate the receiver chip, causing signal distortion, increased error codes and unstable port jitter during laboratory debugging.
Q6: Which fiber cores are activated for transmission on a 12-core MPO cable with PLR4 modules?
A: The 400G PLR4 solution only utilizes the middle 8 fiber cores (3#–10#) of a standard 12-core MPO-12 APC ribbon cable. The outermost four fiber cores are reserved and not involved in data transmission, conforming to unified 400G parallel optical wiring norms.
Q7: What breakout cable specification is needed to connect PLR4 to 100G equipment?
A: It is necessary to deploy OS2 single-mode MPO-12 APC to 4×LC duplex breakout cables with Type-B polarity. This cable can split the 4-lane 400G parallel optical signal into four independent 100G-LR channels, realizing seamless docking with traditional 100G switches and network cards.
Q8: How do cascaded patch panel connections affect the 10km transmission range?
A: Each patch panel connector docking and fiber splice will generate tiny insertion loss. Multiple cascaded connections will continuously consume the module’s optical power budget. In complex cabling environments, the actual stable transmission distance will shrink to 6–8km from the standard 10km.
Q9: How to avoid module overheating throttling and damage in high-density switch deployment?
A: Ensure unobstructed front-to-back airflow inside the cabinet and keep module heat sinks clean. Maintain the ambient operating temperature within 0°C–70°C, enable automatic fan speed adjustment, and avoid full-density overloading. Reserved thermal margin can effectively prevent overheating throttling and permanent module failure.
Q10: What are the differences between Type 1 and Type 2 QSFP-DD heat sinks for PLR4 modules?
A: Type 1 is a standard-height heat sink, suitable for conventional density switch deployment scenarios. Type 2 is a low-profile slim heat sink, specially designed for ultra-high-density line cards. Both adapt to 400G PLR4 modules, and Type 2 optimizes inter-module airflow to improve overall cabinet heat dissipation efficiency.
Q11: Does this 400G PLR4 transceiver support real-time optical digital monitoring?
A: Yes, all HYTOPTODEVICE 400G PLR4 modules support complete DDM/DOM digital optical monitoring. The system can real-time monitor core data including transceiver temperature, working voltage, bias current, and transmit/receive optical power, supporting remote operation maintenance and early fault warning.
Q12: What is CMIS, and why does version matching matter for 400G QSFP-DD modules?
A: CMIS is a unified general management interface specification for QSFP-DD optical transceivers. Different CMIS versions have distinct register definitions and diagnostic logic. Version mismatch between module and switch system will cause identification failure, missing monitoring data and port initialization exceptions on ArubaOS and other mainstream platforms.
