| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | SFP-10G-ER40 | SFP-10G-SR |
| 2 | Cisco | SFP-10G-ER | SFP-10G-LR |
| 3 | Cisco | SFP-10G-ER-S | SFP-10G-LRM |
| 4 | Cisco Meraki | MA-SFP-10GB-ER | SFP-10G-ZR |
| 5 | Arista Networks | SFP-10G-ER | |
| 6 | HPE Aruba | J9153D | |
| 7 | Brocade | 10G-SFPP-ER40 | |
| 8 | H3C | SFP-XG-ER-SM1550 | |
| 9 | Juniper | EX-SFP-10GE-ER40 | |
| 10 | Dell | GP-10GSFP-1E |
|

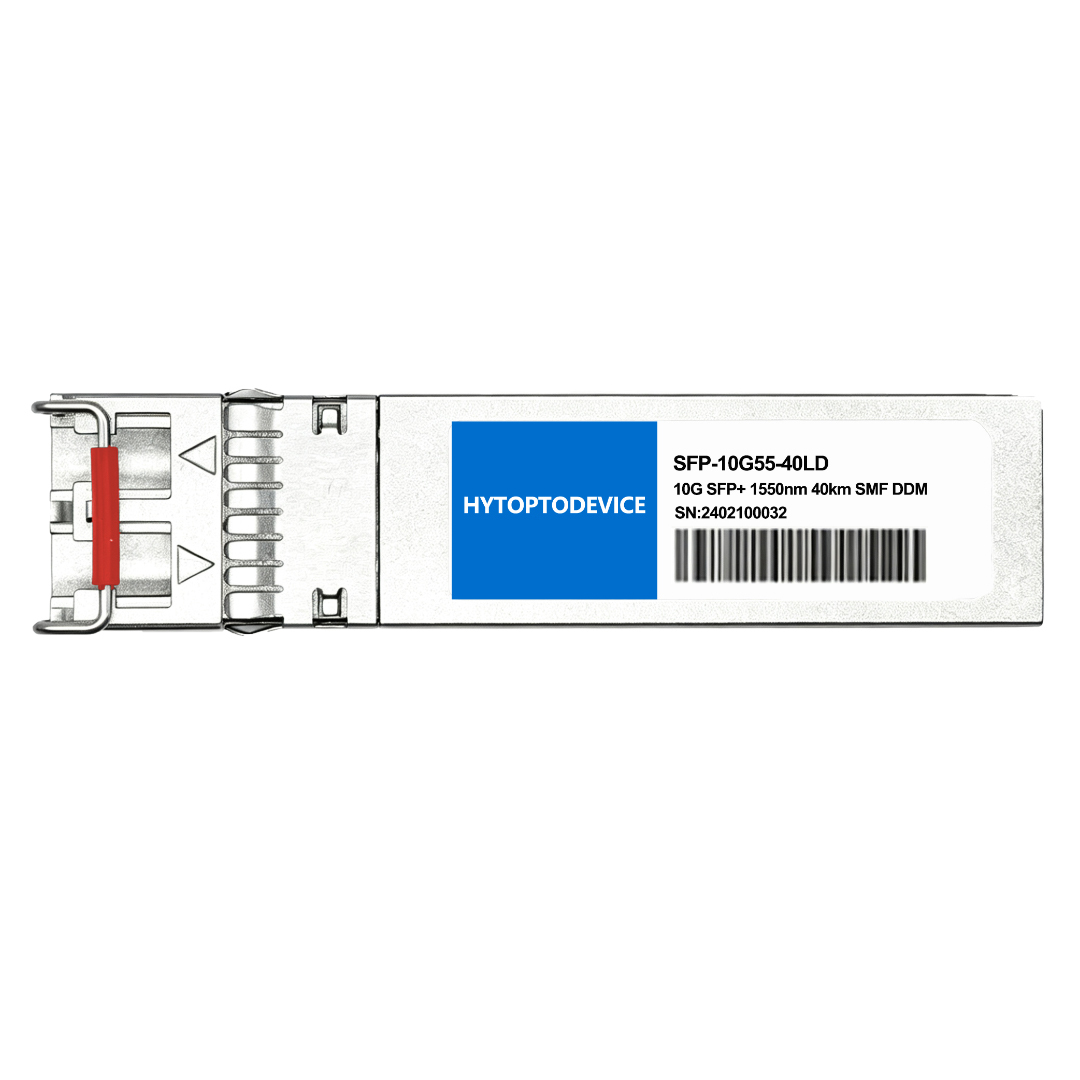

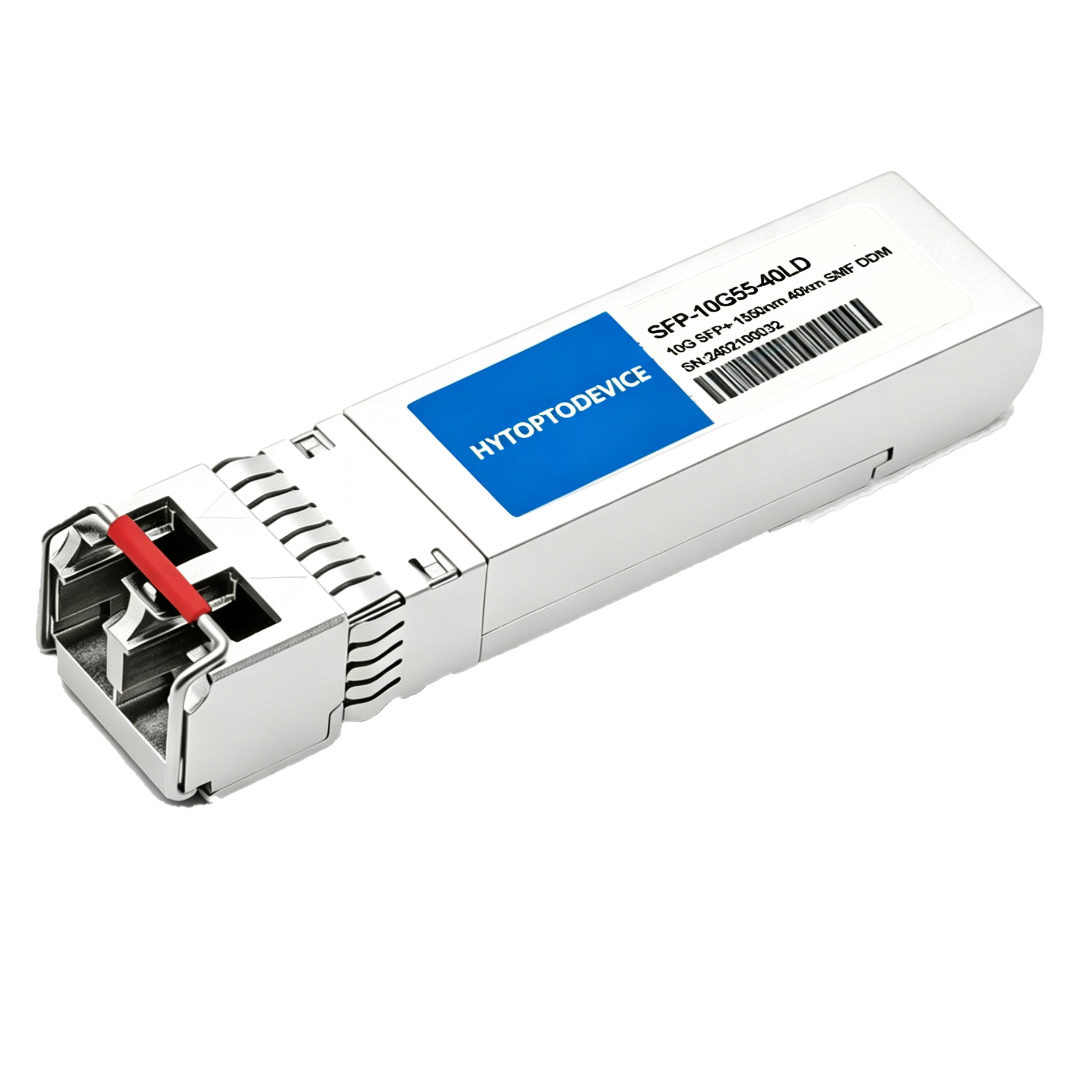

Dell Compatible |
GP-10GSFP-1E |
Vendor Name |
HYTOPTODEVICE |
|
Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
|
Wavelength |
1550nm |
Max Distance |
40km |
|
Connector |
Duplex LC |
Transmitter Type |
1550nm EML |
|
Cable Type |
SMF |
Receiver Type |
PIN |
|
TX Power |
-1.0~+3.0dBm |
Receiver Sensitivity |
< -15.5dBm |
|
Power Consumption |
≤1.5W |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
Fiber Choice: OS1/OS2 single-mode fiber (9/125 µm) is correct. Standard duplex LC-LC connectors are standard. Do NOT use OM1/OM2/OM3/OM4 Multimode Fiber (MMF) cables; severe modal dispersion will prevent link establishment.
Connector Match: Clarify that UPC/PC is required for proper optical contact, while APC will result in an unusable link and excessive signal loss.

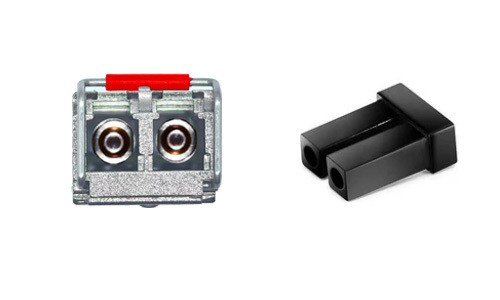

Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
Link Tuning: If auto-negotiation fails with legacy SAN switches, manually lock the port speed to 10Gbps
Handling: Wear an ESD wrist strap during installation. Maintain a minimum fiber bend radius of 30 mm to prevent micro-bends and optical power loss.
Installation & Hot-Swap Rules
Supports MSA-compliant hot-swapping. Insert/remove gently without powering down the device. Keep dust caps on unused LC ports and avoid frequent re-plugging.
Operating Environment
Commercial grade: 0°C to 70°C in indoor environments. Keep away from extreme heat, moisture, and dust for long-term stability.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List and Supported Devices

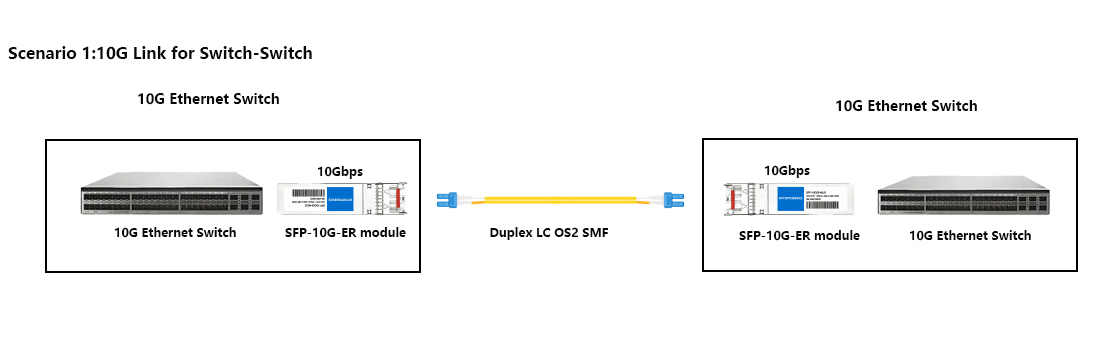

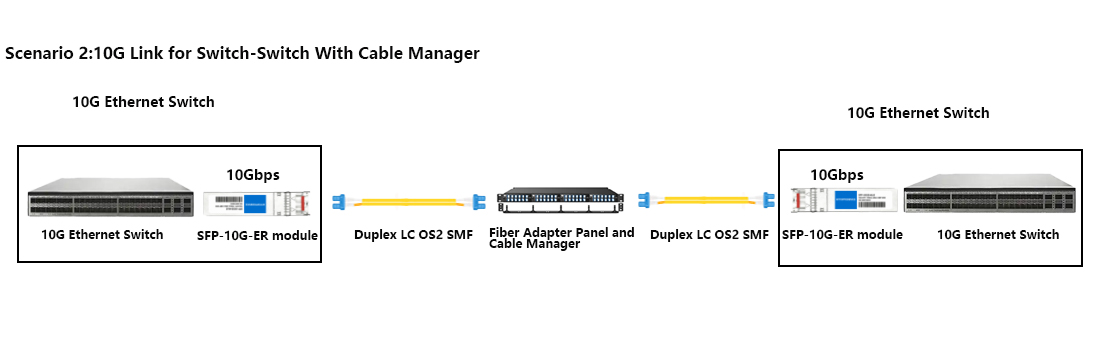

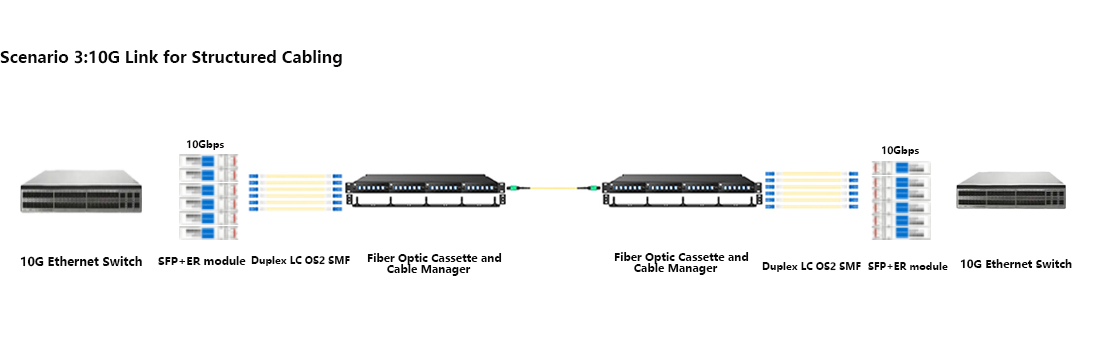

Main Application Scenarios
| Distance | ≤ 5km | ≤ 10km | ≤20km | Remarks |
| Attenuator | 12dB | 9dB | 6dB |






Q1: When do I need an inline optical attenuator for SFP‑10G‑ER? A: You need an inline optical attenuator when link distance is very short below 10km to avoid receiver overload, SFP‑10G‑ER transmit power ranges ‑1 ~ +3dBm, add proper attenuator if received power exceeds 0.5dBm to protect receiver chip.
Q2: What is the typical optical power budget of an SFP‑10G‑ER transceiver? A: The typical optical power budget for SFP‑10G‑ER is around 14dB, it supports maximum 40km over G.652 single‑mode fiber with ‑1 ~ +3dBm transmit and ‑15.5dBm receiver sensitivity.
Q3: Can I use SFP‑10G‑ER with BiDi (Single Strand) fiber cabling? A: No, SFP‑10G‑ER cannot work with BiDi single‑strand fiber, it uses dual‑fiber LC port for separate transmit and receive paths and requires two‑strand SMF for normal operation.
Q4: Can I insert an SFP‑10G‑ER into a standard 1G SFP port? A: No. 1G SFP ports lack the hardware bandwidth and clocking required for 10G SFP+ modules.
Q5: Does SFP‑10G‑ER auto‑negotiate down to 1G speed? A: No, SFP‑10G‑ER does not auto‑negotiate down to 1G, it runs fixed 10G rate only, you must set port speed manually if your switch supports forced‑rate configuration.
Q6: Will using third‑party SFP‑10G‑ER modules void my switch hardware warranty? A: In most cases third‑party SFP‑10G‑ER will not void hardware warranty, hardware warranty covers switch chassis itself, check your vendor legal statement; only module‑caused physical damage voids relevant parts warranty.
Q7: Does SFP‑10G‑ER support DOM / DDM (Digital Optical Monitoring)? A: Yes, our compatible SFP‑10G‑ER fully supports DOM/DDM compliant to SFF‑8472, you can read real‑time Tx power, Rx power, temperature and supply voltage via switch CLI.
Q8: Can I connect SFP‑10G‑ER to an SFP‑10G‑ZR (80km) transceiver? A: Yes, cross‑connection between SFP‑10G‑ER and SFP‑10G‑ZR works, but you must add inline attenuator for short links to prevent receiver damage due to high ZR transmit output power.
Q9: What type of laser is built into an SFP‑10G‑ER transceiver? A: SFP‑10G‑ER uses cooled EML (Electro‑Absorption Modulated Laser) at 1550nm wavelength, EML delivers stable optical output for long‑reach 40km single‑mode fiber transmission.
Q10: Will populating multiple ER transceivers side‑by‑side cause overheating in high‑density switches? A: Side‑by‑side ER modules will not cause overheating with proper chassis airflow, each ER module consumes ≤1.5W power; ensure switch fan works normally and maintain recommended operating temperature 0‑70°C.
Q11: What is the target Bit Error Rate (BER) specification? A: Target BER for SFP‑10G‑ER is 1×10⁻¹² under full operating conditions, this standard meets IEEE 802.3ae requirements for stable 10G Ethernet transmission.
Q12: What receiver technology is used in SFP‑10G‑ER? A: SFP‑10G‑ER adopts PIN‑based receiver technology, it offers good sensitivity of ‑15.5dBm and stable performance for 40km 10GBASE‑ER single‑mode fiber links.
Q13: Does chromatic dispersion affect SFP‑10G‑ER over 40 km? A: Chromatic dispersion has limited impact within 40km for SFP‑10G‑ER EML laser, signal degradation will rise obviously when transmission distance exceeds 40km over G.652 fiber.
Q14: What MSA standards govern SFP‑10G‑ER transceivers? A: SFP‑10G‑ER follows SFF‑8431 SFP+ MSA and IEEE 802.3ae 10GBASE‑ER standards, also complies with SFF‑8472 for digital optical monitoring function.
Q15: How do I verify receiver light levels in the switch CLI before bringing up the interface? A: You can verify receiver light levels by reading DDM DOM values via switch CLI commands, check real‑time Rx power value and confirm it falls within the valid ‑1 ~ ‑15.5dBm working range before enabling the interface.
Q16: Can SFP‑10G‑ER be deployed in dark fiber leases? A: Yes, SFP‑10G‑ER is suitable for dark fiber lease deployment, confirm fiber quality and link loss beforehand, add optical attenuator if excess optical power exists on short dark‑fiber circuits.
