25G-SFP28-LR Compatible Brocade 25G SFP28 LR Transceiver | 1310nm 10km SMF Duplex LC For System Integrator Bulk Procurement & Spare Part Stocking | HYTOPTODEVICE
Product Overview

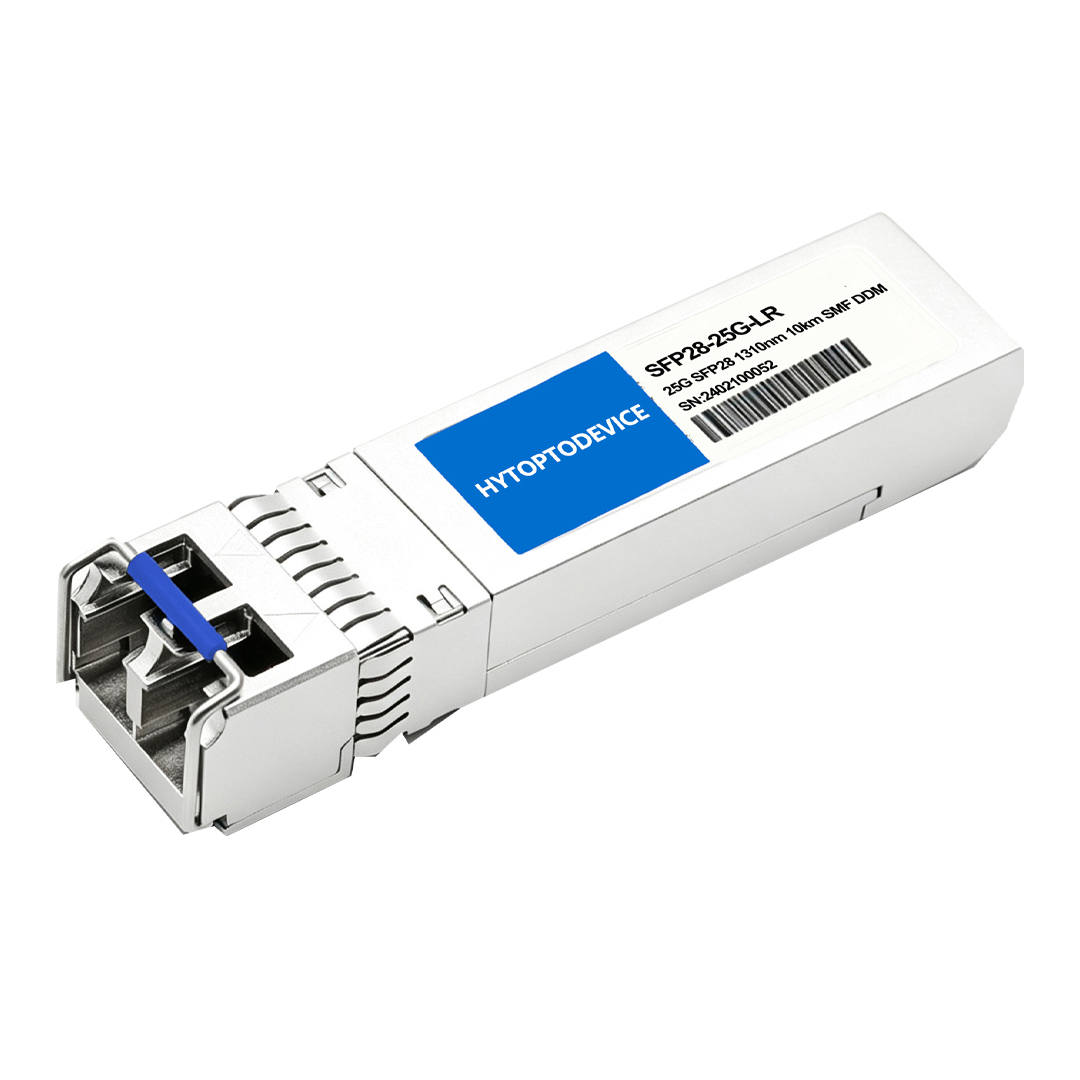

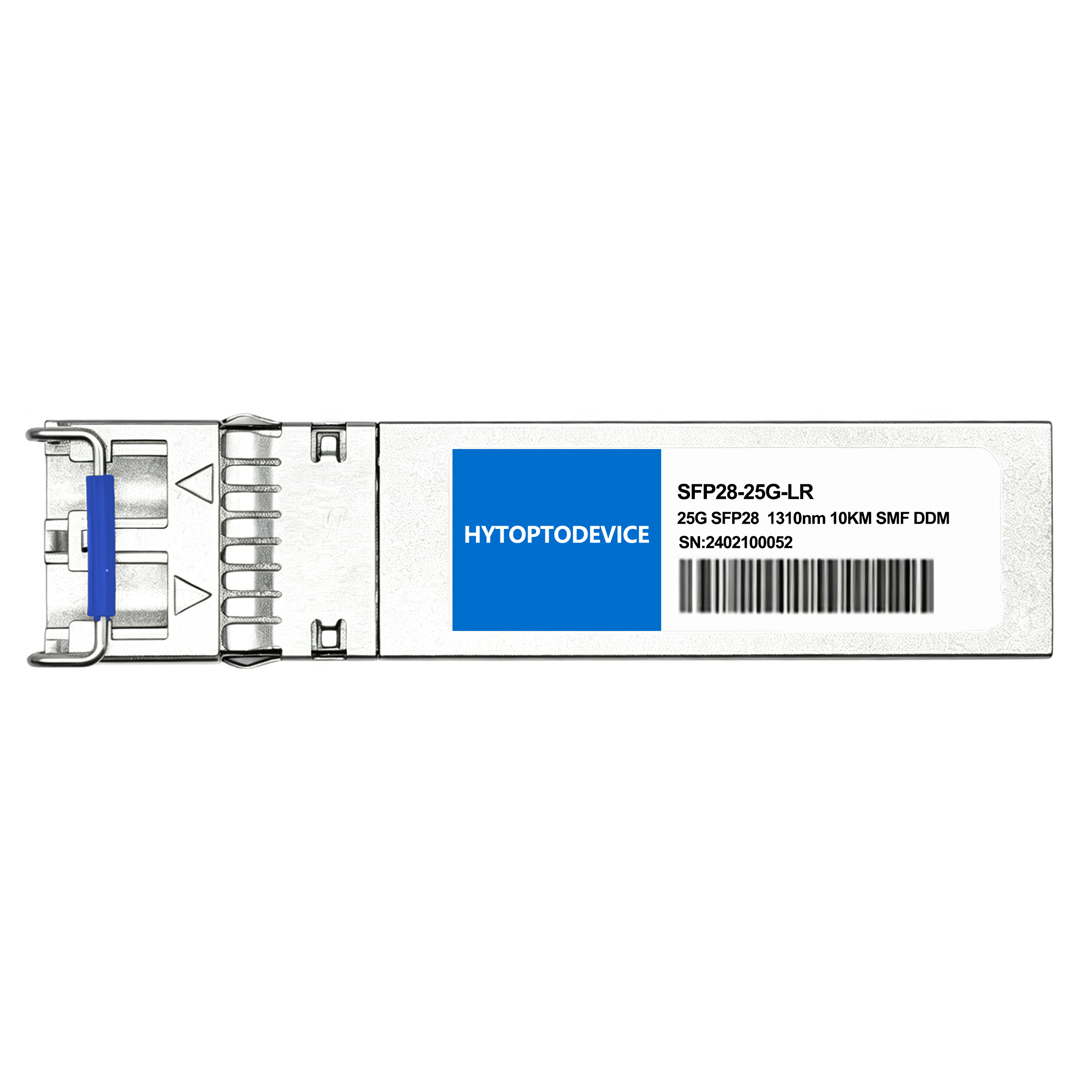

HYTOPTODEVICE 25G-SFP28-LR is fully Brocade-compatible
25G SFP28 LR transceiver, compliant with IEEE 25GBASE-LR and SFP28 MSA standards.
Adopt industrial 1310nm DFB laser, stable 10km SMF transmission for Brocade storage & data center long-span links.
Low-power compact SFP28 form factor fits high-density Brocade switch racks, built-in DDM/DOM real-time optical monitoring.
Pre-flashed Brocade certified write-protected EEPROM, plug-and-play with zero alarms, no port lock for all Brocade SFP28 switch series.
Ideal for bulk procurement inquiry, new data center project stocking, daily Brocade switch replacement spare inventory. We support factory direct large batch orders, free Brocade EEPROM customization and OEM labeling for system integrator tender buyers.
Key Technical Specifications
Every 25G SFP28 LR transceiver passes full factory aging & Brocade real-machine testing before delivery, consistent batch quality for long-term project stocking and replacement spare stock management.
| Brocade Compatible |
25G-SFP28-LR |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP28 |
Max Data Rate |
25Gbps |
| Wavelength |
1310nm |
Max Distance |
10km |
| Connector |
Duplex LC |
Transmitter Type |
DFB 1310nm |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-4.5~+2.5dBm |
Receiver Sensitivity |
< -11.4dBm |
| Max. Power Consumption |
≤1.2W |
DOM/DDM |
Fully Supported |
| Protocols |
SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Best Practices
Standard maintenance keeps Huawei 25G SFP28 LR links stable, reduce spare replacement frequency and cut project stocking cost.
1. Anti-Static Handling Protection
The transceiver’s long-distance laser diode and PCB circuits are highly sensitive to static electricity. Always wear a certified ESD anti-static wrist strap during installation, replacement and maintenance work inside Brocade switch racks to prevent static discharge damage to internal hardware and preserve complete dual-rate module performance.
2. Optical Port & Fiber Cleaning Maintenance
Dust and oil stains are the leading cause of unstable 25G long-range links. Keep dust caps on idle ports and clean LC fiber end faces before docking to maintain optimal optical transmission performance.
3. Standard RS-FEC Port Configuration
RS-FEC error correction is essential for stable 25G long-distance transmission. Enable RS-FEC on Brocade switch ports for 25G 10km links. It corrects transmission bit errors and improves link stability for long-span networking.
4. Professional Fiber Type Matching
This 25G SFP28 LR transceiver only supports G.652/G.657 single-mode fiber. Multimode fiber causes severe signal attenuation and link failure, and APC polished cables are not compatible.
This module only supports G.652 and G.657 single-mode fiber. Multimode fiber cannot support 10km long-distance transmission and causes severe attenuation. It only matches standard LC/UPC single-mode cables, not APC polished cables.
5. Standard Hot-Swap Operation Rules
The module supports MSA-compliant hot-swap. Users can plug and play without powering off Brocade switches. Avoid frequent repeated plugging to prevent gold pin wear and port fatigue, extending equipment service life.
6. Professional Laser Safety Specification
This product is a Class 1 safety-grade laser optical transceiver. When the module is powered on and working, do not directly observe the optical port or the end face of connected fiber with naked eyes, to avoid laser radiation damage to human eyes and comply with industrial laser safety operation standards.
Full Compatibility List & Supported Devices
All HYTOPTODEVICE 25G SFP28 LR modules pass real Brocade switch traffic testing, stable mass supply for system integrator bulk inquiry and long-term project stocking contracts.
1. Supported Brocade Devices & Firmware
Fully compatible with Brocade Fabric OS mainstream firmware versions, EEPROM write protection avoids transceiver identification failure after system upgrade.
- Data Center Switches: Brocade 7850 Extension Switch, G720/G730/G740 25G SFP28 series switches
- Enterprise Core Switches: Brocade multi-gigabit campus switches with native SFP28 ports
- Peripheral Devices: 25G server HBA, storage NIC, SFP28 media converter, enterprise WAN routers
2. Cross-Brand Compatibility
Universal 25G SFP28 LR design supports mixed-vendor network deployment for multi-brand project procurement:
- Open brand: Plug-and-play for MikroTik, TP-Link, Fortinet without EEPROM rewrite
- Locked brand: Free custom EEPROM for Cisco, Arista, HPE Aruba, Huawei to eliminate unsupported transceiver alarms
3. Exclusive Bulk Procurement Service
One-stop service for clients with large quantity inquiry, long-term project stocking and regular replacement spare replenishment:
- Free Brocade exclusive EEPROM calibration for bulk order buyers, no extra coding labor fee
- Mass finished goods inventory ready for fast delivery of urgent replacement stock orders
- Custom OEM label, packaging and parameter tuning for system integrator project tender procurement
- Factory direct competitive unit price for recurring monthly stocking contracts, flexible MOQ for small trial inquiry orders
Primary Application Scenarios
Our Brocade compatible 25G SFP28 LR transceiver is cost-effective replacement for original Brocade modules, widely purchased by system integrators for data center project stocking and daily switch spare inventory management.
- Cross-building campus long-distance uplink: Large batch procurement for park network upgrade projects, stable stock supply for post-implementation maintenance replacement.
- Inter-data center backbone interconnection: Long-term stocking contract supply for multi-room data center long-span 10km links, reduce frequent repeat inquiry.
- Enterprise core WAN backbone uplink: Small batch regular replacement spare stock for enterprise IT department daily equipment maintenance.
- 100G QSFP28 breakout 4×25G long-range networking: Mass tender procurement for new data center construction projects, unified spare stocking standard for operation teams.
- Distributor & integrator inventory stocking: Sufficient factory bulk stock for reseller regular replenishment inquiry, short lead time for emergency order demand.
Connectivity Solutions(Applications)
This 25G SFP28 LR transceiver provides cost-effective long-range 25G transmission solutions for Brocade network construction projects, matching large-scale procurement and spare stocking plans.
1. 25G Long-Distance Switch-to-Switch Interconnection Solution
Pair 25G-SFP28-LR modules to build 10km full-duplex links between Brocade core and aggregation switches. Enable RS-FEC for stable transmission, ideal for one-time large project procurement during campus network reconstruction.
2.25G Switch-to-Server Long-Range Access
Match Brocade SFP28 switch ports with 25G server and storage HBAs. Reliable single-mode transmission cuts failure rate, lowering the volume of monthly replacement spare stock required for server room maintenance.
3. 100G to 4×25G Breakout Long-Range Link Solution
Support Brocade 100G QSFP28 breakout mode to split 1 port into 4 independent 25G long-distance links. Uniform module model simplifies centralized project stocking and unified spare part management for data center operation teams.
The Core Features
1. Smooth 100G/25G Data Center Network Upgrade For Large Project Procurement
Support standard 100G-to-4×25G breakout architecture, match Brocade new-generation data center construction tender procurement demands. No full equipment replacement needed, cut total project stocking budget.
2. Low-Power High-Density 25G Fast Deployment
With ultra-low power consumption ≤1.2W and compact SFP28 form factor, this 25G SFP28 LR transceiver reduces cabinet heat load and power consumption. It supports high-density port stacking and hot-swap fast deployment for large-scale data center and enterprise network expansion.
3. Strict Brocade Hardware Compatibility Verification For Zero-Failure Bulk Orders
Pre-programmed Brocade Fabric OS certified EEPROM with write protection. Every 25G SFP28 LR passes real Brocade switch traffic testing, eliminate alarm risks during mass project deployment and avoid mid-project supplementary procurement.
4. Comprehensive Testing Ensures Operational Reliability
Each module undergoes optical calibration, 72h high-temp aging and Huawei compatibility inspection. Stable long service life reduces annual spare replacement purchase frequency and cuts recurring inventory stocking expenditure.
FAQ
Q1: Can bulk purchased 25G SFP28 LR modules run on legacy Brocade SFP+ 10G ports for project spare stock?
A1: Standard single-rate 25G SFP28 LR cannot downshift to 10G speed. Our bulk ordered Brocade compatible modules only fit native SFP28 ports, standardize your project spare stocking model without mixed-spec inventory waste.
Q2: How to source 25G SFP28 LR for Brocade 100G QSFP28 breakout during large data center project procurement?
A2: Direct plug-in is unsupported. Our factory supplies matched QSA adapters alongside bulk 25G SFP28 LR modules for one-stop project tender procurement. After enabling 4×25G split on Brocade 100G ports, all links run zero alarm to avoid mid-project supplementary stock inquiry.
Q3: Are third-party 25G-SFP28-LR reliable for long-term Brocade network replacement spare stocking contracts?
A3: Fully reliable for recurring spare inventory replenishment. We pre-program Brocade exclusive EEPROM for every 25G SFP28 LR batch, pass full Brocade Fabric OS authentication, eliminate unsupported transceiver errors and reduce emergency small-batch procurement.
Q4: Can mixed connection between 25G SFP28 LR and 10G LR disrupt enterprise project spare stock planning?
A4: Cross-rate linking fails completely. Our single-rate Brocade 25G SFP28 LR only supports 25G native links. Unify module model to simplify centralized replacement spare stock management for IT operation teams.
Q5: Do I need optical attenuators when buying bulk 25G SFP28 LR for short-distance campus project stocking?
A5: Attenuators are not mandatory for standard short links. Factory-calibrated optical power prevents signal saturation, saving extra accessory procurement cost for your project inventory budget. Only prepare 5dB attenuators for ultra-short links as optional spare stock.
Q6: Can commercial grade 25G SFP28 LR be purchased in bulk for outdoor 5G fronthaul project stocking?
A6: Standard commercial batches only fit indoor 0~70℃ environments. We supply industrial I-Temp grade 25G SFP28 LR for outdoor fronthaul bulk procurement, avoid post-project re-purchasing replacement stock due to temperature failure.
Q7: Can OM3/OM4 multimode fiber be matched with bulk ordered Brocade 25G SFP28 LR for campus project stock?
A7: Multimode fiber cannot establish valid links with our 1310nm single-mode 25G SFP28 LR. Standardize single-mode patch cord procurement together with module bulk orders to cut mismatched spare stock waste.
Q8: What maintenance rule reduces repeated 25G SFP28 LR replacement stock procurement for Brocade networks?
A8: Clean fiber tips before every installation. Dust contamination is the top cause of unstable long-range links. Standardized maintenance lowers module failure rate and cuts annual spare inventory replenishment quantity for enterprise procurement teams.
Q9: Can 100G LR4 breakout ports be matched with bulk stocked 25G SFP28 LR for Brocade data center projects?
A9: Technical incompatibility blocks breakout deployment. 100G LR4 uses LAN-WDM multiplexing while our 25G SFP28 LR adopts single 1310nm wavelength. Avoid wrong model bulk procurement and idle project inventory loss.
Q10: Will using third-party bulk 25G SFP28 LR invalidate Brocade switch warranty for tender project procurement?
A10: Hardware warranty remains intact under Magnuson-Moss Warranty Act. Our fully tested bulk 25G SFP28 LR modules cause no device damage, safe for large tender project procurement and long-term replacement spare stocking plans.
