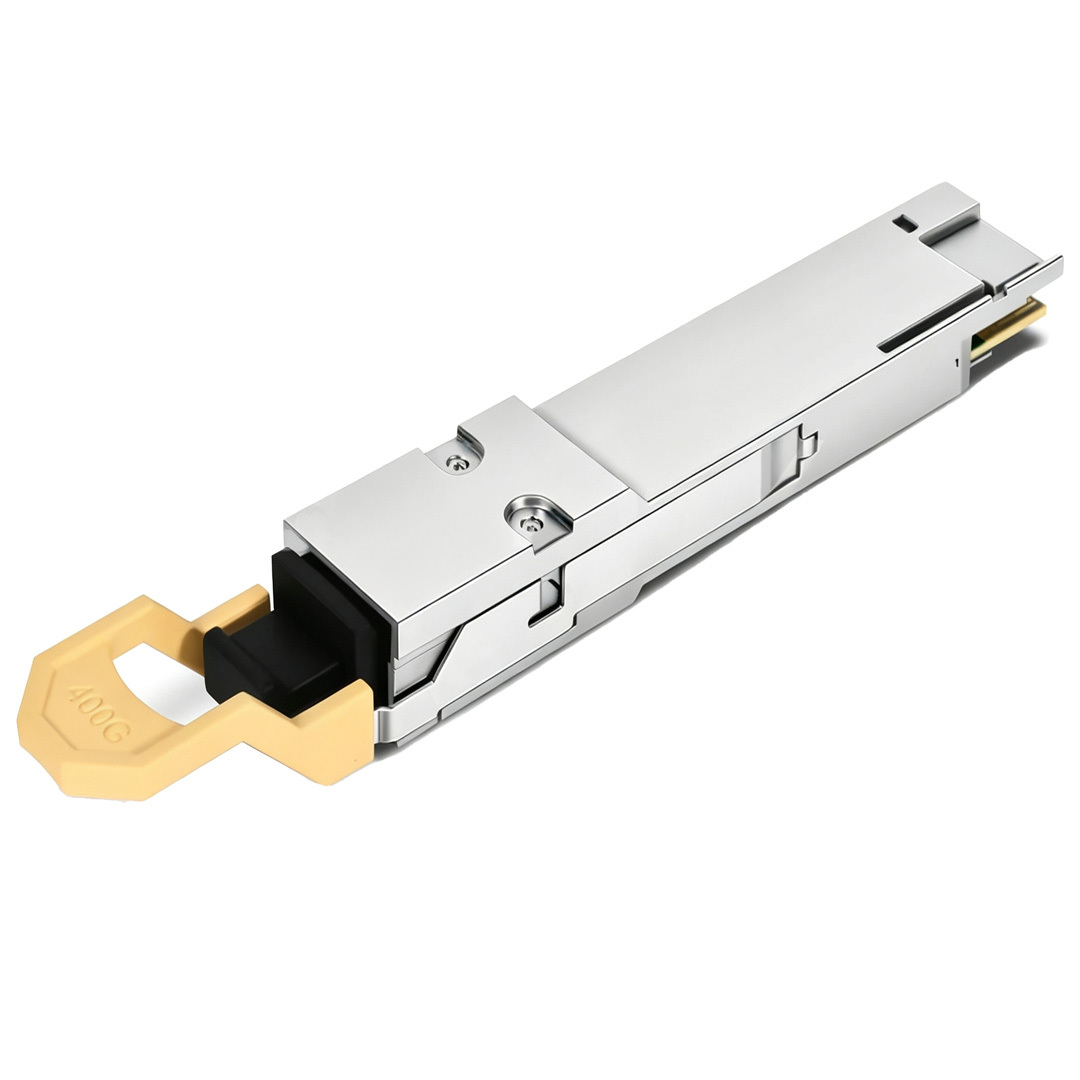

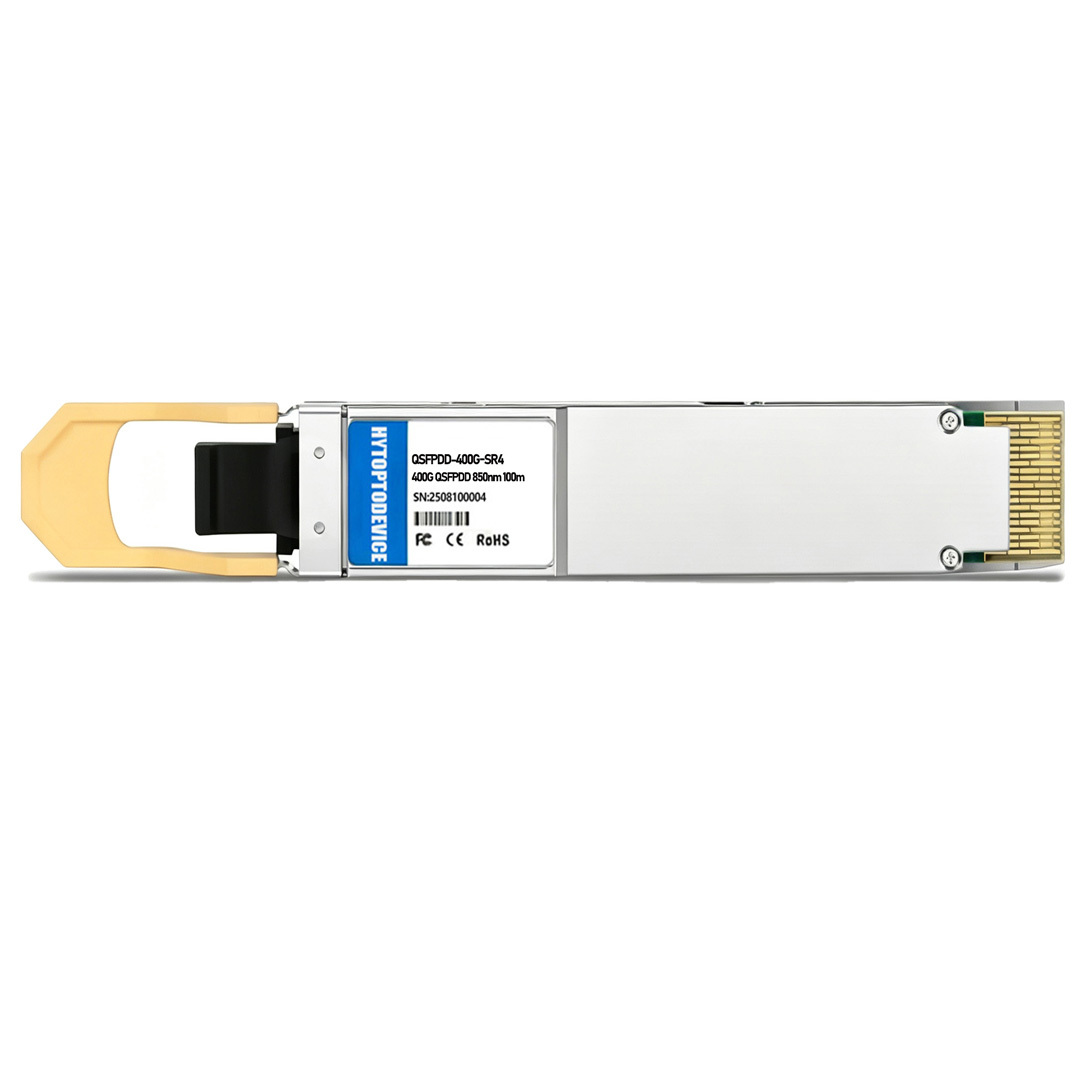

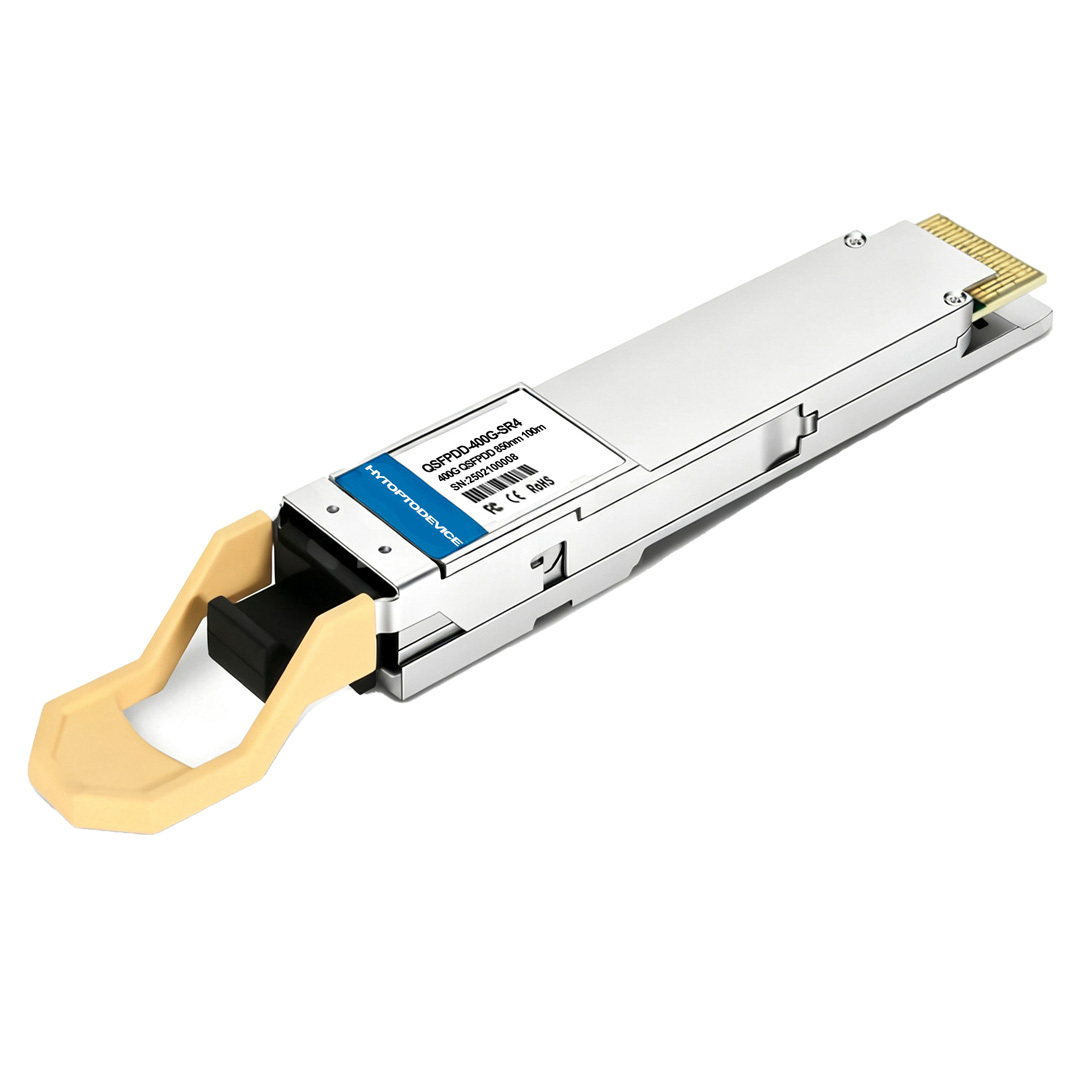

Dell Compatible 400GBASE-SR4 QSFP-DD Optical Transceiver Module
Dell compatible Q56-DD-VR4 is a premium 400GBASE-VR4 optical transceiver module. Engineered for modern ultra-high-density data centers, this 400g qsfp-dd sr4 module supports transmission distances of up to 100m over OM4 Multimode Fiber (MMF) and 60m over OM3.By utilizing 4-lane 100G PAM4 technology and a standard MPO-12 connector, it allows network operators to reuse existing 12-fiber infrastructure while achieving 400G speeds. Its "Very Short Reach" (VR) optics solution is significantly more power-efficient than standard long-range modules, making it the perfect choice for high-radix Dell PowerSwitch fabrics. Fully compliant with QSFP-DD MSA and IEEE 802.3db standards, 400G Transceiver Manufacturer China HYTOPTODEVICE ensures 100% interoperability and a stable long-term supply for AI-driven compute pods and hyperscale enterprise networks.
Compatibility and Supported Devices
The HYTOPTODEVICE Dell 400G-Q56-DD-VR4 pluggable transceiver is rigorously verified and firmware-coded for native recognition in Dell networking hardware, including:
-
PowerSwitch Z-Series: Z9332F-ON, Z9432F-ON, Z9664F-ON (High-density aggregation).
-
PowerSwitch S-Series: S5448F-ON (25/100/400G Leaf Switch).
-
PowerEdge Server NICs: Compatible with Dell-branded 400G QSFP-DD Network Interface Cards.
-
Operating Systems: Seamlessly recognized by Dell SmartFabric OS10, providing real-time access to DDM/DOM diagnostics (temperature, laser bias, and optical power).
Primary Application Scenarios of 400G QSFP-DD Optical Transceiver
-
Intra-Rack 400G Connectivity: The most power-efficient solution for server-to-switch links within a single rack.
-
AI Cluster Interconnects: Providing high-speed, low-latency 400G backplane connectivity for Dell-based GPU compute nodes.
-
Adjacent Rack Stacking: Ideal for short-range 400G switch stacking (under 50m) as a lighter, more flexible alternative to DAC/AOC.
-
100G-to-400G MPO-12 Migration: Upgrade legacy 100G (SR4) cabling to 400G without replacing the existing MPO-12 fiber trunks.
Key Product Parameters of 400G SR4 Fiber Transceiver
| Dell Compatible |
400G-Q56-DD-VR4 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP-DD |
Wavelength |
850nm |
| Max Distance |
60m on OM3/100m on OM4 |
Modulation Format |
PAM4 |
| Host Required |
FEC |
Connector |
MTP/MPO-12 |
| Voltage Supply |
3.3V |
Cable Type |
MMF |
| Modulation (electrical) |
8x53.125Gb/s PAM4 |
Modulation (Optical) |
4x106.25Gb/s PAM4 |
| TX Power |
-4.6~+4.0dBm |
Receiver Sensitivity |
<-6.4dBm |
| DDM Support |
Yes |
Receiver Type |
PIN |
| Operation Temperature |
0 to 70°C (32 to 158°F) |
Maximum Power |
<9W |
| Protocols |
QSFP-DD MSA, IEEE 802.3bs |
Application |
400G Ethernet, Data Center Interconnect |
Connectivity Solutions(Applications) of 400G QSFP-DD Transceiver
FAQ for 400G QSFP-DD Optical Transceiver Modules
Q1:What is QDD-400G-SR4? A:The 400G QSFP-DD SR4 is a hot pluggable optical transceiver module with a speed of 400Gbps, a wavelength of 850nm, and a transmission distance of up to 100m with MPO-12,OM4 MMF. It is ideal for data centre, 400G Ethernet and Infiniband Interconnects.
Q2:What is the maximum transmission distance of the 400G QSFP-DD SR4 transceiver?A:HYTOPTODEVICE QSFP-DD 400G SR4 module supports the maxium transmitting distance of up to 100m with MPO-12, OM4 MMF

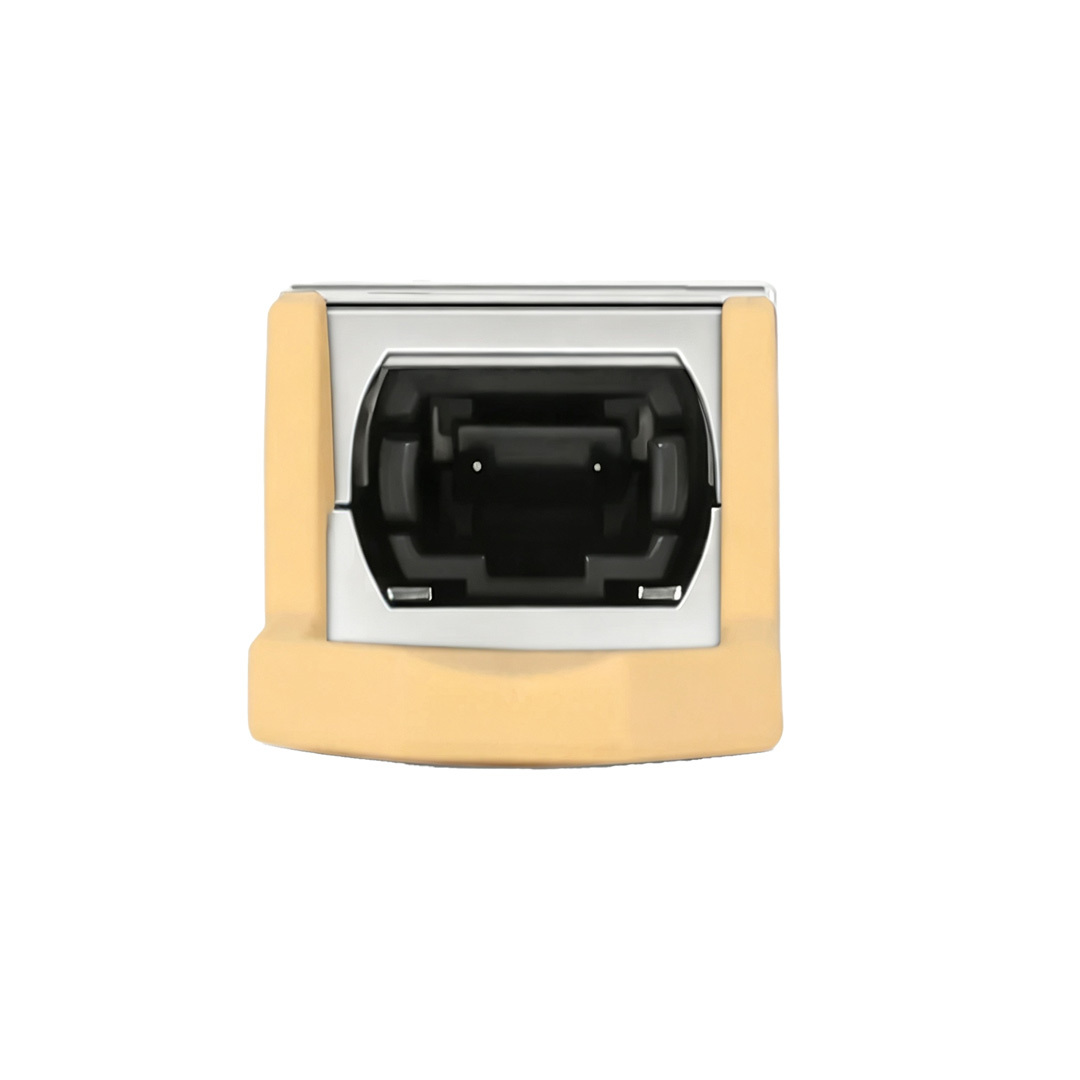

Q3:What fiber connector is required for the HYTOPTODEVICE QSFP-DD-400G-SR4?A:The 400G QSFP DD SR4 module uses an MPO-12 connector with MMF.
Q4:Does the HYTOPTODEVICE QDD-400G-SR4-S require FEC?A:Yes. According to the IEEE 802.3db standard, Host KP4 FEC must be enabled on the Cisco switch port to achieve the 100m distance with a reliable Bit Error Rate (BER).
Q5:Does the HYTOPTODEVICE QSFP-DD-400G-SR4 support breakout to 100G?A:Yes, The 400G SR4 module operates by using 4 independent channels, each channel running at 100G PAM4. so the HYTOPTODEVICE QSFP-DD-400G-SR4 transceiver fully supports breakout applications to 4x 100G.
Q6:Where to buy 400G QSFP DD SR4 optical transceiver?A:There are many factories that produce and sell 400G fiber optical modules, but 400G optical transceiver manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.
Q7:Q: Why choose the HYTOPTODEVICE QSFP-DD-400G-SR4 over the SR8 version? A: The QSFP-DD-400G-SR4 version is designed for improved efficiency. It uses an MPO-12 connector (100G standard), while the QSFP-DD-400G-SR8 requires an MPO-16 connector. If you already have MPO-12 cabling installed, the HYTOPTODEVICE 400G SR4 is a more economical option.This will allow you to upgrade from 100G to 400G using the existing MPO-12 fiber.
Q8:Is the 400G QSFP-DD SR4 backward compatible with lower-speed modules,such as 100G?A: Yes. QSFP-DD 400G SR4 uses parallel fiber (MPO-12). Using an MPO-to-4xLC breakout cable, you can link it to four 100G-SR (PAM4) transceivers.
Q9:How do HYTOPTODEVICE ensure 400G QSFP-DD SR4 module compatibility with network switch?A:Ensuring 100% compatibility, optical transceiver modules must be coded to match the switch's requirements. 400G Optical Transceiver Manufacturer China HYTOPTODEVICE was equipped with various high-speed switch,the brands include such as Cisco,NVIDIA,Arista,Juniper. highly professional in coding equipment for various brands to ensure they are recognized and running in your device.
Q10:Is QDD-400G-SR4 hot-swappable?A:HYTOPTODEVICE fiber transceiver modules are hot-pluggable, hot Pluggable QSFP-DD MSA Compliant.you can plug or unplug the optical transceiver, while the device is powered on without damaging the hardware.
Q11:who makes the best 400g transceiver?A: 400G Optical Transceiver Manufacturer China HYTOPTODEVICE ensures that the QDD-400G-SR4 is coded and tested for full compatibility with major switch vendors (such as Cisco, Juniper, Arista, and huawei). They verify the EEPROM settings to ensure "plug-and-play" functionality without port-recognition errors.Power efficiency, thermal management, multi-vendor compatibility,fast delivery are HYTOPTODEVICE advantage and commitment.
Q12：Does it use MPO-12 or MPO-16？A:The 400G QSFP-DD SR4 uses MPO-12 connector. There are 4 transmit and 4 receive channels (8 fibers total). An MPO-12 connector is used, with the 4 middle fibers typically remaining unused.
Q13:Who is the best optical transceiver manufacturer in china? A:HYTOPTODEVICE is the best optical transceiver manufacturer in china with high-performance,100% compatibility, fast and stable delivery,sour factory price.
Q14:Q:Can a 400G SR8 module to a 400G SR4 module be connected?A:No. they can not interconnect.SR8 use the MPO-16 connector, SR4 for MPO-12. the connector mismatch. their wavelength and lane speed mismatch.
Q15: What difference is SR4 vs SR8 for 400G QSFP-DD modules?
| Feature |
400G SR4 |
400G SR8 |
| Lanes ways |
4-lane transmit + 4-lane receive |
8-lane transmit + 8-lane receive |
| Lane Rate |
100G PAM4 per lane |
50G PAM4 per lane |
| Optical Connector |
MPO-12 |
MPO-16 (or MPO-24) |
| Fiber Type |
Multi-mode (OM5 recommended) |
Multi-mode (OM3/OM4/OM5) |
| Transmission Tech |
BiDi (Bi-directional) + WDM |
Parallel transmission |
| Lane Wavelength |
850-910nm |
850nm |
