| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | SFP-10G-ER40 | SFP-10G-SR |
| 2 | Cisco | SFP-10G-ER | SFP-10G-LR |
| 3 | Cisco | SFP-10G-ER-S | SFP-10G-LRM |
| 4 | Cisco Meraki | MA-SFP-10GB-ER | SFP-10G-ZR |
| 5 | Arista Networks | SFP-10G-ER | |
| 6 | HPE Aruba | J9153D | |
| 7 | Brocade | 10G-SFPP-ER40 | |
| 8 | H3C | SFP-XG-ER-SM1550 | |
| 9 | Juniper | EX-SFP-10GE-ER40 | |
| 10 | Dell | GP-10GSFP-1E |
|
Cisco Compatible |
SFP-10G-ER |
Vendor Name |
HYTOPTODEVICE |
|
Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
|
Wavelength |
1550nm |
Max Distance |
40km |
|
Connector |
Duplex LC |
Transmitter Type |
1550nm EML |
|
Cable Type |
SMF |
Receiver Type |
PIN |
|
TX Power |
-1.0~+3.0dBm |
Receiver Sensitivity |
< -15.5dBm |
|
Power Consumption |
≤1.5W |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
Fiber Choice: OS1/OS2 single-mode fiber (9/125 µm) is correct. Standard duplex LC-LC connectors are standard. Do NOT use OM1/OM2/OM3/OM4 Multimode Fiber (MMF) cables; severe modal dispersion will prevent link establishment.
Connector Match: Clarify that UPC/PC is required for proper optical contact, while APC will result in an unusable link and excessive signal loss.

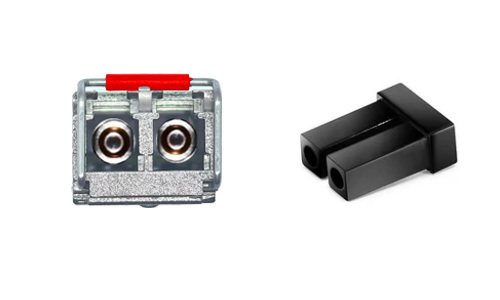

Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
Link Tuning: If auto-negotiation fails with legacy SAN switches, manually lock the port speed to 10Gbps
Handling: Wear an ESD wrist strap during installation. Maintain a minimum fiber bend radius of 30 mm to prevent micro-bends and optical power loss.
Installation & Hot-Swap Rules
Supports MSA-compliant hot-swapping. Insert/remove gently without powering down the device. Keep dust caps on unused LC ports and avoid frequent re-plugging.
Operating Environment
Commercial grade: 0°C to 70°C in indoor environments. Keep away from extreme heat, moisture, and dust for long-term stability.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List and Supported Devices
Lab‑validated with pre‑programmed Cisco EEPROM profile, this SFP+ 10G ER transceiver prevents transceiver unrecognized alerts, port shutdown and link instability, delivering performance matching original SFP‑10G‑ER. Tested for below Cisco hardware platforms:
● Catalyst 9300, 9400, 3850, 3650 series enterprise switches
● Catalyst 4500‑X, 6800 aggregation switches
● ISR 4000 / ASR 1000 series enterprise routers
● Cisco Nexus 9000, 5000 data‑center switches
Note: Upgrade Cisco IOS/IOS‑XE firmware to official stable release for best compatibility performance.
Main Application Scenarios
| Distance | ≤ 5km | ≤ 10km | ≤20km | Remarks |
| Attenuator | 12dB | 9dB | 6dB |






Q13: Can third‑party SFP‑10G‑ER transceivers work normally on multi‑brand network switching gear?
A: Our SFP+ 10G ER transceiver supports free EEPROM re‑programming for multi‑vendor compatibility. Pre‑flashed Cisco profile works natively on Cisco hardware; re‑flash EEPROM profile for Arista, Juniper or Dell platforms. Some older firmware‑locked devices require pre‑deployment validation. Enterprise procurement teams can submit exact switch model list for free compatibility assessment prior to bulk shipment.
Q14: Can I plug this SFP‑10G‑ER module into SFP28 ports or traditional 40G QSFP+ ports?
A: SFP28 ports are backward compatible with SFP+ optics and will run SFP‑10G‑ER at 10G speed. For 40G QSFP+ ports, a QSA (QSFP to SFP Adapter) is required. Mis‑configuration or missing adapters results in no‑link or link‑flapping conditions. Data‑center technicians should verify port‑speed mode and adapter requirements when mixing 10G ER optics inside higher‑rate switch hardware.
Q15: How to resolve Cisco unsupported‑transceiver warning messages for non‑original ER optical modules?
A: First confirm we have shipped units with Cisco‑specific EEPROM. For Cisco IOS‑XE, you may enter service unsupported‑transceiver CLI command to override restriction, though pre‑programmed profile eliminates this requirement in most cases. Also upgrade IOS‑XE to stable release and clean LC connectors. Network engineers troubleshooting third‑party transceiver alarms on Catalyst hardware should follow this standardized workflow.
Q16: Is this SFP‑10G‑ER compatible optic functional with mainstream server SFP+ network interface cards?
A: This SFP+ 10G ER transceiver works with standard SFP+ NICs from Intel, Broadcom and NVIDIA/Mellanox, after adjusting EEPROM profile if required. Certain NIC firmware may reject unrecognized vendor‑IDs. IT teams building storage‑network infrastructure can request sample units for lab validation before large‑volume server‑NIC related bulk orders.
Packaging & Custom OEM Solutions
Individually sealed in ESD-safe packaging and ready to ship. We offer tailored OEM solutions—including custom logos and private labeling—to support high-volume distributors,wholesaler and system integrators.
