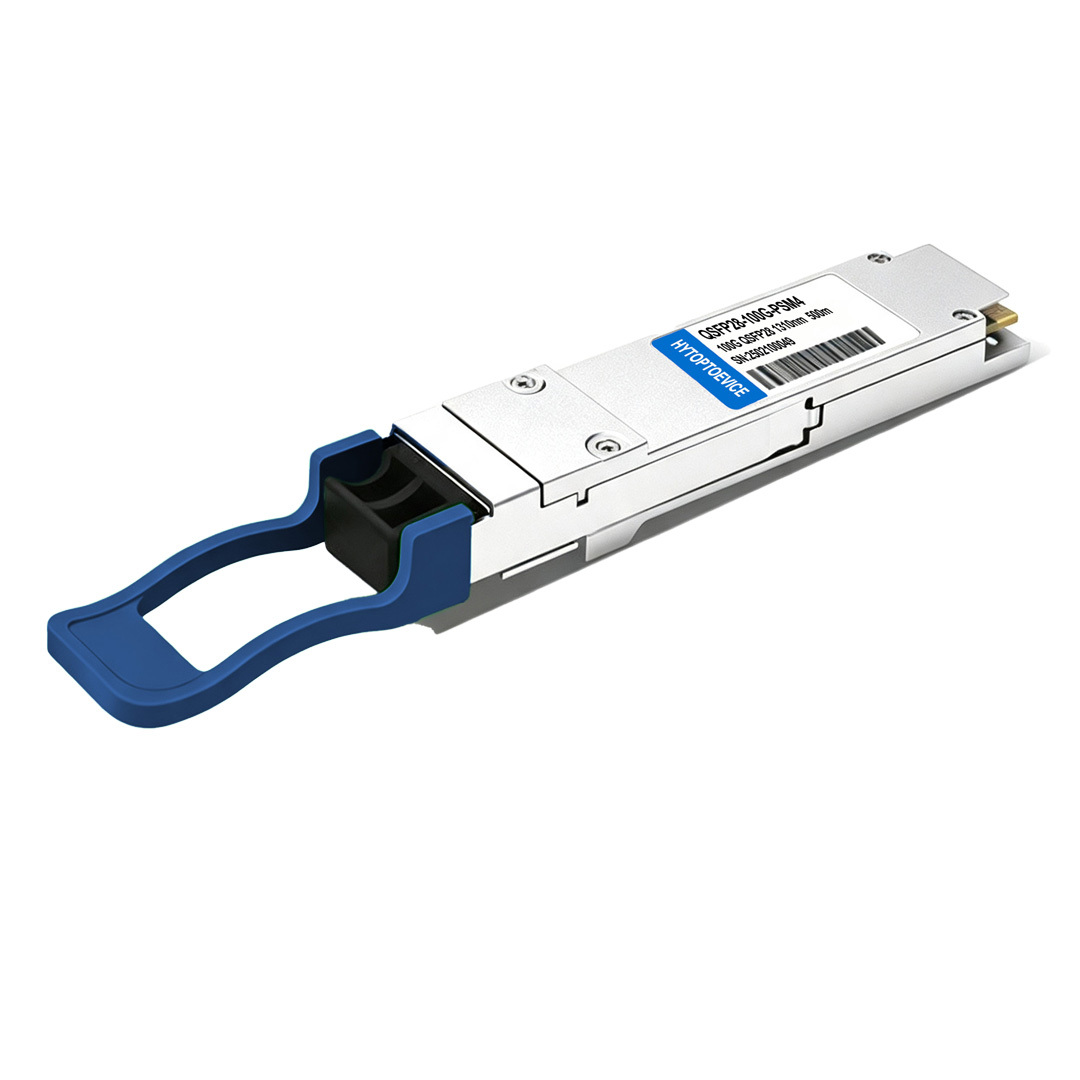

Arista QSFP-100G-PSM4 Compatible 100G QSFP28 PSM4 Transceiver | 100GBASE-PSM4 1310nm 500m Module MPO-12/APC SMF | HYTOPTODEVICE
Product Overview
This 100G PSM4 QSFP28 is a 1:1 drop-in replacement for Arista Networks QSFP-100G-PSM4.
It works seamlessly on all Arista EOS leaf and spine switches without authentication errors.
This parallel single mode optic uses four independent 25G lanes at 1310nm wavelength.
It supports stable 500m transmission over MPO-12 OS2 single mode ribbon fiber.
No CWDM multiplexer design cuts signal loss and simplifies dense rack MPO wiring.
Each unit comes with pre-flashed Arista OEM EEPROM to eliminate "unsupported transceiver" logs.
Built-in RS-FEC correction and full DDM real-time monitoring ensure ultra-low BER performance.
Top use cases: leaf-spine fabric, rack trunk, server uplink and 100G to 4×25G breakout deployment.
Key Technical Specifications
| Arista Compatible |
QSFP-100G-PSM4 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
| Wavelength |
1310nm
|
Max Distance |
500m@OS2 |
| Connector |
MTP/MPO-12 APC |
Transmitter Type |
4xDFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| FEC Support |
Yes |
TX Power |
-6.0~+2dBm |
| Power Consumption |
<3.5W |
Receiver Sensitivity |
< -10.2dBm |
| Protocols |
QSFP28 MSA, SFF-8636, IEEE 802.3‑2012,CAUI-4 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
• Fiber Matching Rule: Only MPO-12 APC 8° angled OS2 single-mode ribbon fiber can be used; OM3/OM4 multimode fiber or UPC polished MPO cables will trigger link failure and hardware damage.
• Lane Polarity Control: Confirm MPO fiber lane sequence and polarity match before powering on ports; misaligned lanes lead to severe receive power imbalance and continuous packet loss.
• Distance Restriction: Stable performance is only guaranteed within the standard 500m MSA rated range; extended fiber routes bring excess lane skew and optical attenuation.
• Hot-Plug Support: Modules support live insertion and removal; regularly clean MPO APC end faces to eliminate dust-induced signal distortion.
• Operating Environment: Limit deployment to indoor 0°C–70°C data center environments; avoid fully sealed cabinets with poor ventilation causing persistent overheating.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Supported Hardware & Firmware
This bulk Arista 100G PSM4 QSFP28 matches original mechanical and optical parameters perfectly.
Custom Arista EOS EEPROM coding removes all third-party module warning pop-ups.
Every transceiver passes real switch testing to avoid lane imbalance and random link flapping.
Validated Arista Switch Models:
• Arista 7050X3, 7060X leaf-spine data center switches
• Arista 7280E, 7280R modular core fabric switches
• Arista 7160 low-latency storage switching hardware
• Arista rack servers with QSFP28 100G parallel NIC cards
2. Multi-Brand Cross Compatibility
Built on universal QSFP28 MSA open industry standards.
This Arista replacement PSM4 optic interoperates with Cisco, Juniper, Dell, H3C, Huawei and Mellanox switches.
It fits multi-vendor hybrid cloud fabric and cross-pod colocation interconnection projects.
3. Free Value-Added Services
We offer free Arista-specific EEPROM reprogramming for all bulk QSFP28 orders.
Custom private label printing and one-step data center deployment support are available.
Every 100G PSM4 transceiver finishes calibration, thermal cycle and 72-hour aging test.
Volume wholesale buyers enjoy tiered discounts to cut overall data center CAPEX cost.
Primary Application Scenarios
• 500m intra-fabric rack-to-rack interconnections inside Arista leaf-spine architectures
• High-density aggregation trunk links for enterprise cloud and multi-tenant colocation data centers
• Low-latency 100G uplinks connecting ToR switches to AI, HPC and virtualization server clusters
• Inter-pod parallel optical transmission using MPO single-mode ribbon fiber
• Network upgrade projects from legacy 40G parallel optics to 100G PSM4
• Standard 100G to 4×25G breakout network deployment for segmented server bandwidth expansion
• Multi-brand hybrid fabric short-distance interconnection built on MPO cabling infrastructure
Connectivity Solutions(Applications)
1.Leaf-Spine Architecture

2. 100G to 100G for Switch-Switch Interconnection

3.100G to 100G for Switch-NIC Connection

4.100G to 4x25G Breakout Connectivity

The Core Feature

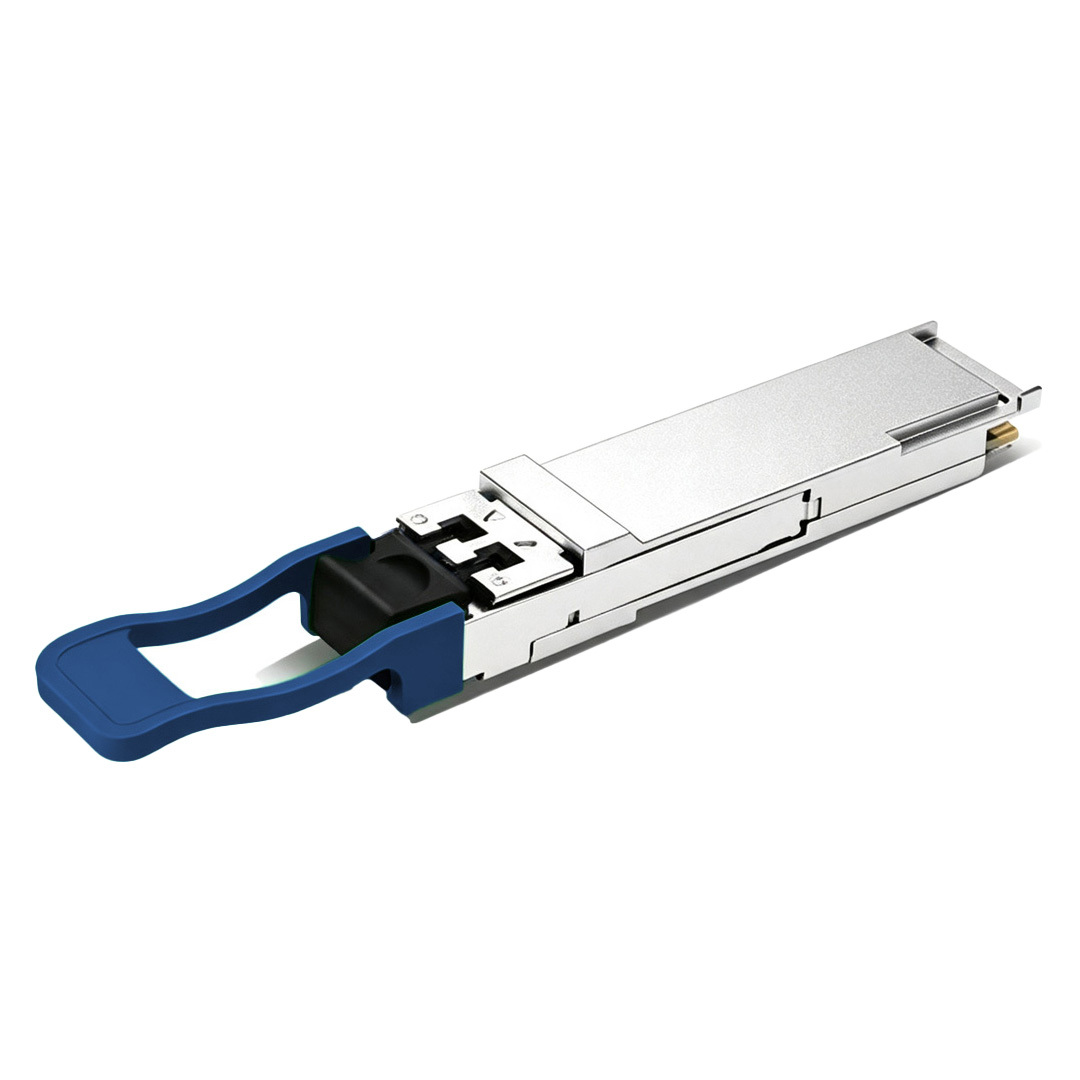

1.Low Power and High-Density 100G Connectivity for Data Center
Max power ≤3.5W cuts thermal load on fully populated line cards. Compact QSFP28 form factor fits high-density racks, lowering data center PUE and supporting long-term 24/7 operation.

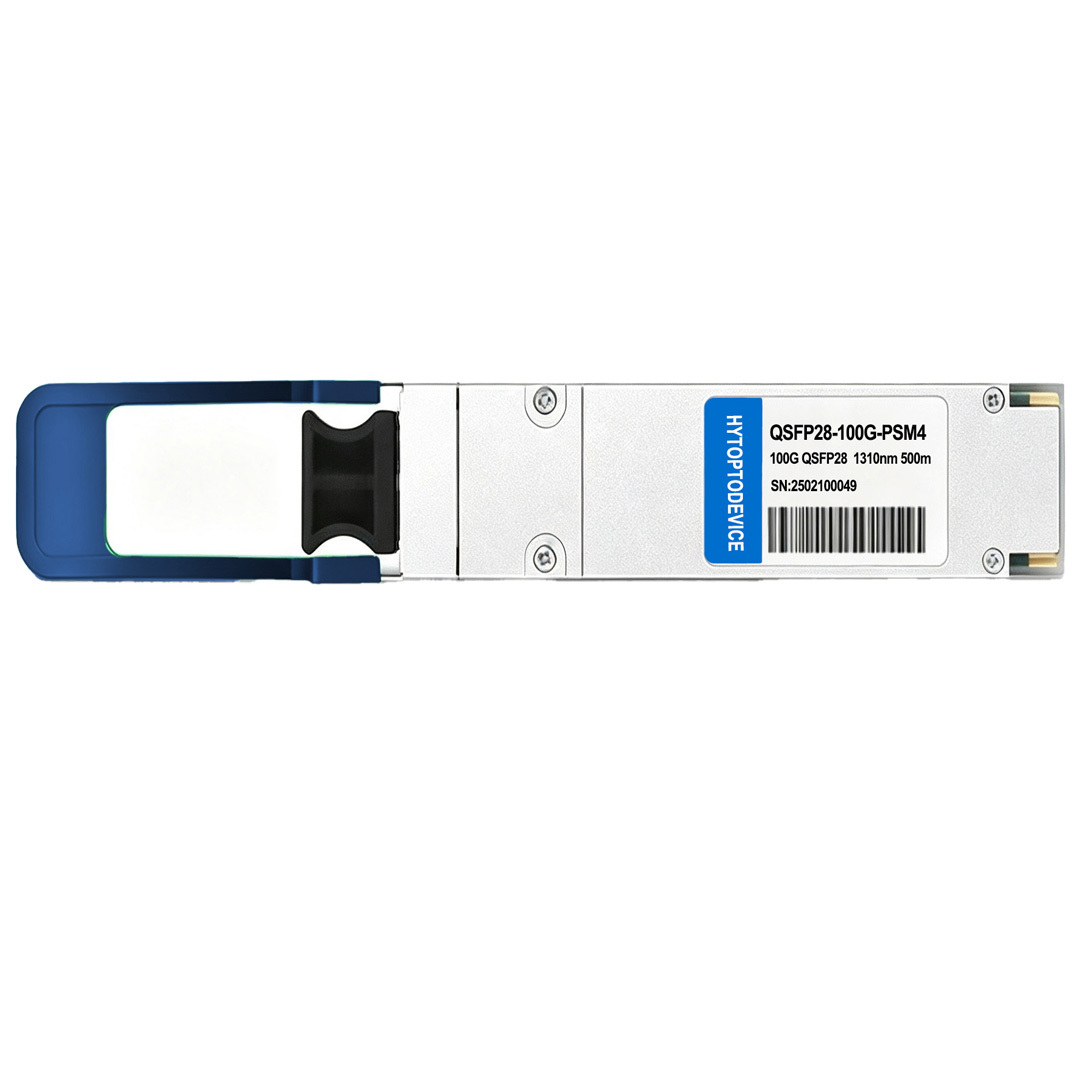

2.Verified Host Interoperability
Custom EEPROM programming enables plug-and-play operation and avoids transceiver alarms across multiple network vendor platforms.
Specific Compatibility Video available upon request.

3.Comprehensive Factory Testing & Reliable Performance
Each unit undergoes optical calibration, wide temperature cycling and burn-in testing. Integrated DDM enables remote real-time monitoring for proactive fault troubleshooting.Curious how? Tour the
Test Center.

FAQ
Q1: Will this Arista compatible 100G PSM4 QSFP28 run without alarms on Cisco, Juniper and Dell enterprise switches?
A: Smooth cross-platform performance depends on vendor-specific EEPROM coding. We can pre-flash matched identity data for Arista, Cisco, Juniper or Dell hardware. After custom programming, this bulk 100G PSM4 transceiver passes switch authentication without unsupported transceiver warning logs.
Q2: Can I directly connect 100G PSM4 MPO optic to CWDM4 or LR4 duplex LC transceivers via fiber?
A: Direct optical communication is impossible. PSM4 transmits four parallel 1310 lanes over MPO ribbon fiber. CWDM4 and LR4 multiplex multiple wavelengths onto duplex LC cords. Their internal optical architecture and physical connectors are completely incompatible.
Q3: Can I insert this Arista 100G PSM4 module into older 40G QSFP+ switch ports?
A: Normal operation cannot be achieved despite identical plug shape. QSFP+ ports only support 40G signal hardware, lacking DSP chips required for 4×25G PSM4 parallel transmission.
Q4: Does this low power Arista 100G PSM4 QSFP28 support industry-standard RS-FEC error correction?
A: IEEE 802.3bj Clause 91 RS-FEC hardware decoding is fully integrated. You must enable FEC on corresponding Arista switch ports to hit the specified ultra-low BER (< 10⁻¹²).
Q5: Can I use blue UPC MPO patch cords on the APC green port of this PSM4 transceiver?
A: UPC cable usage is strictly prohibited. Flat UPC polish creates heavy light back reflection, distorting parallel signals and scratching the module’s internal laser receiver permanently.
Q6: Do I need optical attenuators for 1–5m short MPO fiber cables to prevent receiver overload damage?
A: Extra attenuator accessories are not required. Factory calibrated transmit power holds sufficient safety margin for short patch cord scenarios. Receivers will not hit saturation damage within 1–5m distance.
Q7: Can this Arista compatible PSM4 optic deliver stable links over fiber longer than 500m with premium low-loss OS2 ribbon?
A: Not recommended for production data center deployment. The 500m MSA standard covers the full designed optical power budget and lane skew tolerance. Extended fiber exceeds compensation limits and leads to fluctuating BER and intermittent port flapping.
Q8: Does this 4-lane parallel 100G PSM4 QSFP28 support 100G to four independent 25G SFP28 breakout links?
A: Full breakout function is supported. Four isolated optical lanes pair with MPO breakout cables. A single 100G QSFP28 port splits into four separate 25G server uplinks to maximize Arista switch port resource utilization.
Q9: Why data center operators choose HYTOPTODEVICE 100G PSM4 over 100G LR4 long-reach transceivers for under 500m links?
A: For intra-data center rack connections within 500 meters, PSM4 holds clear cost and power advantages. It removes expensive long-distance laser and dispersion parts, with ≤3.5W low power draw and lower bulk unit price than LR4 QSFP28.
Q10: In which network project scenarios will CWDM4 duplex LC modules be more cost-effective than mass MPO PSM4 deployment?
A: CWDM4 delivers lower total cost for cross-building long links or projects with small fiber counts. High-priced MPO ribbon cable offsets the cheaper PSM4 module cost if you do not need massive parallel lane expansion.
