Product Detail：

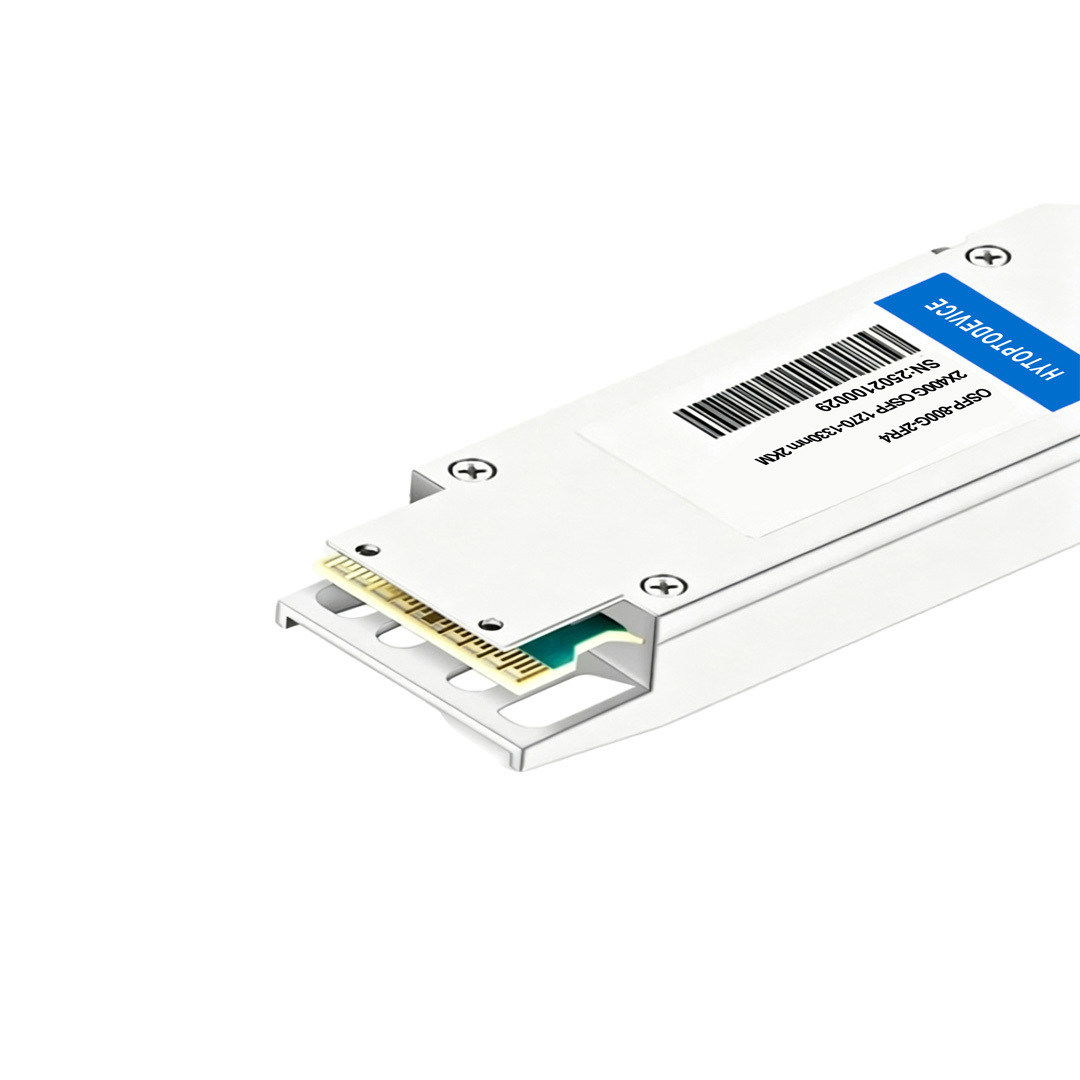

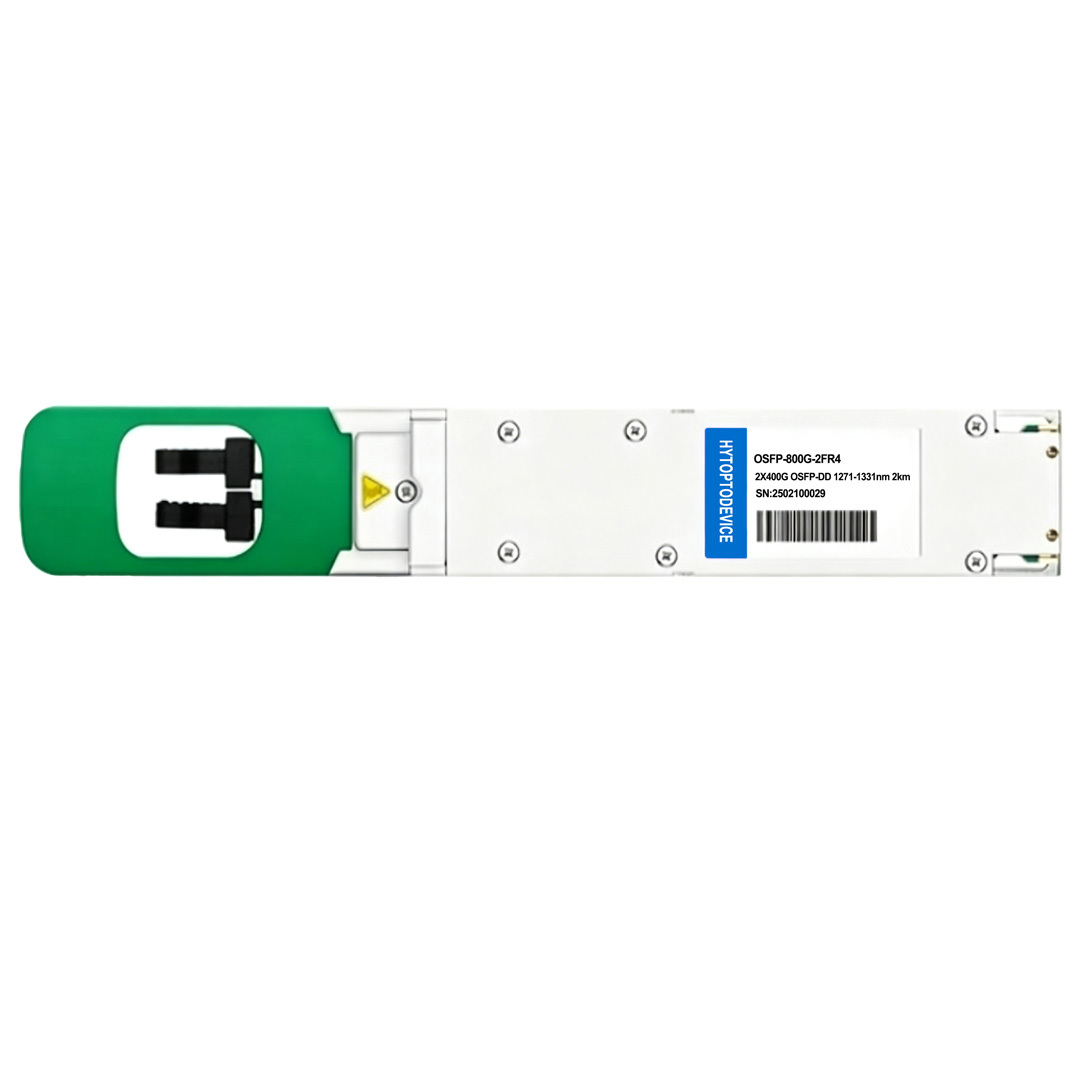

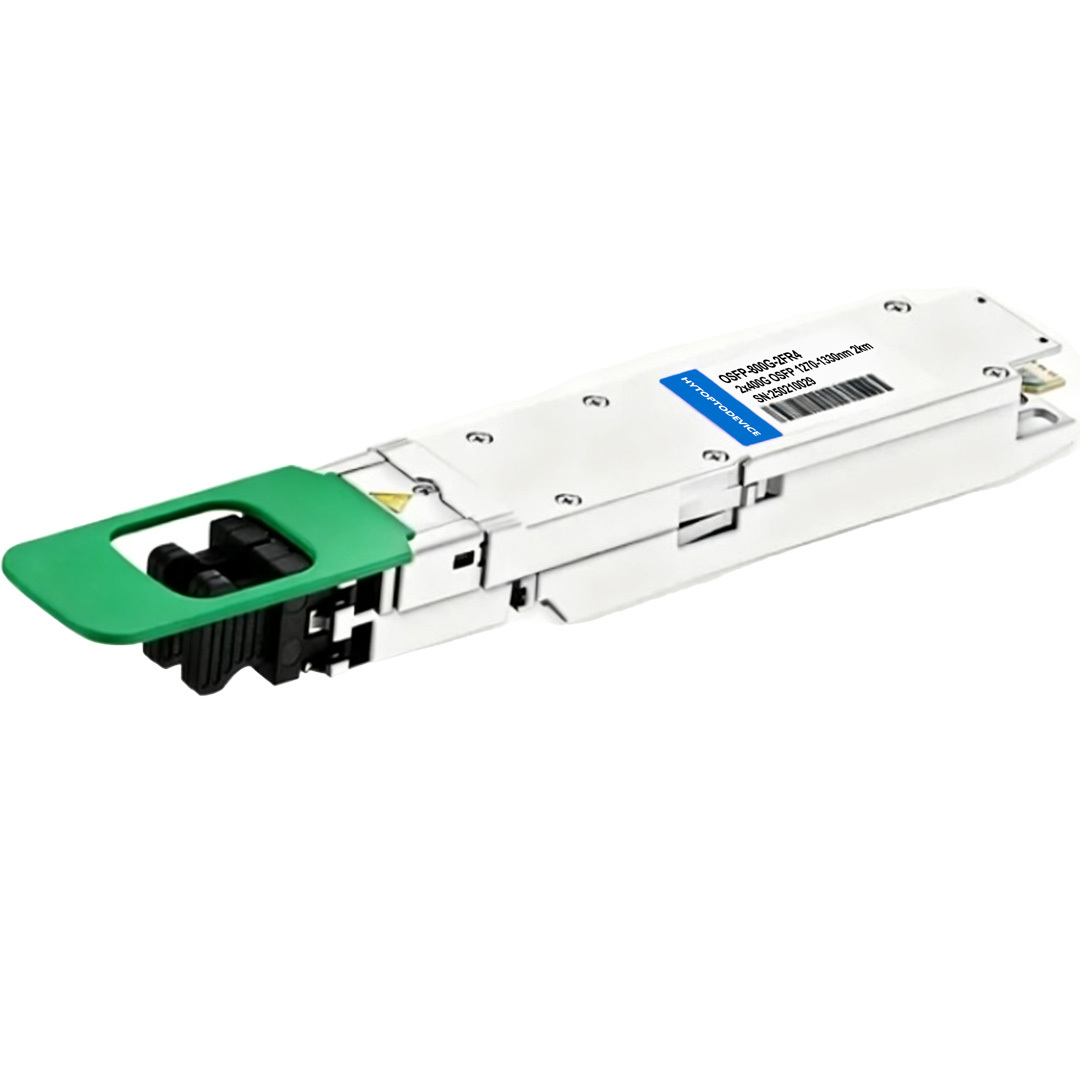

HYTOPTODEVICE 800G OSFP Transceiver | 800GBASE 2 x FR4 Compatible Module (SMF, 1310nm, 2km, Dual Duplex LC, DOM, IHS/ Finned Top)
      The HYTOPTODEVICE OSFP-2X400G-FR4 is a high-performance Cisco compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects. It is a twin-port 2x400G OSFP module with a 2xFR4 architecture, allowing for high-density 800G links or 2x400G breakouts over Single-Mode Fiber (SMF) via dual Duplex LC connectors. Fully compliant with OSFP MSA and IEEE 802.3ck protocols, it is powered by top-tier core chipsets and CWDM 1310nm laser technology to deliver 800Gbps (8x100G PAM4) aggregate throughput up to 2km.

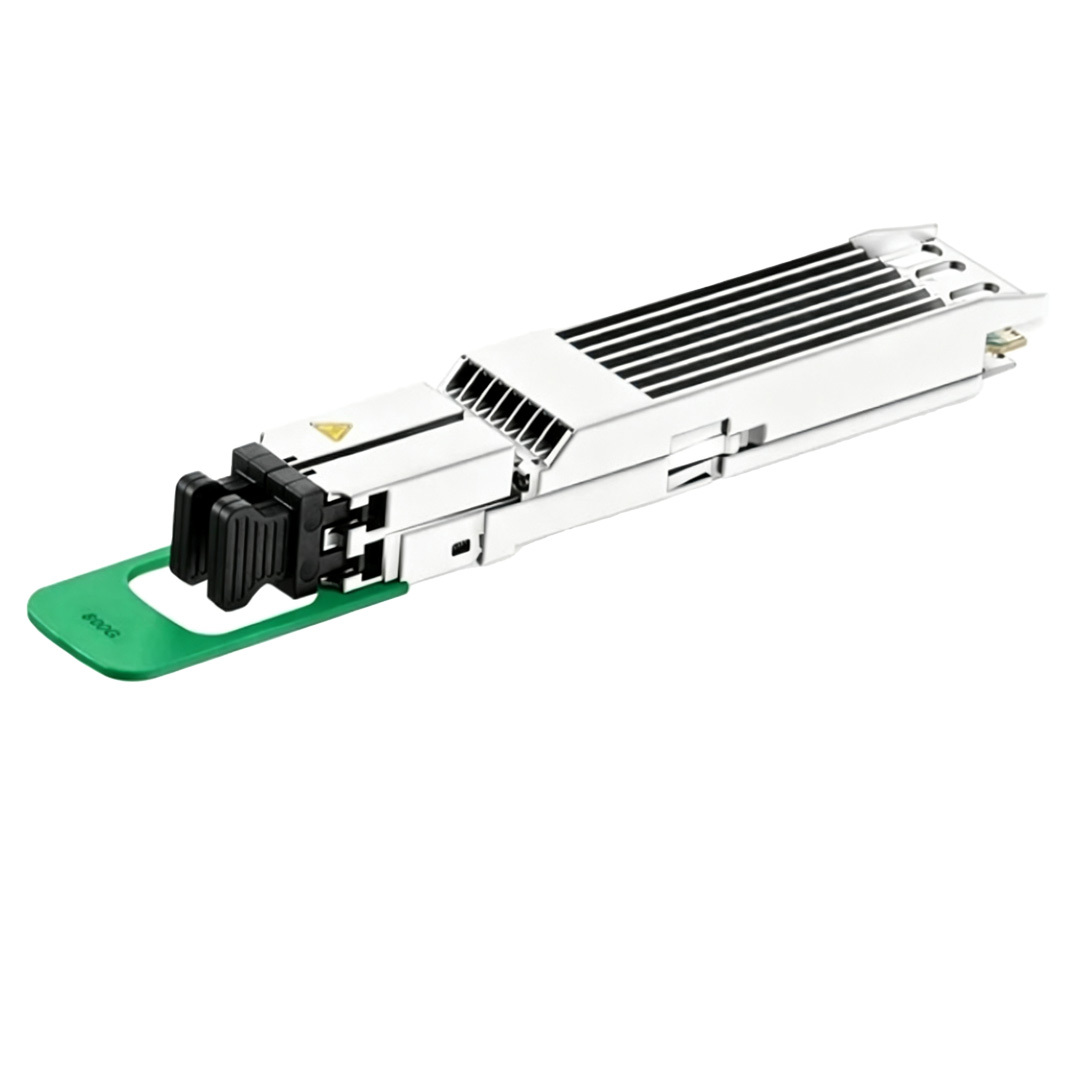

     Designed for air-cooled Ethernet switches, this twin-port OSFP IHS ( Finned Top) transceiver offers low latency, low power, and high reliability. It seamlessly supports spine-leaf uplinks, ToR switch downlinks to network adapters, and direct connections to BlueField-3 DPUs. It is the ideal interconnect solution for AI, HPC, and cloud data centers.

Full Compatibility List and Supported Devices of Compatible 800G Transceiver
The HYTOPTODEVICE Cisco OSFP-2X400G-FR4 high-speed network module is precision-coded for 100% seamless integration with:

• Cisco Nexus 9000 Series Data Center Switches:

  • Nexus 9364D-GX2A / 9332D-GX2B (High-density 800G OSFP switches)

• Cisco 8000 Series Backbone Routers:

  • Cisco 8111-32EH / 8223 high-capacity platforms

  • Line cards featuring native 800G OSFP ports (e.g., 88-LC0-36FH-O)

• Cisco NCS Series Network Convergence Systems:

  • High-capacity line cards and fabric configurations built for carrier core scaling.

Primary Application Scenarios of 800G OSFP Optical Transceiver

The Cisco OSFP-2X400G-FR4 is optimized for massive bandwidth scale-out scenarios, including:

• AI/ML Infrastructure & Supercomputing: Connects high-density GPU compute fabrics (like Cisco Nexus or custom AI nodes) with ultra-low latency line rates.

• High-Density Spine-Leaf Interconnects: Doubles the uplink capacity from leaf/ToR switches to spine infrastructure using standard dual-port routing architectures.

• Intra-Data Center Core Transport: Provides cost-effective, high-bandwidth 800G connections across distinct data halls and automated campus rooms up to 2km away.

• Carrier Edge & Cloud Service Providers: Maximizes slot efficiency in core routing matrices dealing with intense multi-tenant 5G, enterprise cloud, and content distribution traffic.



Key Product Parameters of 800G 2FR4 Transceivers

Q1: What is the exact data rate and interface layout of the Cisco OSFP-2X400G-FR4?A1:It is an 800Gbps transceiver in an OSFP form factor employing a dual-port (2x400G) architecture. It provides two completely independent 400Gbps FR4 logical interfaces on a single physical module.

Q2: What type of fiber connector and cabling does this module use?A2: It features a dual duplex LC optical interface (two standard LC connections on the front faceplate). It uses standard single-mode fiber (SMF) duplex LC-to-LC patch cords, eliminating the need for expensive MPO breakout cables.

Q3: What is the maximum reach and optical wavelength specs?A3: It transmit traffic up to 2 kilometers (2km) over standard single-mode fiber(SMF) via dual duplex LC.It has 2x400G port, Each 400G port utilizes 4 CWDM wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm.

Q4: Which modulation technology does the OSFP-2X400G-FR4 use?A4: The transceiver implements high-speed 100G PAM4 (Pulse Amplitude Modulation 4-level) technology across 8 electrical and 8 optical channels (2x4x100G).

Q5: Does this Cisco compatible module support Digital Optical Monitoring (DOM)?

A5: Yes. It supports real-time DDM. you can independently monitor telemetry data—such as Tx/Rx optical power, bias current, temperature, and voltage.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany
