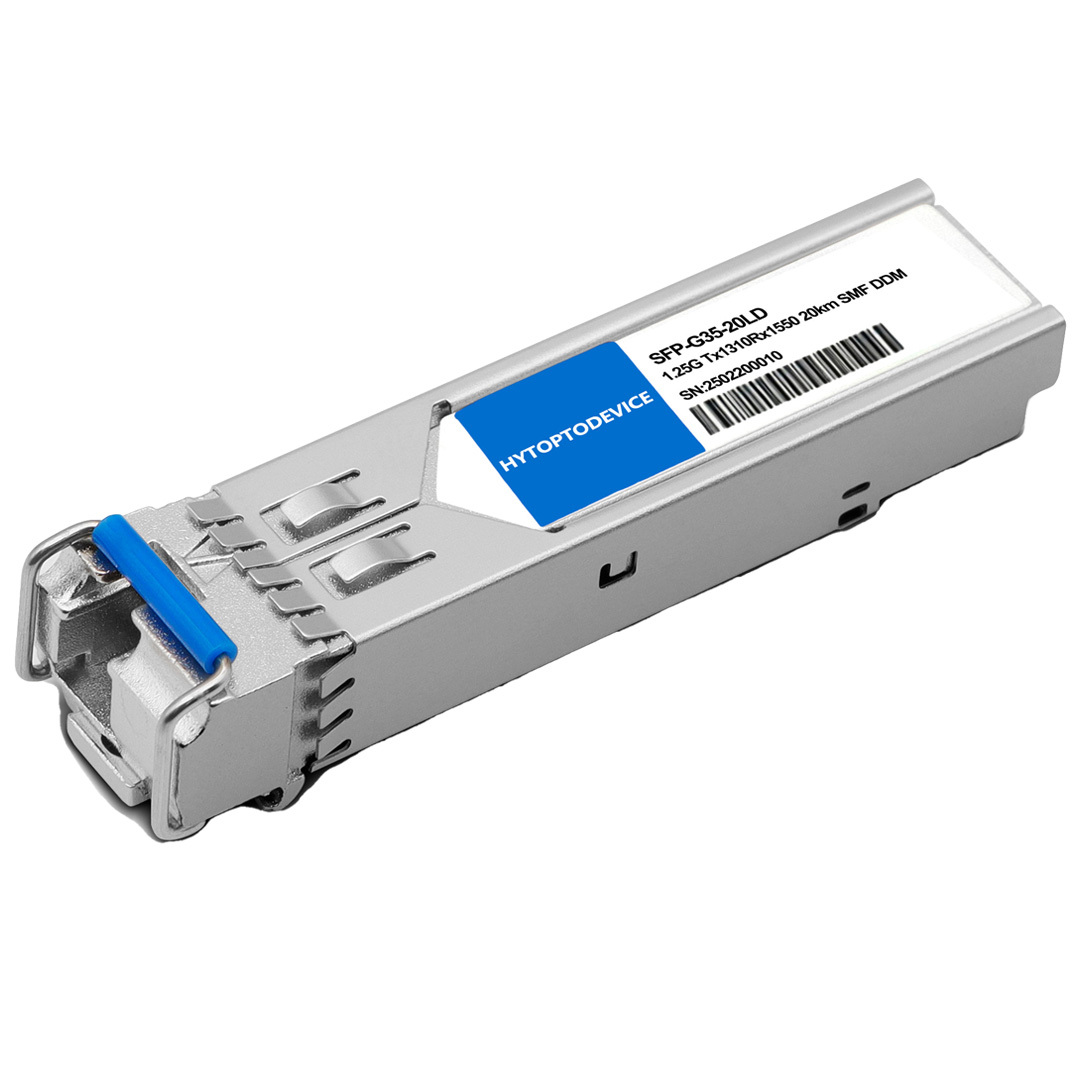

• HYTOPTODEVICE MikroTik compatible S-35LC20D bidirectional sfp transceivers

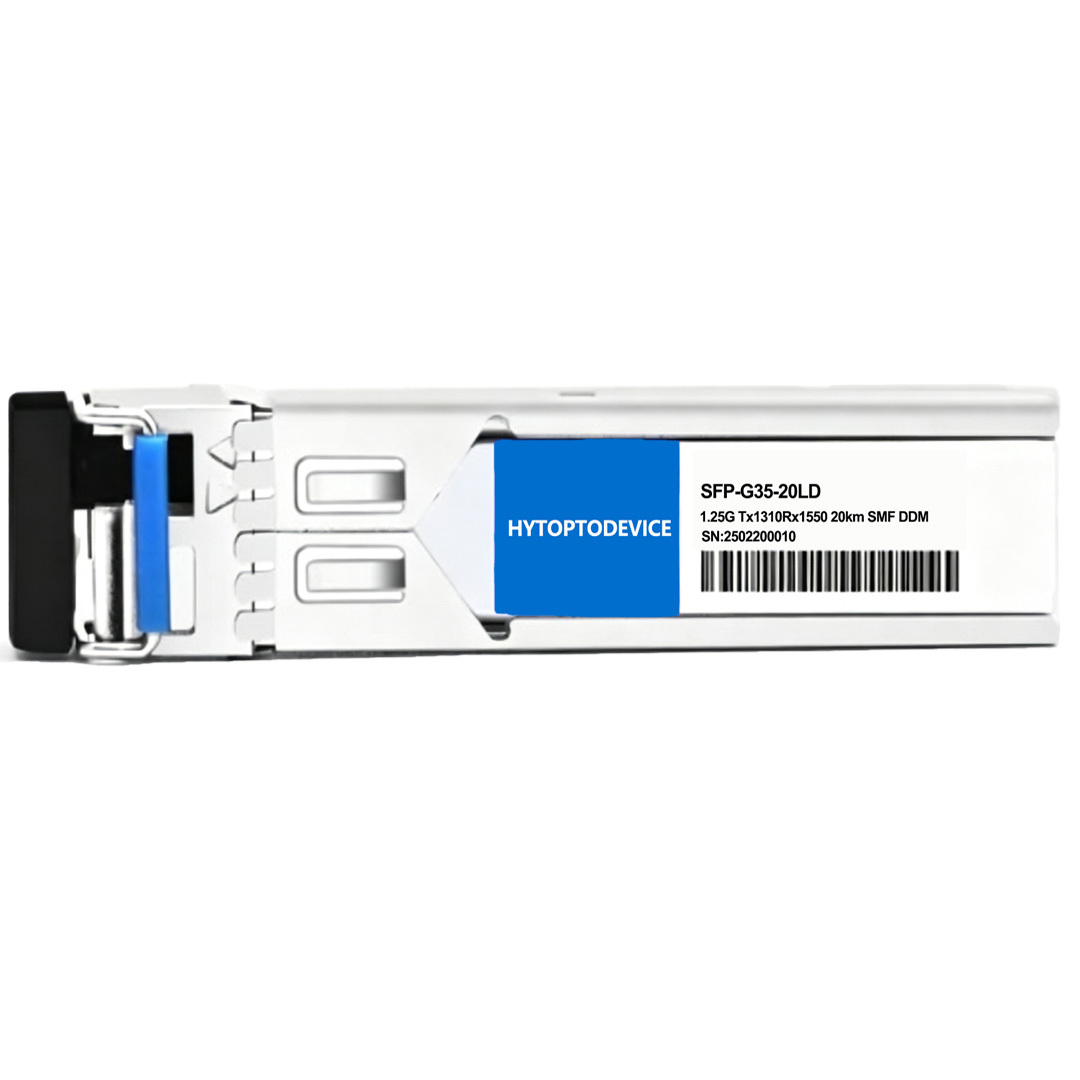

  • Simplex LC 1G bidirectional sfp transceivers for MikroTik enterprise networking

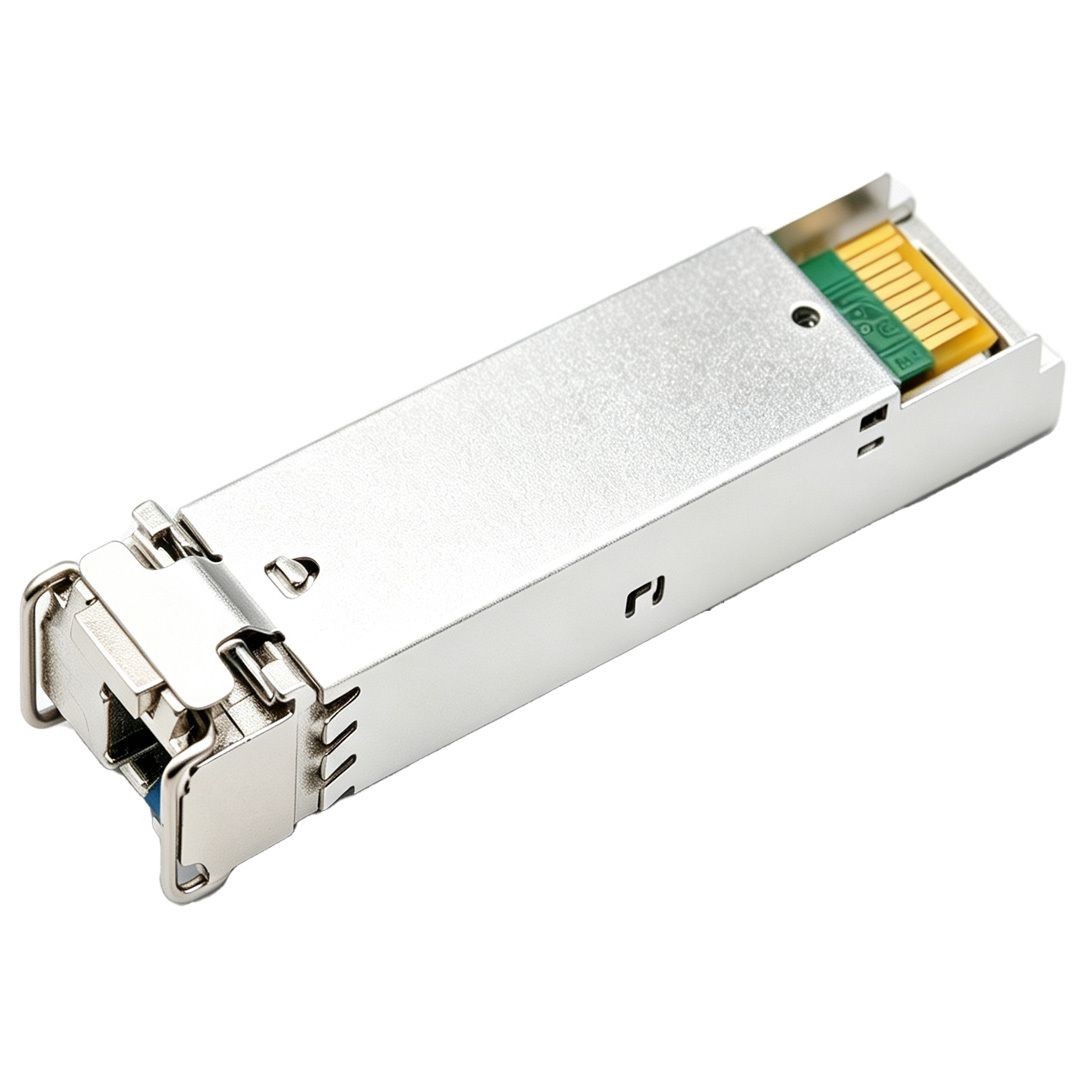

  •  TX1310nm RX1550nm fiber port detail bidirectional sfp transceivers

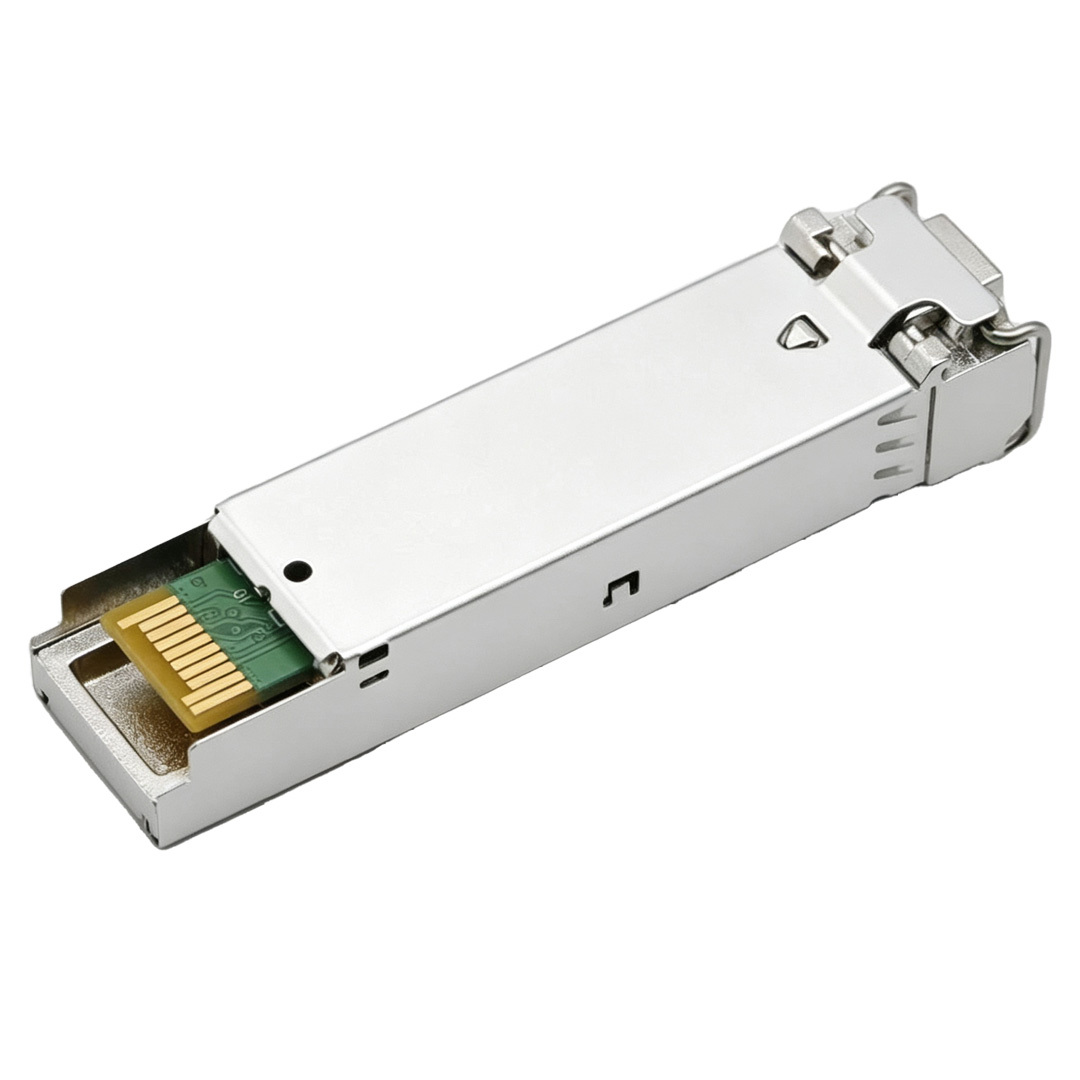

  •  High stability commercial bidirectional sfp transceivers S-35LC20D
  • HYTOPTODEVICE MikroTik compatible S-35LC20D bidirectional sfp transceivers
  • Simplex LC 1G bidirectional sfp transceivers for MikroTik enterprise networking
  •  TX1310nm RX1550nm fiber port detail bidirectional sfp transceivers
  •  High stability commercial bidirectional sfp transceivers S-35LC20D

MikroTik Compatible S-35LC20D | 1G 20km Bidirectional SFP Transceivers Tx1310Rx1550 Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE offers premium-grade MikroTik compatible S-35LC20D bidirectional SFP transceivers, 1G 20km single-mode simplex LC fiber with TX1310nm/RX1550nm wavelength. 100% real-device tested bidirectional SFP transceivers, support bulk supply, small-batch orders and OEM customization for global network engineering and resale businesses.
NO. Brand  Compatible P/N Transceiver Type
1 Brocade  E1MG-1G-BXU-20 SFP-G53-20LD
2 H3C SFP-GE-20-SM1310-BIDI  SFP-G35-10LD
3 HPE H3C  SFP-1G-BXD-20 SFP-G34-20LD
4 Juniper  SFP-GE20KT13R15  SFP-G35-40LD
5 Dell SFP-GE-BX20-1310 SFP-G45-80LD
6 Mikrotik S-35LC20D  SFP-G45-1BLD
Description

MikroTik Compatible S-35LC20D 1G 20km Bidirectional SFP Transceivers | HYTOPTODEVICE
(SMF, 1310nm-TX/1550nm-RX, Simplex LC, DOM)

Product Overview

HYTOPTODEVICE S-35LC20D is a high-performance bidirectional sfp transceivers solution professionally optimized for MikroTik network infrastructure. This premium-grade single-fiber bidirectional optical transceiver delivers 1.25Gbps Gigabit Ethernet transmission speed, stable 20km single-mode fiber transmission distance, and adopts standard TX1310nm/RX1550nm wavelength with simplex LC connector. Fully compliant with SFP MSA and IEEE 802.3 industry standards, this MikroTik compatible bidirectional sfp transceivers supports 7×24 hours uninterrupted stable operation for commercial network environments.
As a cost-effective single-fiber WDM solution, this 1g 20km bidirectional sfp transceivers effectively saves 50% of traditional single-mode fiber resources, solving fiber shortage problems in network renovation and long-distance link construction. Widely applicable to enterprise campus networking, cross-building fiber interconnection, remote branch networking and outdoor monitoring transmission projects. HYTOPTODEVICE provides reliable bulk inventory supply, flexible small-batch retail and professional OEM customization services for global system integrators, network contractors and network accessory resellers.

Key Technical Specifications

MikroTik Compatible

S-35LC20D

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1550nm Max Distance 20km
Connector Simplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1550 BiDi SFP Module requires a counterparty TX1550/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Devices

1. Professional MikroTik Brand Compatibility Description

HYTOPTODEVICE MikroTik compatible bidirectional sfp transceivers is fully adapted to MikroTik proprietary device protocols, port identification rules and transmission parameters. Every S-35LC20D module completes offline parameter calibration and real MikroTik device online operation testing, achieving 100% native plug-and-play compatibility. No manual configuration, no device recognition failure, no port error alarm, no speed limit or packet loss. It is the most cost-effective replacement solution for original MikroTik bidirectional sfp transceivers, suitable for new network construction and old equipment upgrading.
Full Compatible MikroTik Device Model List
- MikroTik RouterBOARD Series: RB2011LS, RB2011UAS, RB260GS, RB3011, RB4011 enterprise routers
- MikroTik Cloud Core Router Series: CCR1009, CCR1016, CCR1036, CCR1072 core routing devices
- MikroTik Switch Series: CRS112, CRS125, CRS210, CRS317, CRS328 smart network switches
- MikroTik Wireless & Gateway Devices: Enterprise-level wireless gateway and fiber access devices

2. Multi-Brand Universal Compatibility Performance

In addition to professional MikroTik device compatibility, HYTOPTODEVICE universal bidirectional sfp transceivers supports mainstream network hardware brands including Brocade, Juniper, Cisco, HPE, Ubiquiti and Zyxel. Complete protocol adaptation and driver matching ensure stable and error-free operation in mixed-brand network environments. We provide official real-device test videos for pre-purchase verification to help customers avoid project compatibility risks.

Core Application Scenarios

1.Enterprise Campus & Office Park Fiber Networking

2.Network Renovation & Outdoor Long-Distance Link Projects

3.Headquarters & Remote Branch Network Interconnection

4.Global Wholesale & Reseller Distribution Business


Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF

Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: What are MikroTik compatible bidirectional sfp transceivers used for?

A: HYTOPTODEVICE MikroTik compatible bidirectional sfp transceivers are professional single-fiber WDM optical modules designed for MikroTik network devices, providing stable 1G 20km long-distance fiber transmission for enterprise campus networking and network renovation projects.

Q2: What wavelength configuration does HYTOPTODEVICE S-35LC20D bidirectional sfp transceivers use?

A: HYTOPTODEVICE S-35LC20D premium-grade bidirectional sfp transceivers adopt standard TX1310nm/RX1550nm wavelength configuration, fully consistent with original MikroTik module parameters to ensure perfect device adaptation.

Q3: Are HYTOPTODEVICE 1G 20km bidirectional sfp transceivers plug and play for MikroTik?

A: Yes, HYTOPTODEVICE 1G 20km bidirectional sfp transceivers have passed strict real-device testing on MikroTik equipment, supporting true plug-and-play operation without manual configuration, port errors or packet loss.

Q4: Which matching module pairs with S-35LC20D bidirectional sfp transceivers?

A: HYTOPTODEVICE S-35LC20D bidirectional sfp transceivers need to pair with TX1550nm/RX1310nm reverse wavelength bidirectional module to complete single-fiber two-way transmission, and we provide pre-matched module sets for one-stop procurement.

Q5: Can premium grade bidirectional sfp transceivers support 7*24h continuous operation?

A: Yes, HYTOPTODEVICE premium grade bidirectional sfp transceivers feature low power consumption and strong anti-interference performance, supporting stable 7×24-hour uninterrupted operation for enterprise MikroTik network systems.

Q6: Does HYTOPTODEVICE offer bulk discount for bidirectional sfp transceivers orders?

A: HYTOPTODEVICE provides tiered preferential pricing for bulk bidirectional sfp transceivers orders, with sufficient annual inventory to support large-scale, long-term project delivery for global network engineering teams.

Q7: Can I get OEM private label service for MikroTik bidirectional sfp transceivers?

A: HYTOPTODEVICE supports full OEM customization for MikroTik bidirectional sfp transceivers, including custom logo printing, private labeling, neutral packaging and parameter fine-tuning to help global distributors build independent brand advantages.

Q8: What fiber type matches HYTOPTODEVICE S-35LC20D bidirectional sfp transceivers?

A: HYTOPTODEVICE S-35LC20D bidirectional sfp transceivers are exclusively designed for single-mode fiber (SMF), which guarantees 20km stable transmission; multi-mode fiber will cause serious signal attenuation and packet loss.

Q9: Do universal bidirectional sfp transceivers work for mixed-brand network environments?

A: HYTOPTODEVICE universal bidirectional sfp transceivers have passed compatibility tests on MikroTik, Cisco, HPE, Brocade and other mainstream devices, maintaining stable plug-and-play performance in multi-brand mixed network architectures.

Q10: Can HYTOPTODEVICE provide real-device test videos for bidirectional sfp transceivers verification?

A: Yes, HYTOPTODEVICE provides official real-device test videos for all bidirectional sfp transceivers products, and supports customized shooting according to customers’ specific MikroTik device models to eliminate pre-purchase compatibility risks.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
