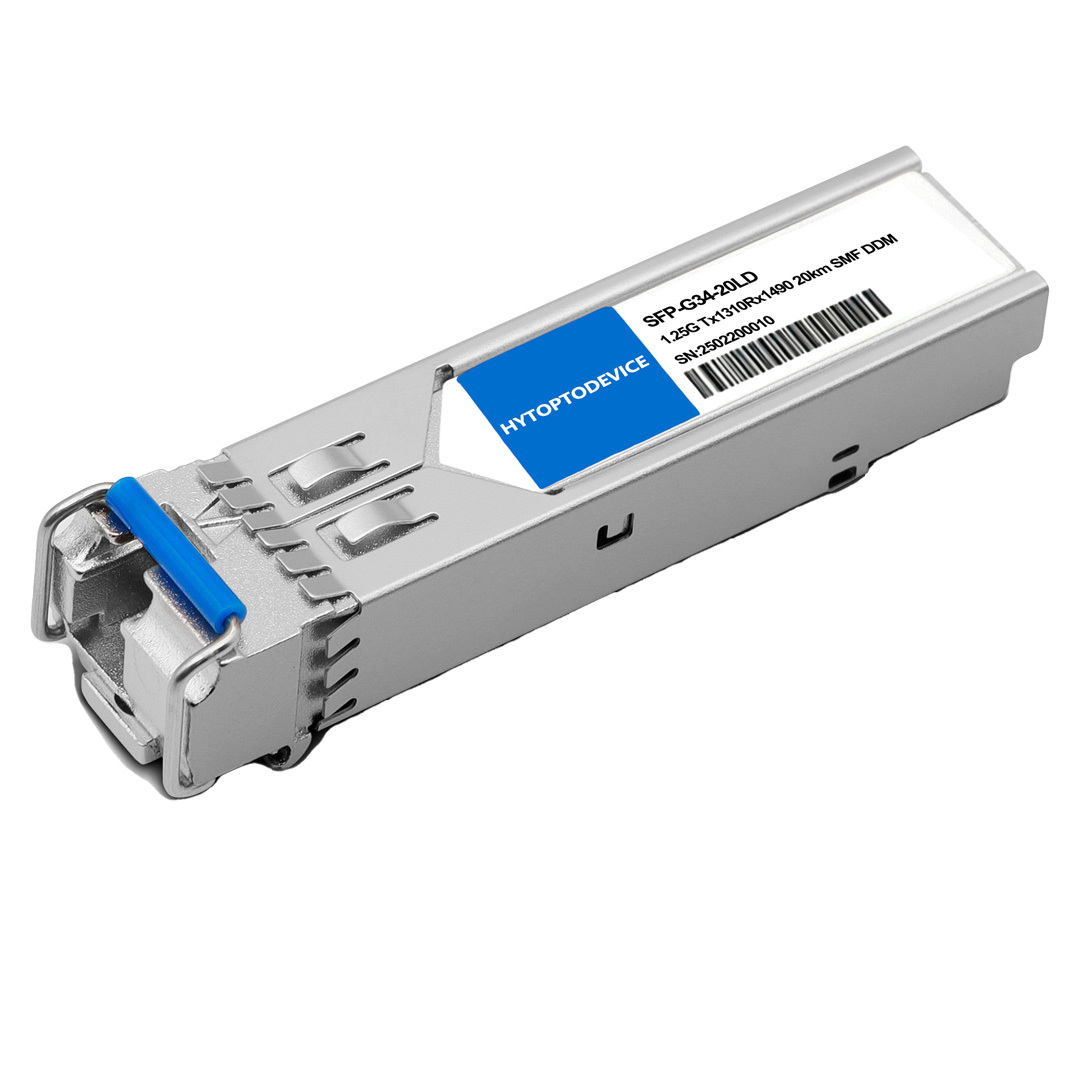

• HYTOPTODEVICE H3C SFP-GE-PX20-U-SM1310-A compatible BiDi SFP transceiver front view white background

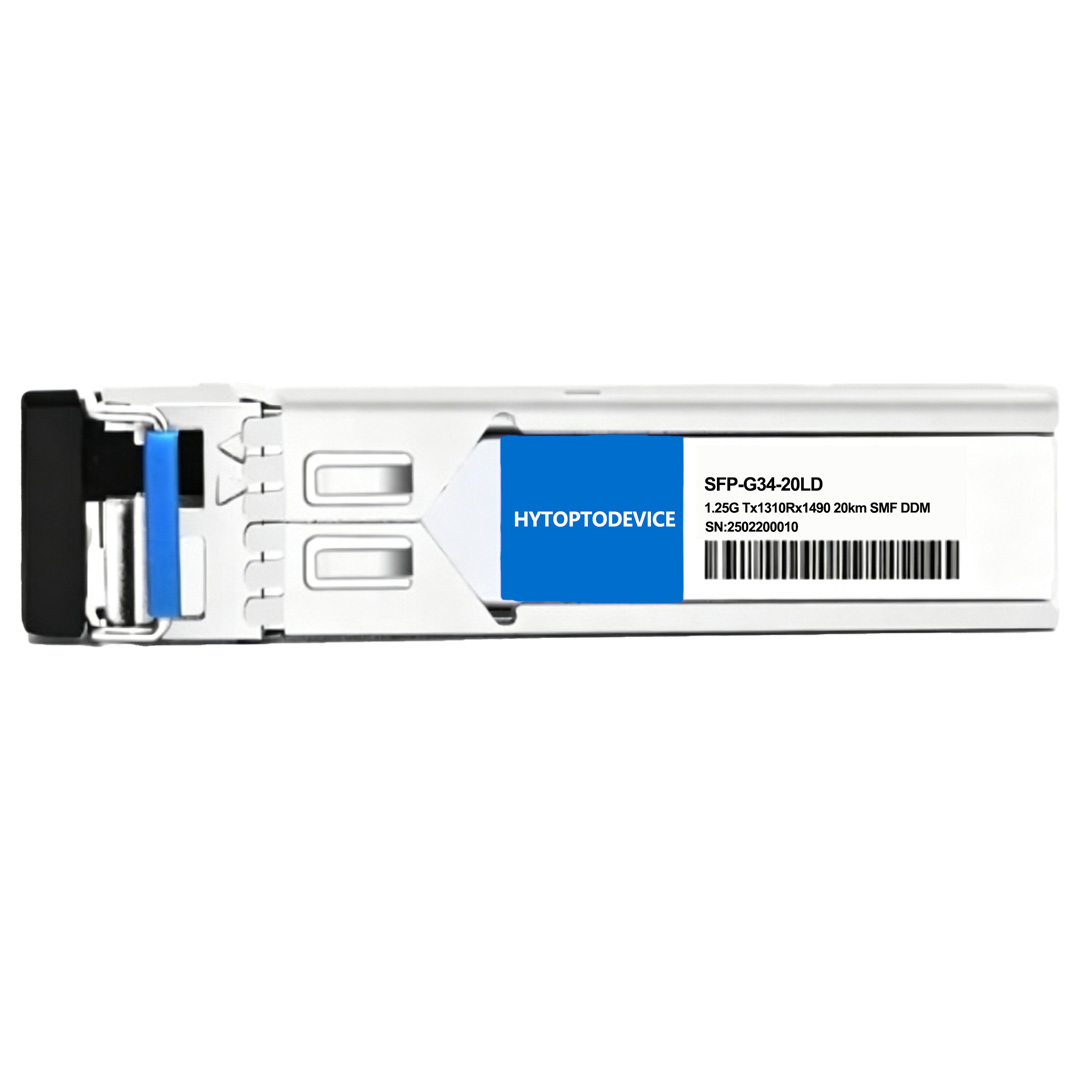

  • HYTOPTODEVICE 1000BASE-BX20-U 20km BiDi SFP side view for H3C network devices
  • Simplex LC connector detail of SFP-GE-PX20-U-SM1310-A equivalent single fiber SFP module
  • Full view Tx1310nm/Rx1490nm BiDi SFP transceiver for H3C switches and routers

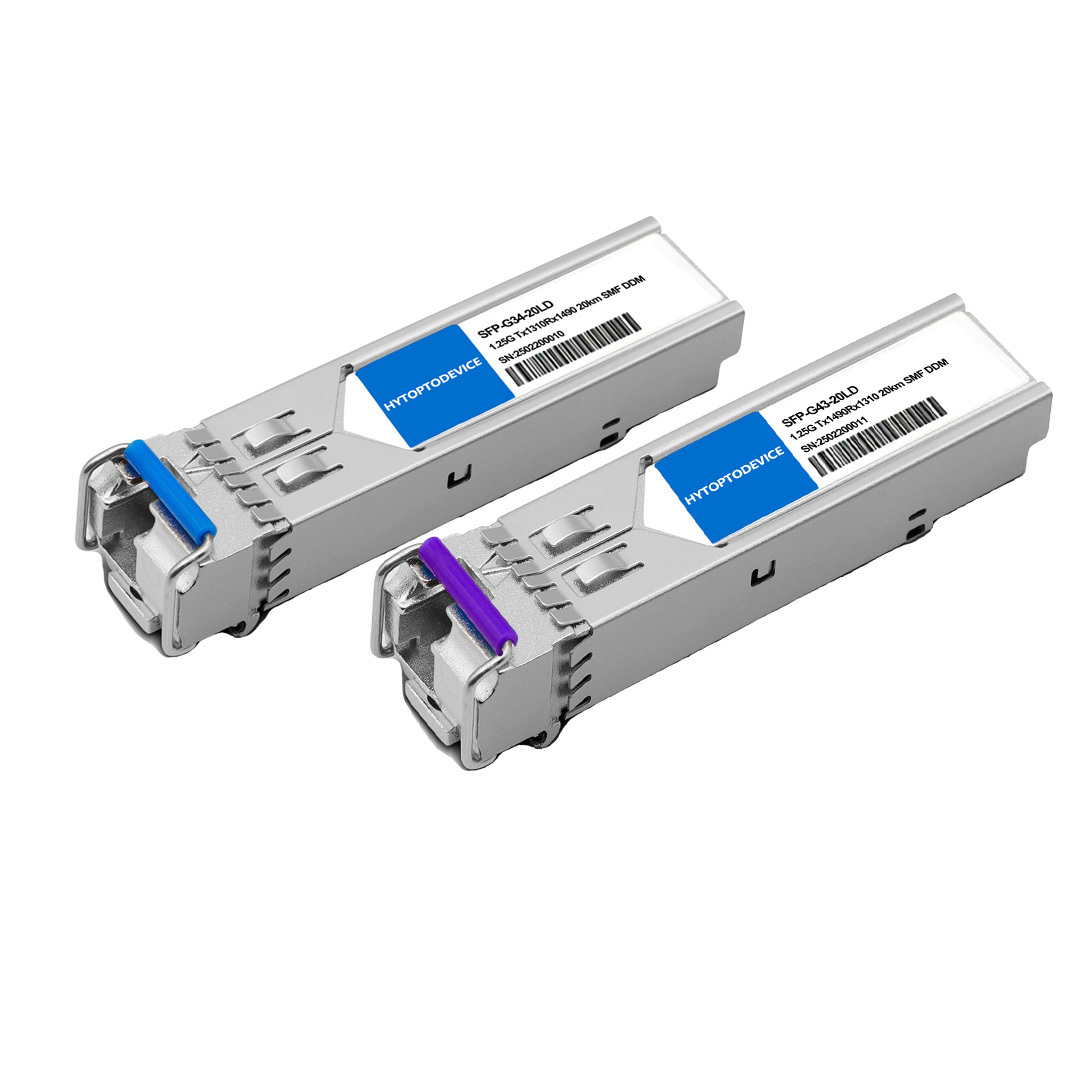

  • buy hytoptodevice Tx1310nm/Rx1490nm 20km SMF BiDi SFP transceiver MODULE
  • HYTOPTODEVICE H3C SFP-GE-PX20-U-SM1310-A compatible BiDi SFP transceiver front view white background
  • HYTOPTODEVICE 1000BASE-BX20-U 20km BiDi SFP side view for H3C network devices
  • Simplex LC connector detail of SFP-GE-PX20-U-SM1310-A equivalent single fiber SFP module
  • Full view Tx1310nm/Rx1490nm BiDi SFP transceiver for H3C switches and routers
  • buy hytoptodevice Tx1310nm/Rx1490nm 20km SMF BiDi SFP transceiver MODULE

H3C SFP-GE-PX20-U-SM1310-A Compatible BiDi SFP Transceiver | 1000BASE-BX20-U 20km Tx1310Rx1490 SMF | HYTOPTODEVICE

HYTOPTODEVICE H3C SFP-GE-PX20-U-SM1310-A compatible BiDi SFP transceiver features 1000BASE-BX20-U, Tx1310nm/Rx1490nm, 20km SMF simplex LC connection. 100% real-device tested for genuine H3C equipment, plug-and-play with full DDM support. Ideal for enterprise Ethernet, telecom access and data center single-fiber networking. 5-year warranty and factory direct price.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco MGBBX1  SFP-G43-20LD
2 Alcatel-Lucent SFP-GIG-BX-U20  SFP-G34-10LD
3 H3C  SFP-GE-PX20-U-SM1310-A SFP-G35-10LD
4 Juniper  SFP-GE20KT13R14 SFP-G35-20LD
5 HPE Procurve  J9143B-20  SFP-G34-40LD
6 Brocade E1MG-BXU-20 SFP-G45-80LD
7 Cisco GLC-BX-20U SFP-G45-1BLD
Description

H3C SFP-GE-PX20-U-SM1310- Compatible 1000BASE-BX20-U BiDi SFP Transceiver 20km
(SMF, 1310nm-TX/1490nm-RX, Simplex LC, DOM)

Product Overview

The HYTOPTODEVICE H3C SFP-GE-PX20-U-SM1310-A compatible BiDi SFP transceiver is a hot-pluggable gigabit single-fiber bidirectional optical module built for cost-efficient enterprise and telecom networking. Adopting professional WDM wavelength division technology, it delivers stable 1.25Gbps gigabit bandwidth with Tx1310nm/Rx1490nm wavelength pairing and simplex LC interface, supporting up to 20km long-distance transmission over standard single-mode fiber.
This bi-directional module must be deployed with complementary wavelength transceivers or matching network devices to establish complete bidirectional fiber links. It is perfectly optimized for Fast Ethernet, telecom access networks and data center cabling systems. Fully compliant with IEEE 802.3z and SFF-8472 MSA standards, this module supports full DOM/DDM real-time optical monitoring. Every unit undergoes strict real-machine testing on genuine H3C hardware to ensure seamless plug-and-play operation without manual configuration or system error logs.

Key Technical Specifications
H3C Compatible

SFP-GE-PX20-U-SM1310-A

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1490nm Max Distance 20km
Connector Simplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1490 BiDi SFP Module requires a counterparty TX1490/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Devices

1. Verified H3C Device Compatible Models

This H3C compatible BiDi SFP passes strict real-device verification to ensure true plug-and-play functionality. It operates flawlessly on original H3C firmware without system errors, manual configuration or firmware updates. Fully verified compatible H3C devices are listed below:
  • H3C Switch Series: S5120, S5560, S6520, S6800, S9500 Series Enterprise Switches
  • H3C Router Series: MSR2600, MSR3600, MSR5600 Series Service Routers
  • Other Devices: H3C enterprise media converters and access network equipment

2. Multi-Brand Compatibility

Built with universal MSA standard protocols, this 1000BASE-BX20-U simplex LC SFP offers broad compatibility with mainstream third-party network hardware, including switches, media converters and cable management systems from Cisco, Alcatel-Lucent, HP, Juniper, D-Link and TP-Link.
Real-device test videos are available for bulk orders to verify stable compatibility and consistent link performance.


Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF


Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: Are H3C SFP-GE-PX20-U-SM1310-A BiDi SFPs plug-and-play on S5560 enterprise switches?

A: Yes. HYTOPTODEVICE SFP-GE-PX20-U-SM1310-A compatible BiDi SFP modules have passed real-machine testing on H3C S5560 switches. They support automatic device identification, normal DDM monitoring and stable data transmission without system alarms, fully meeting commercial enterprise network operation requirements.

Q2: Can SFP-GE-PX20-U-SM1310-A Tx1310nm/Rx1490nm modules pair with other brand BiDi transceivers?

A: Definitely yes. This H3C compatible BiDi SFP adopts standard MSA wavelength parameters. It can be perfectly paired with complementary 1490nm/1310nm downlink BiDi modules of other brands to build stable single-fiber bidirectional links with zero signal interference.

Q3: Do low-cost SFP-GE-PX20-U-SM1310-A replacement SFPs support DDM real-time monitoring?

A: All HYTOPTODEVICE SFP-GE-PX20-U-SM1310-A equivalent BiDi SFP transceivers support complete DDM/DOM monitoring compliant with SFF-8472 standards. Users can check real-time laser temperature, working voltage and optical power data via H3C device management systems.

Q4: Is 20km single fiber BiDi SFP stable for long-term H3C telecom network operation?

A: Our 20km single-fiber BiDi SFP for H3C telecom networks adopts high-quality DFB lasers and sensitive receiving chips. After 72-hour continuous aging testing, it supports 24/7 stable operation with zero packet loss, ideal for long-running telecom access network scenarios.

Q5: Can SFP-GE-PX20-U-SM1310-A BiDi modules be used for Fast Ethernet uplink networking?

A: Fully applicable. This SFP-GE-PX20-U-SM1310-A compatible module is specially optimized for Fast Ethernet scenarios. It stably supports gigabit uplink transmission for enterprise and telecom network equipment, solving long-distance transmission limitations of traditional network cables.

Q6: Are commercial grade SFP-GE-PX20-U-SM1310-A BiDi SFPs suitable for data center wiring?

A: Absolutely suitable. With a standard 0℃ to 70℃ working temperature range, this BiDi SFP adapts to constant-temperature data center environments. It features excellent thermal stability to avoid network fluctuation and ensure stable long-term link operation for data center wiring systems.

Q7: How to match wavelength pairs for SFP-GE-PX20-U-SM1310-A single fiber links?

A: As a standard uplink BiDi module, SFP-GE-PX20-U-SM1310-A (Tx1310nm/Rx1490nm) must be paired with complementary downlink transceivers (Tx1490nm/Rx1310nm). Standard wavelength pairing ensures zero-delay bidirectional data transmission for single-fiber network deployment.

Q8: What warranty and technical support comes with H3C compatible SFP-GE-PX20-U-SM1310-A modules?

A: We provide a 3-year limited warranty and lifelong free technical support for all HYTOPTODEVICE SFP-GE-PX20-U-SM1310-A BiDi SFP transceivers. Our professional team offers 24/7 remote guidance for compatibility checks, wavelength pairing and network deployment troubleshooting.

Q9: Can SFP-GE-PX20-U-SM1310-A BiDi SFPs reduce enterprise fiber cabling costs?

A: Yes. Different from traditional dual-fiber optical modules, this single-fiber BiDi SFP only uses one fiber strand for bidirectional transmission, saving 50% of fiber resources. It greatly reduces procurement, construction and maintenance costs for enterprise and telecom network projects.

Q10: Are MSA compliant SFP-GE-PX20-U-SM1310-A modules compatible with latest H3C firmware?

A: All HYTOPTODEVICE SFP-GE-PX20-U-SM1310-A BiDi SFP transceivers comply with IEEE and MSA industry standards. Real-device testing verifies full compatibility with the latest H3C firmware, with no identification failures, system bugs or alarm errors.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
