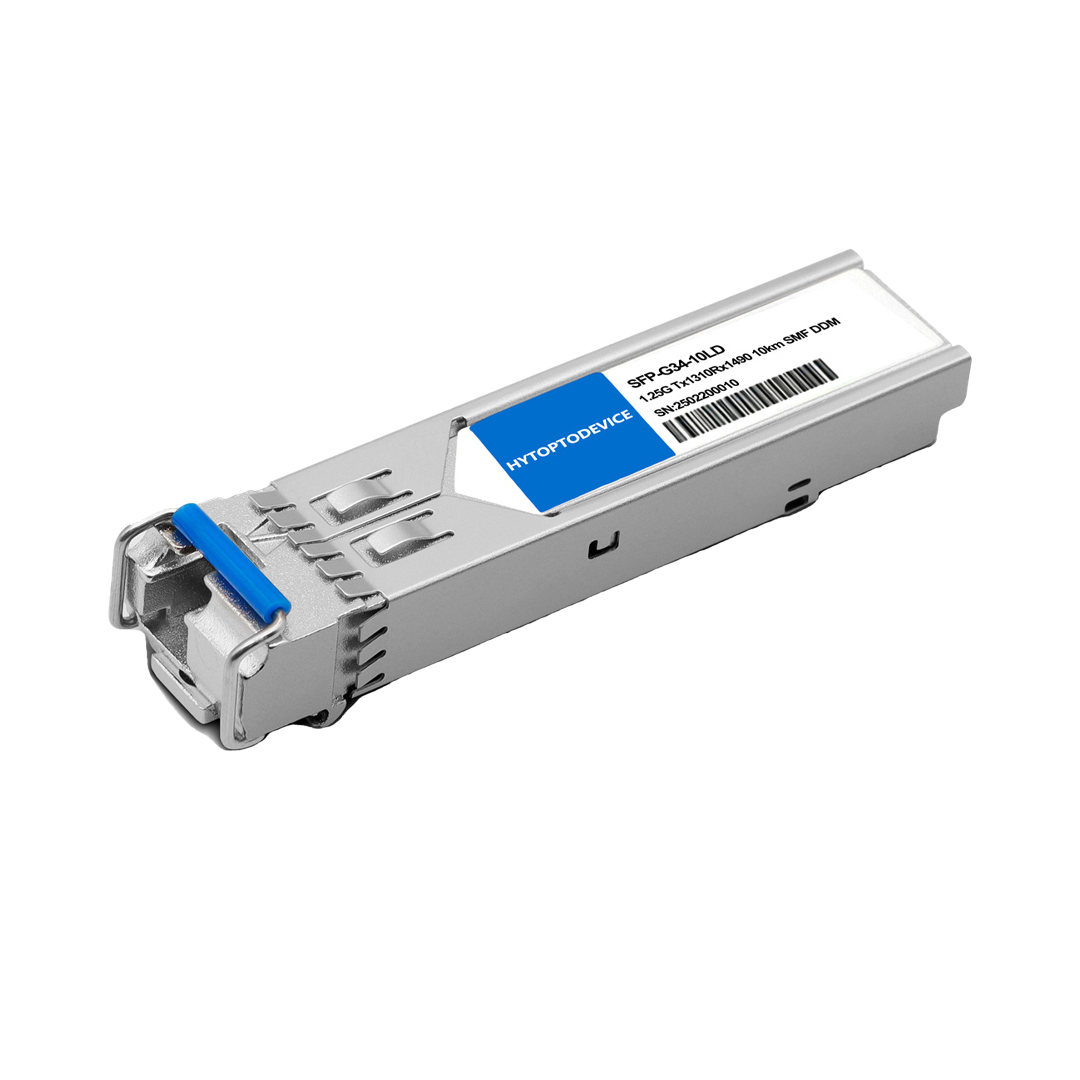

• HYTOPTODEVICE GLC-BX-10U Cisco compatible 1000BASE-BX BIDI sfp module white background product photo

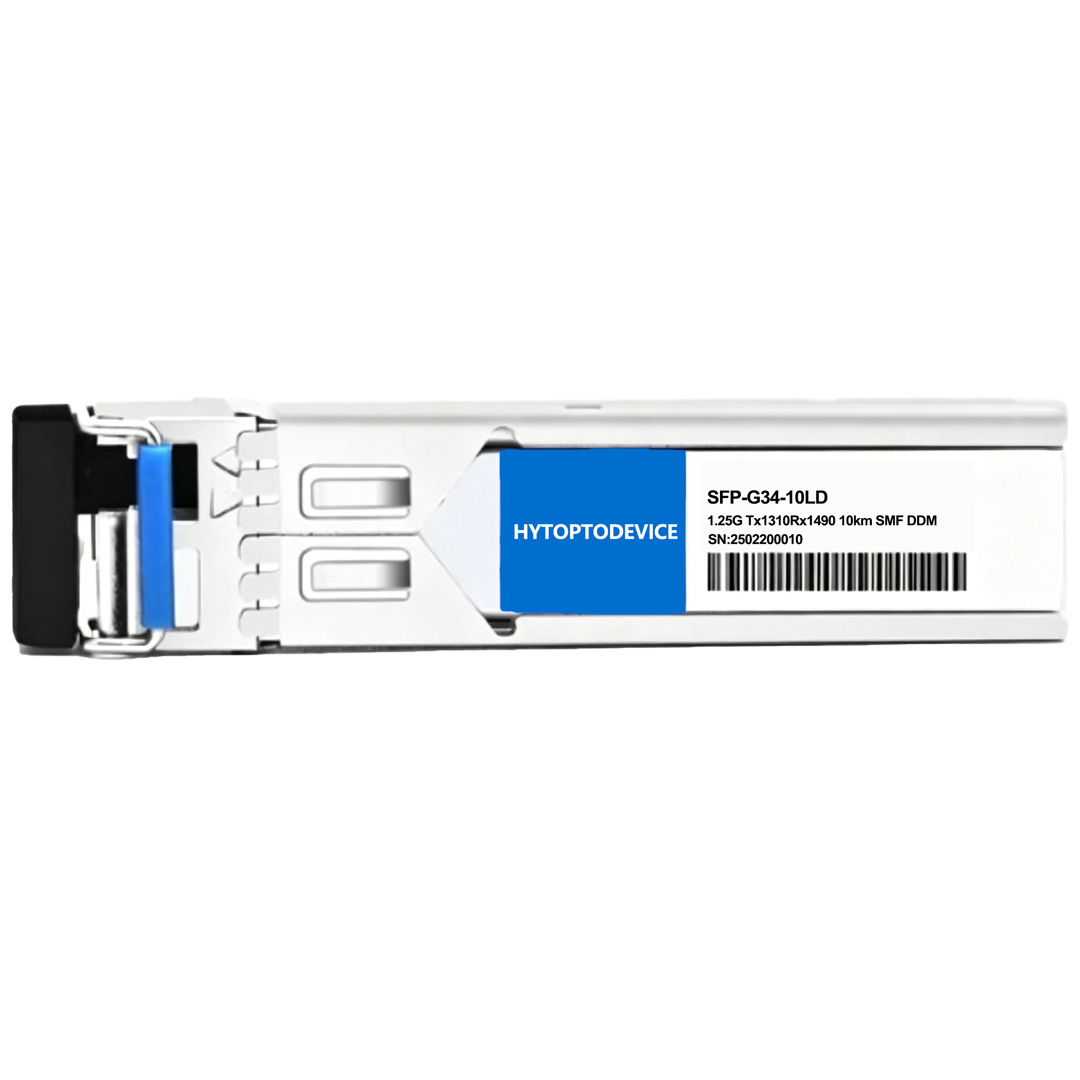

  • Simplex LC connector detail of HYTOPTODEVICE GLC-BX-10U single fiber optical transceiver module white background

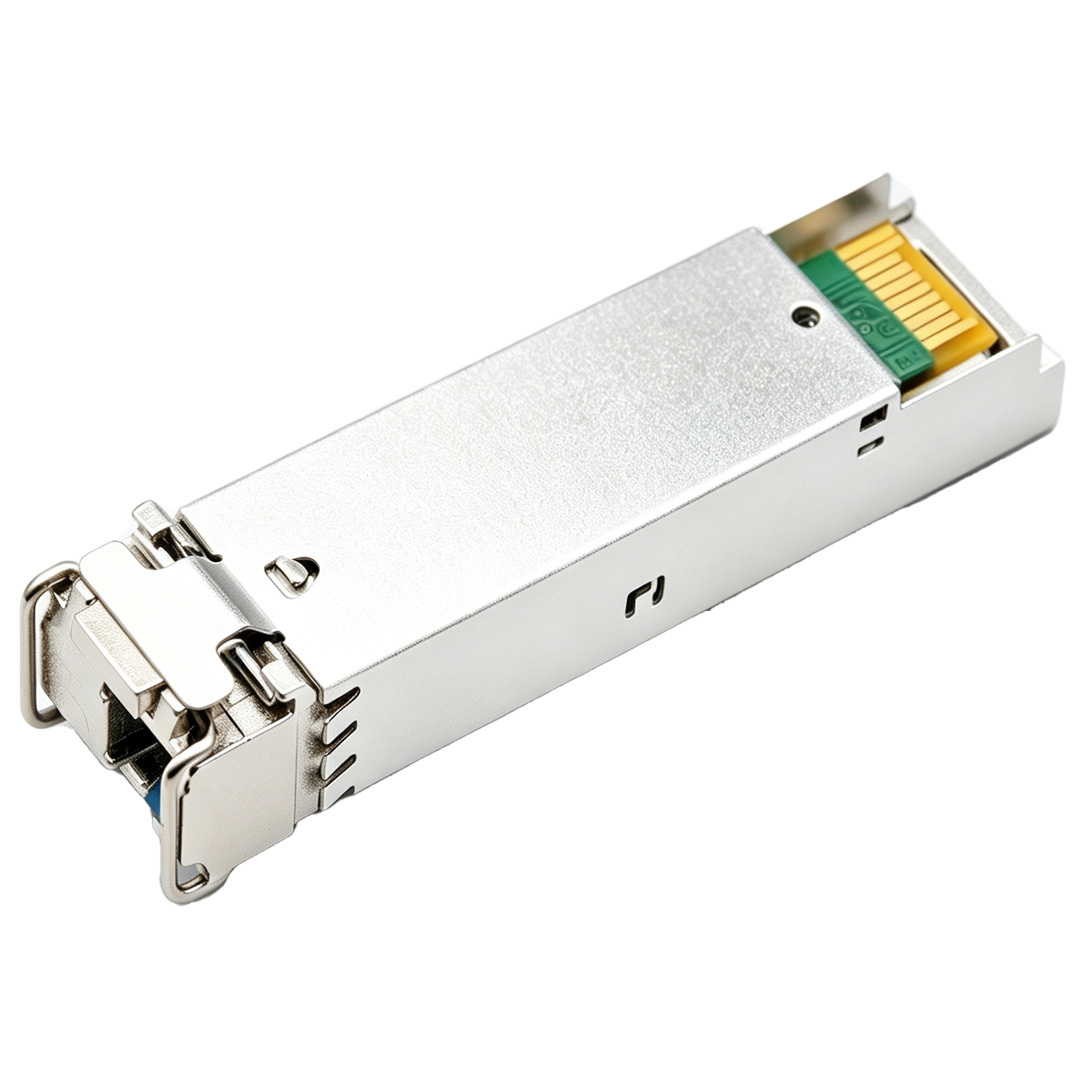

  • Golden finger view of HYTOPTODEVICE 1310nm/1550nm GLC-BX-10U gigabit bidi SFP optic module white background

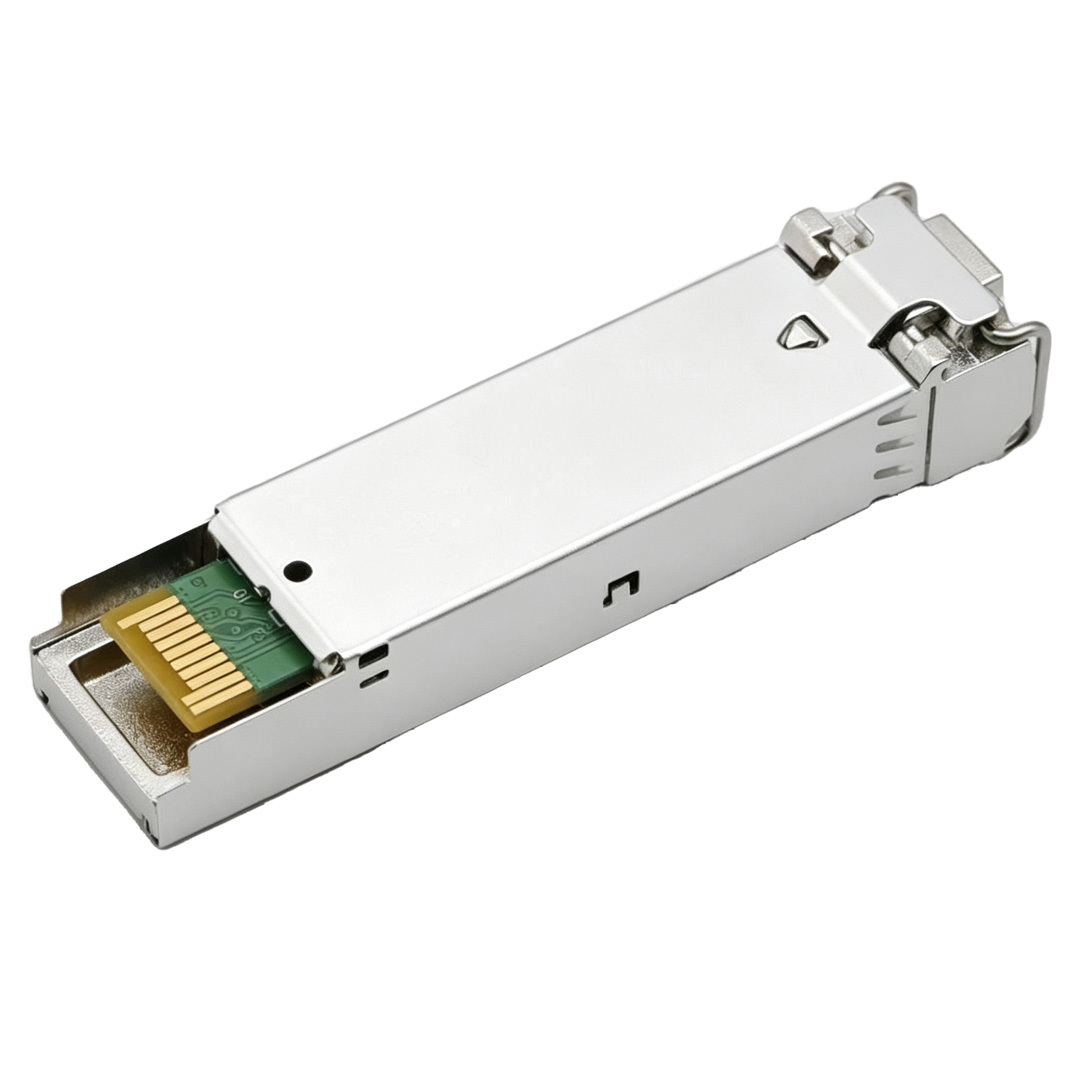

  • Brand label detail of HYTOPTODEVICE GLC-BX-10U 10km single-mode BIDI optical transceiver sfp  module
  • HYTOPTODEVICE GLC-BX-10U Cisco compatible 1000BASE-BX BIDI sfp module white background product photo
  • Simplex LC connector detail of HYTOPTODEVICE GLC-BX-10U single fiber optical transceiver module white background
  • Golden finger view of HYTOPTODEVICE 1310nm/1550nm GLC-BX-10U gigabit bidi SFP optic module white background
  • Brand label detail of HYTOPTODEVICE GLC-BX-10U 10km single-mode BIDI optical transceiver sfp  module

GLC-BX-10U Cisco Compatible 10KM BIDI SFP Transceiver Module | 1000BASE-BX Tx1310Rx1550 Simplex LC Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE GLC-BX-U BIDI SFP module features 1310nm TX/1550nm RX wavelength, 10km transmission over single-mode fiber. 100% compatible with Cisco and mainstream brands, no firmware changes required. Cost-effective OEM alternative with compatibility testing video proof to save more brand premium for your network project.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX-U SFP-G43-10LD
2 Cisco GLC-BX-10U SFP-G35-20LD
3 HPE H3C  JD098B  SFP-G34-20LD
4 Brocade  E1MG-BXU SFP-G34-40LD
5 H3C SFP-GE-LX-SM1310-BIDI SFP-G35-40LD
6 Juniper Networks  SFP-GE10KT13R14 SFP-G45-80LD
7 Huawei SFP-GE-LX-SM1310-BIDI SFP-G45-1BLD
8 Alcatel-Lucent 3HE00868AA
Description

Cisco GLC-BX-10U Compatible 1000BASE-BX BIDI SFP Module (SMF, 1310nm-
TX/1550nm-RX, 10km, LC, DOM) | HYTOPTODEVICE

Product Overview

The HYTOPTODEVICE Cisco compatible GLC-BX-10U BIDI SFP module is a commercial-grade bidirectional optical transceiver designed for cost-effective single-mode fiber networking. Featuring professional TX1310nm transmit / RX1550nm receive wavelength, standard LC fiber connector and single fiber bidirectional transmission type, this 10km BIDI SFP module delivers stable 1.25G data transmission for up to 10 kilometers. Fully compliant with Cisco MSA industry standards, it supports plug-and-play deployment without system alarms or configuration errors. Rated at 0℃ to 70℃ commercial working temperature, it is widely deployed for enterprise campus networking, remote branch interconnection and network monitoring transmission, ideal for system integration and engineering project applications.

Key Technical Specifications

Cisco Compatible  GLC-BX-10U Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1550nm Max Distance 10km
Connector Simplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

 For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Module

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1550 BiDi SFP Module requires a counterparty TX1550/RX1310 Transceiver GLC-BX-10U  at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 10km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Module supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Real Device Testing

1. Compatible Cisco Device Models

All HYTOPTODEVICE GLC-BX-10U BIDI SFP modules are 100% compatible with mainstream Cisco switch, router and firewall series. Every unit passes real on-machine testing on physical Cisco devices to eliminate compatibility failures, system logs and port alarms. Plug-and-play design supports hot swapping for seamless network upgrade and expansion.
  • Cisco Catalyst Series Enterprise Switches: Fully compatible with widely deployed access and aggregation lines including the Catalyst 2960, 3650, 3750, 3850, 9200, and 9300 Series.

  • Cisco Nexus Data Center Platforms: Optimized for auxiliary or management links requiring 1G connectivity on Nexus 3000 and 9000 Series hardware.

  • Cisco Integrated Services Routers (ISR) & Aggregation Services Routers (ASR): Fully compatible with dedicated Gigabit Ethernet SFP slots on Cisco ISR 4000 and ASR 1000 Series routers.

2. Multi-Brand Cross Compatibility

This universal BiDi SFP Module supports cross-brand mixed-vendor network deployment, divided into two hardware compatibility categories:
  • Open-Brand Compatibility Works plug-and-play without custom coding for MSA standard open gear: MikroTik, TP-Link, D-Link, Fortinet, Zyxel gigabit switches & routers.
  • Locked-Brand Compatibility Adaptable to locked enterprise hardware including Cisco, Arista, HPE, Huawei, H3C, Juniper, Dell, Custom EEPROM programming eliminates system recognition warnings.

3. Free Custom EEPROM & Bulk OEM Service

We provide free EEPROM firmware rewrite, private label printing and customized packaging for all Bidirectional SFP Module bulk orders. Preload matched brand vendor ID data to remove transceiver error prompts; large-volume bulk orders enjoy exclusive discounted factory pricing with zero hidden service fees and priority production schedules.

Primary Application Scenarios

As a high-cost-performance Cisco compatible BIDI SFP module, GLC-BX-10U is widely used in various medium and long-distance fiber networking scenarios, perfectly matching project demands for system integrators, engineering contractors, traders and retailers:
  • Enterprise campus cross-area switch interconnection
  • Enterprise headquarters and remote branch 10km fiber linkage
  • Security monitoring long-distance fiber transmission
  • Data center edge access link construction
  • Old network renovation, expansion and equipment replacement projects
  • Industrial and commercial park integrated network deployment

Connectivity Solutions

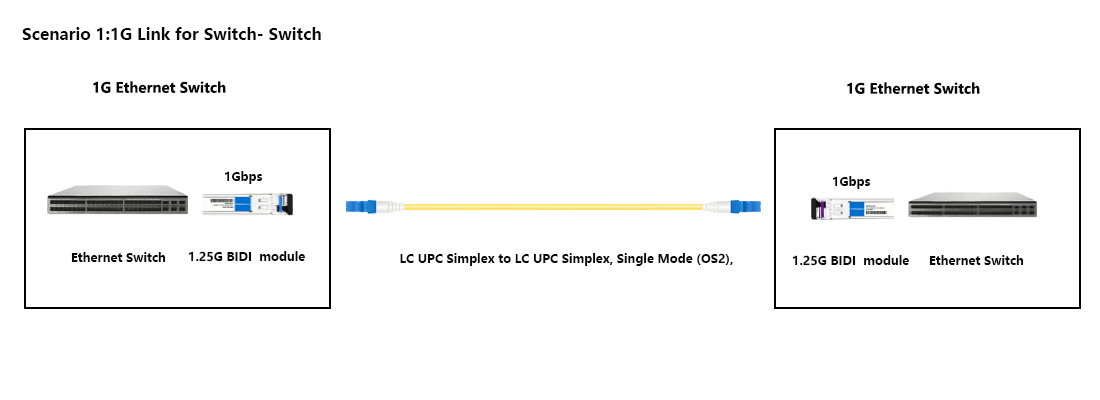

1.1GbE Switch-to-Switch Connectivity
hytoptodevice trusted manufacturer for 1000base-bx bidi transceiver

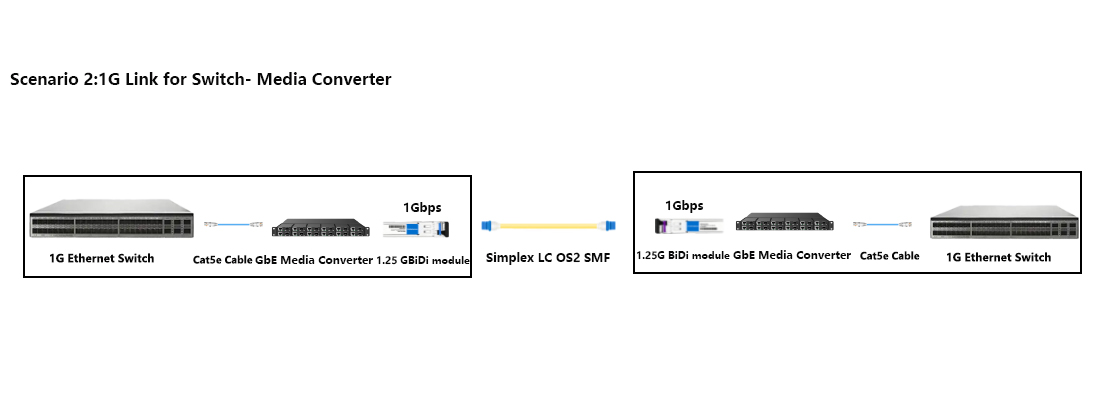

2.1GbE Switch to Media Converter Connectivity
Reliable bidi sfp module supplier hytotpodevice

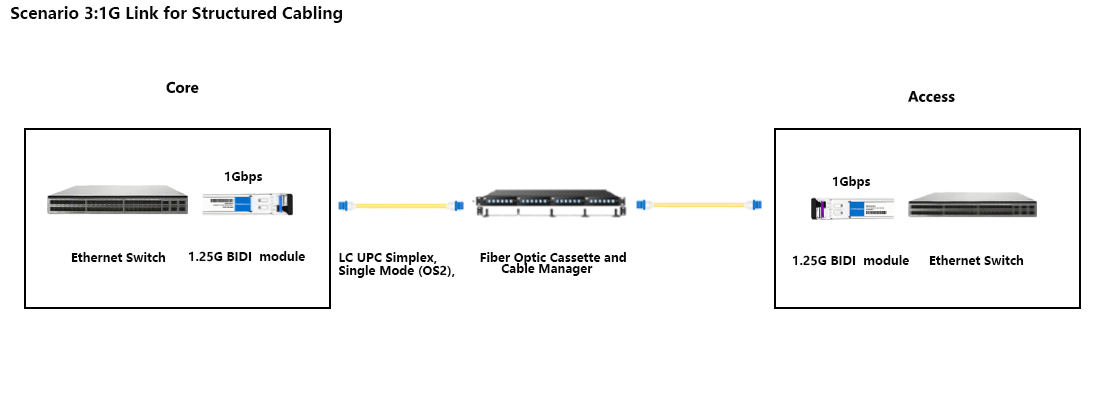

3.1G Structured Cabling
hytoptodevice 1.25g 20km bidi module for 1000base ethernet


Core Product Features

1.One Strand. Full Duplex. Half the Cabling Cost.

Compatible BiDi transceivers use WDM to carry bidirectional traffic over a single fiber, removing the need for parallel cabling runs and reducing per-link deployment cost in campus upgrades.
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.BiDi SFP: Get 2× Capacity from Your Existing Fiber

Why lay new cable? WDM single-strand technology turns every fiber into a two-way link, cutting deployment costs and accelerating bulk upgrades across your network.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3. Low-Power 1G BiDi: More Bandwidth, Less Heat

Delivers full Gigabit Ethernet throughput with ultra-low power consumption—ideal for high-density data center top-of-rack deployments where thermal budget and port density matter most.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. 100% Factory-Tested for Zero Field Surprises
Every BiDi SFP passes full functional and environmental testing in our in-house Test Center—including signal integrity, bit error rate (BER), and temperature cycling—before it ships. The result: consistent, reliable performance from the moment it's plugged in.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


Frequently Asked Questions

Q1: Is HYTOPTODEVICE GLC-BX-10U fully compatible with official Cisco equipment?
A1: Yes. All our GLC-BX-10U BIDI SFP modules undergo 100% real Cisco device on-machine testing. It is plug-and-play with zero errors, zero alarms and zero log prompts, fully compatible with official Cisco OS. Real test videos can be provided for verification.

Q2: What wavelength and transmission distance does GLC-BX-10U support?
A2: This single fiber BIDI SFP module features fixed TX1310nm/RX1550nm wavelength, supporting stable 10km single-mode fiber transmission, perfectly meeting medium and long-distance enterprise networking needs.

Q3: What connector type and fiber type does this BIDI SFP module use?
A3: The Cisco compatible GLC-BX-10U adopts standard LC fiber connector and matches universal single-mode fiber (SMF), compatible with all mainstream engineering wiring accessories.

Q4: Do I need professional configuration after installing GLC-BX-10U?
A4: No configuration required. This BIDI SFP transceiver supports hot plug and play, no complex command debugging is needed, greatly improving on-site engineering deployment efficiency.

Q5: Can I get stable bulk supply and wholesale price for GLC-BX-10U?
A5: Yes. HYTOPTODEVICE provides long-term stable bulk supply of Cisco compatible BIDI SFP modules for system integrators, engineering contractors, traders and retailers, with sufficient inventory and exclusive wholesale discounts.

Q6: What is the advantage of single fiber BIDI SFP compared with dual-fiber modules?
A6: The single fiber BIDI SFP module uses only one fiber core for transceiving signals, saving 50% fiber resources and effectively reducing project material and construction costs.

Q7: Is this commercial-grade BIDI SFP suitable for formal engineering projects?
A7: Absolutely. Rated for 0℃-70℃ commercial working temperature and passed 72-hour aging test and real-device detection, this GLC-BX-10U BIDI SFP module features stable performance and fully meets formal commercial network project standards.

Q8: Can GLC-BX-10U work stably with media converters?
A8: Yes. This 10km BIDI SFP module is perfectly adapted to switch and media converter linkage scenarios, with stable photoelectric conversion and no link fluctuation during long-term operation.

Q9: Does this GLC-BX-10U support multi-brand network equipment?
A9: Yes. In addition to full Cisco compatibility, this universal BIDI SFP module complies with international MSA standards and is compatible with all mainstream network brands, supporting multi-brand mixed networking.

Q10: Why choose HYTOPTODEVICE GLC-BX-10U for long-term project cooperation?
A10: We provide real-device tested, high-stability bulk BIDI SFP modules with verified compatibility and complete test credentials. We support sample testing, batch customization and stable global delivery, providing one-stop optical module supply solutions for global engineering and wholesale customers.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
