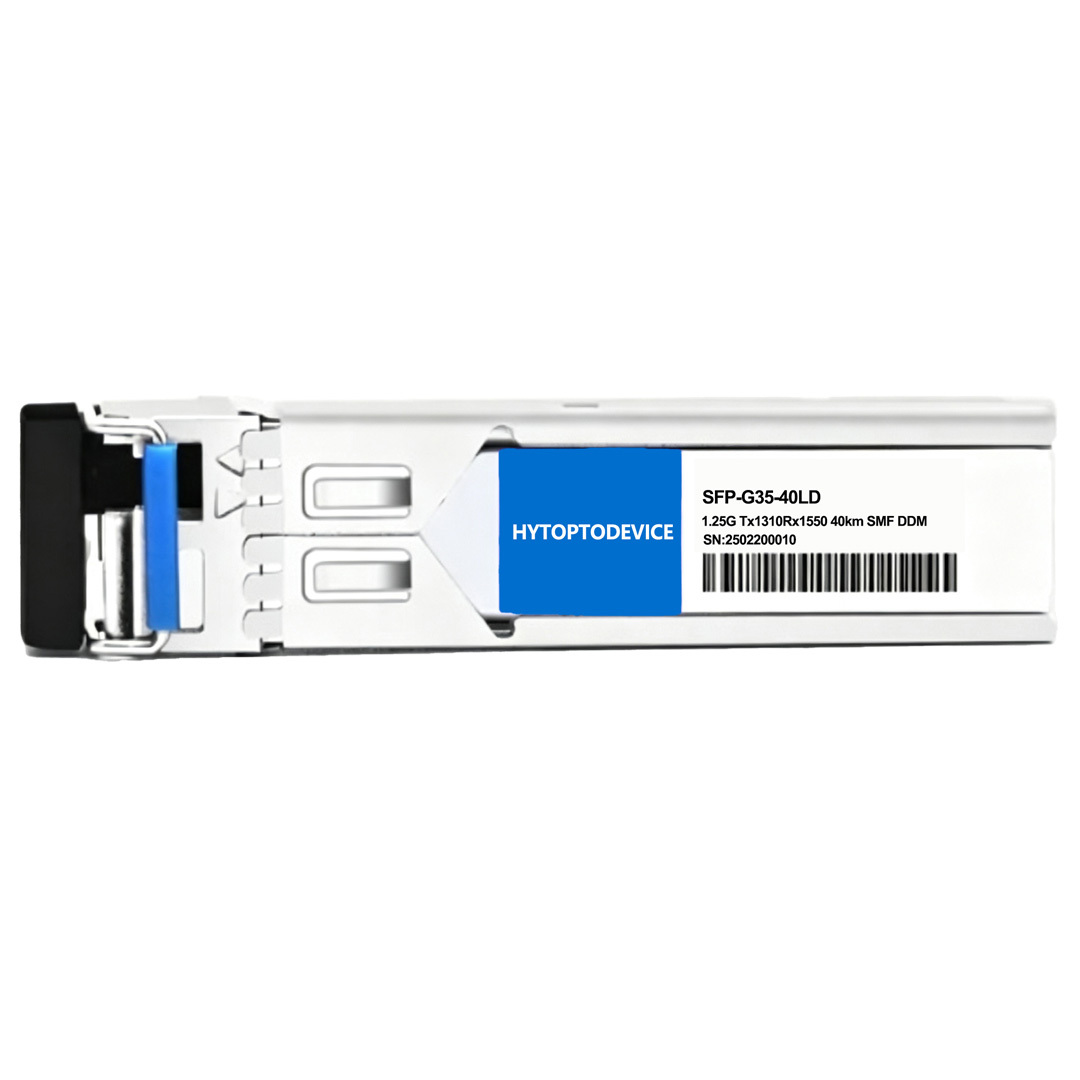

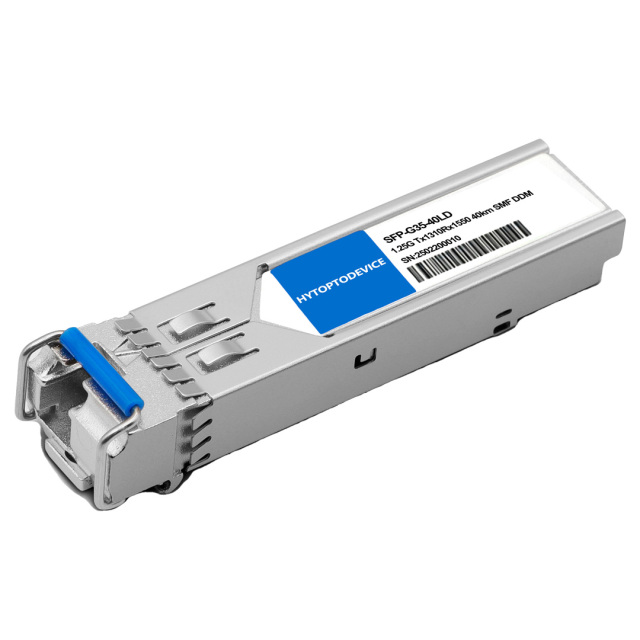

This 40km bidirectional sfp module matches Brocade E1MG-1G-BXU-40 original specs, operating at Tx1310nm / Rx1550nm via LC simplex connector OS2
. As third party bidirectional sfp module for Brocade switches, it supports 0℃ to 70℃ working range with full DDM real-time monitoring.ideal for enterprise campus networks, ISP backbone links and long-distance gigabit fiber connections.
Below are full electrical, optical and mechanical parameters of our 40km single fiber bidirectional sfp module, compatible with Brocade
(Tx1310 Rx1550).At HYTOPTODEVICE,every bidi sfp module undergoes strict optical testing and DDM calibration, and formal optical and electrical performance test reports can be provided anytime if required.
Brocade Compatible
|
E1MG-1G-BXU-40
|
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
TX1310nm/RX1550nm |
Max Distance |
40km |
| Connector |
Simplex LC |
Transmitter Type |
1310nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-5.0~0dBm |
Receiver Sensitivity |
< -23.0dBm |
| Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Full Compatibility List and Supported Devices for third party Bidi sfp module
HYTOPTODEVICE owns a professional
compatibility test lab covering over 150 mainstream brands devices. Each bidirectional sfp module undergoes real-machine upper machine testing on Cisco,Alcatel-Lucent, Huawei,Juniper, Mikrotik, HPE, D-Link and other enterprise & industrial switches.
Unlike generic untested bidirectional sfp module that causes link down or identification failure, our pre-verified bidirectional sfp module maintains stable single-fiber bidirectional transmission across mixed-brand network environments.
1.Brocade Compatibility-Supported Models
-
Brocade/Ruckus ICX Series: ICX 6430, ICX 6450, ICX 6610, ICX 7150, ICX 7250, ICX 7450, ICX 7650, and ICX 7750 Series.
-
Brocade FastIron Series: FastIron WorkGroup (WS) Series, FastIron CX Series, FastIron SX Series.
-
Brocade FCX & VDX Series: FCX 624, FCX 648, VDX 6740, VDX 6940 (when configured for 1G mixed ports).
-
Brocade NetIron Routers: NetIron CES 2000, NetIron CER 2000 Series.
2.150+ Mainstream Multi-Brand Compatibility
This Tx1310 Rx1550 bidirectional sfp module features excellent cross-brand interoperability. It maintains consistent performance in multi-vendor network environments, well suited for global distributors, system integrators and enterprise project contractors. fully compatible with mainstream network devices such as Brocade,Juniper Networks,H3C,Dell,HPE ......
Primary Application Scenarios of Cisco compatible SFP BiDi Module
The Brocade 1310nm TX 1550nm RX sfp bidi transceiver must be paired with its complementary downstream module (E1MG-1G-BXD-40) in the below application scenarios:
- Single fiber bidirectional sfp module for indoor campus backbone long-distance point-to-point interconnection, cutting fiber cabling cost in half during enterprise network upgrade.
- Commercial temperature bidirectional sfp module 0 to 70°C for indoor enterprise server cabinets, office wiring rooms and indoor security monitoring without overheating protection shutdown.
- 1G simplex LC bidirectional sfp module with DDM for FTTH & FTTB broadband access, enabling real-time link parameter monitoring for ISP operation and maintenance teams.
- Pre-tested Tx1310 Rx1550 bidirectional sfp module with optical test data on demand for indoor IP security camera long-range fiber links, supporting stable 40km transmission for office parks and indoor surveillance systems.
- Bulk wholesale bidirectional sfp module for multi-branch indoor enterprise office interconnection, providing low-cost single-fiber gigabit links for cross-region corporate networking.
Connectivity Solutions(Application)
Our Tx1310 Rx1550 bidirectional sfp module supports three mainstream network connection architectures, reference the 3 attached schematic diagrams:
1.Switch to Switch Interconnect:
Deploy paired bidirectional sfp module between two core switches for single-fiber backbone transmission.
2.Switch to Media Converter Link:
Use 1G bidirectional sfp module to connect central office switch and field-side media converter for remote equipment access.
3.Link with Cable Manager & Patch Panel
Rack deployment bidirectional sfp module matching cable manager for neat, standardized data center cabling layout.
FAQ For Brocade Compatible SFP BiDi Module

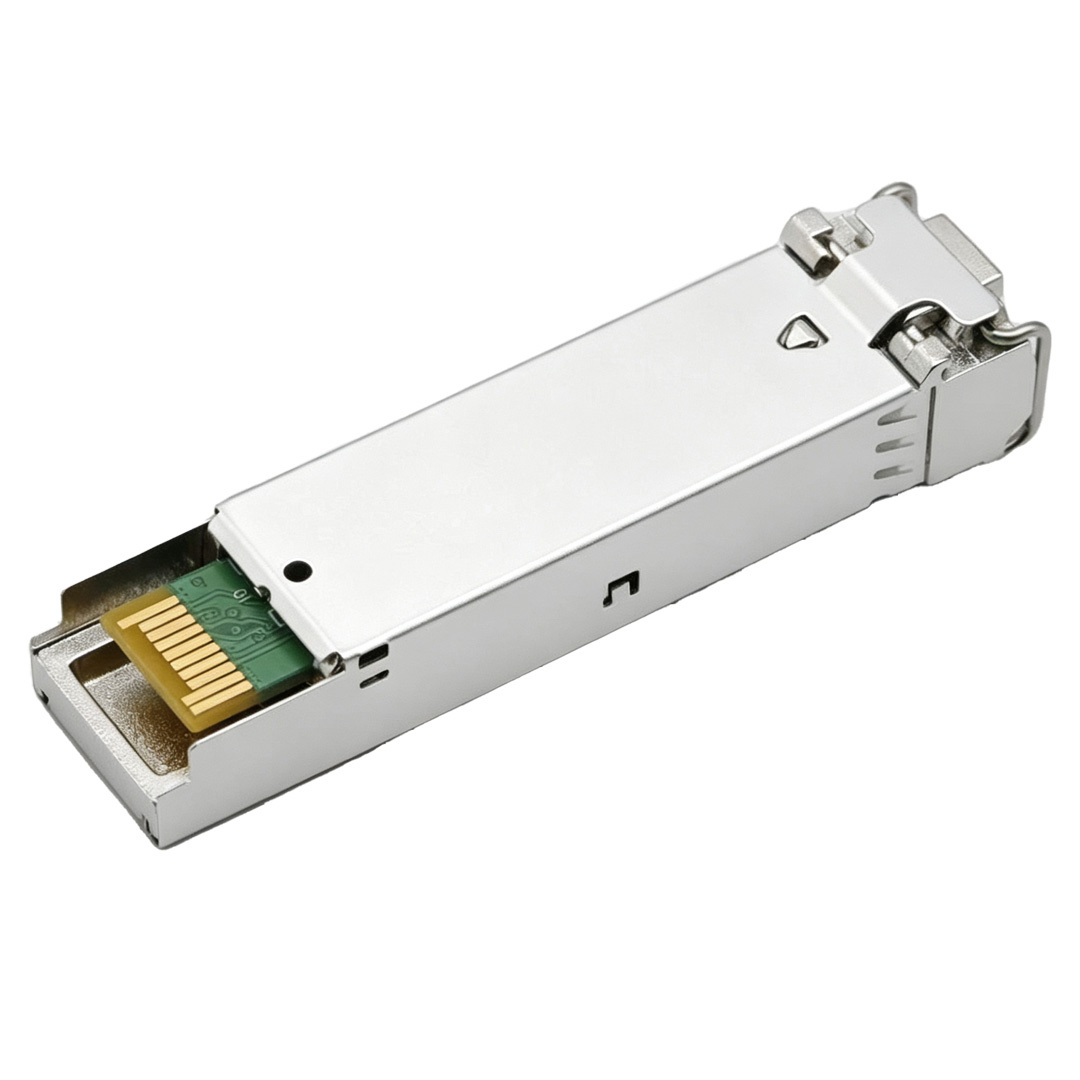

Q1: Is this Brocade compatible bidirectional sfp module hot-swappable for live switch deployment?
A: Yes. The HYTOPTODEVICE compatible E1MG-1G-BXU-40 bidirectional sfp module supports full hot-swappable operation. It allows plug-and-play replacement on running Brocade switches without powering down devices or interrupting live network traffic, ensuring zero business downtime during maintenance.
Q2: Does using third-party bidirectional sfp module void Brocade network equipment warranty?
A: No. Under the Magnuson-Moss Warranty Act, Brocade cannot void your official device warranty solely for using qualified third-party optics. HYTOPTODEVICE factory-tested bidirectional sfp module delivers fully compliant performance and will not trigger any warranty invalidation risks.
Q3: Why does a plug-and-play bidirectional sfp module show disabled port status on Brocade ICX switches?
A: Port disabled or unknown status is rarely caused by module incompatibility. Most cases result from incomplete module insertion or shut-down port configuration. HYTOPTODEVICE pre-calibrated bidirectional sfp module works flawlessly on Brocade ICX/FastIron series after full seating and enabling ports via standard CLI commands.
Q4: What is the deployment difference between BXU and BXD bidirectional sfp module for 40km single fiber links?
A: The core distinction lies in wavelength direction: HYTOPTODEVICE E1MG-1G-BXU-40 bidirectional sfp module adopts Tx1310nm/Rx1550nm upstream mode, while BXD uses Tx1550nm/Rx1310nm downstream mode. Valid 40km single-fiber links require one BXU and one BXD module paired at opposite ends.
Q5: Can I deploy two identical BXU-type bidirectional sfp module for point-to-point networking?
A: No. Dual BXU bidirectional sfp module cannot establish valid links, as both units transmit at 1310nm and receive at 1550nm with no cross signal reception. HYTOPTODEVICE strictly recommends BXU-BXD paired assembly to guarantee stable 40km single-fiber transmission.
Q6: Does this 40km bidirectional sfp module require duplex LC fiber jumper for operation?
A: No. The HYTOPTODEVICE Tx1310/Rx1550 bidirectional sfp module adopts professional single BiDi transmission design with simplex LC interface. It only needs one single-mode fiber strand to complete bidirectional data transmission, saving half of your fiber cabling resources.
Q7: What working temperature range does this commercial bidirectional sfp module support?
A: This HYTOPTODEVICE commercial-grade bidirectional sfp module supports standard 0℃ to 70℃ stable operation, perfectly adapting to indoor server rooms, enterprise wiring closets and climate-controlled network environments with consistent and reliable long-term performance.
Q8: Can 40km single-mode bidirectional sfp module work over multimode fiber cables?
A: No. HYTOPTODEVICE 40km bidirectional sfp module is optically calibrated exclusively for OS1/OS2 single-mode fiber. It cannot lock stable links or reach standard transmission distance on multimode fiber, and mismatched fiber types will cause continuous link failure.
Q9: Do short-distance 5km links need attenuator for 40km bidirectional sfp module?
A: Yes. This HYTOPTODEVICE high-power 40km bidirectional sfp module outputs up to 3dBm optical power. For transmission distances below 10km, installing a 5–10dB inline attenuator effectively prevents receiver overload and protects module lifespan for stable short-range operation.
Q10: Does Brocade compatible bidirectional sfp module support DOM real-time optical monitoring?
A: Yes. All HYTOPTODEVICE E1MG-1G-BXU-40 bidirectional sfp module supports full DOM/DDM digital monitoring. Users can real-time check optical power, temperature and voltage data via Brocade switch CLI for fast network fault diagnosis and link status management.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
- In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
- Private Label support - EEPROM / firmware customization support
