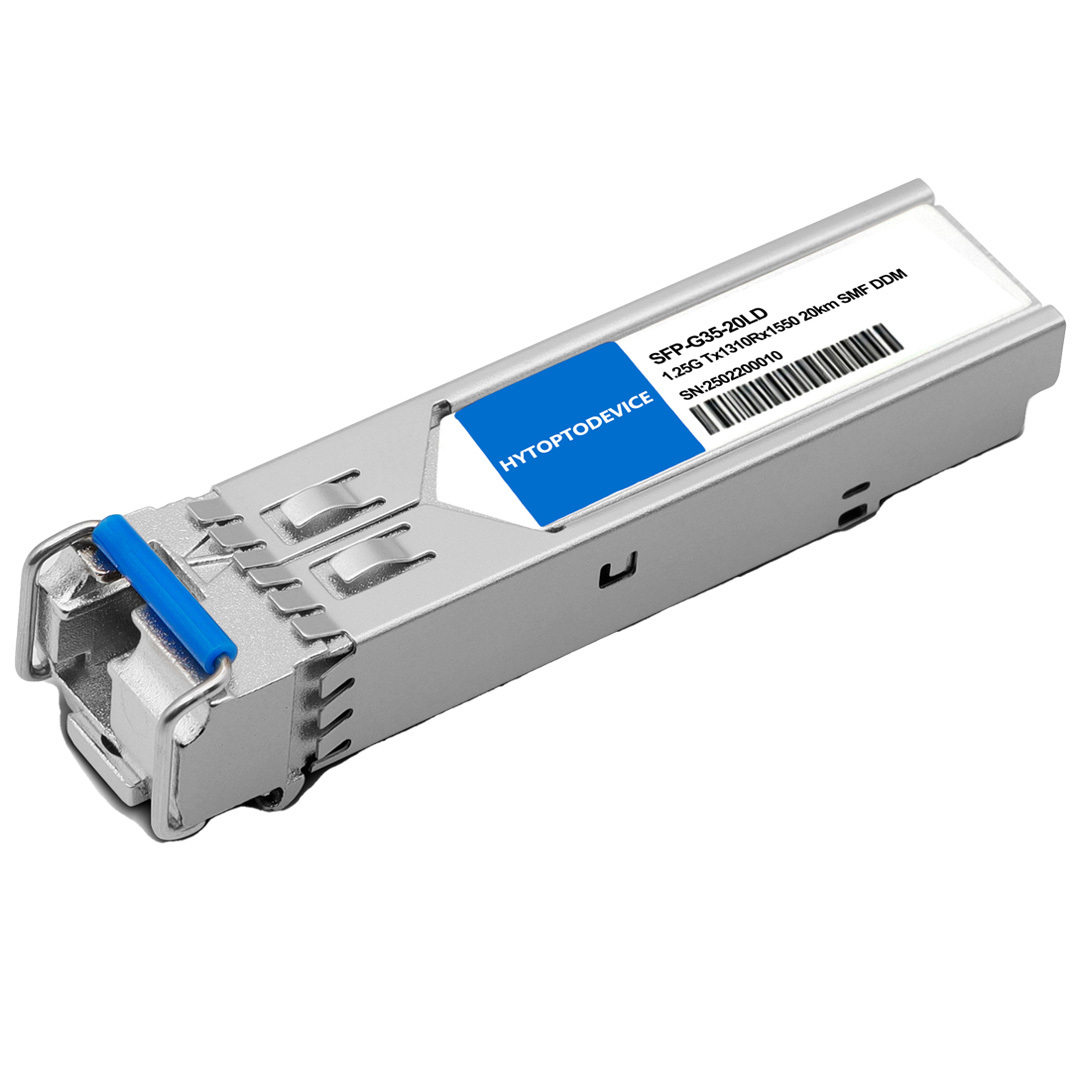

Below are standardized technical parameters of the HYTOPTODEVICE Dell SFP-GE-BX20-1310  BiDi SFP. All specifications comply with MSA and IEEE standards, ensuring stable 20km SMF transmission, consistent wavelength performance, and reliable DDM monitoring for official Dell deployments.

Dell Compatible	SFP-GE-BX20-1310	Vendor Name	HYTOPTODEVICE
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	TX1310nm/RX1550nm	Max Distance	20km

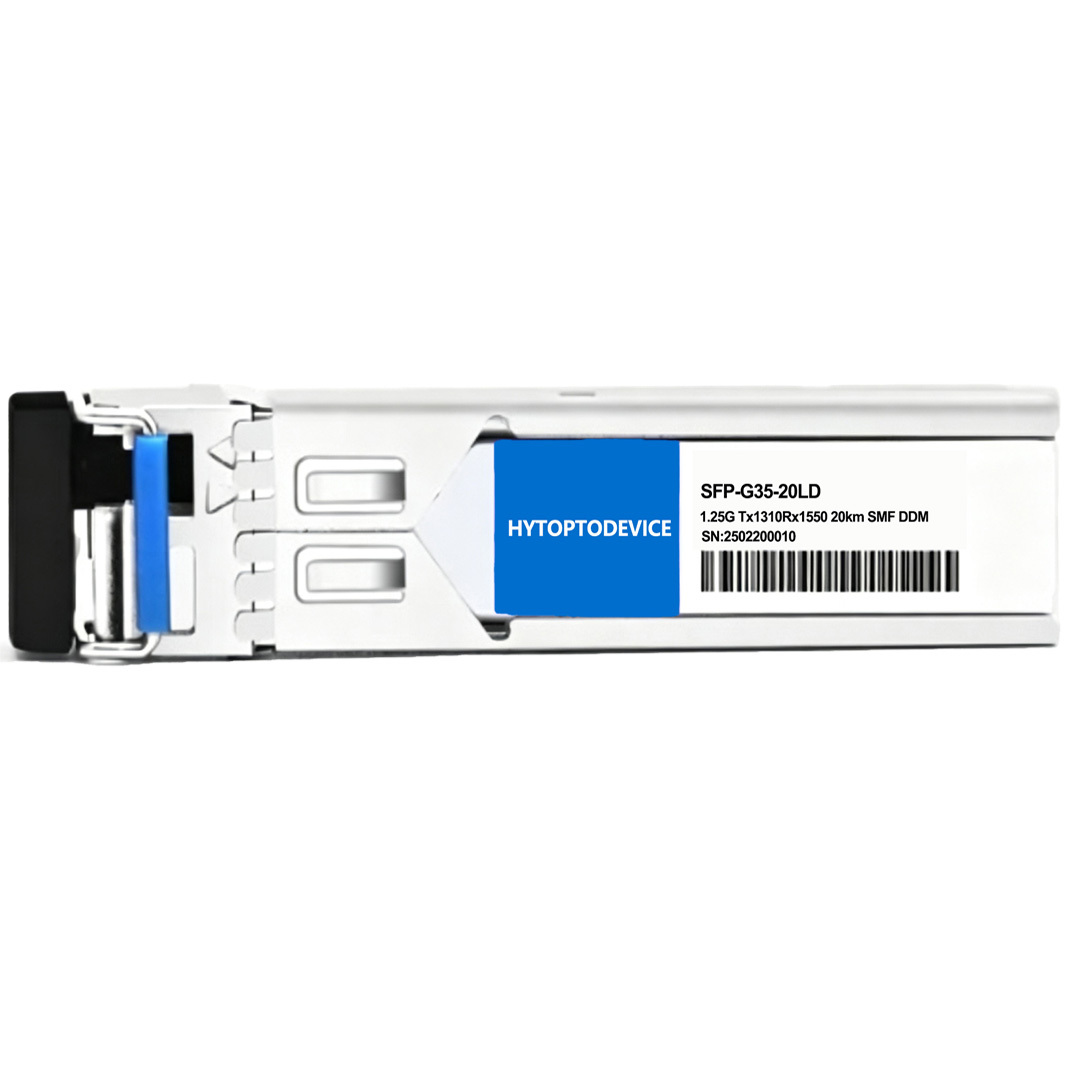

Connector	Simplex LC	Transmitter Type	1310nm FP
Cable Type	SMF	Receiver Type	PIN
TX Power	-9.0~-3dBm	Receiver Sensitivity	< -23.0dBm
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Operation Temperature	0 to 70°C (32 to 158°F)

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1550 BiDi SFP Module requires a counterparty TX1550/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

Full Compatibility List and Supported Devices

1. Verified Dell Device Compatible Models

All HYTOPTODEVICE SFP-GE-BX20-1310 BiDi SFP modules achieve 100% full compatibility with genuine Dell hardware. Every unit undergoes rigorous real-hardware and on-site testing; test videos are available upon request.

Our Dell-compatible transceivers operate reliably on mainstream Dell switches, routers, and managed devices, matching original firmware, port protocols, and system identification. We support long-term bulk supply, project wholesale, and OEM customization for system integrators, engineering contractors, and global retailers：

Legacy Dell PowerConnect Series

• 2800 / 3500 Series: PowerConnect 2824, 2848, 3524, 3524P, 3548, 3548P

• 5500 Series: PowerConnect 5524, 5524P, 5548, 5548P

• 6200 Series: PowerConnect 6224, 6224F, 6224P, 6248, 6248P

• 7000 Series: PowerConnect 7024, 7024F, 7024P, 7048, 7048P, 7048R

• 8000 & 8100 Series: PowerConnect 8024, 8024F, 8124

Dell Networking N-Series (Enterprise & Campus Edge)

• N1500 Series: N1524, N1524P, N1548, N1548P

• N2000 Series: N2024, N2024P, N2048, N2048P

• N2100 & N2200 Series: N2128PX-ON, N2224X-ON, N2248X-ON

• N3000 Series: N3024, N3024F, N3024P, N3048, N3048P, N3248TE-ON

• N4000 Series: N4032, N4032F, N4064, N4064F

• Dell Networking X-Series (Smart Managed Switches)
     X1008, X1008P, X1018, X1018P, X1026, X1026P, X1052, X1052P, X4012

  2. Multi-Brand Compatibility


All HYTOPTODEVICE SFP-GE-BX20-1310 modules pass strict real-device commissioning, aging, and stability tests on Brocade and other leading-brand equipment. Unlike untested generic modules, ours deliver 100% port adaptation, zero packet loss, zero crashes, and full DDM compatibility on all supported devices.

This transceiver complies with MSA standards, supporting stable operation across Brocade, Cisco, HPE, Juniper, H3C, Huawei, MikroTik, Ubiquiti, and other MSA-compliant hardware. Ideal for mixed-vendor network upgrades, renovations, and large-scale deployments by global procurement groups and engineering firms.

Common Industry Application Scenarios

This Tx1310/Rx1550nm single-fiber BiDi SFP is optimized for global B2B volume orders and project-specific customization, addressing high-demand use cases for system integrators, contractors, and distributors across Europe, America, and Southeast Asia. It enables long-distance, cost-effective fiber deployment for enterprise and industrial networks.

• Enterprise campus & industrial park single-fiber network reconstruction
• MSP managed service batch equipment replacement and firmware upgrades
• Cross-campus 20km fiber link deployment for office buildings
• OEM white-label optical modules for private-brand resale
• Low-cost single-fiber mass deployment in data centers
• Remote industrial monitoring and security transmission projects
• FTTB community broadband and operator access network construction

Stable Connectivity Solutions( Applications)

 1.  Switch to Switch Interconnection Solution (Enterprise Core Networking)

This core networking solution uses HYTOPTODEVICE SFP-GE-BX20-1310 for uplink stacking and interconnection between Dell core and access switches. The single-fiber BiDi design saves 50% fiber resources, supports 20km stable gigabit links, and ensures low-latency, lossless transmission. Plug-and-play deployment with no complex configuration—perfect for large-scale campus rollouts and network upgrades.

2.Switch to Media Converter Link Solution (FTTB & Remote Access)

Widely deployed in FTTB, industrial remote access, and operator edge networks where Dell switches connect to media converters. The SFP-GE-BX20-1310 maintains ultra-stable signals up to 20km, overcoming traditional cabling distance limits. A standard fit for long-distance access network buildouts and upgrades.

Core Product Features

1.Boost Existing Fiber Utilization Using BiDi SFP
Standard dual-fiber optics rely on two cores for two-way communication. Our BiDi SFP leverages WDM tech to achieve bidirectional transmission over a single fiber. It optimizes idle fiber resource utilization, raises fiber operational efficiency, and avoids extra cable deployment during network expansion.

2. Double Your Network Capacity

Powered by single-strand bidirectional transmission technology, our premium BiDi SFP Module instantly doubles your network link capacity with no extra fiber cabling required.
Delivering a budget-friendly, high-performance bandwidth expansion solution, it perfectly caters to enterprise network upgrades and FTTx access network optimization projects.

3. Stable 1G Connectivity for High-Availability Data Centers

Even as data centers roll out 100G/400G networks, reliable 1G base infrastructure keeps daily operations running smoothly. Our enterprise 1G BiDi SFP modules deliver consistent low-latency performance. Ideal for OOB management and real-time monitoring, they maintain stable control channels fully separated from fluctuating production traffic.

4. Rigorous Host Device Testing for Full Cross-Brand Interoperability

Each BiDi SFP transceiver undergoes full interoperability testing on Cisco, Huawei, H3C and mainstream network equipment. Real-environment checks cover link handshake, DDM data accuracy and hot-swap performance to deliver flawless compatibility and avoid on-site deployment failures.

5.Comprehensive Factory Testing Delivers Consistent Stable Performance

Each BiDi SFP Module pass complete factory performance tests covering optical indicators, DDM monitoring and temperature adaptability. Layered quality checks guarantee reliable, stable long-run operation and reduce on-site troubleshooting costs.

FAQ

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
• In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.
• Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
