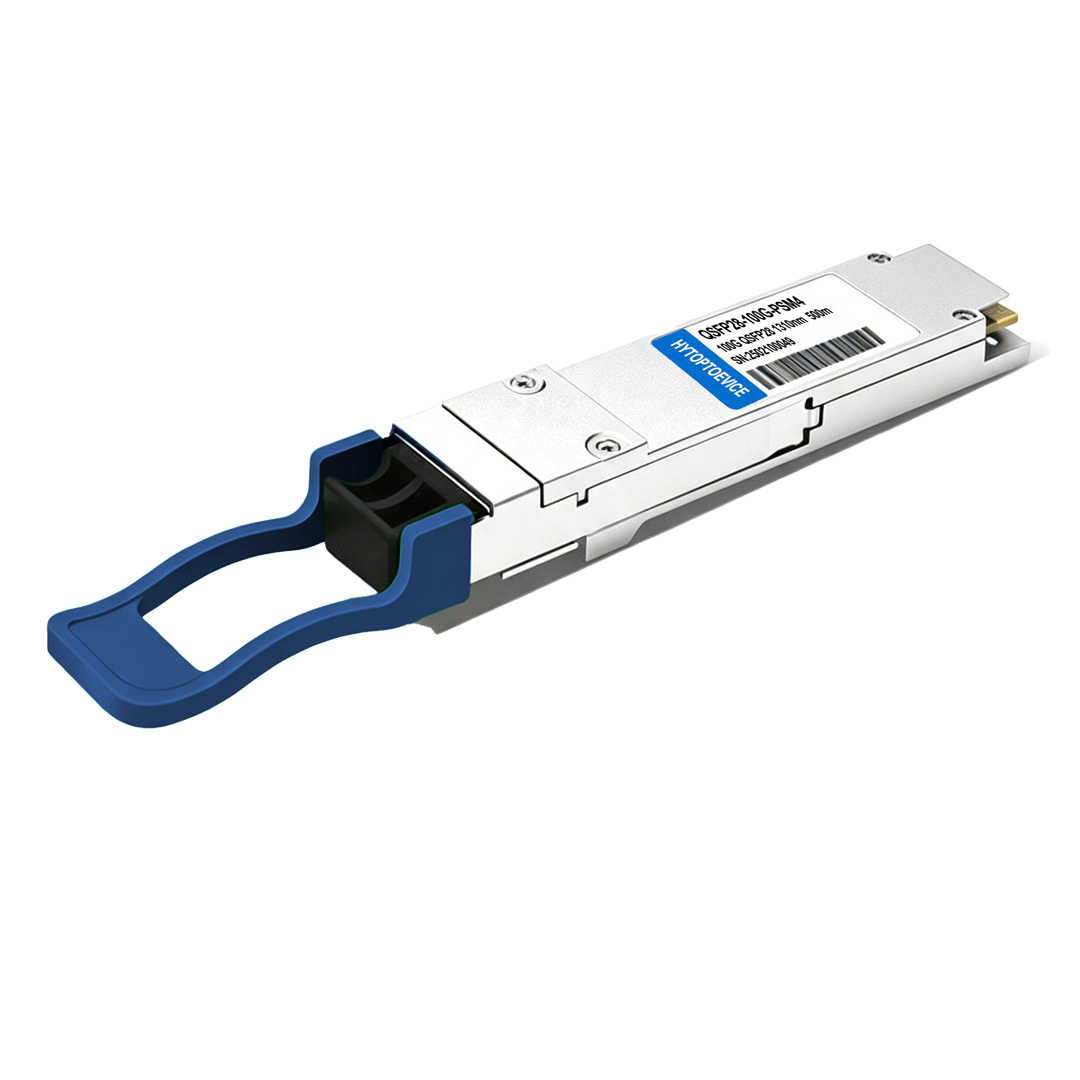

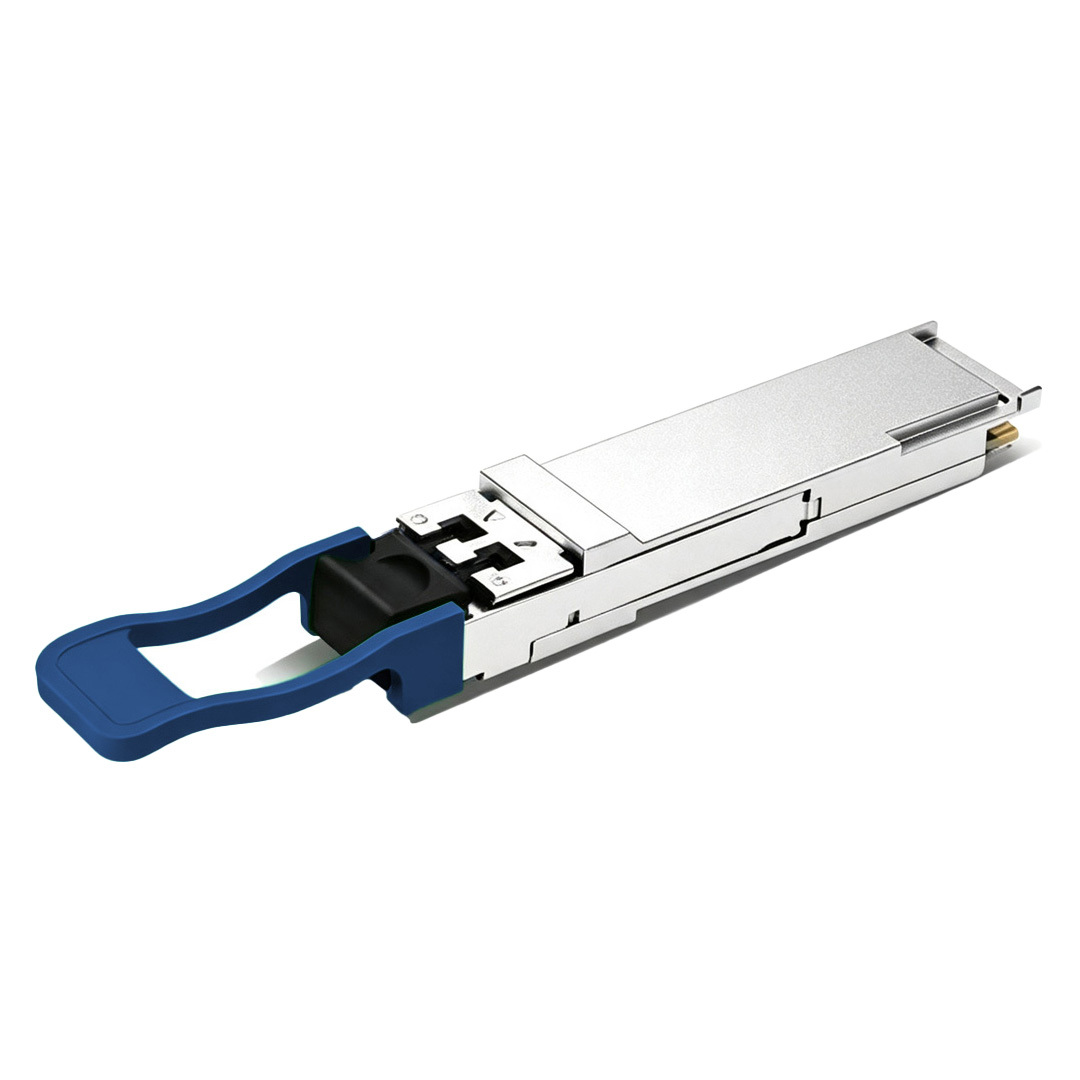

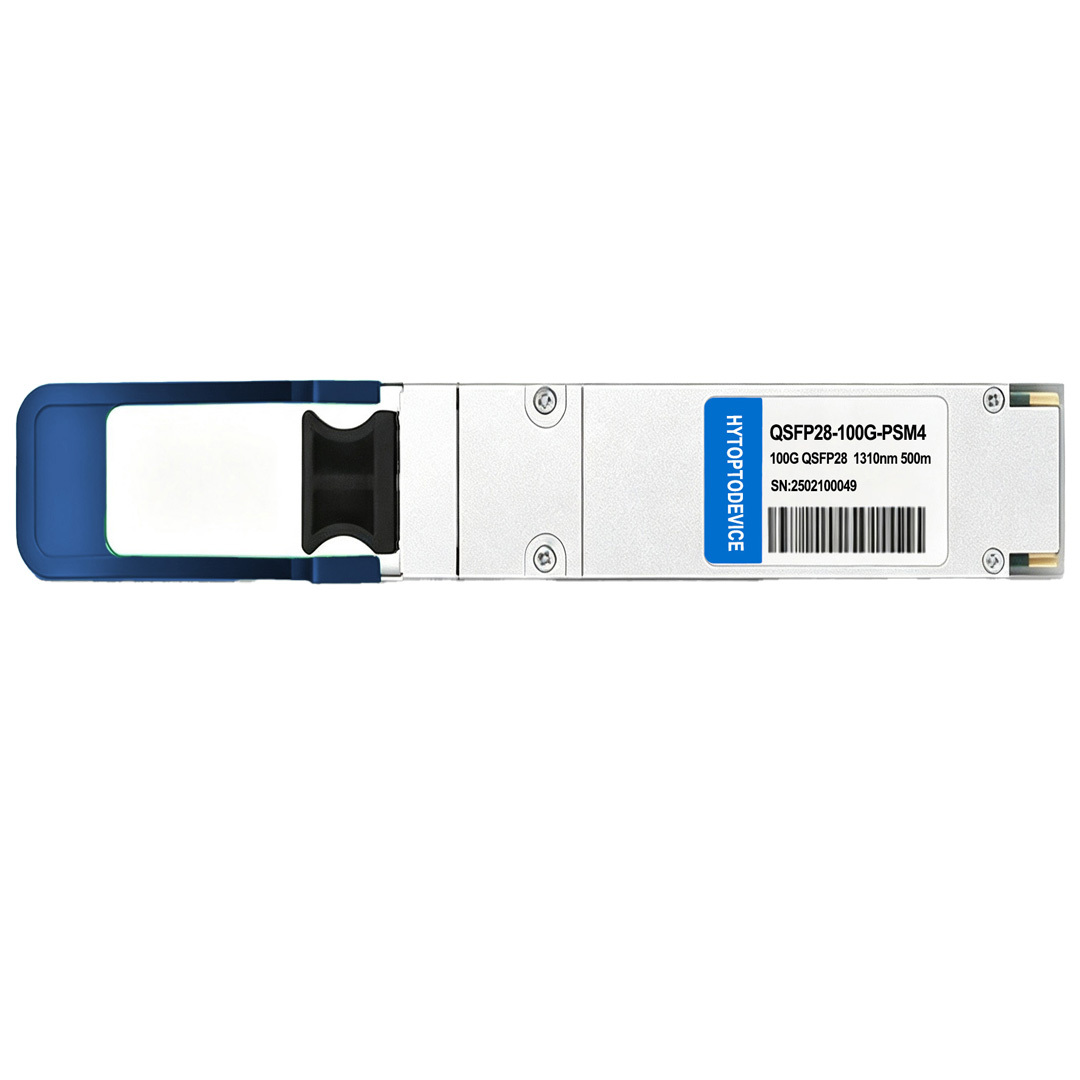

Cisco QSFP-100G-PSM4-S Compatible 100G QSFP28 PSM4 Transceiver | 100GBASE-PSM4 1310nm 500m MPO-12/APC SMF | HYTOPTODEVICE
Product Overview
This 100G QSFP28 PSM4 parallel single-mode optical module acts as a fully matched drop-in substitute for Cisco QSFP-100G-PSM4-S, designed to deliver reliable low-latency short-reach transmission for all Cisco Nexus series data center switching equipment.
The module adopts 4 independent 25G NRZ parallel optical lanes centered on 1310nm wavelength, capable of transmitting complete 100G Ethernet signals up to 500 meters via MPO-12 OS2 single-mode ribbon fiber. Different from wavelength multiplexed optical products like CWDM4 and LR4, PSM4 removes complex wavelength combiner & splitter components, lowering overall link loss and simplifying high-density cabinet MPO cabling layout.
Fully compliant with IEEE 802.3bm and universal QSFP28 MSA industrial specifications, supporting DDM/DOM and standard RS-FEC error correction mechanism. Every unit is pre-flashed with exclusive Cisco-matching EEPROM data, enabling hot-swap installation without unrecognized transceiver warning logs. Widely deployed in Cisco leaf-spine fabric, intra-rack trunk links, server uplinks and 100G-to-4×25G breakout network transformation projects.
Key Technical Specifications
| Cisco Compatible |
QSFP-100G-PSM4-S |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
| Wavelength |
1310nm
|
Max Distance |
500m@OS2 |
| Connector |
MTP/MPO-12 APC |
Transmitter Type |
4xDFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| FEC Support |
Yes |
TX Power |
-6.0~+2dBm |
| Power Consumption |
<3.5W |
Receiver Sensitivity |
< -10.2dBm |
| Protocols |
QSFP28 MSA, SFF-8636, IEEE 802.3‑2012,CAUI-4 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
• Fiber Matching Rule: Only MPO-12 APC 8° angled OS2 single-mode ribbon fiber can be used; OM3/OM4 multimode fiber or UPC polished MPO cables will trigger link failure and hardware damage.
• Lane Polarity Control: Confirm MPO fiber lane sequence and polarity match before powering on ports; misaligned lanes lead to severe receive power imbalance and continuous packet loss.
• Distance Restriction: Stable performance is only guaranteed within the standard 500m MSA rated range; extended fiber routes bring excess lane skew and optical attenuation.
• Hot-Plug Support: Modules support live insertion and removal; regularly clean MPO APC end faces to eliminate dust-induced signal distortion.
• Operating Environment: Limit deployment to indoor 0°C–70°C data center environments; avoid fully sealed cabinets with poor ventilation causing persistent overheating.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Supported Hardware & Firmware
All HYTOPTODEVICE 100G PSM4 QSFP28 modules strictly match the mechanical dimensions and optical index parameters of original Cisco QSFP-100G-PSM4-S. Custom vendor-locked EEPROM coding eliminates third-party transceiver authentication alarms. Every finished product undergoes physical machine interoperability testing to avoid lane power imbalance, port negotiation failure and random link flapping.
Validated Cisco Nexus Hardware Lineup:
• Cisco Nexus 9300 Series Leaf & Spine Data Center Switches
• Cisco Nexus 9500 Modular Core Fabric Switches
• Cisco Nexus 3000 Low-Latency Storage Switches
• All Cisco switching hardware with native QSFP28 PSM4 port support
• Cisco rack servers equipped with QSFP28 100G parallel NIC adapters
2. Multi-Brand Cross Compatibility
Developed based on open universal QSFP28 MSA standards, HYTOPTODEVICE Cisco compatible PSM4 transceivers achieve seamless cross-platform interoperation with Arista, Juniper, Dell, H3C, Huawei and NVIDIA/Mellanox switching equipment. Satisfies construction demands of multi-vendor mixed fabric and cross-pod parallel optical interconnection for hybrid cloud data centers.
3. Free Value-Added Services
HYTOPTODEVICE supplies global system integrators and data center contractors with complimentary vendor-specific EEPROM reprogramming, OEM private label customization and one-stop network deployment technical consultation. All optical modules pass precise optical calibration, high-low temperature cycling and 72-hour full-traffic aging testing before delivery. Bulk wholesale clients can enjoy tiered volume discount policies to effectively reduce CAPEX expenditure for Cisco parallel optics data center construction.
Primary Application Scenarios
• 500m intra-fabric rack-to-rack interconnections inside Cisco Nexus leaf-spine architectures
• High-density aggregation trunk links for enterprise cloud and multi-tenant colocation data centers
• Low-latency 100G uplinks connecting ToR switches to AI, HPC and virtualization server clusters
• Inter-pod parallel optical transmission using MPO single-mode ribbon fiber
• Network upgrade projects from legacy 40G parallel optics to 100G PSM4
• Standard 100G to 4×25G breakout network deployment for segmented server bandwidth expansion
• Multi-brand hybrid fabric short-distance interconnection built on MPO cabling infrastructure
Connectivity Solutions(Applications)
1.Leaf-Spine Architecture

2. 100G to 100G for Switch-Switch Interconnection

3.100G to 100G for Switch-NIC Connection

4.100G to 4x25G Breakout Connectivity

The Core Feature
1.Low Power and High-Density 100G Connectivity for Data Center
Max power ≤3.5W cuts thermal load on fully populated line cards. Compact QSFP28 form factor fits high-density racks, lowering data center PUE and supporting long-term 24/7 operation.

2.Verified Host Interoperability
Custom EEPROM programming enables plug-and-play operation and avoids transceiver alarms across multiple network vendor platforms.
Specific Compatibility Video available upon request.

3.Comprehensive Factory Testing & Reliable Performance
Each unit undergoes optical calibration, wide temperature cycling and burn-in testing. Integrated DDM enables remote real-time monitoring for proactive fault troubleshooting.Curious how? Tour the
Test Center.

FAQ
Q1: Will HYTOPTODEVICE PSM4 QSFP28 work on Cisco, Arista, Juniper and Dell network switches?
A: Compatibility relies on customized EEPROM identity coding. HYTOPTODEVICE can pre-program this PSM4 optic with vendor-specific data for Cisco, Arista, Juniper or Dell, letting modules pass hardware authentication without "unsupported transceiver" pop-ups.
Q2: Can I directly interconnect 100G PSM4 with CWDM4 or LR4 transceivers via fiber?
A: Interconnection is impossible due to different optical structures. PSM4 transmits four parallel 1310 lanes over MPO multi-fiber cables, while CWDM4/LR4 multiplex multiple wavelengths onto duplex LC fiber. Their fiber interfaces and lane designs cannot match.
Q3: Can this Cisco-compatible PSM4 be inserted into traditional 40G QSFP+ ports?
A: It cannot run normally despite identical physical shape. QSFP+ ports only support 40G signal processing hardware, lacking the DSP needed for 4×25G PSM4 parallel transmission.
Q4: Does HYTOPTODEVICE 100G PSM4 support industry-standard FEC correction?
A: RS-FEC (IEEE 802.3bj Clause 91) is fully supported. You need to enable FEC on the corresponding switch port to reach the specified ultra-low BER (< 10⁻¹²).
Q5: Can I plug blue UPC MPO patch cords into this PSM4 module’s APC port?
A: UPC cables are forbidden. This PSM4 adopts 8° APC green ports; UPC flat connectors create severe back reflection, distorting signals and scratching internal optical components permanently.
Q6: Do I need optical attenuators for 1–5m short fiber runs to prevent receiver overload?
A: Extra attenuators are unnecessary. HYTOPTODEVICE factory calibrates transmit power with sufficient safety margin, and short-distance cables will not saturate receiver chips.
Q7: Can this PSM4 module run stable links beyond 500m using ultra-low-loss single ribbon fiber?
A: Not recommended for production deployment. Even premium fiber cannot offset cumulative attenuation and lane skew over 500m, exceeding the MSA-defined power budget and triggering unstable BER.
Q8: Is 100G to four independent 25G SFP28 breakout achievable with this PSM4 optic?
A: Yes. Its four physically separated 25G single-mode lanes support matched MPO breakout cables, splitting one 100G port into four independent 25G server uplinks to maximize switch port efficiency.
Q9: Why choose HYTOPTODEVICE 100G PSM4 instead of 100G LR4 for intra-data center links?
A: PSM4 features simpler internal components, lower unit cost and ≤3.5W power consumption compared to long-reach LR4. It is the optimal high-density choice for all rack-to-rack connections under 500m.
Q10: In which scenarios is CWDM4 more cost-effective than large-scale PSM4 deployment?
A: CWDM4 delivers lower total cost for long cross-building links or projects requiring small fiber counts. The high cost of MPO ribbon cables will offset the savings from cheaper PSM4 modules in such cases.
