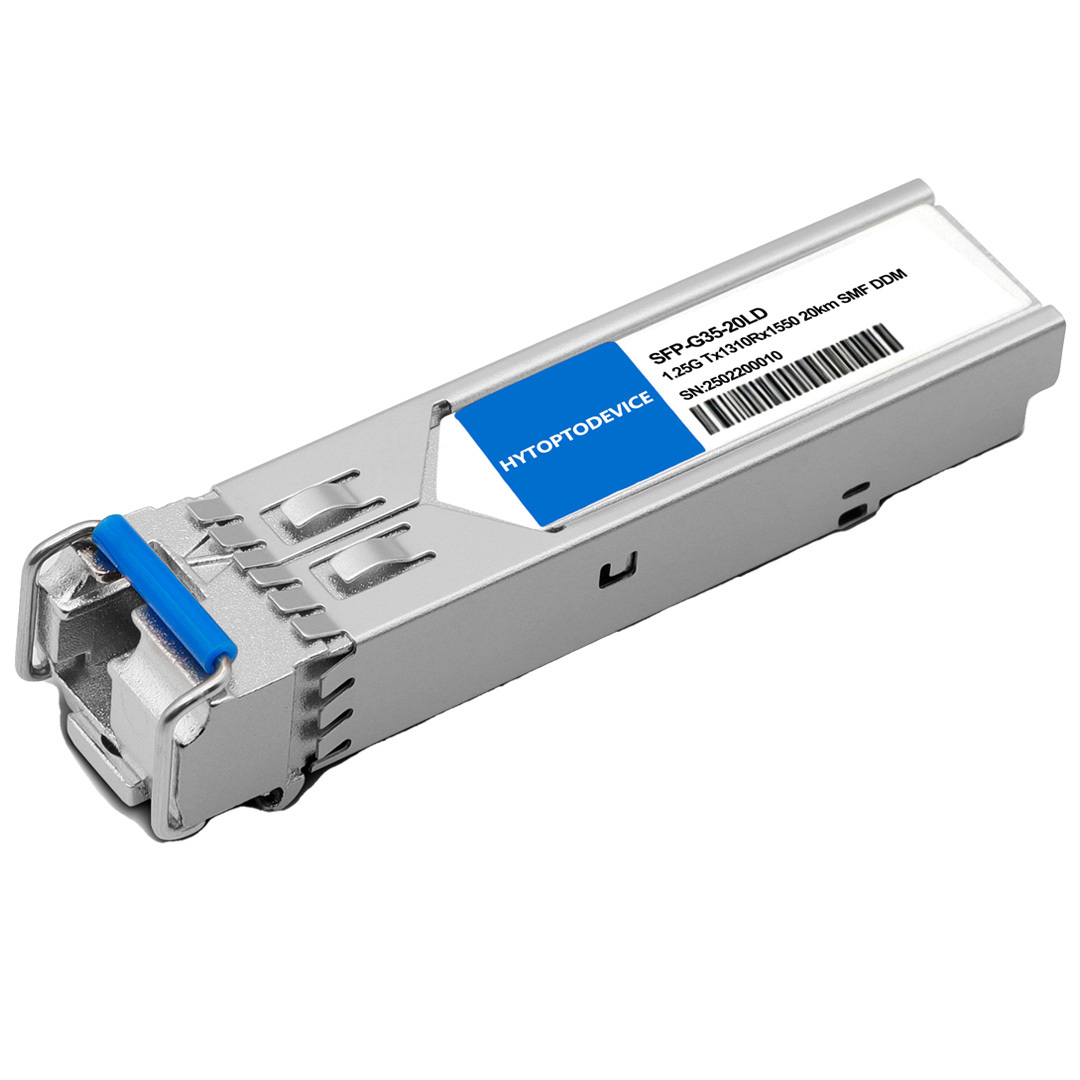

Brocade Compatible E1MG-1G-BXU-20 1G 20km Bidirectional SFP Module | HYTOPTODEVICE(SMF, 1310nm-TX/1550nm-RX, Simplex LC, DOM)
Product Overview
HYTOPTODEVICE E1MG-1G-BXU-20 is a high-performance bidirectional sfp module professionally developed for Brocade enterprise network infrastructure. This premium single-fiber bidirectional transceiver features 1.25Gbps Gigabit Ethernet bandwidth, 20km single-mode transmission distance, and standard TX1550nm/RX1310nm wavelength with simplex LC connector. Fully compliant with SFP MSA and IEEE 802.3 industry standards, this Brocade compatible bidirectional sfp module supports 7×24 hours stable continuous operation for commercial network environments.
As a cost-effective single-fiber WDM solution, this 1g 20km bidirectional sfp module saves half of traditional fiber cabling resources, widely applied in enterprise campus networking, cross-building fiber links, remote branch interconnection and network renovation projects. HYTOPTODEVICE offers reliable bulk supply, flexible small-batch orders and exclusive OEM customization services for global system integrators, network contractors and equipment resellers.
Key Technical Specifications
HYTOPTODEVICE high-performance bidirectional sfp module undergoes strict optical calibration, electrical testing and long-term aging inspection before delivery. Adopting premium commercial chips and imported optical components, the E1MG-1G-BXU-20 module features ultra-low bit error rate, strong anti-interference ability and low power consumption, fully meeting commercial enterprise network deployment and long-term stable operation standards
| Brocade Compatible |
E1MG-1G-BXU-20
|
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
TX1310nm/RX1550nm |
Max Distance |
20km |
| Connector |
Simplex LC |
Transmitter Type |
1310nm FP |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-9.0~-3dBm |
Receiver Sensitivity |
< -23.0dBm |
| Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Operational Best Practices
Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:
- Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1550 BiDi SFP Module requires a counterparty TX1550/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
- Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
- Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
- Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
- Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.
Full Compatibility List & Supported Device Models
1. Professional Brocade Brand Compatibility Description
HYTOPTODEVICE Brocade compatible bidirectional sfp module is fully optimized for Brocade original device protocols, port identification rules and transmission parameters. Every E1MG-1G-BXU-20 module completes strict offline parameter testing and real-device online operation verification, achieving 100% native plug-and-play compatibility. No manual configuration, no device recognition failure, no port error alarm, no speed throttling or packet loss. It is a perfect alternative to original Brocade bidirectional sfp transceivers for enterprise network construction and replacement upgrading.
Full Compatible Brocade Device Model List
- Brocade FastIron Series: FCX624, FCX648, FSX800 enterprise access switches
- Brocade ICX Series: ICX6430, ICX6450, ICX6610, ICX7150, ICX7250 campus core switches
- Brocade VDX Series: VDX6720, VDX6730 data center aggregation switches
- Brocade Router & Gateway Devices: Enterprise-level routing and security gateway platforms
2. Multi-Brand Universal Compatibility Performance
Beyond dedicated Brocade compatibility, HYTOPTODEVICE universal bidirectional sfp module supports mainstream network brands including Juniper, Cisco, HPE, MikroTik, Ubiquiti and Zyxel. Complete protocol adaptation and driver matching ensure stable operation in mixed-brand network environments. We provide official real-device test videos for pre-purchase verification, helping customers eliminate project compatibility risks.
Core Application Scenarios
1.Enterprise Campus & Office Park Fiber Networking
This single fiber bidirectional sfp module realizes bidirectional data transmission via one single-mode fiber, effectively saving fiber resources and building stable long-distance point-to-point links for enterprise campuses, office parks and industrial park internal networks.
2.Network Renovation & Outdoor Long-Distance Link Projects
Suitable for community network transformation, outdoor monitoring transmission and cross-building network engineering. The 20km stable transmission capability of HYTOPTODEVICE bidirectional sfp module fully meets large-scale commercial network deployment requirements.
3.Headquarters & Remote Branch Network Interconnection
4.Global Wholesale & Reseller Distribution Business
HYTOPTODEVICE maintains sufficient spot inventory of
bulk bidirectional sfp module with flexible MOQ policies, supporting small-batch retail and regional distribution to help global resellers expand local network accessory markets.
Connectivity Solutions(Application)
Below are three industry-standard connection solutions, matching actual commercial network engineering deployment scenarios:
1.Switch to Switch Point-to-Point Connection
Adopt paired bidirectional sfp modules to implement long-distance interconnection between two Brocade or multi-brand enterprise switches, widely used in intra-building network expansion.
2.Switch to Media Converter Network Extension
Connect Brocade switches with fiber media converters via HYTOPTODEVICE bidirectional sfp module to extend network coverage, suitable for optical-electrical hybrid network upgrading.
3.Standard Server Room Cable Layout
Standard SFP form factor fits all mainstream server room cable managers, enabling neat wiring and convenient daily maintenance for commercial computer room systems.
Core Product Features
1.Boost Existing Fiber Utilization Using BiDi SFP
Standard dual-fiber optics rely on two cores for two-way communication. Our BiDi SFP leverages WDM tech to achieve bidirectional transmission over a single fiber. It optimizes idle fiber resource utilization, raises fiber operational efficiency, and avoids extra cable deployment during network expansion.
2. Double Your Network Capacity
Powered by single-strand bidirectional transmission technology, our premium BiDi SFP Module instantly doubles your network link capacity with no extra fiber cabling required.
Delivering a budget-friendly, high-performance bandwidth expansion solution, it perfectly caters to enterprise network upgrades and FTTx access network optimization projects.
3. Stable 1G Connectivity for High-Availability Data Centers
Even as data centers roll out 100G/400G networks, reliable 1G base infrastructure keeps daily operations running smoothly. Our enterprise 1G BiDi SFP modules deliver consistent low-latency performance. Ideal for OOB management and real-time monitoring, they maintain stable control channels fully separated from fluctuating production traffic.
4. Rigorous Host Device Testing for Full Cross-Brand Interoperability
Each BiDi SFP transceiver undergoes full interoperability testing on Cisco, Huawei, H3C and mainstream network equipment. Real-environment checks cover link handshake, DDM data accuracy and hot-swap performance to deliver flawless compatibility and avoid on-site deployment failures.
5.Comprehensive Factory Testing Delivers Consistent Stable Performance
Each BiDi SFP Module pass complete factory performance tests covering optical indicators, DDM monitoring and temperature adaptability. Layered quality checks guarantee reliable, stable long-run operation and reduce on-site troubleshooting costs.
FAQ
Q1: What is a Brocade compatible bidirectional sfp module used for?
A: HYTOPTODEVICE Brocade compatible bidirectional sfp module is a single-fiber WDM transceiver designed for Brocade enterprise switches, providing stable 1G 20km long-distance transmission for campus networking, cross-building links and network renovation projects.
Q2: What wavelength does HYTOPTODEVICE E1MG-1G-BXU-20 bidirectional sfp module adopt?
A: HYTOPTODEVICE E1MG-1G-BXU-20 commercial bidirectional sfp module features standard TX1550nm/RX1310nm wavelength, matching original Brocade module parameters for perfect device adaptation.
Q3: Is HYTOPTODEVICE 1g 20km bidirectional sfp module plug and play for Brocade devices?
A: Yes, HYTOPTODEVICE 1g 20km bidirectional sfp module is 100% real-device tested, supporting true plug-and-play operation on all compatible Brocade network devices without manual configuration or port errors.
Q4: What paired module matches E1MG-1G-BXU-20 bidirectional sfp transceiver?
A: HYTOPTODEVICE E1MG-1G-BXU-20 bidirectional sfp transceiver needs to pair with TX1310nm/RX1550nm opposite wavelength BIDI module to complete single-fiber bidirectional transmission, and we provide pre-matched module sets for one-stop procurement.
Q5: Does HYTOPTODEVICE single fiber bidirectional sfp module support 7*24h commercial operation?
A: Absolutely. HYTOPTODEVICE single fiber bidirectional sfp module is commercial-grade certified, with low power consumption and strong anti-interference performance, supporting stable 7×24-hour uninterrupted operation for commercial Brocade network systems.
Q6: Can I get bulk discount for HYTOPTODEVICE bidirectional sfp module orders?
A: Yes, HYTOPTODEVICE provides tiered preferential pricing for bulk bidirectional sfp module orders, with sufficient annual inventory to support large-scale and continuous project delivery for global network engineering teams.
Q7: Does HYTOPTODEVICE offer OEM service for Brocade bidirectional sfp module?
A: HYTOPTODEVICE supports full OEM customization for Brocade bidirectional sfp module, including custom logo printing, private labeling, neutral packaging and parameter fine-tuning to help global distributors build independent brand advantages.
Q8: What fiber type is suitable for HYTOPTODEVICE E1MG-1G-BXU-20 bidirectional sfp module?
A: HYTOPTODEVICE E1MG-1G-BXU-20 bidirectional sfp module is exclusively designed for single-mode fiber (SMF), ensuring 20km stable transmission; multi-mode fiber will cause signal attenuation and packet loss.
Q9: Does HYTOPTODEVICE universal bidirectional sfp module work for mixed-brand networks?
A: HYTOPTODEVICE universal bidirectional sfp module is fully tested for Brocade, Cisco, HPE, MikroTik and other mainstream brands, maintaining stable plug-and-play performance in multi-brand mixed network environments.
Q10: Can HYTOPTODEVICE provide test videos for custom bidirectional sfp module verification?
A: Yes, HYTOPTODEVICE provides official real-device test videos for all bidirectional sfp module products, and supports customized shooting according to customers’ specific Brocade device models to eliminate pre-purchase compatibility risks.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
- In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
- Private Label support - EEPROM / firmware customization support
