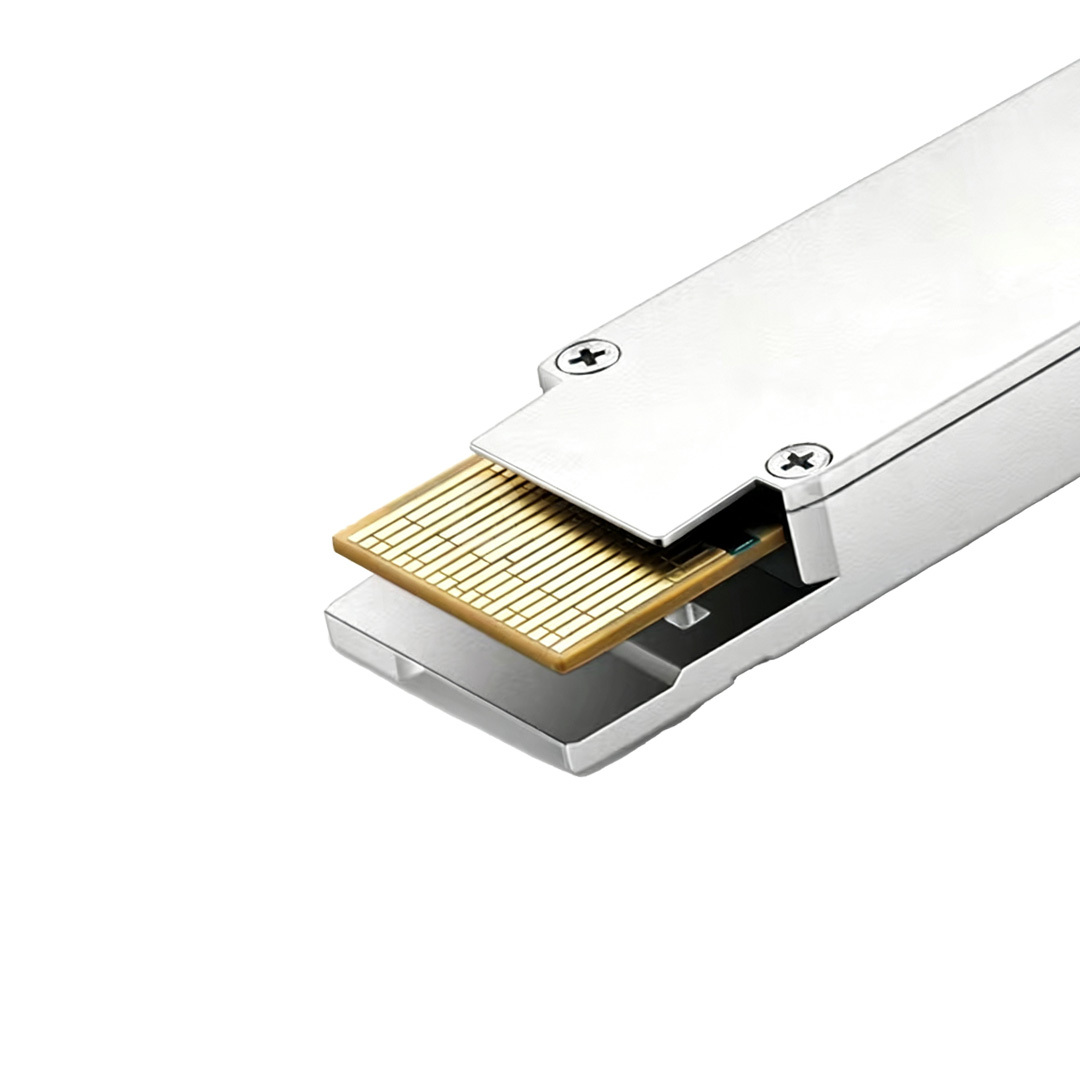

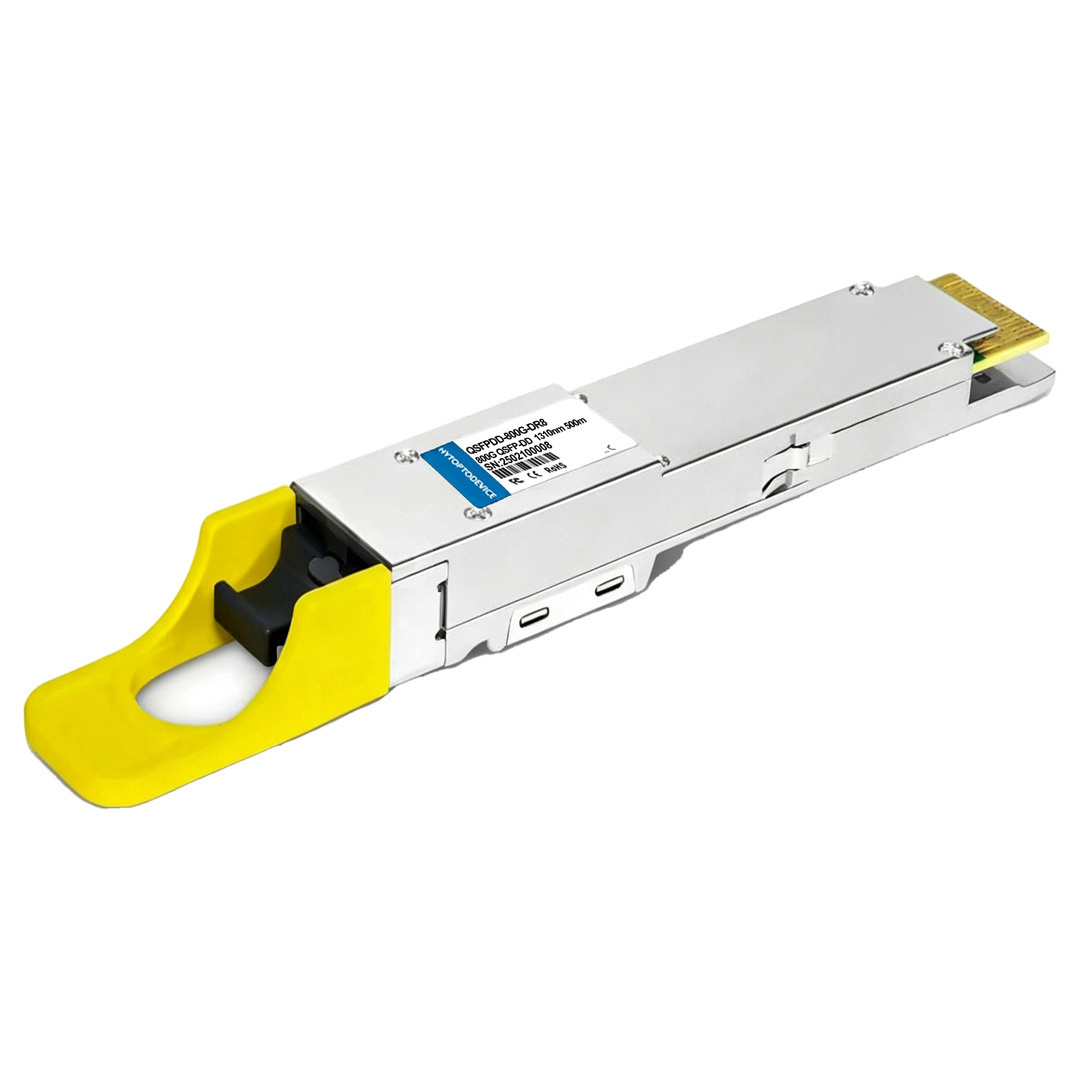

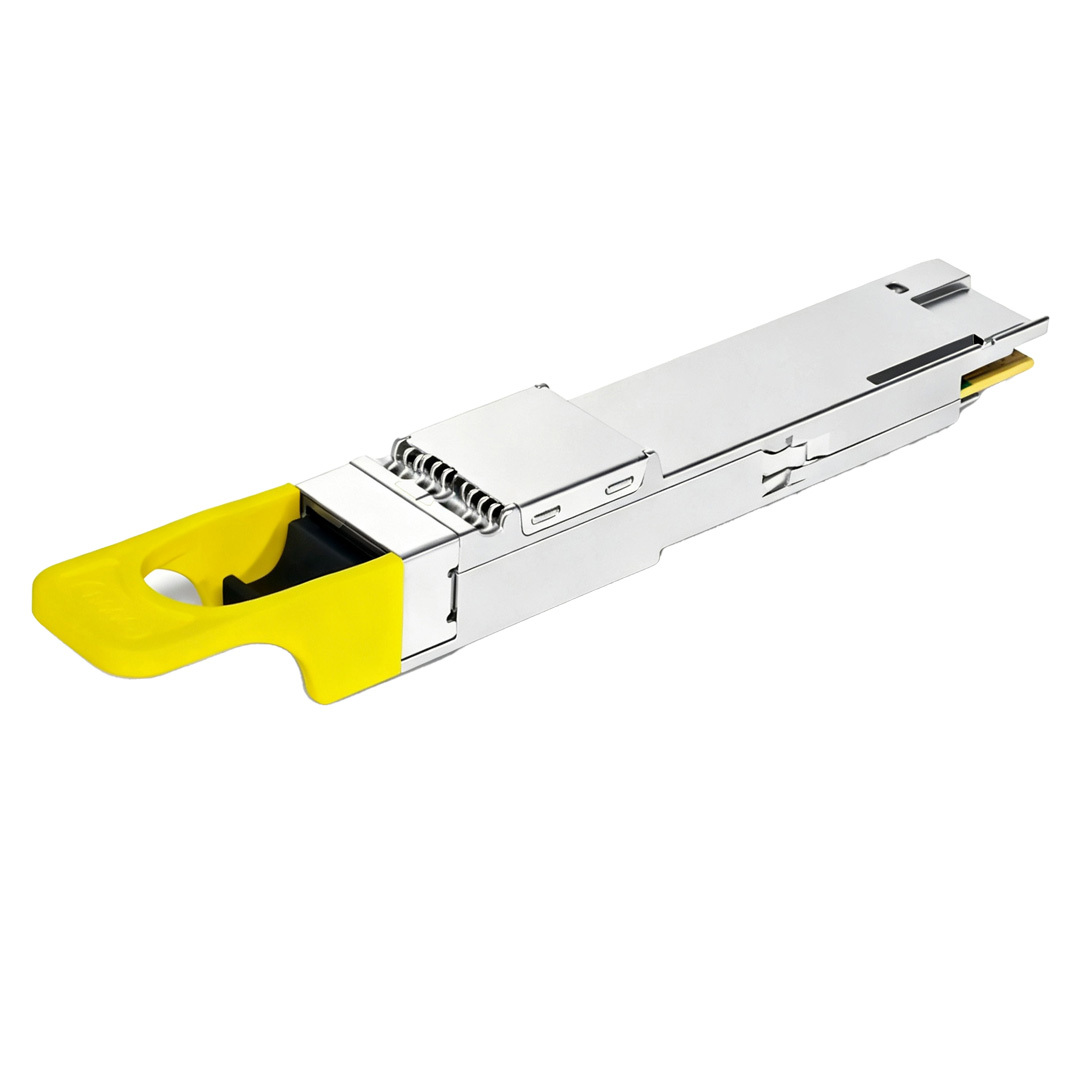

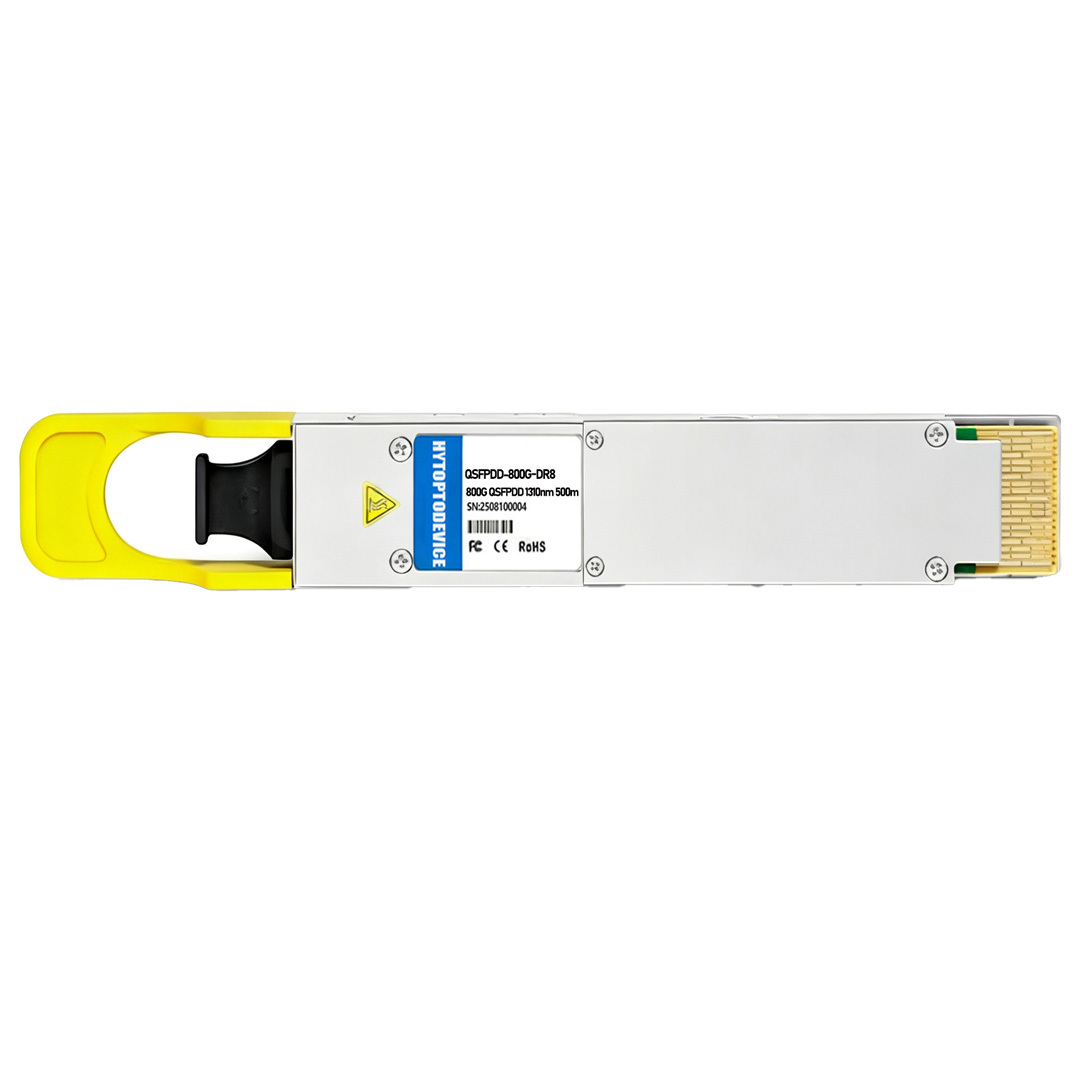

H3C QSFPDD800-800G-DR8-SM1310-DMPO Compatible 800G QSFP-DD DR8 8 x 100G PAM4 Optical Transceiver Module | HYTOPTODEVICE

Product Detail：
HYTOPTODEVICE 800G Transceiver | H3C Compatible 800BASE-DR8 QSFP-DD Optical Transceiver Module (SMF, 1310nm, 500m, MPO-16 APC, DOM)
      The HYTOPTODEVICE QSFPDD800-800G-DR8-SM1310-DMPO is a high-performance H3C Networks compatible 800G optical transceiver, engineered for next-generation 800G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects.it transmit traffic up to 500m over OS2 single-mode fibre (SMF) using a wavelength of 1310nm via MTP/MPO-16(APC) connectors. Fully compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA standards.supporting real-time DDM.

      The 800G QSFP-DD transceiver supports 2x 400G DR4 and 8x 100G DR breakout applications.It can split into two separate 400Gbps connections, each running over 4 lanes of parallel single-mode fiber (DR4) or split into eight individual 100Gbps connections. Featured with low latency, low power, and reliability, perfect for 800G Ethernet, Data Center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

Full Compatibility List and Supported Devices of H3C 800G Optical Transceiver

This 800G optical module is 100% programmed and verified to ensure seamless compatibility with H3C’s Comware operating system and premier high-bandwidth network hardware, including:

• H3C S12500G-AF Series Data Center Core Switches:

  • S12504G-AF / S12508G-AF / S12516G-AF (equipped with 800G high-density line cards)

• H3C S9825 / S9855 Series High-Density Switches:

  • S9825-64OD (64-port 800G high-performance fixed configurations)

• H3C CR16000 / CR19000 Core Routers:

  • High-capacity routing line cards supporting QSFP-DD800 optical interfaces.

Primary Application Scenarios of 800G Optical Module

• Next-Generation H3C Application-Driven Data Centers: Deployed in ultra-dense spine-leaf network topologies to handle massive East-West traffic bursts generated by cloud computing and AI workloads.

• AI & Large Language Model (LLM) Training Fabrics: Provides the underlying high-speed, low-latency infrastructure required for interconnecting multi-GPU computing nodes via high-density MPO-16 cabling.

• Flexible Breakout Routing Configurations: Optimized for breakout scenarios using MPO-16 fanout cables to interface with multi-generational equipment:

  • 2x 400G DR4: Splits the 16-fiber stream into two independent 400G links.

  • 8x 100G DR: Breaks out directly to 8 individual 100G lanes to feed server NICs or leaf switches.

• High-Performance Enterprise Backbones: Upgrades core and distribution layers within massive campus networks, multi-tenant data centers (MTDC), and high-frequency trading networks.

Key Product Parameters of 800G DR8 Transceiver

Q1: What is the key difference between  800G DR8 VS 800G FR4? A1: The key differences are fiber type layout and distance. DR8 uses parallel optics (8 lanes of 100G running over 8 pairs of single-mode fiber) and reaches up to 500 meters using 1310nm wavelength. It is ideal for short-reach high-density environments and allows 8x100G(DR) or 2x400G(DR4) breakouts. FR4 uses CWDM(1271,1291,1311,1331nm wavelength) over a single duplex LC fiber pair to reach up to 2km, but it does not natively breakout into 8 individual 100G lines.

Q2: Can the  H3C QSFPDD800-800G-DR8-SM1310-DMPO operate in breakout mode? A: Yes. Our 800G DR8 transceiver utilize 8 lanes of 100G PAM4 optical signaling, supporting breakout applications. Using appropriate MPO breakout F/F cables, it can be configured in Juniper OS to split into 2x 400G (DR4) or 8x 100G (DR) channels.

Q3: What type of fiber cable and connector are required for this transceiver? A3: The H3C compatible 800G DR8 module requires an MPO-16 (APC) connector operating over Single-Mode Fiber (SMF/OS2). Ensure you use an APC (Angled Physical Contact) connector to prevent back-reflection and protect the optical components.

Q4: Does this module support DOM? A4: Yes, it features built-in Digital Optical Monitoring (DOM/DDM), allowing network administrators to monitor real-time metrics like TX/RX optical power, temperature, and voltage.

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.

"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany

Quality Certification & Compliance：

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：
