GLC-BX-20D Cisco Compatible 20km BIDI SFP Module | 1000BASE-BX 1550nm Tx 1310nm Rx LC Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE offers fully Cisco compatible GLC‑BX‑20D 1000BASE‑BX BiDi SFP module, 20km SMF reach, 1550nm Tx/1310nm Rx, simplex LC connector with DDM/DOM support. 100% real device tested transceiver, bulk wholesale and OEM customization available for global system integrators and network engineering contractors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco MGBBX1D SFP-G34-20LD
2 Alcatel-Lucent SFP-GIG-BX-D20  SFP-G43-10LD
3 H3C  SFP-GE-PX20-D-SM1490-A SFP-G53-20LD
4 Juniper  SFP-GE20KT14R13 SFP-G43-40LD
5 HPE Procurve  J9142B-20  SFP-G53-40LD
6 Brocade E1MG-BXD-20 SFP-G54-80LD
7 Cisco GLC-BX-20D SFP-G54-1BLD
Description

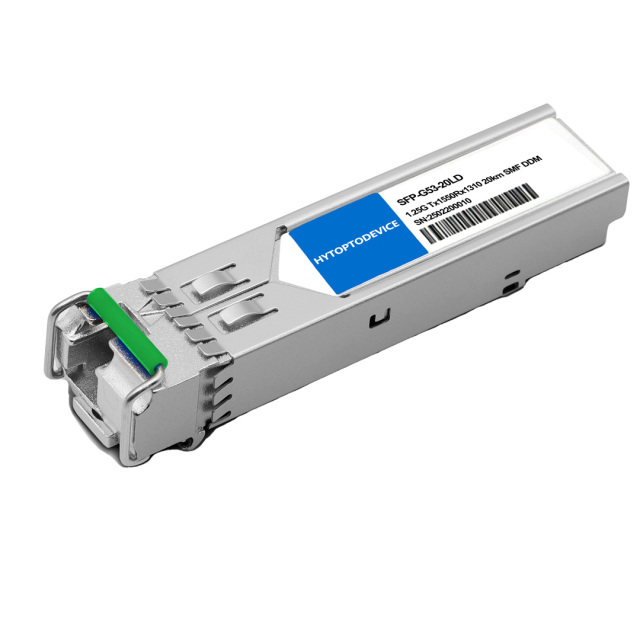

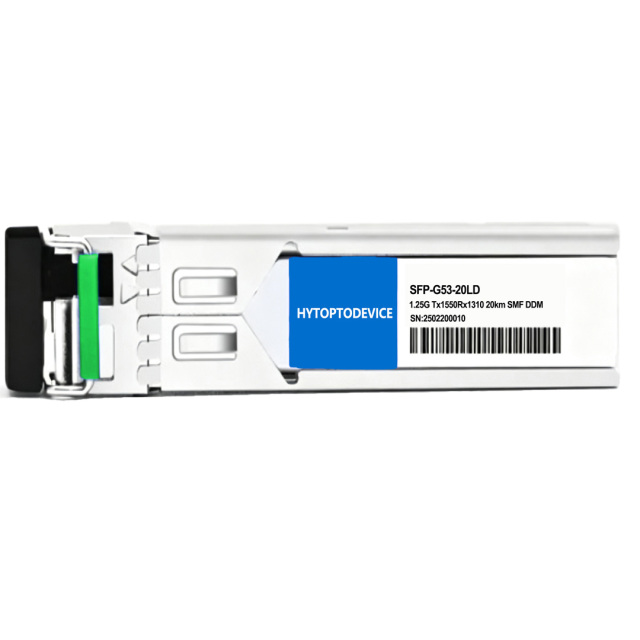

Cisco GLC-BX-20D Compatible 1000BASE-BX20-D BiDi SFP Module 20km(SMF, 1550nm-TX/1310nm-RX, Simplex LC, DOM)

Product Overview

The HYTOPTODEVICE GLC‑BX‑20D Cisco compatible BiDi SFP module is a high‑performance 1.25G gigabit single‑fiber bidirectional optical transceiver designed for Cisco enterprise network devices. Featuring a stable 20km single‑mode fiber transmission distance, it adopts standard 1550nm transmit and 1310nm receive wavelength with a simplex LC connector, effectively saving 50% fiber deployment resources. Fully compliant with international MSA industry standards and integrated with DDM/DOM real‑time monitoring function, this plug‑and‑play transceiver ensures zero packet loss and long‑term stable network operation. Widely applied in enterprise campus inter‑building links, FTTB broadband access, metro optical network and data center short‑to‑medium distance networking scenarios. HYTOPTODEVICE supports long‑term bulk wholesale, batch project supply and personalized OEM services for global network partners.

Key Technical Specifications

Cisco Compatible

GLC-BX-20D

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1550nm/RX1310nm Max Distance 20km
Connector Simplex LC Transmitter Type 1550nm DFB
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1550/RX1310 BiDi SFP Module requires a counterparty TX1310/RX1550 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List and Supported Devices

1.Verified Cisco Device Compatible Models

Our Cisco‑compatible transceivers run stably on mainstream Cisco switches, routers and enterprise managed network devices, fully matching official firmware, port protocols and system identification rules. We support long‑term bulk supply, large‑scale project wholesale distribution and customized OEM services for global system integrators, network engineering contractors and global retail partners.
• Cisco Switch Series: Catalyst 2960, 3560, 3750, 3850, 9200, 9300, 9400 Series Enterprise Switches
• Cisco Router & Gateway Series: ISR 1900, 2900, 3900, 4300, 4400 Series Integrated Services Routers, ASR 1000 Series Aggregation Services Routers
• Other Cisco Network Devices: Cisco enterprise media converters, optical access nodes and cabinet‑level network terminal devices

2. Multi-Brand Compatibility

This GLC‑BX‑20D transceiver strictly complies with universal MSA industry standards, supporting stable adaptation with Cisco, HPE, Juniper, Brocade, H3C, Huawei, MikroTik and other mainstream network hardware. It is highly suitable for mixed‑vendor network renovation, upgrade and batch deployment projects of large procurement groups and international engineering companies.

Common Application Scenarios
  • Large‑scale enterprise campus & industrial park single‑fiber network reconstruction projects
  • MSP managed service batch network equipment replacement and firmware upgrade projects
  • Enterprise office building cross‑area 20km long‑distance fiber link layout
  • OEM white‑label customized optical module supporting private brand resale business
  • Data center low‑cost single‑fiber integrated wiring batch deployment
  • Industrial monitoring & security remote stable transmission engineering projects
  • FTTB community broadband and operator access network batch construction

Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF

Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: Is HYTOPTODEVICE GLC‑BX‑20D fully compatible with original Cisco switches?
A1: Absolutely yes. All HYTOPTODEVICE GLC‑BX‑20D modules pass strict real‑machine tests on genuine Cisco switches and enterprise network devices. The products match original device firmware and protocols 100%, with no recognition failure, no port error and no packet loss, ensuring stable commercial‑grade network operation.

Q2: Do I need paired reverse wavelength modules for HYTOPTODEVICE GLC‑BX‑20D BiDi SFP?
A2: Yes. This HYTOPTODEVICE GLC‑BX‑20D transceiver adopts 1550nm Tx/1310nm Rx wavelength design, which must be paired with a 1310nm Tx/1550nm Rx reverse BiDi module at the remote end to build a complete bidirectional gigabit single‑fiber link, complying with standard 1000BASE‑BX project deployment specifications.Cisco

Q3: What is the actual stable transmission distance of HYTOPTODEVICE GLC‑BX‑20D over single‑mode fiber?
A3: HYTOPTODEVICE GLC‑BX‑20D BiDi SFP module supports a maximum stable transmission distance of 20km over standard OS2 single‑mode fiber. After professional factory calibration and real machine testing, the signal remains stable without attenuation or disconnection in full‑distance scenarios, meeting long‑distance enterprise networking requirements.

Q4: Does HYTOPTODEVICE GLC‑BX‑20D support DDM/DOM real‑time monitoring function?
A4: Yes. All finished HYTOPTODEVICE GLC‑BX‑20D modules are built with complete DDM/DOM digital diagnosis function. Engineers can remotely monitor module temperature, working voltage, transmit power and receive power through device CLI, facilitating daily network operation, maintenance and rapid fault troubleshooting.

Q5: Can HYTOPTODEVICE provide real‑device test videos for bulk GLC‑BX‑20D orders?
A5: Yes. To eliminate customer compatibility concerns, HYTOPTODEVICE provides exclusive real‑device test videos of GLC‑BX‑20D modules running on Cisco and multi‑brand equipment for all wholesale and bulk project customers, proving product stability and compatibility authenticity.

Q6: Does HYTOPTODEVICE support long‑term wholesale bulk supply of GLC‑BX‑20D SFP modules?
A6: Definitely. HYTOPTODEVICE has sufficient in‑stock inventory and stable production capacity, supporting long‑term stable bulk supply, project batch matching and global wholesale distribution for system integrators, engineering contractors and retail merchants with fast delivery cycles.

Q7: Can HYTOPTODEVICE provide OEM personalized customization for GLC‑BX‑20D transceivers?
A7: Yes. HYTOPTODEVICE provides one‑stop OEM customization services including private logo printing, exclusive label packaging, specification fine‑tuning and batch customization, supporting customers’ private brand sales and personalized project deployment needs.

Q8: What fiber type and connector does HYTOPTODEVICE GLC‑BX‑20D adopt for engineering deployment?
A8: This HYTOPTODEVICE GLC‑BX‑20D BiDi SFP module is equipped with a standard simplex LC connector and is exclusively adapted to universal single‑mode fiber (SMF). The single‑fiber transmission design effectively saves engineering fiber costs and is the most cost‑effective optical module solution for medium and long‑distance network projects.

Q9: Can HYTOPTODEVICE GLC‑BX‑20D work stably on multi‑brand third‑party network devices?
A9: Yes. The product strictly complies with international MSA unified standards. In addition to full compatibility with Cisco series equipment, it can run stably on HPE, Juniper, Brocade, H3C, Huawei and other mainstream MSA‑compliant network devices, with strong universal adaptability for mixed‑brand network projects.

Q10: What are the quality guarantee and after‑sales policies for HYTOPTODEVICE GLC‑BX‑20D bulk orders?
A10: All HYTOPTODEVICE GLC‑BX‑20D modules undergo strict factory testing and quality inspection. Conventional bulk orders can be shipped within 3–5 working days with sufficient stock support. We provide professional global after‑sales technical support and long‑term quality guarantee, ensuring stable cooperation for customers’ continuous engineering and wholesale business.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
