| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | NVIDIA/Mellanox | MFM1T02A-T | SFP-10G-T |
| 2 | Netgear | AXM765 | SFP-10G-T-30I |
| 3 | D-Link | DEM-436XT-B1 | SFP-10G-T-80 |
| 4 | Ciena | XCVR-A10Y31 | SFP-10G-T-100 |
| 5 | Fortinet | FN-TRAN-SFP+GC | SFP-G-T |
| 6 | Ubiquiti | UF-RJ45-10G | SFP-G-T-I |
| 7 | Dell | GP-10GSFP-T | 10/100/1000BASE-T |
| 8 | Extreme Networks | 10338 | |
| 9 | IBM | 45W2410 | |
| 10 | HPE Aruba | JL563A | |
| 11 | Avaya Nortel | AA1403043-E6 | |
| 12 | HPE Aruba | R9F85A | |
| 13 | Mikrotik | S+RJ10 |

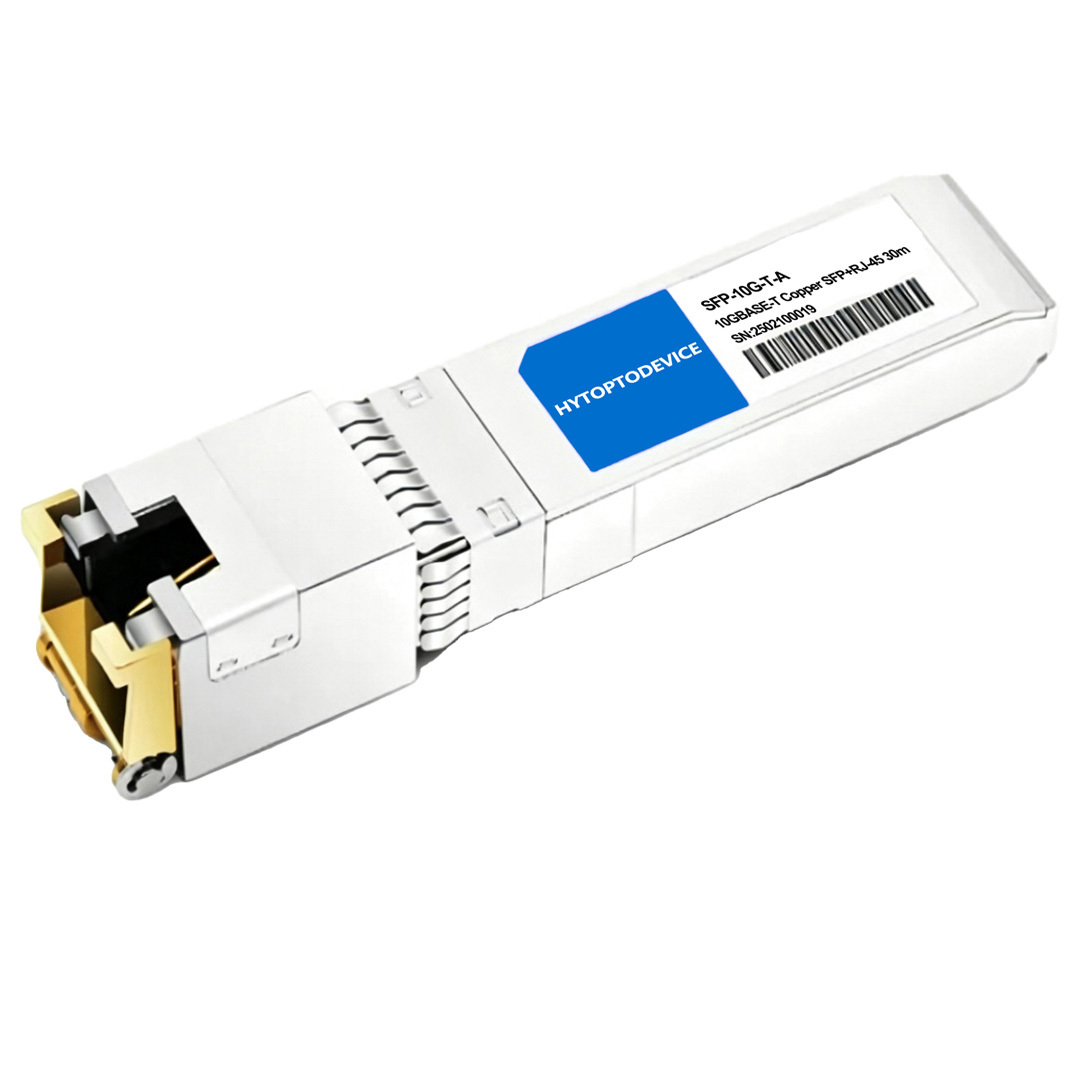

| Netgear Compatible | AXM765 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ (Hot-pluggable) | Data Rate | 10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | YES |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
Connect Cable: Plug the RJ45 cable into the transceiver.
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
Auto-negotiation: The module auto negotiates speed (100M/1G/2.5G/5G/10G). Force speed manually on host port if negotiation instability appears.If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
Always handle the module by its metallic casing or bail latch.

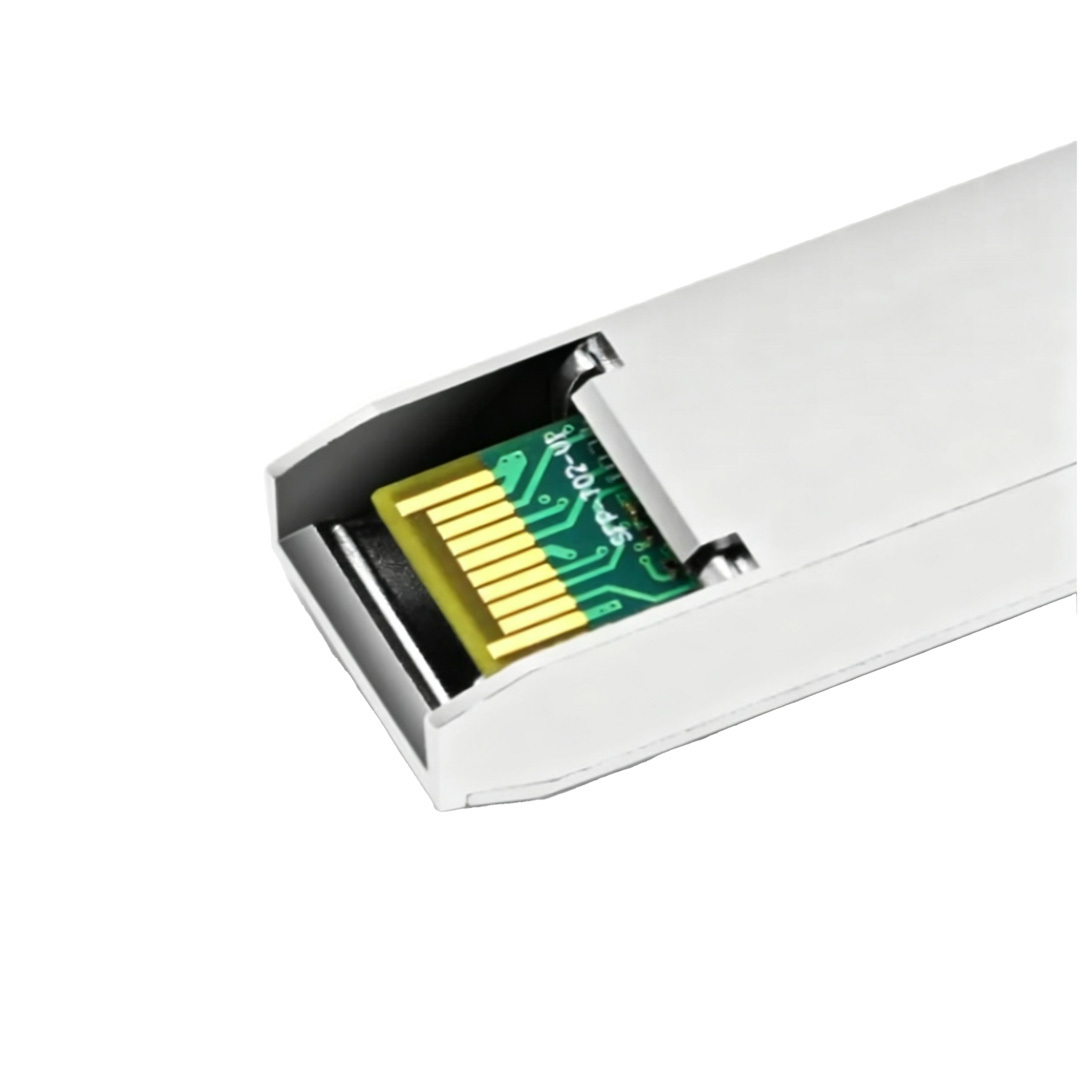

Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
Do not apply excessive force when plugging in or removing the RJ45 connector.
Built on SFP+ MSA and IEEE standards, this 10GBASE-T SFP+ copper transceiver also works with Cisco, Arista, Juniper, Dell and other mainstream network brands, flexible for multi-vendor enterprise LAN network upgrade projects.
The Core Features
FAQ
Q1: Can this AXM765 compatible SFP+ copper transceiver run properly on Netgear managed switches?
A: Yes, HYTOPTODEVICE AXM765 compatible 10GBASE-T SFP+ copper transceiver is pre-coded for Netgear switches. It works seamlessly on Netgear M4250, M4300, M4500 series, as long as the switch SFP+ port supports 10GBASE-T. Pre-sales compatibility verification service is available for bulk buyers.
Q2: Is cross-vendor link setup feasible when pairing this Netgear compatible 10G copper module with other brand network gear?
A: Yes, cross-brand switch connection is possible with HYTOPTODEVICE 10GBASE-T SFP+ copper module. The 10GBASE-T standard is MSA-compliant, but auto-negotiation mismatches occasionally occur between different vendors; we recommend pre-testing mixed-vendor links before project deployment for system integrators.
Q3: Can end users rewrite the EEPROM configuration of this AXM765 compatible module onsite?
A: No, end-users cannot safely reprogram EEPROM of this 10GBASE-T SFP+ copper transceiver without professional hardware tools. HYTOPTODEVICE offers free pre-programming service for AXM765 compatible modules according to buyer’s target host hardware during bulk orders.
Q4: Will this 10GBASE-T copper transceiver fit and operate inside traditional 1G SFP slots?
A: No, 10GBASE-T SFP+ copper module cannot plug into 1G SFP ports due to different form factor and pin definition. This HYTOPTODEVICE AXM765 compatible transceiver only fits SFP+ cages, though it can auto-negotiate down to 1G speed when paired with 1G capable RJ45 devices.
Q5: Can this AXM765 compatible copper transceiver be deployed on server SFP+ network interface cards?
A: Yes, HYTOPTODEVICE 10GBASE-T SFP+ copper module works well on SFP+ based server NICs. It converts the NIC’s SFP+ port into RJ45 copper Ethernet port for server rack short-distance 10G copper connections.
Q6: Why does the 10GBASE-T SFP+ copper module produce noticeable warmth under normal operating status?
A: This is normal behavior for 10GBASE-T SFP+ copper transceivers. The integrated 10G copper PHY chip consumes higher power than fiber transceivers and dissipates heat continuously. HYTOPTODEVICE validates every AXM765 compatible unit under rated operating temperature before shipment.
Q7: Could heat output from this copper transceiver damage my Netgear switch or adjacent pluggable modules?
A: It will not cause permanent damage with proper airflow, but fully populating all SFP+ slots with hot-running 10GBASE-T SFP+ copper modules may trigger thermal alarms. HYTOPTODEVICE advises integrators to evaluate the switch thermal budget before high-density deployment.
Q8: What methods can I use to retrieve real-time operational metrics of this AXM765 compatible copper module?
A: You can read real-time temperature data via DDM/DOM function built inside HYTOPTODEVICE 10GBASE-T SFP+ copper transceiver. Access CLI or web management on compatible Netgear, Cisco or Dell hosts to view module temperature for remote network monitoring.
Q9: Is stable 10G signal transmission achievable over Cat5e cable with this 10GBASE-T module?
A: No, standard Cat5e cable cannot reliably carry 10Gbps for 10GBASE-T SFP+ copper links. Cat6a or Cat7 cable is required to achieve full 30-meter 10G transmission. Cat5e only supports up to 1Gbps for this HYTOPTODEVICE AXM765 compatible transceiver.
Q10: Will dense cabling inside patch panels degrade signal quality for 10GBASE-T copper links?
A: Yes, high-density patch panels and excessive crosstalk will degrade signal integrity of 10GBASE-T SFP+ copper links. For stable 10G transmission, use shielded Cat6a cabling and properly managed rack wiring when deploying HYTOPTODEVICE 10G copper transceivers.
Q11: How does the transmission range of 10G copper transceivers compare against fiber optic modules?
A: Regular 10G copper modules typically support 30m transmission, while selected models can reach up to 80-100m, and HYTOPTODEVICE can deliver maximum reach up to 100 meters. Its reach is far shorter than SFP+ fiber transceivers which can cover multiple kilometers. The 10G copper module is ideal for short intra/ inter rack LAN links, while fiber is the choice for long-distance 10G connections.
Q12: What factors result in a link locking at only 1Gbps instead of full 10G bandwidth?
A: The most common reason is low-grade cabling or poor cable termination for 10GBASE-T SFP+ copper deployment. Cat5e cable, long cable length or bad crimps force auto-negotiation down to 1G. HYTOPTODEVICE recommends Cat6a shielded cable to lock 10G speed for this AXM765 compatible module.
Q13: Is manual port speed locking to 10G available on Netgear switch web management portal?
A: Yes, manual port speed locking to 10G is supported on most managed switches for HYTOPTODEVICE 10GBASE-T SFP+ copper transceiver. Manual speed configuration can fix unstable auto-negotiation issues in mixed hardware deployments, but both link ends must match the fixed speed.
Q14: Why is the price of 10GBASE-T copper SFP+ transceiver higher than SFP+ SR fiber optic modules?
A: 10GBASE-T SFP+ copper transceivers use complex copper PHY ICs with signal correction circuits, which raises component cost compared to simple optical laser components. HYTOPTODEVICE factory provides competitive bulk pricing for AXM765 compatible 10G copper modules for wholesale buyers.
Q15: Which transceiver type is better for long-distance 10G network buildouts, copper SFP+ or fiber?
A: 10G fiber transceiver is the better option for long transmission runs. 10GBASE-T SFP+ copper module from HYTOPTODEVICE only supports up to 30m, while 10G fiber modules can deliver stable 10G links over several kilometers, immune to electrical interference.
