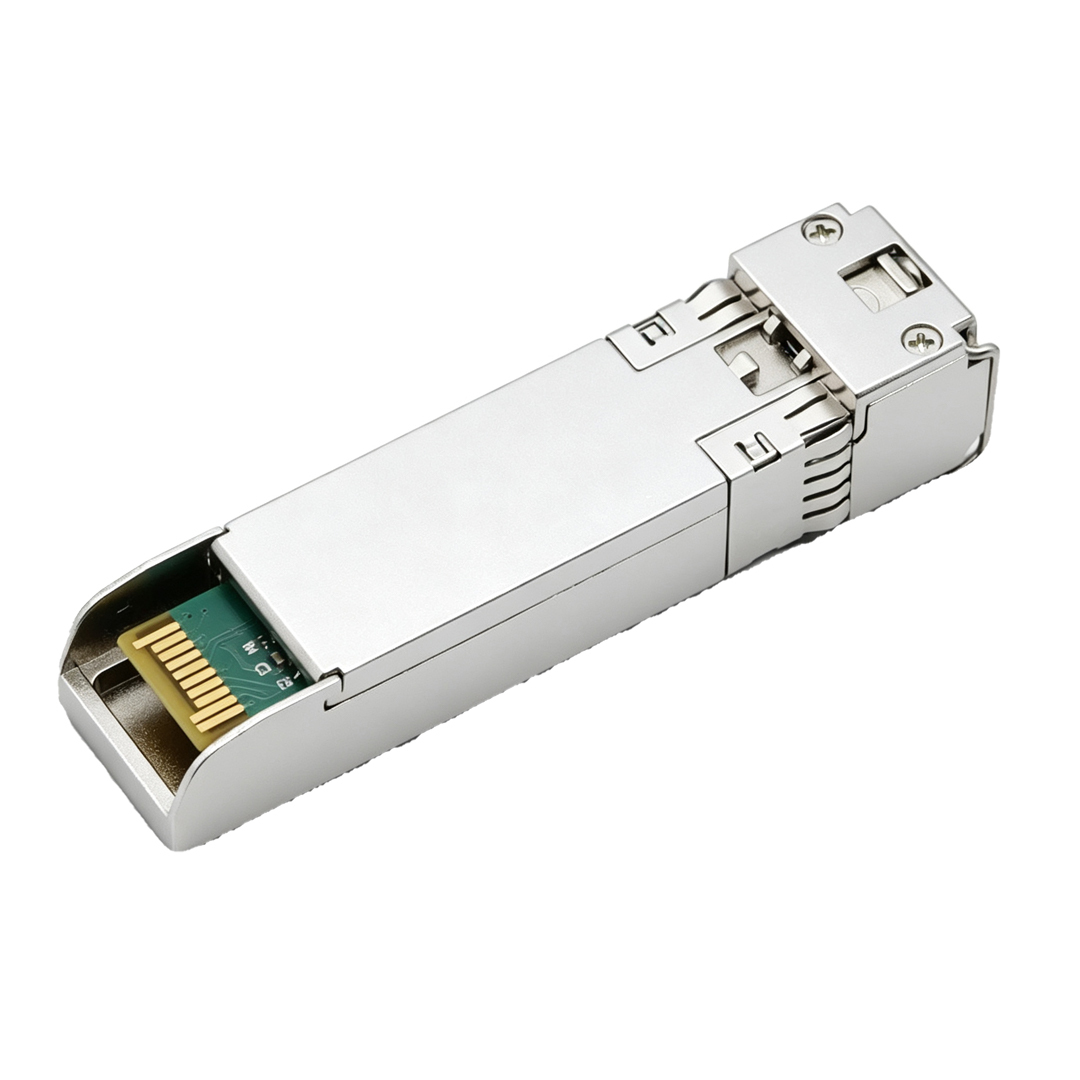

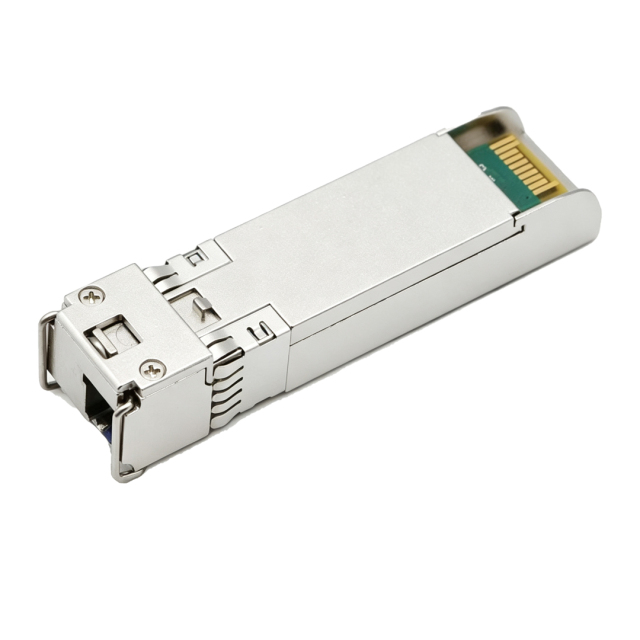

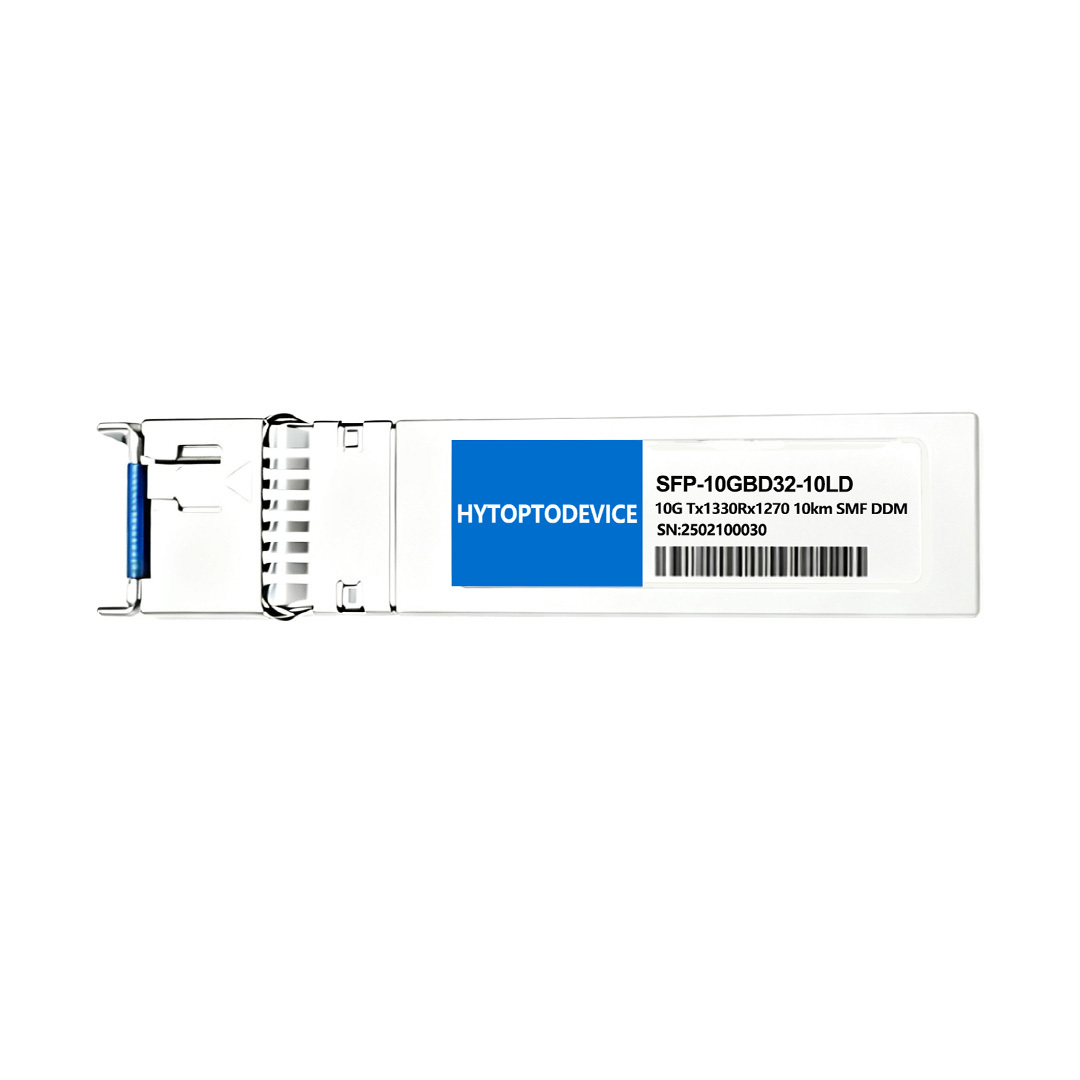

Arista SFP-10G-BXD Compatible 10G SFP+ BiDi Module 10GBASE-BX-D (SMF, 1330nm-TX/1270nm-RX, 10km, Simplex LC, DDM)
Product Overview
This Arista SFP-10G-BXD Compatible 10G SFP+ BiDi module is 10km 10GBASE-BX simplex LC single fiber optic, a direct drop-in replacement for Arista OEM optics. The Single fiber SFP+ 10G Upstream module delivers stable 10GBASE-BX transmission up to 10km over OS2 single-mode fiber with 1330nm-TX/1270nm-RX simplex LC interface.The compatible 10G SFP+ BiDi module always operate in pairs with matching complementary wavelengths. Compliant with Hot Pluggable SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS standards, Featuring real-time DDM monitoring, low power consumption and high speed, the MSA compliant 10G SFP+ BiDi module is ideal for enterprise campus inter-building uplinks, metro ISP fiber backhaul, remote office interconnection and Radio & Baseband Units, etc. We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
Each HYTOPTODEVICE 10G SFP+ BiDi Module undergoes multi-stage factory quality control prior to shipment, including optical power calibration, continuous traffic load aging testing, bit error rate screening and physical plug-in validation on genuine Arista production switches. High-Qualtiy DFB laser transmitters and PIN photodiode receiver chips deliver low signal attenuation and stable long-term laser performance, while built-in power regulation circuits prevent receiver burnout on ultra-short fiber patch cords. All hardware parameters align 1:1 with official Arista SFP-10G-BXD design requirements and global industry compliance frameworks.
| Arista Compatible |
SFP-10G-BXD |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
10km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-5.0~0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols & Standards |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Critical Pairing Guidance
As a unidirectional fixed-wavelength bidirectional optic, this HYTOPTODEVICE 10G SFP+ BiDi Module cannot form functional full-duplex links when paired with an identical TX1330/RX1270 module. It must be matched with the complementary Arista SFP-10G-BXD variant (1270nm-TX / 1330nm-RX) at the opposite fiber termination point to separate upstream and downstream signal wavelengths and avoid complete link failure. HYTOPTODEVICE provides exclusive bundled discount pricing for paired bulk orders of matching BiDi transceiver sets, ideal for system integrators completing campus and ISP network turnkey projects. Custom long-distance 20km, 40km and 60km BiDi module variants are available upon OEM bulk order quote request for specialized extended-span networking deployments.

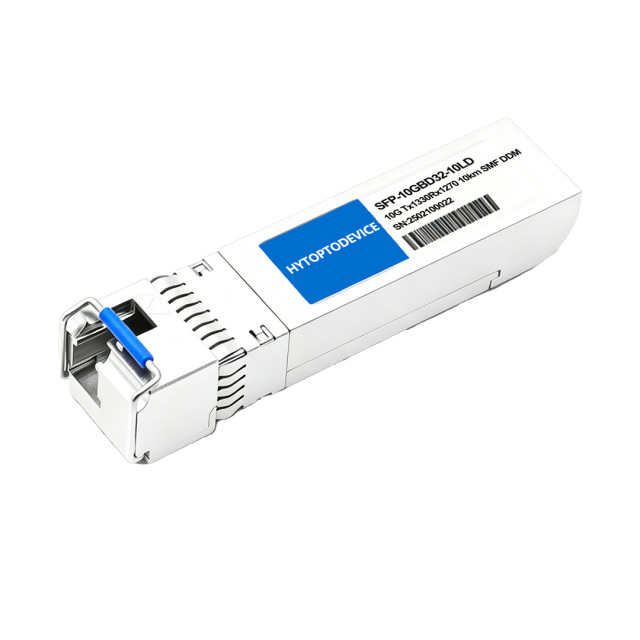

The Required Matching Pair here: 10G SFP+ BiDi Tx 1270nm / Rx 1330nm 10km module
Full Compatibility List & Supported Network Hardware
1.Arista Networks Native Compatibility
This HYTOPTODEVICE 10G SFP+ BiDi Module delivers automatic, alarm-free plug-and-play recognition on all Arista EOS networking hardware officially certified for the SFP-10G-BXD transceiver specification. No manual port configuration adjustments, firmware patches or vendor license overrides are necessary, and all embedded DDM DOM monitoring functions operate natively via Arista CLI and eAPI web-based device management portals. Fully compatible Arista device product lines:
- Arista 7050 Series Leaf Spine Data Center Switches: 7050SX, 7050CX3 Series
- Arista 7060 High-Density Ethernet Switch Fabrics: 7060SX2, 7060DX4 Series
- Arista 7280 Universal Metro & Campus Aggregation Switches: 7280SR, 7280CR2 Series
- Arista Edge Transport & Low-Latency Top-of-Rack Platforms: 7150S, 7160SX Series
2.Multi-Brand Cross Compatibility
This HYTOPTODEVICE compatible 10G SFP+ BiDi Module maintains robust cross-vendor interoperability to support mixed-brand indoor network architectures commonly seen in enterprise campus renovations, multi-site corporate WAN deployments and regional ISP central office construction projects. Stable signal transmission is verified across the following third-party network equipment brands:
- Cisco, Brocade, H3C
- Huawei, Mikrotik, Dell PowerSwitch
- Fortinet,Juniper, Ubiquiti
HYTOPTODEVICE’s in-house engineering team provides complimentary remote technical debugging, transceiver vendor ID coding and re-programming services to resolve cross-brand hardware adaptation issues for bulk order clients and formal long-term supply contract partners. Custom identification data rewriting eliminates unrecognized transceiver error alerts on non-Juniper switch operating systems.
Primary Application Scenarios
This cost-optimized single-strand HYTOPTODEVICE 10G SFP+ BiDi module addresses fiber resource shortage pain points across the full spectrum of indoor enterprise, data center and carrier-grade networking projects, lowering total capital expenditure for global system integrators, regional ISP stock distributors and internal enterprise IT procurement teams:
- Multi-building campus network upgrades to reuse existing single fiber cables
- Metro ISP central office leased-line backhaul and business broadband access
- Remote branch office WAN interconnection with limited fiber resources
- Small & medium indoor data center leaf-spine inter-switch simplex fiber uplinks
- Global system integrator indoor turnkey network engineering bulk projects
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection
Pair matched BiDi modules between Arista core and access switches for low-cost single-fiber uplinks, saving limited fiber resources for campus and data center capacity expansion.
2.10G Switch-to-NIC Direct Connection
Create point-to-point simplex fiber links between Arista switches and server SFP+ NICs to eliminate gigabit bandwidth bottlenecks for storage and cloud workloads.
3.10G Structured Cabling Rack Layout
Fits standard OS2 simplex single-mode structured wiring, delivering unified end-to-end 10G transmission across access, aggregation and core layers for office buildings and ISP central office infrastructure.
FAQ
Q1: Can I plug or pull out this Arista-compatible 10G BiDi SFP+ 1330nm-TX/1270nm-RX 10km module while the data center switch is active without disrupting live running traffic?
A: Yes, HYTOPTODEVICE compatible 10G SFP+ BiDi Module is fully hot-swappable. Insert or remove the transceiver on active Arista 10G SFP+ ports without rebooting hardware, and active traffic on neighboring ports will remain unaffected.
Q2: Will using aftermarket compatible SFP+ BiDi optics void the factory warranty of Arista data center switches?
A: No. The Magnuson-Moss Warranty Act protects enterprise buyers. Deploying HYTOPTODEVICE 10G SFP+ BiDi Module certified replacement optics cannot invalidate original Arista hardware warranty or service contracts.
Q3: Why does my Arista EOS switch throw error messages stating the inserted optical transceiver is unqualified or unsupported?
A: Arista EOS recognizes optics via built-in vendor ID signatures. HYTOPTODEVICE pre-encodes each 10G SFP+ BiDi Module to bypass these alert prompts; you can also upgrade switch firmware or utilize our custom ID reprogramming service to fix error-disabled ports.
Q4: What key wavelength difference separates the Arista SFP-10G-BXD and matching SFP-10G-BXU BiDi transceiver models?
A: HYTOPTODEVICE 10G SFP+ BiDi Module BXD variant transmits at 1330nm and receives at 1270nm; paired BXD hardware transmits 1270nm and receives 1330nm. Mismatched single-type modules cannot establish working bidirectional fiber links.their speed must be idential and wavelength should be matched.
Q5: Is it acceptable to deploy two SFP-10G-BXD BiDi transceivers at opposite ends of the same simplex single fiber cable?
A: No. Two identical HYTOPTODEVICE 10G SFP+ BiDi Module BXU units broadcast identical 1330nm wavelengths with no matching receive signal, leaving the network interface offline with zero packet forwarding activity.
Q6: Do I need a two-strand duplex LC fiber patch cord to operate this single-fiber BiDi transceiver on Arista switches?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Module adopts simplex LC single-fiber WDM architecture, delivering full-duplex 10G Ethernet traffic over only one fiber strand and cutting cabling material expenditure in half.
Q7: What stable indoor temperature range can this Arista-matched single-fiber BiDi optical module continuously operate within?
A: HYTOPTODEVICE 10G SFP+ BiDi Module follows commercial-grade operating specs of 0°C to 70°C, engineered exclusively for climate-stabilized data center racks and standard enterprise indoor server environments.
Q8: Is this 10km simplex BiDi transceiver functional over OM3/OM4 multi-mode fiber cabling infrastructure?
A: No. Laser and receiver chips inside HYTOPTODEVICE 10G SFP+ BiDi Module are calibrated solely for OS1/OS2 single-mode fiber; modal dispersion on multi-mode cabling prevents stable 10G link formation.
Q9: My fiber run only measures 1 kilometer long, is an external optical attenuator required for this 10km rated BiDi SFP+ module?
A: No extra inline attenuator is necessary for short 1km fiber spans. Internal power regulation circuits inside HYTOPTODEVICE 10G SFP+ BiDi Module limit transmit power to avoid saturating the opposite receiving optical chip.
Q10: Does this aftermarket Arista-compatible BiDi transceiver support real-time Digital Optical Monitoring diagnostic functions?
A: Yes. Every HYTOPTODEVICE 10G SFP+ BiDi Module fully complies with SFF-8472 DOM industry standards, allowing network administrators to pull live optical performance metrics via Arista CLI and eAPI management tools.
Q11: Can this fixed-rate 10G BiDi transceiver automatically negotiate down to legacy 1Gbps gigabit Ethernet bandwidth?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Module locks to a fixed 10GBASE-BX signal rate without multi-rate negotiation logic, so it cannot downgrade to 1G or older 100M network transmission speeds.
Q12: How does the long-term operational stability of these third-party BiDi transceivers compare to original OEM Arista optical modules?
A: HYTOPTODEVICE 10G SFP+ BiDi Module uses matching premium optoelectronic chips same as factory Arista optics. Every unit undergoes one-by-one physical testing on real Arista leaf-spine switches and unique serialization to guarantee 99.9% continuous data center network uptime.
Q13: Does this single-fiber BiDi optic satisfy international environmental, laser safety and green production compliance regulations?
A: Yes. HYTOPTODEVICE 10G SFP+ BiDi Module completes full compliance testing for SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 Class 1 eye-safe laser global industry standards.
Q14: Can this high-speed SFP+ BiDi transceiver fit and run properly inside older 1G-only legacy SFP equipment slots?
A: No. HYTOPTODEVICE compatible 10G SFP+ BiDi Module relies on dedicated SFP+ high-speed ASIC signal processing hardware, which is physically and functionally incompatible with legacy 1G-only SFP slots lacking 10G circuit architecture.
Q15: Can I install this Arista-coded 10G BiDi transceiver on Cisco or Juniper brand network switching hardware?
A: This HYTOPTODEVICE 10G SFP+ BiDi Module is pre-flashed with exclusive Arista EOS vendor ID codes. We supply separately re-programmed variants for Cisco and Juniper hardware to eliminate cross-brand interface warning prompts.
Q16: What peak power consumption wattage does this single simplex fiber BiDi SFP+ optical transceiver support?
A: The 10G SFP+ BiDi optical hardware from HYTOPTODEVICE adopts power-saving circuit design, with maximum power consumption controlled below 1W. This design effectively lowers heat accumulation when installing numerous transceivers in dense 48-port Arista switch cabinets.
Q17: Is this BiDi optical transceiver built for Ethernet networks suitable for deployment inside SDH and SONET synchronous telecommunication transmission systems?
A: It cannot be used in such telecom environments. HYTOPTODEVICE’s 10G SFP+ BiDi transceiver is specially tuned for IEEE 802.3ae 10 Gigabit Ethernet and Fibre Channel services, lacking compatibility with synchronous SDH/SONET telecom transmission architectures.
Q18: Between UPC and APC grinding standards, which fiber end-face polishing type works with this single-fiber BiDi transceiver?
A: HYTOPTODEVICE 10G SFP+ BiDi transceiver is designed to pair with standard blue simplex LC/UPC flat contact connectors. Green LC/APC angled fiber jumpers will bring extreme optical loss and completely cut off normal optical data links.
Q19: The link LED on Arista network switches stays lit normally, but no data packets can be received via this BiDi transceiver — what factors lead to this abnormal status?
A: Steady link indicator lights merely prove basic optical signal detection. Zero received data packets when using HYTOPTODEVICE 10G SFP+ BiDi transceiver are usually caused by unmatched VLAN labels, STP port blocking status, or wrong MTU parameter settings on the switch interface.
Q20: What harmful consequences will occur if the ambient temperature of indoor server equipment rooms surpasses the module’s 70°C maximum operating temperature threshold?
A: Long-term operation above 70°C will damage the built-in laser chip inside HYTOPTODEVICE 10G SFP+ BiDi transceiver, resulting in laser wavelength offset, sharp rise of bit error rate, and permanent unreparable damage to internal optical components.
