| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | NVIDIA/Mellanox | MFM1T02A-T | SFP-10G-T |
| 2 | Netgear | AXM765 | SFP-10G-T-30I |
| 3 | D-Link | DEM-436XT-B1 | SFP-10G-T-80 |
| 4 | Ciena | XCVR-A10Y31 | SFP-10G-T-100 |
| 5 | Fortinet | FN-TRAN-SFP+GC | SFP-G-T |
| 6 | Ubiquiti | UF-RJ45-10G | SFP-G-T-I |
| 7 | Dell | GP-10GSFP-T | 10/100/1000BASE-T |
| 8 | Extreme Networks | 10338 | |
| 9 | IBM | 45W2410 | |
| 10 | HPE Aruba | JL563A | |
| 11 | Avaya Nortel | AA1403043-E6 | |
| 12 | HPE Aruba | R9F85A | |
| 13 | Mikrotik | S+RJ10 |

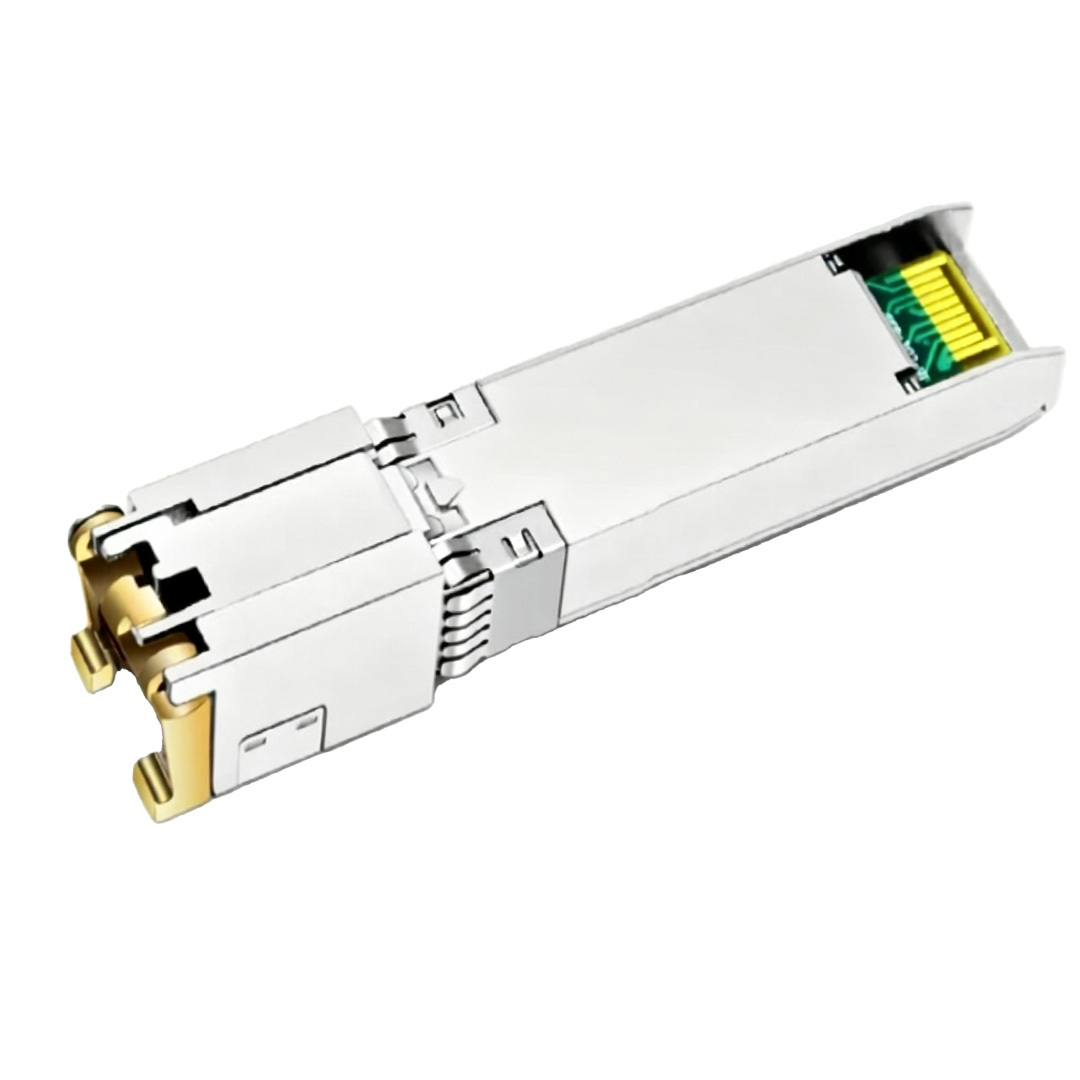

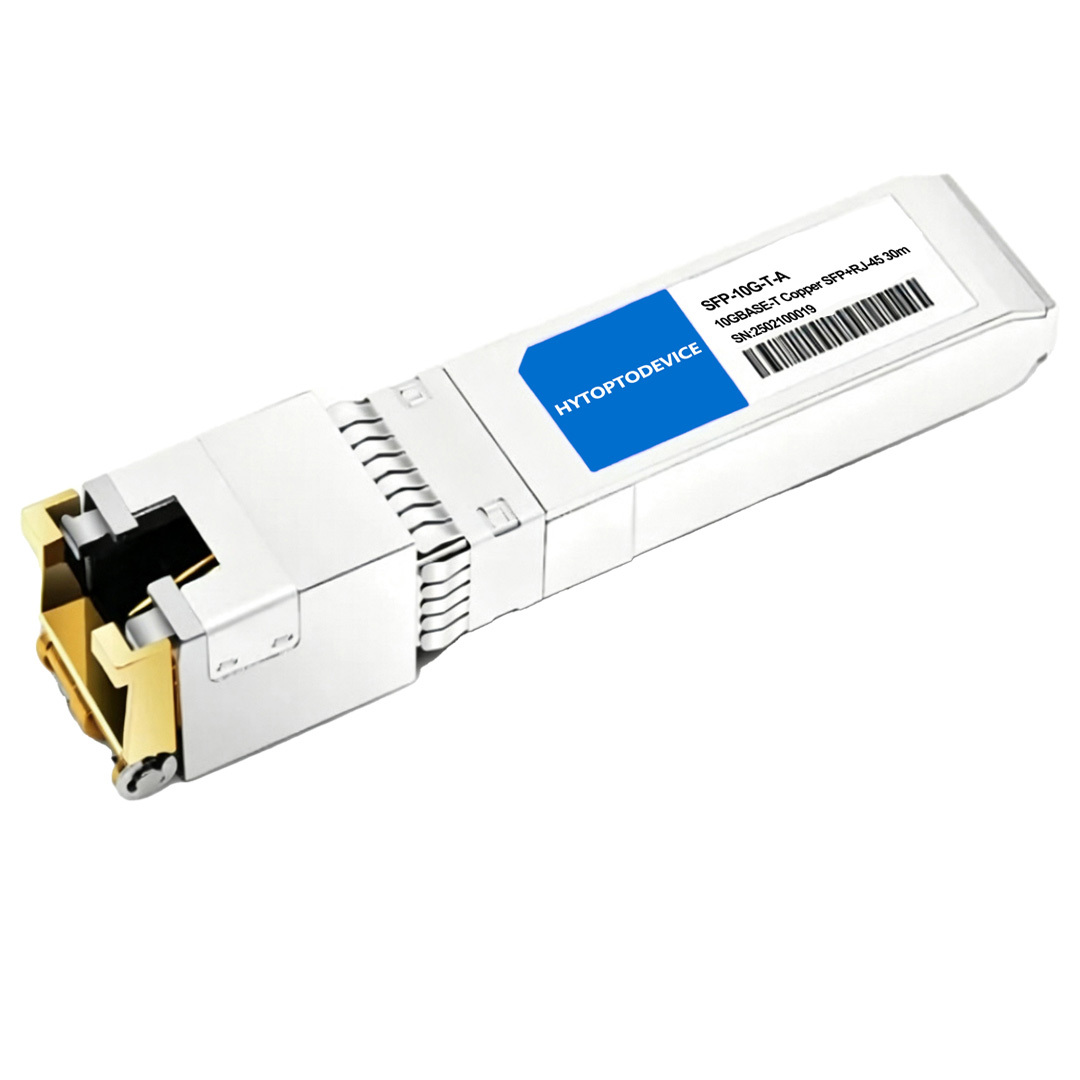

| Ciena Compatible | XCVR-A10Y31 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ (Hot-pluggable) | Data Rate | 10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | YES |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
Connect Cable: Plug the RJ45 cable into the transceiver.
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
Auto-negotiation: The module auto negotiates speed (100M/1G/2.5G/5G/10G). Force speed manually on host port if negotiation instability appears.If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
Always handle the module by its metallic casing or bail latch.
Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
Do not apply excessive force when plugging in or removing the RJ45 connector.
Built on SFP+ MSA and IEEE standards, this 10GBASE-T SFP+ copper transceiver also works with Cisco, Arista, Juniper, D-Link and other mainstream network brands, flexible for multi-vendor enterprise and carrier network upgrade projects.
The Core Features
FAQ
Q1: Can this XCVR-A10Y31 compatible copper transceiver run properly on Ciena aggregation switches?
A: Yes, HYTOPTODEVICE XCVR-A10Y31 compatible 10GBASE-T SFP+ copper transceiver comes with custom EEPROM coded for Ciena platforms. It works reliably on Ciena 5100,5160,3900 series aggregation switches, as long as the SFP+ port supports 10GBASE-T. Pre-sales compatibility assessment is available for bulk purchasers.
Q2: Is mixed-vendor link deployment possible by pairing this Ciena-compatible copper transceiver with third-party network hardware?
A: Yes, cross-brand connections can be established with HYTOPTODEVICE 10GBASE-T SFP+ copper module. While it complies with MSA standards, auto-negotiation conflicts may occur between different vendors. We recommend integrators run pre-deployment verification on mixed-hardware links.
Q3: Are end-users able to reflash the EEPROM profile of this XCVR-A10Y31 compatible module on site?
A: No, onsite EEPROM rewriting is not feasible without professional programming hardware. HYTOPTODEVICE provides complimentary pre-programming service for XCVR-A10Y31 compatible modules based on buyers’ target host devices for bulk orders.
Q4: Will this 10GBASE-T copper transceiver fit and work inside legacy 1G SFP slots?
A: No, this 10GBASE-T SFP+ copper transceiver cannot be inserted into 1G SFP ports due to different form factor and pin definition. This HYTOPTODEVICE XCVR-A10Y31 compatible transceiver only fits SFP+ cages, though it can auto-negotiate down to 1Gbps when connected to 1G-capable RJ45 devices.
Q5: Can this XCVR-A10Y31 compatible 10G copper transceiver be deployed on server SFP+ network adapters?
A: Yes, HYTOPTODEVICE 10GBASE-T SFP+ copper transceiver is fully compatible with SFP+ server NICs. It converts SFP+ ports on server network cards into RJ45 copper Ethernet ports for short-distance rack-to-server 10G copper connections.
Q6: Why does this 10GBASE-T copper SFP+ transceiver generate noticeable heat during continuous operation?
A: Heat generation is normal for 10GBASE-T copper transceivers. Its integrated copper PHY chip draws higher power than fiber optical modules and continuously dissipates heat. HYTOPTODEVICE validates each XCVR-A10Y31 compatible unit under rated operating temperature before shipment.
Q7: Could heat output from this copper transceiver cause permanent damage to my Ciena switch or adjacent pluggable modules?
A: It will not lead to permanent hardware damage with proper airflow management. However, fully populating all SFP+ slots with heat-generating 10GBASE-T modules may trigger switch thermal alarms. HYTOPTODEVICE recommends integrators evaluate the thermal budget before high-density deployment.
Q8: What tools can I use to retrieve live operational telemetry from this XCVR-A10Y31 compatible copper module?
A: You can read real-time temperature and operational metrics via the built-in DDM/DOM function of HYTOPTODEVICE 10GBASE-T SFP+ copper transceiver. Check module telemetry via CLI or web management portal on supported Ciena, Cisco or Arista devices for remote network monitoring.
Q9: Can Cat5e copper cable sustain stable 10Gbps transmission with this 10GBASE-T copper transceiver?
A: No, standard Cat5e cable cannot maintain reliable 10Gbps links for 10GBASE-T. Cat6a or Cat7 shielded cabling is required to achieve the full 30-meter 10G transmission distance. Cat5e only supports up to 1Gbps speed for this HYTOPTODEVICE XCVR-A10Y31 compatible transceiver.
Q10: Will dense wiring inside patch cabinets degrade signal quality of 10GBASE-T copper network links?
A: Yes, crowded patch panel wiring and crosstalk will reduce signal integrity of 10GBASE-T copper links. To guarantee stable 10G transmission, select shielded Cat6a cables and implement tidy rack wiring when deploying HYTOPTODEVICE 10G copper transceivers.
Q11: How does the transmission range of 10G copper transceivers compare against fiber optics?
A: Regular 10G copper modules typically support 30m transmission, while selected models can reach up to 80-100m, and HYTOPTODEVICE can deliver maximum reach up to 100 meters. Its reach is far shorter than SFP+ fiber transceivers which can cover multiple kilometers. The 10G copper module is ideal for short intra/ inter rack LAN links, while fiber is the choice for long-distance 10G connections.
Q12: What root causes lead to network links locking at only 1Gbps instead of full 10G bandwidth?
A: The primary cause is low-grade cabling or poor cable termination for 10GBASE-T deployments. Cat5e cable, over-length runs or defective crimps force auto-negotiation down to 1Gbps. HYTOPTODEVICE recommends shielded Cat6a cable to sustain full 10G speed for this XCVR-A10Y31 compatible module.
Q13: Can I manually lock port speed at 10G from the management interface of Ciena switches?
A: Yes, manual 10G port speed locking is supported on most managed switches for HYTOPTODEVICE 10GBASE-T SFP+ copper transceiver. Manual speed configuration can resolve unstable auto-negotiation issues in mixed-vendor deployments, but both link ends must match the fixed speed.
Q14: Why is the unit price of 10GBASE-T copper SFP+ transceivers higher than SFP+ SR fiber optical modules?
A: 10GBASE-T SFP+ copper transceivers adopt sophisticated copper PHY ICs with built-in signal correction circuits, raising component cost compared to simple laser-based fiber modules. HYTOPTODEVICE factory provides competitive bulk pricing for XCVR-A10Y31 compatible 10G copper modules for wholesale buyers.
Q15: Which transceiver type should I select for long-distance 10G carrier network projects, copper SFP+ or fiber?
A: 10G fiber transceiver is the better option for long transmission runs. 10GBASE-T SFP+ copper module from HYTOPTODEVICE only supports up to 30m, while 10G fiber modules can deliver stable 10G links over several kilometers, immune to electrical interference.
