| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | NVIDIA/Mellanox | MFM1T02A-T | SFP-10G-T |
| 2 | Netgear | AXM765 | SFP-10G-T-30I |
| 3 | D-Link | DEM-436XT-B1 | SFP-10G-T-80 |
| 4 | Ciena | XCVR-A10Y31 | SFP-10G-T-100 |
| 5 | Fortinet | FN-TRAN-SFP+GC | SFP-G-T |
| 6 | Ubiquiti | UF-RJ45-10G | SFP-G-T-I |
| 7 | Dell | GP-10GSFP-T | 10/100/1000BASE-T |
| 8 | Extreme Networks | 10338 | |
| 9 | IBM | 45W2410 | |
| 10 | HPE Aruba | JL563A | |
| 11 | Avaya Nortel | AA1403043-E6 | |
| 12 | HPE Aruba | R9F85A | |
| 13 | Mikrotik | S+RJ10 |

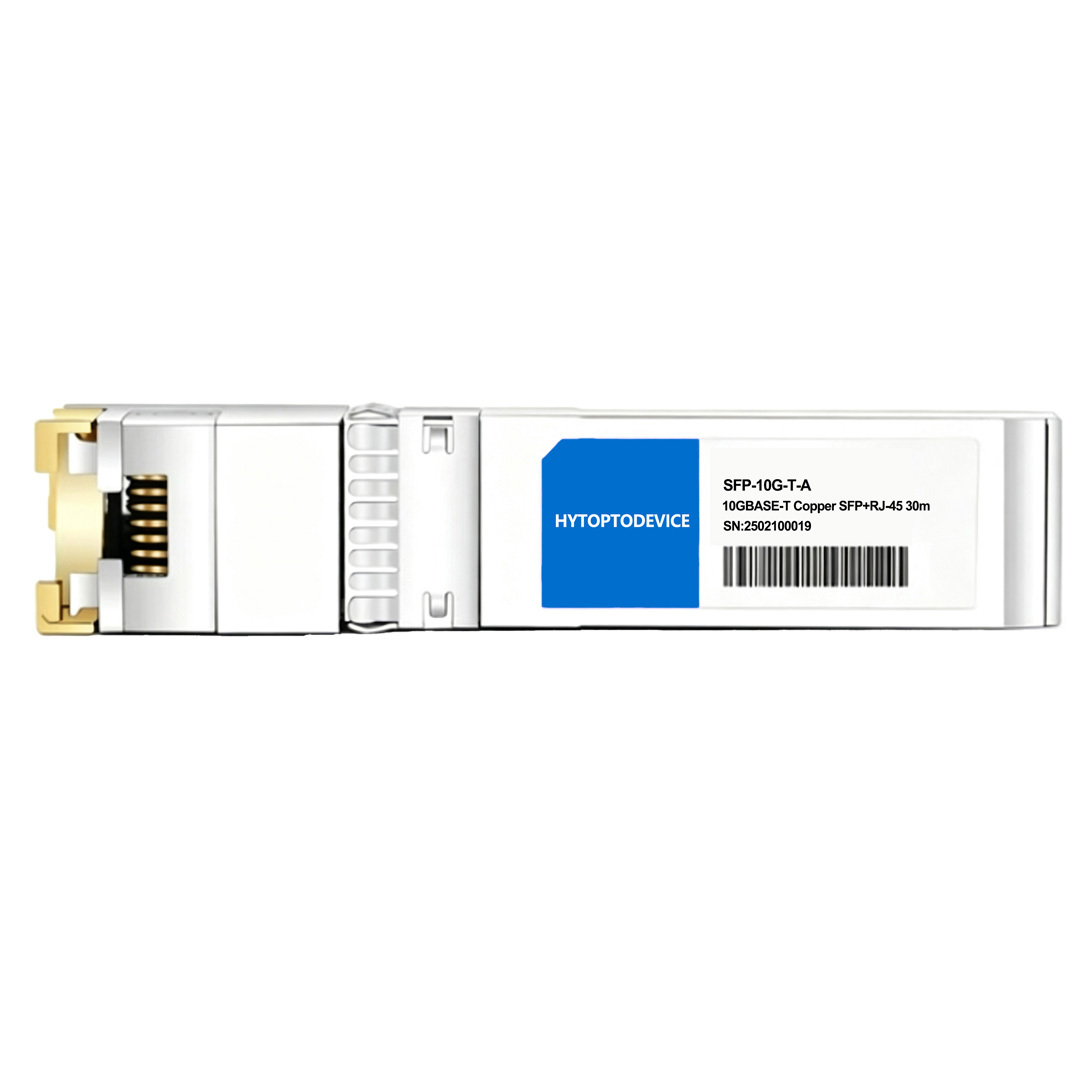

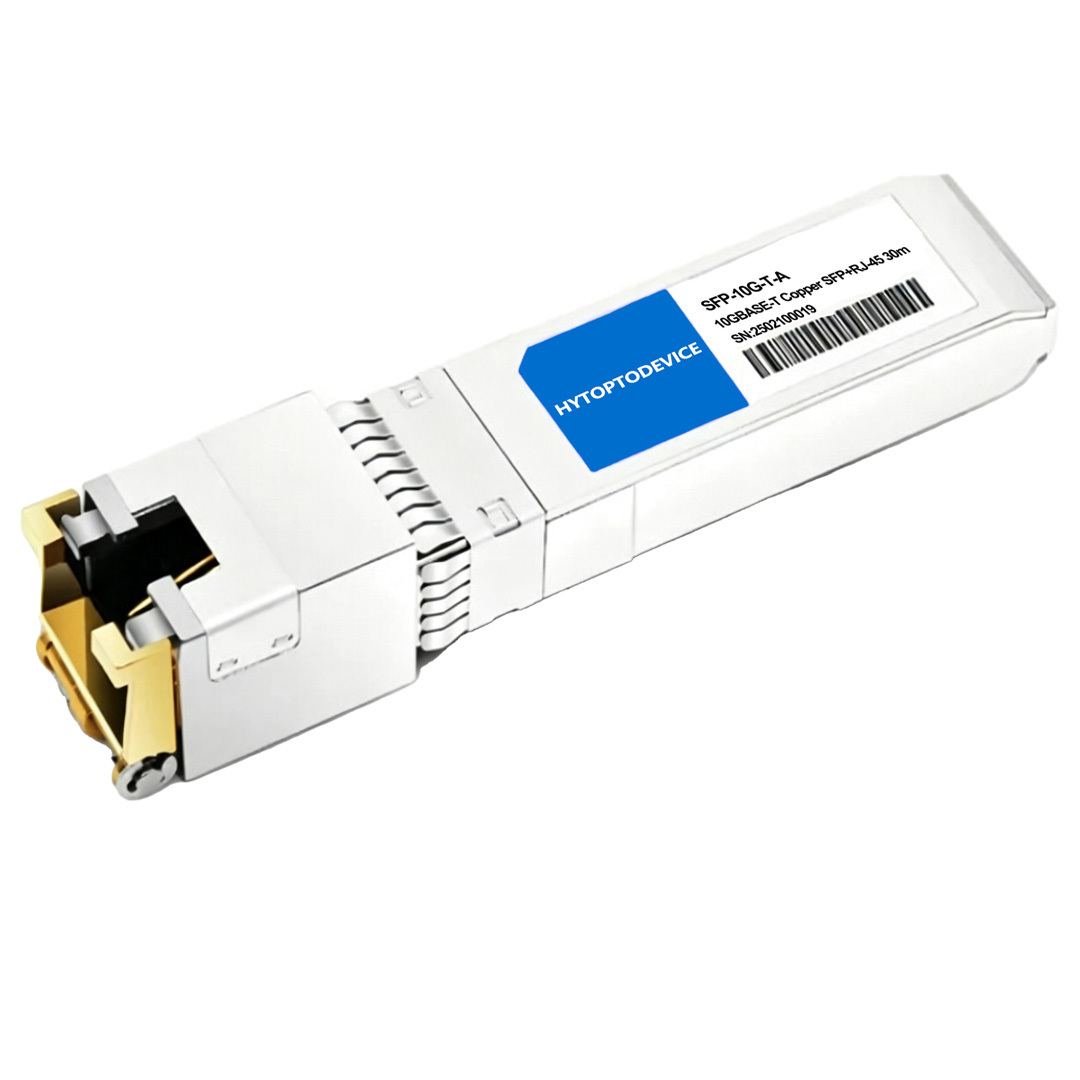

| HPE Aruba Compatible | JL563A | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ (Hot-pluggable) | Data Rate | 10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | YES |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
Connect Cable: Plug the RJ45 cable into the transceiver.
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
Auto-negotiation: The module auto negotiates speed (100M/1G/2.5G/5G/10G). Force speed manually on host port if negotiation instability appears.If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
Always handle the module by its metallic casing or bail latch.

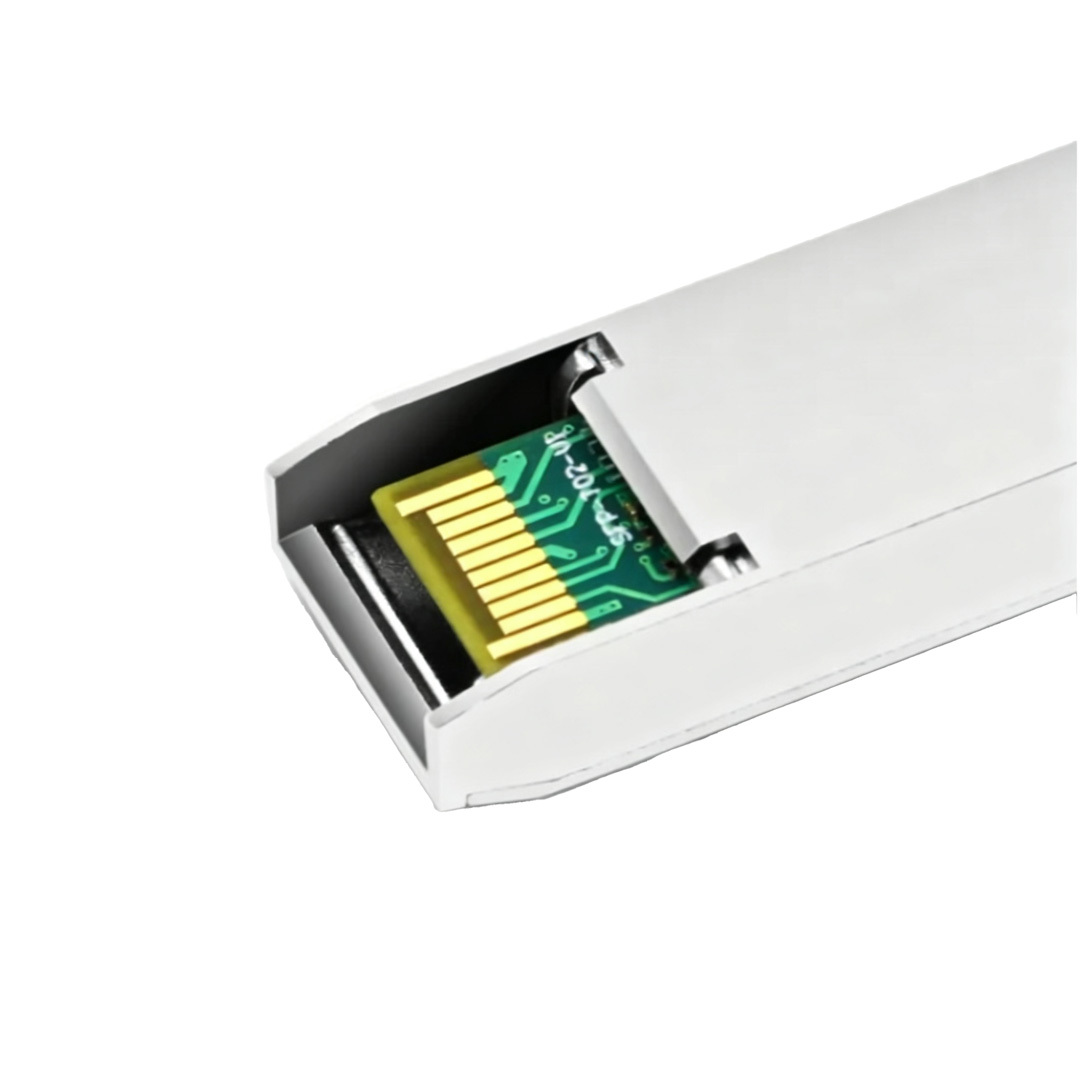

Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
Do not apply excessive force when plugging in or removing the RJ45 connector.
Built on SFP+ MSA and IEEE standards, this SFP+ copper transceiver also works with Cisco, Arista, Fortinet, Netgear, D-Link, Dell, Ciena, Extreme Networks and other mainstream network brands, flexible for multi-vendor enterprise and data center network upgrade projects.
The Core Features
FAQ
Q1: Will this HYTOPTODEVICE JL563A compatible transceiver trigger warning logs on locked Aruba AOS-CX switch firmware?
A: No. Our module is flashed with Aruba-specific EEPROM identifiers matching JL563A specifications. It is identified natively by Aruba switch OS and skips the unrecognized transceiver warning without complex manual configuration.
Q2: What key difference separates this Aruba compatible copper module from generic MSA 10GBASE-T transceivers?
A: Generic MSA copper modules follow mechanical and electrical specs but lack vendor-specific EEPROM identity data. They will throw transceiver errors on locked Aruba firmware. HYTOPTODEVICE preloads Aruba profile codes to avoid port blocking or alert messages for Aruba deployments.
Q3: Can I install this Aruba compatible 10G copper transceiver inside SFP28 25G ports?
A: Yes, it fits physically and will lock to 10G operation. It cannot run at 25G speed because the embedded PHY only supports 10GBASE-T fixed-rate operation. Confirm host port SFP+ compatibility before deployment.
Q4: Can hot inserting this copper module into an active Aruba switch port cause permanent port damage?
A: No. This HYTOPTODEVICE SFP+ copper transceiver includes built-in ESD protection and SFP+ hot-swap circuitry. Live insertion will not damage switch hardware, though it is recommended to monitor link state after plugging in.
Q5: Can I fill all SFP+ ports on Aruba 8320 switches entirely with these 10GBASE-T copper modules?
A: Not recommended without checking hardware port limits and thermal capacity. Copper transceivers create more heat than fiber modules, and Aruba platforms enforce maximum port limits for JL563A type modules. HYTOPTODEVICE recommends reserving airflow slots and respecting vendor port quantity restrictions.
Q6: Does copper patch cable length change power consumption of this 10GBASE-T transceiver?
A: Yes. Longer copper cables demand extra signal equalization work by the internal PHY chip, slightly raising power draw near the maximum 30m limit. HYTOPTODEVICE characterizes power draw across full cable length range during factory validation.
Q7: What maximum cable distance can this JL563A compatible transceiver reliably sustain full 10G speed?
A: Stable 10G transmission reaches up to 30 meters on certified Cat6a or Cat7 shielded twisted pair. Longer cabling introduces signal attenuation and excessive crosstalk leading to packet loss. HYTOPTODEVICE validates every production batch at the rated 30m distance.
Q8: What performance limitations appear when using standard Cat6 cable instead of Cat6a for this 10GBASE-T module?
A: Ordinary Cat6 cable can only maintain reliable 10G over shorter distances. At or near 30m, crosstalk and signal degradation increase bit error rates. HYTOPTODEVICE recommends Cat6a/STP to achieve the full 30-meter rated performance.
Q9: Is shielded twisted pair required when using this HYTOPTODEVICE 10G copper transceiver inside dense Aruba switch racks?
A: Highly recommended. Shielded STP/FTP cables suppress electromagnetic interference from adjacent power and network cabling. Unshielded UTP cables may suffer random link flapping in crowded rack environments, even for runs under 30 meters.
Q10: Can existing pre-installed in-wall copper wiring support 10G links with this Aruba compatible transceiver?
A: It depends on cable grade and termination quality. Only Cat6a/Cat7 cabling under 30 meters works reliably. Older Cat5e or poorly terminated wall cabling cannot maintain stable 10G connections. HYTOPTODEVICE suggests cable certification testing before deployment.
Q11: Does this HYTOPTODEVICE copper transceiver automatically drop down to 1Gbps speed when connecting to 1G RJ45 endpoints?
A: No, this is fixed 10G hardware. It cannot auto-negotiate to 1G, 100M or 10Mbps. The peer device must support 10GBASE-T to establish a working link, which is consistent with original JL563A behavior.
Q12: Does this HPE Aruba compatible 10G copper module include Auto-MDI/MDIX function?
A: Yes, Auto-MDI/MDIX crossover capability is integrated. Straight-through RJ45 patch cords work directly; crossover cables are unnecessary for point-to-point device connections.
Q13: Can this 10GBASE-T transceiver work with IEEE 802.3x pause frame flow control on Aruba CX switches?
A: No. Consistent with the original JL563A specification, this transceiver does not support IEEE 802.3x flow control. Plan traffic shaping accordingly for storage or high-volume data workloads.
Q14: Is this HYTOPTODEVICE JL563A compatible transceiver suitable for server rack and lab storage networking deployments?
A: Yes. It provides cost-effective 10G RJ45 connectivity for servers and rack-mounted storage arrays. Many network integrators select our Aruba-compatible modules to reduce hardware costs vs OEM parts while maintaining interoperability.
Q15: What real-time telemetry data can operators read from the DDM/DOM feature on Aruba switches?
A: The DDM function allows Aruba AOS/AOS-CX switches to pull live module temperature, supply voltage and link status metrics. This helps network teams monitor transceiver health and schedule proactive hardware replacement before link failure.
Q16: Will this JL563A compatible transceiver interoperate with standard SFP+ 10G media converters?
A: Yes, it works with standard 10G media converters equipped with SFP+ slots, provided the media converter supports 10GBASE-T. HYTOPTODEVICE carries out cross-brand interoperability validation for mixed-vendor network projects.
Q17: Are JL563A and R9F85A both HPE Aruba 10GBASE-T RJ45 modules, what is the difference between these two SKUs?
A: Yes, both are Aruba SFP+ 10GBASE-T copper transceivers with 30m Cat6a reach. The primary difference lies in supported switch platforms and firmware revisions. JL563A targets older AOS/AOS-CX enterprise switches while R9F85A is the newer replacement SKU optimized for latest CX hardware and updated OS releases. Our HYTOPTODEVICE compatible model can emulate JL563A EEPROM profile; we can also flash R9F85A code upon customer request.
