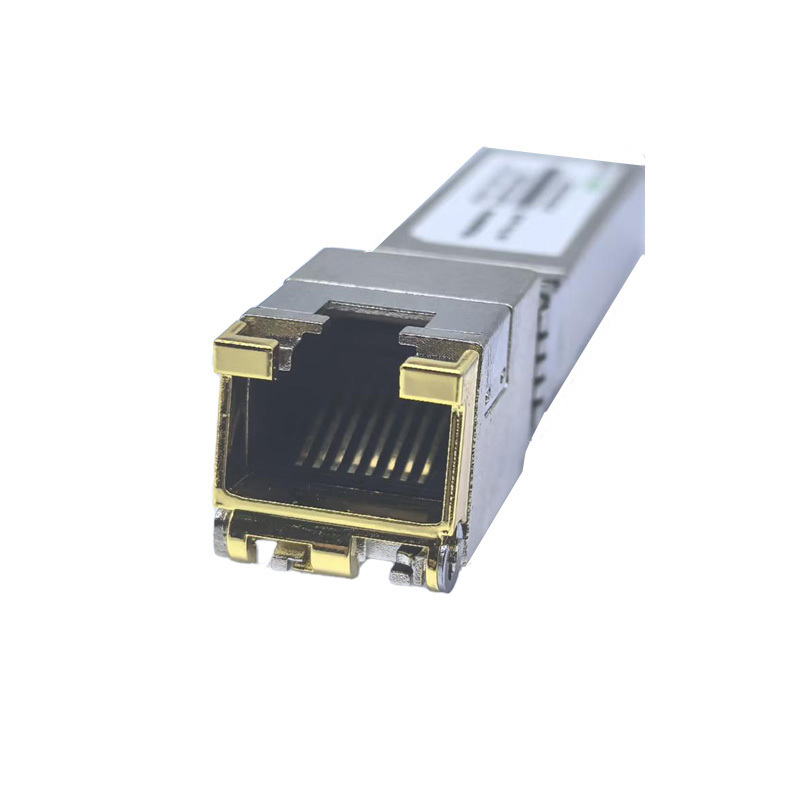

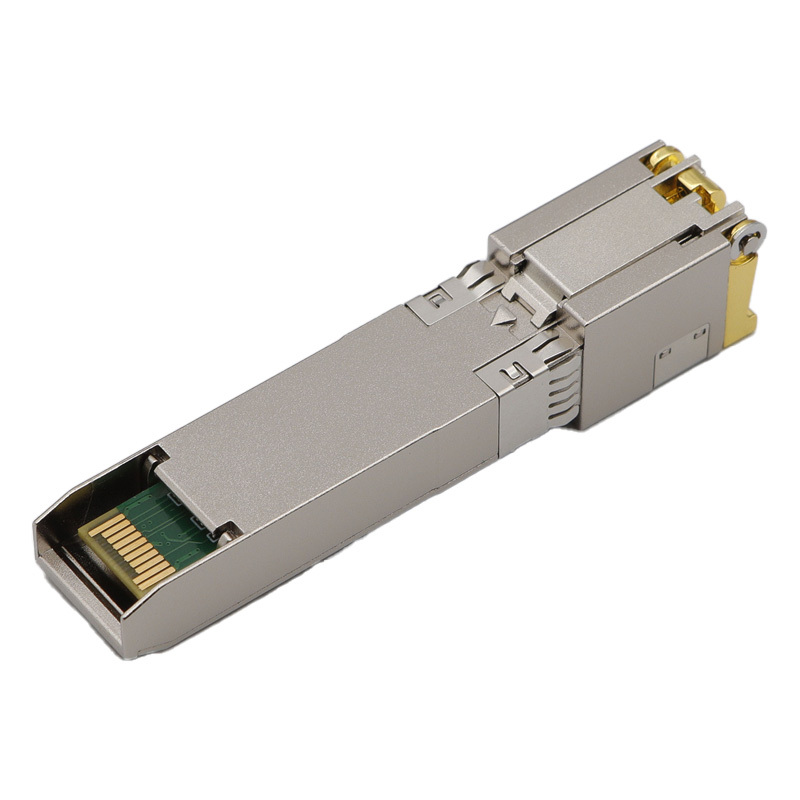

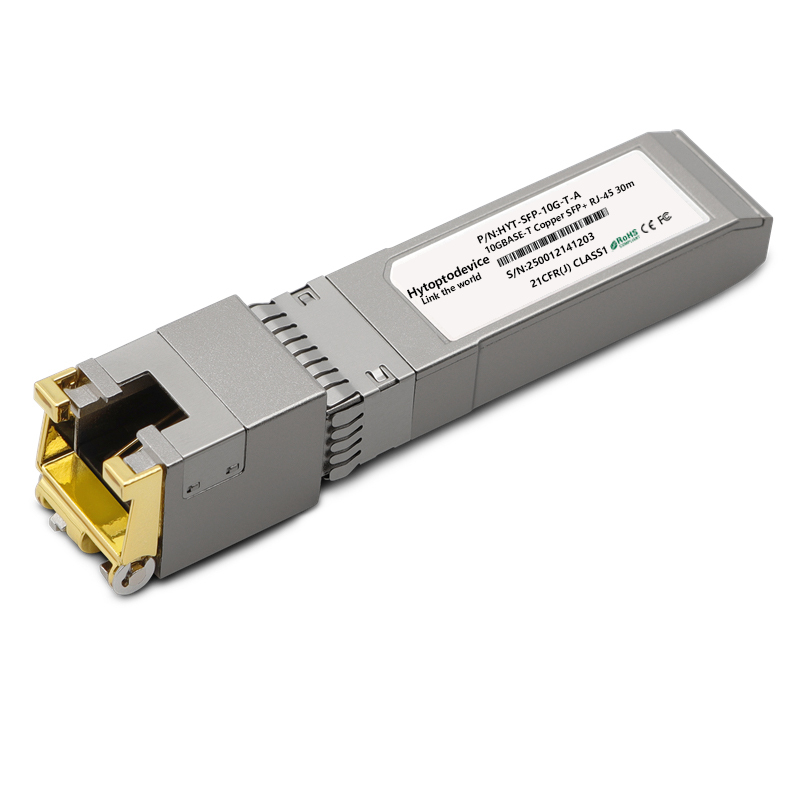

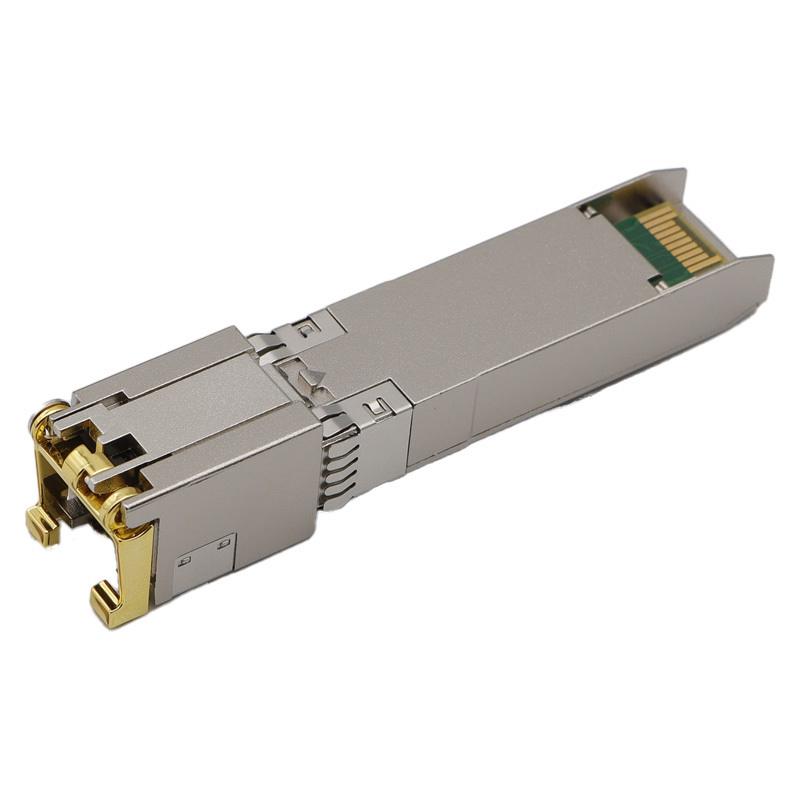

Alcatel-Lucent SFP-10G-T Compatible 10G SFP+ RJ45 Transceiver 30m | Short-Range 10GBASE-T Copper, NBASE-T Multi-Rate, Zero-Alarm AOS Compatibility | HYTOPTODEVICE
Product Overview
The SFP-10G-T is a high-performance, Alcatel-Lucent compatible 10G SFP+ Rj45 transceiver. Featuring a hot-pluggable SFP+ form factor and an RJ-45 interface, it supports 10Gbps data transmission up to 30 meters over Cat6A/Cat7 cabling to connect endpoints with embedded 10GBASE-T ports. With advanced 1G/2.5G/5G/10G auto-negotiation, low power consumption, and low latency, this 10GBASE-T module provides a highly flexible and cost-effective solution for intra-rack and inter-rack connections. Fully compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431, and SFP+ MSA, it is ideal for data center top-of-rack (ToR) switches, enterprise core campus networks, and high-performance storage environments looking to upgrade to 10GbE using existing copper infrastructure.
Key Technical Specifications
| Alcatel-Lucent Compatible |
SFP-10G-T |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max. Data Rate |
10Gbps |
| Connector |
RJ-45 |
Cable Distance |
30m |
| Media |
Copper |
Cable Type |
Cat6a/Cat7 |
| Max. Power Consumption |
≤2.5W |
DDM Support |
YES |
| Protocols |
IEEE 802.3-2012, IEEE 802.3az, SFP+ MSA, SFF-8432 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
-
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
-
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
-
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
-
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
-
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
-
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
-
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
-
Connect Cable: Plug the RJ45 cable into the transceiver.
-
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
-
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
-
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
-
Manual Override: If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
-
Always handle the module by its metallic casing or bail latch.
-
Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
-
Do not apply excessive force when plugging in or removing the RJ45 connector.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Firmware Adaptation
All HYTOPTODEVICE 10G SFP+ RJ45 30m modules complete continuous runtime testing and multi-version AOS firmware verification on genuine OmniSwitch hardware. Custom short-range EEPROM perfectly matches Alcatel official module identification protocol. It resolves typical compatibility problems of generic modules including alarm popups, unactivated ports and rate negotiation failure.
1. Validated Alcatel Hardware Platforms
Plug-and-play compatible with mainstream Alcatel switching equipment with SFP+ slots:
- OmniSwitch 6360 / 6465 / 6560 / 6860 / 6865 / 6900 / 9900 Series Switches
- All Alcatel enterprise aggregation and core switches supporting standard SFP+ transceivers
2. Cross-Brand Compatibility
Complying with universal SFP+ MSA standards, this 10G SFP+ RJ45 module supports normal communication with Arista, Cisco, Brocade, H3C and other brand equipment, adapting to multi-brand hybrid network architectures.
-
Standard / Open Platforms: Plug-and-play compatible out of the box with open-architecture hardware such as MikroTik, TP-Link, and Fortinet.
-
Vendor-Locked Platforms: We offer complimentary OEM firmware coding for strict or vendor-locked systems (e.g., Arista, Juniper, H3C, Huawei, Brocade, NVIDIA/Mellanox) prior to shipment—ensuring instant recognition and eliminating "unsupported transceiver" warnings.
3.Value-Added Compatibility Services & Self-Programming Support
-
On-Site Recoding Solutions: Gain full control with our optional smart coding boards and software, enabling your team to rewrite EEPROM compatibility codes on demand.
-
Free Lifetime Firmware Maintenance: Enjoy complimentary firmware update downloads whenever switch OS versions upgrade or new hardware platforms are released.
-
Custom Code Adaptation: Need support for specialized or legacy network systems? Our engineers offer free custom firmware tailoring to guarantee 100% link-up.
Primary Application Scenarios
Tailored for short-range high-density networking, this 10G SFP+ RJ45 30m module focuses on indoor close-distance 10G copper transmission scenarios:
- In-Rack Server 10G Uplink: Build low-cost 10G short links between top-of-rack OmniSwitch and rack servers.
- Intra-Room Switch Stacking: Implement 10G high-speed stacking for adjacent Alcatel switches within the same computer room.
- High-Density Wireless Backhaul: Deliver 2.5G/5G/10G adaptive uplink for densely deployed Wi-Fi 6/7 wireless APs.
- Short-Span Leaf-Spine Fabric Connection: Suitable for short-distance row-to-row interconnection in small and medium data centers.
- Enterprise Indoor Network Micro-Upgrade: Rapidly upgrade local 1G links to 10G without reworking short-distance copper wiring.
Connectivity Solutions(Applications)
1.Switch-to-Switch 10G Copper Interconnection
2.10G to 10G Switch to Adapter Card Links

3.10G Structured Cabling System Deployment
4.Spine-Leaf 10G Copper Interconnection

The Core Features
1.Ultra-Low Power Consumption for Maximum Energy Efficiency
This Alcatel-compatible **10G SFP+ RJ45 30m** transceiver adopts premium professional PHY chip solution. Optimized low-power circuit architecture controls full-load power consumption strictly between 2.0W–2.5W. It generates less heat than ordinary long-range copper modules. It lowers thermal load in dense OmniSwitch cabinet environments and reduces long-term operation energy consumption. It supports 24/7 continuous network operation.

2.Tool-Free Hot-Swappable Design & Seamless Plug-and-Play
Compliant with SFF-8431 SFP+ MSA international standards. This **10G SFP+ RJ45** module supports tool-free hot-swap. Engineers can insert or remove modules online without shutting down Alcatel network hardware. Preloaded exclusive Alcatel SFP-10G-T customized EEPROM enables seamless native recognition across all mainstream AOS firmware versions. It achieves zero-alarm and zero-port-block plug-and-play to simplify daily network maintenance.

3.Tested in Host Devices for Proven Interoperability
Every **10G SFP+ RJ45 30m** module undergoes rigorous real-machine interoperability testing on genuine Alcatel OmniSwitch hardware covering multiple AOS firmware iterations. Comprehensive multi-device linkage testing eliminates compatibility risks such as unrecognized hardware, rate negotiation failure and unstable links. It maintains reliable interoperability in standalone Alcatel networks and multi-brand hybrid network environments.
Specific Compatibility Video available upon request.

4. 100% Full Testing & Long-Term Reliability
We abandon sampling inspection and implement 100% full-item factory testing for every **10G SFP+ RJ45 30m** module. Test items include line-rate BER detection, high-low temperature cycle aging, long-duration pressure testing and real OmniSwitch link verification. Supported by high-quality chips and strict quality control, the module delivers consistent batch performance and outstanding anti-aging capability. It provides durable hardware support for uninterrupted Alcatel enterprise and data center networks.

FAQ
Q1: Why do 10G SFP+ RJ45 transceivers run hot during normal operation?
A1: 10G SFP+ RJ45 modules consume 2.0W–3.0W power from built-in PHY chips to convert SFP+ SerDes signals into 10GBASE-T copper Ethernet. Significant heat dissipates via the compact metal housing. HYTOPTODEVICE optimizes circuit layout to control thermal buildup for stable 24/7 operation.
Q2: Can Cat5e or regular Cat6 cables achieve reliable 10G speed with 10G SFP+ RJ45 modules?
A2: Cat5e and standard Cat6 wiring cannot sustain consistent 10G transmission even within short distances. To unlock full 10G performance with our Alcatel-Lucent compatible 10G SFP+ RJ45 transceiver, Cat6A or Cat7 cabling is required.
Q3: Does cable shielding type impact performance of 10G SFP+ RJ45 copper transceivers?
A3: Shielded Cat6A STP/FTP cabling is highly recommended for 10G SFP+ RJ45 deployments. Shielded cables lower alien crosstalk and resist EMI interference, especially when multiple copper links run bundled inside racks.
Q4: What causes auto-negotiation failures between 10G SFP+ RJ45 modules and server onboard NICs?
A4: Negotiation errors usually happen when switch ports are forced to fixed speed while the copper PHY expects dynamic auto-negotiation. Matching negotiation settings on both ends resolves the issue when deploying HYTOPTODEVICE 10G SFP+ RJ45 transceivers.
Q5: Should I pick DAC cables or 10G SFP+ RJ45 transceivers for ToR in-rack server connections?
A5: Passive DAC cables are preferable for pure intra-rack links. DAC consumes less than 0.1W, generates nearly no heat and delivers ultra-low latency. Choose our 10G SFP+ RJ45 modules when you need to reuse existing copper structured cabling.
Q6: Can a 10G SFP+ RJ45 transceiver work inside a 25G SFP28 switch port?
A6: Most SFP28 ports offer backward compatibility with 10G SFP+ modules. You can plug our 10G SFP+ RJ45 transceiver into a 25G slot, but the maximum achievable link speed will be capped at 10Gbps.
Q7: Why does DDM report module temperatures above 65°C even under light traffic loads?
A7: 10GBASE-T PHY chips draw nearly constant power regardless of data throughput. High temperature readings under low traffic are normal for 10G SFP+ RJ45 hardware. Our modules pass strict thermal aging testing to sustain stable performance under such conditions.
Q8: Does the 10G SFP+ RJ45 transceiver support Wake-on-LAN functionality?
A8: WoL support depends on end-to-end hardware compatibility. Our 10G SFP+ RJ45 module forwards magic packet frames normally, provided the connected server NIC and switch port are configured to enable Wake-on-LAN.
Q9: What typical MTBF rating can I expect from commercial 10G SFP+ RJ45 transceivers?
A9: Standard 10GBASE-T copper modules feature an MTBF range of 500,000 to 1,000,000 hours. Thermal stress shortens service life compared with optical transceivers. HYTOPTODEVICE implements full temperature cycling testing to improve long-term reliability.
Q10: Are all available 10G SFP+ RJ45 transceivers TAA compliant for US government projects?
A10: Not every copper transceiver meets TAA requirements. If supplying US federal, defense or public sector projects, specify TAA-certified 10G SFP+ RJ45 modules. Contact our team to get compliant part options for your tender.
