| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | NVIDIA/Mellanox | MFM1T02A-T | SFP-10G-T |
| 2 | Netgear | AXM765 | SFP-10G-T-30I |
| 3 | D-Link | DEM-436XT-B1 | SFP-10G-T-80 |
| 4 | Ciena | XCVR-A10Y31 | SFP-10G-T-100 |
| 5 | Fortinet | FN-TRAN-SFP+GC | SFP-G-T |
| 6 | Ubiquiti | UF-RJ45-10G | SFP-G-T-I |
| 7 | Dell | GP-10GSFP-T | 10/100/1000BASE-T |
| 8 | Extreme Networks | 10338 | |
| 9 | IBM | 45W2410 | |
| 10 | HPE Aruba | JL563A | |
| 11 | Avaya Nortel | AA1403043-E6 | |
| 12 | HPE Aruba | R9F85A | |
| 13 | Mikrotik | S+RJ10 |

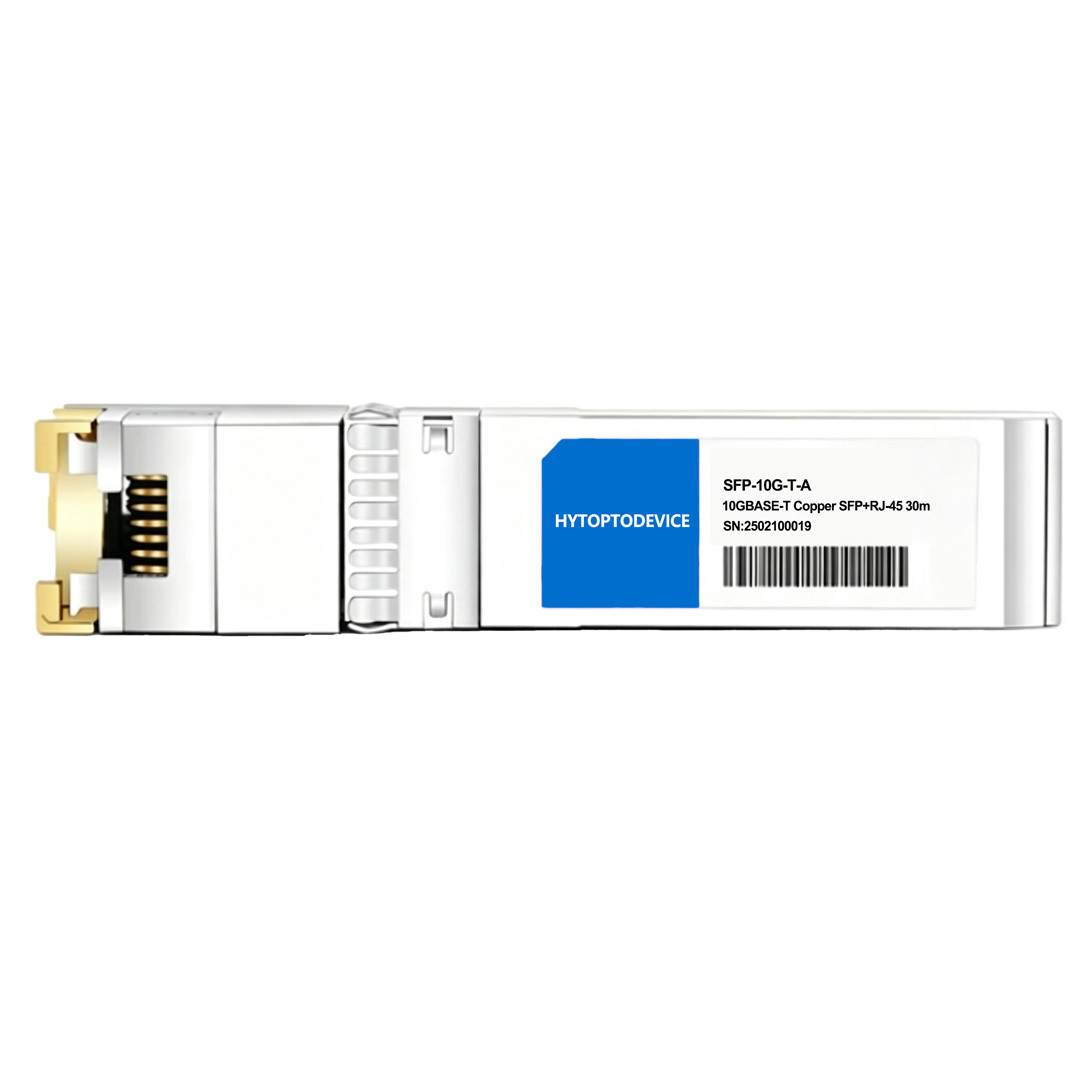

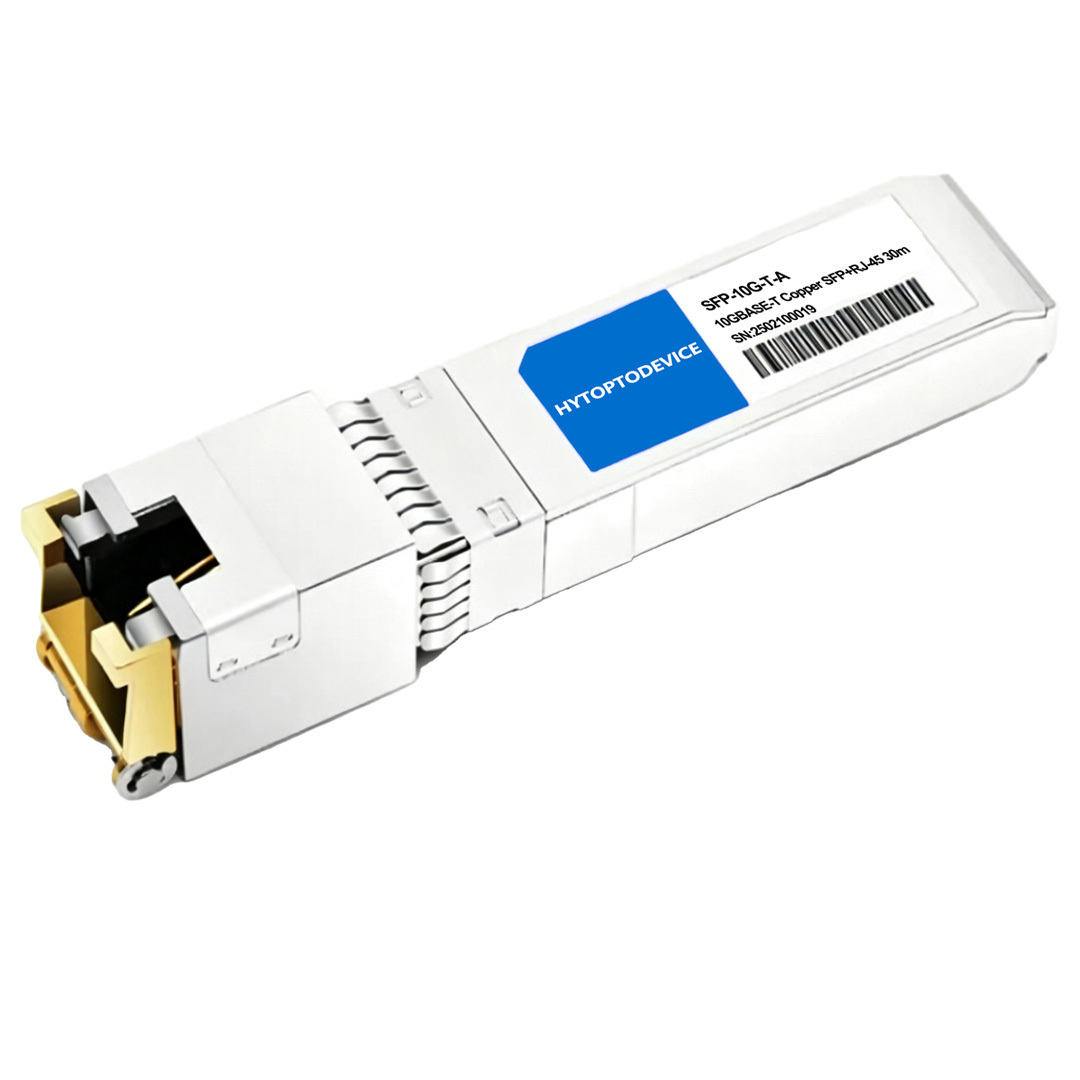

| Mikrotik Compatible | S+RJ10 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ (Hot-pluggable) | Data Rate | 10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | YES |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
Connect Cable: Plug the RJ45 cable into the transceiver.
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
Auto-negotiation: The module auto negotiates speed (100M/1G/2.5G/5G/10G). Force speed manually on host port if negotiation instability appears.If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
Always handle the module by its metallic casing or bail latch.
Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
Do not apply excessive force when plugging in or removing the RJ45 connector.
Built on SFP+ MSA and IEEE standards, this SFP+ copper transceiver also works with Cisco, Arista, Fortinet, Netgear, D-Link, Dell, Ciena, Extreme Networks and other mainstream network brands, flexible for multi-vendor enterprise and data center network upgrade projects.
The Core Features
FAQ
Q1: Will this HYTOPTODEVICE S+RJ10 compatible transceiver trigger unapproved transceiver warning logs on MikroTik RouterOS?
A: No. Our module is preloaded with S+RJ10 matching EEPROM identifiers. RouterOS will recognize the transceiver natively and skip the unknown transceiver alert without complex manual configuration.
Q2: What differentiates this MikroTik S+RJ10 compatible copper transceiver from generic MSA 10GBASE-T modules?
A: Generic MSA copper modules follow mechanical and electrical specs but lack MikroTik-specific EEPROM identity data, which may lead to incomplete speed reporting or warning messages on RouterOS. HYTOPTODEVICE pre-flashes the dedicated S+RJ10 profile to guarantee full feature support for MikroTik routing platforms.
Q3: Can this S+RJ10 compatible copper transceiver work inside SFP28 25G ports?
A: Yes, it physically fits SFP28 cages and will negotiate up to 10G speed. It cannot reach 25G throughput, as its integrated PHY chip only supports up to 10GBASE-T. Verify the host port SFP+ compatibility before field installation.
Q4: Can hot plugging this copper module into an active MikroTik router port cause permanent hardware damage?
A: No. This HYTOPTODEVICE SFP+ copper transceiver includes built-in ESD protection and standard SFP+ hot-swap circuits. Live insertion will not damage router hardware, but always verify link status after installation.
Q5: Is it safe to fill all SFP+ ports on MikroTik CRS326 switches with these S+RJ10 compatible copper transceivers?
A: Not recommended without cooling assessment. Copper 10GBASE-T modules run hotter than fiber modules. Placing them side-by-side may trigger overheating, especially on passive-cooled MikroTik hardware. HYTOPTODEVICE recommends reserving empty slots between copper modules for airflow.
Q6: Does copper patch cable length affect the power draw of this multi-rate 10GBASE-T transceiver?
A: Yes. Longer copper cabling requires more signal equalization work by the PHY chip, slightly increasing power consumption at the maximum 30m rated distance. HYTOPTODEVICE characterizes power draw for all supported cable lengths during factory validation.
Q7: What maximum cable length can this S+RJ10 compatible transceiver maintain stable native 10GBASE-T operation?
A: Reliable 10G transmission reaches up to 30 meters with certified Cat6 or Cat7 twisted pair. Longer copper runs introduce signal attenuation and crosstalk, raising bit error rates and creating intermittent packet loss. HYTOPTODEVICE validates each batch at full 30m distance.
Q8: What performance limitations appear if I use Cat5e cabling for this MikroTik compatible 10G copper module?
A: Cat5e cable cannot sustain stable 10GBASE-T. It works fine for 1G and lower speeds but will produce excessive errors at 10G. HYTOPTODEVICE recommends Cat6 or Cat7 to achieve the module’s full 30m 10G capability.
Q9: Is shielded cabling required for deploying this HYTOPTODEVICE S+RJ10 copper transceiver inside dense MikroTik rack enclosures?
A: Recommended. Shielded STP/FTP cables reduce electromagnetic interference from adjacent power and network wiring. Unshielded UTP may create random link flapping in crowded rack environments, even with cable runs shorter than 30 meters.
Q10: Can existing pre-installed wall copper cabling support 10GBASE-T links with this S+RJ10 compatible transceiver?
A: It depends on cable category and termination quality. Only Cat6/Cat7 cabling under 30 meters supports reliable 10G. Older Cat5e or poorly terminated wall wiring cannot maintain stable 10G connections. HYTOPTODEVICE suggests cable certification testing before deployment.
Q11: Does this HYTOPTODEVICE S+RJ10 copper transceiver automatically negotiate down to lower speeds for 2.5G, 1G or 100M endpoints?
A: Yes, full multi-rate auto-negotiation is built in. The transceiver will automatically match peer device speed from 10Mbps up to 10Gbps, matching the behavior of the original MikroTik S+RJ10 OEM part.
Q12: Does this MikroTik S+RJ10 compatible 10G copper transceiver support Auto-MDI/MDIX?
A: Yes, Auto-MDI/MDIX crossover capability is integrated. Straight-through RJ45 patch cords work directly; crossover cables are unnecessary for point-to-point device links.
Q13: Can this S+RJ10 10GBASE-T transceiver support jumbo frames on MikroTik RouterOS?
A: Yes, it supports jumbo frames up to 10218 bytes at 10G,5G and 2.5G speeds, consistent with updated S+RJ10 hardware revision specifications. Jumbo frames help improve throughput for file storage and data transfer workloads.
Q14: Is this HYTOPTODEVICE S+RJ10 compatible transceiver suitable for small server rooms and home lab networking builds?
A: Yes. It delivers flexible multi-rate 10G RJ45 connectivity for servers, NAS and MikroTik routers. Many network builders select our compatible modules to reduce hardware costs versus OEM MikroTik transceivers while retaining RouterOS compatibility.
Q15: What live telemetry data can operators read from the DDM/DOM feature on MikroTik RouterOS?
A: The DDM function allows RouterOS to pull real-time module temperature and supply voltage metrics. This helps network teams monitor thermal conditions and schedule proactive hardware replacement before unexpected link failure.
Q16: Can this S+RJ10 compatible transceiver interoperate with standard SFP+ 10G media converters?
A: Yes, it interoperates with standard 10G media converters fitted with SFP+ slots, provided the media converter supports 10GBASE-T. HYTOPTODEVICE runs cross-vendor interoperability testing for mixed-brand network upgrade projects.
