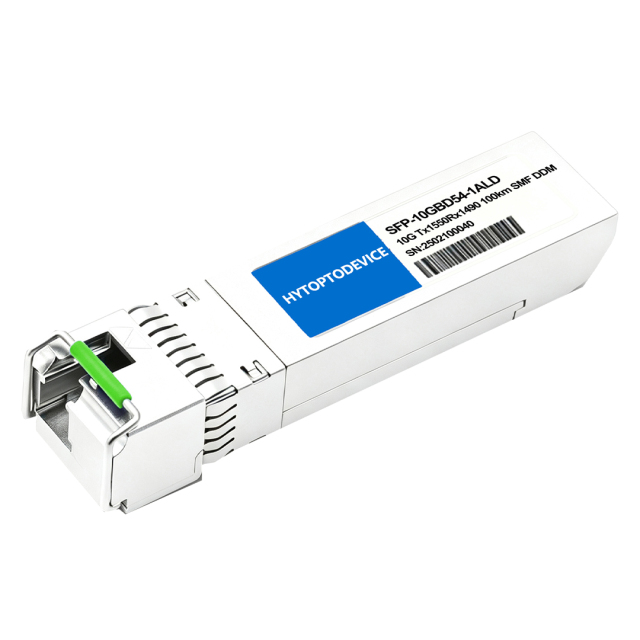

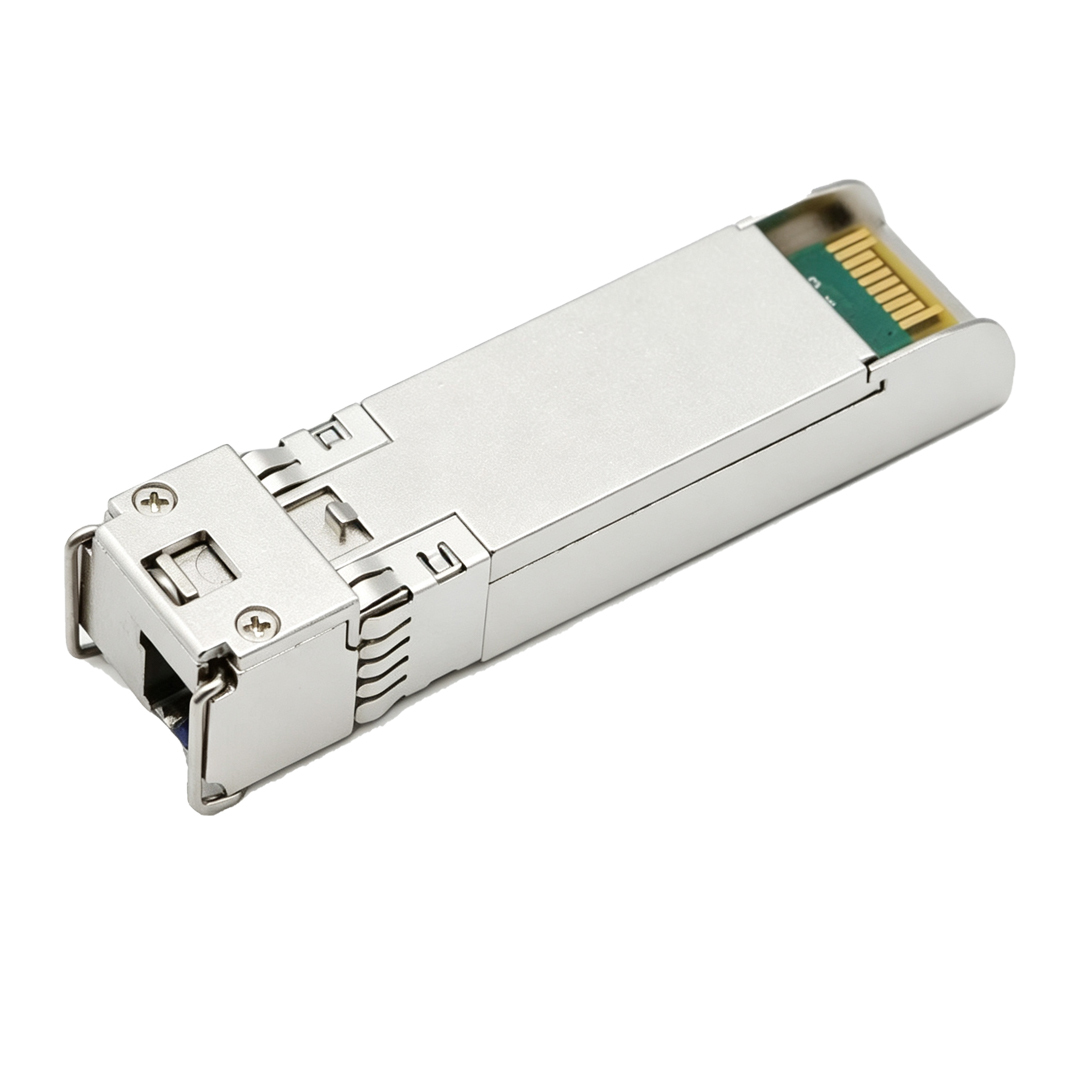

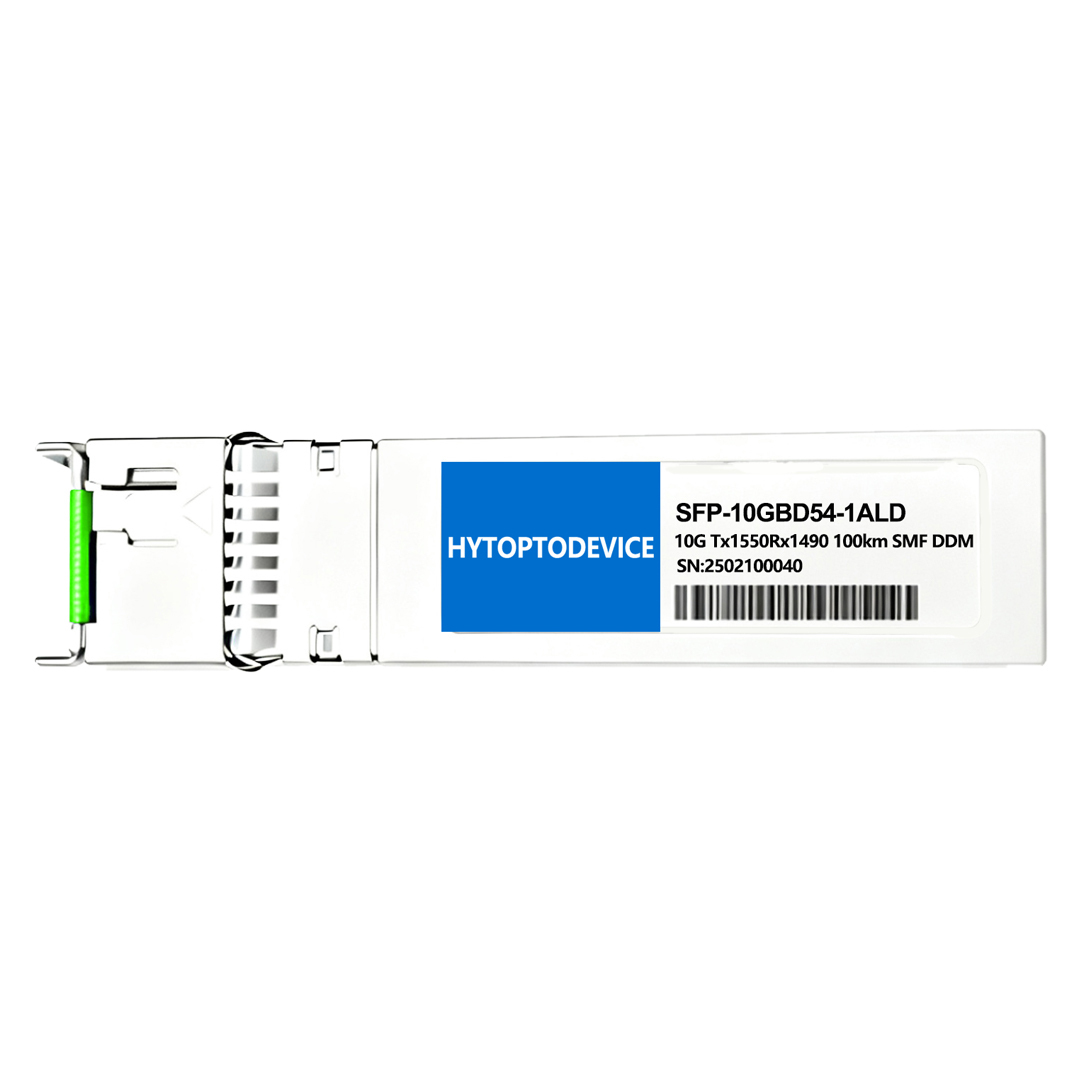

Fortinet SFP-10G54-BX100 Compatible 10G SFP+ BiDi Optical Transceiver Module | 10GBASE-BX100-D 100km Tx1550Rx1490nm Simplex LC Bulk Wholesale | HYTOPTODEVICE
Product Overview
HYTOPTODEVICE, professional 10G SFP+ BiDi manufacturer and supplier, produces this Fortinet SFP-10G54-BX100 compatible 10G SFP+ BiDi optical transceiver module as a reliable plug-and-play replacement. Built to meet 10GBASE-BX100-D and SFF-8472 MSA standards, this 10G SFP+ BiDi delivers stable 10.3125Gbps Ethernet transmission up to 100km over OS2 single-mode fiber, featuring Tx1550nm transmit wavelength and Rx1490nm receive wavelength with simplex LC UPC connector.
We pre-load customized EEPROM profiles to resolve Fortinet firewall transceiver compatibility errors and prevent intermittent long-distance fiber link instability. We support sample validation before mass purchase, flexible MOQ and fast lead time to satisfy procurement requirements of wholesaler, distributor, system integrator and global buyers. This single-strand BiDi module must pair with matching
BX100-U transceiver on the opposite fiber end. HYTOPTODEVICE also supplies private label and laser marking services for worldwide customers.
Key Technical Specifications
| Fortinet Compatible |
SFP-10G54-BX100 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.315Gbps |
| Wavelength |
TX1550nm/RX1490nm |
Max Distance |
100km |
| Connector |
Simplex LC |
Transmitter Type |
1550nm EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
1.0~5.0dBm |
Receiver Sensitivity |
< -24dBm |
| Max. Power Consumption |
≤1.8W |
Receiver Overload |
-7dBm |
| Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices
• BiDi Pairing Rule: SFP‑10G‑BXD (Tx1550/Rx1490) must pair with
SFP‑10G‑BXU (Tx1490/Rx1550) at remote end. Two BXD modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Optical Attenuator Required for Short Links: For testing or short‑distance connections (<10km), connect a 12dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(10KM＜Distance＜30km,connect 5‑15dB optical attenuator)
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1. Validated Fortinet Networks Hardware & Firmware
This 10G SFP+ BiDi uses customized EEPROM coding to fix transceiver compatibility problems and suppress unknown transceiver warning logs under Fortinet FortiOS. Every module undergoes hardware validation and burn-in testing before factory shipment:
- Fortinet FortiGate Firewall Series: FG-300E, FG-400E, FG-600E, FG-1000E, FG-2000E
- Fortinet FortiSwitch Series: FS-548D, FS-524D, FS-1048E
- Any Fortinet hardware equipped with standard 10G SFP+ ports supporting 10GBASE-BX100-D
2. Multi‑Brand Cross Interoperability
Built on MSA open standards, this 10G SFP+ BiDi optical transceiver works with Cisco, Arista, Huawei, H3C, Juniper, Dell, Palo Alto, Brocade hardware. Well‑suited for mixed‑vendor long‑haul metro and wide‑area network expansion projects for enterprise, carrier clients, wholesalers, distributors and system integrators.
3. Free Value-Added Services
- Custom EEPROM programming for multi-platform compatibility
- Sample testing available before bulk orders for project validation
- Private label customization and professional deployment guides
- Rigorous batch quality consistency control
- Custom EEPROM configuration for special and legacy network setups
- Free EEPROM recoding with 24/7 technical support
Primary Application Scenarios
- 100km single-fiber metro WAN deployments, HYTOPTODEVICE 10G SFP+ BIDI MODULE supplier provides stable optics for system integrators
- Long-distance inter-site fiber connections, solving the core pain point of unstable long-haul transmission for telecom and enterprise networks
- Network upgrade projects to maximize fiber infrastructure by reusing individual OS2 single fiber strands
- Cost-effective replacement solution for distributors and wholesalers sourcing Fortinet compatible long-reach BiDi optics
- Bulk sourcing of 10G SFP+ BIDI MODULE for global distributors, network buyers and telecom system integrators
Connectivity Solutions(Applications)
1.Switch-to-Switch Connectivity
2.Core to Access Connectivity(With Structured Cabling)
The Core Features
1.Single‑Fiber Transmission, Maximize Fiber Utilization
Unlike conventional dual‑fiber SFP+ transceivers, HYTOPTODEVICE Juniper‑compatible 10G SFP+ BiDi module adopts WDM wavelength‑division multiplexing to realize bidirectional 10G transmission over only one OS2 single‑mode fiber core.
2.2x Capacity, Half the Cabling
A single fiber strand carries two wavelengths, enabling full-duplex 10G over one link. Double capacity per port, cut fiber cabling costs in half — no extra cables, no extra ports.
3.10G at 1.8W — Lower Energy, Lower Heat
Delivering stable 10G links at a low 1.8W power draw, this SFP+ 10G bidi transceiver minimizes heat dissipation per port, easing cooling load in dense deployments and cutting total cost of ownership.
4. Verified, Not Just Claimed
Compatibility isn't a promise — it's proven. Every unit passes rigorous testing on original-brand switches, guaranteeing drop-in interoperability across Cisco, Juniper, Huawei and other major platforms without reconfiguration headaches. Real products, real switches, real results—Specific Compatibility Video available upon request.
5.100% Tested for Rock-Solid Reliability
Signal integrity, distance runs, temperature cycling — every 10G BiDi 100km SFP+ transceiver is fully validated in our Test Center before shipping, ensuring stable, packet-loss-free links under any load.
FAQ
Q1: If I install this 10G SFP+ BiDi transceiver into a 1G SFP port on Fortinet hardware, will it auto downgrade to 1G operation?
A: NO, this 10G SFP+ BiDi transceiver cannot auto-negotiate down to 1G speed. It locks at 10G only and will not establish link on 1G ports. HYTOPTODEVICE supplies this fixed-rate 10G optic as part of our 10G SFP+ BiDi solution for buyers and system integrators.
Q2: Will using HYTOPTODEVICE compatible 10G SFP+ BiDi transceiver void the original hardware warranty of Fortinet firewalls?
A: NO, using HYTOPTODEVICE compatible 10G SFP+ BiDi generally will not void your network hardware warranty. Most vendors restrict warranty only if the optic directly damages the equipment. We offer samples for wholesaler and distributor to test before bulk purchase.
Q3: What is the minimum order quantity when purchasing this Fortinet compatible 10G SFP+ BiDi optical transceiver?
A: Our MOQ is flexible for this 10G SFP+ BiDi. HYTOPTODEVICE accepts small batch orders and provides sample units for global buyers, wholesaler and distributor to complete pre-project validation.
Q4: What lead time can I expect once I place a bulk wholesale order of these 10G SFP+ BiDi modules?
A: Standard lead time is short for stocked 10G SFP+ BiDi. HYTOPTODEVICE maintains inventory to support fast shipment for wholesaler, distributor and system integrator bulk orders.
Q5: Can I request sample units of this 10GBASE-BX100-D 10G SFP+ BiDi module for lab and site compatibility validation?
A: YES, HYTOPTODEVICE provides sample service for this 10G SFP+ BiDi. Global buyers, wholesaler and distributor can request samples to verify compatibility and long-distance link performance before mass procurement.
Q6: Can this 10G SFP+ BiDi optical transceiver be deployed within passive CWDM or DWDM multiplexer systems?
A: NO, this BiDi transceiver is not designed for CWDM/DWDM passive mux systems. Its fixed 1490/1550nm wavelengths fall outside standard ITU-T wavelength grids; it is only for direct point-to-point single-fiber BiDi links.
Q7: Why select 1490/1550nm wavelength pair instead of 1270/1330nm for 100km long haul fiber transmission?
A: Lower fiber attenuation at 1490nm (~0.25 dB/km) and 1550nm (~0.20 dB/km) enables longer 100km transmission versus 1270/1330nm (~0.35 dB/km). HYTOPTODEVICE selects these wavelengths to deliver reliable long-reach 10G SFP+ BiDi solutions for distributors.
Q8: What optical attenuator specification should I prepare for short-distance bench testing of this 100km 10G SFP+ BiDi module?
A: A 12–15dB simplex LC optical attenuator is recommended for short bench tests under 10km. It reduces excess transmit power to protect the APD receiver from overload. HYTOPTODEVICE can supply matching attenuators alongside bulk orders for wholesalers.
Q9: How does chromatic dispersion degrade optical signals and create unstable links over a 100km fiber span?
A: Chromatic dispersion broadens optical pulses and increases bit errors over 100km. Our module’s EML laser is selected to keep dispersion effects within acceptable limits for 10G operation on standard OS2 fiber, part of HYTOPTODEVICE’s long-reach 10G SFP+ BiDi solution.
Q10: What type of photodetector is built inside this 10G SFP+ BiDi transceiver, PIN or APD?
A: This module uses an APD receiver. APD provides higher sensitivity to meet the 100km link budget requirement, critical for long single-fiber BiDi links. HYTOPTODEVICE manufactures our 10G SFP+ BiDi with high-performance APD receivers for system integrators.
Q11: What quality control procedures do these 10G SFP+ BiDi modules go through before shipment to customers?
A: Every unit undergoes full optical power, sensitivity, DDM and burn-in testing before factory shipment. HYTOPTODEVICE provides full test reports for bulk orders and samples for global buyers, wholesaler and distributors.
Q12: Are commercial and industrial temperature versions available for this 10G SFP+ BiDi transceiver?
A: The standard commercial version operates from 0°C to 70°C. Industrial grade (-40°C ~ +85°C) is available as a custom option. HYTOPTODEVICE supplies both variants of our 10G SFP+ BiDi for specialized network deployments.
Q13: What bit error rate can customers expect from this 10G SFP+ BiDi transceiver under rated optical budget?
A: Typical BER is <1×10⁻¹² within rated optical budget. This low error rate ensures stable 10G Ethernet traffic across the full 100km link. HYTOPTODEVICE verifies BER performance during factory testing for all wholesale shipments.
Q14: Does this 10GBASE-BX100-D 10G SFP+ BiDi transceiver come with built-in FEC forward error correction?
A: NO, this 10GBASE-BX BiDi transceiver does not include built-in FEC. Error correction must be handled by the host Fortinet firewall or switch if required. HYTOPTODEVICE provides clear specs so system integrators can design their network solution correctly.
Q15: Does this transceiver satisfy IEEE 802.3ae, SFF-8472 and other MSA industry standards?
A: YES, this 10G SFP+ BiDi meets IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 and SFP+ MSA standards. HYTOPTODEVICE manufactures this module to guarantee interoperability for global buyers, wholesaler and distributor.
