| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | NVIDIA/Mellanox | MFM1T02A-T | SFP-10G-T |
| 2 | Netgear | AXM765 | SFP-10G-T-30I |
| 3 | D-Link | DEM-436XT-B1 | SFP-10G-T-80 |
| 4 | Ciena | XCVR-A10Y31 | SFP-10G-T-100 |
| 5 | Fortinet | FN-TRAN-SFP+GC | SFP-G-T |
| 6 | Ubiquiti | UF-RJ45-10G | SFP-G-T-I |
| 7 | Dell | GP-10GSFP-T | 10/100/1000BASE-T |
| 8 | Extreme Networks | 10338 | |
| 9 | IBM | 45W2410 | |
| 10 | HPE Aruba | JL563A | |
| 11 | Avaya Nortel | AA1403043-E6 | |
| 12 | HPE Aruba | R9F85A | |
| 13 | Mikrotik | S+RJ10 |
| Avaya Nortel Compatible | AA1403043-E6 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ (Hot-pluggable) | Data Rate | 10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector | RJ-45 | Cable Distance | 30m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.5W | DDM Support | YES |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFF-8431 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W) and generate considerably more heat than optical transceivers.
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
Connect Cable: Plug the RJ45 cable into the transceiver.
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
Auto-negotiation: The module auto negotiates speed (100M/1G/2.5G/5G/10G). Force speed manually on host port if negotiation instability appears.If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
Always handle the module by its metallic casing or bail latch.

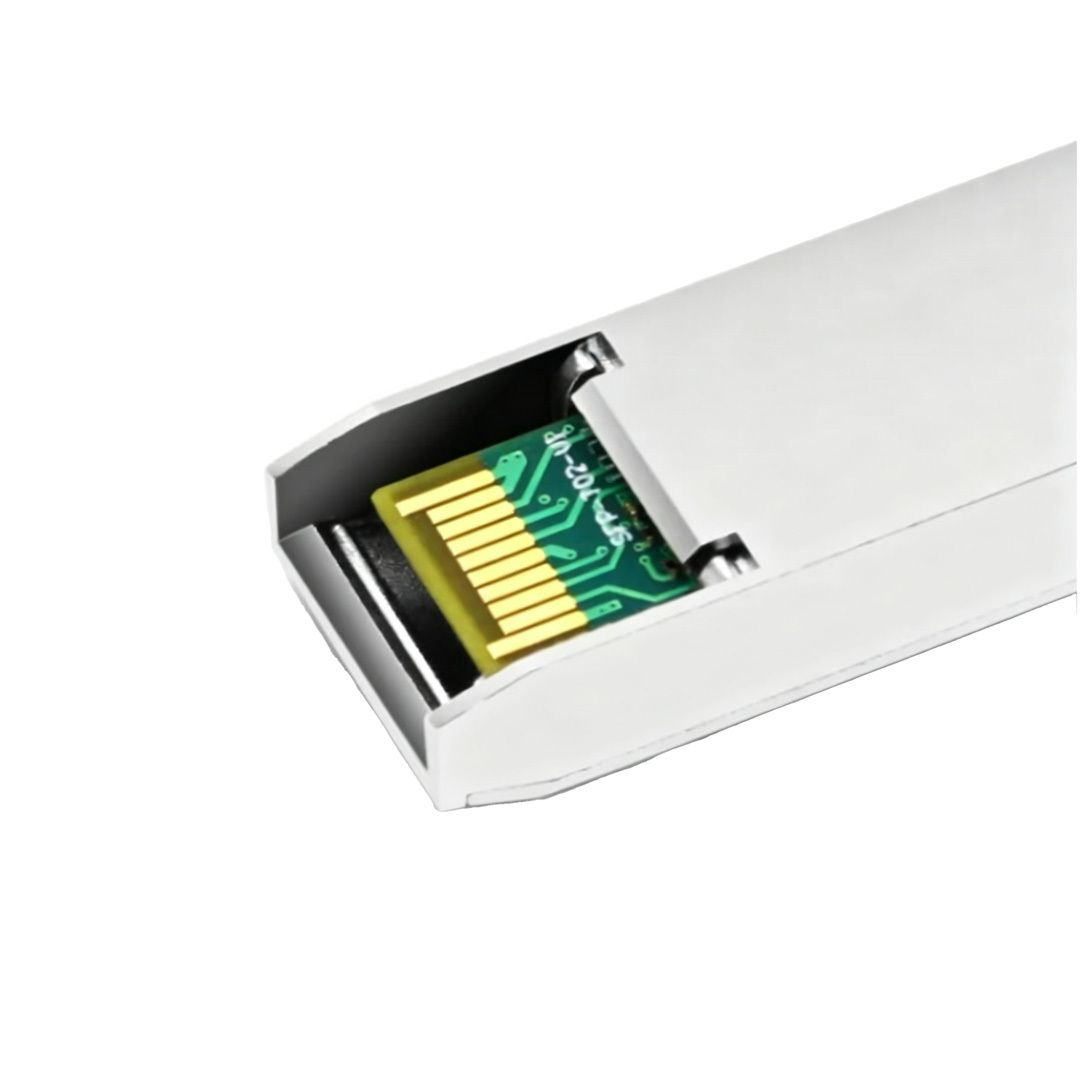

Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
Do not apply excessive force when plugging in or removing the RJ45 connector.
Built on SFP+ MSA and IEEE standards, this SFP+ copper transceiver also works with Cisco, Arista, Fortinet, Netgear, D-Link, Dell, Ciena, Extreme Networks and other mainstream network brands, flexible for multi-vendor enterprise and data center network upgrade projects.
The Core Features
FAQ
Q1: Will this HYTOPTODEVICE AA1403043-E6 compatible transceiver trigger unsupported transceiver alerts on older Avaya VSP or Nortel ERS firmware?
A: No. Our transceiver is pre-flashed with AA1403043-E6 EEPROM identifiers matching Avaya Nortel OEM specs. It will be natively identified by Avaya and Nortel switch operating systems and skip transceiver warning prompts without manual configuration tweaks.
Q2: What key differences separate this Avaya Nortel compatible copper transceiver from generic MSA 10GBASE-T modules?
A: Generic MSA copper transceivers only follow mechanical and electrical specifications without vendor-specific EEPROM identity codes. Generic modules will throw alert logs or port lock on locked Avaya/Nortel legacy firmware. HYTOPTODEVICE preloads Avaya Nortel EEPROM profile to ensure smooth interoperability on legacy VSP and ERS platforms.
Q3: Can I install this AA1403043-E6 compatible 10G copper transceiver inside SFP28 25G ports?
A: Yes, it physically fits SFP28 slots and will negotiate to 10G operation. It cannot achieve 25G throughput as its PHY chip supports up to 10GBASE-T only. Confirm SFP+ port compatibility of the host hardware before field installation.
Q4: Does hot inserting this copper transceiver into a live Avaya VSP switch port risk permanent port hardware damage?
A: No. This HYTOPTODEVICE SFP+ copper transceiver integrates built-in ESD protection and standard SFP+ hot-swap circuitry. Live insertion will not damage switch ports, but we recommend checking link status after plugging the module in.
Q5: Can I fill all SFP+ slots on Nortel ERS 8800 switches fully with these AA1403043-E6 compatible copper transceivers?
A: Not recommended without thermal and port capacity evaluation. Copper transceivers produce more heat than fiber transceivers. Avaya Nortel legacy chassis switches have strict airflow and thermal limits. HYTOPTODEVICE recommends reserving empty slots for airflow cooling.
Q6: Does copper patch cable length affect the power consumption of this multi-rate 10GBASE-T transceiver?
A: Yes. Longer copper cables demand more signal equalization processing from the PHY chip, which slightly increases power draw near the rated 30m maximum distance. HYTOPTODEVICE characterizes power consumption across all supported cable lengths during factory validation.
Q7: What maximum cable run length can this AA1403043-E6 compatible transceiver maintain stable native 10G operation?
A: Reliable 10G transmission reaches up to 30 meters on certified Cat6a or Cat7 shielded twisted pair. Longer copper runs create signal attenuation and crosstalk, raising bit error rates and causing intermittent packet loss. HYTOPTODEVICE validates each production batch at full 30m rated distance.
Q8: What performance drawbacks appear when using regular Cat6 cable instead of Cat6a for this 10GBASE-T copper module?
A: Standard Cat6 cable can only sustain stable 10G speeds for shorter distances. Near 30m, crosstalk and signal degradation will increase BER. HYTOPTODEVICE recommends Cat6a shielded cabling to achieve the full 30-meter rated 10G performance.
Q9: Is shielded twisted pair mandatory when deploying this HYTOPTODEVICE 10G copper transceiver in dense Avaya Nortel chassis racks?
A: Highly recommended. Shielded STP/FTP cables reduce electromagnetic interference from adjacent power and network cables. Unshielded UTP may trigger random link flapping in crowded rack environments, even for cable runs shorter than 30 meters.
Q10: Can existing pre-installed in-wall copper cabling support 10GBASE-T links with this AA1403043-E6 compatible transceiver?
A: It depends on cable category and termination workmanship. Only Cat6a/Cat7 cabling under 30 meters delivers reliable 10G connectivity. Older Cat5e or poorly terminated wall cabling cannot maintain stable 10G links. HYTOPTODEVICE advises cable certification testing before deployment.
Q11: Will this HYTOPTODEVICE AA1403043-E6 copper transceiver automatically drop down to lower speed for 1G or 100M RJ45 endpoints?
A: Yes, multi-rate auto-negotiation is built-in. The transceiver can automatically negotiate to 5G,2.5G,1G or 100Mbps to match peer device speed, consistent with the original AA1403043-E6 OEM behavior.
Q12: Does this Avaya Nortel AA1403043-E6 compatible 10G copper transceiver include Auto-MDI/MDIX crossover capability?
A: Yes, Auto-MDI/MDIX function is integrated. Straight-through RJ45 patch cords work directly; crossover cables are unnecessary for point-to-point device interconnections.
Q13: Does this AA1403043-E6 10GBASE-T transceiver support IEEE 802.3x pause frame flow control on Avaya VSP switches?
A: Yes, it fully supports IEEE 802.3x flow control. When enabled on Avaya VSP and Nortel ERS switches, pause frames reduce packet overflow and data loss during heavy traffic bursts for storage and virtualization workloads.
Q14: Is this HYTOPTODEVICE AA1403043-E6 compatible transceiver suitable for legacy server room and lab storage networking upgrades?
A: Yes. It provides affordable multi-rate 10G RJ45 connectivity for servers and storage arrays when updating old Avaya Nortel networks. Many system integrators pick our compatible modules to cut hardware costs compared to expensive OEM spare parts.
Q15: What real-time telemetry metrics can network operators read from the DDM/DOM function on Avaya VSP switches?
A: The DDM feature allows Avaya and Nortel switch OS to pull live module temperature, supply voltage and link status data. This helps network teams monitor transceiver health and schedule proactive hardware replacement before unexpected link failures.
Q16: Can this AA1403043-E6 compatible transceiver interoperate with standard SFP+ 10G media converters?
A: Yes, it works with standard 10G media converters fitted with SFP+ slots, provided the media converter supports the 10GBASE-T standard. HYTOPTODEVICE completes cross-brand interoperability validation for mixed-vendor legacy network upgrade projects.
