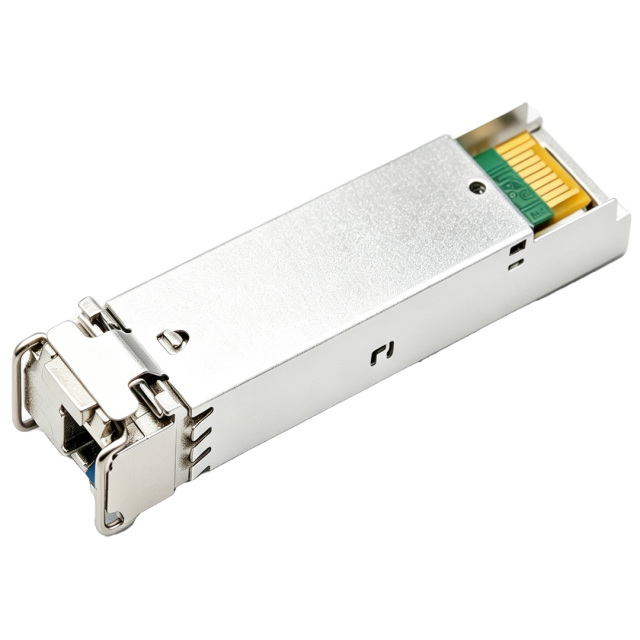

  • 40km long reach gigabit BiDi SFP transceiver tx1310rx1550 from HYTOPTODEVICE

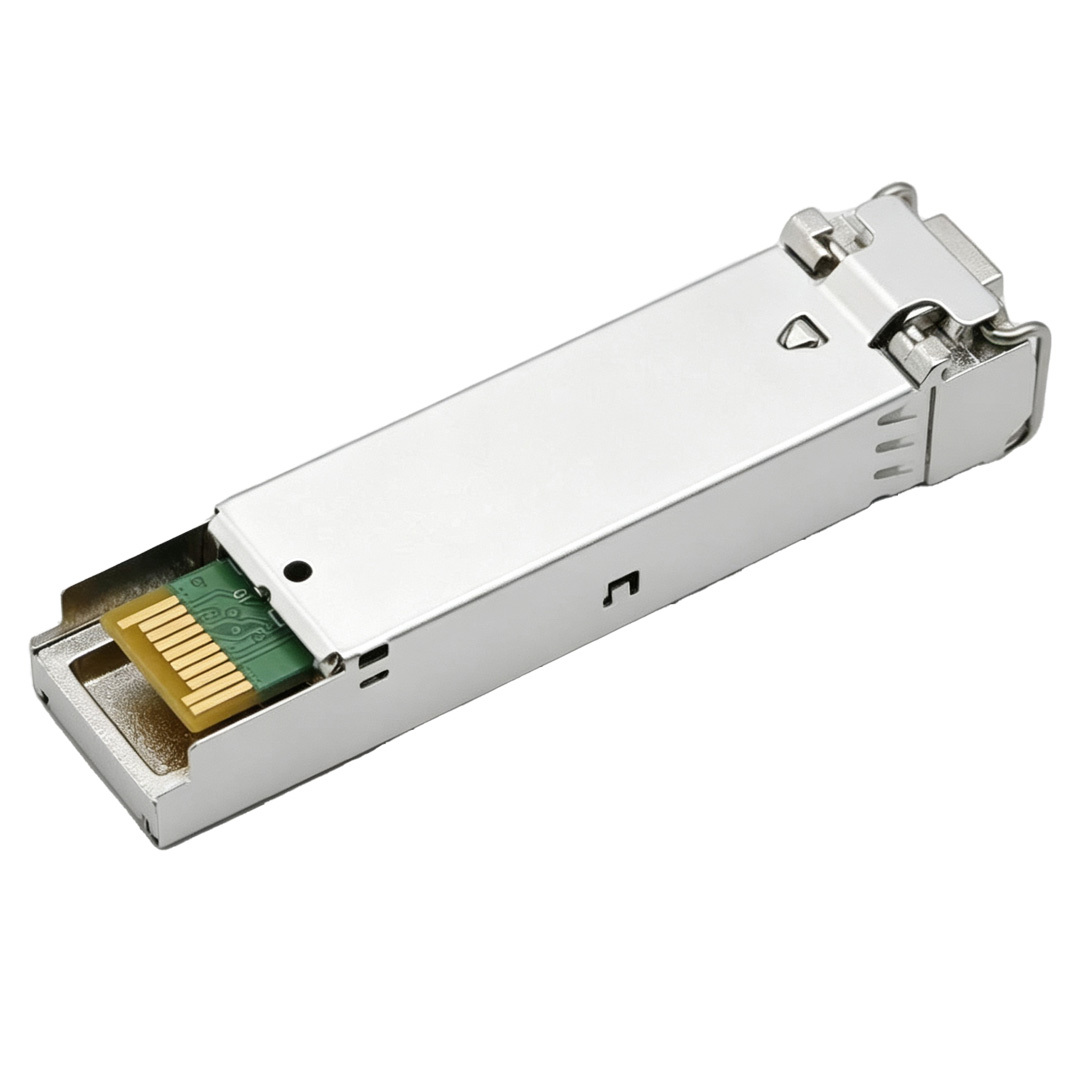

  • Hot-swappable 1G BiDi SFP optic SFP-GE40KT13R15 for Juniper switches and routers
  • Juniper Compatible SFP-GE40KT13R15 | Bidirectional SFP Transceiver 1G 40km 1310/1550nm Bulk Wholesale | HYTOPTODEVICE
  • Juniper Compatible SFP-GE40KT13R15 | Bidirectional SFP Transceiver 1G 40km 1310/1550nm Bulk Wholesale | HYTOPTODEVICE
  • 40km long reach gigabit BiDi SFP transceiver tx1310rx1550 from HYTOPTODEVICE
  • Hot-swappable 1G BiDi SFP optic SFP-GE40KT13R15 for Juniper switches and routers

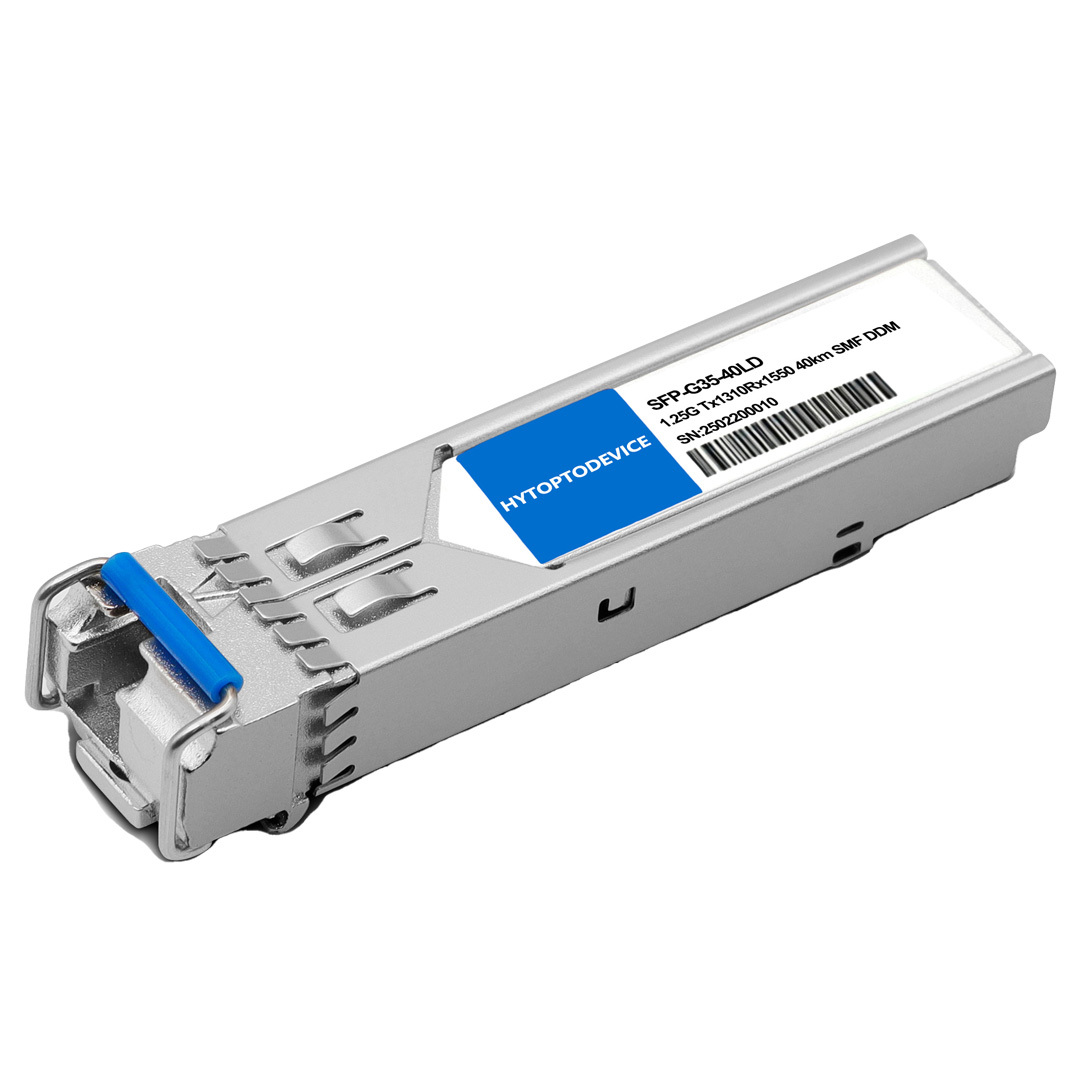

Juniper Compatible SFP-GE40KT13R15 | Bidirectional SFP Transceiver 1G 40km 1310/1550nm Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies premium SFP-GE40KT13R15 Bidirectional sfp transceiver for Juniper Networks. 40km single fiber transceiver with LC simplex connector and DDM function. support for metro & campus networks. Bulk wholesale & OEM available for global importers & distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX40-UA SFP-G43-40LD
2 Alcatel-Lucent  SFP-GIG-BX-U40 SFP-G34-10LD
3 Brocade E1MG-1G-BXUA-40 SFP-G34-20LD
4 Juniper Networks  SFP-GE40KT13R14 SFP-G35-40LD
5 Huawei LE2MGSC40DE0 SFP-G45-80LD
6 Cisco GLC-BX40-U-I SFP-G45-1BLD
7 Brocade E1MG-1G-BXU-40
8 Juniper Networks  SFP-GE40KT13R15
Description

Juniper Compatible SFP-GE40KT13R15 Bidirectional SFP Transceiver 40km
(SMF, 1310nm-TX/1550nm-RX, Simplex LC, DOM)

Product Overview

This professional single fiber bidirectional sfp transceiver SFP-GE40KT13R15 from HYTOPTODEVICE supports 40km stable transmission over single-mode fiber. It adopts 1310nm TX / 1550nm RX wavelength and standard LC simplex plug, fully compliant with SFP MSA, SFF-8472, IEEE 802.3ah, RoHS, CE, FCC. The 1000BASE-BX40-U bidi sfp transceiver is ideal for enterprise campus networks, ISP backbone links and long-distance gigabit fiber connections.

Key Technical Specifications

Juniper Compatible

SFP-GE40KT13R15

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1550nm Max Distance 40km
Connector Simplex LC Transmitter Type 1310nm DFB
Cable Type SMF Receiver Type PIN
TX Power -5.0~0dBm Receiver Sensitivity < -24.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines


Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1550 BiDi SFP Module requires a counterparty TX1550/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 40km single-fiber links. For lab testing or field deployment under 15km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List and Supported Devices

All HYTOPTODEVICE SFP-GE40KT13R15 sfp bidi transceivers pass real hardware and actual device tests at compatibility test lab before delivery. Relevant test videos are available upon request.100% compatible with mainstream Juniper gigabit switches and routing devices;Perfect plug-and-play replacement for original SFP-GE40KT13R15 optics on Juniper enterprise switches;Stable operation on Juniper access, aggregation and core switches for fiber networking systems.
1.Juniper Compatibility – Supported Models
  • Juniper EX Series Ethernet Switches: EX2200, EX2300, EX3300, EX3400, EX4200, EX4300, EX4600, and EX9200 Series.

  • Juniper SRX Series Firewalls: SRX110, SRX210, SRX220, SRX300, SRX320, SRX340, SRX345, SRX550, and SRX1500 Series.

  • Juniper MX Series 3D Universal Edge Routers: MX5, MX10, MX40, MX80, MX104, MX204, MX240, MX480, and MX960 (via supported 1G/10G MIC/MPC line cards).

  • Juniper ACX Series Universal Metro Routers: ACX1000, ACX1100, ACX2100, and ACX2200 Series.

2.Multi-Brand Cross-Platform Compatibility

This reliable 1G bidirectional sfp transceiver features excellent cross-brand interoperability. It maintains consistent performance in multi-vendor network environments, well suited for system integrators and bulk purchasers. The universal BiDi module works seamlessly with most mainstream network brands without compatibility failures.

Primary Application Scenarios

 The Juniper compatible bidirectional sfp transceivers must be paired to use in the below application scenarios:
1.40km single fiber BiDi SFP deployment for metro ISP networks: This long-reach SFP bidi transceiver saves fiber resources and ensures reliable long-distance data transmission for ISP backbone links.
2. Gigabit BiDi SFP for campus enterprise networks: The LC simplex BiDi SFP module fits campus switch interconnection, optimizing fiber cabling for large local area networks.
3. Long-distance fiber links using 1310/1550nm BiDi SFP transceiver: Suitable for remote branch connection and cross-building fiber networking with 40km reach.
4. DDM-enabled BiDi SFP for monitored network links: Works for managed network systems that require real-time optical parameter monitoring via DOM/DDM function.
5. Cost-effective single fiber SFP bidi transceiver for system integration: Perfect for network project contractors and bulk order users to cut cabling and hardware costs.

Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 40km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1000BASE-BX BIDI sfp transceiver 40KM SMF

Core Product Features

1. Expand Your Network at Half the Cost

Why lay two fibers when one will do? Our BiDi transceiver carries full-duplex traffic over a single strand, eliminating the need for extra cabling and switch ports. Compatible with leading campus switches and ready to use out of the box, it's the fastest, most affordable way to scale.
hytoptodevice 40km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Fiber Capacity Without Laying a Single New Strand

Running out of fiber in your campus network? This BiDi transceiver carries both transmit and receive over one strand using integrated WDM technology. No redundant wiring, no extra cable pulls—just more capacity from the infrastructure you already own. Plug in and scale.

Tx1310 Rx1490 40km simplex LC bidi transceiver module from hytoptodevice

3.High-Density, Low-Power Connectivity for Data Centers

Deliver full-duplex Gigabit Ethernet in a compact SFP form factor without straining your power budget. By combining low power draw with reduced heat output, this BiDi SFP lowers cooling overhead and enables higher port density—so you can scale your data center fabric without expanding either your fiber plant or your power footprint.

hytoptodevice supply bulk wholesale 1000base-bx 40km  BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 40km SMF simplex lc

5. Tested to Failure, Shipped with Confidence
Rigorous in-house testing in our Test Center on every unit—signal integrity, BER, and temperature cycling. We push it past spec so your network doesn't have to. Built for uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 40km single‑fiber operation


FAQ

Q1: Is this Juniper compatible bidirectional sfp transceiver hot-swappable for live Junos OS devices?
A: Yes. All HYTOPTODEVICE compatible SFP-GE40KT13R15 bidirectional sfp transceiver supports full hot-swap capability. It can be inserted or removed from active Juniper switches and routers safely, ensuring zero system interruption and no traffic downtime during maintenance.

Q2: Will deploying a third-party bidirectional sfp transceiver void original Juniper hardware warranty?
A: No. Based on global warranty protection regulations including the Magnuson-Moss Act, using qualified aftermarket optics will not invalidate your Juniper device warranty. HYTOPTODEVICE pre-tested bidirectional sfp transceiver offers fully compliant performance with no warranty risks.

Q3: How to resolve “unsupported transceiver” warnings for bidirectional sfp transceiver on Junos OS?
A: The NON-JNPR prompt on Junos OS is a non-critical informational label and does not affect link stability. HYTOPTODEVICE bidirectional sfp transceiver comes with optimized EEPROM programming, ensuring full initialization, normal diagnostics and stable operation without extra configuration commands.

Q4: What wavelength pairing rules apply to 40km bidirectional sfp transceiver for Juniper links?
A: The HYTOPTODEVICE SFP-GE40KT13R15 bidirectional sfp transceiver features Tx1310nm/Rx1550nm upstream wavelength. To establish a valid 40km single-fiber link, it must be paired with the opposite Tx1550nm/Rx1310nm bidirectional sfp transceiver at the far end of the fiber line.

Q5: Can two identical SFP-GE40KT13R15 bidirectional sfp transceiver work back to back?
A: No. Dual identical T13R15 bidirectional sfp transceiver cannot establish connectivity. Both units transmit at 1310nm and receive at 1550nm, causing signal mismatch and permanent link down status. HYTOPTODEVICE always recommends cross BIDI pairing for valid transmission.

Q6: What fiber connector type does this 40km bidirectional sfp transceiver require?
A: This HYTOPTODEVICE bidirectional sfp transceiver adopts simplex LC single-fiber design. It only requires one single-mode fiber strand for bidirectional data transmission and does not support or need duplex LC patch cords, effectively saving fiber resources for Juniper network deployment.

Q7: What environment temperature is supported by commercial grade bidirectional sfp transceiver?
A: HYTOPTODEVICE SFP-GE40KT13R15 is a commercial-grade bidirectional sfp transceiver rated for stable 0℃ to 70℃ operation. It is perfectly optimized for indoor data centers, temperature-controlled server cabinets and standard enterprise network environments.

Q8: Is this 40km bidirectional sfp transceiver compatible with multi-mode fiber cabling?
A: No. This HYTOPTODEVICE bidirectional sfp transceiver is optically calibrated exclusively for OS1/OS2 single-mode fiber. Its wavelength and receiver sensitivity do not support multi-mode fiber, which will result in link failure and unstable optical signals.

Q9: Is an optical attenuator required for short-distance links using 40km bidirectional sfp transceiver?
A: Yes. This high-power 40km bidirectional sfp transceiver outputs up to 3dBm optical power. For network links shorter than 10km, HYTOPTODEVICE recommends installing a 5–10dB inline attenuator to prevent receiver saturation and ensure long-term stable module operation.

Q10: Does Juniper compatible bidirectional sfp transceiver support DOM optical diagnostics on Junos OS?
A: Yes. Every HYTOPTODEVICE bidirectional sfp transceiver is built with complete DOM/DDM monitoring functionality. Users can accurately check real-time optical power, temperature and voltage status via standard Junos CLI commands for efficient link monitoring and fault troubleshooting.

Packaging & Custom OEM Solutions

Each BiDi module arrives individually sealed in ESD-safe anti-static packaging, ready to go straight onto your shelf. Distributors, wholesalers, and integrators can leverage our flexible OEM program: custom logos, private labeling, branded packaging. We handle the quality; you own the customer relationship.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
