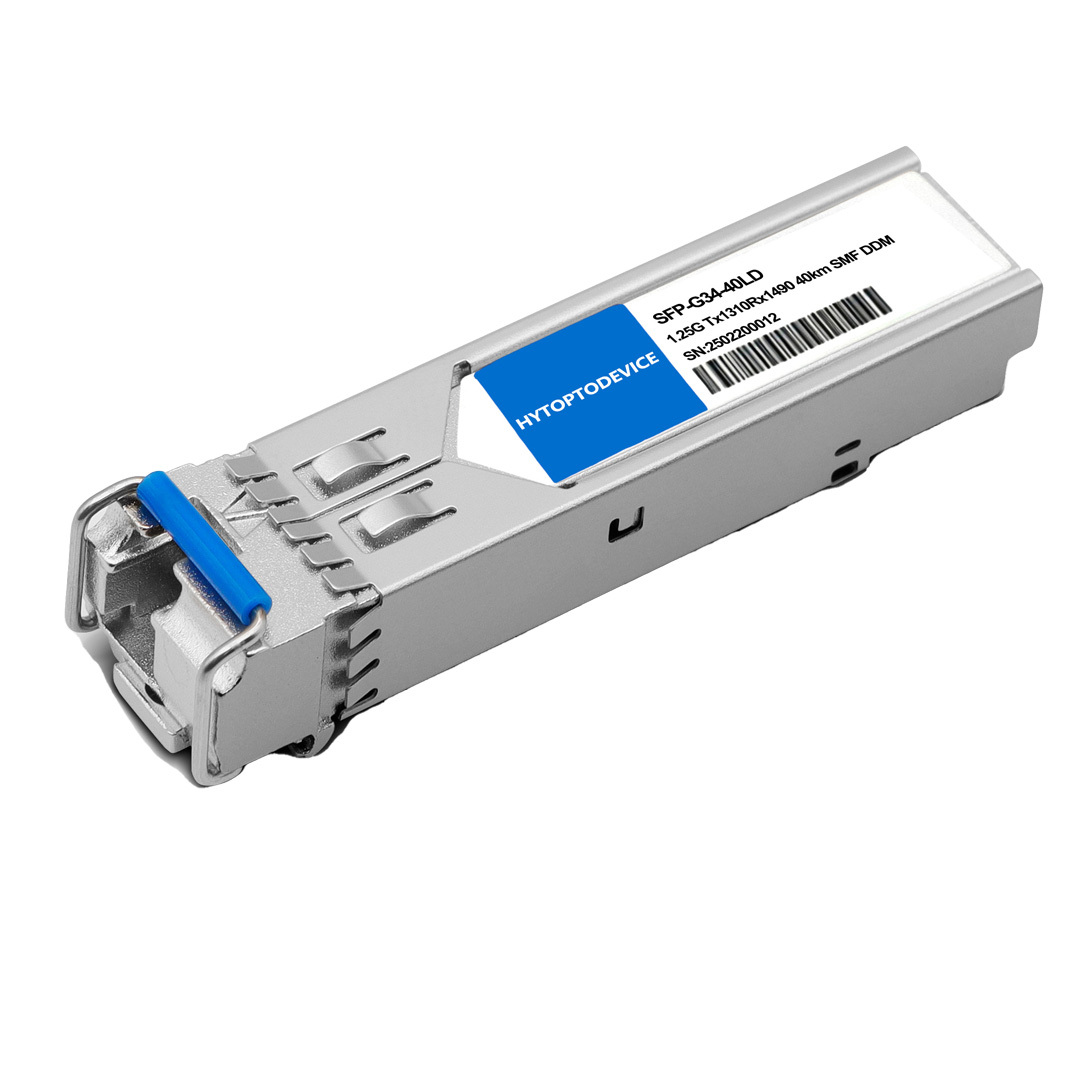

• HYTOPTODEVICE SFP-GE40KT13R14 1G SFP BiDi transceiver 1310/1490nm 40km LC simplex for Juniper

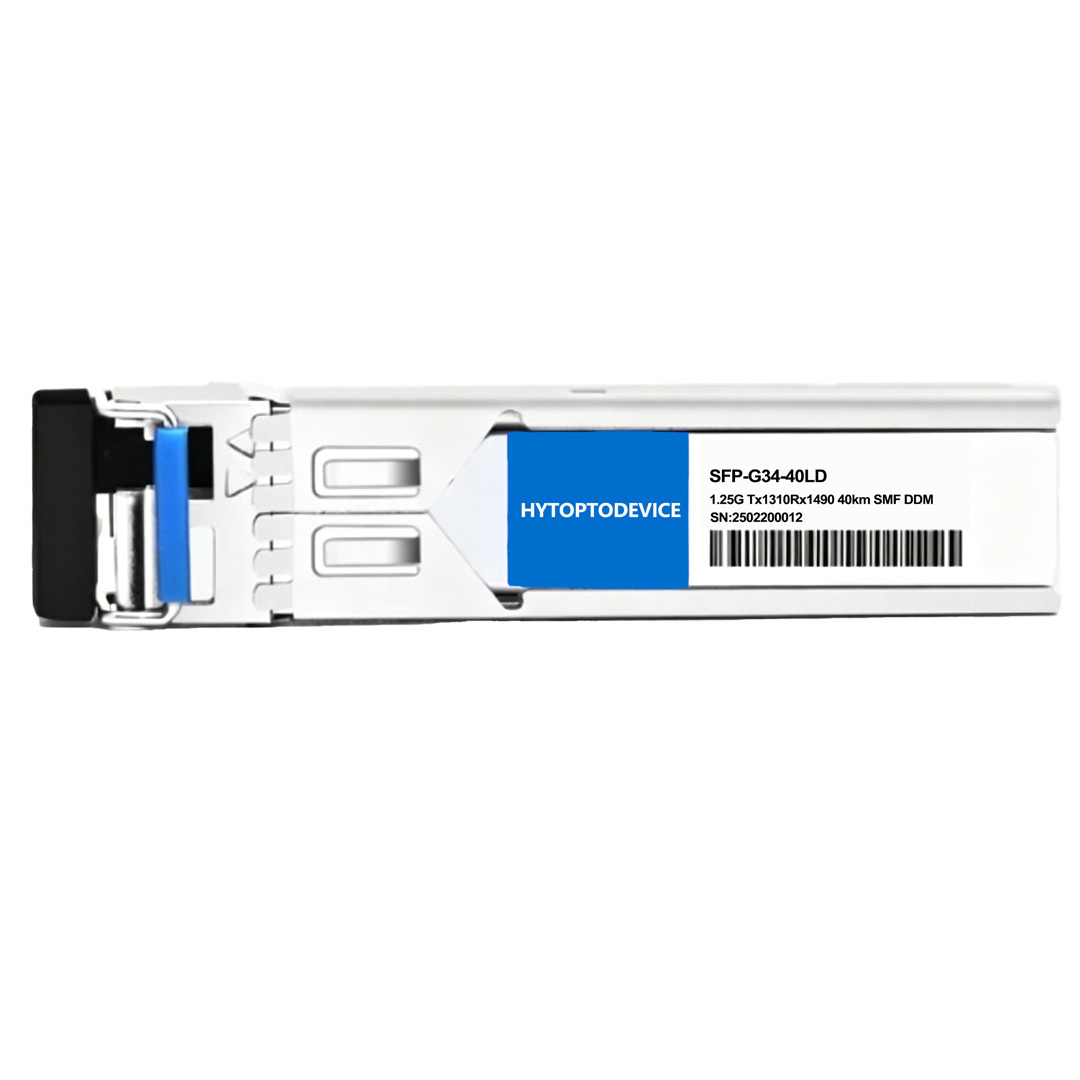

  • Juniper compatible single fiber BiDi SFP module SFP-GE40KT13R14 with DDM DOM monitoring

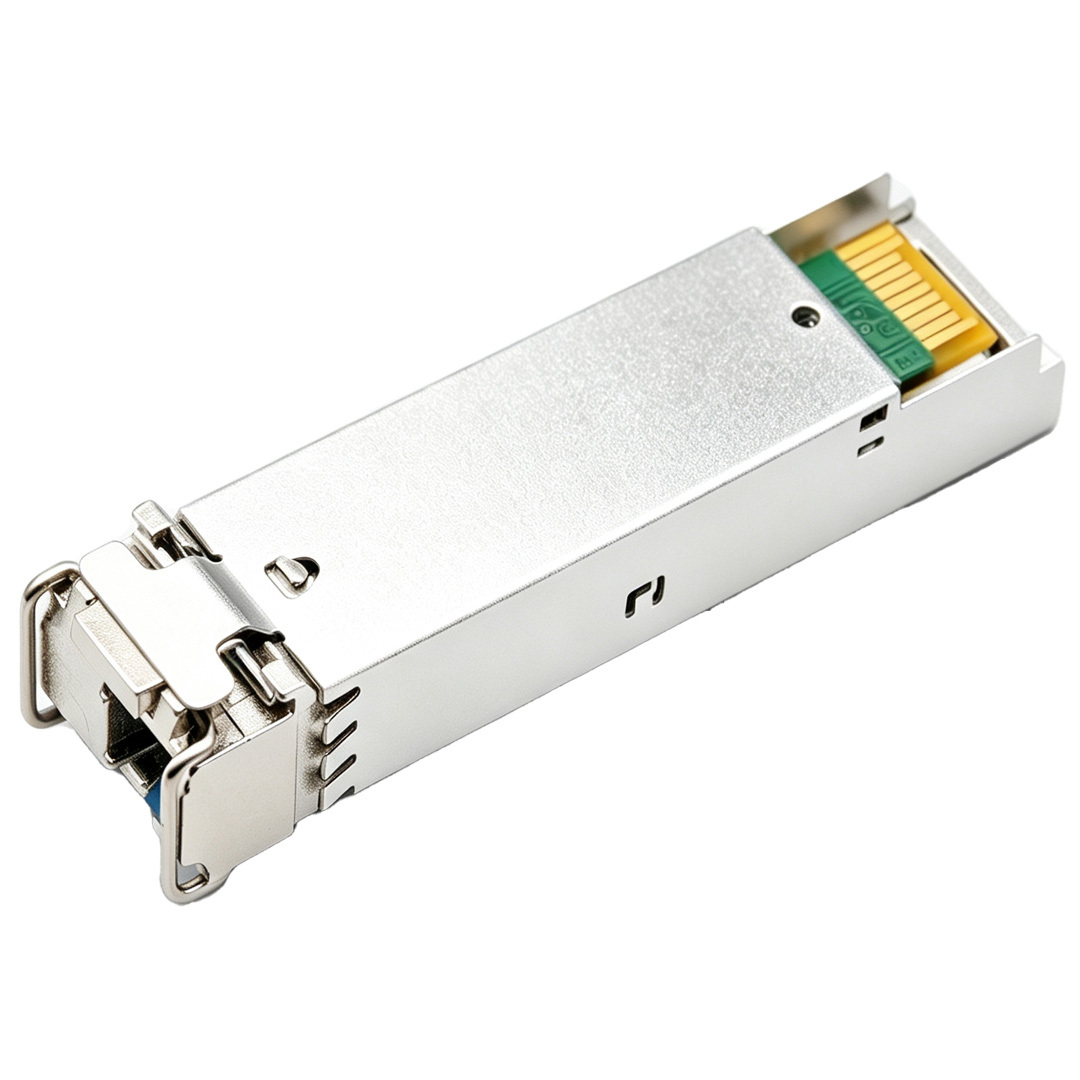

  • 40km long reach gigabit BiDi SFP transceiver SFP-GE40KT13R14 from HYTOPTODEVICE

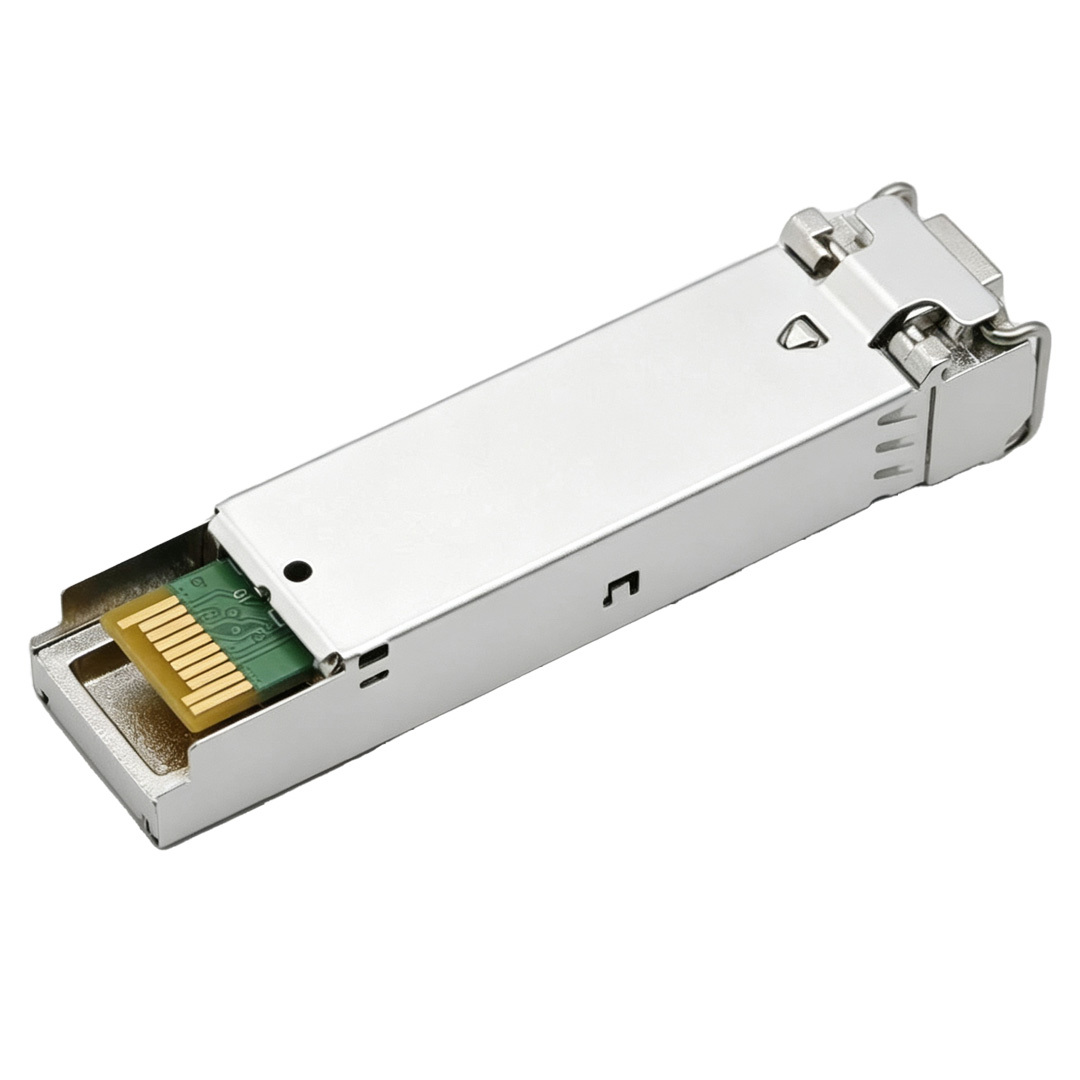

  • Hot-swappable 1G BiDi SFP optic SFP-GE40KT13R14 for Juniper switches and routers
  • HYTOPTODEVICE SFP-GE40KT13R14 1G SFP BiDi transceiver 1310/1490nm 40km LC simplex for Juniper
  • Juniper compatible single fiber BiDi SFP module SFP-GE40KT13R14 with DDM DOM monitoring
  • 40km long reach gigabit BiDi SFP transceiver SFP-GE40KT13R14 from HYTOPTODEVICE
  • Hot-swappable 1G BiDi SFP optic SFP-GE40KT13R14 for Juniper switches and routers

Juniper Compatible SFP-GE40KT13R14 | 1G SFP BiDi Transceiver 40km 1310/1490nm Bulk & OEM HYTOPTODEVICE

HYTOPTODEVICE provides fully tested SFP-GE40KT13R14 BiDi SFP for Juniper. 40km single fiber transceiver with LC simplex connector and DDM function for enterprise & ISP networks. support for metro & campus networks. Bulk & OEM available for global importers & distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX40-UA SFP-G43-40LD
2 Alcatel-Lucent  SFP-GIG-BX-U40 SFP-G34-10LD
3 Brocade E1MG-1G-BXUA-40 SFP-G34-20LD
4 Juniper Networks  SFP-GE40KT13R14 SFP-G35-40LD
5 Huawei LE2MGSC40DE0 SFP-G45-80LD
6 Cisco GLC-BX40-U-I SFP-G45-1BLD
7 Brocade E1MG-1G-BXU-40
8 Juniper Networks  SFP-GE40KT13R15
Description

Juniper Compatible SFP-GE40KT13R14 Gigabit SFP BiDi Transceiver 40km
(SMF, 1310nm-TX/1490nm-RX, Simplex LC, DOM)

Product Overview

This professional single fiber sfp bidi transceiver SFP-GE40KT13R14 from HYTOPTODEVICE supports 40km stable transmission over single-mode fiber. It adopts 1310nm TX / 1490nm RX wavelength and standard LC simplex plug, fully compliant with industry specifications. The rigorously verified optical module is ideal for enterprise campus networks, ISP backbone links and long-distance gigabit fiber connections.

Key Technical Specifications

Juniper Compatible

SFP-GE40KT13R14

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1490nm Max Distance 40km
Connector Simplex LC Transmitter Type 1310nm DFB
Cable Type SMF Receiver Type PIN
TX Power -5.0~0dBm Receiver Sensitivity < -24.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines


Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1490 BiDi SFP Module requires a counterparty TX1490/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 40km single-fiber links. For lab testing or field deployment under 15km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List and Supported Devices

All HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceivers pass real hardware and actual device tests before delivery. Relevant test videos are available upon request.100% compatible with mainstream Juniper gigabit switches and routing devices;Perfect plug-and-play replacement for original SFP-GE40KT13R14 optics on Juniper enterprise switches;Stable operation on Juniper access, aggregation and core switches for fiber networking systems.
1.Juniper Compatibility – Supported Models
  • Juniper EX Series Ethernet Switches:

    • EX2200, EX2300

    • EX3300, EX3400

    • EX4300, EX4400, EX4600

  • Juniper QFX Series Data Center Switches:

    • QFX5100, QFX5110, QFX5200

  • Juniper MX Series 5G Universal Routing Platforms:

    • MX5, MX10, MX40, MX80, MX104

    • MX204, MX240, MX480, MX960

  • Juniper SRX Series Services Gateways:

    • SRX300, SRX320, SRX340, SRX345, SRX550, SRX1500

  • Juniper ACX Series Universal Metro Routers:

    • ACX1000, ACX1100, ACX2100, ACX2200

2.Multi-Brand Cross-Platform Compatibility

This reliable 1G sfp bidi transceiver features excellent cross-brand interoperability. It maintains consistent performance in multi-vendor network environments, well suited for system integrators and bulk purchasers. The universal BiDi module works seamlessly with most mainstream network brands without compatibility failures.


Primary Application Scenarios

1.40km single fiber BiDi SFP deployment for metro ISP networks: This long-reach SFP bidi transceiver saves fiber resources and ensures reliable long-distance data transmission for ISP backbone links.
2. Gigabit BiDi SFP for campus enterprise networks: The LC simplex BiDi SFP module fits campus switch interconnection, optimizing fiber cabling for large local area networks.
3. Long-distance fiber links using 1310/1490nm BiDi SFP transceiver: Suitable for remote branch connection and cross-building fiber networking with 40km reach.
4. DDM-enabled BiDi SFP for monitored network links: Works for managed network systems that require real-time optical parameter monitoring via DOM/DDM function.
5. Cost-effective single fiber SFP bidi transceiver for system integration: Perfect for network project contractors and bulk order users to cut cabling and hardware costs.

Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity
hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 40km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1000BASE-BX BIDI sfp transceiver 40KM SMF

Core Product Features

1. Expand Your Network at Half the Cost

Why lay two fibers when one will do? Our BiDi transceiver carries full-duplex traffic over a single strand, eliminating the need for extra cabling and switch ports. Compatible with leading campus switches and ready to use out of the box, it's the fastest, most affordable way to scale.
hytoptodevice 40km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Fiber Capacity Without Laying a Single New Strand

Running out of fiber in your campus network? This BiDi transceiver carries both transmit and receive over one strand using integrated WDM technology. No redundant wiring, no extra cable pulls—just more capacity from the infrastructure you already own. Plug in and scale.

Tx1310 Rx1490 40km simplex LC bidi transceiver module from hytoptodevice

3.High-Density, Low-Power Connectivity for Data Centers

Deliver full-duplex Gigabit Ethernet in a compact SFP form factor without straining your power budget. By combining low power draw with reduced heat output, this BiDi SFP lowers cooling overhead and enables higher port density—so you can scale your data center fabric without expanding either your fiber plant or your power footprint.

hytoptodevice supply bulk wholesale 1000base-bx 40km  BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 40km SMF simplex lc

5. Tested to Failure, Shipped with Confidence
Rigorous in-house testing in our Test Center on every unit—signal integrity, BER, and temperature cycling. We push it past spec so your network doesn't have to. Built for uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 40km single‑fiber operation


FAQ
Q1: What cost-effective alternative helps cut high original Juniper optic expenses for gigabit fiber links?
A1: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver is an ideal replacement for original Juniper modules. It greatly relieves the budget pressure brought by high OEM markup, maintaining identical working performance while offering a more competitive price for network projects.

Q2: Which optical module makes full use of limited fiber resources for long-distance gigabit networking?
A2: Adopting advanced single-core transmission technology, HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver solves fiber scarcity effectively. It completes bidirectional data transmission via only one fiber strand, maximizing the value of your existing fiber infrastructure.

Q3: How to get rid of third-party optic warning prompts when using compatible modules on Juniper devices?
A3: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver eliminates vendor lock-in issues on Juniper equipment. All modules pass strict real-device testing and will not trigger annoying unsupported third-party optic alerts on official system firmware.

Q4: What optical component ensures stable transmission without packet loss over 40km long fiber runs?
A4: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver is built with a sufficient 40km professional link budget. It effectively prevents unexpected link drops and data packet loss during long-span transmission for remote network connections.

Q5: How to achieve real-time status monitoring and simplify fault troubleshooting for BiDi fiber links?
A5: Equipped with standard DDM/DOM function, HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver supports real-time tracking of optical power and operating temperature. It helps engineers locate faults quickly and end blind troubleshooting caused by power or thermal fluctuations.

Q6: Can I find a reliable BiDi module that works perfectly on newly upgraded Juniper switch models?
A6: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver resolves compatibility issues between old optical modules and modern Juniper hardware. It initializes smoothly and runs stably on the latest Juniper switches without any startup failures.

Q7: How to avoid wavelength pairing errors during on-site installation of bidirectional optical transceivers?
A7: With standardized 1310nm TX and 1490nm RX wavelength design, HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver clarifies pairing rules clearly. It removes pairing confusion and prevents wrong-wavelength installation in field deployment.

Q8: Which BiDi transceiver runs cool and avoids port shutdown in high-density switch rack environments?
A8: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver features optimized low power consumption design. It generates minimal heat under continuous operation, preventing automatic port shutdown in densely deployed switch cabinets.

Q9: What plug-and-play BiDi module supports fast network expansion without service interruption?
A9: HYTOPTODEVICE SFP-GE40KT13R14 hot-swappable sfp bidi transceiver allows direct replacement and addition of modules. It accelerates network deployment and daily maintenance with zero downtime for your entire network system.

Q10: How to select durable BiDi modules that avoid early performance decay like low-grade generic products?
A10: HYTOPTODEVICE SFP-GE40KT13R14 sfp bidi transceiver adopts premium DFB laser inside. Compared with cheap generic clones, it resists premature laser degradation and delivers outstanding long-term operational reliability for enterprise networks.

Packaging & Custom OEM Solutions

Each BiDi module arrives individually sealed in ESD-safe anti-static packaging, ready to go straight onto your shelf. Distributors, wholesalers, and integrators can leverage our flexible OEM program: custom logos, private labeling, branded packaging. We handle the quality; you own the customer relationship.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
