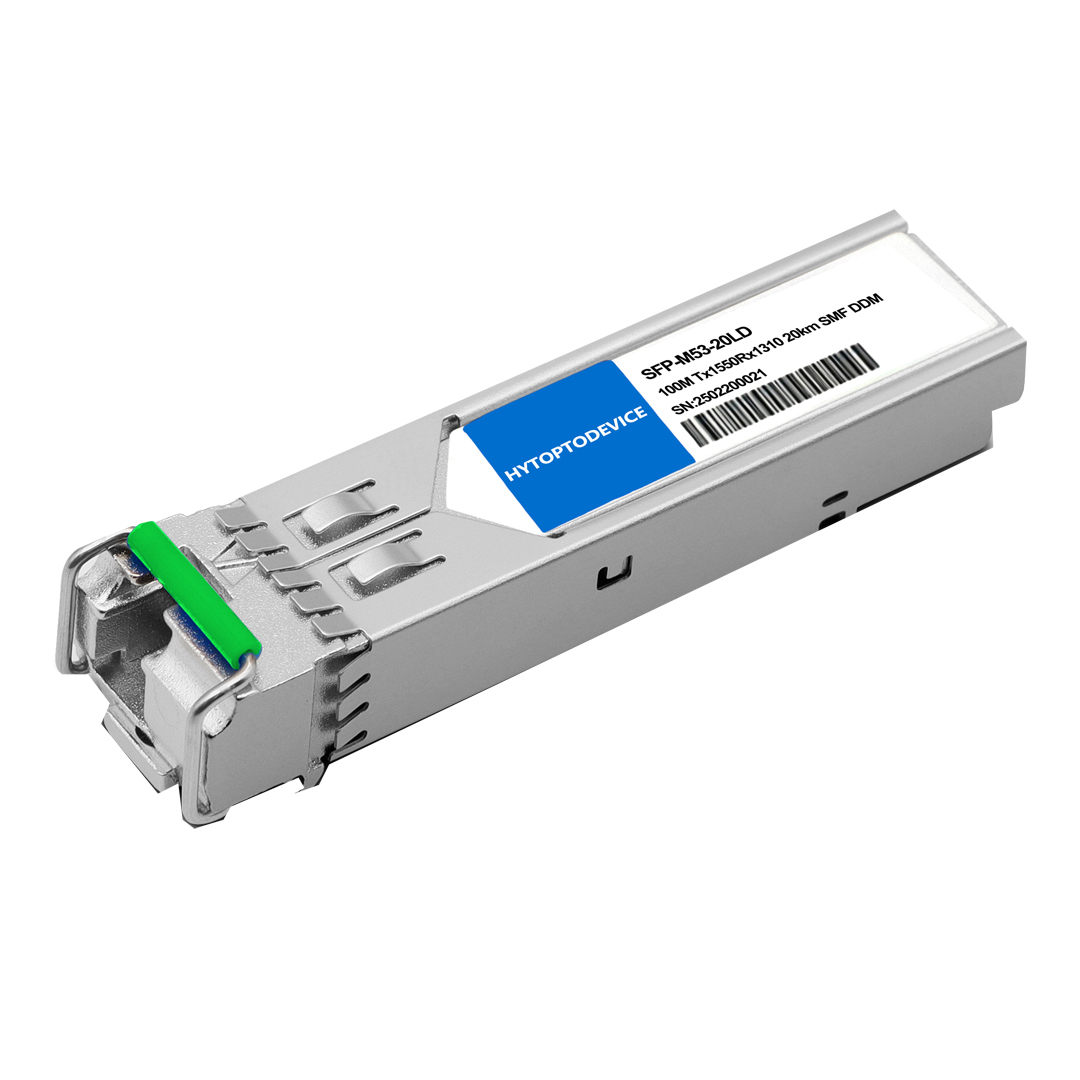

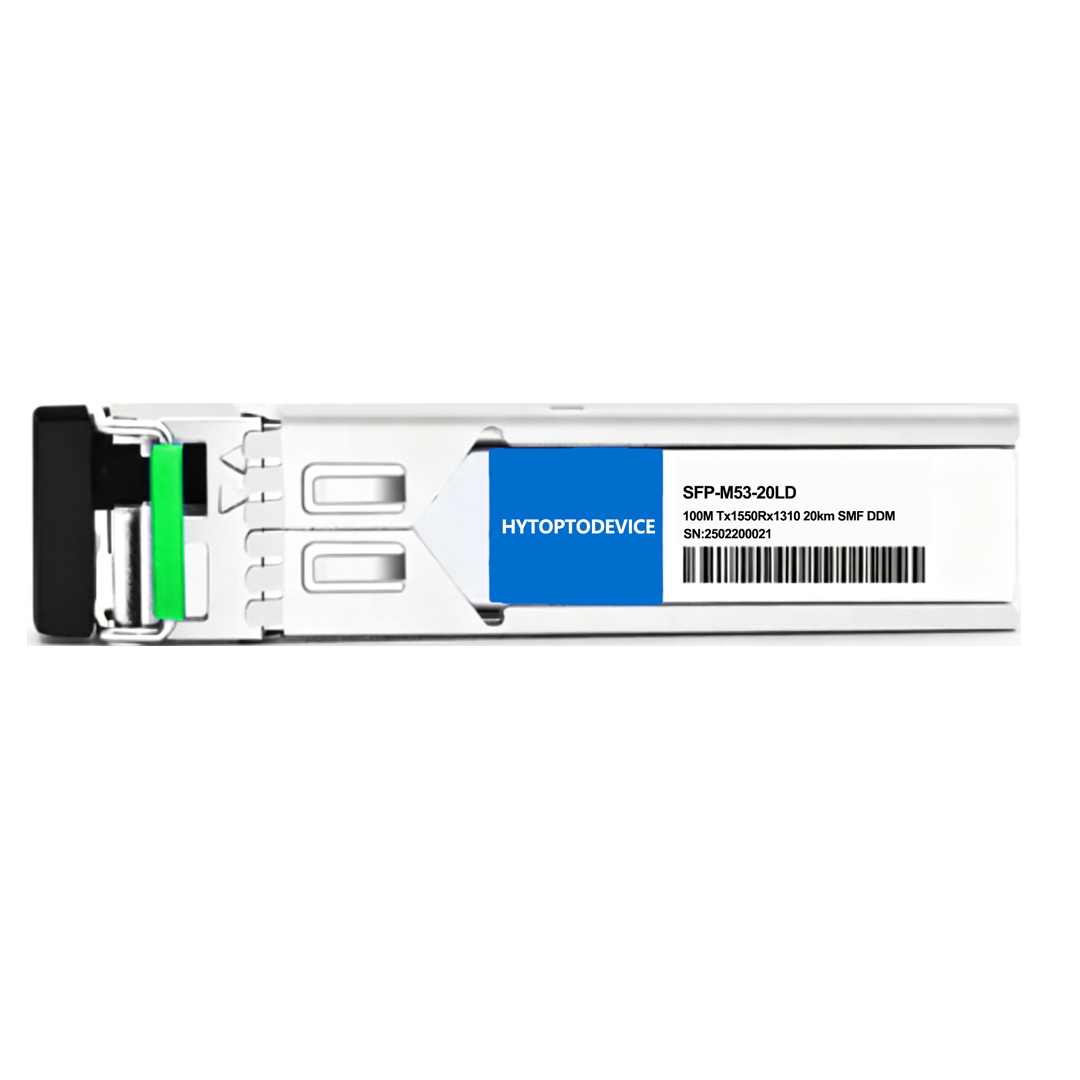

Cisco Compatible	GLC-FE-100BX-D	Vendor Name	HYTOPTODEVICE
Form Factor	SFP	Max Data Rate	155Mbps
Wavelength	TX1550nm/RX1310nm	Max Distance	15km
Connector	Simplex LC	Transmitter Type	1550nm FP
Cable Type	SMF	Receiver Type	PIN
TX Power	-14.0~-8dBm	Receiver Sensitivity	< -32.0dBm
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Usage Guidelines & Best Practices

1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1550/RX1310 BiDi SFP Module requires a counterparty TX1310/RX1550 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
3. Power Range & Short-Distance Testing This module operates with a transmit power (TX) of -14 to -8 dBm and a receiver overload threshold of -8 dBm. Since the maximum TX power does not exceed the overload limit, external optical attenuators are generally not required for short-distance connections or bench testing. However, always ensure that the received optical power (RX Power) remains strictly at or below -8 dBm to prevent receiver saturation.
4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

Full Compatibility List & Supported Devices

1. Supported Hardware & Firmware

This module delivers native zero-alarm compatibility with mainstream Cisco hardware and firmware, requiring no manual configuration or firmware upgrade. Fully supported Cisco devices are listed below:

• Cisco Switch Series: Catalyst 2960, 3560, 3750, 2800, 3800, 1900, 2900 Enterprise Fast Ethernet Switches
• Cisco Router Series: ISR 1900/2900/3900, 800/1941/2941 Series Integrated Service Routers
• Cisco Firmware Support: All mainstream IOS/IOS-XE firmware versions, no firmware upgrade or manual command activation required
• Port Adaptation: Standard 100M/1G dual-rate SFP ports, automatic rate recognition and link negotiation

2. Multi-Brand Cross Compatibility

Compliant with universal MSA standards, this BiDi module supports seamless cross-brand interoperability for mixed-vendor networking and batch replacement:

• Enterprise Brands: Huawei, Juniper, Arista, Brocade, H3C, ZTE, TP-Link, Ubiquiti and other mainstream brands
• Device Types: Enterprise switches, industrial switches, core routers, media converters and firewall devices
• Compatibility Performance: Plug-and-play operation, no link flapping, no system logs or hardware alarms

3. Free Value-Added Services

We provide exclusive free value-added services for bulk and project orders to simplify procurement and deployment:

• Free compatibility test video provision for pre-project verification
• Free DDM parameter test reports and factory aging test certificates
• Free technical guidance for BiDi paired link deployment and fault debugging
• Free customized packaging and label processing for wholesale orders
• Long-term free after-sales technical consultation and remote guidance

Primary Application Scenarios

Optimized for fiber-scarce, cost-sensitive fast Ethernet projects, widely applied in commercial, industrial and ISP scenarios:

• Enterprise Networking: Cross-building branch interconnection and campus access layer networking.
• ISP Last-Mile Access: Residential broadband deployment to reduce operator investment.
• Legacy Network Upgrade: Renew dual-fiber networks by utilizing existing fiber resources.
• Industrial Extension: Short&medium-distance factory network stable transmission.
• Cost-Effective Projects: Budget-friendly WAN and monitoring network deployment

Connectivity Solutions(Application)

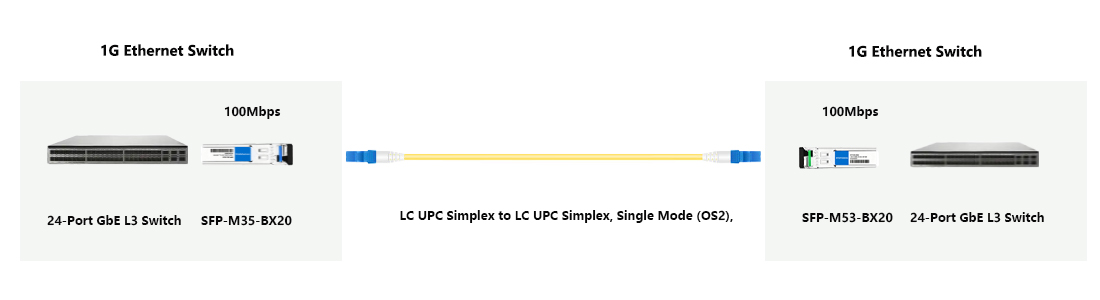

1.Switch to Switch Point-to-Point Connection

Pair BX-D/BX-U modules for switch-to-switch point-to-point interconnection. It builds stable 100Mbps 15km links, ideal for cross-building and campus branch networking with zero configuration.

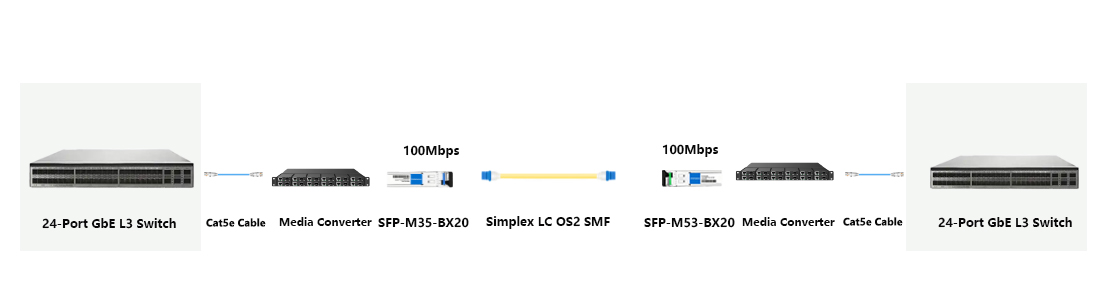

2.Switch to Media Converter Network Extension

Cooperate with media converters to break traditional cable distance limits, suitable for community broadband, factory network expansion and legacy network renovation.

Core Product Features

1.Boost Existing Fiber Utilization Using BiDi SFP

Single-fiber bidirectional design saves 50% fiber resources and cuts cabling costs for fiber-limited scenarios.



2. Low-Power Data Center Efficient Connectivity

＜1W ultra-low power consumption reduces long-term operational energy consumption steadily.

3. Rigorous Host Device Testing for Full Cross-Brand Interoperability

Each BiDi SFP transceiver undergoes full interoperability testing on Cisco, Huawei, H3C and mainstream network equipment. Batch-tested for multi-brand devices with optimized firmware for zero-alarm plug-and-play use.

4.Comprehensive Factory Testing Delivers Consistent Stable Performance

Each BiDi SFP Module pass complete factory performance tests covering optical indicators, DDM monitoring and temperature adaptability. Layered quality checks guarantee reliable, stable long-run operation and reduce on-site troubleshooting costs.

FAQ

Q1: Is this GLC-FE-100BX-D module fully compatible with original Cisco devices?

A: Fully compatible with Cisco IOS for zero-alarm plug-and-play use. Compatibility videos are available upon request.

Q2: Why does BiDi module save more fiber resources than traditional dual-fiber modules?

A: Single-fiber WDM design saves 50% fiber resources, greatly lowering cabling costs vs dual-fiber modules.

Q3: Does this 100BASE-BX-D module need a paired opposite-end module?

A: Yes. BiDi transmission requires wavelength pairing with a reverse BX-U module at the remote end.

Q4: What is the stable transmission range and core optical parameters?

A: 100Mbps transmission up to 15km over SMF. Core parameters: -5~+4dBm Tx, -32dBm sensitivity, -3dBm overload, 27dB budget.

Q5: Does this BiDi SFP module support real-time DDM monitoring?

A: Yes. Built-in DDM/DOM monitors optical power, temperature, voltage and laser current for easy O&M and fault locating.

Q6: Can this module run on 1G dual-rate SFP ports?

A: Adaptive for 100M/1G dual-rate SFP ports, not compatible with 10G SFP+ slots.

Q7: What scenarios are suitable for 15km BiDi single-fiber modules?

A: Ideal for fiber-limited scenarios: community broadband, campus networking, enterprise interconnection and legacy network renovation.

Q8: How to store and maintain unused BiDi optical modules?

A: Seal ports with dust caps, store in dry constant-temperature environment, and inspect regularly for long-term preservation.

Q9: What causes unstable links or packet loss for BiDi single-fiber transmission?

A: Common causes: mismatched wavelength, dirty end faces, loose connection, wrong fiber type or excessive splicing loss. Standard pairing and cleaning fix most link issues


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

• 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
• ISO 9001:2015 certified manufacturing facility in Shenzhen
• Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
• In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
• Dedicated pre-sales engineering support for custom configurations
• Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
• We can provide inspection and shipping videos to make you feel as if you are right here with the product.
• Private Label support - EEPROM / firmware customization support
