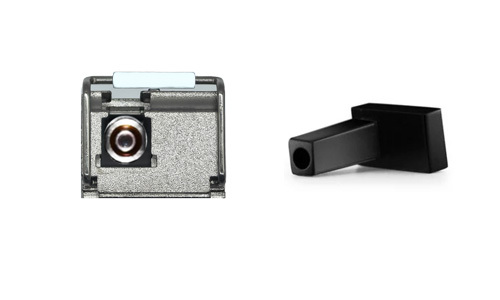

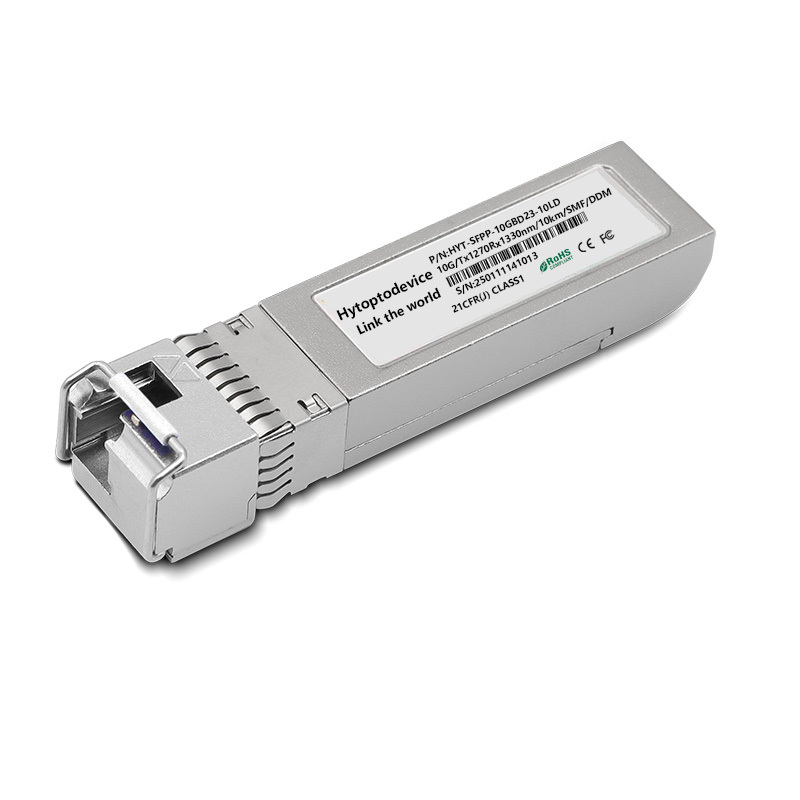

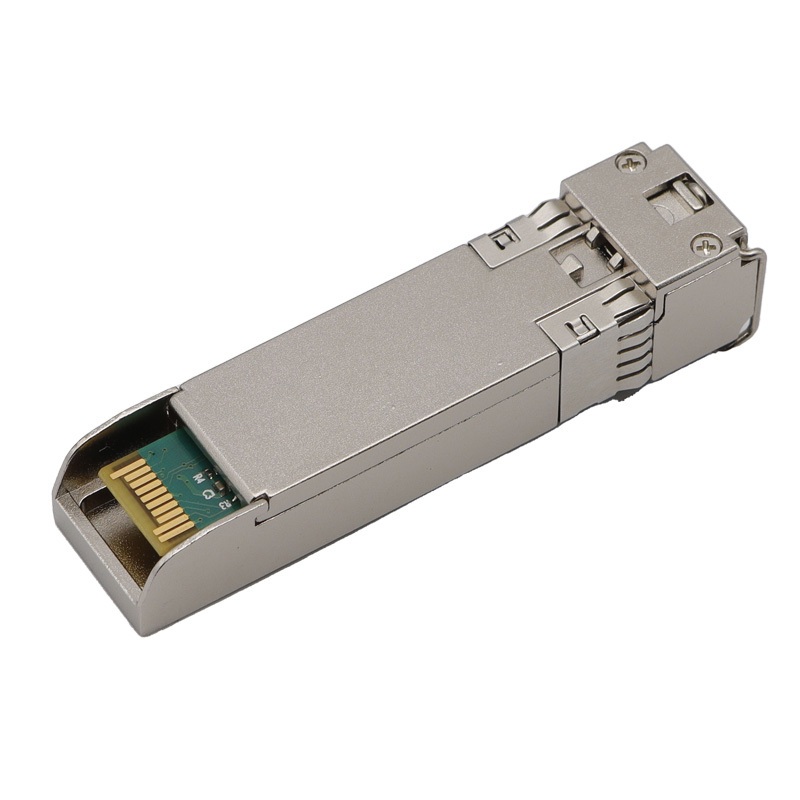

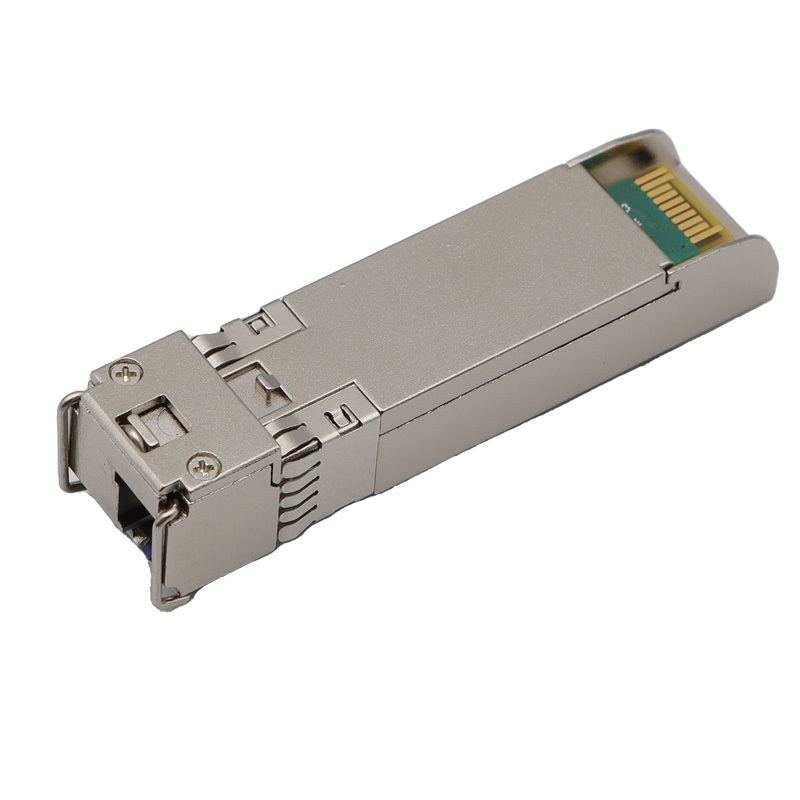

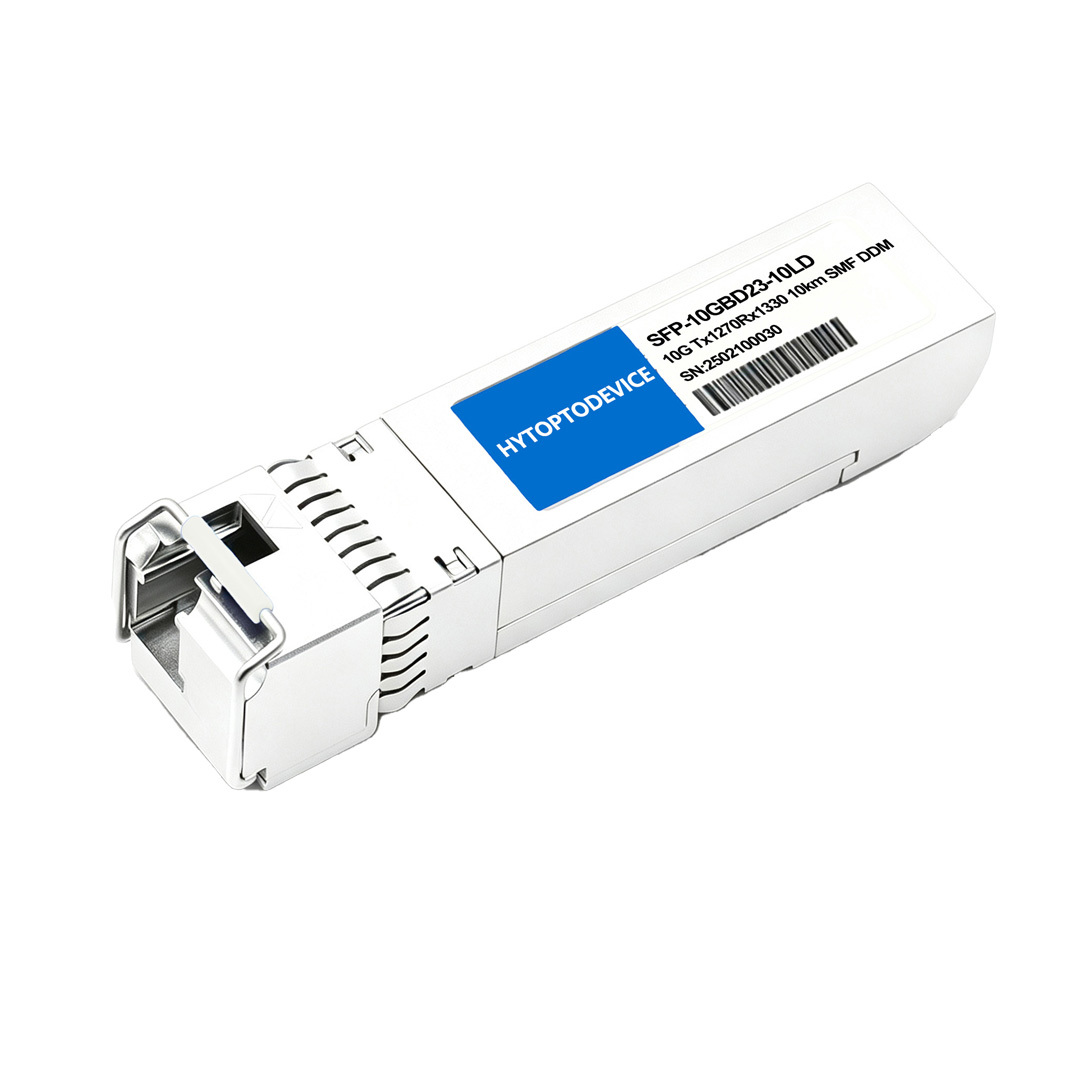

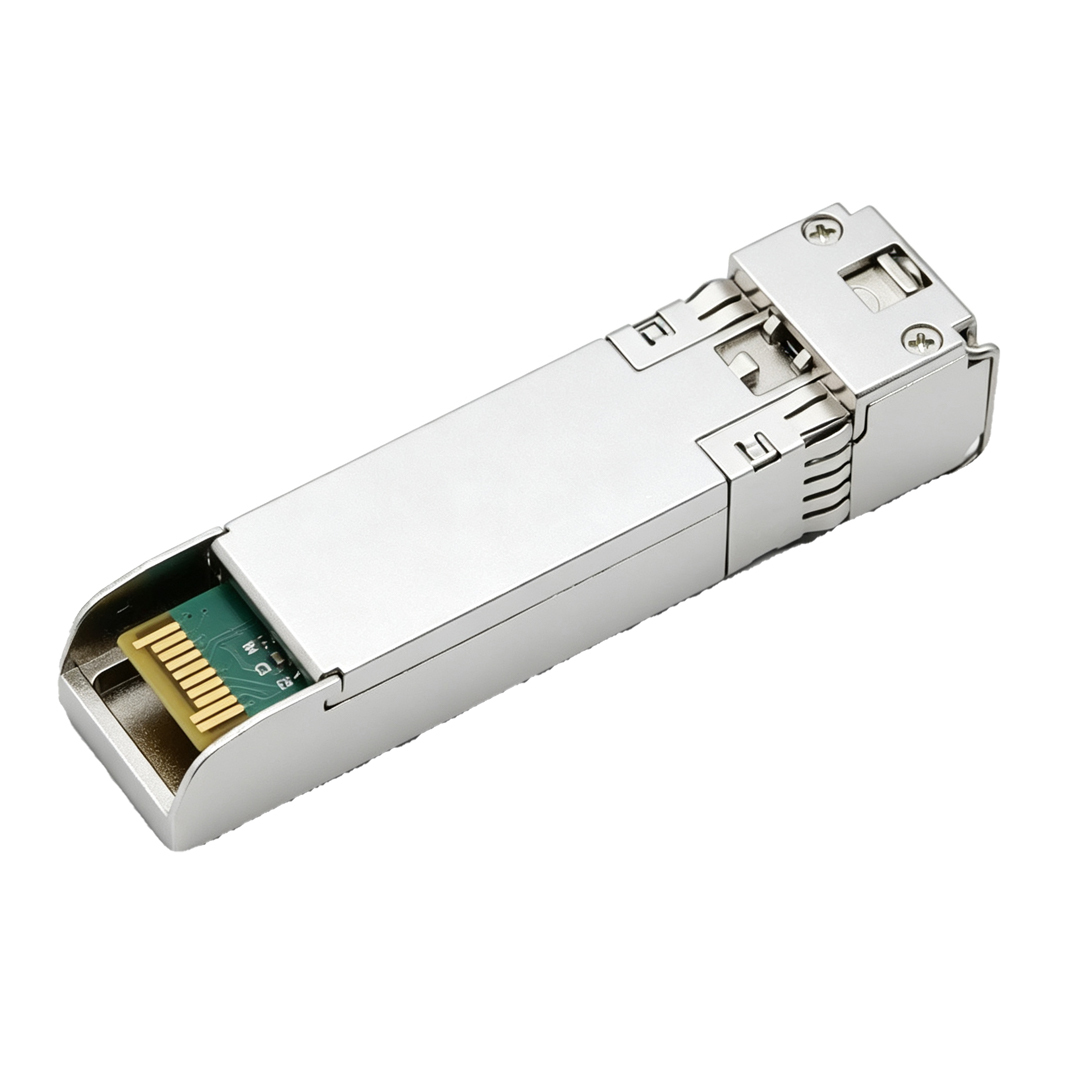

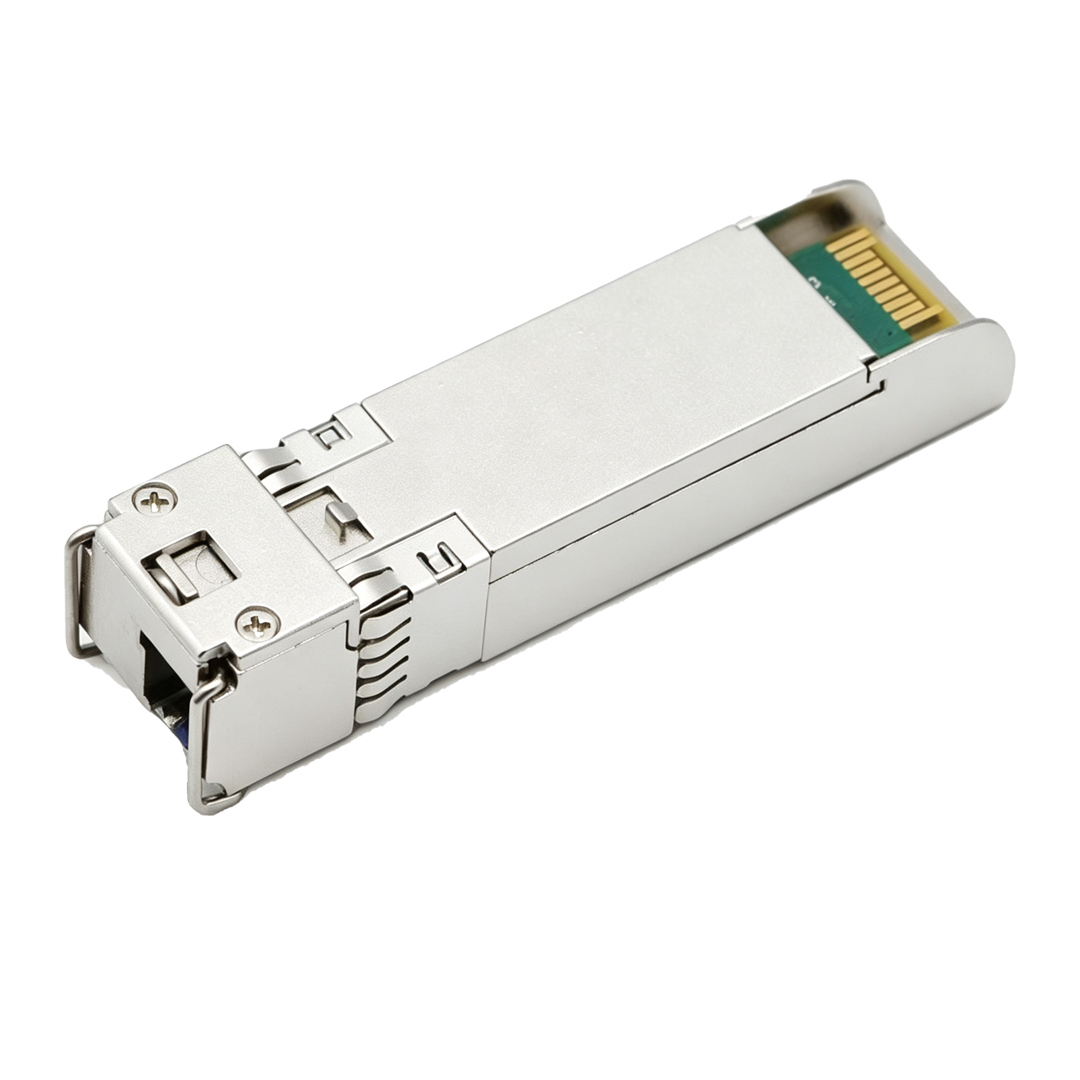

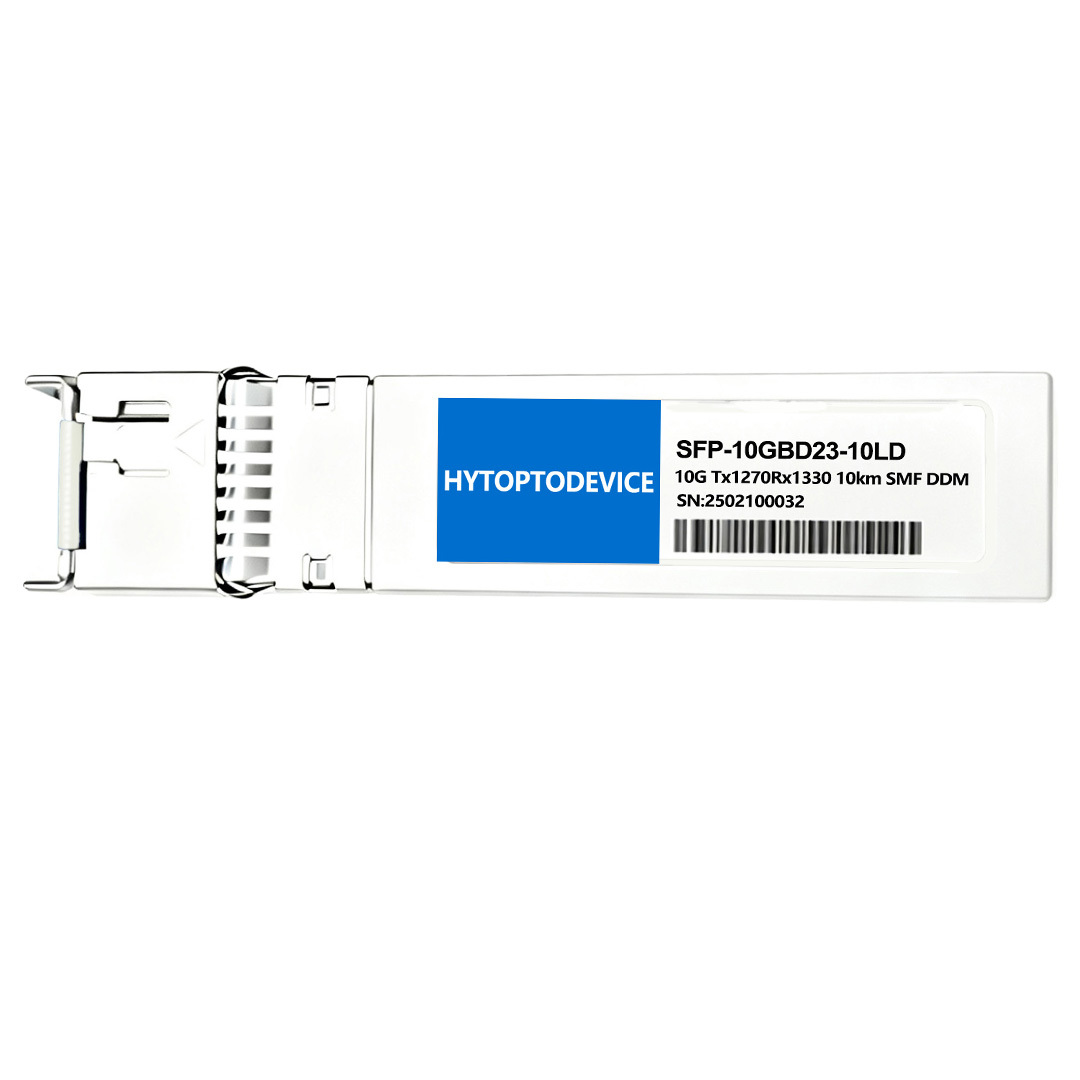

Juniper JNP-SFP-10G-BX10U Compatible SFP+ 10G BiDi Module 10GBASE-BX-U (SMF, 1270nm-TX/1330nm-RX, 10km, Simplex LC, DDM)
Product Overview
This Juniper JNP-SFP-10G-BX10U Compatible SFP+ 10G BiDi module is 10GBASE-LX 10km OS2 SMF commercial indoor BiDi transceiver, a direct drop-in replacement for Juniper OEM optics. The Single fiber SFP+ 10G Upstream module delivers stable 10GBASE-BX transmission up to 10km over OS2 single-mode fiber with 1270nm-TX/1330nm-RX simplex LC interface.The compatible SFP+ 10G BiDi module always operate in pairs with matching complementary wavelengths. Compliant with Hot Pluggable SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS standards, Featuring real-time DDM monitoring, low power consumption and high speed, the MSA compliant SFP+ 10G BiDi module is ideal for enterprise campus inter-building uplinks, metro ISP fiber backhaul, remote office interconnection and Radio & Baseband Units, etc. We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
Each HYTOPTODEVICE SFP+ 10G BiDi Module undergoes multi-stage factory quality control prior to shipment, including optical power calibration, continuous traffic load aging testing, bit error rate screening and physical plug-in validation on genuine Juniper production switches. Premium DFB laser transmitters and PIN photodiode receiver chips deliver low signal attenuation and stable long-term laser performance, while built-in power regulation circuits prevent receiver burnout on ultra-short fiber patch cords. All hardware parameters align 1:1 with official Juniper JNP-SFP-10G-BX10U design requirements and global industry compliance frameworks.
| Juniper Compatible |
JNP-SFP-10G-BX10U |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
10km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-5.0~0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols & Standards |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Critical Pairing Guidance

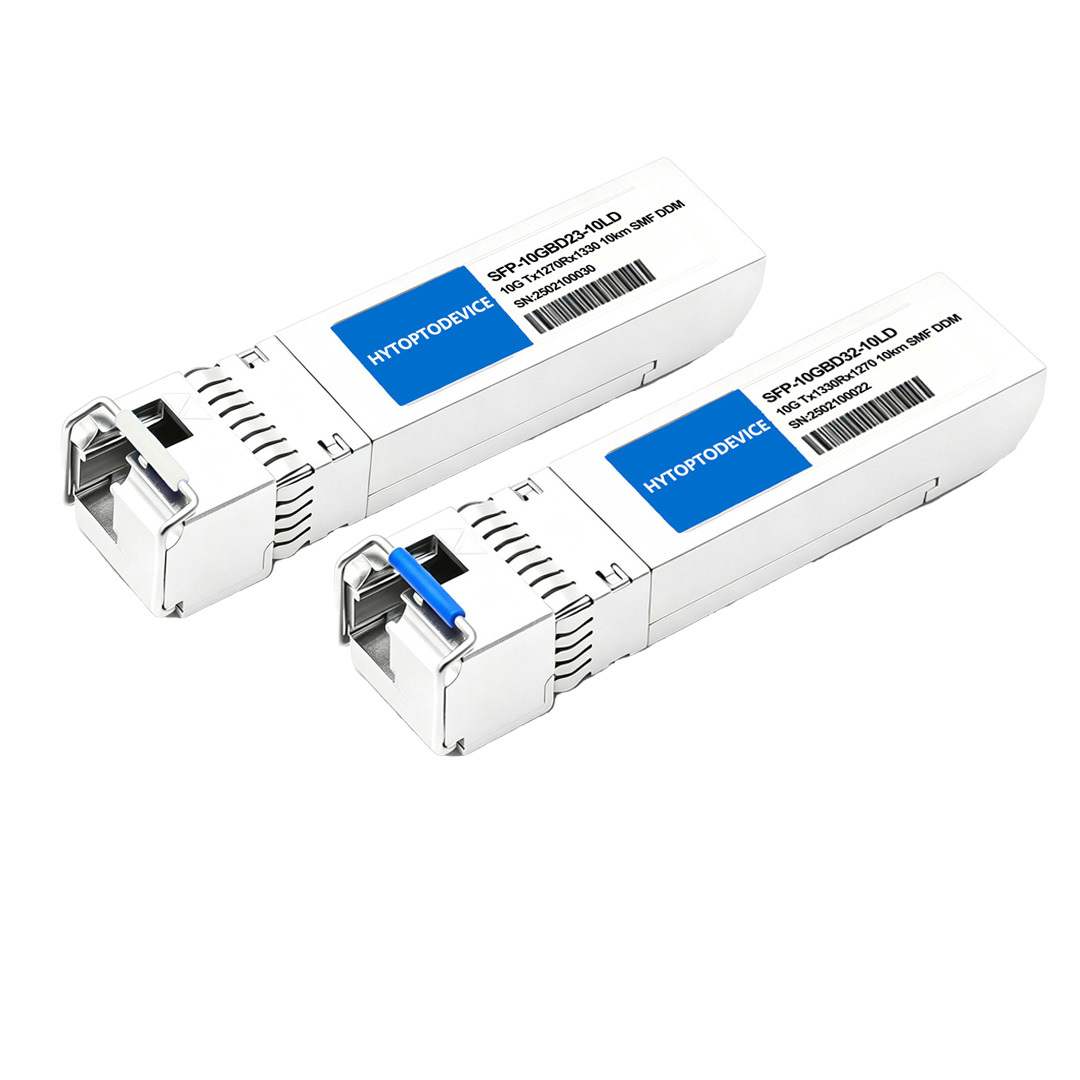

As a unidirectional fixed-wavelength bidirectional optic, this HYTOPTODEVICE SFP+ 10G BiDi Module cannot form functional full-duplex links when paired with an identical TX1270/RX1330 module. It must be matched with the complementary JNP-SFP-10G-BX10D variant (1330nm-TX / 1270nm-RX) at the opposite fiber termination point to separate upstream and downstream signal wavelengths and avoid complete link failure. HYTOPTODEVICE provides exclusive bundled discount pricing for paired bulk orders of matching BiDi transceiver sets, ideal for system integrators completing campus and ISP network turnkey projects. Custom long-distance 20km, 40km and 60km BiDi module variants are available upon OEM bulk order quote request for specialized extended-span networking deployments.
The Required Matching Pair here: 10G SFP+ BiDi Tx 1330nm / Rx 1270nm 10km module
Full Compatibility List & Supported Network Hardware
1.Juniper Networks Native Compatibility
This HYTOPTODEVICE SFP+ 10G BiDi Module delivers automatic, alarm-free plug-and-play recognition on all Juniper Junos networking hardware officially certified for the JNP-SFP-10G-BX10U transceiver specification. No manual port configuration adjustments, firmware patches or vendor license overrides are necessary, and all embedded DDM DOM monitoring functions operate natively via Juniper Junos CLI and web-based device management portals. Fully compatible Juniper device product lines:
- Juniper EX Series Campus Switches: EX4300, EX4600, EX9200 Layer 3 Access & Aggregation Series
- Juniper QFX Data Center Switches: QFX5100, QFX5200, QFX10000 Switch Fabric Series
- Juniper MX Universal Service Routers: MX104, MX240, MX480, MX960 Metro Backhaul Series
- Juniper Fiber Access Transport Platforms: ACX5448 Edge Networking Hardware
2.Multi-Brand Cross Compatibility
This HYTOPTODEVICE SFP+ 10G BiDi Module maintains robust cross-vendor interoperability to support mixed-brand indoor network architectures commonly seen in enterprise campus renovations, multi-site corporate WAN deployments and regional ISP central office construction projects. Stable signal transmission is verified across the following third-party network equipment brands:
- Cisco, Arista, H3C
- Huawei, Mikrotik, Dell PowerSwitch
- Fortinet, Brocade, Ubiquiti
HYTOPTODEVICE’s in-house engineering team provides complimentary remote technical debugging, transceiver vendor ID coding and re-programming services to resolve cross-brand hardware adaptation issues for bulk order clients and formal long-term supply contract partners. Custom identification data rewriting eliminates unrecognized transceiver error alerts on non-Juniper switch operating systems.
Primary Application Scenarios
This cost-optimized single-strand HYTOPTODEVICE SFP+ 10G BiDi Module addresses fiber resource shortage pain points across the full spectrum of indoor enterprise, data center and carrier-grade networking projects, lowering total capital expenditure for global system integrators, regional ISP stock distributors and internal enterprise IT procurement teams:
-
High-Speed Inter-Building Campus Links: Seamlessly connects adjacent structures or campus floors over localized distances up to 10km using single-strand single-mode infrastructure.
-
Data Center Leaf-Spine Distribution: Safely bridges high-speed enterprise servers and access layer structures to central core network fabrics.
-
Enterprise Edge Aggrigation: Ideal for expanding core enterprise capacities from 1G paths to high-performance 10G links without laying new physical fiber backbones.
-
FTTx Local Access Loops: Deployed inside regional distribution loops where saving fiber strand availability is critical.
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection
Pair matched BiDi modules between core and access Juniper switches for low-cost single-fiber uplinks, saving limited fiber resources for campus and data center expansion.
2.10G Switch-to-NIC Direct Connection
Create point-to-point simplex fiber links between Juniper switches and server SFP+ NICs to eliminate gigabit bandwidth bottlenecks for storage and cloud workloads.
3.10G Structured Cabling Rack Layout
Fits standard OS2 simplex single-mode structured wiring, enabling unified end-to-end 10G transmission across access, aggregation and core layers for offices and ISP central offices.
The Core Features
1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.
2.Double Your Network Capacity
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.
3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.
4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results—contact us anytime to get real testing videos.
5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—to guarantee long-term stability and prevent network downtime.
FAQ
Q1: How can I resolve a "reception error" or port flapping issue caused by a third-party compatibility mismatch?
A: Yes, HYTOPTODEVICE offers vendor ID reprogramming service for your SFP+ 10G BiDi Module. Rewritten chip identifiers eliminate cross-brand handshake failures triggering unstable port reception errors and frequent link flapping on mixed-vendor switch fabrics.
Q2: What happens if I accidentally connect a TX1270/RX1330 module to another TX1270/RX1330 module over the fiber?
A: No valid bidirectional data link will establish. Two identical HYTOPTODEVICE SFP+ 10G BiDi Module units with matching 1270/1330nm wavelengths cannot separate uplink/downlink signals, resulting in permanent low receive power alarms and zero packet forwarding.
Q3: Are these 1270nm/1330nm modules compatible with older 1310nm/1550nm BiDi standards?
A: No. The fixed WDM optical window of HYTOPTODEVICE SFP+ 10G BiDi Module cannot synchronize signal frequencies of legacy 1310/1550nm single-fiber optics, so cross-standard interconnection yields non-functional network trunks.
Q4: Does the 10km rating account for fiber splices, patch panels, and sharp bends in the real-world deployment?
A: Yes. HYTOPTODEVICE calibrates the attenuation budget of each SFP+ 10G BiDi Module to absorb typical signal loss from field splices, patch panel connectors and minor fiber bending within the full 10km single-mode span.
Q5: How does the manufacturer test for laser degradation over a 5-year operational lifecycle?
A: HYTOPTODEVICE runs continuous normal-temperature accelerated burn-in cycling on every batch of SFP+ 10G BiDi Module, simulating five years of full-traffic runtime to screen out units prone to gradual laser power decay over long deployments.
Q6: Are these modules individually tested on actual production switches, or just simulated in a lab environment?
A: Yes. Every finished HYTOPTODEVICE SFP+ 10G BiDi Module undergoes one-by-one physical plug-in validation on genuine brand switches, instead of relying solely on virtual lab signal simulation software for performance checks.
Q7: Do these modules require active airflow, or can they survive in passively cooled outdoor enclosures?
A: No. This commercial-grade HYTOPTODEVICE SFP+ 10G BiDi Module relies on forced rack airflow inside climate-controlled rooms; passive cooling in unconditioned outdoor cabinets fails to meet its thermal dissipation requirements.
Q8: Why are the DDM readings showing inaccurate or fluctuating RX power levels compared to an external light meter?
A: Minor fiber back-reflection and short-span signal resonance create minor real-time value swings for the internal DDM sensor chip of HYTOPTODEVICE SFP+ 10G BiDi Module, while standalone optical power meters output static offline measurement results.
Q9: Can I run 10G BiDi traffic over older OM3/OM4 Multi-Mode Fiber (MMF) if I use a mode-conditioning patch cable?
A: No. HYTOPTODEVICE SFP+ 10G BiDi Module is designed exclusively for single-mode OS2 fiber; mode-conditioning jumpers cannot correct modal dispersion to deliver stable 10G transmission over legacy OM3/OM4 multi-mode cabling.
Q10: Can this module handle full line-rate 10Gbps bi-directional throughput simultaneously without choking?
A: Yes. The DFB laser and PIN receiver inside each HYTOPTODEVICE SFP+ 10G BiDi Module support symmetric full line-rate 10Gbps bidirectional traffic concurrently without bandwidth throttling or packet latency spikes.
Q11: Are these modules readily available in stock for immediate shipping during emergency network outages?
A: Yes. HYTOPTODEVICE maintains large ready stock of all standard SFP+ 10G BiDi Module variants, supporting fast expedited shipment to resolve urgent enterprise and ISP network outage recovery tasks globally.
Q12: Is the laser classified as Class 1 (Eye Safe) under IEC 60825-1 regulations?
A: Yes. All laser components integrated into HYTOPTODEVICE SFP+ 10G BiDi Module comply fully with IEC 60825-1 standards and carry official Class 1 eye-safe optical emission certification for indoor engineering use.
