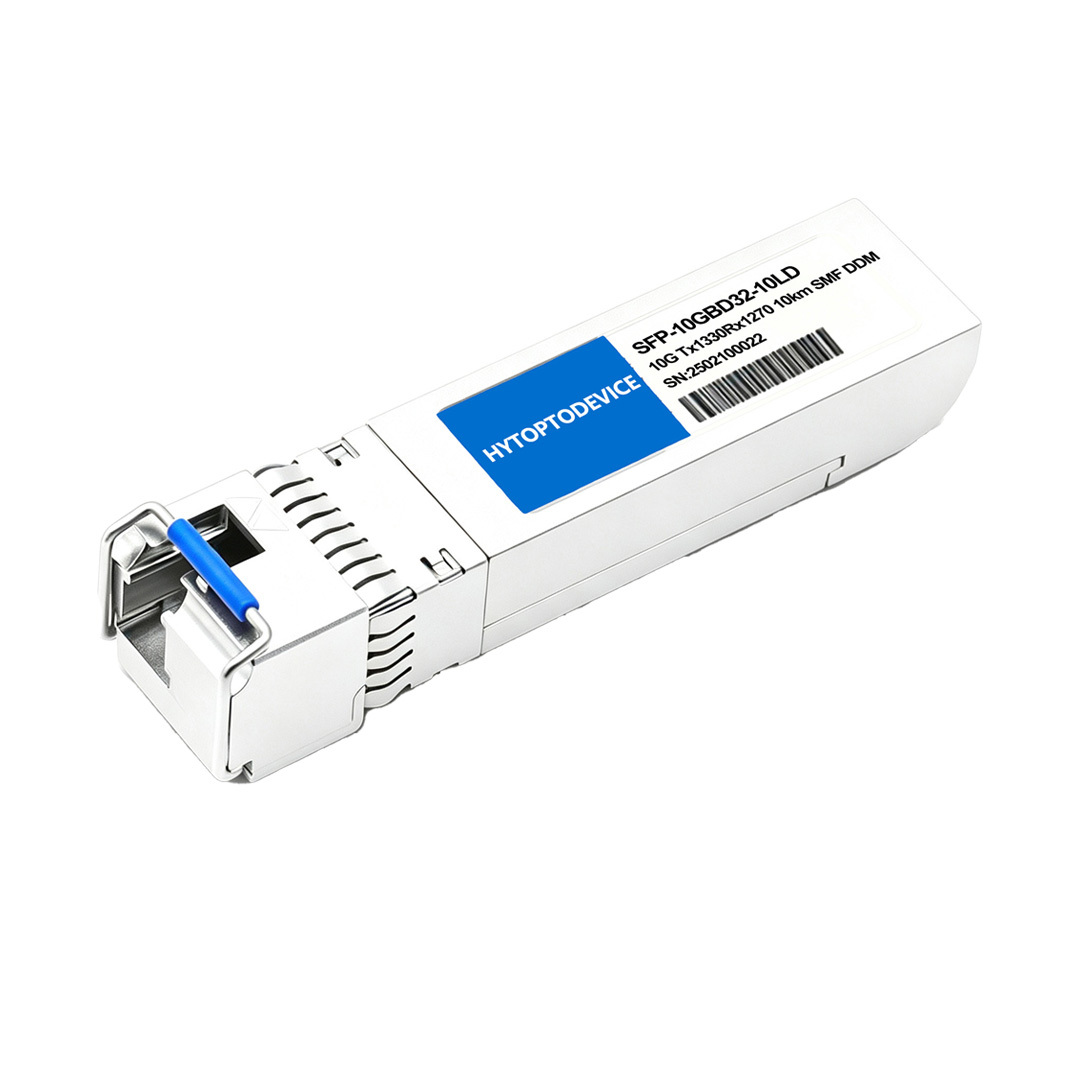

Cisco Compatible SFP-10G-BXD 10G BiDi SFP+ Transceiver 10GBASE-BX-D (SMF, 1330nm-TX/1270nm-RX, 10km, Simplex LC, DDM)
Product Overview

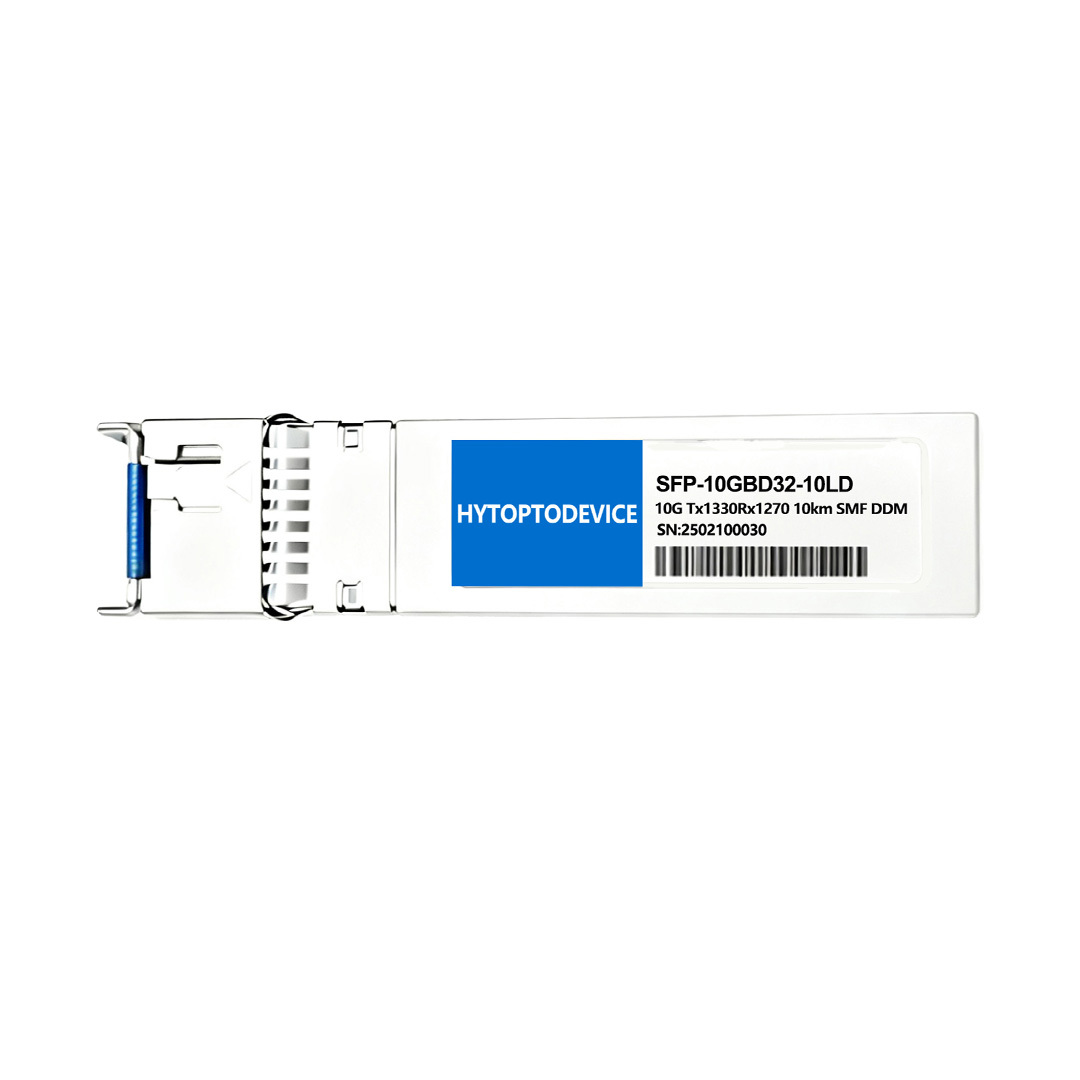

This Cisco SFP-10G-BXD Compatible 10G BiDi SFP+ Transceiver is MSA-standard single-fiber bidirectional optic, a cost-effective SFP-10G-BXD replacement for Cisco OEM optics. It delivers stable 10GBASE-BX transmission up to 10km over OS2 single-mode fiber with 1330nm-TX/1270nm-RX simplex LC interface.The 10G BiDi SFP+ modules always operate in pairs with matching complementary wavelengths. Compliant with Hot pluggable SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS standards, Featuring real-time DDM monitoring, low power consumption and high speed, the MSA compliant 10G BiDi SFP+ transceiver is ideal for enterprise campus inter-building uplinks, metro ISP fiber backhaul, remote office interconnection and small datacenter inter-switch uplinks,.etc. We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
| Cisco Compatible |
SFP-10G-BXD |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
10km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-5.0~+0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Operational Best Practices

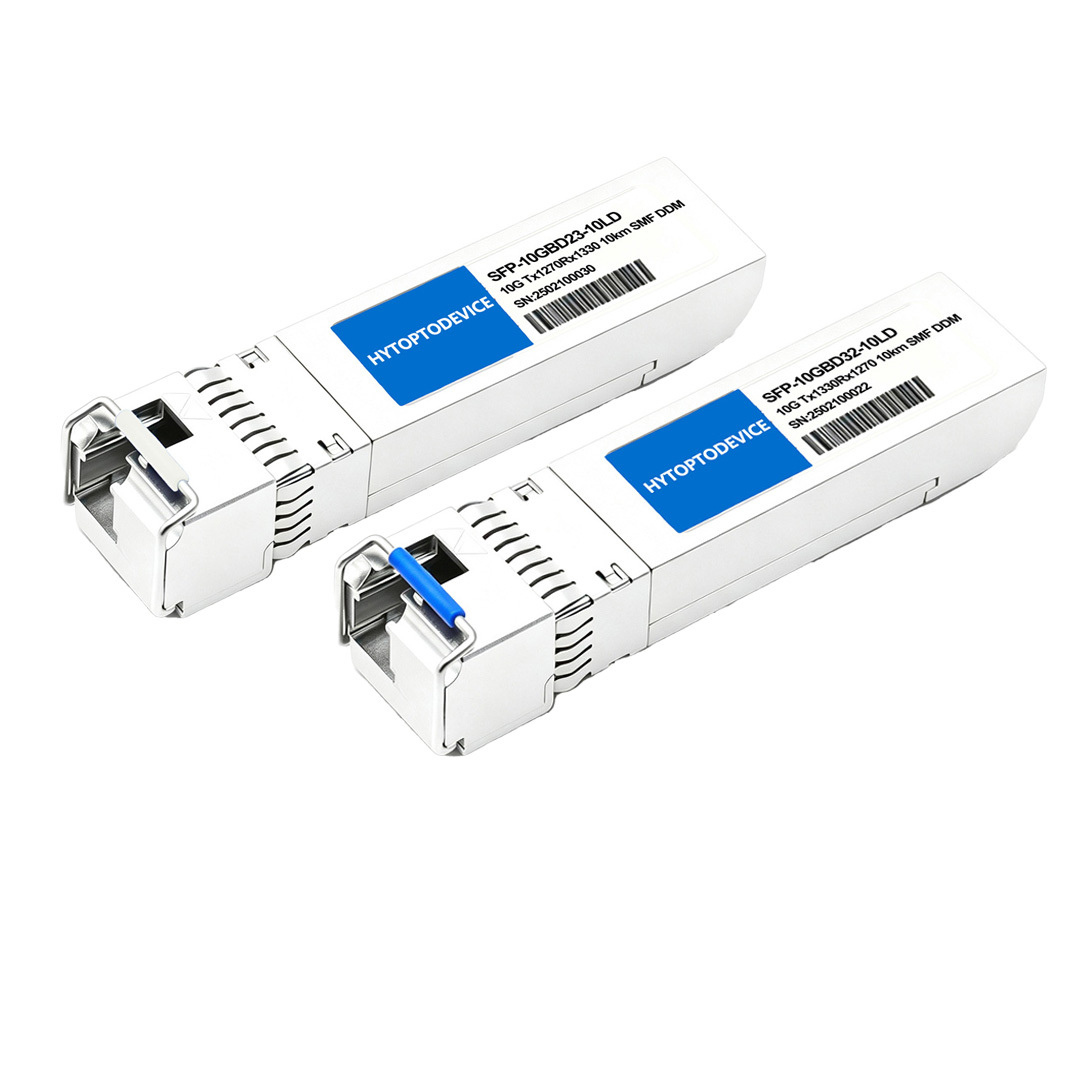

• BiDi Pairing Rule: SFP‑10G‑BXD (Tx1330/Rx1270) must pair with
SFP‑10G‑BXU (Tx1270/Rx1330) at remote end. Two BXD modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Cisco Native Compatibility
This 10G BiDi SFP+ Transceiver offers automatic plug-and-play recognition on all Cisco IOS hardware supporting SFP-10G-BXD. No configuration changes are needed, and full DDM monitoring functions work out of the box. Compatible Cisco devices:
- Cisco Catalyst Switches: 3650, 3850, 9200, 9300 Series
- Cisco ISR Integrated Service Routers: 4300, 4400, 9000 Series
- Cisco ASR Metro Aggregation Routers: 1001-X, 1002-X Series
- Cisco Fiber Access Platforms: NCS 540
2.Multi-Brand Cross Compatibility
This 10G BiDi SFP+ Transceiver delivers stable interoperability for mixed-vendor network architectures, suitable for campus, ISP and system integration projects. Supported brands include Cisco, Huawei, Juniper Networks, Arista, HPE, H3C and other mainstream brands
Primary Application Scenarios
This cost-saving single-strand 10G BiDi SFP+ Transceiver covers a full range of enterprise, datacenter and carrier networking projects, solving fiber shortage problems and lowering overall project expenditure for global system integrators, ISP distributors and enterprise IT departments.
- Multi-building enterprise campus network renovation, reusing idle single fiber to avoid new cable construction costs
- Metro ISP fiber access and business line backhaul, suitable for outdoor equipment boxes and central office long-term operation
- Remote branch WAN interconnection, transmitting office data, video conferences and cloud system traffic via limited reserved fiber
- Small & medium datacenter inter-switch uplinks, saving scarce rack fiber port resources to reduce operation expenses
- System integrator turnkey network projects, supporting neutral export packaging, private logo OEM and priority shipment for bulk purchasers
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection

2.10G Switch-to-NIC Direct Connection

3.10G Structured Cabling Rack Layout

The Core Features
1.Slash Cabling Costs with Single-Fiber BiDi
Stop paying for extra optical fibers. Our 10G BiDi SFP+ transceivers send and receive data over one single strand of fiber, helping you slash cabling infrastructure costs while fully utilizing your current deployment.

2.Instantly Double Your Bandwidth
Run out of fiber lines? No problem. By separating transmit and receive wavelengths on a single strand, this module instantly doubles your network capacity without requiring you to pull any new cables.

3.1W Low-Power 10G Link
Power consumption matters in high-density data centers. Featuring a highly efficient design, this 10G SFP+ module operates at under 1W, minimizing heat generation and lowering your overall operational and cooling costs.

4.Seamless Cross-Brand Interoperability
Eliminate compatibility headaches. We test every single module in actual, real-world mainstream switches to guarantee flawless cross-brand interoperability. Want proof? Specific Compatibility Video available upon request.

5.Rigorously Tested for Zero-Downtime Reliability
We don’t compromise on network uptime. Through comprehensive testing—including temperature, signal integrity, and optical power analysis—before leaving our Test Center. we ensure your 10G BiDi 10km links remain rock-solid and packet-loss-free.

FAQ
Q1: Will this BiDi module work seamlessly with Cisco, Juniper, or Arista switches without triggering "unsupported transceiver" errors?
A: Yes. Our Cisco SFP-10G-BXD Compatible 10G BiDi SFP+ Transceiver is pre-calibrated with standard vendor identification codes, fully compatible with Cisco, Juniper and Arista switches and never generates unsupported transceiver pop-up alerts. No extra CLI unlock or manual setup is required.
Q2: Can I use this 10G BiDi module in an SFP28 (25G) or SFP+ (10G) slot that is currently forced to 1G speed?
A: No. Our 10G BiDi SFP+ Transceiver locks at fixed 10G transmission rate. It cannot operate normally on any SFP+/SFP28 port restricted to 1Gbps, even with matching physical slot size.
Q3: Do I need to buy two identical modules, or do they have to be bought in specific TX1270/RX1330 and TX1330/RX1270 pairs?
A: No. Our SFP-10G-BXD 10G BiDi SFP+ Transceiver adopts TX1330/RX1270 wavelength. Two identical units cannot establish bidirectional links; you must pair it with the reverse wavelength SFP-10G-BXD BiDi module.
Q4: What happens if I accidentally connect a TX1330/RX1270 module to another TX1330/RX1270 module over the fiber?
A: No valid network link will be formed. If two of our TX1330/RX1270 10G BiDi SFP+ Transceivers are interconnected, zero data forwarding occurs, and the switch will continuously report low receive optical power faults.
Q5: Will this 20km BiDi module work reliably on a very short fiber patch cable (e.g., 1 meter) without burning out the receiver?
A: Yes. Our 20km Cisco SFP-10G-BXD Compatible 10G BiDi SFP+ Transceiver integrates built-in optical power regulation circuits. It operates stably on 1m ultra-short simplex fiber cords and will not burn out the internal receiver chip.
Q6: Do I need to install an optical attenuator if my actual fiber link length is only 500 meters?
A: No. Our 10G BiDi SFP+ Transceiver automatically adjusts transmit optical power for short-distance cabling. No additional external optical attenuator is needed for 500-meter fiber links, simplifying your structured wiring layout.
Q7: What is the Mean Time Between Failures (MTBF) for these BiDi modules under continuous 100% traffic load?
A: Yes, our Cisco compatible 10G BiDi SFP+ Transceiver supports long-term full-load operation. Equipped with premium laser chips, its MTBF exceeds 1,000,000 hours under sustained 10G full-bandwidth traffic.
Q8: Why do some cheap BiDi modules fail or drop packets after 6 to 12 months of operation?
A: No, low-cost generic BiDi transceivers cannot match our quality standard. They use uncalibrated laser chips without temperature compensation, leading to frequent packet loss and early failure within one year, while our 10G BiDi SFP+ Transceiver passes complete aging tests to avoid such defects.
Q9: What is the maximum power consumption (Watts) per module, and will it overheat a fully loaded 48-port switch?
A: No, overheating will not happen. Each of our 10G BiDi SFP+ Transceivers consumes peak power below 1W. Even a fully populated 48-port switch with our modules stays within safe thermal dissipation thresholds.
Q10: What is the safe operating temperature range (Commercial 0-70°C vs. Industrial -40-85°C) for these modules?
A: Yes, we offer two temperature grades. Our standard Cisco SFP-10G-BXD Compatible 10G BiDi SFP+ Transceiver is commercial grade, stable from 0°C to 70°C for indoor equipment rooms. We supply separate industrial-grade BiDi transceivers for -40°C to 85°C harsh outdoor deployment.
Packaging & Custom OEM Solutions
Each module ships individually sealed in ESD-safe packaging, protected from static from our warehouse to your shelf—and ready to ship on receipt of order. Volume buyers and system integrators also unlock our full OEM program: custom logos, private labeling, and branded packaging, all designed to help you build and protect your own brand.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
