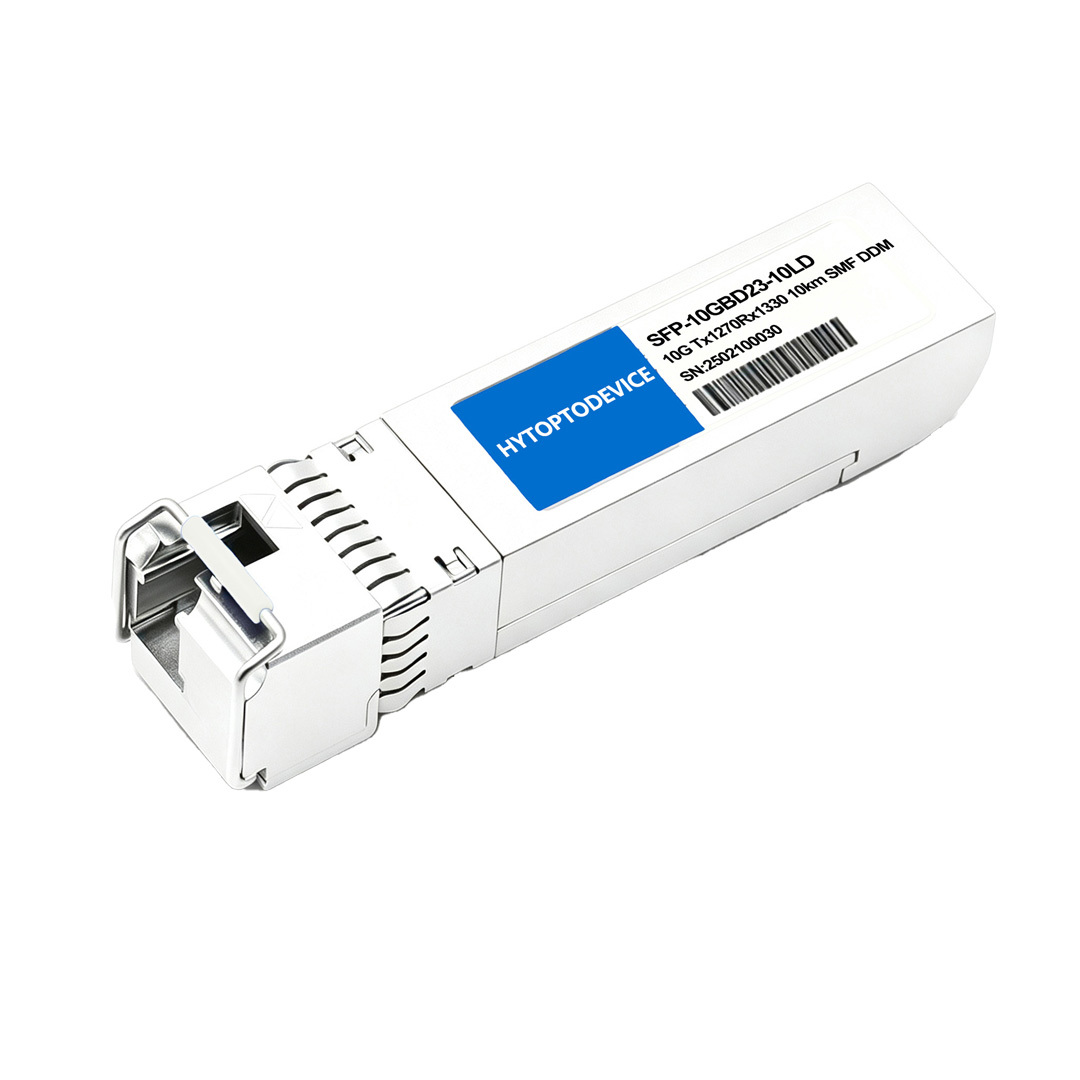

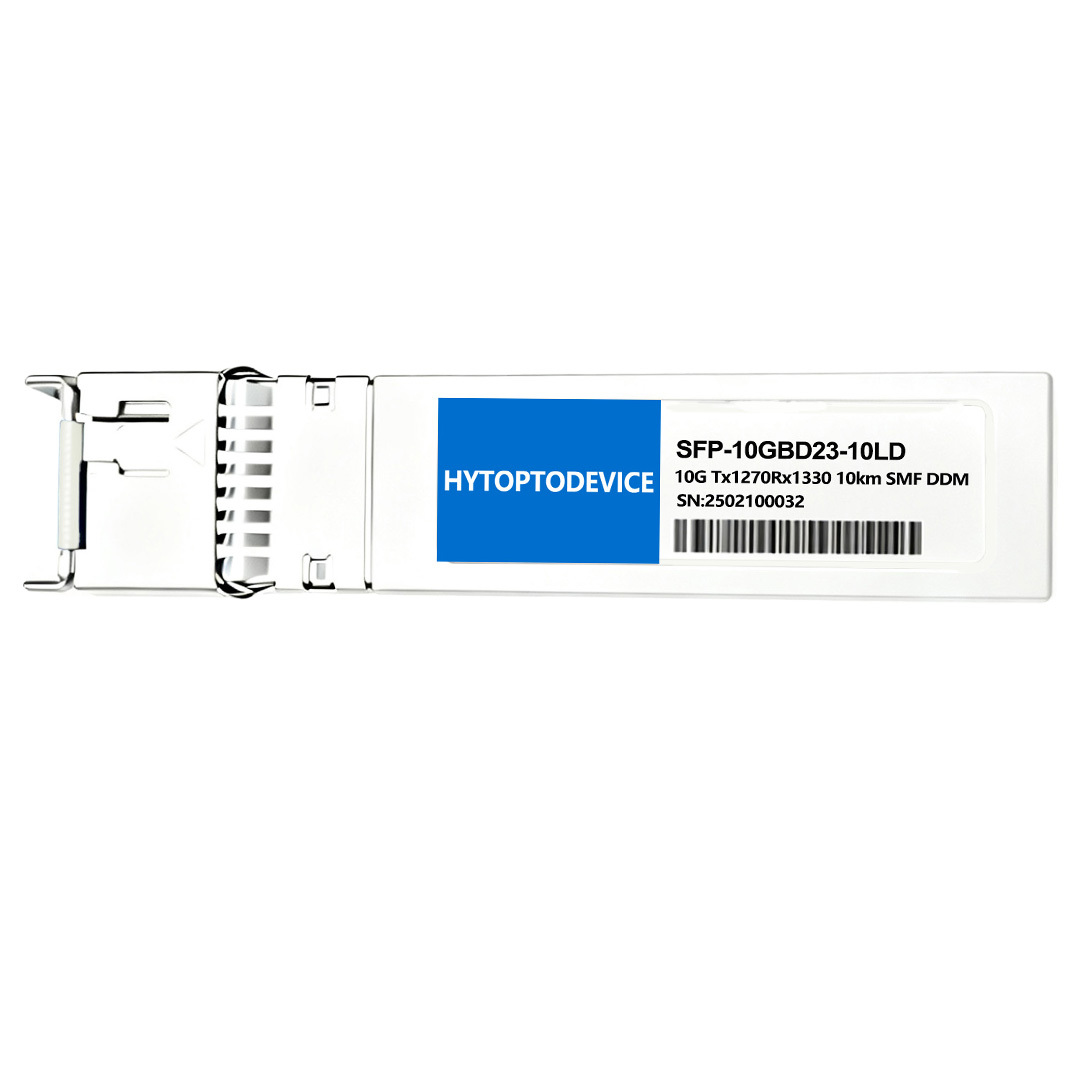

HYTOPTODEVICE H3C SFP-XG-LX-SM1270-BIDI Compatible 10GBASE-BX10-U SFP+ BiDi 1270nm-TX/1330nm-RX 10km DDM LC SMF Optical Transceiver Module

Compatibility and Supported Devices

• H3C Enterprise Switches: Fully tested for H3C S6800 series 10G single fiber transceiver slots and S5800 series.

• Campus & Access Layers: Native H3C S5130-HI 10G SFP+ BiDi support and compatibility with the S5560-HI series.

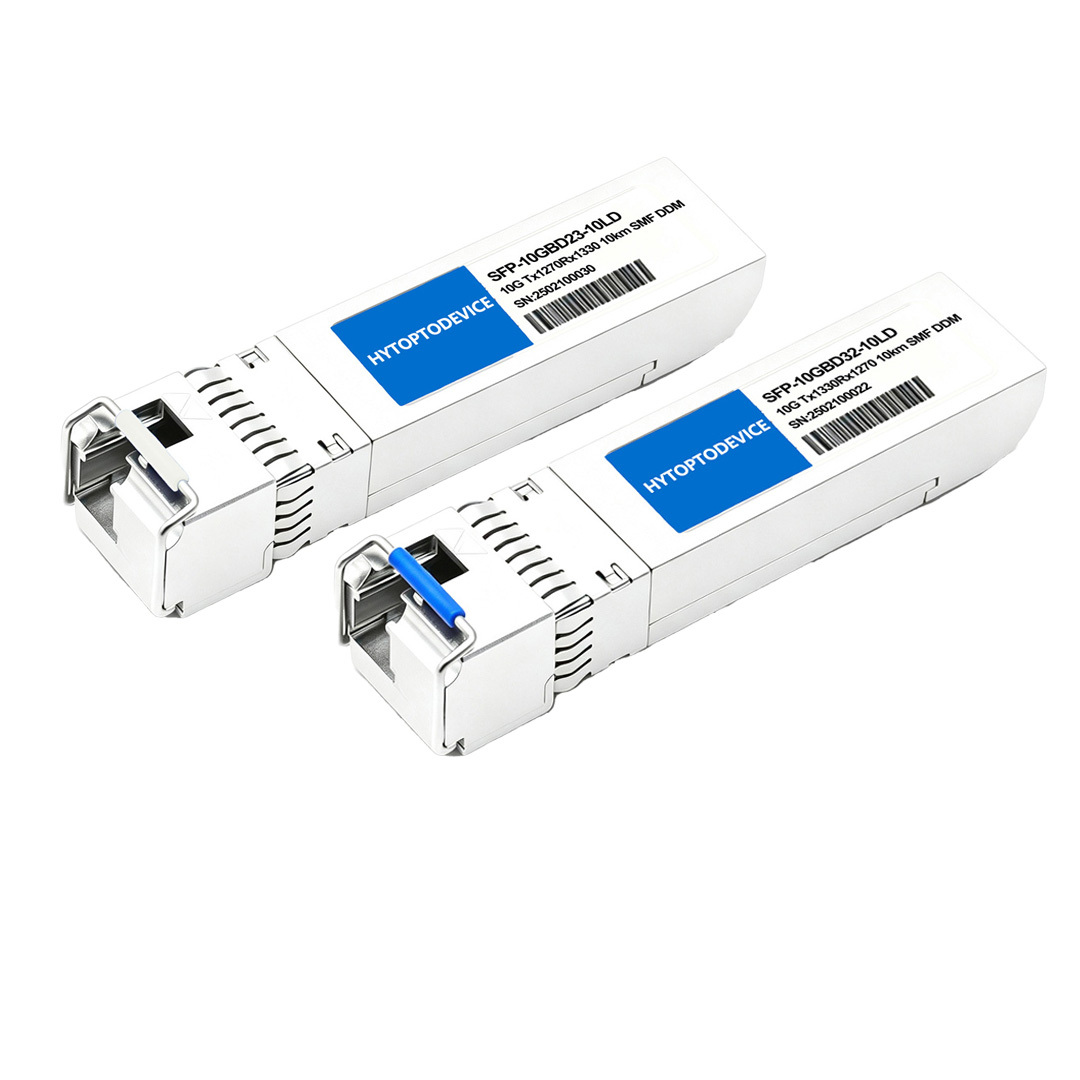

• Note on Pairing: This TX1270/RX1330 module must be paired with the SFP-XG-LX-SM1330-BIDI at the opposite end for a functional link.

• Expanding Existing Fiber Links: Perfect for single strand fiber 10G Ethernet deployment when you have limited fiber cores available between floors or buildings.

• Corporate Office Connectivity: Provides stable H3C 10km fiber transmission solutions for linking a main office to a nearby branch or warehouse.

• Cost-Effective Network Upgrades: Ideal for upgrading from 1G to 10G speeds without the high cost of installing new dual-strand fiber cabling.

Key Product Parameters

Connectivity Solutions(Applications)：



FAQ for H3C SFP-XG-LX-SM1270-BIDI Compatible SFP+BIDI Transceiver

Q1: Why is my H3C 10G BiDi link not coming up or showing "No Light"? A: This is the primary cause of the troubleshooting H3C SFP-XG-LX-SM1270-BIDI optical power alarm. BiDi links require a wavelength pair. Ensure you have the HYTOPTODEVICE 1270nm module at one end and the 1330nm module at the other.

Q2: What is the main difference between H3C SFP-XG-LX-SM1270-BIDI and SM1330-BIDI? A: The technical difference between H3C SFP-XG-LX-SM1270-BIDI and SM1330-BIDI is simply the wavelength crossover. They must be used as a pair to allow bidirectional data flow on a single fiber core.

Q3: Is the HYTOPTODEVICE module suitable for outdoor unconditioned cabinets? A: No. This is an H3C commercial grade transceiver with a 0°C to 70°C conventional working temperature. It is designed for indoor data centers and climate-controlled closets.

Q4: How does the HYTOPTODEVICE SFP-XG-LX-SM1270-BIDI vs standard 10GBASE-LR compare? A: In the SFP-XG-LX-SM1270-BIDI vs standard 10GBASE-LR duplex SFP+ comparison, our BiDi module provides identical performance while utilizing only one fiber strand, significantly lowering the total cost of ownership.

Q5: Where can I find the best price for H3C SFP-XG-LX-SM1270-BIDI online? A: For the best price for H3C SFP-XG-LX-SM1270-BIDI online, choose HYTOPTODEVICE. We provide verified H3C S5560 compatible 10G SFP+ BiDi test reports and a comprehensive warranty with every shipment.

Quality Assurance：Your Trusted Optical Transceiver Source

HYTOPTODEVICE is a vertically integrated manufacturer of high-performance optical transceivers. By controlling core materials at the source, we ensure every SFP module meets the highest standards of reliability and customization.

• Vertical Integration: In-house core material production ensures a stable, self-sufficient supply chain for all optical modules.

• Total Traceability: End-to-end oversight from raw components to final transceiver assembly guarantees 100% controllability.

• Bespoke Solutions: Expert-led R&D provides customized SFP transceiver designs tailored to your specific technical needs.

• 24-Hour Response: Our technical team guarantees a primary response to any inquiry or quality concern within 24 hours.

Carrier-Grade Quality. Factory-Direct Control. Rapid Response.

Quality Certification & Compliance：

At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

• ISO 9001: Certified quality management and production consistency.

• CE & FCC: Fully compliant for seamless Global Market Access.

• RoHS: Committed to environmental responsibility and hazardous material control.

• Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing：



100% 3rd Party Compatible：

Partial Test Demonstration：
