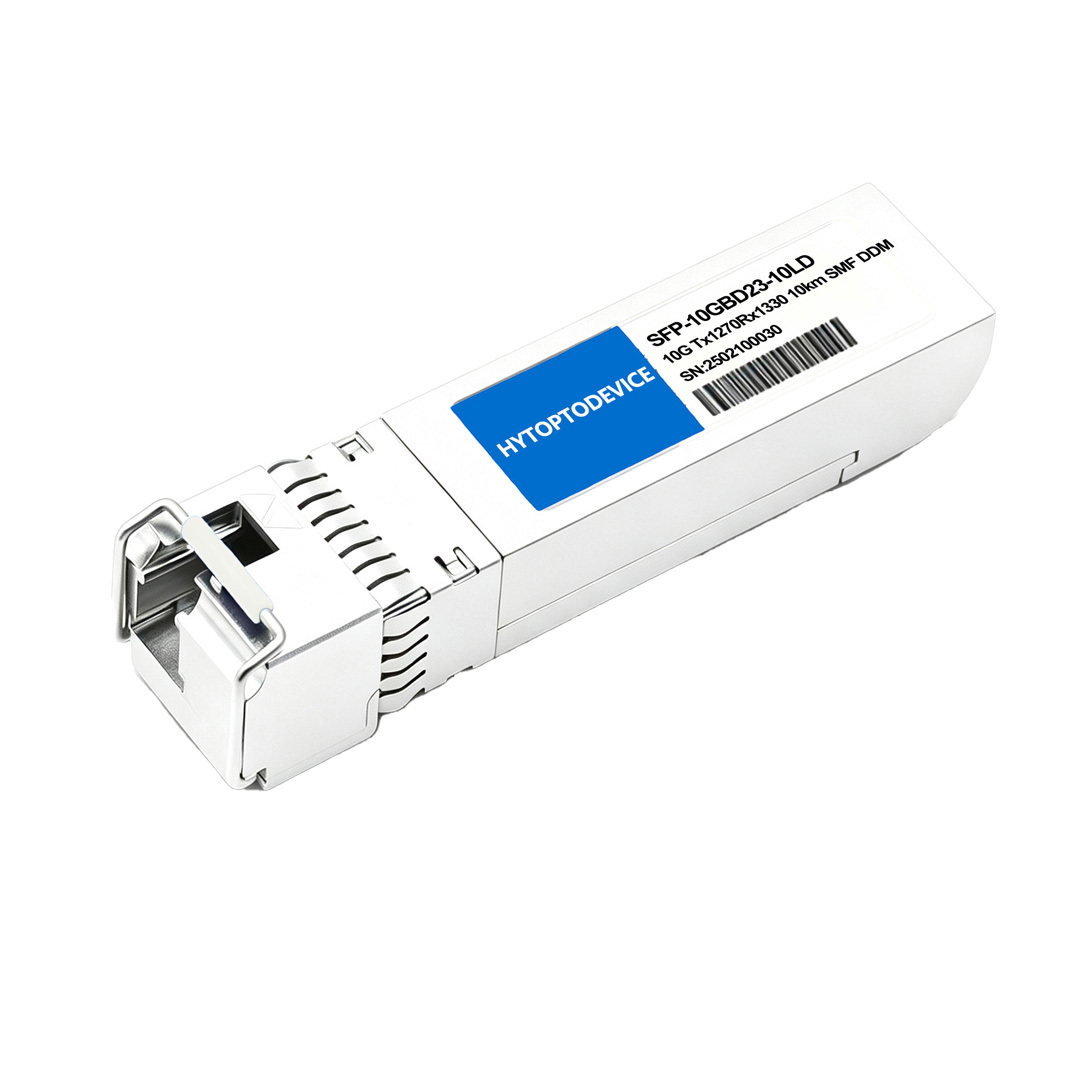

• HYTOPTODEVICE Huawei SFP-10G-BXU1 Compatible SFP+ 10G BiDi Transceiver front view, 10km 1270nm-TX simplex LC single fiber optic for bulk quotation

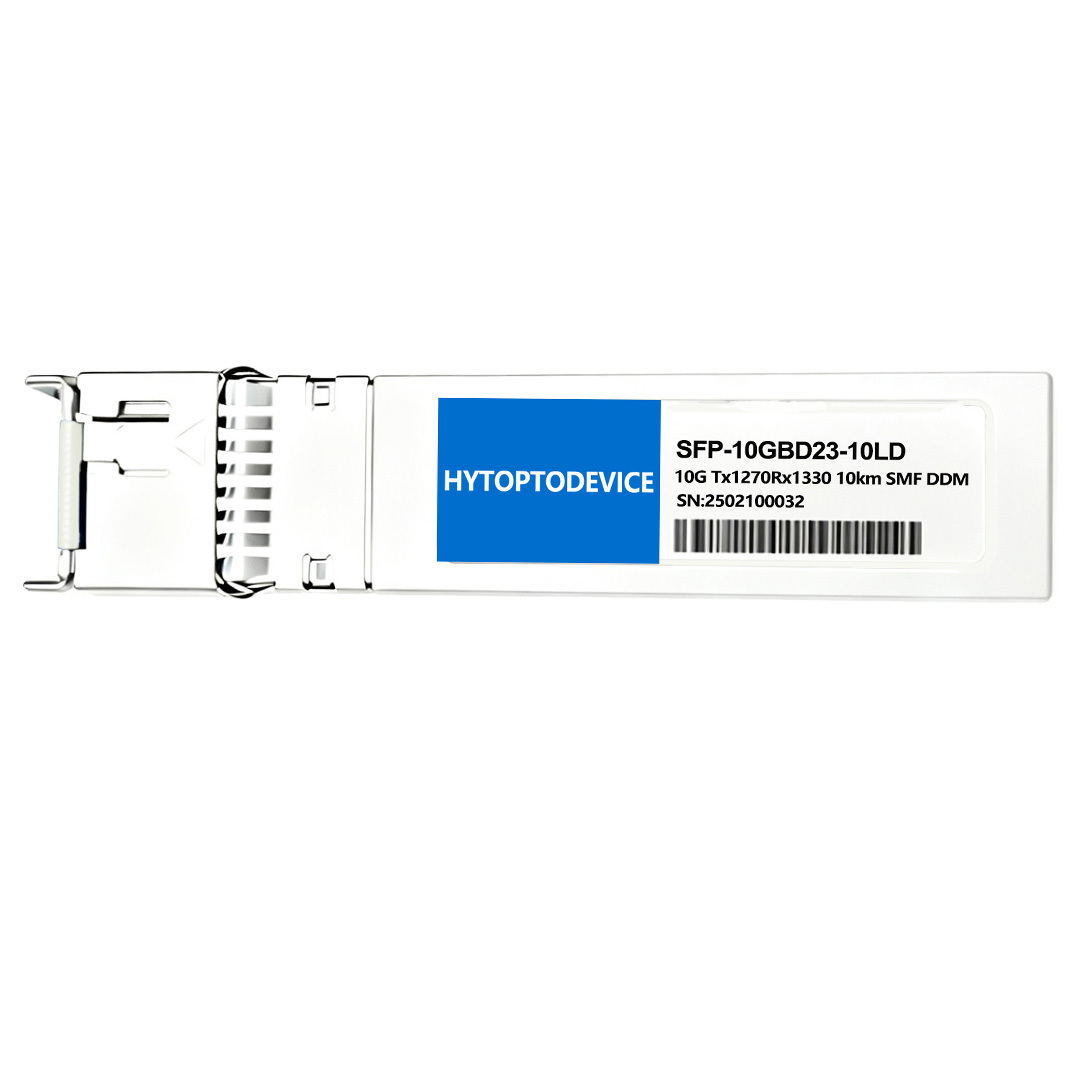

  • DDM DOM metal pin close-up of HYTOPTODEVICE SFP+ 10G BiDi Transceiver, commercial temp variant for indoor turnkey projects
  • Side shot of HYTOPTODEVICE SFP+ 10G BiDi Transceiver matching Huawei SFP-10G-BXU1, MSA certified for indoor ISP stock supply
  •  Bulk OEM customizable HYTOPTODEVICE SFP+ 10G BiDi Transceiver Huawei SFP-10G-BXU1 replacement neutral export pack with private logo service

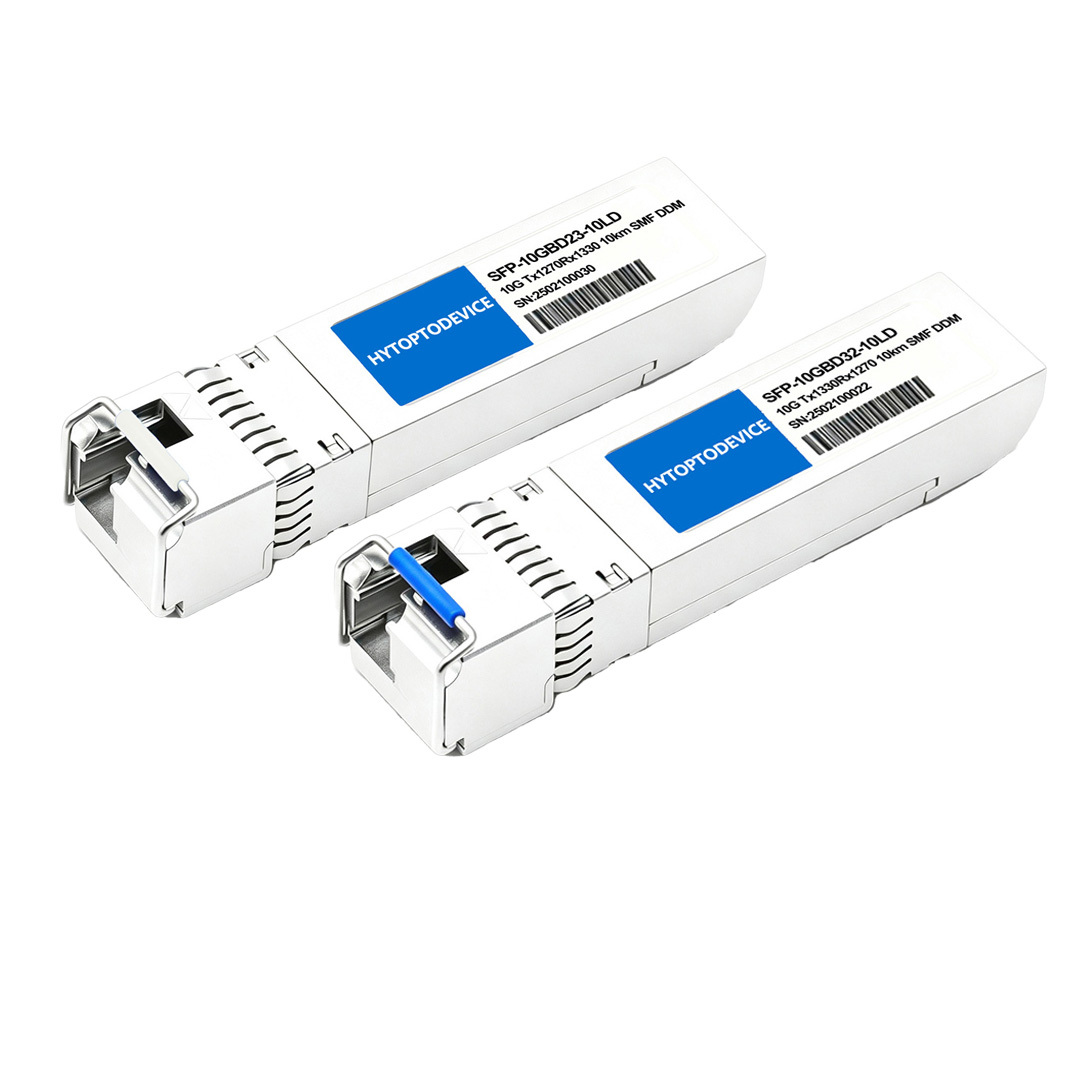

  • Paired Huawei SFP-10G-BXU1 & SFP-10G-BXD1 HYTOPTODEVICE SFP+ 10G BiDi Transceiver full-duplex single fiber communication set
  • HYTOPTODEVICE Huawei SFP-10G-BXU1 Compatible SFP+ 10G BiDi Transceiver front view, 10km 1270nm-TX simplex LC single fiber optic for bulk quotation
  • DDM DOM metal pin close-up of HYTOPTODEVICE SFP+ 10G BiDi Transceiver, commercial temp variant for indoor turnkey projects
  • Side shot of HYTOPTODEVICE SFP+ 10G BiDi Transceiver matching Huawei SFP-10G-BXU1, MSA certified for indoor ISP stock supply
  •  Bulk OEM customizable HYTOPTODEVICE SFP+ 10G BiDi Transceiver Huawei SFP-10G-BXU1 replacement neutral export pack with private logo service
  • Paired Huawei SFP-10G-BXU1 & SFP-10G-BXD1 HYTOPTODEVICE SFP+ 10G BiDi Transceiver full-duplex single fiber communication set

Huawei SFP-10G-BXU1 Compatible SFP+ 10G BiDi Transceiver Module | 10GBASE-BX10-U 10km Tx1270Rx1330 Bulk Wholesale | HYTOPTODEVICE

High-performance SFP+ 10G BiDi transceiver fully compatible with Huawei  SFP-10G-BXU1, 10km single-strand simplex LC SMF. Compliant with SFP+ MSA, SFF-8472, IEEE 802.3ae & RoHS, zero-alarm plug-and-play on Huawei VRP switches. Bulk wholesale, OEM labeling and transceiver coding services available for global importers and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BXU  SFP-10G32-BX10
2 H3C  SFP-XG-LX-SM1270-BIDI  SFP-10G23-BX20
3 Huawei  SFP-10G-BXU1 SFP-10G32-BX20
4 Juniper  JNP-SFP-10G-BX10U SFP-10G23-BX40
5 Brocade  10G-SFPP-BXU  SFP-10G23-BX60
6 Arista SFP-10G-BXU SFP-10G45-BX80
Description


Huawei SFP-10G-BXU1 Compatible SFP+ 10G BiDi Transceiver 10GBASE-BX-U (SMF, 1270nm-TX/1330nm-RX, 10km, Simplex LC, DDM)

Product Overview

 This  Huawei SFP-10G-BXU1 Compatible SFP+ 10G BiDi transceiver is 10GBASE-LX 10km OS2 SMF commercial indoor BiDi transceiver, a direct drop-in replacement for Huawei OEM optics. It delivers stable 10GBASE-BX transmission up to 10km over OS2 single-mode fiber with 1270nm-TX/1330nm-RX simplex LC interface.The compatible SFP+ 10G BiDi Transceivers always operate in pairs with matching complementary wavelengths. Compliant with Hot Pluggable SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS standards, Featuring real-time DDM monitoring, low power consumption and high speed, the MSA compliant SFP+ 10G BiDi Transceiver is ideal for  enterprise campus inter-building uplinks, metro ISP fiber backhaul, remote office interconnection and small datacenter inter-switch uplinks,.etc. We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.

Key Technical Specifications

Huawei Compatible SFP-10G-BXU1 Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 10km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -5.0~0dBm Receiver Sensitivity < -14.4dBm
Max. Power Consumption ≤1W DOM/DDM   Fully Supported
Protocols & Standards SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Huawei Native Compatibility

This HYTOPTODEVICE SFP+ 10G BiDi Transceiver achieves automatic alarm-free plug-and-play identification on all Huawei VRP switches supporting SFP-10G-BXU1. No manual configuration adjustments are needed, and full DDM DOM monitoring functions work natively after insertion.

  • Huawei CloudEngine Data Center Switches: CE5800, CE6800, CE7800, CE8800 Series
  • Huawei Campus Access/Aggregation Switches: S5735, S6735, S5720, S6720 Series
  • Huawei MSR Integrated Service Routers: MSR3600, MSR5600, MSR3300 Series
  • Huawei Fiber Access OLT & ONU Platforms: MA5600, MA5800 Series

2. Cross‑Brand Interoperability

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Mellanox, H3C, Brocade, Juniper, Dell hardware. Well‑suited for mixed‑vendor metro and DCI expansion projects for enterprise, carrier clients, wholesalers and integrators.

Primary Application Scenarios

• Single‑Fiber Enterprise Access Networking: 10km point‑to‑point links saving fiber resources for campus building‑to‑building interconnection
• Metro Aggregation & FTTO Deployment: Cost‑effective 10G single‑fiber links for enterprise FTTO and carrier access network construction
• Data‑Center Short‑Reach Single‑Fiber Interconnect: Space‑saving BiDi connections within and adjacent data‑center sites up to 10km
• Cost‑Effective Hardware Upgrade: Direct drop‑in replacement for expensive original Huawei SFP‑10G‑BXU1 modules to reduce 10G network procurement costs for bulk purchase
• OEM Wholesale Resale: Stable bulk supply for global optical transceiver distributors and network equipment vendors for private label resale business

Connectivity Solutions(Applications)

1.10G Switch-to-Switch Interconnection
10G Switch-to-Switch single fiber interconnection topology with paired HYTOPTODEVICE SFP+ 10G BiDi Transceiver for Huawei indoor campus network uplink bulk project

2.10G Switch-to-NIC Direct Connection

10G Switch-to-NIC direct connection diagram using HYTOPTODEVICE SFP+ 10G BiDi Transceiver SFP-10G-BXU1 for server high-speed storage transmission

3.10G Structured Cabling Rack Layout

10G Structured Cabling network layout with simplex single strand fiber and HYTOPTODEVICE SFP+ 10G BiDi Transceiver for commercial building indoor integrated wiring


The Core Features

1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.

10G-SFP-plus-BiDi-TX1270-RX1330-10km

2.Scalable Bandwidth Expansion
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.

increase-bandwidth-capacity-10G-SFP-optical-transceiver

3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.

energy-saving-10G-SFP-plus-1W-low-power

4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results! Specific Compatibility Video available upon request.

compatible-SFP-transceiver-multi-brand-switch-testing

5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—before leaving our Test Center. to guarantee long-term stability and prevent network downtime.

optical-transceiver-strict-quality-control-factory-test



FAQ
Q1: Do these modules require specific vendor-locked firmware updates to maintain compatibility after a switch OS upgrade?
A: No. HYTOPTODEVICE SFP+ 10G BiDi Transceiver stores all identification profiles on standalone onboard chips. No proprietary locked firmware patches are required to retain full interoperability after any Cisco IOS version upgrade.

Q2: How can I resolve a "reception error" or port flapping issue caused by a third-party compatibility mismatch?
A: Submit coding customization service to HYTOPTODEVICE to rewrite the vendor ID of your SFP+ 10G BiDi Transceiver. Updated chip identifiers eliminate cross-brand handshake faults that lead to unstable port reception errors and frequent link flapping.

Q3: How can I easily identify the TX and RX wavelengths of the module from its physical label or pull-tab color?
A: Each HYTOPTODEVICE SFP+ 10G BiDi Transceiver is printed with complete TX/RX wavelength data on its metal housing label. Color-marked pull tabs are also applied for quick visual sorting of 1270nm transmit variants during field wiring work.

Q4: What is the maximum acceptable optical power budget (dB loss) for this specific 10km module?
A: This HYTOPTODEVICE SFP+ 10G BiDi Transceiver features an 8.4dB optical attenuation budget, which fully offsets cumulative signal loss generated by OS2 fiber, simplex patch cords and mechanical splices within its 10km rated reach.

Q5: How does the manufacturer test for laser degradation over a 5-year operational lifecycle?
A: HYTOPTODEVICE performs long-term temperature accelerated burn-in cycling on every batch of SFP+ 10G BiDi Transceiver, simulating five years of continuous full-traffic operation to screen out units prone to slow laser power attenuation.

Q6: Why does the switch report a "High Temperature Alarm" for the BiDi module during peak traffic hours?
A: Heavy full-bandwidth traffic raises the internal power consumption of the SFP+ 10G BiDi Transceiver. Poor rack ventilation pushes operating temperature close to the 70℃ commercial upper limit and triggers thermal warning alerts.

Q7: Do these modules require active airflow, or can they survive in passively cooled outdoor enclosures?
A: No. This commercial-grade HYTOPTODEVICE SFP+ 10G BiDi Transceiver is designed for indoor equipment rooms with forced rack airflow. Passive cooling inside outdoor cabinets cannot satisfy its thermal dissipation requirements.

Q8: Can my network management software (e.g., SNMP, Zabbix) successfully read the DDM data from this transceiver?
A: Yes. The HYTOPTODEVICE SFP+ 10G BiDi Transceiver fully complies with SFF-8472 DDM specifications, enabling SNMP, Zabbix and all mainstream monitoring tools to retrieve real-time optical diagnostic metrics without extra configuration.

Q9: How do I clean a Simplex LC port properly without damaging the internal bidirectional splitter/prism?
A: Use standard lint-free alcohol cleaning sticks to wipe only the ferrule end face of the HYTOPTODEVICE SFP+ 10G BiDi Transceiver. Avoid deep insertion to prevent scratches on the built-in BiDi optical splitter and prism components.

Q10: Why am I experiencing random packet drops only in one direction (e.g., high upload drops but perfect download)?
A: Uneven wavelength attenuation damages one signal channel of the HYTOPTODEVICE SFP+ 10G BiDi Transceiver. Dirty LC ferrules or mismatched paired wavelength modules cause unidirectional packet loss over single-fiber links.


Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
