HYTOPTODEVICE Juniper EX-SFP-10GE-BX23-60 Compatible 10G BiDi SFP+ Transceiver – Simplex LC Single-Fiber BiDi 10G 60km Single-Mode Optic, Native Juniper OS Recognition, Bulk Wholesale Procurement Available
Product Overview

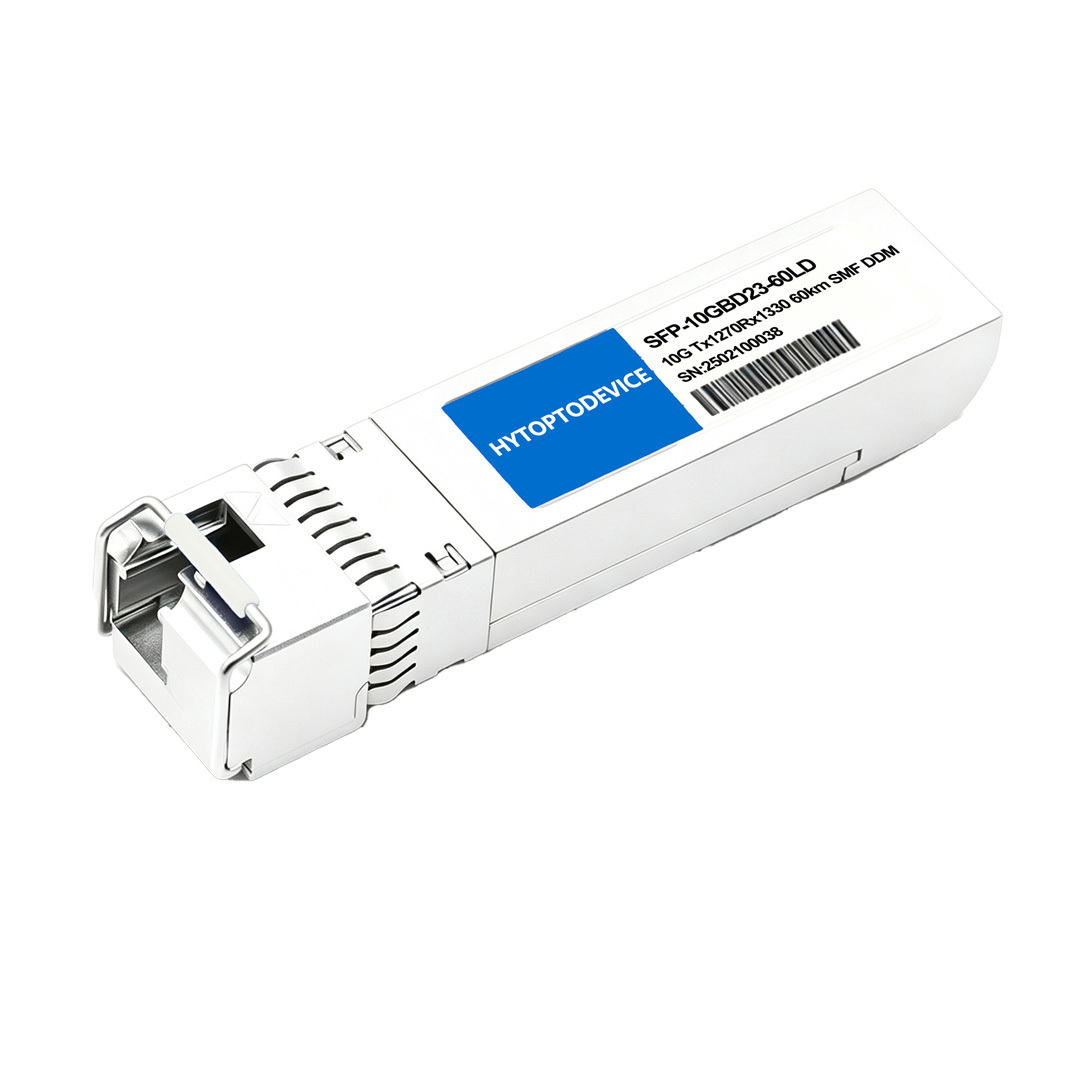

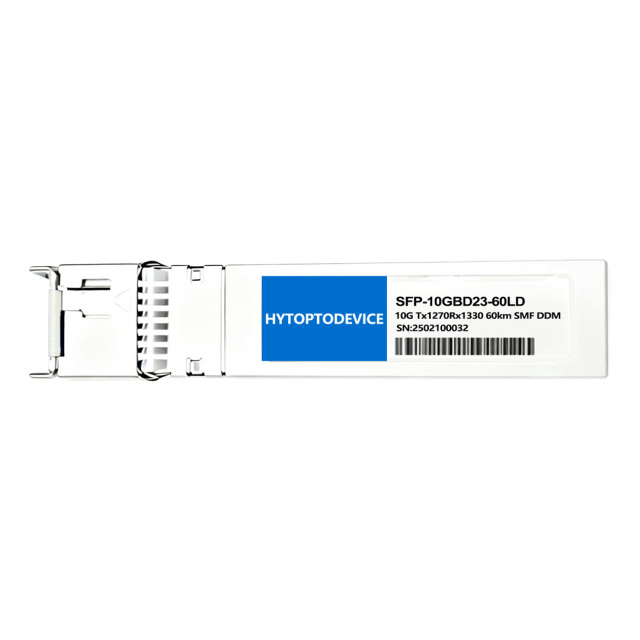

HYTOPTODEVICE 10G BiDi SFP+ Transceiver 60km is a high-conversion single-strand bidirectional optical module, fully engineered to replace Juniper EX-SFP-10GE-BX23-60 for long-haul networking. Adopting professional 1270nm TX / 1330nm RX wavelength pairing, simplex LC connector design and stable 60km single-mode fiber transmission capability, this Juniper compatible EX-SFP-10GE-BX23-60 SFP+ delivers consistent 10.3125Gbps full-duplex network performance. Compliant with Hot-Pluggable SFP+ MSA, SFF-8472,SFP-8431, IEEE 802.3ae and RoHS standards，fully verified for genuine Juniper device compatibility and complete DDM diagnostic functionality, it serves as the ideal networking solution for 60km metro backbone interconnection, cross-building enterprise WAN extension, and dark fiber resource upgrade projects. We support bulk purchasing and free custom EEPROM coding, helping global enterprises cut long-distance network upgrade costs with zero compatibility risks.
Key Technical Specifications
HYTOPTODEVICE 10G BiDi SFP+ Transceiver 60km strictly adheres to 10G SFP+ BiDi industry standards and Juniper official protocol specifications, perfectly matching the operating parameters of EX-SFP-10GE-BX23-60. This high-performance long-haul transceiver features industry-calibrated 60km SMF transmission distance, dedicated 1270/1330nm BiDi wavelength band, simplex LC physical interface, 10G high-speed transmission and full DDM real-time monitoring, ensuring ultra-stable operation for long-span single fiber links. For precise engineering deployment and parameter comparison, please refer to our official Key Technical Specifications parameter table to obtain complete and authoritative product data.
| Juniper Networks Compatible |
EX-SFP-10GE-BX23-60 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1270nm/RX1330nm |
Max Distance |
60km |
| Connector |
Simplex LC |
Transmitter Type |
1270nm DFB |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
1.0~+6dBm |
Receiver Sensitivity |
< -20dBm |
| Max. Power Consumption |
≤1.4W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |

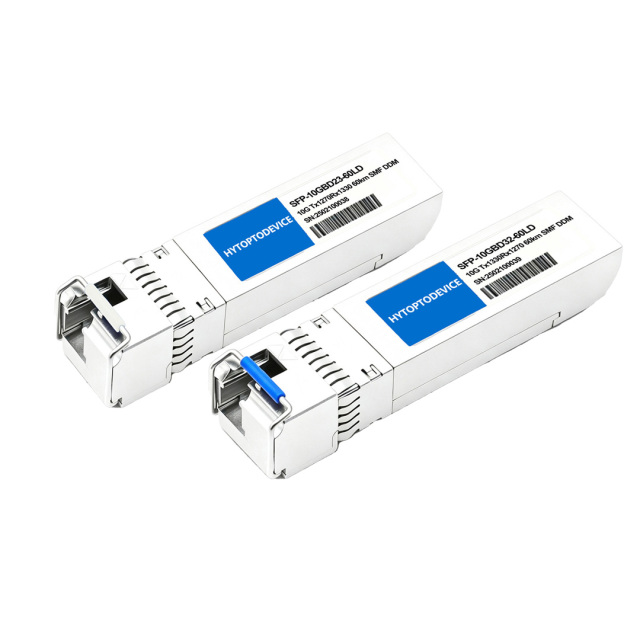

Pairing Guidance
Different from traditional dual-fiber optical modules, 10G BiDi SFP+ Transceiver 60km relies on strict wavelength pairing rules to establish valid long-haul network links, which is the core key to stable single-fiber transmission. For users deploying Juniper EX-SFP-10GE-BX23-60 compatible links, you must match 1270nm TX/1330nm RX modules with reverse 1330nm TX/1270nm RX modules at both ends of a single fiber core. HYTOPTODEVICE provides pre-paired finished module sets, effectively avoiding on-site pairing errors, shortening network turn-up time, and ensuring one-time successful deployment of 60km long-distance BiDi networking projects.
The Required Matched Pairs here: 10G SFP+ BiDi Tx 1330nm / Rx 1270nm 60km module
Full Compatibility List & Supported Network Hardware
1.Native Juniper Networks Compatibility
HYTOPTODEVICE custom-coded 10G BiDi SFP+ Transceiver 60km achieves 100% full compatibility with Juniper EX-SFP-10GE-BX23-60 and all Junos OS versions. All products pass real Juniper physical machine online testing, supporting plug-and-play identification, complete DDM real-time data display and zero port startup failure. We can provide official real-machine test videos and test reports for customer verification, completely solving compatibility hidden dangers of third-party modules for Juniper long-haul networking.
-
EX Series Ethernet Switches: EX2300, EX3400, EX4300, EX4400, EX4600, and EX4650 fiber aggregation switches.
-
QFX Series Data Center Switches: QFX5100, QFX5110, and QFX5120 top-of-rack and leaf/spine architectures.
-
SRX Series Services Gateways: SRX340, SRX345, SRX550, and SRX1500 next-generation secure firewalls.
-
MX Series Edge Routers: Compatible with 10G SFP+ line cards on MX204, MX240, MX480, and MX960 platforms.
2.Multi-Brand Cross Compatibility
Built to universal SFP+ MSA standards, HYTOPTODEVICE’s Juniper-compatible 10G BiDi SFP+ transceiver 60KM unlocks OEM vendor lock-in for hybrid multi-vendor metro networks.
- Open-Brand (Plug-and-Play): Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel and other open switches
- Locked-Brand (Custom Coding): Cisco, H3C, Huawei, Dell, Juniper and more
3.Free Custom EEPROM Re-Flash Service
Complimentary permanent EEPROM rewrite for all bulk orders of 10G BiDi 10G SFP+ 60KM Transceiver. Upgrade Juniper OS or migrate modules to other brand racks; our team re-codes firmware free of charge to maintain stable 40km single-fiber bidirectional links for evolving multi-vendor metro architectures.
Primary Application Scenarios
HYTOPTODEVICE 10G BiDi SFP+ Transceiver 60km is a dedicated high-stability single-fiber long-haul optical module, widely applicable to multiple high-value enterprise network scenarios, and is the preferred replacement module for 60km long-distance single fiber network upgrading and reconstruction.
- 60km Metro Backbone Long-Haul Interconnection Application: Perfect for urban and suburban backbone single-fiber 10G long-span transmission projects, solving network bandwidth bottlenecks under tight fiber resource constraints.
- Cross-Campus Cross-Building WAN Link Extension Application: Low-cost implementation of long-distance network interconnection between enterprise parks, campuses and branch buildings, reducing long-term network operation costs.
- Dark Fiber Resource Activation and Network Upgrade Application: Make full use of idle single fiber core resources to expand 10G high-speed networks without repeated cabling, maximizing fiber resource utilization.
- Outdoor Aerial and Pipeline Long-Distance Transmission Application: With stable power budget and high temperature resistance, it adapts to complex outdoor working environments and ensures stable operation of 60km long-haul fiber links.
- Remote Monitoring and Security Network Backhaul Application: Provide stable 10G long-distance data backhaul support for industrial monitoring, security surveillance and remote office network systems.
Connectivity Solutions(Applications)
1.Switch-to-Switch
Adopt paired HYTOPTODEVICE 10G BiDi SFP+ Transceiver 60km to build 60km ultra-long-distance point-to-point networking between two Juniper switches, which is the most mainstream and stable solution for enterprise backbone network expansion.
2.Switch-to-NIC
Cooperate with BiDi transceivers and single-fiber compatible network cards to realize remote terminal 10G high-speed access, suitable for long-distance networking scenarios such as remote offices and factory workshops.
3.Core to Access (With Structured Cabling)
Adapt to enterprise simplex single-fiber structured cabling architecture, replace traditional dual-fiber modules, optimize cabinet wiring structure, and improve the overall stability and maintainability of long-distance cabling systems.
The Core Features

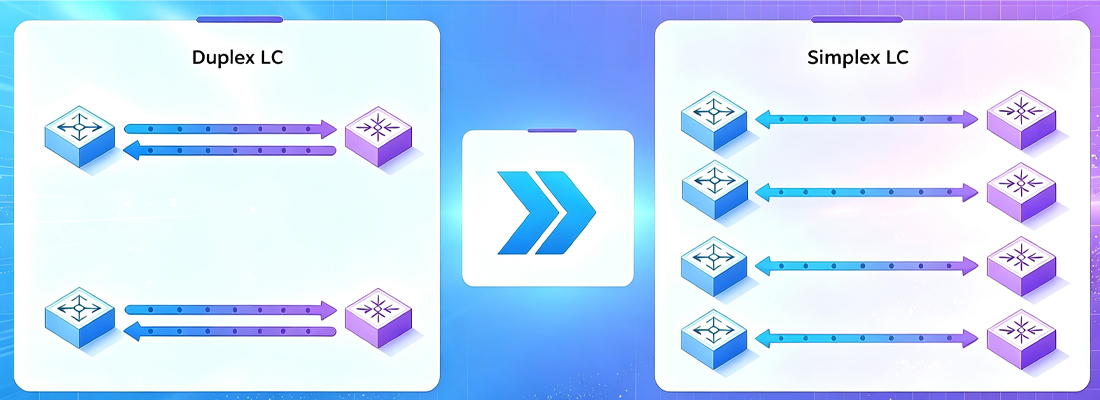

1.50% Fiber Resource Saving & Low-Cost Network Upgrade
Optimize your current network infrastructure without the high cost of laying new cables. By transmitting and receiving signals over a single strand of fiber, our 10G BiDi SFP+ transceivers help you squeeze maximum value out of your existing fiber cabling.
2.Double Your Network Capacity Instantly
Upgrade your bandwidth effortlessly. Utilizing advanced Wavelength Division Multiplexing (WDM) technology, this module allows bidirectional traffic over a single fiber strand, effectively doubling your network capacity instantly while cutting cabling costs in half.

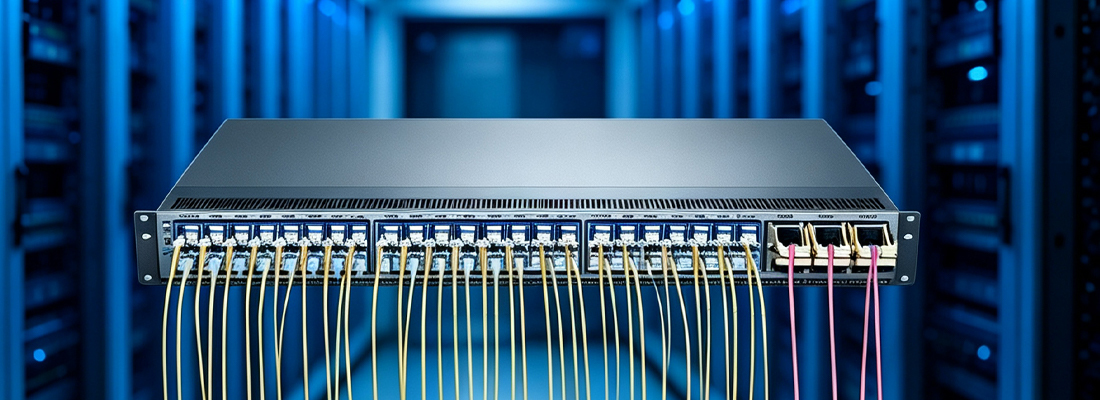

3.Energy-Efficient 10G Connectivity for Data Centers
Designed for high-density, high-speed modern data centers, this SFP+ transceiver features an ultra-low power consumption of just 1W. Achieve stable, green, and cost-effective 10G data transmission while significantly reducing operational cooling costs.
4.Seamless Cross-Brand Interoperability
Enjoy worry-free integration into your multi-vendor environment. Every single unit undergoes rigorous compatibility testing on original brand switches to ensure seamless cross-brand interoperability. Real products, real switches, real results—compatibility test videos are available upon request.

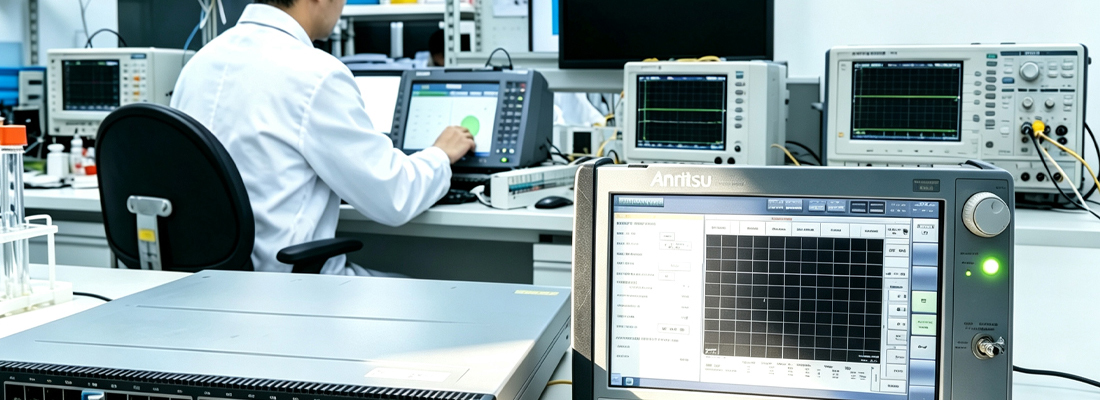

5.Comprehensive Testing for Rock-Solid Reliability
Reliability is our cornerstone. From signal integrity and distance runs to extreme temperature cycles, our comprehensive testing procedure guarantees that every 10G BiDi 10km SFP+ module delivers stable, packet-loss-free performance under any network load.
FAQ
Q1: What wavelength pairing rules should I follow when deploying 10G BiDi SFP+ transceiver for Juniper 60km single fiber backbone links?
A: Single-fiber bidirectional transmission relies on complementary wavelength pairs, so 10G BiDi SFP+ transceiver TX1270/RX1330 modules must match opposite TX1330/RX1270 units at two fiber ends; identical modules cannot build valid network links. As a professional manufacturer, HYTOPTODEVICE supplies pre-matched Juniper EX-SFP-10GE-BX23-60 compatible 60km BiDi transceiver sets, eliminating on-site wavelength matching errors and cutting commissioning time for enterprise metro network projects.
Q2: How to simplify dual-SKU inventory management when buying bulk 10G BiDi SFP+ transceiver 60km for multi-branch Juniper networks?
A: Unlike single-SKU dual-fiber transceivers, standard 10G BiDi SFP+ transceiver requires separate stock for two wavelength variants, easily causing unbalanced inventory surplus and shortage. HYTOPTODEVICE provides customized bulk packaging and unified stock counting suggestions for our Juniper compatible 60km BiDi modules, helping global distributors and system integrators optimize warehouse turnover and avoid project delivery delays caused by mismatched stock.
Q3: How to quickly troubleshoot offline links caused by mismatched single-variant 10G BiDi SFP+ transceiver on Juniper EX switches?
A: Installing two identical single-side 10G BiDi SFP+ transceiver on one fiber core makes the whole link completely down, and Junos OS logs cannot distinguish wavelength mismatch from physical fiber breakage. All HYTOPTODEVICE Juniper EX-SFP-10GE-BX23-60 compatible 60km BiDi transceivers carry clear color-coded wavelength labels; our technical support team also offers free remote one-click troubleshooting guidance to locate pairing faults within minutes.
Q4: How does HYTOPTODEVICE’s calibrated power budget solve unstable signal issues of 60km long range 10G BiDi SFP+ transceiver links?
A: Generic 60km 10G BiDi SFP+ transceiver only leaves minimal optical margin, and tiny attenuation from bent cords or dirty connectors will crash backbone links. Our HYTOPTODEVICE Juniper compatible 10G BiDi SFP+ transceiver 60km undergoes strict power budget calibration during production, reserving extra attenuation tolerance to resist minor optical power jitters and guarantee stable 7×24h single-fiber transmission for outdoor long-haul networks.
Q5: Why do generic 10G BiDi SFP+ transceiver 60km show false healthy DDM readings while silently dropping packets on Juniper equipment?
A: Ordinary BiDi modules have coarse DDM sampling tolerance, triggering invisible soft packet loss near the receiving sensitivity limit. HYTOPTODEVICE optimizes the internal DDM circuit of our Juniper EX-SFP-10GE-BX23-60 compatible 10G BiDi SFP+ transceiver 60km, realizing precise real-time optical data feedback, so network engineers can accurately judge link risks without missing hidden packet loss faults on enterprise WANs.
Q6: How does HYTOPTODEVICE’s anti-PMD design reduce random packet drops of 10G BiDi SFP+ transceiver over aging legacy 60km fiber?
A: Polarization Mode Dispersion on old G.652 fiber leads to random intermittent packet loss for common 10G BiDi SFP+ transceiver 60km. Our Juniper compatible BiDi transceiver adopts optimized laser pulse shaping technology to suppress PMD interference, greatly lowering unpredictable error bursts for clients upgrading outdated long-distance single-fiber network infrastructures.
Q7: What solution does HYTOPTODEVICE provide for multi cross-connect patch panel loss overload on 60km 10G BiDi SFP+ transceiver links?
A: Each extra patch panel adds cumulative insertion loss that exhausts the tight power budget of regular 60km 10G BiDi SFP+ transceiver. HYTOPTODEVICE’s Juniper EX-SFP-10GE-BX23-60 replacement transceiver reserves extended loss tolerance, and our pre-sales engineering team can provide free cabling layout plans to limit unnecessary intermediate connection points for structured cabling projects.
Q8: How to eliminate mass DDM warning log spam generated by 60km 10G BiDi SFP+ transceiver running on Juniper Junos OS?
A: Juniper’s default alarm thresholds fit short-range 10km modules, triggering redundant syslog alerts for standard low-receive-power 60km 10G BiDi SFP+ transceiver. HYTOPTODEVICE customizes EEPROM parameter profiles for our Juniper compatible BiDi transceivers, matching 60km long-reach operating features to avoid useless emergency alarm flooding and simplify daily network operation monitoring.
Q9: Why is HYTOPTODEVICE’s bulk 60km single fiber 10G BiDi SFP+ transceiver more cost-effective than generic high-priced long-reach BiDi modules?
A: High-end DFB lasers, APD receivers and precision WDM filters push up the BOM cost of all 60km
10G BiDi SFP+ transceiver. As a direct manufacturer with self-owned production lines, HYTOPTODEVICE cuts intermediate markup costs for our Juniper EX-SFP-10GE-BX23-60 compatible modules, offering factory-direct bulk wholesale prices while retaining full high-performance component configuration for long-haul single-fiber networking.
Q10: What professional testing tools and guidance does HYTOPTODEVICE supply to avoid wavelength misjudgment when inspecting 10G BiDi SFP+ transceiver 60km on site?
A: Standard optical power meters require manual wavelength switching, easily causing several dB measurement errors for 10G BiDi SFP+ transceiver field inspection. HYTOPTODEVICE provides free wavelength testing operation tutorials for all clients purchasing our Juniper compatible 60km BiDi transceivers, helping field technicians obtain accurate optical data and avoid wrong fault diagnosis during maintenance.
Q11: How does HYTOPTODEVICE’s low-loss component design shorten fiber cutover splicing time for 60km 10G BiDi SFP+ transceiver single fiber projects?
A: Tiny fusion splice attenuation cripples the tight power budget of regular 60km 10G BiDi SFP+ transceiver, requiring repeated re-splicing and delaying maintenance windows. Our Juniper EX-SFP-10GE-BX23-60 replacement 10G BiDi SFP+ transceiver supports slight splicing loss fluctuations, reducing repeated construction work and accelerating fiber renovation cutover schedules for system integrators.
Q12: How does HYTOPTODEVICE’s anti-vibration optical structure prevent sudden CRC error bursts of aerial 60km 10G BiDi SFP+ transceiver links under lightning interference?
A: Lightning and high-voltage line vibration create photoelastic polarization noise that overwhelms ordinary APD receivers of outdoor 10G BiDi SFP+ transceiver 60km. HYTOPTODEVICE reinforces the internal laser and filter fixing structure of our Juniper compatible BiDi modules, resisting mechanical micro-vibrations on aerial fiber routes and effectively cutting sudden CRC error bursts for remote metro backbone single-fiber transmission.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Rigorous Industrial Product Testing
100% 3rd Party Compatible
Partial Test Demonstration
