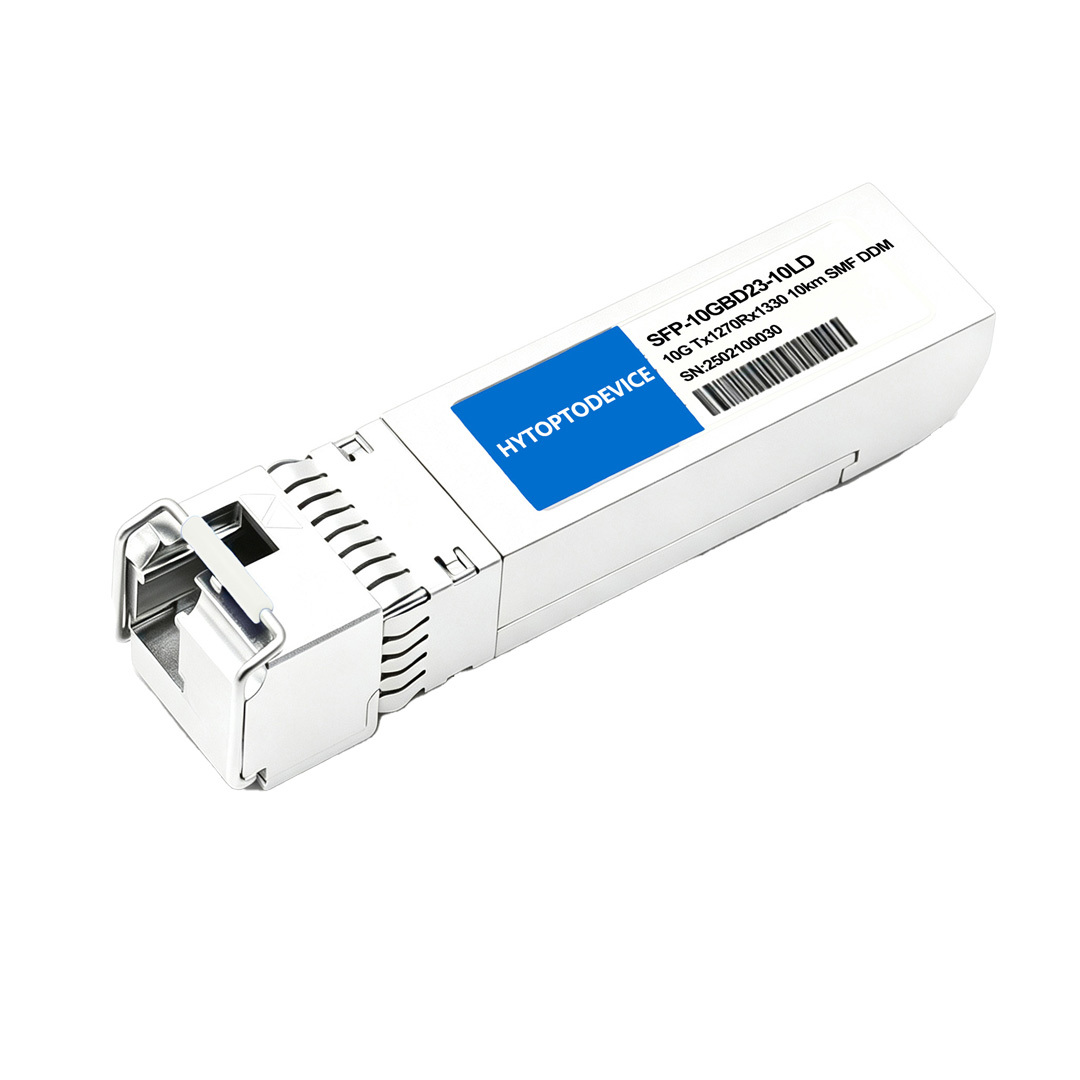

• HYTOPTODEVICE Brocade 10G-SFPP-BXU Compatible 10G SFP+ BiDi Transceiver front view, 10km 1270nm-TX simplex LC single fiber optic module for bulk order quotation and sample request

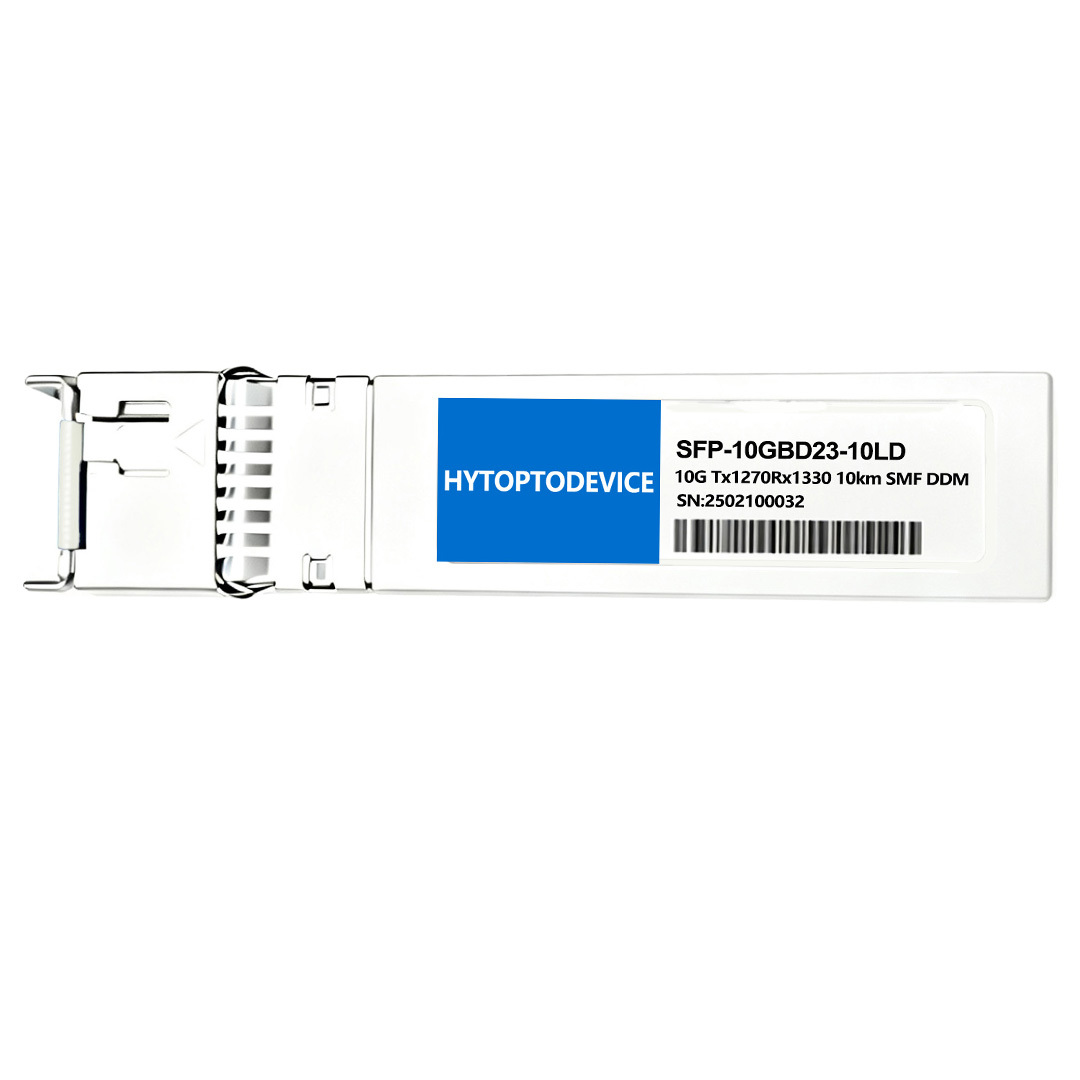

  • Side profile shot of HYTOPTODEVICE 10G SFP+ BiDi Transceiver 10G-SFPP-BXU replacement, SFP+ MSA & SFF-8472 certified for enterprise distributor stock inventory
  • DDM DOM metal pin close-up of HYTOPTODEVICE 10G SFP+ BiDi Transceiver, Brocade compatible single strand 10G optic for indoor turnkey campus and ISP engineering bulk lots
  • Bulk OEM customizable HYTOPTODEVICE 10G SFP+ BiDi Transceiver Brocade 10G-SFPP-BXU replacement neutral export carton pack with custom private logo printing service

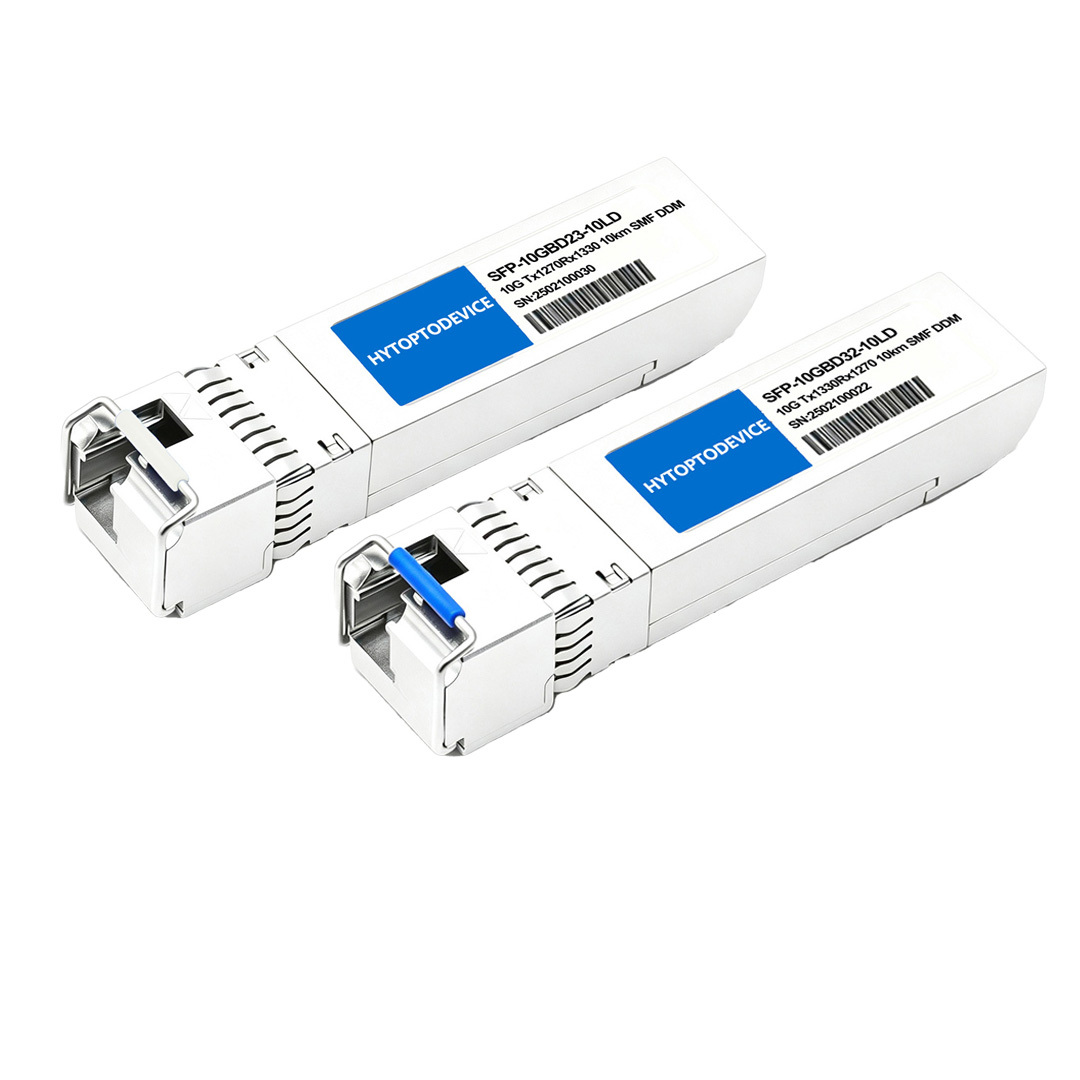

  • Paired Brocade 10G-SFPP-BXU & 10G-SFPP-BXD HYTOPTODEVICE 10G SFP+ BiDi Transceiver full-duplex single fiber communication set for global importer mass purchase projects
  • HYTOPTODEVICE Brocade 10G-SFPP-BXU Compatible 10G SFP+ BiDi Transceiver front view, 10km 1270nm-TX simplex LC single fiber optic module for bulk order quotation and sample request
  • Side profile shot of HYTOPTODEVICE 10G SFP+ BiDi Transceiver 10G-SFPP-BXU replacement, SFP+ MSA & SFF-8472 certified for enterprise distributor stock inventory
  • DDM DOM metal pin close-up of HYTOPTODEVICE 10G SFP+ BiDi Transceiver, Brocade compatible single strand 10G optic for indoor turnkey campus and ISP engineering bulk lots
  • Bulk OEM customizable HYTOPTODEVICE 10G SFP+ BiDi Transceiver Brocade 10G-SFPP-BXU replacement neutral export carton pack with custom private logo printing service
  • Paired Brocade 10G-SFPP-BXU & 10G-SFPP-BXD HYTOPTODEVICE 10G SFP+ BiDi Transceiver full-duplex single fiber communication set for global importer mass purchase projects

Brocade 10G-SFPP-BXU Compatible 10G SFP+ BiDi Transceiver Module | 10GBASE-BX10-U 10KM Tx1270Rx1330 Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE 10G SFP+ BiDi Transceiver fully compatible with Brocade 10G-SFPP-BXU, 10km single-strand simplex LC SMF, commercial 0–70°C temperature range. Compliant with SFP+ MSA, SFF-8472, IEEE 802.3ae, full real-time DDM DOM monitoring, zero-alarm plug-and-play on all Brocade Fabric OS hardware. We provide bulk wholesale, OEM private labeling, remote technical debugging and custom transceiver coding services for network importers and system integrators worldwide.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-10G-BXU  SFP-10G32-BX10
2 H3C  SFP-XG-LX-SM1270-BIDI  SFP-10G23-BX20
3 Huawei  SFP-10G-BXU1 SFP-10G32-BX20
4 Juniper  JNP-SFP-10G-BX10U SFP-10G23-BX40
5 Brocade  10G-SFPP-BXU  SFP-10G23-BX60
6 Arista SFP-10G-BXU SFP-10G45-BX80
Description


Brocade 10G-SFPP-BXU Compatible 10G SFP+ BiDi Transceiver 10GBASE-BX-U (SMF, 1270nm-TX/1330nm-RX, 10km, Simplex LC, DDM)

Product Overview

 HYTOPTODEVICE manufactures Brocade 10G‑SFPP‑BXU‑compatible 10G BiDi SFP+ transceivers for global distributors, wholesalers and integrators. Compliant with SFF‑8472 and 10GBASE‑BX10‑U MSA standards, this single‑fiber BiDi module runs Tx1270nm / Rx1330nm, delivering 10Gbps up to 10km over OS2 SMF with simplex‑LC interface. Pre‑loaded Brocade‑optimized EEPROM enables zero‑alarm plug‑and‑play for Fabric‑OS‑based switches and multi‑brand network gear. Must pair with complementary 10G‑SFPP‑BXD (Tx1330/Rx1270) at the far‑end. Available for in‑stock bulk wholesale, low‑MOQ trials and OEM customization, with built‑in DDM and hot‑swap for stable enterprise campus and metro single‑fiber networking.

Key Technical Specifications

Brocade Compatible 10G-SFPP-BXU Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 10.7Gbps
Wavelength TX1270nm/RX1330nm Max  Distance 10km
Connector Simplex LC Transmitter Type 1270nm DFB
Cable Type SMF Receiver Type PIN
TX Power -5.0~0dBm Receiver Sensitivity < -14.4dBm
Max. Power Consumption ≤1W DOM/DDM   Fully Supported
Protocols & Standards SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet



Usage Guidelines & Operational Best Practices

• BiDi Pairing Rule: SFP‑10G‑BXU (Tx1270/Rx1330) must pair with SFP‑10G‑BXD (Tx1330/Rx1270) at remote end. Two BXU modules will NOT form a valid link.
• Cabling Requirement: Use OS2 single‑mode simplex‑LC UPC cables only. Multimode fiber / APC connectors reduce reach and cause link issues; keep connectors clean.
• Port Notice: Install only into standard SFP+ ports. Do not force into 1G‑SFP slots. Disable transceiver‑block policy if needed on host devices.
• Environment: Run within 0‑70 °C. Avoid high‑heat, dusty, poorly ventilated rack positions.
• Hot‑swap: Supports hot‑swap; disconnect fiber before plugging / unplugging to protect optical ports.
• DDM Monitoring: Enable DDM/DOM; monitor optical power and temperature for early fault warning.
• Pre‑test Recommendation: Test sample units with real hardware before large‑scale bulk deployment.
• Laser Safety: Avoid direct eye exposure to powered optical ports; infrared laser can harm eyes.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1.Brocade Networks Native Compatibility

HYTOPTODEVICE 10G BiDi SFP+ modules use Brocade‑tuned EEPROM profiles for seamless plug‑and‑play on Fabric‑OS platforms. Each unit passes real‑machine validation, temperature cycling and 72‑hour burn‑in. Free EEPROM re‑flash and OEM branding are offered for bulk distributors and integrators.
Validated Brocade‑oriented Platforms:
• Brocade G610 / G620 / G630 / G720 series switches
• Brocade VDX‑6740 / VDX‑6940 data‑center switch series
• All Brocade network devices with standard SFP+ ports supporting 10GBASE‑BX10‑U BiDi specification

2. Cross‑Brand Interoperability

Built on MSA open standards, this 10G BiDi SFP+ works with Cisco, Arista, Huawei, H3C, Juniper, Dell hardware. Well‑suited for mixed‑vendor single‑fiber access and aggregation projects for enterprise, carrier clients, wholesalers and integrators.

Primary Application Scenarios

This cost-optimized single-strand HYTOPTODEVICE 10G SFP+ BiDi transceiver addresses fiber resource shortage pain points across the full spectrum of indoor enterprise, data center and carrier-grade networking projects, lowering total capital expenditure for global system integrators, regional ISP stock distributors and internal enterprise IT procurement teams:
  • High-Speed Building-to-Building Links: Connects separate campus facilities or corporate structures over short-to-medium distances up to 10km using an optimized single-strand single-mode infrastructure.

  • Data Center Leaf-Spine Distribution: Seamlessly links leaf switches to top-of-rack spine systems in high-throughput enterprise server clusters.

  • Enterprise Core Backbones: Upgrades core aggregation layers from legacy 1G to high-performance 10G topologies using existing single-core infrastructure.

  • Metropolitan Area Networks (MAN): Ideal for regional telecommunications or enterprise managed networks where maximizing fiber core availability is vital.


Connectivity Solutions(Applications)

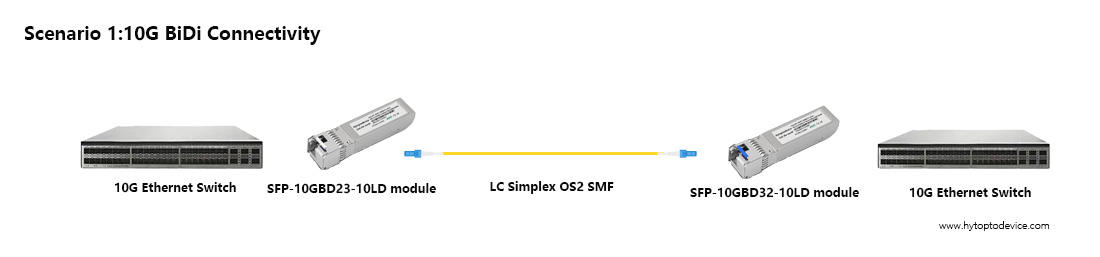

1.10G Switch-to-Switch Interconnection
 Pair matched BiDi modules between Brocade core and access switches for low-cost single-fiber uplinks, saving limited fiber resources for campus and data center capacity expansion.10G Switch-to-Switch single fiber interconnection topology with paired HYTOPTODEVICE 10G SFP+ BiDi Transceiver for Brocade campus indoor network uplink bulk engineering project

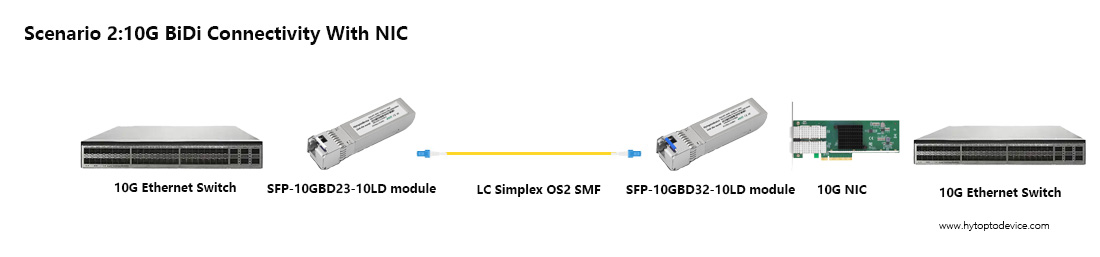

2.10G Switch-to-NIC Direct Connection
Create point-to-point simplex fiber links between Brocade switches and server SFP+ NICs to eliminate gigabit bandwidth bottlenecks for storage and cloud workloads.
 10G Switch-to-NIC direct connection diagram using HYTOPTODEVICE 10G SFP+ BiDi Transceiver 10G-SFPP-BXU for server high-speed storage and cloud computing data transmission

3.10G Structured Cabling Rack Layout
Fits standard OS2 simplex single-mode structured wiring, delivering unified end-to-end 10G transmission across access, aggregation and core layers for office buildings and ISP central office infrastructure.
10G Structured Cabling network layout with simplex single strand OS2 fiber and HYTOPTODEVICE 10G SFP+ BiDi Transceiver for commercial office building indoor integrated wiring infrastructure


The Core Features

1.Optimize Infrastructure via Single-Fiber WDM
Maximize your existing assets. By utilizing separate TX/RX wavelengths on one single-mode fiber, this 10G BiDi transceiver optimizes your fiber infrastructure, cutting physical fiber requirements and installation labor costs by 50%.

10G-SFP-plus-BiDi-TX1270-RX1330-10km

2.Double Your Network Capacity
Scale your network effortlessly. Upgrading to our BiDi technology allows you to instantly double your data throughput over your existing fiber plant, providing a cost-effective roadmap for future bandwidth expansion.

increase-bandwidth-capacity-10G-SFP-optical-transceiver

3.High-Density, Low-Carbon 10G SFP+
Scale up without overloading your racks. Delivering full 10Gbps performance at a ultra-low power consumption of just 1W, this high-density transceiver helps modern enterprise networks and data centers achieve green energy targets.

energy-saving-10G-SFP-plus-1W-low-power

4.Verified Cross-Brand Compatibility
Avoid vendor lock-in with confidence. Our transceivers are programmed and tested in real mainstream brand switches to ensure 100% interoperability. We are proud of our authentic results! Specific Compatibility Video available upon request.

compatible-SFP-transceiver-multi-brand-switch-testing

5.End-to-End Quality Assurance
Built for mission-critical paths. Every 10G BiDi 10km module undergoes exhaustive factory testing—including BER (Bit Error Rate) tests and distance simulation—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

optical-transceiver-strict-quality-control-factory-test



FAQ

Q1: Can I remove or insert this Brocade-compatible BiDi transceiver while the switch runs without cutting live traffic?
A: Yes, HYTOPTODEVICE 10G SFP+ BiDi Transceiver supports full hot swapping. You can plug or pull out the optic on active Brocade 10G SFP+ ports without rebooting the device, and running traffic on adjacent ports will not be interrupted.

Q2: Will installing third-party compatible SFP+ BiDi optics cancel the original hardware warranty of Brocade and Ruckus switches?
A: No. The Magnuson-Moss Warranty Act protects end users. Deploying HYTOPTODEVICE 10G SFP+ BiDi Transceiver certified replacement optics cannot invalidate official warranty coverage for Brocade or Ruckus network hardware.

Q3: What causes Brocade network switches to pop up warnings saying the inserted optic is unqualified or unsupported?
A: Brocade ICX and FastIron OS identify optics via built-in vendor identifiers. HYTOPTODEVICE pre-programs every 10G SFP+ BiDi Transceiver to skip these alerts; you can also upgrade switch firmware or use our custom ID coding service to fix error-disabled ports.

Q4: What core wavelength difference separates the BXU and BXD Brocade BiDi transceiver models?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver BXU unit transmits 1270nm and receives 1330nm, while the matching BXD variant transmits 1330nm and receives 1270nm. Mismatched single-type modules cannot form complete bidirectional fiber links.

Q5: Is it acceptable to install two BXU single-fiber BiDi transceivers at opposite ends of the same simplex fiber cable?
A: No. Two identical HYTOPTODEVICE 10G SFP+ BiDi Transceiver BXU units transmit the same 1270nm wavelength, with no matching receive signal, which leaves the network interface offline with zero data forwarding.

Q6: Do I need a dual LC two-strand fiber patch cord to deploy this single-fiber BiDi transceiver?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Transceiver adopts simplex LC single-fiber WDM design, which transmits and receives full-duplex 10G signals over only one fiber strand and cuts cabling costs in half.

Q7: What indoor temperature range can this Brocade-matched BiDi optical module stably operate within?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver follows commercial grade specifications of 0°C to 70°C, designed exclusively for temperature-controlled data centers and standard enterprise server rack environments.

Q8: Is this 10km single-fiber BiDi transceiver usable on multi-mode OM3/OM4 fiber cabling systems?
A: No. Laser and receiver chips inside HYTOPTODEVICE 10G SFP+ BiDi Transceiver are calibrated only for OS1/OS2 single-mode fiber; modal dispersion on multi-mode cable prevents stable 10G link establishment.

Q9: My fiber connection distance is only 1 kilometer, do I need to add an optical attenuator for this 10km BiDi SFP+ module?
A: No extra attenuator is required for short 1km fiber spans. Built-in power regulation circuits inside HYTOPTODEVICE 10G SFP+ BiDi Transceiver limit transmit power to avoid saturating the opposite receiving chip.

Q10: Does this aftermarket Brocade-compatible BiDi transceiver support real-time Digital Optical Monitoring functions?
A: Yes. Each HYTOPTODEVICE 10G SFP+ BiDi Transceiver fully complies with SFF-8472 DOM standards, allowing administrators to view real-time optical performance data through Brocade’s CLI show optic slot commands.

Q11: Can this fixed-rate 10G BiDi transceiver automatically drop down to 1Gbps gigabit transmission speeds?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Transceiver locks to a fixed 10GBASE-BX bandwidth and lacks multi-rate negotiation logic, so it cannot downgrade to 1G or older 100M network speeds.

Q12: How does the stability of these third-party BiDi transceivers compare against original factory Brocade optical modules?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver uses identical premium optoelectronic chips as OEM Brocade optics. Every unit undergoes individual physical testing on real Brocade switches and unique serialization to guarantee 99.9% continuous network uptime.

Q13: Does this single-fiber BiDi optic satisfy global environmental and laser safety compliance regulations?
A: Yes. HYTOPTODEVICE 10G SFP+ BiDi Transceiver passes full compliance testing for SFP+ MSA, CE, FCC, RoHS and IEC 60825-1 Class 1 eye-safe laser international standards.

Q14: Can this high-speed SFP+ BiDi transceiver fit and work inside older 1G-only SFP equipment slots?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Transceiver relies on dedicated SFP+ high-speed ASIC chips, which are incompatible with legacy 1G SFP slots without 10G signal processing hardware.

Q15: Can I install this Brocade-coded BiDi transceiver on Cisco or Juniper brand network switches?
A: This HYTOPTODEVICE 10G SFP+ BiDi Transceiver is preloaded with exclusive Brocade vendor ID codes. We offer separately re-programmed variants for Cisco and Juniper hardware to eliminate cross-brand interface warning prompts.

Q16: What is the maximum wattage power draw of this single-fiber BiDi SFP+ transceiver module?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver features low-power circuit layout with peak power consumption under 1W, lowering thermal pressure inside fully populated high-density 48-port switch racks.

Q17: Can this Ethernet-focused BiDi transceiver be deployed for SDH and SONET telecom transmission networks?
A: No. HYTOPTODEVICE 10G SFP+ BiDi Transceiver is optimized exclusively for IEEE 802.3ae 10G Ethernet and Fiber Channel, and it cannot adapt to synchronized SDH/SONET telecom transport architectures.

Q18: Which fiber end-face polishing type works with this simplex BiDi transceiver, UPC or APC?
A: HYTOPTODEVICE 10G SFP+ BiDi Transceiver matches standard blue simplex LC/UPC flat contact connectors. Green angled LC/APC patch cords create severe signal attenuation and break the optical link entirely.

Q19: The switch link light shows active, yet no data packets are being received through this BiDi transceiver — what causes this issue?
A: Illuminated link lights only detect raw optical signals; zero inbound data traffic on HYTOPTODEVICE 10G SFP+ BiDi Transceiver usually results from mismatched VLAN tags, STP port blocking or incorrect MTU interface configurations.

Q20: What negative outcomes will occur if the server room operating temperature exceeds the 70°C upper limit of this BiDi module?
A: Sustained temperatures above 70°C damage the built-in laser diode of HYTOPTODEVICE 10G SFP+ BiDi Transceiver, causing wavelength drift, rising bit error rates and permanent irreversible optical hardware failure.


Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
