Brocade 10G-SFPP-BXU Compatible 10G SFP+ BiDi Transceiver 10GBASE-BX-D (SMF, 1330nm-TX/1270nm-RX, 10km, Simplex LC, DDM)
Product Overview

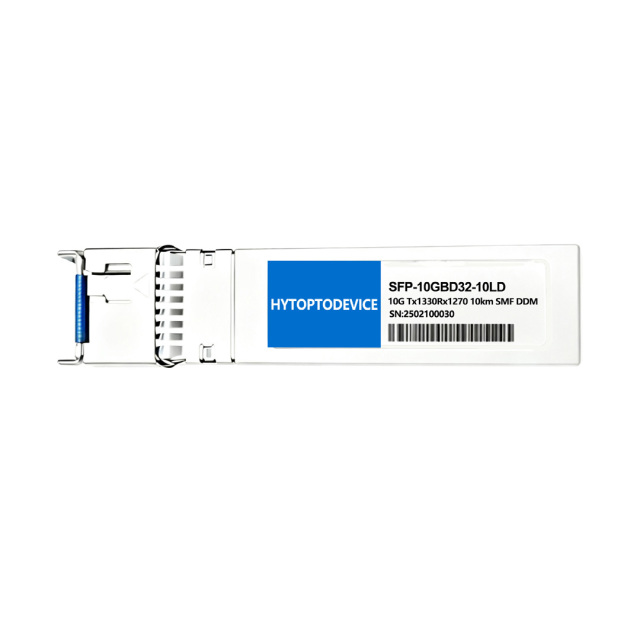

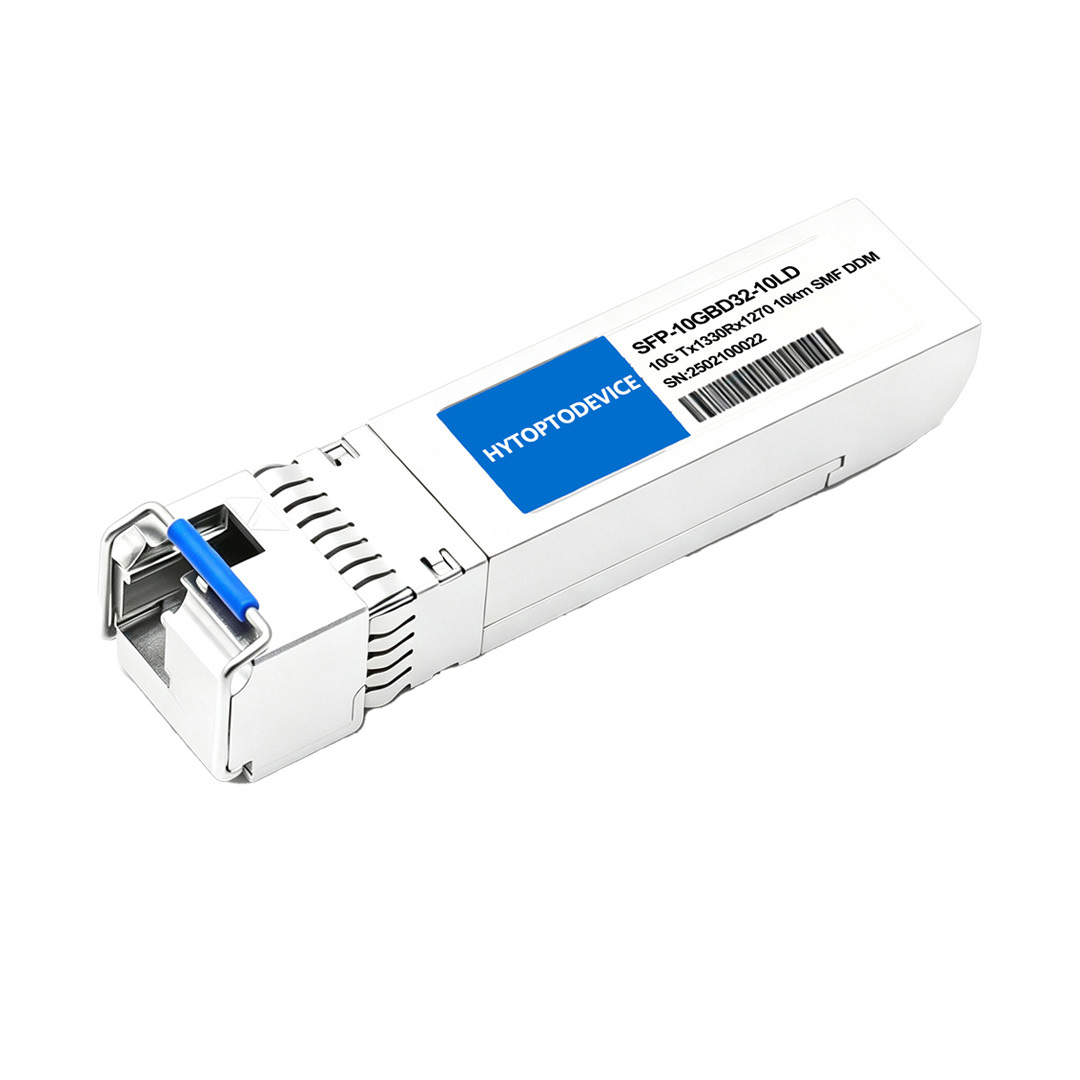

This Brocade 10G-SFPP-BXD Compatible 10G SFP+ BiDi transceiver is 10km 10GBASE-BX simplex LC single fiber optic, a 10G-SFPP-BXD replacement for Brocade OEM optics. The Single fiber SFP+ 10G Upstream module delivers stable 10GBASE-BX transmission up to 10km over OS2 single-mode fiber with 1330nm-TX/1270nm-RX simplex LC interface.The compatible 10G SFP+ BiDi transceiver always operate in pairs with matching complementary wavelengths. Compliant with Hot Pluggable SFP+ MSA, SFF-8472, IEEE 802.3ae and RoHS standards, Featuring real-time DDM monitoring, low power consumption and high speed, the Third-party Brocade 10G-SFPP-BXD transceiver is ideal for enterprise campus inter-building uplinks, metro ISP fiber backhaul, remote office interconnection and Radio & Baseband Units, etc. We support samples, bulk wholesale and OEM private labeling, submit bulk inquiry or RFQ for competitive pricing and long-term supply contracts.
Key Technical Specifications
Each HYTOPTODEVICE 10G SFP+ BiDi Transceiver undergoes multi-stage factory quality control prior to shipment, including optical power calibration, continuous traffic load aging testing, bit error rate screening and physical plug-in validation on genuine Brocade production switches. Premium DFB laser transmitters and PIN photodiode receiver chips deliver low signal attenuation and stable long-term laser performance, while built-in power regulation circuits prevent receiver burnout on ultra-short fiber patch cords. All hardware parameters align 1:1 with official Brocade 10G-SFPP-BXD design requirements and global industry compliance frameworks.
| Brocade Compatible |
10G-SFPP-BXD |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
10.7Gbps |
| Wavelength |
TX1330nm/RX1270nm |
Max Distance |
10km |
| Connector |
Simplex LC |
Transmitter Type |
1330nm DFB |
| Cable Type |
SMF |
Receiver Type |
PIN |
| TX Power |
-5.0~0dBm |
Receiver Sensitivity |
< -14.4dBm |
| Max. Power Consumption |
≤1W |
DOM/DDM |
Fully Supported |
| Protocols & Standards |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Critical Pairing Guidance

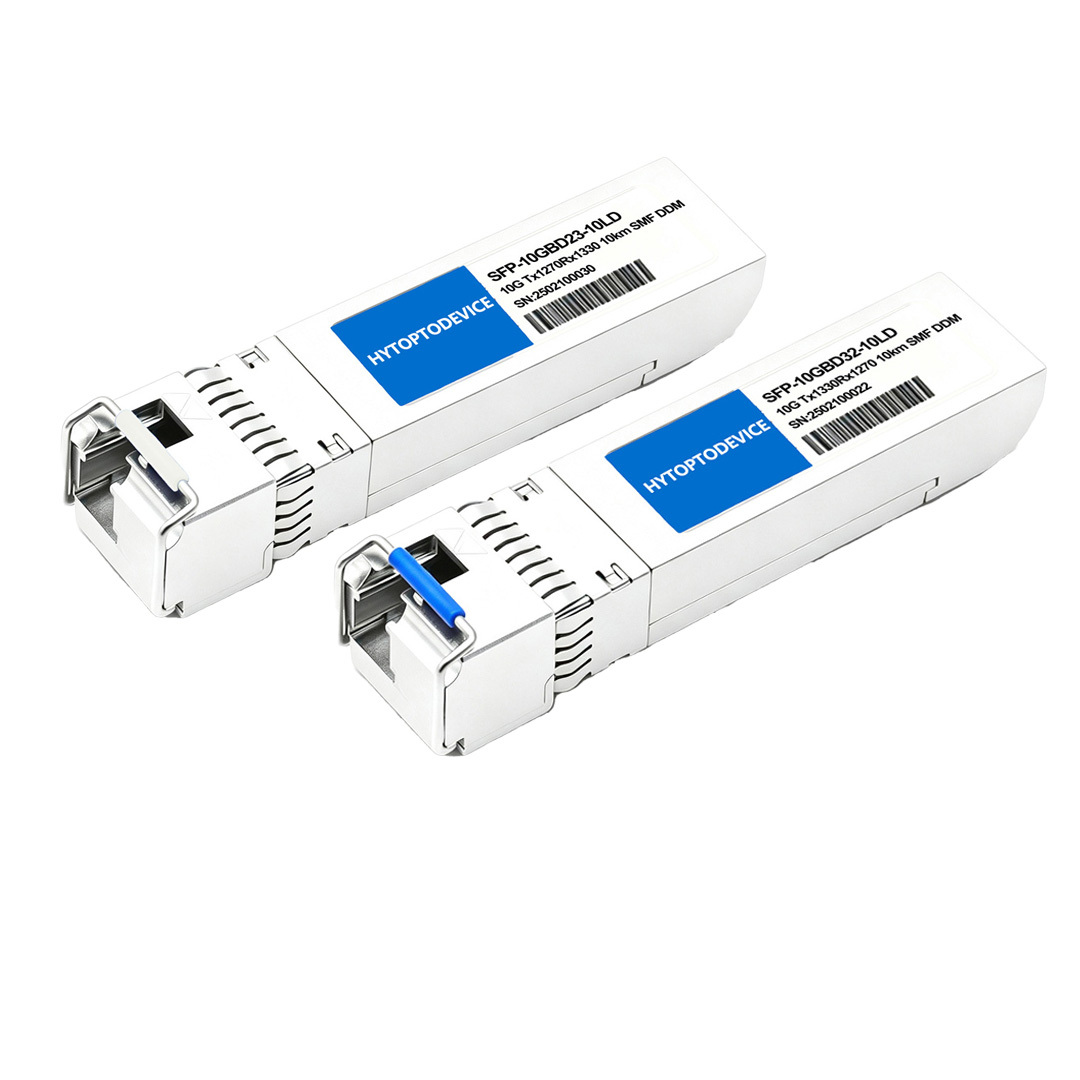

As a unidirectional fixed-wavelength bidirectional optic, this HYTOPTODEVICE 10G SFP+ BiDi Transceiver cannot form functional full-duplex links when paired with an identical TX1330/RX1270 module. It must be matched with the complementary Brocade 10G-SFPP-BXU variant (1270nm-TX / 1330nm-RX) at the opposite fiber termination point to separate upstream and downstream signal wavelengths and avoid complete link failure. HYTOPTODEVICE provides exclusive bundled discount pricing for paired bulk orders of matching BiDi transceiver sets, ideal for system integrators completing campus and ISP network turnkey projects. Custom long-distance 20km, 40km and 60km BiDi module variants are available upon OEM bulk order quote request for specialized extended-span networking deployments.
The Required Matching Pair here: 10G SFP+ BiDi Tx 1270nm / Rx 1330nm 10km module
Full Compatibility List & Supported Network Hardware
1.Brocade Networks Native Compatibility
This HYTOPTODEVICE 10G SFP+ BiDi Transceiver delivers automatic, alarm-free plug-and-play recognition on all Brocade Fabric OS networking hardware officially certified for the 10G-SFPP-BXD transceiver specification. No manual port configuration adjustments, firmware patches or vendor license overrides are necessary, and all embedded DDM DOM monitoring functions operate natively via Brocade CLI and web-based device management portals. Fully compatible Brocade device product lines:
- Brocade ICX Campus Switches: ICX6450, ICX6610, ICX6650 Series
- Brocade FCX Access Aggregation Switches: FCX624, FCX648 Series
- Brocade VDX Data Center Switch Fabrics: VDX6720, VDX6740, VDX8770 Series
- Brocade Fiber Edge Transport Platforms: BR-6505, BR-6510 Series
2.Multi-Brand Cross Compatibility
This HYTOPTODEVICE Single mode 10G BiDi SFP+ 1330nm transceiver maintains robust cross-vendor interoperability to support mixed-brand indoor network architectures commonly seen in enterprise campus renovations, multi-site corporate WAN deployments and regional ISP central office construction projects. Stable signal transmission is verified across the following third-party network equipment brands:
- Cisco, Arista, H3C
- Huawei, Mikrotik, Dell PowerSwitch
- Fortinet,Juniper, Ubiquiti
HYTOPTODEVICE’s in-house engineering team provides complimentary remote technical debugging, transceiver vendor ID coding and re-programming services to resolve cross-brand hardware adaptation issues for bulk order clients and formal long-term supply contract partners. Custom identification data rewriting eliminates unrecognized transceiver error alerts on non-Juniper switch operating systems.
Primary Application Scenarios
This cost-optimized single-strand HYTOPTODEVICE 10G SFP+ BiDi transceiver addresses fiber resource shortage pain points across the full spectrum of indoor enterprise, data center and carrier-grade networking projects, lowering total capital expenditure for global system integrators, regional ISP stock distributors and internal enterprise IT procurement teams:
-
High-Speed Building-to-Building Links: Connects separate campus facilities or corporate structures over short-to-medium distances up to 10km using an optimized single-strand single-mode infrastructure.
-
Data Center Leaf-Spine Distribution: Seamlessly links leaf switches to top-of-rack spine systems in high-throughput enterprise server clusters.
-
Enterprise Core Backbones: Upgrades core aggregation layers from legacy 1G to high-performance 10G topologies using existing single-core infrastructure.
-
Metropolitan Area Networks (MAN): Ideal for regional telecommunications or enterprise managed networks where maximizing fiber core availability is vital.
Connectivity Solutions(Applications)
1.10G Switch-to-Switch Interconnection
Brocade 10G BiDi SFP+ matching pair between Brocade core and access switches for low-cost single-fiber uplinks, saving limited fiber resources for campus and data center capacity expansion.
2.10G Switch-to-NIC Direct Connection
Create point-to-point simplex fiber links between Brocade switches and server SFP+ NICs to eliminate gigabit bandwidth bottlenecks for storage and cloud workloads.
3.10G Structured Cabling Rack Layout
Fits standard OS2 simplex single-mode structured wiring, delivering unified end-to-end 10G transmission across access, aggregation and core layers for office buildings and ISP central office infrastructure.
FAQ
Q1: What network faults will appear after interconnecting two TX1270/RX1330 single-fiber transceivers with identical wavelengths?
A: Connecting two same TX1270/RX1330 modules directly results in total link breakdown. HYTOPTODEVICE notes BiDi single-fiber links demand matched opposite wavelength pairs. Mismatched wavebands block optical signal reception, leaving switch ports offline and all data transmission impossible.
Q2: Will deploying 10G SFP+ BiDi transceivers with 1-meter ultra-short fiber jumpers burn the built-in receiving chip?
A: 1m short fiber cables pose no risk of receiver burnout. All optical hardware supplied by HYTOPTODEVICE integrates automatic optical power limiting circuits, safeguarding internal laser parts and sustaining steady links for minimal-distance cabling layouts.
Q3: Do installers have to fit optical attenuators when laying 500-meter single-mode fiber for BiDi transmission?
A: Extra optical attenuators are not compulsory for 500m short fiber runs. HYTOPTODEVICE tunes the optical power budget of its transceivers with ample loss margin for short-distance scenes, eliminating signal saturation without additional auxiliary parts.
Q4: Are Brocade-matching third-party optical transceivers validated on physical switches or merely simulated inside labs?
A: Every interoperable optical unit manufactured by HYTOPTODEVICE undergoes full real-machine verification on authentic Brocade switches. Compatibility, optical indicators and DDM monitoring get checked under actual hardware environments rather than basic virtual lab simulation for reliable commercial deployment.
Q5: What temperature operating thresholds separate commercial and industrial Brocade-compatible BiDi optical modules?
A: HYTOPTODEVICE rolls out two distinct temperature variants of optical transceivers. Commercial models work stably between 0°C and 70°C for indoor data centers, while industrial versions cover -40°C to 85°C to fit outdoor cabinets and harsh industrial networking setups.
Q6: Why do DDM built-in RX power figures mismatch readings captured by standalone professional optical power meters?
A: Data gaps stem from different signal capture logics. The intelligent DDM chip fitted inside all HYTOPTODEVICE optical modules carries out continuous dynamic sampling, whereas external meters deliver single static measurements. Dirty fiber ends, loose patch cords and ambient noise will widen such numerical fluctuations further.
Q7: How does fiber core dust affect single-fiber BiDi transceivers more severely than standard dual-fiber SFP+ modules?
A: BiDi single-fiber hardware shares one fiber core for both sending and receiving paths. HYTOPTODEVICE reminds users that tiny dust residues disrupt uplink and downlink signals concurrently, triggering heavier optical attenuation and unstable links versus classic two-fiber transceiver structures.
Q8: Does the single-fiber bidirectional transmission framework introduce extra network latency against conventional dual-fiber 10G transceiver setups?
A: The single-fiber BiDi layout creates zero added transmission delay. Low-latency circuit architecture adopted by HYTOPTODEVICE keeps data forwarding efficiency equal to traditional dual-fiber solutions under identical fiber length and traffic loads.
Q9: Can bulk compatible optical modules be shipped out instantly to fix unexpected critical network downtime emergencies?
A: HYTOPTODEVICE holds permanent large ready-to-ship stock of cross-brand optical transceivers all year long. We offer rapid order confirmation and same-day dispatch for sudden network breakdowns, cutting service outage duration and financial losses for enterprise clients.
Q10: Are third-party replacement transceivers for Brocade gear fully aligned with formal SFP+ MSA industry specification criteria?
A: Every substitute optical module engineered by HYTOPTODEVICE complies rigidly with all clauses of the SFP+ Multi-Source Agreement. Mechanical sizes, electrical pinouts, optical performance metrics and communication protocols all meet unified industry standards to guarantee universal interoperability across mainstream network hardware brands.
