| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | GLC-T | SFP-GE-T |
| 2 | Alcatel-Lucent | SFP-GIG-T | SFP-GE-T-I |
| 3 | Brocade | E1MG-TX | 10/100/1000BASE-T |
| 4 | Cisco Meraki | MA-SFP-1GB-TX | SFP-10G-T-30 |
| 5 | Huawei | SFP-1000BaseT | SFP-10G-T-30I |
| 6 | IBM | 00FE333 | SFP-10G-T-80 |
| 7 | Juniper Networks | JX-SFP-1GE-T | SFP-10G-T-100 |
| 8 | HPE | JD089A | |
| 9 | HPE Procurve | J8177B | |
| 10 | Palo Alto Networks | PAN-SFP-CG | |
| 11 | Ruijie | MINI-GBIC-GT |

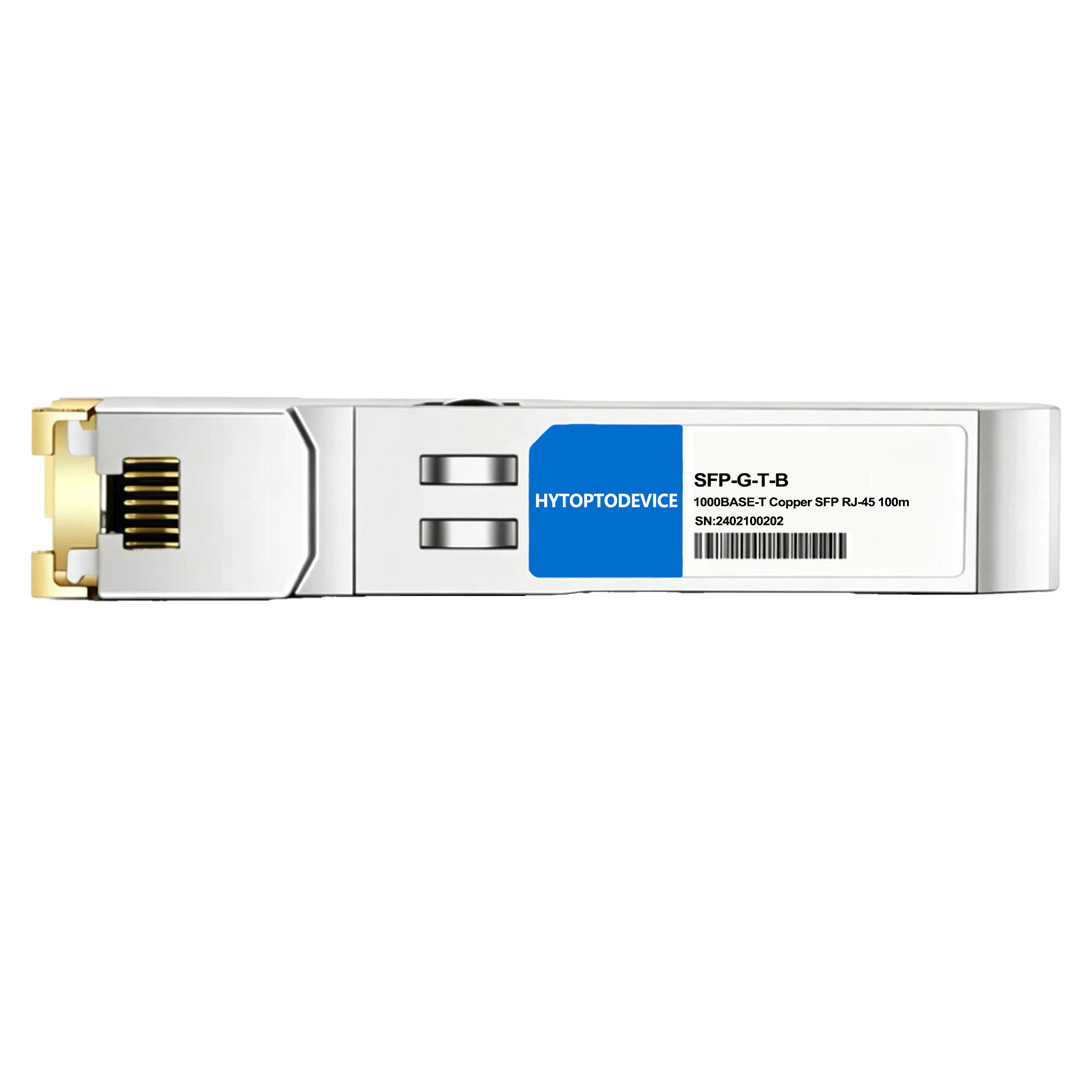

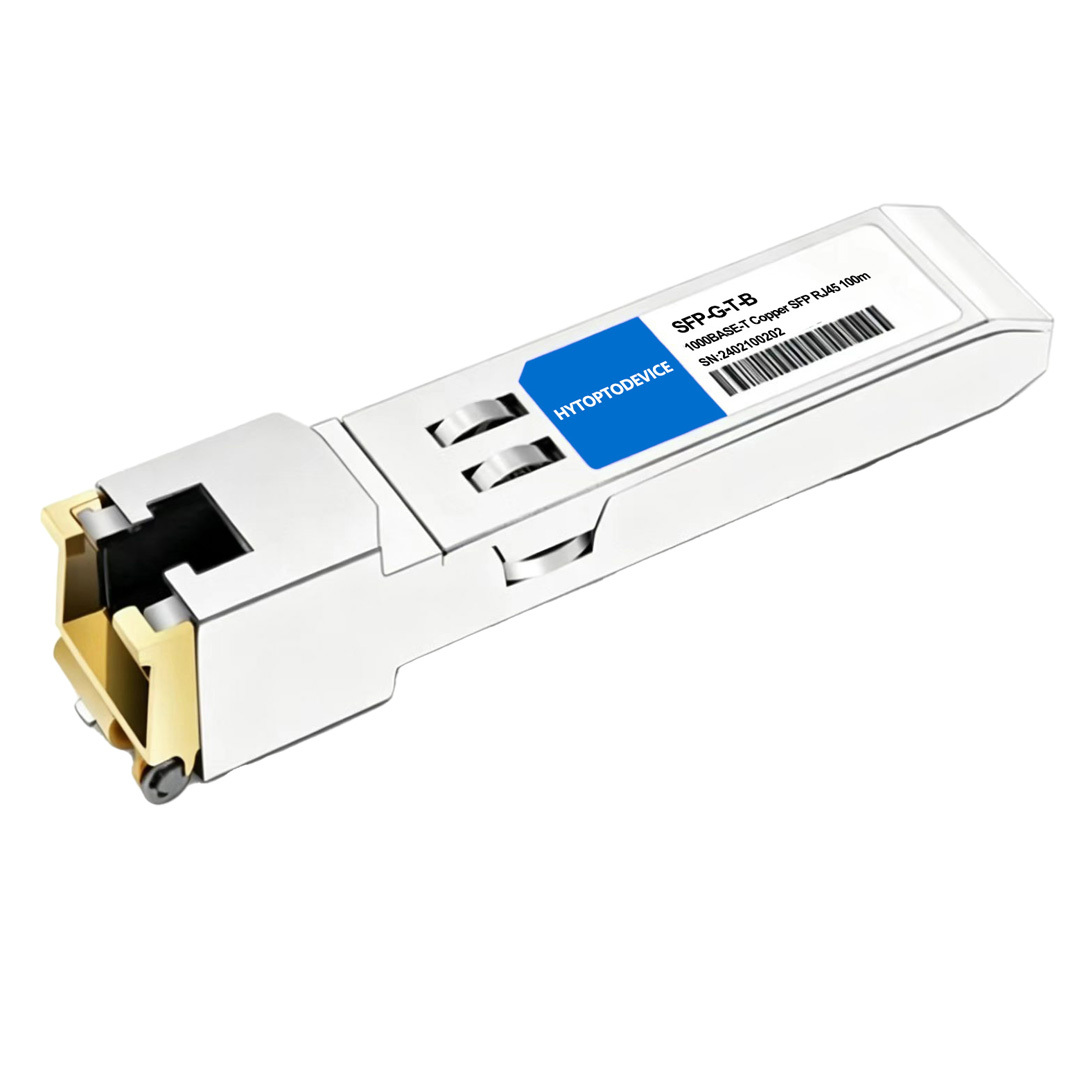

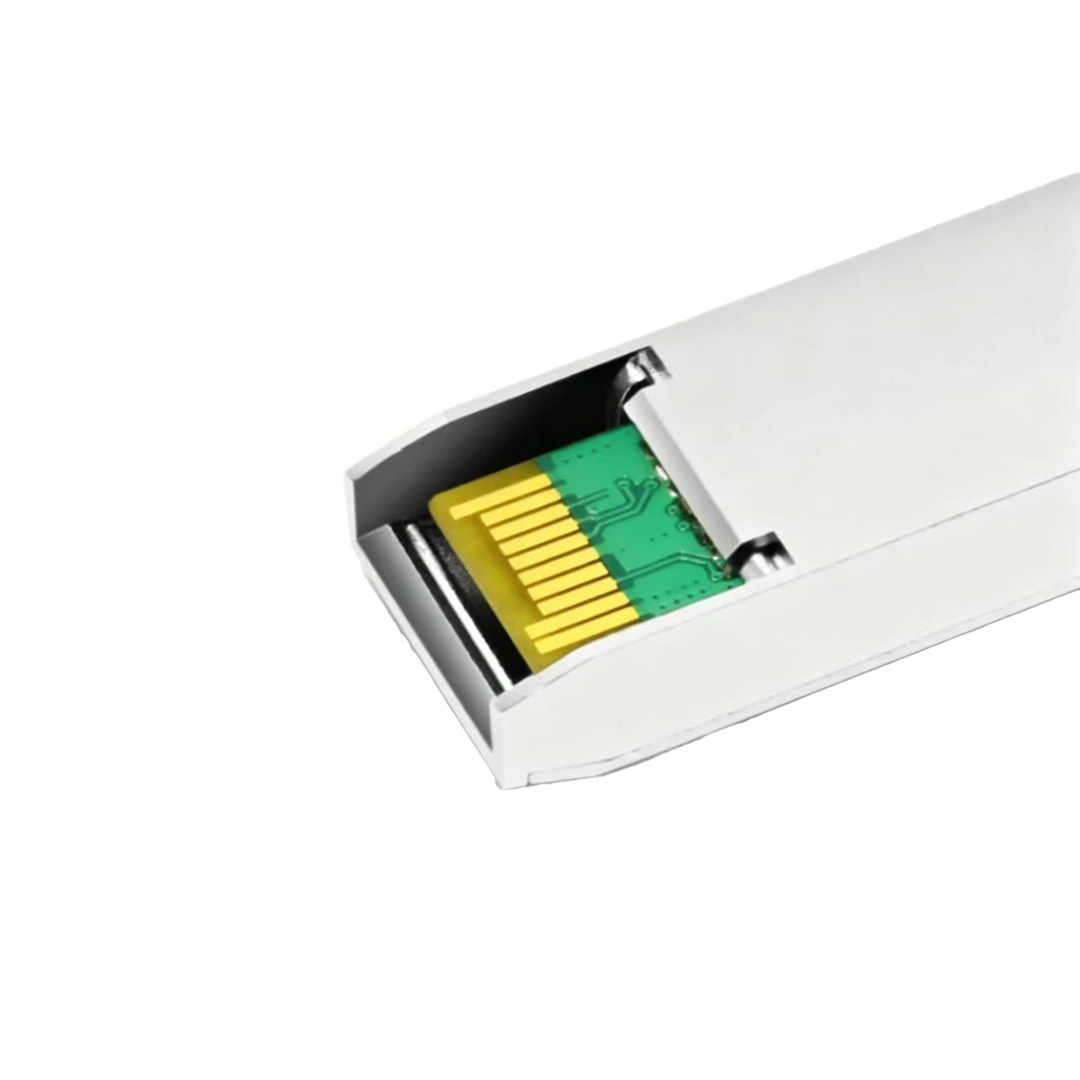

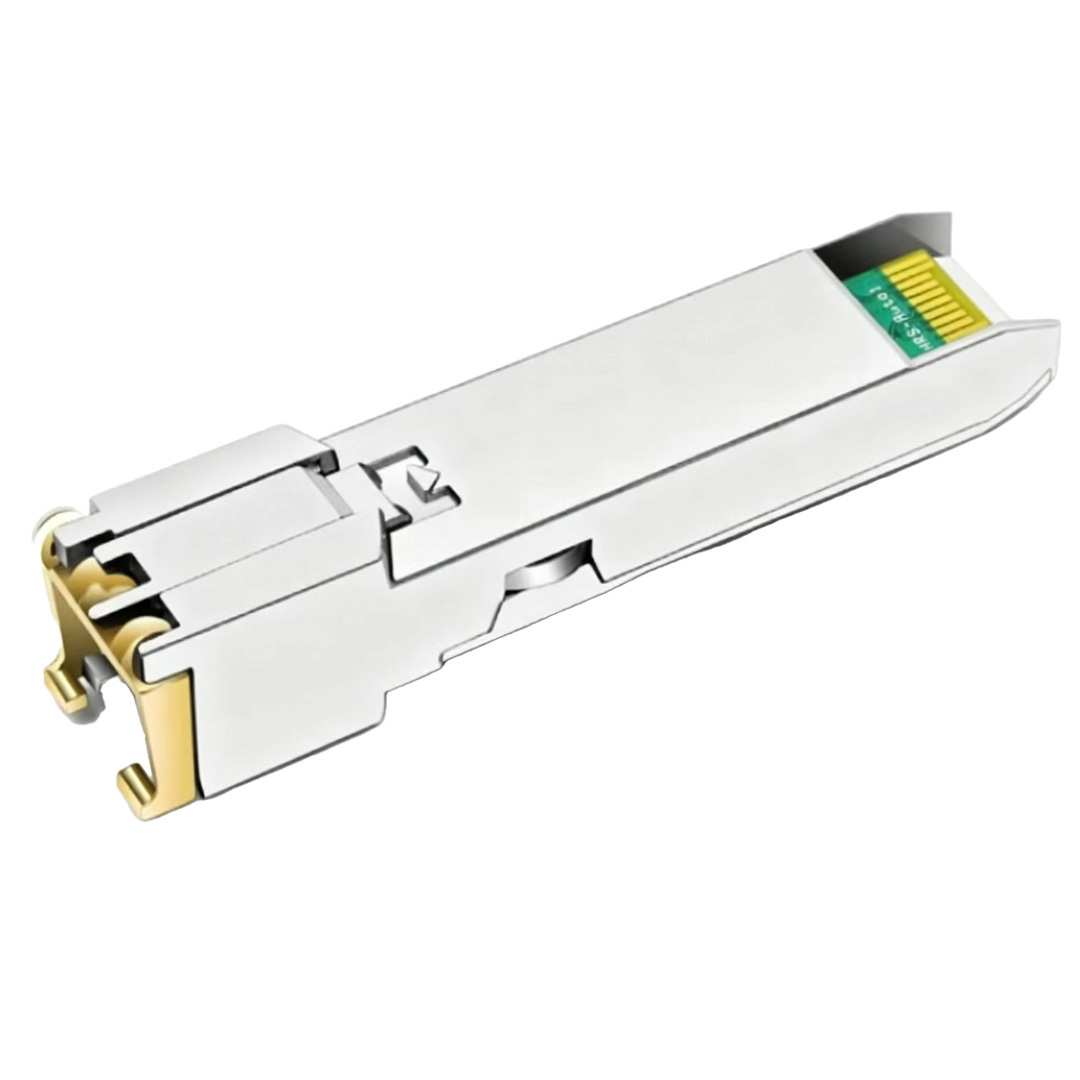

| HPE Procure Compatible | J8177B | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP | Data Rate | 1000Mbps |
| Connector | RJ-45 | Cable Distance | 100m |
| Media | Copper | Cable Type | Cat 5e/6/6a (UTP) |
| Max. Power Consumption | ≤1.2W | DDM Support | Yes |
| Protocols | MSA Compliant, IEEE STD 802.3 and 802.3ab | Operation Temperature | 0 to 70°C (32 to 158°F) |
Standard: Cat5e or Cat6 twisted-pair cable is required to achieve full 100-meter Gigabit performance.
Note: Standard Cat5 cable may limit link stability at full 1G speed and is not recommended.
Live Insertion: The SFP copper transceiver supports live insertion and removal.
Precaution: Avoid repeated hot swapping under continuous heavy traffic loads to ensure optimal hardware longevity.
Heat Dissipation: This 1Gbps copper module generates mild heat during operation.
Deployment Advice: Verify the switch thermal budget and ensure adequate ventilation before fully populating all SFP ports.
Fixed Rate: This transceiver operates at a fixed 1000Mbps speed only.
Compatibility Warning: It cannot auto-negotiate down to 100Mbps or 10Mbps. The connected peer device must support 1G speed to successfully establish a link.
Storage Environment: Keep unused transceivers stored in dry, ESD-safe packaging.
Dust Protection: Always fit dust caps onto the RJ45 port when the module is not in service.
Built on SFP MSA and IEEE standards, this copper transceiver also works with Cisco, MikroTik, Avaya Nortel and other mainstream network hardware, ideal for mixed-vendor legacy network upgrade projects.
The Core Features
FAQ
Q1: Will this HYTOPTODEVICE J8177B compatible transceiver trigger unknown transceiver warning logs on legacy HPE ProCurve firmware?
A: No. Our module is pre-flashed with J8177B EEPROM identifiers matching HPE ProCurve OEM specs. ProCurve switch OS will natively recognize the transceiver and skip transceiver warning prompts without manual configuration tweaks.
Q2: What key differences separate this HPE ProCurve compatible copper transceiver from generic MSA 1000BASE-T SFP modules?
A: Generic MSA SFP copper modules follow mechanical and electrical specs but lack HPE ProCurve-specific EEPROM identity codes. Generic parts may throw alert logs or fail link negotiation on older ProCurve firmware. HYTOPTODEVICE preloads J8177B EEPROM profile to guarantee stable interoperability with legacy ProCurve switch platforms.
Q3: Can I install this J8177B compatible 1G copper transceiver inside SFP+ ports?
A: Yes, it physically fits SFP+ cages. This module only runs fixed 1000Mbps and cannot reach 10G throughput. Confirm host SFP port compatibility before field installation. The peer device still needs gigabit capability to bring up link.
Q4: Does hot inserting this copper transceiver into a live ProCurve switch port risk permanent port hardware damage?
A: No. This HYTOPTODEVICE SFP copper transceiver integrates built-in ESD protection and standard SFP hot-swap circuitry. Live insertion will not damage switch ports, but verify link status after plugging the module in.
Q5: Can I fill all SFP slots on ProCurve 5400zl chassis switches fully with these J8177B compatible copper transceivers?
A: Not recommended without thermal assessment. Copper SFP modules generate heat when running at 1G. Dense population can raise internal chassis temperature. HYTOPTODEVICE recommends spacing modules to preserve proper airflow.
Q6: Does copper patch cable length affect the power consumption of this fixed-rate 1000BASE-T transceiver?
A: Yes. Longer copper cabling requires more signal equalization processing from the internal PHY chip, slightly increasing power draw near the rated 100m maximum distance. HYTOPTODEVICE validates power consumption across all supported cable lengths during factory testing.
Q7: What maximum cable run length can this J8177B compatible transceiver maintain stable native 1G operation?
A: Reliable gigabit transmission reaches up to 100 meters on certified Cat5e or Cat6 twisted pair. Longer copper runs create signal attenuation and crosstalk, raising bit error rates and causing intermittent packet loss. HYTOPTODEVICE validates each production batch at full 100m rated distance.
Q8: What performance drawbacks appear when using regular Cat5 cable instead of Cat5e for this 1000BASE-T copper module?
A: Basic Cat5 cable cannot guarantee stable 1000BASE-T operation over 100 meters. It may fail to establish gigabit link entirely. HYTOPTODEVICE recommends Cat5e or Cat6 cabling to achieve the full 100-meter gigabit rated performance.
Q9: Is shielded twisted pair mandatory when deploying this HYTOPTODEVICE J8177B copper transceiver in dense ProCurve chassis racks?
A: Recommended. Shielded STP/FTP cables reduce electromagnetic interference from adjacent power and network wiring. Unshielded UTP may trigger random link drops in crowded rack environments, even for cable runs shorter than 100 meters.
Q10: Can existing pre-installed in-wall copper cabling support 1000BASE-T links with this J8177B compatible transceiver?
A: It depends on cable category and termination workmanship. Only Cat5e/Cat6 cabling under 100 meters delivers reliable gigabit connectivity. Older Cat5 or poorly terminated wall cabling cannot maintain stable 1G links. HYTOPTODEVICE advises cable certification testing before deployment.
Q11: Will this HYTOPTODEVICE J8177B copper transceiver automatically drop down to 100M or 10Mbps for slower RJ45 endpoints?
A: No, this transceiver supports fixed 1000Mbps operation only. It cannot auto-negotiate down to 100Mbps or 10Mbps. The connected peer hardware must support 1G speed to establish a working network link.
Q12: Does this HPE ProCurve J8177B compatible 1G copper transceiver include Auto-MDI/MDIX crossover capability?
A: Yes, Auto-MDI/MDIX function is integrated. Straight-through RJ45 patch cords work directly; crossover cables are unnecessary for point-to-point device interconnections.
Q13: Does this J8177B 1000BASE-T transceiver support jumbo frames on HPE ProCurve switches?
A: Yes, jumbo frame transmission is supported at 1G speed. Enable jumbo frame settings on both switch port and connected 1G endpoint to reduce packet overhead for file transfer workloads.
Q14: Is this HYTOPTODEVICE J8177B compatible transceiver suitable for office LAN and IP camera surveillance network upgrades?
A: Yes. It provides low-cost fixed gigabit RJ45 connectivity for access switches, servers and 1G IP cameras during legacy ProCurve network refresh. Many system integrators pick our compatible modules to cut hardware costs compared to original HPE spare parts.
Q15: Can operators read real-time module temperature and voltage metrics from this J8177B transceiver on ProCurve switches?
A: No. Consistent with original J8177B specifications, this module does not support DDM/DOM diagnostic monitoring. No live telemetry data can be pulled from the transceiver via switch management interfaces.
Q16: Can this J8177B compatible transceiver interoperate with standard SFP 1G media converters?
A: Yes, it works with standard gigabit SFP media converters fitted with SFP slots, provided the media converter supports 1000BASE-T. HYTOPTODEVICE completes cross-brand interoperability validation for mixed-vendor legacy network upgrade projects.
