Huawei SFP-GE-LX-SM1310 Compatible 1000BASE-LX Transceiver Module | SFP 1310nm 10km SMF Bulk Factory Wholesale | HYTOPTODEVICE

Fix Huawei device unrecognized transceiver and alarm errors with HYTOPTODEVICE SFP-GE-LX-SM1310 compatible transceiver module. Standard 1000BASE-LX 1310nm 10km SMF transceiver module fits Huawei CloudEngine switches and AR routers for stable bulk deployment. Bulk wholesale, private label and custom EEPROM programming available for global importers, system integrators and distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  GLC-LH-SMD SFP-G85-5LD
2 Alcatel-Lucent  iSFP-GIG-LX SFP-G31-40LD
3 HPE Procurve  J4859C SFP-G55-80LD
4 Arista Networks SFP-1G-LX SFP-G55-100LD
5 Juniper Networks  JX-SFP-1GE-LX  SFP-G55-120LD
6 Huawei  SFP-GE-LX-SM1310  SFP-G55-160LD
7 Brocade  E1MG-LX-OM
8 H3C  SFP-GE-LX-SM1310


Description

Huawei SFP-GE-LX-SM1310 Compatible 1000BASE-LX Transceiver Module | SFP 1310nm 10km SMF Bulk Factory Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1000BASE-LX transceiver module is fully pin-to-pin compatible with Huawei SFP-GE-LX-SM1310, fixing third-party transceiver module authentication and alarm errors. It complies with industry standards and delivers stable 1.25Gbps single-mode transmission for Huawei network devices.​
Pre-flashed with dedicated Huawei firmware, this plug-and-play transceiver module passes official device verification, eliminating link failure and DDM data errors for stable out-of-box use.​
Adopting 1310nm FP laser, this transceiver module supports 10km error-free SMF transmission. Each unit undergoes strict aging and compatibility tests for reliable bulk deployment.

Key Technical Specifications



Huawei Compatible SFP-GE-LX-SM1310 Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength 1310nm Max Distance 10km
Connector Duplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3.0dBm Receiver Sensitivity < -22.0dBm
Typical Power Consumption ≤1W Receiver Overload -3dBm
Bit Error Ratio (BER) 1E-12 DDM/DOM Support
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)


Usage Guidelines & Best Practices

  • Fiber Choice: Duplex LC OS1/OS2 SMF (9/125 µm). Do NOT use MMF

  • Connector Match: UPC/PC polish only. Do NOT use APC.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Link Setup:Lock speed to 1.25Gbps (Full Duplex) manually if auto-negotiation fails.

  • Handling: Wear ESD protection. Keep fiber bend radius ≥ 30 mm.

  • Installation & Hot-Swap Rules:MSA hot-swappable. Insert/remove gently without powering down.

  • Environment:Industrial grade (-4-°C to 85°C). Avoid extreme heat, moisture, and dust.

  Links to the Datasheet, User Guide and Compatibility Guides are available on the product page.

Full Compatibility List and Supported Devices

1. Supported Hardware & Firmware

Optimized for Huawei platforms, this transceiver module solves third-party recognition and compatibility errors, supporting zero-alarm operation and complete DDM monitoring on mainstream Huawei network devices:
  • Huawei CloudEngine Switches: S5735-L, S5736, S5751R-L, S5755-S, S3710-H series enterprise gigabit switches
  • Huawei AR Series Routers: AR600, AR6100, AR6200, AR6300 series industrial routing devices
  • Huawei OLT & Transmission Devices: MA5600T, MA5800 OLT upstream boards and OSN8800 transmission tributary boards
  • Universal Compatibility: Fully compatible with all Huawei network devices supporting original SFP-GE-LX-SM1310 transceiver module

2. Multi-Brand Cross Compatibility

Built on universal SFP MSA specification, this optical transceiver module works seamlessly with Huawei, Arista,Juniper, Ruijie, ZTE, H3C, Ubiquiti and other vendors for multi‑vendor mixed‑network environments.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Free sample testing before bulk orders
  • Complete test reports for project acceptance
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments


Primary Application Scenarios

  • Enterprise Campus Uplinks: Reliable 10km single-mode transceiver module for cross-building long-distance transmission.
  • Data Center Deployment: Replace faulty transceiver module to fix Huawei device packet loss and link flapping.
  • Device Module Replacement: Ideal drop-in substitute for original Huawei SFP-GE-LX-SM1310 transceiver module.
  • Network Upgrade & Renovation: Bulk transceiver module sourcing solves large-scale module aging and compatibility risks.

Connectivity Solutions(Applications)

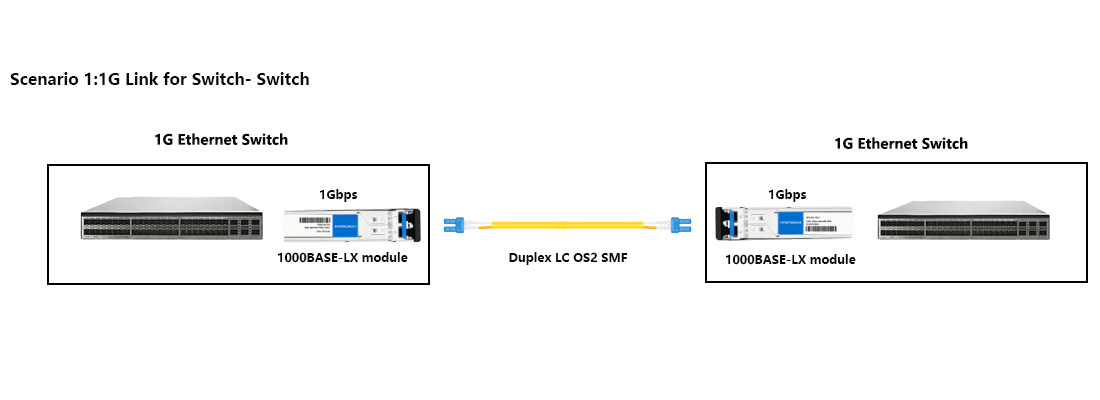

1.1GbE Switch-to-Switch Connectivity
HYTOPTODEVICE third-party transceiver module factory network deployment

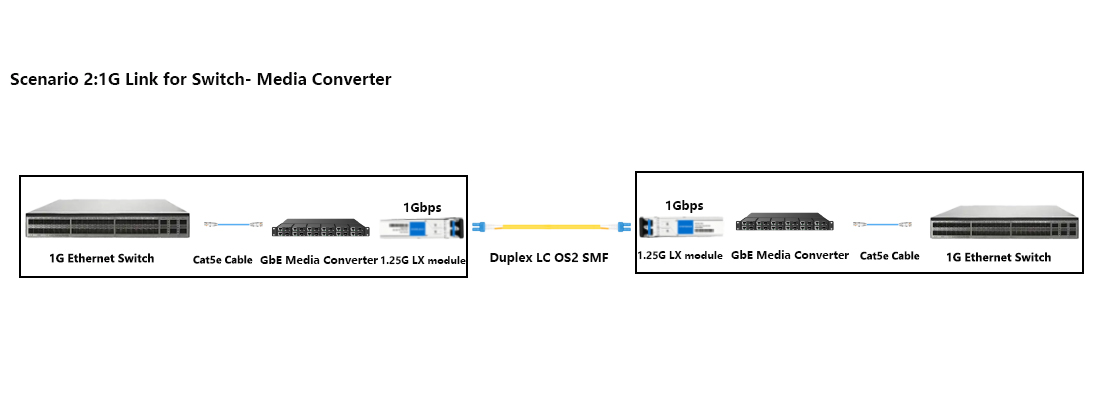

2.1GbE Switch to Media Converter ConnectivityHYTOPTODEVICE compatible transceiver module outdoor monitoring network

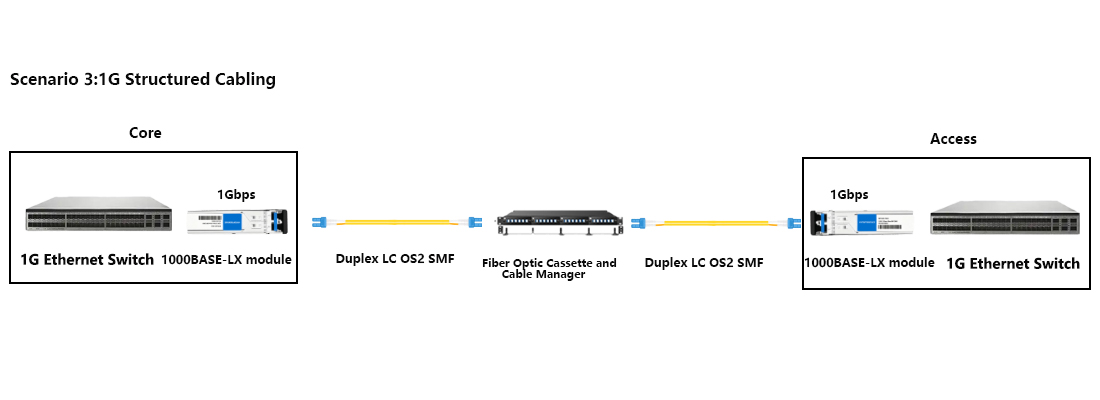

3.1GbE Structured Cabling Interconnect

HYTOPTODEVICE  1000BASE-LX transceiver module  1310NM 10KM SMF enterprise backbone network

4.1GbE Switch-to-NIC Interconnection

HYTOPTODEVICE high-quality transceiver module for bulk project procurement

The Core Feature

1. High-Efficiency & Low-Power 1G Data Center Interconnect

Reduces operational power consumption while maintaining reliable, full-duplex 1.25 Gbps throughput across campus and data center networks.

HYTOPTODEVICE compatible transceiver module with low power consumption


2.
Zero-Downtime Reliability & 100% Brand Compatibility

 Engineered with high-reliability components and pre-coded firmware to ensure 100% seamless integration and uninterrupted performance across Cisco, Juniper, Arista, Dell, etc..Specific Compatibility Video available upon request.

HYTOPTODEVICE plug‑and‑play transceiver module eliminates unsupported module alarms

3.Rigorous 100% Comprehensive Testing

Every optical transceiver passes multi-stage factory testing—including optical power validation,distance simulation and host compatibility checks—to guarantee zero link failure upon deployment.—take a virtual tour of our Test Center to see our Quality Assurance process in action.

HYTOPTODEVICE factory‑supply 1000base-lx transceiver modules with comprehensive test



FAQ

Q1: Why use 1000BASE-LX transceiver module for Huawei enterprise networks?
A: HYTOPTODEVICE 1000BASE-LX transceiver module features 1310nm wavelength and 10km long transmission, with low attenuation, ideal for Huawei long-distance campus and cross-building network links.


Q2: How to fix Huawei switch unrecognized transceiver errors?
A: Ordinary third-party modules trigger Huawei verification alarms. HYTOPTODEVICE pre-writes dedicated EEPROM firmware, enabling zero-alarm recognition and stable operation on all Huawei devices.

Q3: What is the stable transmission distance of this Huawei compatible transceiver module?

A: HYTOPTODEVICE transceiver module delivers error-free 10km transmission on standard G.652 SMF; longer distances cause unstable optical power and link failure.

Q4: Can this Huawei LX transceiver module run on multimode fiber?
A: No. This single-mode transceiver module cannot adapt to multimode fiber. HYTOPTODEVICE recommends standard SMF to avoid modal dispersion and signal jitter.

Q5: Can 10km LX transceiver module pair with 20km/40km long-haul modules?

A: Not recommended. Mismatched optical parameters between different-grade transceiver module cause signal instability, packet loss and persistent link flapping.

Q6: Do short single-mode fiber links need an optical attenuator?

A: No. HYTOPTODEVICE calibrates every transceiver module’s optical power, avoiding signal saturation on ultra-short SMF links without extra attenuators.

Q7: What causes low RX power alarms on Huawei LX transceiver module links?

A: Dirty fiber ports, aging cables and excessive attenuation are main causes. HYTOPTODEVICE transceiver module supports DDM monitoring for fast fault troubleshooting.

Q8: Why use LC UPC interface for Huawei gigabit transceiver module?

A: Duplex LC UPC features low insertion loss and high compatibility. HYTOPTODEVICE adopts this standard interface to match all mainstream fiber cords and Huawei devices.

Q9: How does wrong fiber polarity affect transceiver module operation?

A: Reversed TXRX polarity blocks signal transmission and disables ports. Standard crossover wiring ensures normal operation of HYTOPTODEVICE transceiver module.

Q10: What are the benefits of hot-swappable transceiver module?
A: HYTOPTODEVICE hot-swappable transceiver module supports online replacement, reducing network downtime and simplifying equipment maintenance.

Q11: Why is high MTBF important for bulk deployed transceiver module?
A: High MTBF means ultra-low failure rate. HYTOPTODEVICE transceiver module passes strict aging tests, suitable for large-scale Huawei network deployment.

Q12: What cost advantages do HYTOPTODEVICE Huawei compatible modules have?
A: HYTOPTODEVICE transceiver module matches original Huawei module performance and compatibility, with lower cost for bulk procurement and network upgrades.

Q13: What environment is suitable for commercial-grade transceiver module?


A: HYTOPTODEVICE commercial transceiver module works stably at 0℃-70℃ indoor environments; outdoor extreme conditions will cause module aging and link faults.

Q14: Is the 1310nm laser of HYTOPTODEVICE transceiver module safe?

A: Yes. The 1310nm laser of HYTOPTODEVICE LX transceiver module meets international safety standards, no radiation risks for routine network deployment.

Q15: Do compatible transceiver suppliers offer OEM label service?
A: Yes. HYTOPTODEVICE support private label, custom EEPROM Programming and OEM for global importers, distributors, wholesaler and system integrators.

Packaging Options & Custom‑Packaging Solutions

Every transceiver module gets reliable ESD‑safe packaging out of the box. Standard packing is ready for immediate shipment, while custom‑printed packaging with your logo is available for bulk orders.


Why Network Engineers Choose HYTOPTODEVICE


HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.


"We replaced 200 Cisco-branded SFPs with HYTOPTODEVICE equivalents across our spine layer — zero compatibility issues, 40% cost reduction."— Network Architect, Tier-2 ISP, Germany


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final inspection, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
