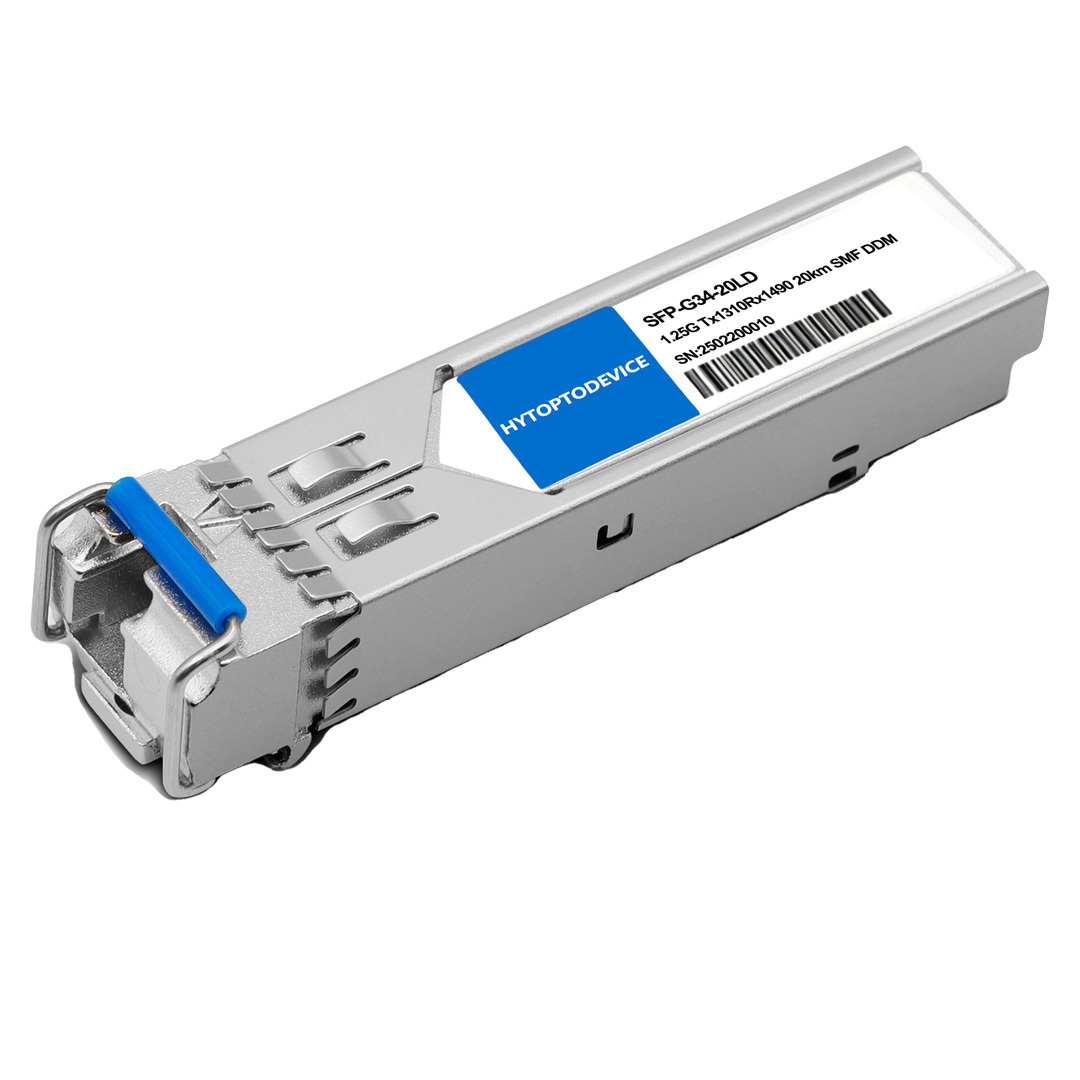

• HYTOPTODEVICE Juniper SFP-GE20KT13R14 compatible BiDi SFP front view white background

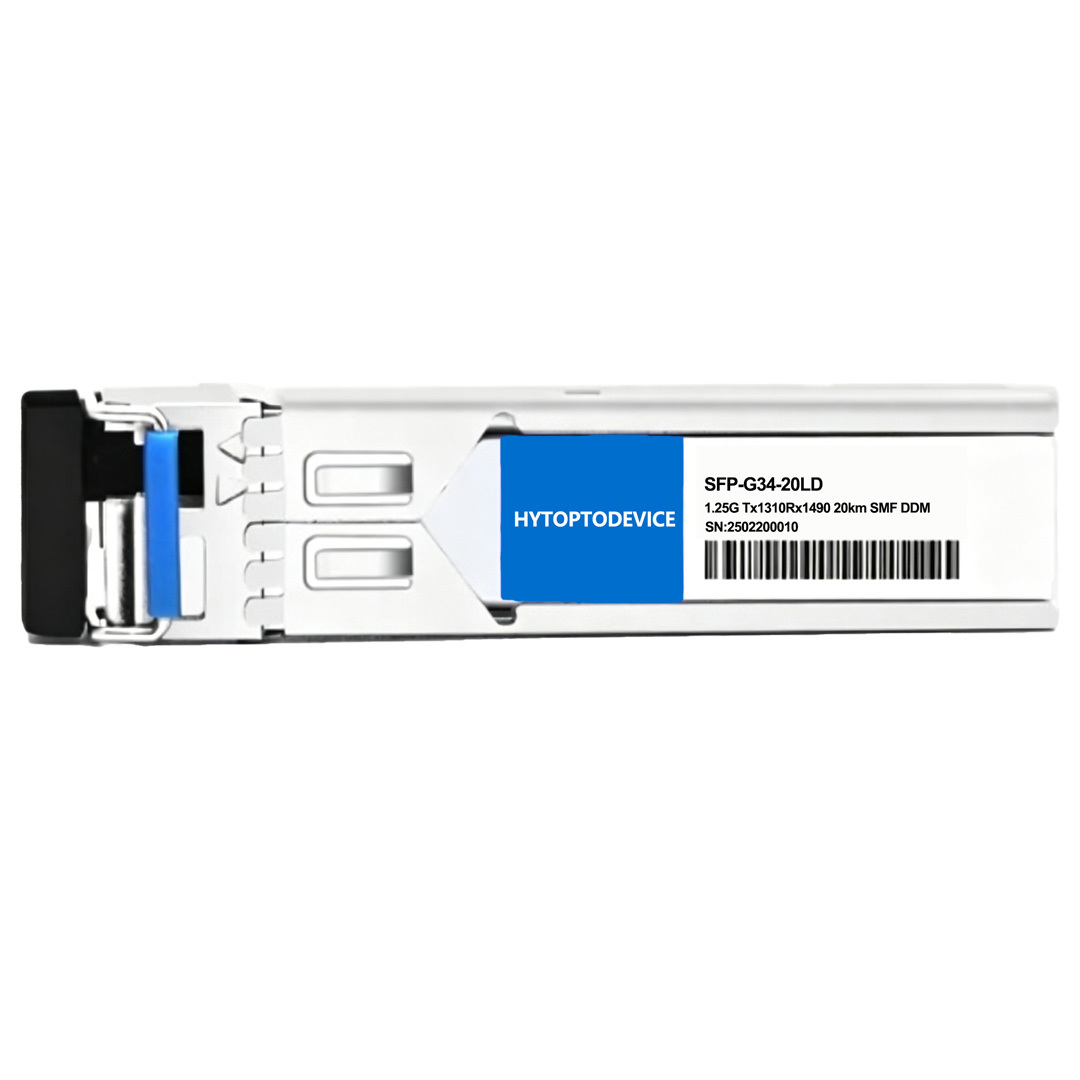

  • HYTOPTODEVICE 1000BASE-BX 20km BiDi SFP side view for Juniper network devices

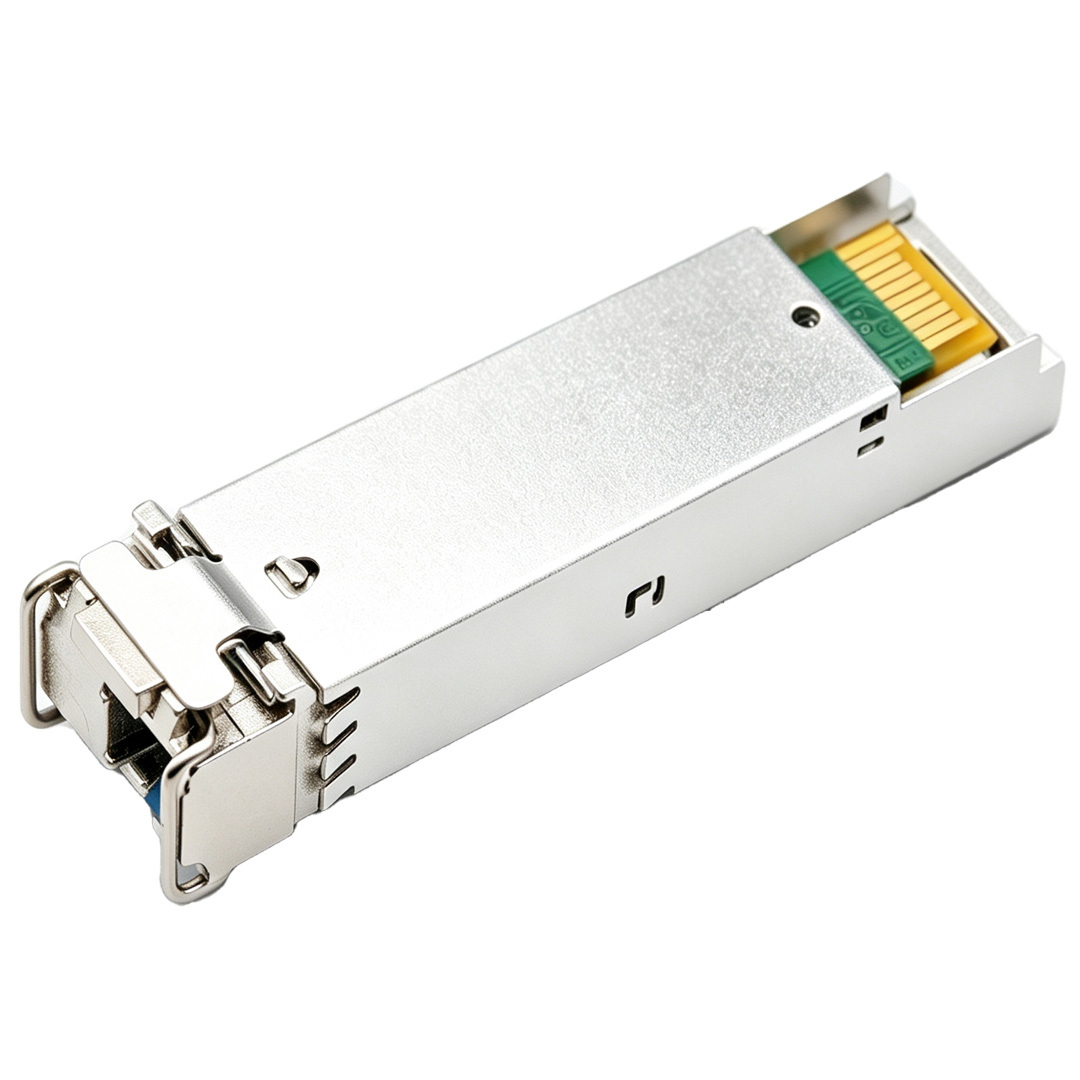

  • Simplex LC connector detail of SFP-GE20KT13R14 equivalent single fiber SFP module

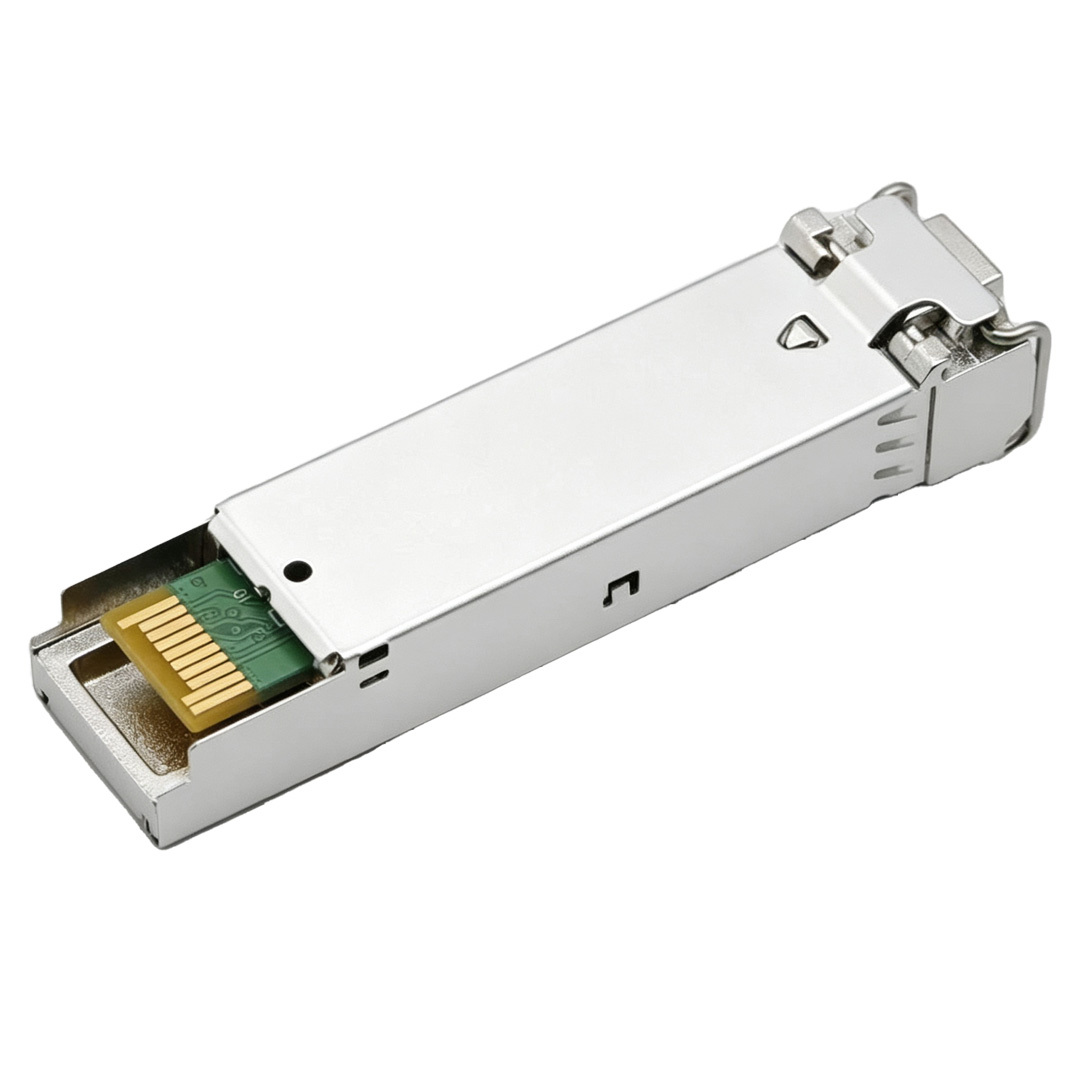

  • Full view Tx1310nm/Rx1490nm BiDi SFP transceiver for Juniper switches and routers

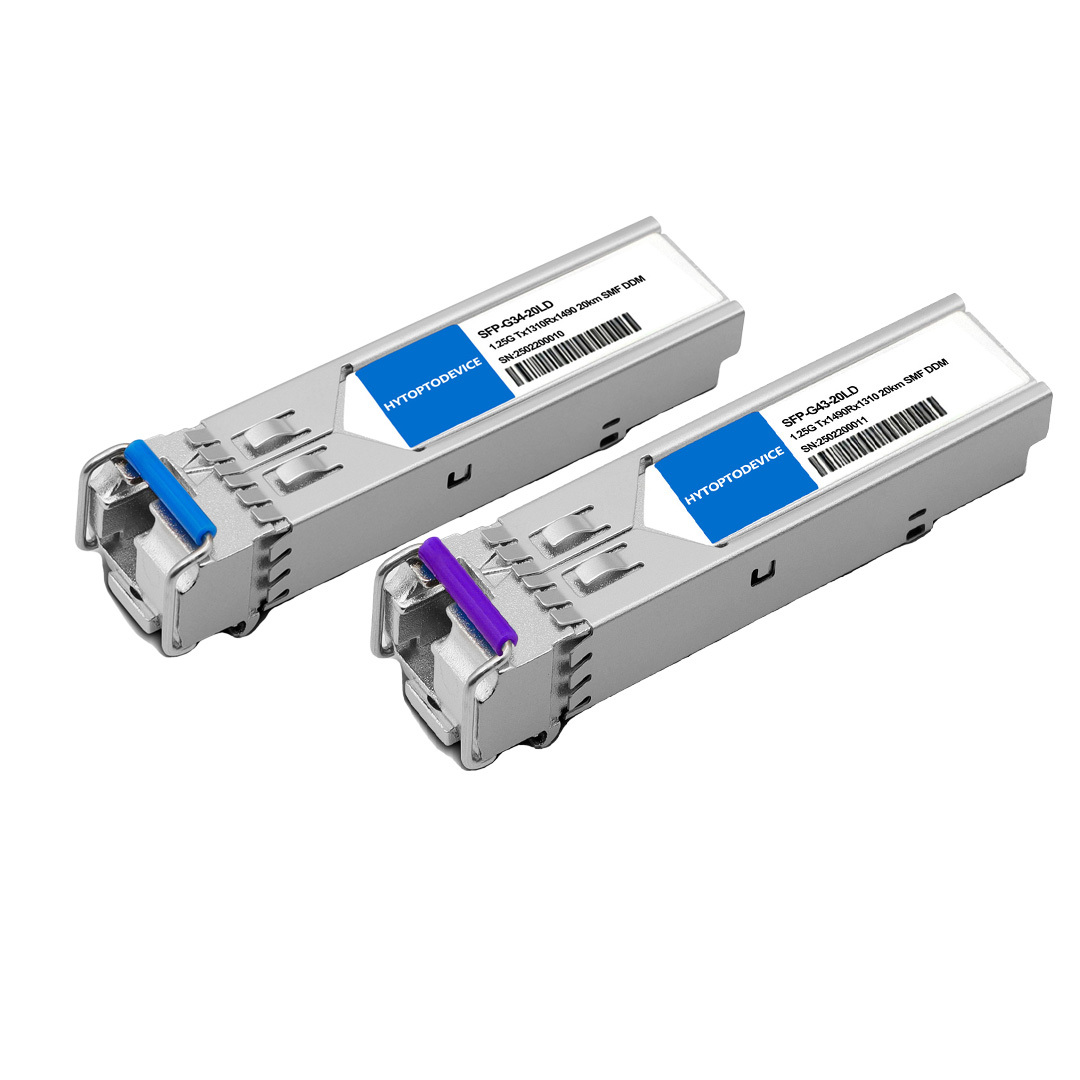

  • buy hytoptodevice Tx1310nm/Rx1490nm 20km SMF BiDi SFP transceiver MODULE
  • HYTOPTODEVICE Juniper SFP-GE20KT13R14 compatible BiDi SFP front view white background
  • HYTOPTODEVICE 1000BASE-BX 20km BiDi SFP side view for Juniper network devices
  • Simplex LC connector detail of SFP-GE20KT13R14 equivalent single fiber SFP module
  • Full view Tx1310nm/Rx1490nm BiDi SFP transceiver for Juniper switches and routers
  • buy hytoptodevice Tx1310nm/Rx1490nm 20km SMF BiDi SFP transceiver MODULE

Juniper SFP-GE20KT13R14 Compatible BiDi SFP Transceiver | 1000BASE-BX20-U 20km Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE Juniper SFP-GE20KT13R14 compatible BiDi SFP features 1000BASE-BX, Tx1310nm/Rx1490nm, 20km SMF simplex LC. 100% real-device tested for Juniper switches/routers, plug-and-play with full DDM/DOM. Ideal for Fast Ethernet, telecom access and data center single-fiber networks. 5-year warranty & factory price.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco MGBBX1  SFP-G43-20LD
2 Alcatel-Lucent SFP-GIG-BX-U20  SFP-G34-10LD
3 H3C  SFP-GE-PX20-U-SM1310-A SFP-G35-10LD
4 Juniper  SFP-GE20KT13R14 SFP-G35-20LD
5 HPE Procurve  J9143B-20  SFP-G34-40LD
6 Brocade E1MG-BXU-20 SFP-G45-80LD
7 Cisco GLC-BX-20U SFP-G45-1BLD
Description

Juniper SFP-GE20KT13R14 Compatible 1000BASE-BX20-U BiDi SFP Transceiver 20km
(SMF, 1310nm-TX/1490nm-RX, Simplex LC, DOM)

Product Overview

The HYTOPTODEVICE Juniper SFP-GE20KT13R14 compatible BiDi SFP transceiver is a hot-pluggable gigabit single-fiber bidirectional optical module designed for cost-effective enterprise, telecom and service provider networks. Adopting advanced WDM technology, it delivers stable 1.25Gbps bandwidth with Tx1310nm/Rx1490nm wavelength pairing and simplex LC interface, supporting up to 20km transmission over standard single-mode fiber (SMF).
This bi-directional module must be used with another transceiver or network equipment of complementary wavelength to form a complete bidirectional link. It is ideal for Fast Ethernet, telecom access and data center single-fiber cabling. Fully compliant with IEEE 802.3z and SFF-8472 MSA standards, it supports full DDM/DOM real-time optical monitoring. Every unit undergoes strict real-device testing on genuine Juniper hardware to ensure seamless plug-and-play operation without manual configuration or system logs.

Key Technical Specifications

Juniper Compatible

SFP-GE20KT13R14

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1490nm Max Distance 20km
Connector Simplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~-3dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1490 BiDi SFP Module requires a counterparty TX1490/RX1310 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 20km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.

Full Device Compatibility & Supported Devices

1. Verified Juniper Device Compatible Models

This Juniper compatible BiDi SFP passes rigorous real-device verification to ensure true plug-and-play functionality. It works flawlessly on original Junos OS firmware without errors, manual config, or firmware updates. Fully verified compatible Juniper devices include:
  • Juniper Switch Series: EX4300, EX4400, EX9200 Series Enterprise Switches
  • Juniper Router Series: MX480, MX960, M120, M320 Series Routers
  • Other Devices: Juniper media converters, access nodes and service gateways

2. Multi-Brand Compatibility

Built on universal MSA protocols, this 1000BASE-BX simplex LC SFP offers broad compatibility with third-party hardware, including switches, routers and media converters from H3C, Cisco, Alcatel-Lucent, HP, D-Link and TP-Link. Real-device test videos are available for bulk orders to verify stable compatibility and consistent link performance.

Common Application Scenarios

This single-fiber BiDi SFP delivers reliable, cost-effective networking solutions for enterprise Ethernet, telecom access and data center infrastructure, solving fiber resource shortages in network upgrade and expansion projects.

  • Telecom access network 20km long-distance fiber transmission
  • Fast Ethernet enterprise backbone network interconnection
  • Data center cable manager integrated wiring deployment
  • Campus building-to-building fiber link connection
  • Remote industrial and surveillance network transmission
  • Single-fiber cost-saving network reconstruction and upgrading


Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity

hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF

Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


FAQ

Q1: Are Juniper SFP-GE20KT13R14 BiDi SFPs plug-and-play on EX4400 switches?
A: Yes. HYTOPTODEVICE SFP-GE20KT13R14 compatible BiDi SFPs have passed real-machine testing on Juniper EX4400 switches. They support automatic detection, normal DDM monitoring and stable transmission without alarms, meeting commercial network requirements.

Q2: Can SFP-GE20KT13R14 Tx1310nm/Rx1490nm pair with other brand BiDi modules?
A: Absolutely yes. This Juniper compatible BiDi SFP uses standard MSA wavelengths. It pairs perfectly with complementary Tx1490nm/Rx1310nm BiDi modules from other brands for stable single-fiber links with zero interference.

Q3: Do low-cost SFP-GE20KT13R14 replacements support DDM real-time monitoring?
A: All HYTOPTODEVICE SFP-GE20KT13R14 equivalent BiDi SFPs support full DDM/DOM monitoring per SFF-8472. You can check laser temperature, voltage and optical power via Juniper device management.

Q4: Is 20km single fiber BiDi SFP stable for long-term Juniper telecom operation?
A: Our 20km BiDi SFP for Juniper uses high-quality DFB lasers and sensitive receivers. After 72-hour aging tests, it supports 24/7 stable, loss-free operation, ideal for long-running telecom access networks.

Q5: Can SFP-GE20KT13R14 BiDi modules be used for Fast Ethernet uplink?
A: Fully applicable. This SFP-GE20KT13R14 compatible module is optimized for Fast Ethernet, supporting stable gigabit uplinks for enterprise and telecom equipment and overcoming traditional cable distance limits.

Q6: Are commercial grade SFP-GE20KT13R14 BiDi SFPs suitable for data center wiring?
A: Absolutely suitable. With a standard 0°C to 70°C temperature range, this BiDi SFP adapts to data center environments, offering excellent thermal stability to avoid fluctuations and ensure long-term link reliability.

Q7: How to match wavelength pairs for SFP-GE20KT13R14 single fiber links?
A: As an uplink BiDi module, SFP-GE20KT13R14 (Tx1310nm/Rx1490nm) must pair with complementary downlink transceivers (Tx1490nm/Rx1310nm). Proper pairing ensures low-latency bidirectional transmission.

Q8: What warranty and support come with Juniper compatible SFP-GE20KT13R14?
A: We provide a 3-year limited warranty and lifelong free technical support for all HYTOPTODEVICE SFP-GE20KT13R14 BiDi SFPs. Our team offers 24/7 remote help for compatibility, wavelength pairing and deployment troubleshooting.

Q9: Can SFP-GE20KT13R14 BiDi SFPs reduce enterprise fiber costs?
A: Yes. Unlike dual-fiber modules, this single-fiber BiDi SFP uses one fiber for both directions, saving 50% of fiber resources and cutting procurement, construction and maintenance costs.

Q10: Are MSA compliant SFP-GE20KT13R14 modules compatible with latest Junos OS?
A: All HYTOPTODEVICE SFP-GE20KT13R14 BiDi SFPs comply with IEEE and MSA standards. Real-device tests confirm full compatibility with the latest Junos OS, with no detection failures, bugs or alarms.

Packaging & Custom OEM Solutions

Each bidi module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging

Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible
