Huawei SFP-10G-T Compatible 10G SFP+ RJ45 Transceiver 30m | 10GBASE-T Copper, Zero-Alarm for Huawei VRP | HYTOPTODEVICE
Product Overview

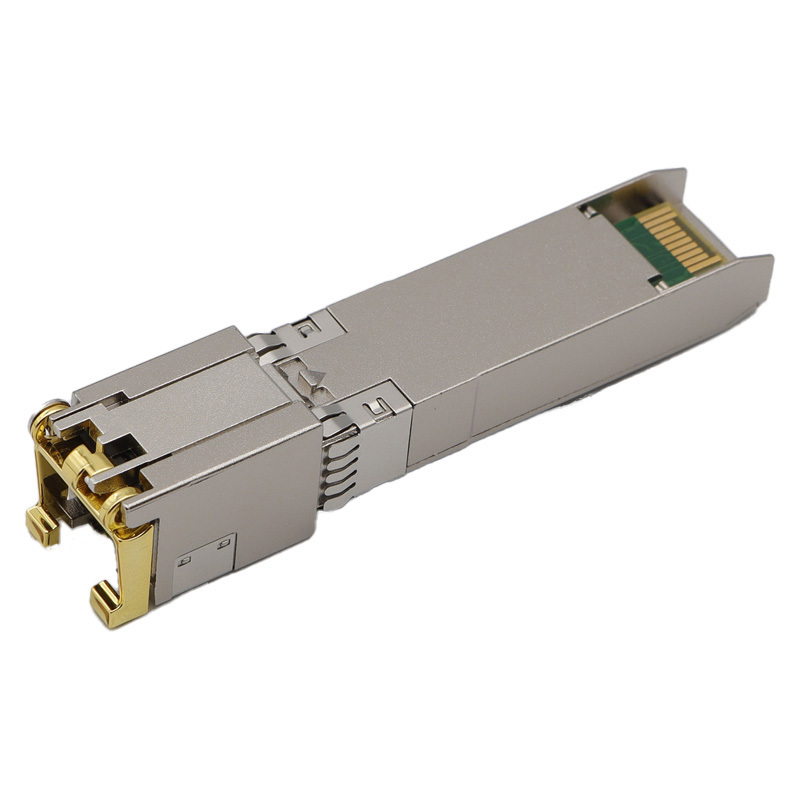

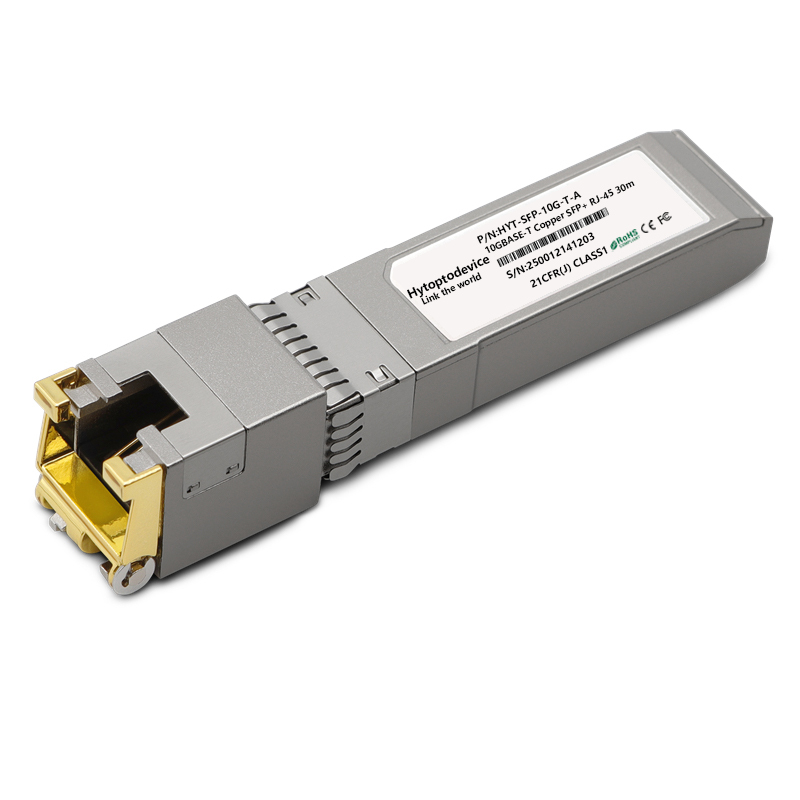

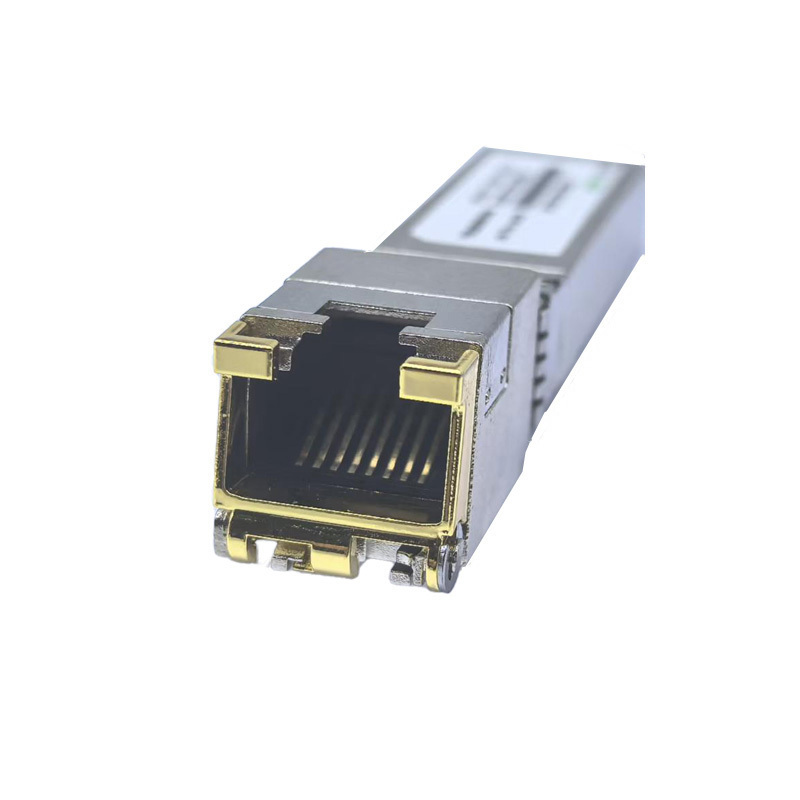

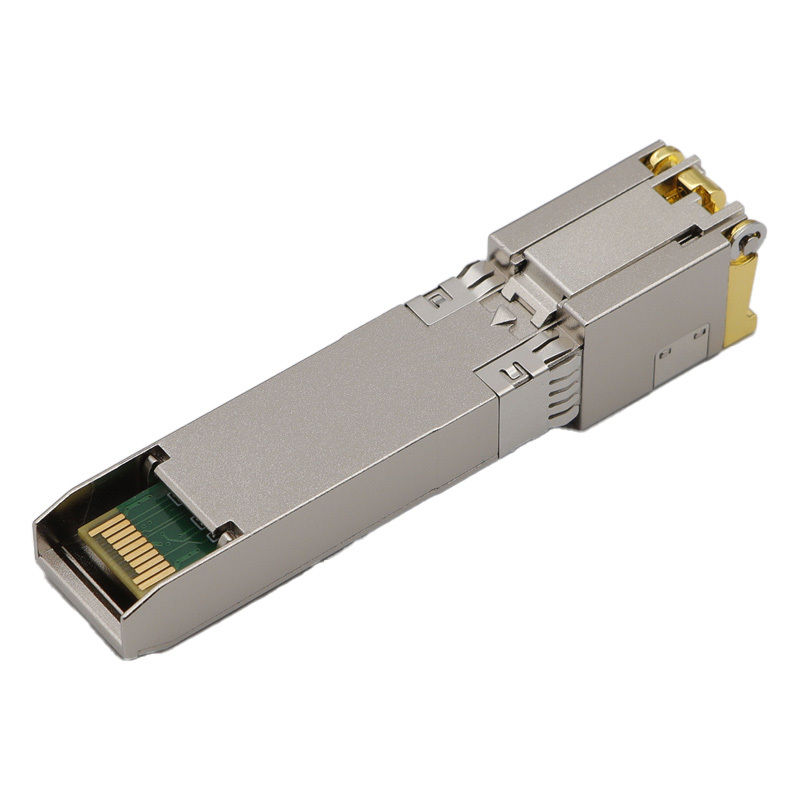

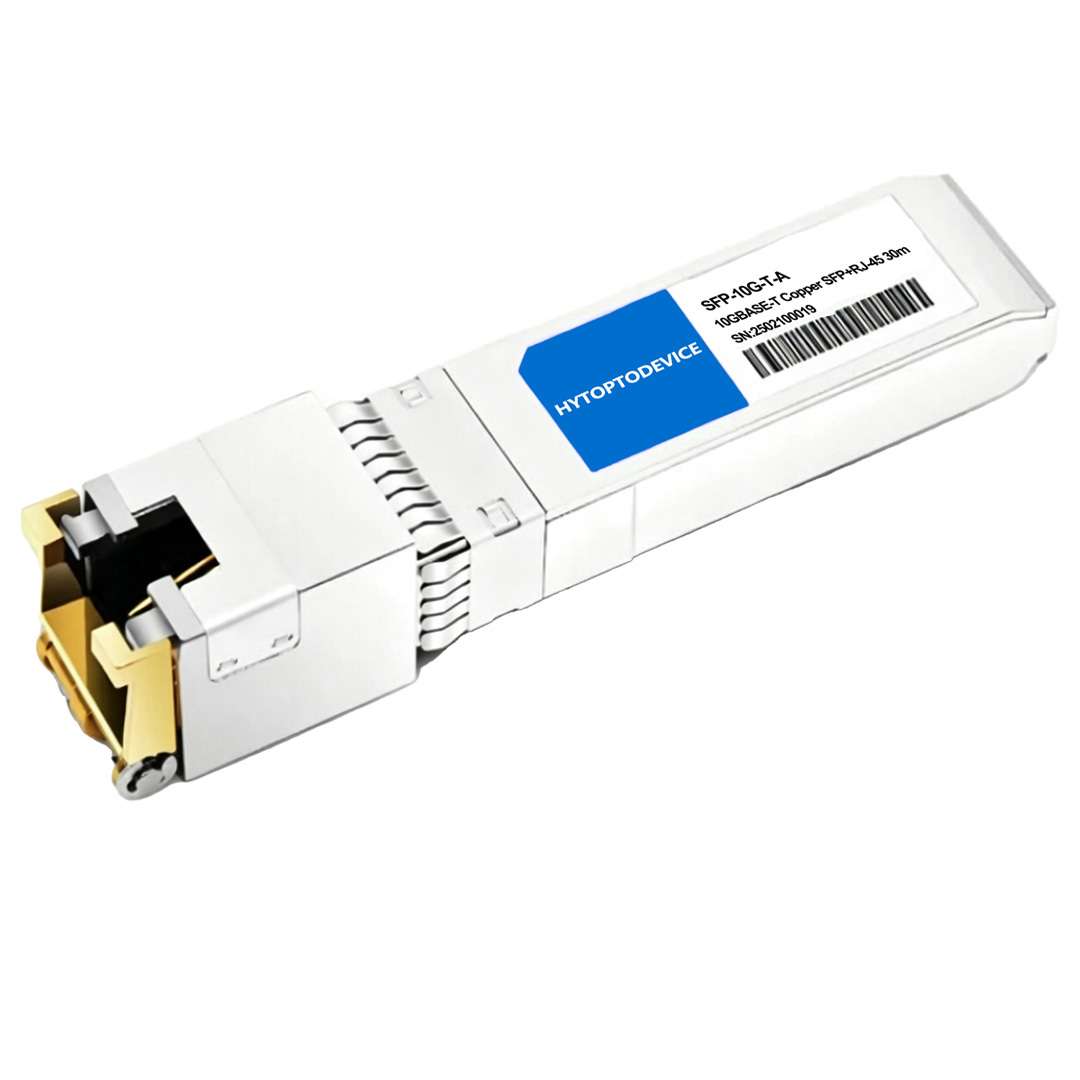

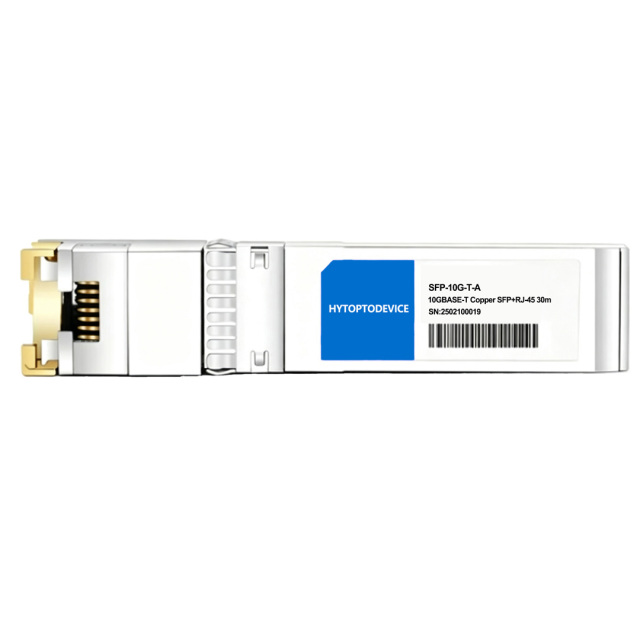

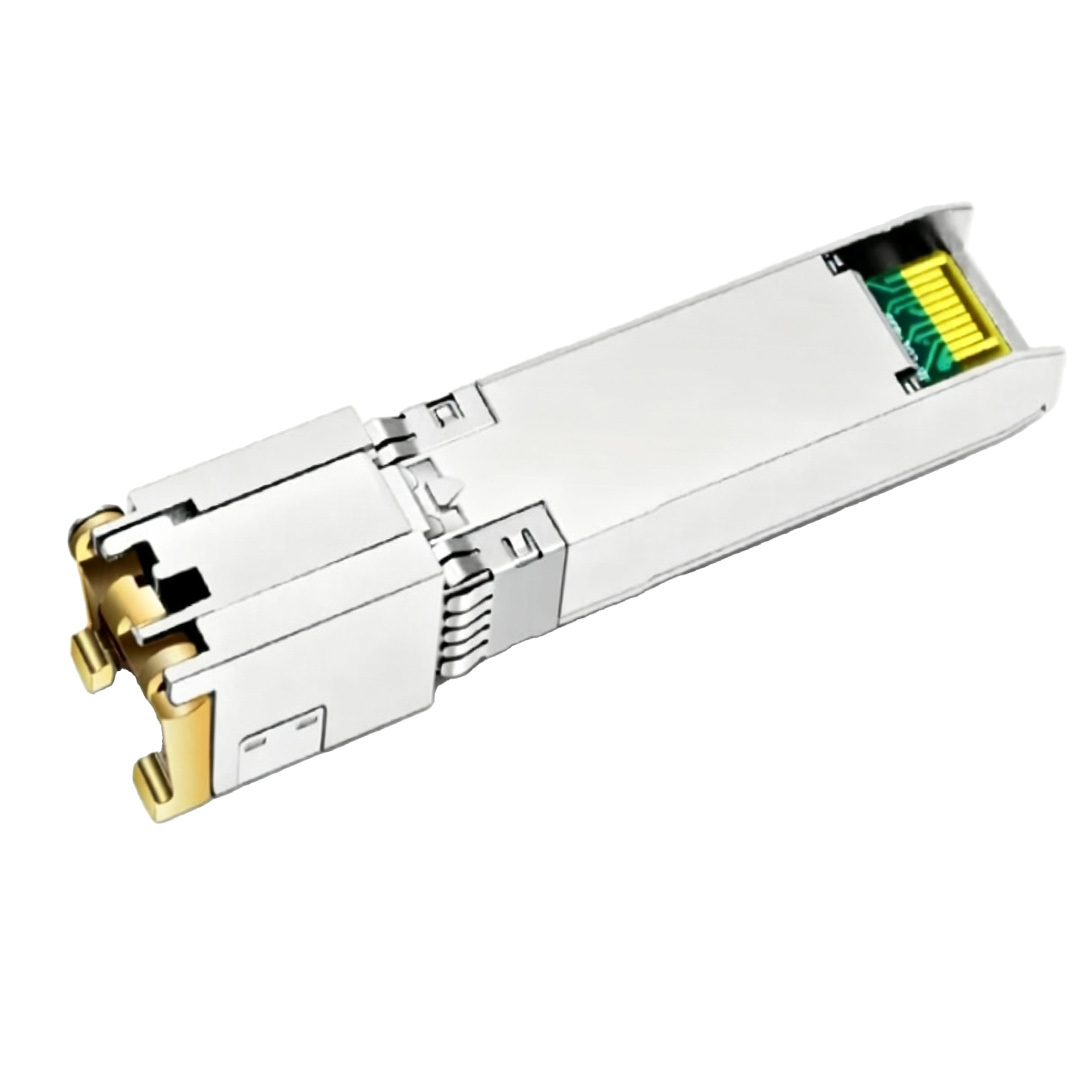

The SFP-10G-T is a high-performance, Huawei compatible 10G SFP+ Rj45 transceiver. Featuring a hot-pluggable SFP+ form factor and an RJ-45 interface, it supports 10Gbps data transmission up to 30 meters over Cat6A/Cat7 cabling to connect endpoints with embedded 10GBASE-T ports. With advanced 1G/2.5G/5G/10G auto-negotiation, low power consumption, and low latency, this 10GASET-T module provides a highly flexible and cost-effective solution for intra-rack and inter-rack connections. Fully compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431, and SFP+ MSA, it is ideal for data center top-of-rack (ToR) switches, enterprise core campus networks, and high-performance storage environments looking to upgrade to 10GbE using existing copper infrastructure.
Key Technical Specifications
Optimized for Huawei short-range copper networking, this 30m 10G SFP+ RJ45 module undergoes strict real-machine aging testing on genuine Huawei devices to ensure zero-alarm and zero-error operation. All parameters comply with SFP+ MSA industry standards and Huawei VRP system adaptation requirements:
| Huawei Compatible |
SFP-10G-T |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ (Hot-pluggable) |
Data Rate |
10 Gbps (1G/2.5G/5G/10G Auto-negotiation) |
| Connector |
RJ-45 |
Cable Distance |
30m |
| Media |
Copper |
Cable Type |
Cat6a/Cat7 |
| Max. Power Consumption |
≤2.5W |
DDM Support |
No |
| Protocols |
IEEE 802.3an, IEEE 802.3az, SFF-8431 |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Best Practices
To ensure optimal performance, broad device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ copper transceiver:
1. Cabling Requirements & Distance Limits
-
Recommended Cabling: For maximum 10Gbps transmission up to 30 meters, always use high-quality Cat6A or Cat7 Shielded Twisted Pair (STP) cables.
-
Legacy Cable Limitations: Unshielded Cat6 cables can theoretically support 10G up to 30–55m under ideal lab conditions, but in production environments, they are highly prone to signal degradation. Cat6A STP is strongly recommended.
2. EMI Protection & Crosstalk Mitigation
High-speed 10Gbps copper signals are extremely sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk (AXT).
-
Use fully grounded STP/FTP cables and shielded RJ45 connectors.
-
Avoid running network cables parallel to high-voltage power lines, fluorescent lighting, or heavy industrial machinery.
3. Thermal & Power Management
10GBASE-T transceivers consume significantly more power (typically 2.5W–3.0W) and generate considerably more heat than optical transceivers.
-
Port Spacing: Avoid populating adjacent SFP+ ports with copper transceivers continuously.
-
Airflow Optimization: Leave at least one empty port between copper modules (e.g., checkerboard or staggered layout) to facilitate heat dissipation and prevent thermal throttling.
4. Insertion & Hot-Plugging Sequence
While the transceiver is hot-swappable, following the correct sequence prevents electrical surge or signaling glitches:
-
Insert Module: Plug the transceiver into the SFP+ slot until it clicks, then pull down the bail latch to secure it in place.
-
Connect Cable: Plug the RJ45 cable into the transceiver.
-
To disconnect, always remove the RJ45 cable first before releasing the module latch.
5. System Recognition & Auto-Negotiation
-
Firmware: Ensure your switch or device firmware is updated to support 10GBASE-T copper transceivers.
-
Negotiation Delay: Allow 5–15 seconds after connection for the network OS (e.g., Juniper Junos, Cisco NX-OS) to auto-negotiate link speed and duplex status.
-
Manual Override: If the link fails to establish, manually set the port speed to 10G Full-Duplex instead of relying on auto-negotiation.
6. Physical Handling & Care
-
Always handle the module by its metallic casing or bail latch.
-

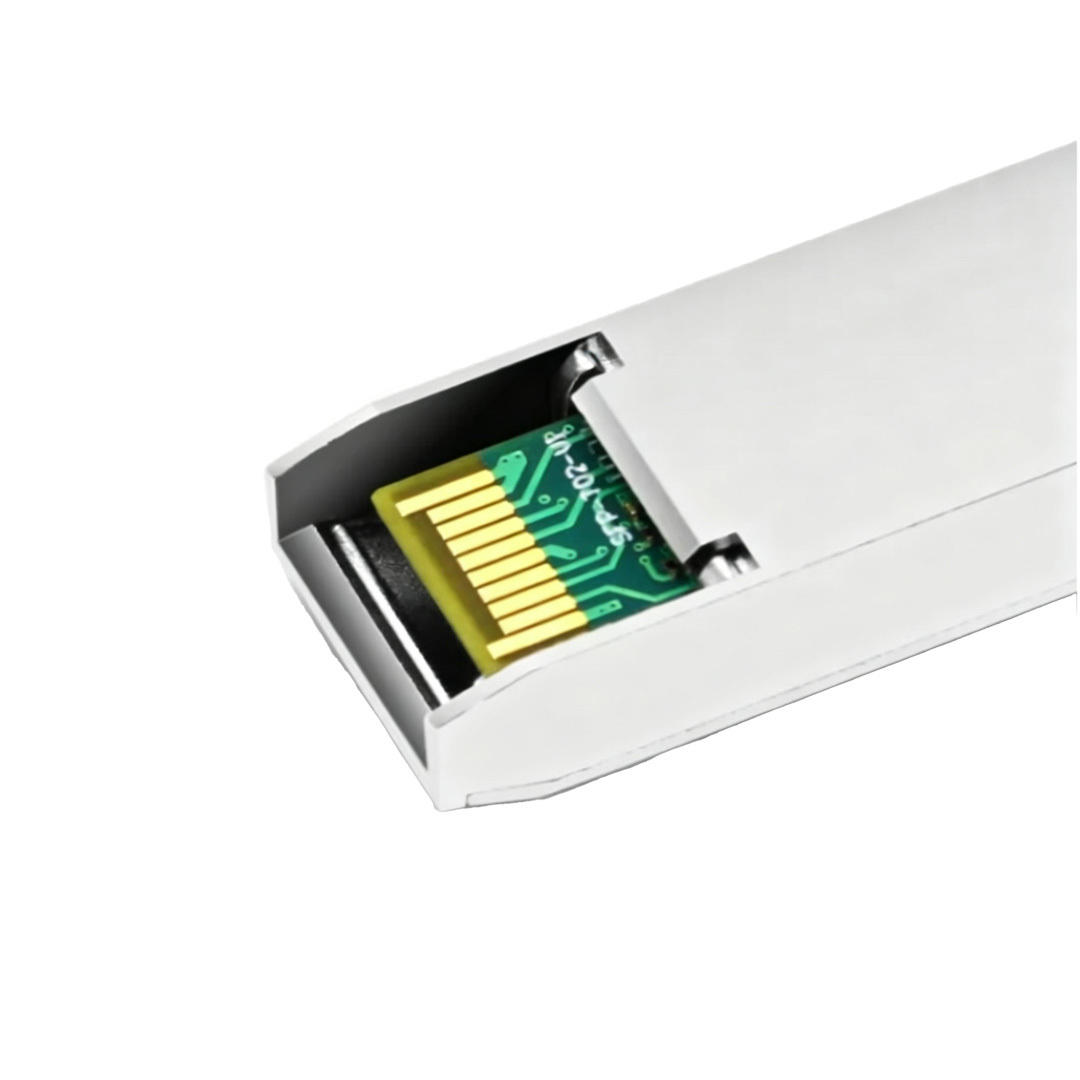

Do not touch the PCB gold fingers to prevent electrostatic discharge (ESD) and contact contamination.
-
Do not apply excessive force when plugging in or removing the RJ45 connector.
Full Compatibility List & Firmware Adaptation
All HYTOPTODEVICE 10G SFP+ RJ45 30m modules complete continuous runtime testing and multi-version VRP firmware verification on genuine Huawei hardware. The customized short-range EEPROM perfectly matches Huawei’s official module identification protocol, solving common compatibility problems of generic modules such as alarm popping, port inability to activate, and rate negotiation failure.
1. Validated Huawei Hardware Platforms
Plug-and-play compatible with all mainstream Huawei switching and routing devices with SFP+ slots:
-
Huawei CloudEngine CE5800 / CE6800 / CE8800 / CE9800 Series Data Center Switches
-
Huawei S5700 / S6700 Series Enterprise Aggregation & Core Switches
-
Huawei AR Series Routers and USG Series Security Gateways with SFP+ interfaces
-
All Huawei network devices supporting standard SFP+ hot-swappable modules
2. Cross-Brand Compatibility
Complying with universal SFP+ MSA standards, this 10G SFP+ RJ45 module supports normal communication with Arista, Cisco, Brocade, H3C and other brand equipment, adapting to multi-brand hybrid network architectures.
-
Standard / Open Platforms: Plug-and-play compatible out of the box with open-architecture hardware such as MikroTik, TP-Link, and Fortinet.
-
Vendor-Locked Platforms: We offer complimentary OEM firmware coding for strict or vendor-locked systems (e.g., Arista, Juniper, H3C, Huawei, Brocade, NVIDIA/Mellanox) prior to shipment—ensuring instant recognition and eliminating "unsupported transceiver" warnings.
3.Value-Added Compatibility Services & Self-Programming Support
-
On-Site Recoding Solutions: Gain full control with our optional smart coding boards and software, enabling your team to rewrite EEPROM compatibility codes on demand.
-
Free Lifetime Firmware Maintenance: Enjoy complimentary firmware update downloads whenever switch OS versions upgrade or new hardware platforms are released.
-
Custom Code Adaptation: Need support for specialized or legacy network systems? Our engineers offer free custom firmware tailoring to guarantee 100% link-up.
Primary Application Scenarios
Tailored for short-range high-density networking, this 10G SFP+ RJ45 30m module focuses on indoor close-distance 10G copper transmission scenarios:
-
In-Rack Server 10G Uplink: Connect top-of-rack switches and rack servers within the same cabinet to build low-cost 10G short-distance uplink links.
-
Intra-Room Switch Stacking: Realize 10G high-speed stacking and interconnection of adjacent Huawei switches in the same computer room.
-
High-Density Wireless Backhaul: Provide 2.5G/5G/10G adaptive uplink for densely deployed Wi-Fi 6/7 wireless APs.
-
Data Center Short-Span Fabric Connection: Suitable for short-distance row-to-row leaf-spine interconnection in medium and small data centers.
-
Enterprise Indoor Network Micro-Upgrade: Quickly upgrade local 1G links to 10G without modifying indoor short-distance copper wiring.
Connectivity Solutions(Applications)
1.Switch-to-Switch 10G Copper Interconnection
Use this Huawei-compatible 10G SFP+ RJ45 30m to build 10G copper trunk links between switches. It fits adjacent intra-room device connections. It delivers low-attenuation signals within 30m. It saves fiber deployment cost and supports stable switch cluster interconnection.
2.10G to 10G Switch to Adapter Card Links
This 10G SFP+ RJ45 30m connects Huawei switch SFP+ ports directly to server and storage adapter cards. It converts optical slots to standard RJ45 ports. It simplifies in-rack wiring, reduces link faults and provides stable 10G bandwidth for data transmission and backup.
3.10G Structured Cabling System Deployment
This 10G SFP+ RJ45 30m matches Cat6A/Cat7 structured cabling systems. It supports fast 10G network deployment for offices, campuses and computer rooms. It reuses existing copper cables. It realizes low-cost 1G-to-10G upgrade without large-scale rewiring.
4.Spine-Leaf 10G Copper Interconnection
This10G SFP+ RJ45 30m is ideal for compact Huawei leaf-spine data centers. It supports short-distance leaf-to-spine interconnection. It features low power and stable signals. It expands east-west traffic and greatly reduces construction and operation costs for small and medium data center fabrics.
The Core Features
1.Ultra-Low Power Consumption for Maximum Energy Efficiency
This Huawei-compatible 10G SFP+ RJ45 30m uses premium Marvell PHY chip. It adopts optimized low-power circuits. Full-load power consumption is only 2W–2.5W. It generates less heat than long-range copper modules. It reduces cabinet thermal pressure and saves long-term power cost. It supports 24/7 stable network operation.
2.Tool-Free Hot-Swappable Design & Seamless Plug-and-Play
This 10G SFP+ RJ45 meets SFF-8431 SFP+ MSA standards. It supports tool-free hot-swap. You can plug and unplug modules online without switch shutdown. Pre-loaded Huawei-specific EEPROM ensures full VRP recognition. It achieves zero-alarm, zero-block plug-and-play and simplifies daily maintenance.
3.Tested in Host Devices for Proven Interoperability
Every 10G SFP+ RJ45 30m passes strict real-Huawei-device testing. Tests cover CloudEngine/S-series switches and multiple VRP firmware versions. It avoids common compatibility risks such as unrecognized ports and link flapping. It runs stably on Huawei single-brand and multi-brand hybrid networks.
4. 100% Full Testing & Long-Term Reliability
We implement 100% full testing for every 10G SFP+ RJ45 30m module. Tests include BER detection, temperature cycle aging, long-run pressure test and Huawei real-machine verification. With high-quality chip and strict quality control, the module delivers stable batch performance and long-term anti-aging ability.
FAQ
Q1: Will dense deployment of 30m 10G SFP+ RJ45 modules affect Huawei switch service life?
A1: This short-range 10G SFP+ RJ45 has lower power and less heat than 100m modules. Normal sparse deployment with standard cabinet cooling will not damage switches. Staggered port installation further improves long-term thermal safety.
Q2: Can Cat5e or ordinary Cat6 cables run 10G speed with 30m 10G SFP+ RJ45 modules?
A2: No. Cat5e and ordinary Cat6 cables cannot support stable 10G transmission, even within 30m. For full 10G performance of Huawei-compatible 10G SFP+ RJ45 modules, Cat6A or Cat7 shielded cabling is required.
Q3: Can 30m 10G SFP+ RJ45 modules connect normally with 2.5G Wi-Fi 6 APs?
A3: Yes. This 10G SFP+ RJ45 30m supports full NBASE-T multi-rate negotiation. It auto-matches 2.5G/5G Wi-Fi 6 APs. No manual configuration is needed for smooth wireless backhaul connection.
Q4: Are 30m 10G SFP+ RJ45 copper modules applicable for HFT low-latency trading networks?
A4: Not suitable. All 10GBASE-T copper modules have fixed PHY latency. They cannot meet ultra-low-latency demands of HFT trading systems. Optical modules are still the first choice for latency-sensitive Huawei data center scenarios.
Q5: Is it necessary to install dust plugs on idle ports beside active 10G SFP+ RJ45 modules?
A5: Highly recommended. Dust plugs optimize switch internal airflow. They prevent local overheating for densely deployed 10G SFP+ RJ45 30m modules and keep long-term link stability.
Q6: How to accurately test the link quality of 30m short-range 10G SFP+ RJ45 connections?
A6: Use iPerf3 continuous throughput testing to find hidden packet loss. Match with BERT bit error testing and switch FCS/CRC error monitoring. This combo fully evaluates short-range
10G SFP+ RJ45 link signal integrity.
Q7: Does Huawei-compatible 30m 10G SFP+ RJ45 support EEE energy-saving Ethernet?
A7: The module supports IEEE 802.3az EEE energy-saving mode. It auto-reduces power during idle traffic. The actual effect depends on VRP system EEE configuration. Please verify compatibility before formal deployment.
Q8: Why are original Huawei SFP-10G-T modules much more expensive than third-party compatible versions?
A8: Official Huawei modules include certification, full firmware adaptation and long-term warranty. Our
10G SFP+ RJ45 30m provides identical plug-and-play stability at a lower cost, ideal for large-scale enterprise deployment.
Q9: How many 30m 10G SFP+ RJ45 modules can be safely installed on a 24-port Huawei switch?
A9: Thanks to low-power optimization, this 30m module supports slightly denser deployment. Safe quantity is 6–10 modules per 24-port switch with sparse distribution. Full-port dense deployment is not allowed to avoid power and thermal overload.
Q10: Why does the 10G SFP+ RJ45 link only negotiate to 1Gbps instead of 10G?
A10: This issue is mainly caused by unqualified cables, damaged wire pairs or low-grade cabling that cannot support 10G signals. It also happens if the peer NIC only supports 1G. Using standard Cat6A cables can fix most 10G negotiation failures.
