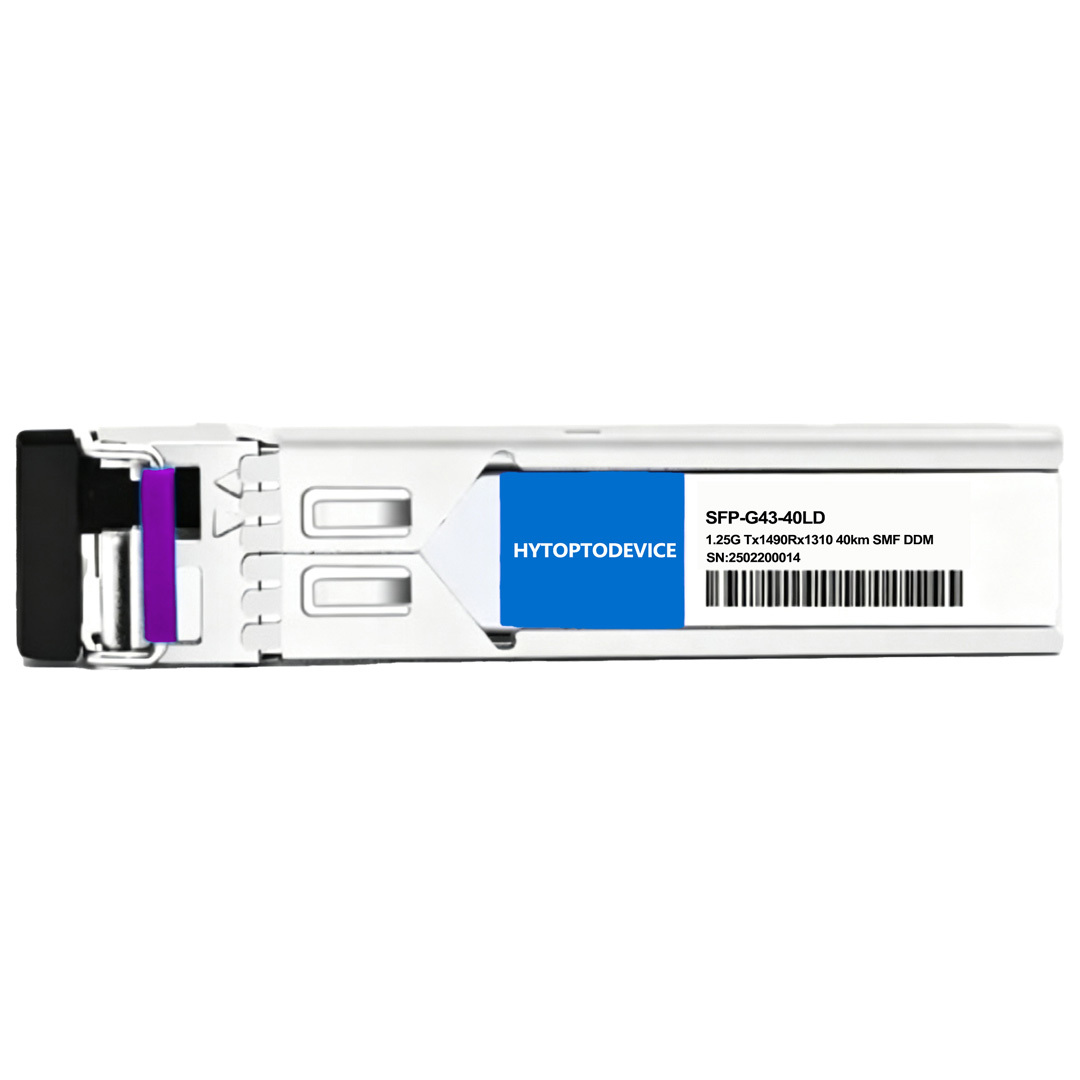

  • Huawei compatible bidi sfp module Tx1490Rx1310 40km ddm
  • 40km single fiber gigabit SFP BiDi transceiver LE2MGSC40ED0 for Huawei switches
  • Hot-pluggable 1000BASE-BX-U SFP BiDi optical module LE2MGSC40ED0
  • 1g single fiber bidi sfp module huawei compatible sfp bidi tx1490rx1310
  • Huawei compatible bidi sfp module Tx1490Rx1310 40km ddm
  • 40km single fiber gigabit SFP BiDi transceiver LE2MGSC40ED0 for Huawei switches
  • Hot-pluggable 1000BASE-BX-U SFP BiDi optical module LE2MGSC40ED0

Huawei Compatible LE2MGSC40ED0 | 1G SFP BiDi Transceiver 40km 1490/1310nm Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE provides fully tested LE2MGSC40ED0 BiDi SFP for Huawei. 40km single fiber transceiver with Tx1490Rx1310nm wavelength vias LC simplex connector,DDM support across enterprise, campus, metro, and ISP networks. Bulk wholesale & OEM customization available for global importers & distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX40-DA SFP-G34-40LD
2 Alcatel-Lucent  SFP-GIG-BX-D40 SFP-G43-10LD
3 Brocade E1MG-1G-BXDA-40 SFP-G43-20LD
4 Juniper Networks  SFP-GE40KT14R13 SFP-G53-10LD
5 Huawei LE2MGSC40ED0 SFP-G53-20LD
6 Cisco GLC-BX40-D-I SFP-G53-40LD
7 Brocade E1MG-1G-BXD-40 SFP-G45-80LD
8 Juniper Networks  SFP-GE40KT15R13 SFP-G45-1BLD
Description

Huawei Compatible LE2MGSC40ED0 Gigabit SFP BiDi Transceiver 40km
(SMF, 1490nm-TX/1310nm-RX, Simplex LC, DOM)

Product Overview

This professional single fiber sfp bidi transceiver LE2MGSC40ED0 from HYTOPTODEVICE supports 40km stable transmission over single-mode fiber. It adopts 1490nm-TX / 1310nm -RX wavelength and standard LC simplex plug, fully compliant with SFP MSA, SFF-8472, IEEE 802.3ah. The rigorously verified Huawei compatible sfp bidi transceiver must be paired with its complementary module LE2MGSC40DE0. ideal for enterprise campus networks, ISP backbone links and long-distance gigabit fiber connections.

Key Technical Specifications

Huawei Compatible

LE2MGSC40ED0

Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1490nm/RX1310nm Max Distance 40km
Connector Simplex LC Transmitter Type 1490nm DFB
Cable Type SMF Receiver Type PIN
TX Power -5.0~0dBm Receiver Sensitivity < -24.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1490/RX1310 BiDi SFP Module requires a counterparty TX1310/RX1490 transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 40km single-fiber links. For lab testing or field deployment under 15km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List and Supported Devices

HYTOPTODEVICE owns a professional compatibility test lab covering over 150 mainstream network brands devices. All HYTOPTODEVICE LE2MGSC40ED0 sfp bidi transceivers pass real hardware and actual device tests before delivery . Relevant test videos are available upon request.100% compatible with mainstream Huawei switches and routing devices;Perfect plug-and-play replacement for original LE2MGSC40ED0 optics on Huawei enterprise switches;Stable operation on huawei access, aggregation and core switches for fiber networking systems.
1.
Compatible Huawei Series Includes:
  • Huawei CloudEngine Campus Switches: S5700, S5720, S5735, S5736, S6720, S6730, and S6735 Series.

  • Huawei Quidway Switches: S2700, S3700, and S5300 Series.

  • Huawei NetEngine Routers: NE05E, NE08E, NE20E-S, and NE40E Series (via supported Gigabit Ethernet interfaces).

  • Huawei AR Series Enterprise Routers: AR1200, AR2200, AR3200, and AR6000 Series.

2.Multi-Brand Cross-Platform Compatibility

This reliable 1G sfp bidi transceiver features excellent cross-brand interoperability. It maintains consistent performance in multi-vendor network environments, well suited for system integrators and bulk purchasers. The universal BiDi module works seamlessly with most mainstream network brands without compatibility failures.

Primary Application Scenarios

The huawei compatible sfp bidi transceiver must be paired to use in the below application scenarios, the LE2MGSC40ED0 (TX1490Rx1310nm) and paired  LE2MGSC40DE0 (Tx1310Rx1490nm) are at opposite end of single fiber.

1.40km single fiber BiDi SFP deployment for metro ISP networks: This long-reach SFP bidi transceiver saves fiber resources and ensures reliable long-distance data transmission for ISP backbone links.
2. Gigabit BiDi SFP for campus enterprise networks: The LC simplex BiDi SFP module fits campus switch interconnection, optimizing fiber cabling for large local area networks.
3. Long-distance fiber links using 1310/1490nm BiDi SFP transceiver: Suitable for remote branch connection and cross-building fiber networking with 40km reach.
4. DDM-enabled BiDi SFP for monitored network links: Works for managed network systems that require real-time optical parameter monitoring via DOM/DDM function.
5. Cost-effective single fiber SFP bidi transceiver for system integration: Perfect for network project contractors and bulk order users to cut cabling and hardware costs.

Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity
hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 40km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC

3.1G Structured Cabling
HYTOPTODEVICE 1000BASE-BX BIDI sfp transceiver 40KM SMF

Core Product Features

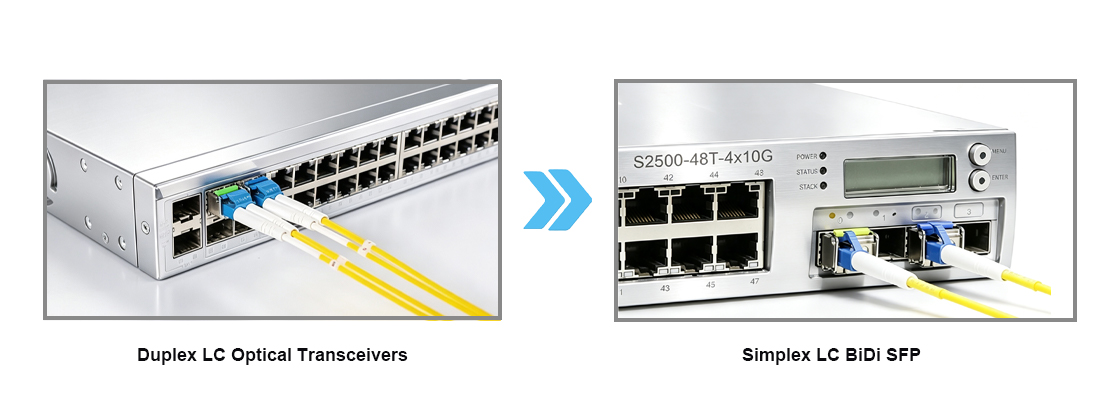

1. Expand Your Network at Half the Cost

Why lay two fibers when one will do? Our BiDi transceiver carries full-duplex traffic over a single strand, eliminating the need for extra cabling and switch ports. Compatible with leading campus switches and ready to use out of the box, it's the fastest, most affordable way to scale.
hytoptodevice 40km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Fiber Capacity Without Laying a Single New Strand

Running out of fiber in your campus network? This BiDi transceiver carries both transmit and receive over one strand using integrated WDM technology. No redundant wiring, no extra cable pulls—just more capacity from the infrastructure you already own. Plug in and scale.

Tx1310 Rx1490 40km simplex LC bidi transceiver module from hytoptodevice

3.High-Density, Low-Power Connectivity for Data Centers

Deliver full-duplex Gigabit Ethernet in a compact SFP form factor without straining your power budget. By combining low power draw with reduced heat output, this BiDi SFP lowers cooling overhead and enables higher port density—so you can scale your data center fabric without expanding either your fiber plant or your power footprint.

hytoptodevice supply bulk wholesale 1000base-bx 40km  BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 40km SMF simplex lc

5. Tested to Failure, Shipped with Confidence
Rigorous in-house testing in our Test Center on every unit—signal integrity, BER, and temperature cycling. We push it past spec so your network doesn't have to. Built for uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 40km single‑fiber operation


FAQ
Q1: Do short-distance 4km fiber links require optical attenuator for 40km sfp bidi transceiver Tx1490 Rx1310?
A: Yes. HYTOPTODEVICE LE2MGSC40ED0 sfp bidi transceiver outputs up to 3dBm high transmit power. For links shorter than 10km, install a 5dB–10dB inline LC attenuator to avoid receiver overload and permanent signal damage.

Q2: Does Huawei matched sfp bidi transceiver Tx1490 Rx1310 come with complete DOM diagnostic capability?
A: All HYTOPTODEVICE sfp bidi transceiver fully supports DOM monitoring. Network admins check real-time Tx/Rx power, internal temperature and voltage via standard VRP CLI commands on all Huawei switch series.

Q3: Can gigabit sfp bidi transceiver Tx1490 Rx1310 work under 100Mbps Fast Ethernet network mode?
A: No. HYTOPTODEVICE LE2MGSC40ED0 sfp bidi transceiver is fixed single-rate 1000BASE gigabit hardware, which cannot run on legacy 100Mbps network environments.

Q4: Is third-party sfp bidi transceiver stable enough to replace genuine Huawei original optical transceivers?
A: HYTOPTODEVICE sfp bidi transceiver adopts high-grade optoelectronic raw materials same as factory originals. Every unit gets custom EEPROM coding and full real-Huawei switch testing to reach 99.9% continuous network stability.

Q5: Does commercial sfp bidi transceiver Tx1490 Rx1310 pass global enterprise network certification standards?
A: Every HYTOPTODEVICE sfp bidi transceiver strictly complies with SFP MSA, CE, FCC, RoHS and IEC 60825-1 laser safety norms, satisfying international enterprise deployment compliance requirements.

Q6: Can 1G sfp bidi transceiver operate normally on multi-rate 10G SFP+ slots of Huawei CloudEngine switches?
A: It works after simple configuration. Lock the port speed to 1000Mbps through VRP interface commands, then HYTOPTODEVICE sfp bidi transceiver delivers steady gigabit single-fiber transmission.

Q7: Is Huawei pre-programmed sfp bidi transceiver plug-and-play for Cisco and H3C network switching hardware?
A: This HYTOPTODEVICE sfp bidi transceiver is preloaded with exclusive Huawei EEPROM data. Deploying it on Cisco or H3C gear may trigger port alarm logs; pick vendor-customized transceivers for cross-brand devices.

Q8: What maximum power draw does indoor 40km sfp bidi transceiver Tx1490 Rx1310 produce during full operation?
A: HYTOPTODEVICE sfp bidi transceiver uses energy-saving circuit design with peak power consumption below 1W, effectively lowering heat buildup inside dense stacked Huawei switch racks.

Q9: Is gigabit single-fiber sfp bidi transceiver applicable to SDH and SONET optical transport network construction?
A: Not suitable. This sfp bidi transceiver from HYTOPTODEVICE is calibrated for IEEE 802.3ah Gigabit Ethernet and standard 1G Fiber Channel, without parameter tuning for SDH/SONET transport systems.

Q10: What negative impacts appear if indoor sfp bidi transceiver continuously runs over 70℃ ambient temperature?
A: Long-term operation beyond the rated 0–70℃ range shifts the laser wavelength of HYTOPTODEVICE sfp bidi transceiver, accelerates component aging and raises the risk of unexpected module breakdown.

Packaging & Custom OEM Solutions

Each BiDi module arrives individually sealed in ESD-safe anti-static packaging, ready to go straight onto your shelf. Distributors, wholesalers, and integrators can leverage our flexible OEM program: custom logos, private labeling, branded packaging. We handle the quality; you own the customer relationship.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
