| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | GLC-BX120-D | SFP-G45-1BLD |
| 2 | Juniper | SFP-GE120KT15R14 | SFP-G43-10LD |
| 3 | Brocade | E1MG-1G-BXD-120 | SFP-G43-20LD |
| 4 | Dell | SFP-GE-BX120D-1550 | SFP-G53-10LD |
| 5 | Extreme | MGBIC-BX120-D | SFP-G53-20LD |
| 6 | H3C | SFP-GE-120-SM1550-A | SFP-G43-40LD |
| 7 | HPE H3C | SFP-1G-BXD-120 | SFP-G53-40LD |
| 8 | Netgear | SFP-GE-BX120-D | SFP-G54-80LD |

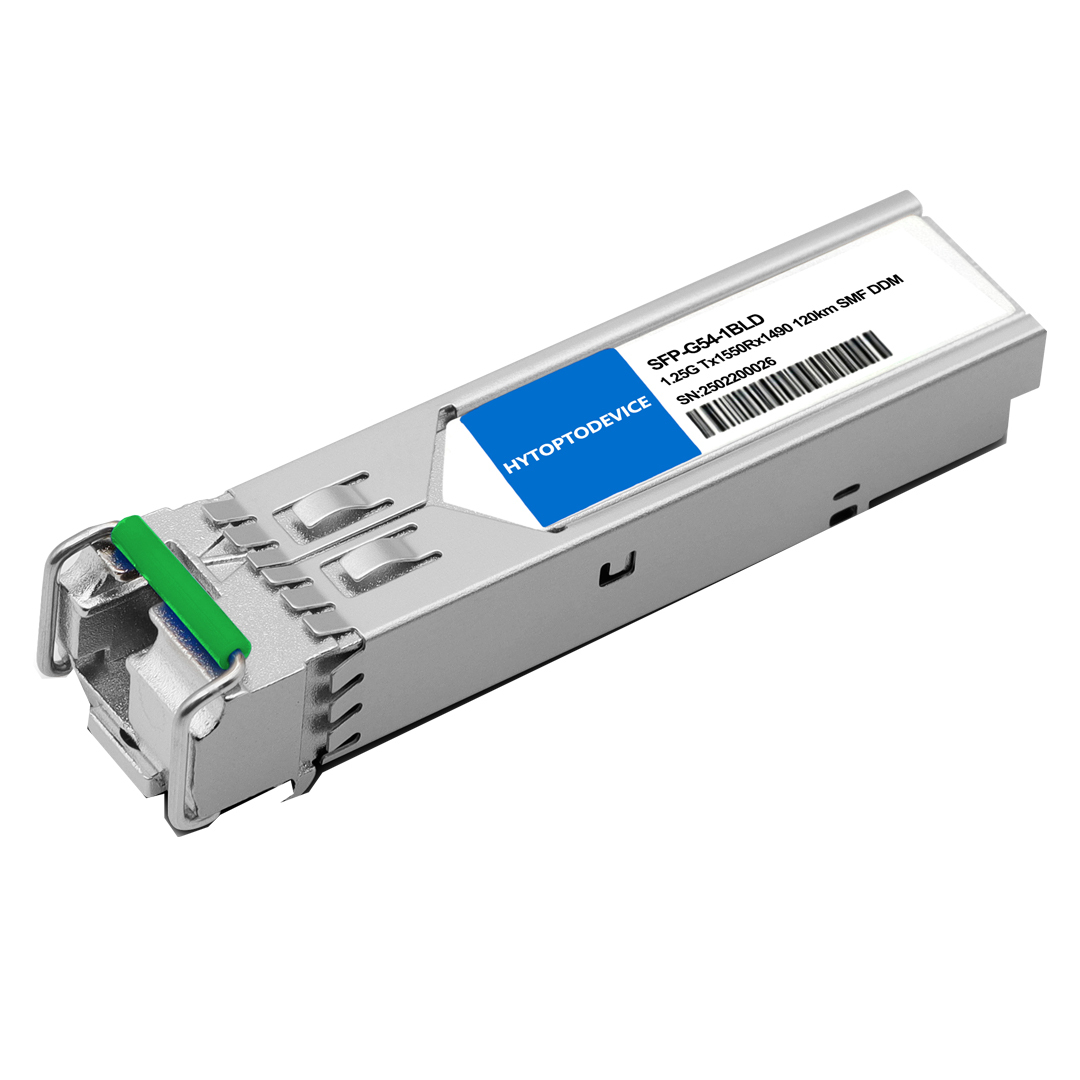

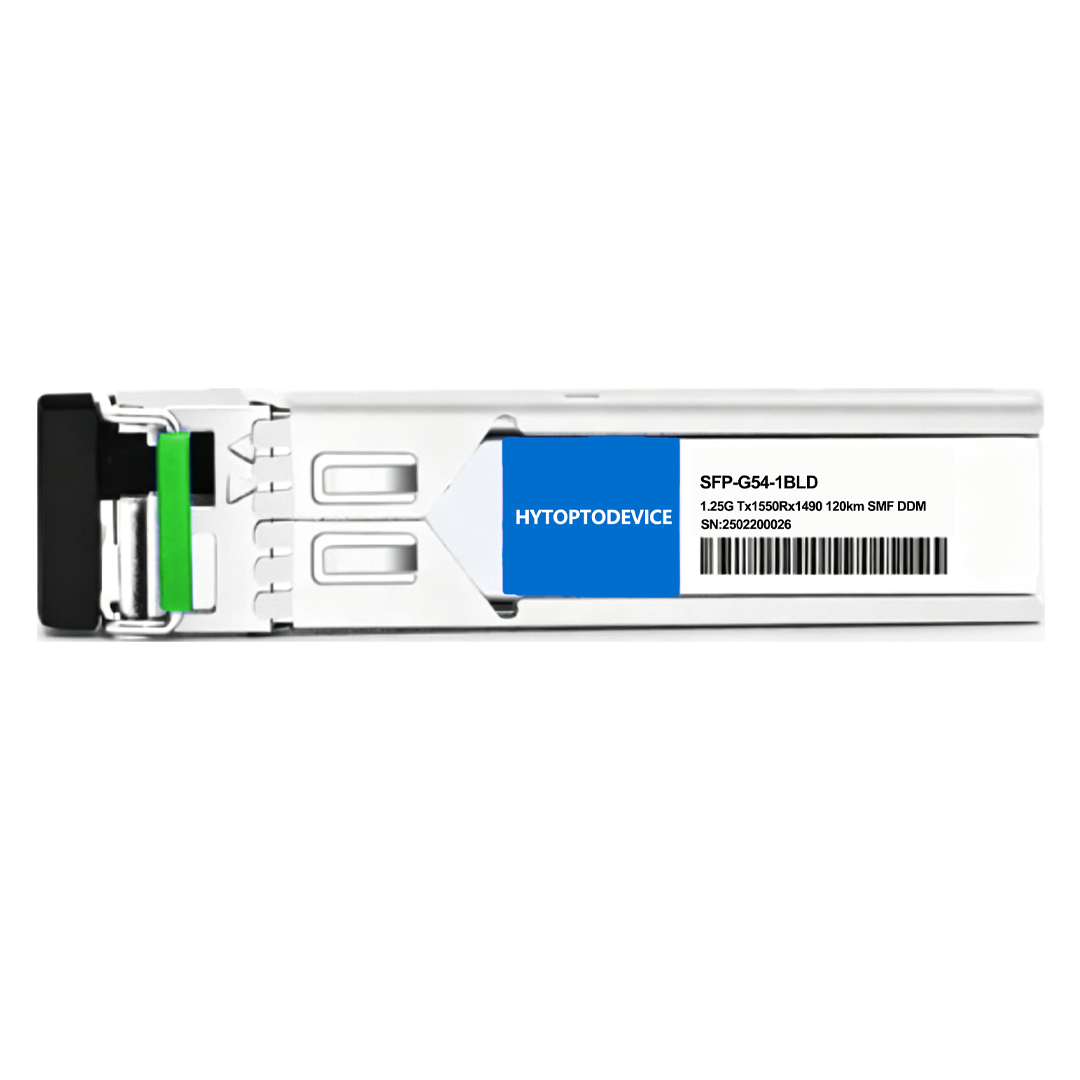

| Dell Compatible | SFP-GE-BX120D-1490 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | TX1550nm/RX1490nm | Max Distance | 120km |
| Connector | Simplex LC | Transmitter Type | 1550nm DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 1~5dBm | Receiver Sensitivity | < -32.0dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Complementary Pairing: BiDi transceivers must be deployed in matched pairs (e.g., TX1490/RX1550 with TX1550/RX1490). Mismatched wavelengths cannot establish a link.
Fiber Choice: Use Single-Mode Fiber (SMF) only. Do NOT use MMF.
Connector Match: Simplex LC (UPC/PC polish only). Do NOT use Duplex LC or APC.
Laser Safety: Class 1 Laser. Never look directly into optical ports or fiber end-faces.
ESD Safety: Wear an anti-static wrist strap before handling the transceiver.
Cleanliness & Dust: Keep dust caps installed on all unused ports. Clean fiber connectors with an optical cleaning pen before insertion; dust causes over 80% of link failures.
Optical Attenuator Required: For short-distance testing or links (<30 km), connect a 10dB–15dB attenuator to the RX port to prevent receiver damage.
Installation & Hot-Swap: MSA compliant. Insert and remove gently without powering down the device.
High Loss / Packet Drops: Ensure fiber bend radius exceeds 30 mm, inspect optical power levels, and clean connectors.
No Link: Verify complementary BIDI wavelength pairing requirement; clean Simplex LC end-faces; check port speed configuration.
1. Supported Hardware & Firmware
Q1: Can I purchase this simplex bidi transceiver module and install it on Dell 10G SFP+ switch uplink ports?
A: Yes, this HYTOPTODEVICE bidi transceiver module works on most SFP+ ports, but manually set port speed to 1Gbps. SFP+ ports support SFP backward compatibility, auto negotiation cannot downshift automatically from 10G to 1G.
Q2: What happens if I buy this 120km BiDi optic and plan to run it at 100Mbps for old legacy network equipment?
A: This HYTOPTODEVICE bidi transceiver module supports speed auto-adaptation, yet it is not recommended. Certain Dell switch models may encounter compatibility mismatches and trigger unexpected link anomalies when running at lower speeds.
Q3: What troubleshooting steps do I take if my Dell OS fails to detect purchased bidi transceiver module?
A: Firmware updates are normally unnecessary for this HYTOPTODEVICE bidi transceiver module. Our pre-calibrated EEPROM matches Dell hardware; only very old firmware may trigger module unrecognized warnings.
Q4: Do I need to order matched wavelength pairs when sourcing bidi transceiver module for single fiber point to point links?
A: Yes, BiDi communication requires paired transceivers with complementary wavelengths. This Tx1550/Rx1490 transceiver must pair with Tx1490/Rx1550 module on the opposite fiber end to build a working single-fiber connection.
Q5: Is it a common onsite error to connect a bidi transceiver module to regular dual-fiber SFP optics via fiber splitter?
A: No, this setup cannot establish a stable network link. BiDi uses wavelength multiplexing over one fiber core while duplex SFP transmits and receives over separate fibers; wavelength mismatch blocks normal data transfer.
Q6: What optical receiver component is built inside this 120km long range bidi transceiver module for metro network projects?
A: This HYTOPTODEVICE 120km bidi transceiver module adopts APD receiver. APD delivers much higher receiving sensitivity than PIN diodes, which is essential to achieve 120km long-reach single-mode fiber transmission.
Q7: Should I add optical attenuators to protect hardware when deploying purchased bidi transceiver module over short fiber spans?
A: Attenuators are required for fiber links shorter than 30km. High launch power of 120km optics will overload APD receiver over short distances; use 10~15dB attenuator to protect the optical receiver.
Q8: Will field splice loss and aged G.652 fiber reduce the working distance after installing purchased bidi transceiver module?
A: Yes, aged G.652 fiber with high loss or splice loss will shorten maximum working distance. Extra attenuation from old fiber reduces optical power budget and may break the 120km link margin.
Q9: What signal integrity risks should buyers evaluate for 120km single fiber links when sourcing bidi transceiver module?
A: Chromatic dispersion has limited impact at 1.25G speed over 120km. Low gigabit rate is less sensitive to dispersion, but excessive dispersion will widen optical pulses and cause bit errors at the maximum 120km distance.
Q10: Why do Dell switches show inaccurate DDM optical power readings after installing bought bidi transceiver module?
A: BiDi wavelength filtering causes occasional DDM reading deviation. The reported RX power may be slightly inaccurate on some switch platforms, even if the actual fiber link remains stable.
Q11: Is overheating a common risk for bulk ordered 120km bidi transceiver module in densely packed Dell rack enclosures?
A: Yes, long-reach 120km BiDi transceivers generate slightly more heat. However, HYTOPTODEVICE bidi transceiver module features optimized power consumption design, and thermal output is barely noticeable under normal operation, compared to low-power 10km short-range SFP transceivers.
Q12: What long-term reliability risks does high cabinet temperature bring to purchased bidi transceiver module?
A: Yes, continuous high operating temperature accelerates laser aging. HYTOPTODEVICE bidi transceiver module passes temperature burn-in test, but prolonged over-temperature operation will reduce the service life of DFB laser and APD receiver.
Q13: What power planning should buyers complete before purchasing multiple bidi transceiver module to fully populate Dell SFP slots?
A: Most modern Dell switch power supplies support full populated ports. Each HYTOPTODEVICE bidi transceiver module consumes ≤1W, you still need to calculate total power budget when fully filling all SFP slots.
Q14: Does HYTOPTODEVICE run individual optical performance testing on every bidi transceiver module before bulk shipment to avoid quality defects?
A: Yes, every HYTOPTODEVICE bidi transceiver module undergoes independent optical testing before shipment. We test optical power, sensitivity and link performance to guarantee 120km reach performance for bulk orders.
Q15: Are these wholesale bidi transceiver module RoHS and MSA certified for international network project procurement?
A: Yes, all HYTOPTODEVICE bidi transceiver module follow SFP MSA specifications and RoHS compliance. Standardized design ensures mechanical and electrical interoperability with most brand network hardware.
