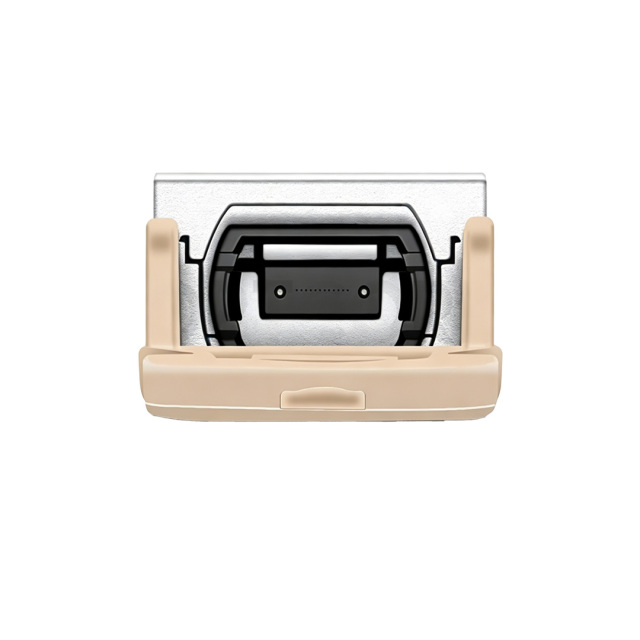

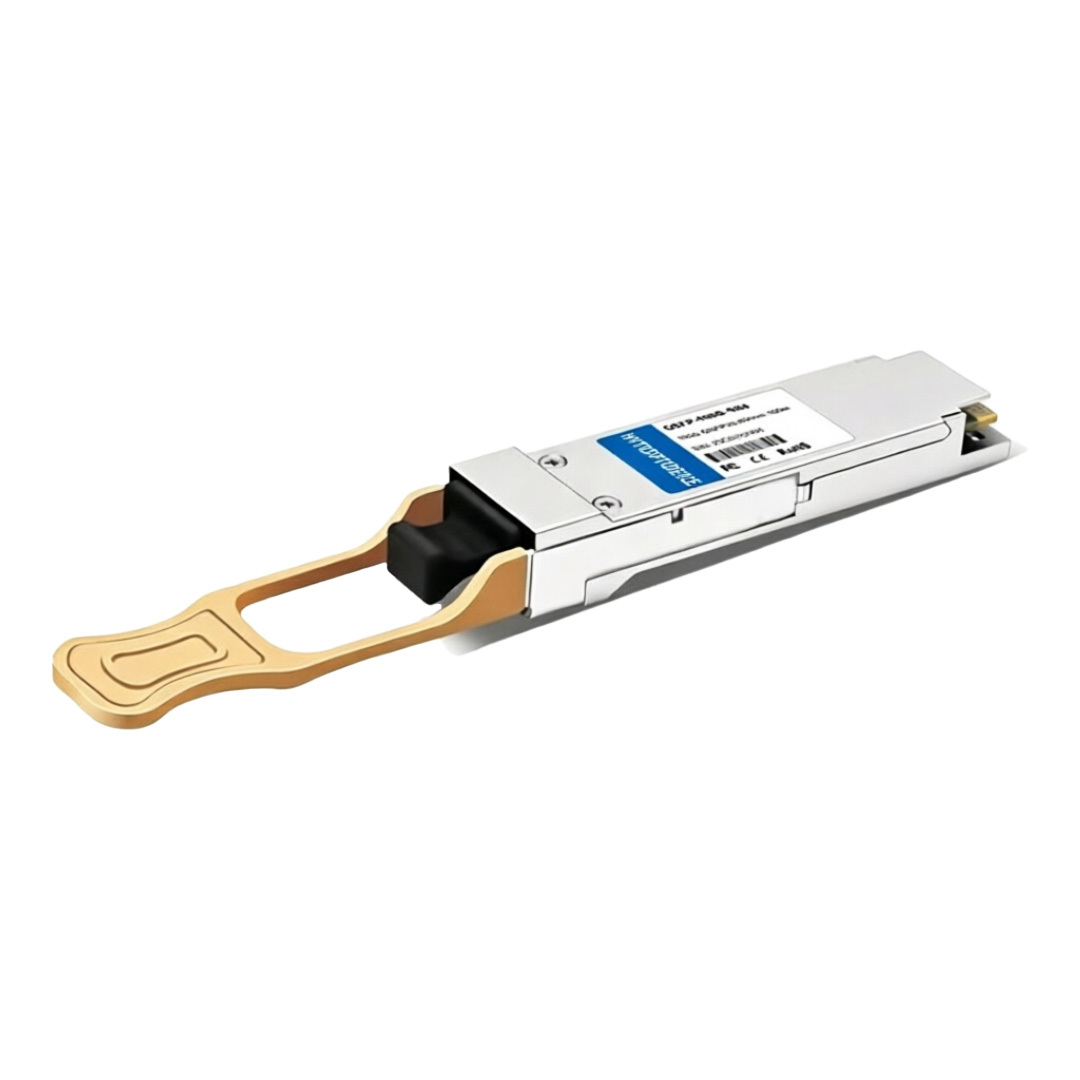

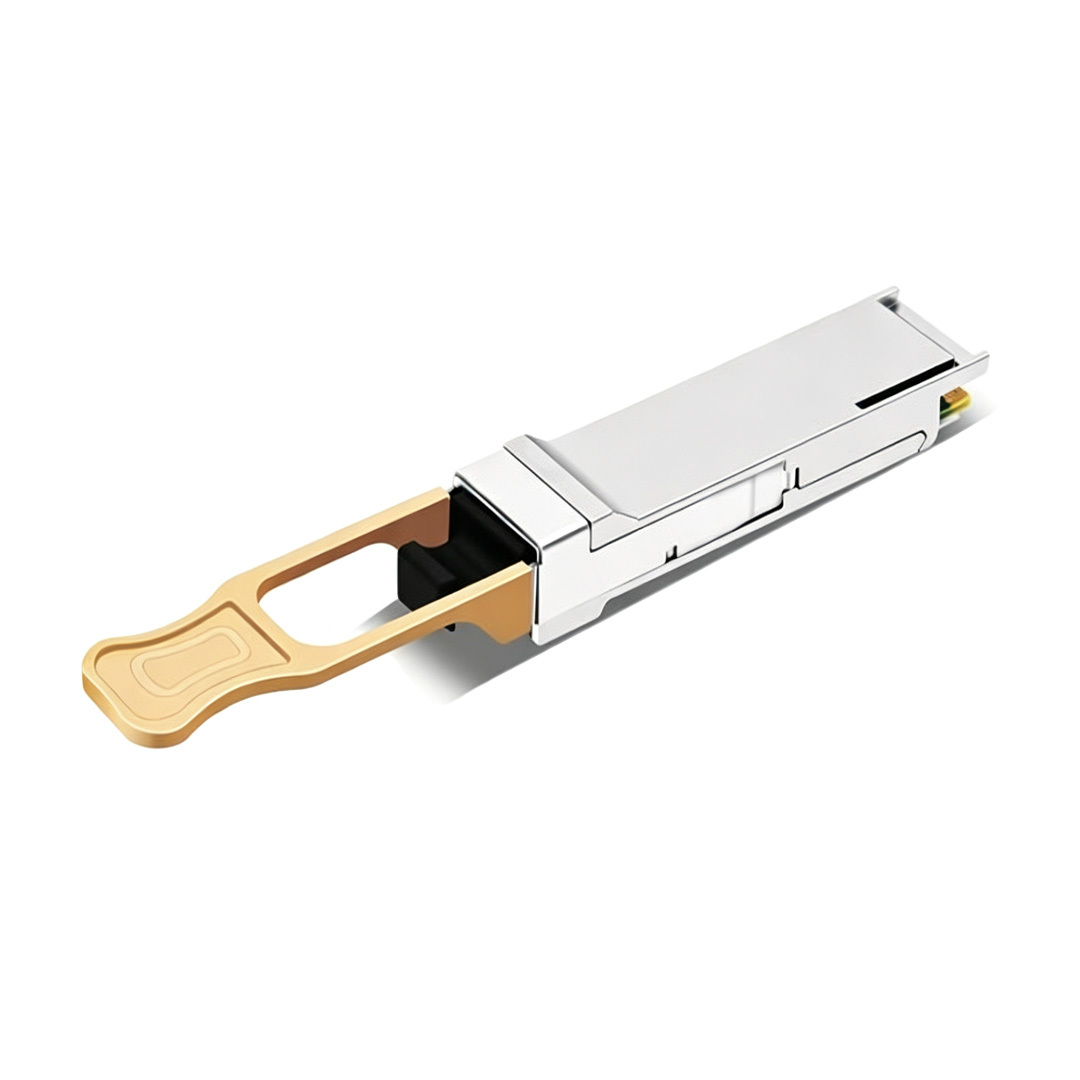

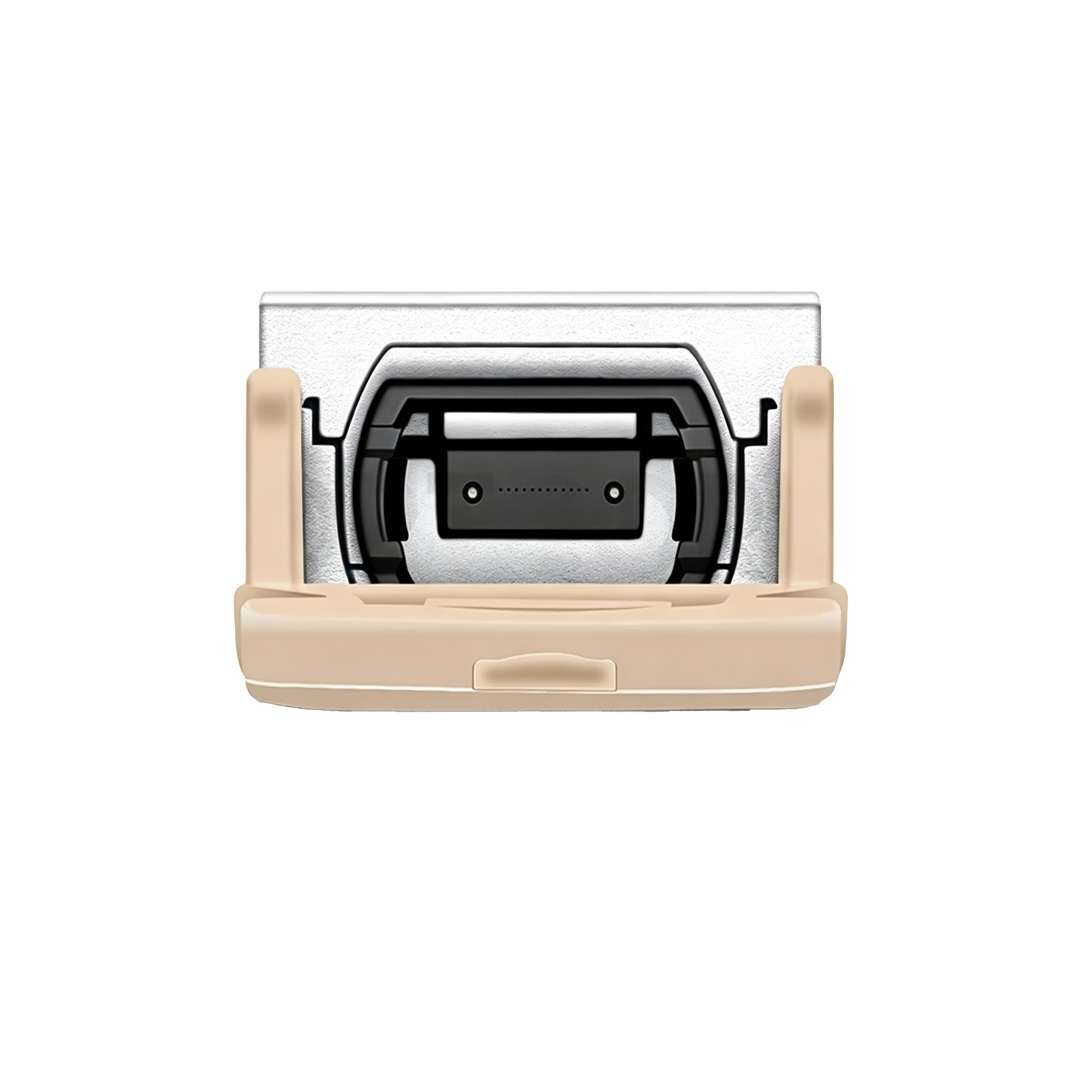

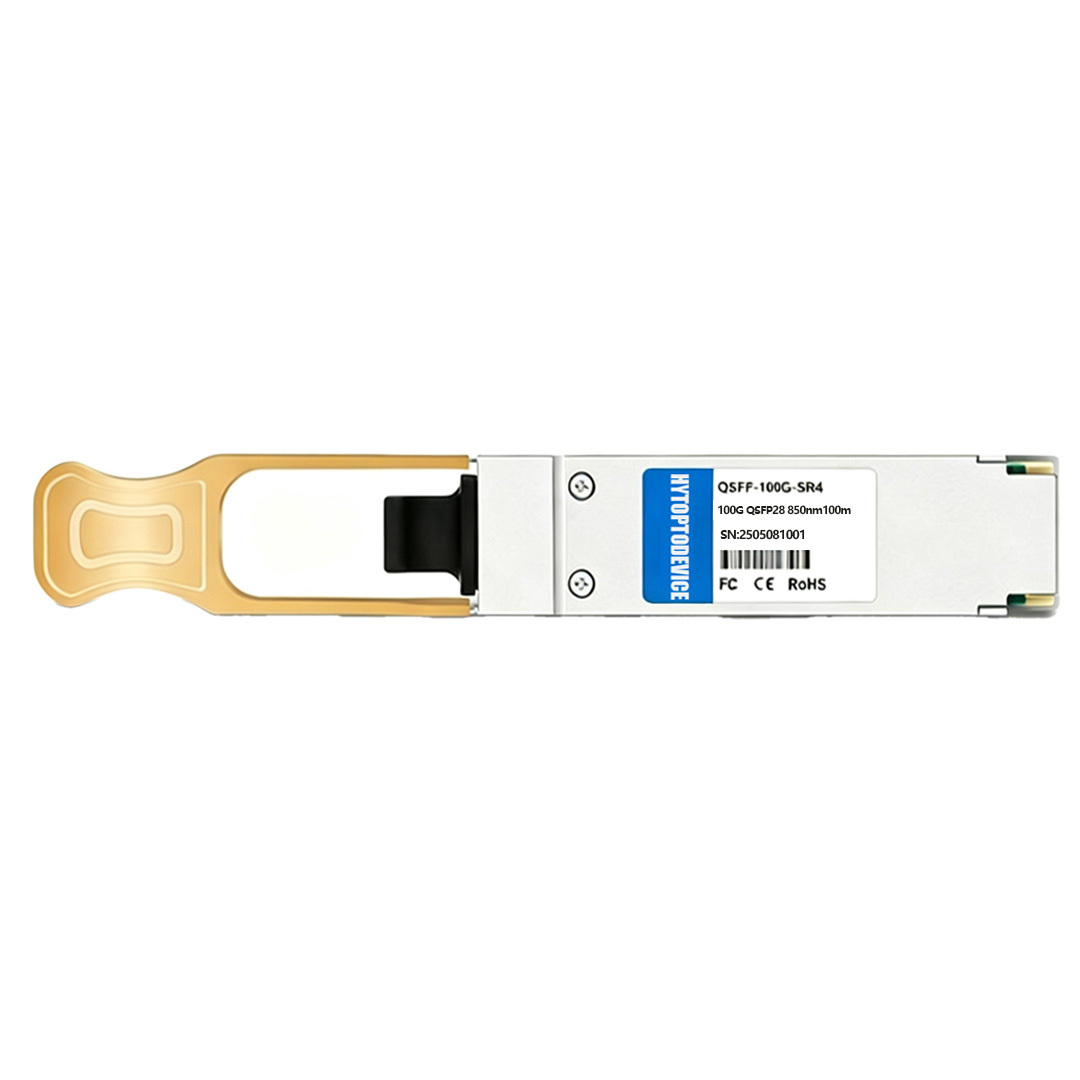

Mellanox MMA1B00-C100D Compatible 100G QSFP28 SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m MPO-12/UPC MMF | HYTOPTODEVICE

Buy bulk 100G QSFP28 sr4 transceiver as drop-in replacement for Mellanox MMA1B00-C100D. Support custom coding, 850nm MMF 70m(OM3)/100m(OM4) with MPO-12 UPC connector, real hardware tested across 150+ network device brands.Support small sample testing, OEM private labeling, custom EEPROM recoding and bulk wholesale for global import distributors and enterprise end users.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco   QSFP-100G-SR4-S   QSFP28-100G-PSM4
2 Arista Networks QSFP-100G-SR4-S  QSFP28-100G-IR4
3 Huawei  QSFP-100G-SR4  QSFP28-100G-LR4
4 Juniper  JNP-QSFP-100G-SR4  QSFP28-100G-ER4L
5 H3C  QSFP-100G-SR4-MM850   QSFP28-100G-ZR4
6 HPE Aruba  JL309A QSFP28-100G-DR
7 HPE BladeSystem   845966-B21  QSFP28-100G-FR
8 Mellanox MMA1B00-C100D QSFP28-100G-LR
Description

Mellanox MMA1B00-C100D  Compatible 100GBASE-SR4 100G QSFP28  SR4 Transceiver | HYTOPTODEVICE
(100m, MMF, 850nm, MPO-12, DOM)

Product Overview

HYTOPTODEVICE 100G QSFP28 SR4 Transceiver is a fully MSA and IEEE 802.3bm compliant optical solution designed to substitute the original Mellanox MMA1B00-C100D module. It delivers 103.125Gbps total bandwidth via four independent 25.78Gbps NRZ optical lanes with standard 850nm wavelength, adopting VCSEL parallel multimode transmission and MPO-12 UPC flat connector. It supports stable error-free transmission up to 70 meters over OM3 multimode fiber and 100 meters over OM4/OM5 fiber. Integrated with high-precision CDR clock recovery and full SFF-8636 DDM monitoring, this optic is optimized for Mellanox NIC uplink, HPC cluster interconnection and short-range data center 100G migration. All bulk 100G QSFP28 SR4 Transceiver units support custom EEPROM rewriting to eliminate vendor lock-in errors in multi-vendor network environments.

Key Technical Specifications

 Mellanox Compatible MMA1B00-C100D  Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max Distance 100m on OM4
Connector MTP/MPO-12(UPC) Transmitter Type 850nm VCSEL
Cable Type MMF Receiver Type PIN
TX Power -8.4~+2.4dBm Receiver Sensitivity < -9.5dBm
Protocols 100G Ethernet, MSA Compliant Power Consumption < 2.0W

 For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Only works with OM3 / OM4 multi‑mode MPO‑12 trunk cable; single‑mode fiber cannot support 850nm SR4 transmission and will lead to link failure.

  • Distance Limit: Max 70m on OM3 MMF, max 100m on OM4 MMF; excessive splices, dirty end‑faces or sharp bends reduce actual working distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot‑plug supported; keep MPO connector end‑faces clean, observe minimum fiber‑bend radius requirements.

  • Port Configuration: Confirm host ports are set to 100G SR4 mode; do not mix SR4 with other 100G optical standards on the same link.
  • Operating Environment: Commercial temperature range 0°C‑70°C; maintain cabinet airflow to avoid module overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Native Mellanox Compatibility

All 100G QSFP28 SR4 Transceiver units complete real-device debugging and traffic testing on official Mellanox hardware, achieving perfect drop-in replacement for MMA1B00-C100D with zero recognition alarms and complete DDM data display. Real test logs and on-site verification videos are available for buyer inspection and project validation.
Compatible Mellanox Hardware Models:
  • Mellanox ConnectX-4 / ConnectX-5 QSFP28 Network Interface Cards
  • Mellanox Spectrum SN2000 / SN2100 Series 100G Switches
  • Mellanox MSN / MQM Series High-Speed Fabric Switches
  • NVIDIA Mellanox HPC Cluster High-Density Uplink Ports
  • Mellanox 100GBASE-SR4 Standard Chassis Ports

2. Multi-Brand Cross Compatibility

Built on universal industry MSA standards, HYTOPTODEVICE 100G QSFP28 SR4 compatible transceivers provide excellent cross‑brand interoperability. They work seamlessly with Arista, Cisco, Juniper, H3C, Dell, NVIDIA/Mellanox hardware and other more, supporting multi‑vendor hybrid networking and flexible short‑reach 100G data‑center deployment.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • 100G QSFP28 SR4 Transceiver bulk replacement for outdated Mellanox MMA1B00-C100D modules during HPC cluster bandwidth expansion
  • Short-range leaf-spine architecture interconnection using 100G QSFP28 SR4 Transceiver to build low-latency data center backbone links
  • Port density optimization via breakout mode of 100G QSFP28 SR4 Transceiver to maximize switch port utilization and reduce cabling costs
  • High-performance computing room networking with low-jitter 100G QSFP28 SR4 Transceiver for virtualization and big data computing workloads
  • System integrator bulk project deployment of EEPROM-customized 100G QSFP28 SR4 Transceiver for multi-vendor hybrid network construction
  • Enterprise multimode structured cabling upgrade adopting standardized 100G QSFP28 SR4 Transceiver for seamless 100G bandwidth migration

Connectivity Solutions(Applications)

1. 100G Switch-to-Switch Interconnection

100G Switch-to-Switch interconnection diagram using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for Arista leaf-spine data center uplink deployment

2.100G Switch-to-NIC Direct Connection

100G Switch-to-NIC direct connection topology with HYTOPTODEVICE 100G QSFP28 transceiver SR4 for high-performance server cloud and storage transmission

3.
100G to 4×25G Breakout Link with Switch
 100G to 4x25G breakout link with Arista switch via MPO cable and HYTOPTODEVICE 100G QSFP28 transceiver SR4 for multi-port aggregation

4.
100G to 4×25G Breakout Link with NIC
100G to 4x25G breakout link with server NIC using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for HPC and virtualization traffic distribution

The Core Feature

1. Low Power, High- Density 100G Connectivity for Data Center

HYTOPTODEVICE QSFP28 100G SR4 transceiver delivers ultra-stable 100Gbps transmission with industry-leading low power consumption. Engineered for maximum reliability in high-density data center environments.


2.Host-Device Tested for Proven Interoperability

Every transceiver is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

HYTOPTODEVICE QSFP‑40G‑SR4‑S compatible transceiver with verified Cisco multi‑generation switch interoperability

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 40G SR4 QSFP+ module comprehensive factory testing stable performance for Cisco platforms bulk wholesale orders


FAQ

Q1: Can HYTOPTODEVICE 100G QSFP28 SR4 Transceiver operate normally when inserted into traditional 40G QSFP+ switch slots?

A: No. Although QSFP28 and QSFP+ share identical physical appearance and slot structure, they support different rate protocols. 40G QSFP+ slots cannot identify and boot 100G QSFP28 SR4 optical modules, while 100G QSFP28 slots are compatible with downward 40G module adaptation.

Q2: Does HYTOPTODEVICE Mellanox-compatible 100G QSFP28 SR4 Transceiver comply with official IEEE and MSA industry standards?
A: Yes. All our 100G QSFP28 SR4 Transceiver strictly follow IEEE 802.3bm 100GBASE-SR4 standard and QSFP28 MSA unified specifications, with full parameter consistency with mainstream factory modules, ensuring standardized and stable network deployment.

Q3: What MPO cable polarity specification is suitable for direct switch-to-switch interconnection of 100G QSFP28 SR4 Transceiver?
A: Direct switch-to-switch deployment of our 100G QSFP28 SR4 Transceiver requires Type B cross MPO-12 cables. This standard polarity design accurately matches transmit and receive pins to ensure unobstructed bidirectional optical signal transmission.

Q4: Does HYTOPTODEVICE 100G QSFP28 SR4 Transceiver adopt UPC or APC connector interface for multimode networking?
A: Our standard 100G QSFP28 SR4 Transceiver is equipped with MPO UPC flat contact connectors, matched with beige or aqua multimode cables. APC green angled connectors are not applicable, which will cause abnormal link connection and signal loss.

Q5: What is the actual power consumption of bulk-ordered 100G QSFP28 SR4 Transceiver and will it cause switch overheating?
A: Our optimized 100G QSFP28 SR4 Transceiver features low-power design, with overall power consumption controlled between 1.5W-2.0W, maximum no more than 2.5W. It meets Class 3 power dissipation standards, will not cause switch overheating or port overload during long-term operation.

Q6: Does the Mellanox MMA1B00-C100D compatible 100G QSFP28 SR4 Transceiver support safe hot-swap deployment?
A: Yes. Our 100G QSFP28 SR4 Transceiver fully supports standard hot-swappable function. Engineers can plug and unplug the module in running equipment status without shutting down switches or interrupting network business.

Q7: What professional tools are used to clean the MPO interface of high-precision 100G QSFP28 SR4 Transceiver?
A: For daily maintenance of our 100G QSFP28 SR4 Transceiver MPO interface, only dedicated MPO/MTP click cleaning tools are allowed. It is forbidden to use ordinary cotton swabs or sharp tools to clean, so as to avoid scratching the optical end face and affecting link stability.

Q8: How to verify the quality of built-in laser chips of factory-calibrated 100G QSFP28 SR4 Transceiver?
A: Our 100G QSFP28 SR4 Transceiver is equipped with top-tier industrial VCSEL lasers from Lumentum, Broadcom and II-VI. All laser components pass strict aging screening, featuring stable luminous power and excellent anti-aging performance to guarantee long-term reliable operation of data center links.

Q9: What is the maximum allowable insertion loss for OM4 fiber links deployed with 100G QSFP28 SR4 Transceiver?
A: According to IEEE 802.3bm standard specifications, the maximum allowable channel insertion loss for our 100G QSFP28 SR4 Transceiver on 100-meter OM4 multimode fiber is 1.9dB, which ensures error-free and stable 100G high-speed transmission.

Q10: Can standard 100G QSFP28 SR4 Transceiver be used for InfiniBand EDR 4×25G high-speed interconnection?
A: No. Although our 100G QSFP28 SR4 Transceiver has the same physical layer rate as InfiniBand EDR, the two adopt different transmission protocols and coding modes. It cannot adapt to InfiniBand EDR business scenarios, and dedicated EDR modules are required.

Q11: Are MPO and MTP connector cables completely compatible with HYTOPTODEVICE 100G QSFP28 SR4 Transceiver?
A: Fully compatible. MTP is an enhanced upgraded branded version of standard MPO connectors with optimized mechanical structure. All MTP cables can be perfectly matched with our MPO-port 100G QSFP28 SR4 Transceiver for normal signal transmission.

Q12: Can commercial-grade 100G QSFP28 SR4 Transceiver be deployed in outdoor temperature-variable telecom enclosures?
A: Standard commercial-grade our 100G QSFP28 SR4 Transceiver only adapts to 0°C-70°C indoor constant-temperature environments and cannot be used in outdoor unclosed enclosures. For outdoor extreme temperature scenarios, customized industrial-grade (-40°C to 85°C) modules are required.

Packaging & Custom OEM Solutions



  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
