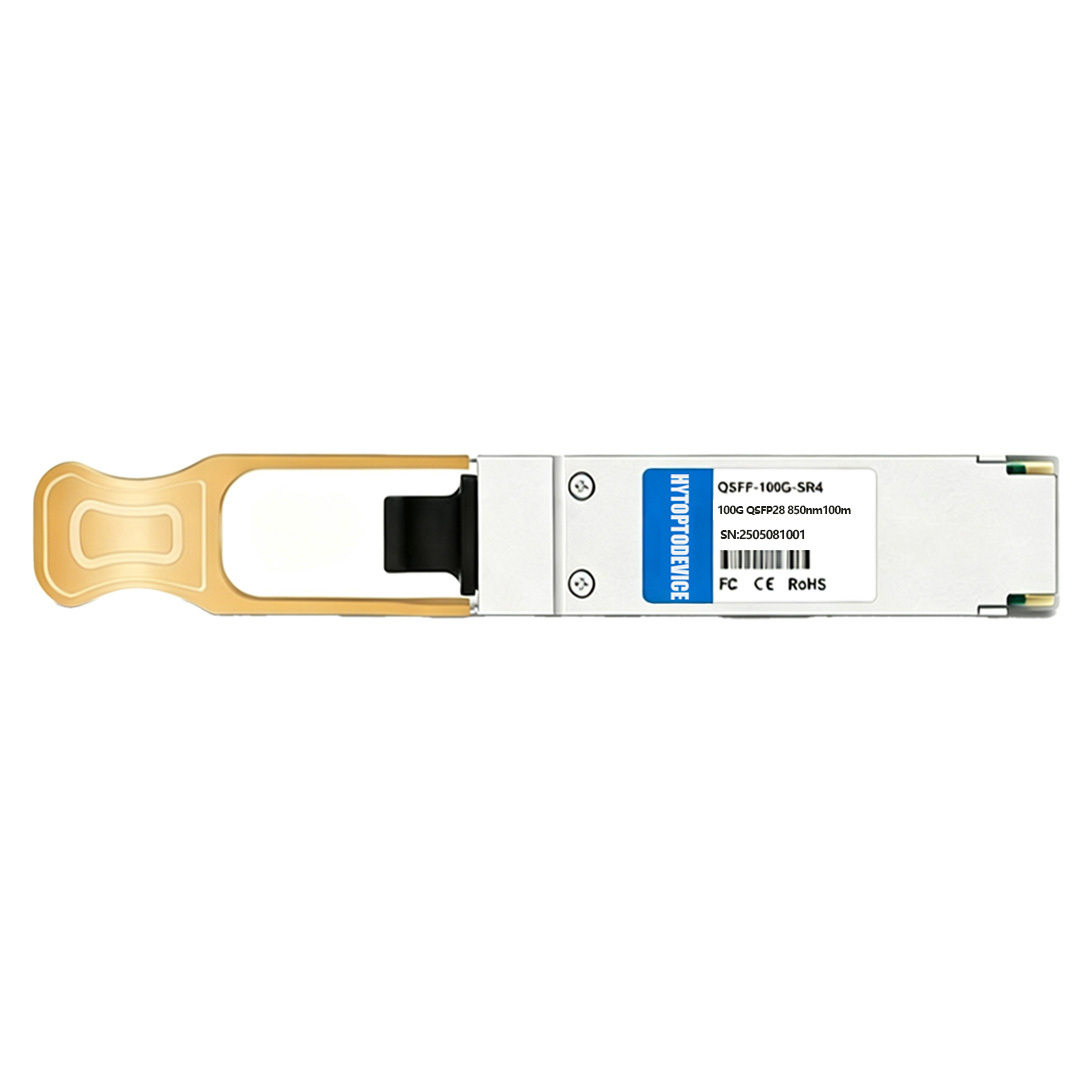

• HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

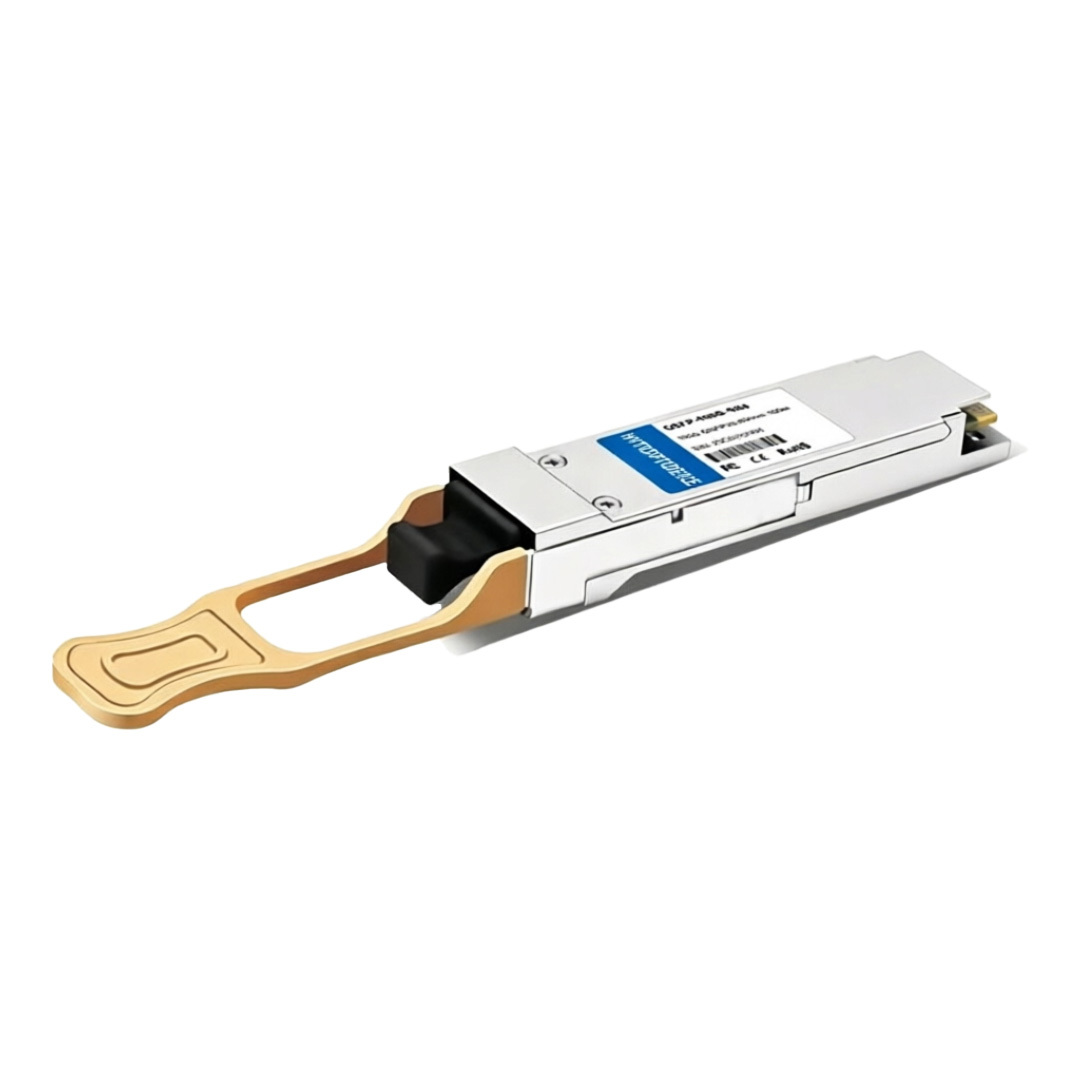

  • HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

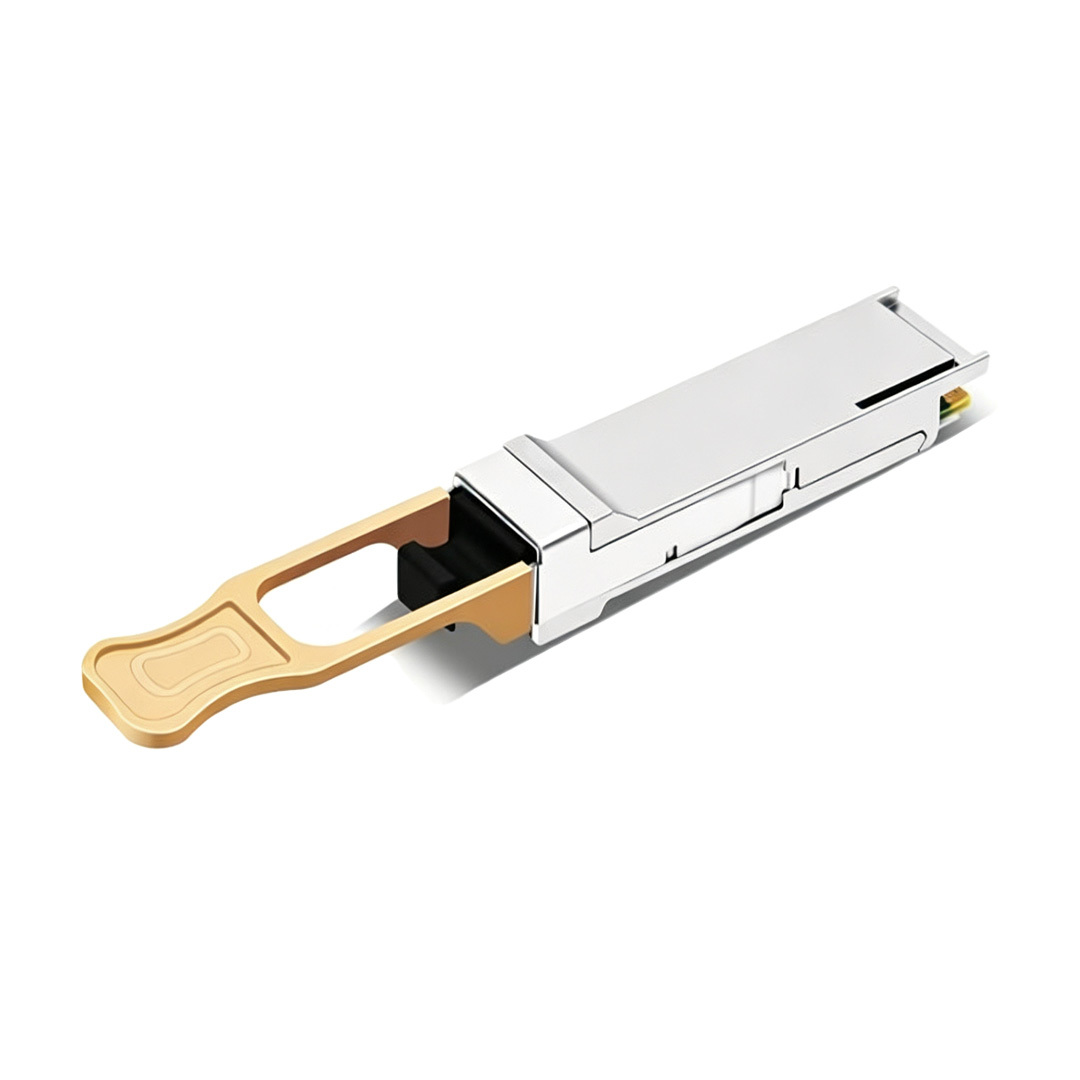

  • HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

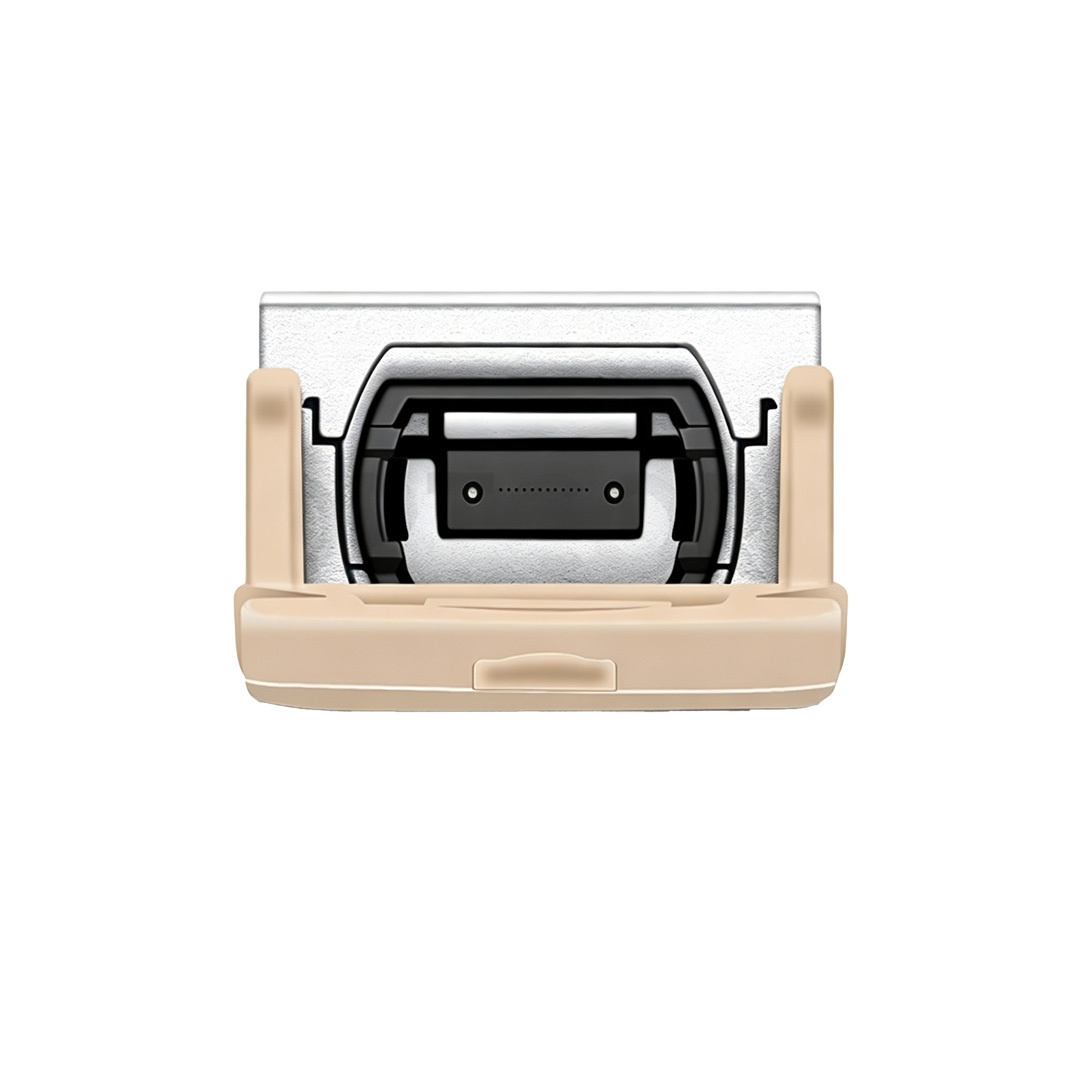

  • Angled view HYTOPTODEVICE QSFP28 100G SR4 Transceiver with integrated CDR chip, low-jitter 100GBASE-SR4 module for HPE Aruba CX leaf-spine fabric interconnection
  • HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE
  • HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE
  • HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

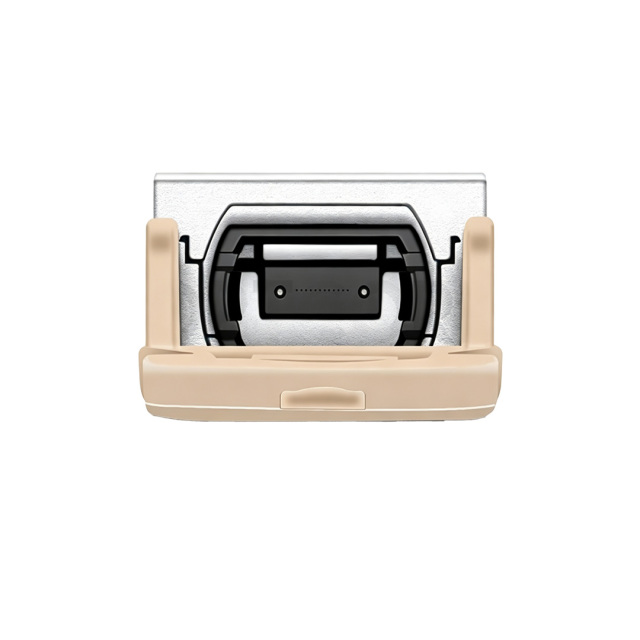

  • Angled view HYTOPTODEVICE QSFP28 100G SR4 Transceiver with integrated CDR chip, low-jitter 100GBASE-SR4 module for HPE Aruba CX leaf-spine fabric interconnection

HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE QSFP28 100G SR4 Transceiver is fully drop-in compatible with HPE Aruba JL309A, 850nm parallel multimode MPO-12 UPC connector, 70m OM3 / 100m OM4 transmission range.Built-in TX/RX CDR and complete multi-lane DDM DOM monitoring. Pre-flashed ArubaOS-CX EEPROM to eliminate unrecognized optic warnings, supports flexible 100G to 4×25G breakout split and universal cross-brand mixed fiber links. Support small sample testing, OEM private labeling, custom EEPROM recoding and bulk wholesale for global import distributors and enterprise end users.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco   QSFP-100G-SR4-S   QSFP28-100G-PSM4
2 Arista Networks QSFP-100G-SR4-S  QSFP28-100G-IR4
3 Huawei  QSFP-100G-SR4  QSFP28-100G-LR4
4 Juniper  JNP-QSFP-100G-SR4  QSFP28-100G-ER4L
5 H3C  QSFP-100G-SR4-MM850   QSFP28-100G-ZR4
6 HPE Aruba  JL309A QSFP28-100G-DR
7 HPE BladeSystem   845966-B21  QSFP28-100G-FR
8 Mellanox MMA1B00-C100D QSFP28-100G-LR
Description

HPE Aruba JL309A Compatible QSFP28 100G SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m Bulk Wholesale | HYTOPTODEVICE

Product Overview

The JL309A (Aruba X151) compatible module is a short-reach QSFP28 100G SR4 transceiver, designed for high-bandwidth campus and data center networks.  Designed for 103.125Gbps total bandwidth via four independent 25.78Gbps NRZ optical lanes with 850nm  wavelength, the Aruba QSFP28 100G SR4 transceiver provides reliable data transmission up over multi-mode fiber (MMF). it supports a reach of up to 100m over OM4  (70m over OM3) using an MPO-12 connector. Compliant with Hot-Pluggable QSFP28 MSA, SFF-8636, IEEE 802.3bm, it is engineered for stability in high-density environments, featuring a commercial-grade operating temperature of 0°C to 70°C. Pre-programmed with Aruba-specific EEPROM signatures, the JL309A QSFP28 100G SR4 transceiver ensure seamless "Plug-and-Play" integration into AOS-CX and ArubaOS-Switch systems with full DDM/DOM monitoring support.

Key Technical Specifications

 HPE Aruba Compatible JL309A   Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max Distance 100m on OM4
Connector MTP/MPO-12(UPC) Transmitter Type 850nm VCSEL
Cable Type MMF Receiver Type PIN
TX Power -8.4~+2.4dBm Receiver Sensitivity < -9.5dBm
Protocols 100G Ethernet, MSA Compliant Power Consumption < 2.0W

 For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Only works with OM3 / OM4 multi‑mode MPO‑12 trunk cable; single‑mode fiber cannot support 850nm SR4 transmission and will lead to link failure.

  • Distance Limit: Max 70m on OM3 MMF, max 100m on OM4 MMF; excessive splices, dirty end‑faces or sharp bends reduce actual working distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot‑plug supported; keep MPO connector end‑faces clean, observe minimum fiber‑bend radius requirements.

  • Port Configuration: Confirm host ports are set to 100G SR4 mode; do not mix SR4 with other 100G optical standards on the same link.
  • Operating Environment: Commercial temperature range 0°C‑70°C; maintain cabinet airflow to avoid module overheating.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1.Native HPE Aruba ArubaOS-CX Compatibility

This replace JL309A achieves zero-warning plug-and-play recognition on all mainstream HPE Aruba enterprise and data center switches, all DDM/DOM voltage, temperature and optical power data can be fully read via AOS-CX command line and web management page. Compatible HPE Aruba hardware series:
  • Data Center Leaf-Spine Switches: Aruba CX 6400, CX 6300, CX 6800, CX 8400 Series
  • Enterprise Aggregation Switches: Aruba 3810M, 2930M, 2540 Series
  • High-Density Cloud Top-of-Rack Switches: Aruba CX 6100, CX 6200 Series

2. Multi-Brand Cross Compatibility

Built on universal industry MSA standards, HYTOPTODEVICE 100G QSFP28 SR4 compatible transceivers provide excellent cross‑brand interoperability. They work seamlessly with Arista, Cisco, Juniper, H3C, Dell, NVIDIA/Mellanox hardware and other more, supporting multi‑vendor hybrid networking and flexible short‑reach 100G data‑center deployment.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support


Primary Application Scenarios

Cost-effective HYTOPTODEVICE QSFP28 100G SR4 Transceiver adapts to all indoor parallel multimode 100G networking scenarios:

  1. HPE Aruba CX 6400/CX6300 leaf-spine data center 100G multimode uplink expansion and upgrade projects
  2. HPC high-performance computing low-latency server interconnection clusters
  3. Enterprise core layer 100G aggregation MPO trunk renovation and deployment
  4. Metro ISP central office 100G high-speed broadband bearing network construction
  5. Global system integrator indoor turnkey multimode 100G optical module bulk engineering projects


Connectivity Solutions(Applications)


1. 100G Switch-to-Switch Interconnection

100G Switch-to-Switch interconnection diagram using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for Arista leaf-spine data center uplink deployment

2.100G Switch-to-NIC Direct Connection

100G Switch-to-NIC direct connection topology with HYTOPTODEVICE 100G QSFP28 transceiver SR4 for high-performance server cloud and storage transmission

3.
100G to 4×25G Breakout Link with Switch
 100G to 4x25G breakout link with Arista switch via MPO cable and HYTOPTODEVICE 100G QSFP28 transceiver SR4 for multi-port aggregation

4.
100G to 4×25G Breakout Link with NIC
100G to 4x25G breakout link with server NIC using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for HPC and virtualization traffic distribution

The Core Feature

1. Low Power, High- Density 100G Connectivity for Data Center

HYTOPTODEVICE QSFP28 100G SR4 transceiver delivers ultra-stable 100Gbps transmission with industry-leading low power consumption. Engineered for maximum reliability in high-density data center environments.


2.Host-Device Tested for Proven Interoperability

Every transceiver is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

HYTOPTODEVICE QSFP‑40G‑SR4‑S compatible transceiver with verified Cisco multi‑generation switch interoperability

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 40G SR4 QSFP+ module comprehensive factory testing stable performance for Cisco platforms bulk wholesale orders


FAQ

Q1: Can HYTOPTODEVICE QSFP28 100G SR4 Transceiver interconnect with 100G BiDi bidirectional optical modules?
A: No, they are completely incompatible. HYTOPTODEVICE QSFP28 100G SR4 Transceiver adopts MPO-12 connector with 8 active multimode fibers, while 100G BiDi modules use LC dual-fiber structure with different dedicated wavelengths, making end-to-end linking impossible.

Q2: Is HYTOPTODEVICE QSFP28 100G SR4 Transceiver compatible with 100G PCIe server NICs such as NVIDIA Mellanox ConnectX?
A: Yes. HYTOPTODEVICE QSFP28 100G SR4 Transceiver works perfectly with NVIDIA Mellanox ConnectX and other mainstream 100G PCIe server NICs after pre-flashing vendor-matching firmware coding for specific NIC brands.

Q3: How to fix the unsupported transceiver error displayed on switches when using HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: The error is caused by mismatched vendor EEPROM coding. You can enable the official third-party module permission command on the switch CLI or contact us to re-flash customized firmware for HYTOPTODEVICE QSFP28 100G SR4 Transceiver to eliminate alarms.

Q4: Do I need 8-fiber or 12-fiber MPO cables to match HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: You must use MPO-12 cables. HYTOPTODEVICE QSFP28 100G SR4 Transceiver only utilizes 8 fibers for signal transmission (4 Tx + 4 Rx lanes), and the middle 4 fibers are idle without affecting link performance.

Q5: Which MPO cable polarity is required for direct switch-to-switch connection with HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: Direct switch-to-switch deployment with HYTOPTODEVICE QSFP28 100G SR4 Transceiver requires Type B cross MPO cables, which correctly matches Tx and Rx pins for normal optical signal transmission.

Q6: What is the standard operating temperature range of commercial-grade HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: Commercial-grade HYTOPTODEVICE QSFP28 100G SR4 Transceiver stably operates at 0°C to 70°C. We also provide customized industrial-grade modules supporting -40°C to 85°C for harsh outdoor and industrial deployment scenarios.

Q7: Is temperature above 60°C a failure sign for running HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: 60°C is within the normal working temperature range. Continuous temperature exceeding 70°C indicates poor cabinet airflow or faulty fans, which accelerates laser aging and shortens the service life of HYTOPTODEVICE QSFP28 100G SR4 Transceiver.

Q8: What is the correct cleaning method for the MPO interface of HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: Only use a professional dedicated MPO/MTP click-cleaner tool to clean the interface. Never use unapproved swabs or sharp tools to avoid scratching the optical end face and causing signal attenuation.

Q9: Can HYTOPTODEVICE provide TAA-compliant QSFP28 100G SR4 Transceiver for government project deployment?
A: Standard stock modules are not TAA-compliant by default. HYTOPTODEVICE can supply customized TAA-compliant QSFP28 100G SR4 Transceiver manufactured in qualified regions such as Taiwan, South Korea and the USA to meet government procurement standards.

Q10: What type of optical receiver chip is built into HYTOPTODEVICE QSFP28 100G SR4 Transceiver?
A: HYTOPTODEVICE QSFP28 100G SR4 Transceiver is equipped with a high-sensitivity PIN photodetector array as the core receiving component, ensuring stable and low-noise optical signal reception for 100G multimode links.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
